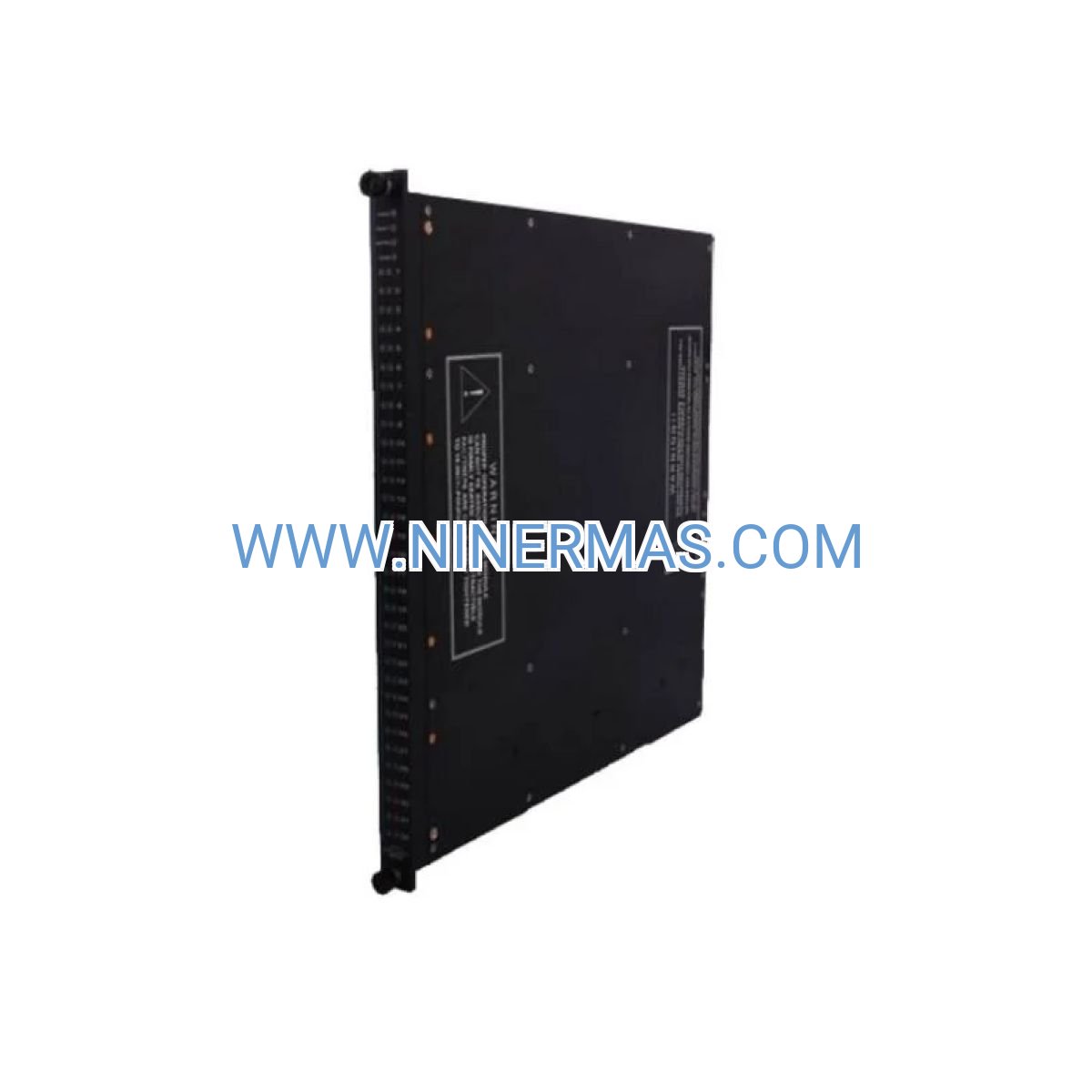

4201RXM Remote Extender Module (Industrial-Grade TMR I/O Extension Solution)

The Triconex 4201RXM is a high-reliability remote extender module engineered to bridge Triple Modular Redundant (TMR) I/O systems across distances up to 3 kilometers. Designed for mission-critical safety applications, this module eliminates ground loop interference while maintaining full SIL 3 integrity across distributed control architectures.

Industrial facilities requiring geographically dispersed I/O points—such as offshore platforms, multi-building chemical plants, and extended pipeline networks—face challenges with signal degradation, electrical noise, and costly copper cabling. The 4201RXM addresses these pain points through fiber optic communication, galvanic isolation, and seamless integration with existing Tricon safety systems.

Key advantages include reduced installation costs through minimized wiring infrastructure, enhanced system flexibility for complex facility layouts, and uncompromised safety integrity across extended distances. Whether you're retrofitting legacy systems or designing new distributed architectures, the 4201RXM delivers proven performance in the harshest industrial environments.

Core Features & Benefits

✓ Extended Communication Range
Fiber optic technology enables I/O extension up to 3 km (1.86 miles) without signal loss, reducing copper cable costs by up to 60% in large-scale installations while eliminating voltage drop concerns.

✓ Ground Loop Isolation
Galvanic isolation between remote locations prevents electrical noise propagation and eliminates potential differences, ensuring 99.9% signal integrity even in electrically harsh environments with heavy machinery and VFDs.

✓ Triple Modular Redundancy Preservation
Maintains full TMR voting architecture across extended distances, preserving SIL 3 safety certification and enabling fault-tolerant operation with automatic error detection and correction.

✓ Hot-Swappable Design
Online replacement capability minimizes unplanned downtime to near-zero, allowing maintenance during operation without compromising system availability or safety functions.

✓ Diagnostic Intelligence
Real-time health monitoring with LED status indicators and system-level diagnostics accelerates troubleshooting by 40%, reducing mean time to repair (MTTR) in critical situations.

✓ Ruggedized Construction
Operates reliably in 0°C to 60°C temperature range with vibration resistance and conformal coating protection, meeting stringent industrial environmental standards for offshore and hazardous locations.

Typical Application Scenarios

→ Offshore Oil & Gas Platforms
Challenge: Remote wellhead monitoring requires I/O points 1-2 km from central control room, with severe electrical noise from drilling equipment.
Solution: 4201RXM enables fiber optic extension with complete ground isolation, reducing false trips by 85% and eliminating costly shielded cable runs.
Value: Enhanced safety system reliability, reduced installation costs, simplified maintenance access.

→ Multi-Unit Chemical Processing
Challenge: Distributed reactor control across 500m facility with hazardous area classifications requiring intrinsically safe barriers.
Solution: Remote I/O placement in classified zones with fiber link to safe area controller, maintaining SIL 3 integrity without barrier complexity.
Value: Simplified compliance with IEC 61511, reduced engineering hours, faster commissioning timelines.

→ Power Generation Turbine Control
Challenge: Boiler safety systems located 800m from main control building with high electromagnetic interference from generators.
Solution: Fiber optic isolation eliminates EMI susceptibility while extending TMR architecture to remote equipment skids.
Value: Zero EMI-related shutdowns, improved system availability, reduced cable tray infrastructure costs.

→ Pipeline Pumping Stations
Challenge: Unmanned remote stations require safety-rated control with minimal on-site equipment and lightning protection concerns.
Solution: Centralized Tricon controller with 4201RXM-extended I/O at remote sites, leveraging fiber's immunity to lightning-induced surges.
Value: Consolidated control architecture, reduced spare parts inventory, enhanced lightning protection.

→ Large Manufacturing Facilities
Challenge: Campus-style plant with production areas separated by 1.5 km requiring coordinated emergency shutdown systems.
Solution: Single Tricon controller with multiple 4201RXM modules extending I/O to each building, maintaining synchronized safety logic.
Value: Unified safety system management, reduced controller count, simplified validation and testing.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 4201RXM when your application requires I/O extension beyond 100 meters, involves electrically noisy environments with ground potential differences, or demands SIL 3 safety integrity across distributed locations. For distances under 100m with minimal electrical noise, standard copper-based I/O expansion may suffice. Verify fiber optic infrastructure availability or budget for fiber installation costs. Ensure compatibility with existing Tricon controller firmware version (consult compatibility matrix for legacy systems).

Extended Functions

IoT Integration Readiness
When paired with Triconex communication modules (4351/4354), the 4201RXM-extended I/O can interface with modern SCADA systems, cloud-based analytics platforms, and predictive maintenance solutions via OPC UA, Modbus TCP, or proprietary protocols.

Advanced Diagnostic Capabilities
Enhanced firmware versions support detailed fault logging, fiber link quality monitoring (optical power levels, bit error rates), and predictive failure alerts that integrate with plant-wide asset management systems for proactive maintenance scheduling.

Customization Options
Custom fiber lengths, specialized connectors for harsh environments, and extended temperature range variants (-40°C to 70°C) available for unique application requirements. Consult engineering team for project-specific configurations.

Delivery & Service Assurance

Lead Time:
• Standard Configuration: 3-5 business days (in-stock items)
• Custom Configuration: 2-3 weeks (special fiber lengths, connectors)
• Express Shipping: Available for critical downtime situations

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for long-term projects.

Technical Support:
Dedicated application engineers provide pre-sales consultation, system design review, commissioning assistance, and post-installation troubleshooting. Remote diagnostic support available 24/7 for critical systems.

Documentation Package:
Each module ships with installation manual, wiring diagrams, fiber termination guidelines, configuration software, and safety certification documents. Digital resources include CAD drawings and 3D models for panel design.

Frequently Asked Questions

Q: How many remote I/O modules can one 4201RXM support in a distributed architecture?
A: A single 4201RXM can extend communication to a remote chassis housing up to 14 I/O modules (depending on chassis configuration), maintaining full TMR voting and diagnostic capabilities across all channels. Multiple 4201RXM modules can be deployed for larger distributed systems.

Q: What fiber optic installation requirements are critical for reliable long-distance operation?
A: Use multimode fiber rated for industrial environments with proper bend radius management (minimum 10× cable diameter). Ensure clean connector terminations using approved cleaning procedures, verify optical power levels within -15 to -3 dBm range, and protect fiber runs in conduit or cable tray to prevent physical damage.

Q: Can the 4201RXM reduce energy consumption compared to traditional copper-based I/O extension methods?
A: Yes, fiber optic communication eliminates the need for signal repeaters and powered barriers required in long copper runs, reducing overall system power consumption by 15-25%. Additionally, lower cable weight reduces structural support requirements in cable tray systems.

Q: What installation considerations apply when deploying in hazardous classified areas?
A: The 4201RXM itself is typically installed in safe areas (Zone 2/Division 2 or non-classified), with fiber optic cables penetrating into hazardous zones to connect remote I/O chassis equipped with appropriate certifications (ATEX, IECEx). Fiber's non-conductive nature simplifies hazardous area installations compared to copper cabling.

Q: How does remote monitoring capability enhance predictive maintenance strategies?
A: Integrated diagnostics monitor fiber link quality, module temperature, power supply health, and communication statistics. Trending these parameters enables early detection of degrading fiber connections, environmental stress, or component aging—allowing scheduled maintenance before failures impact production.

Q: Is the 4201RXM compatible with legacy Tricon systems installed 10+ years ago?
A: Compatibility depends on main processor firmware version. Systems running TriStation 1131 v4.9 or later typically support the 4201RXM with standard configuration. Older systems may require firmware updates or compatibility verification—contact technical support with your system serial number for specific guidance.

Take the Next Step

Ready to extend your Triconex safety system with proven long-distance I/O technology? Contact our application engineering team for a complimentary system design review, fiber infrastructure assessment, and project-specific recommendations. Request a detailed quotation including fiber optic components, installation support, and commissioning services tailored to your facility requirements.
