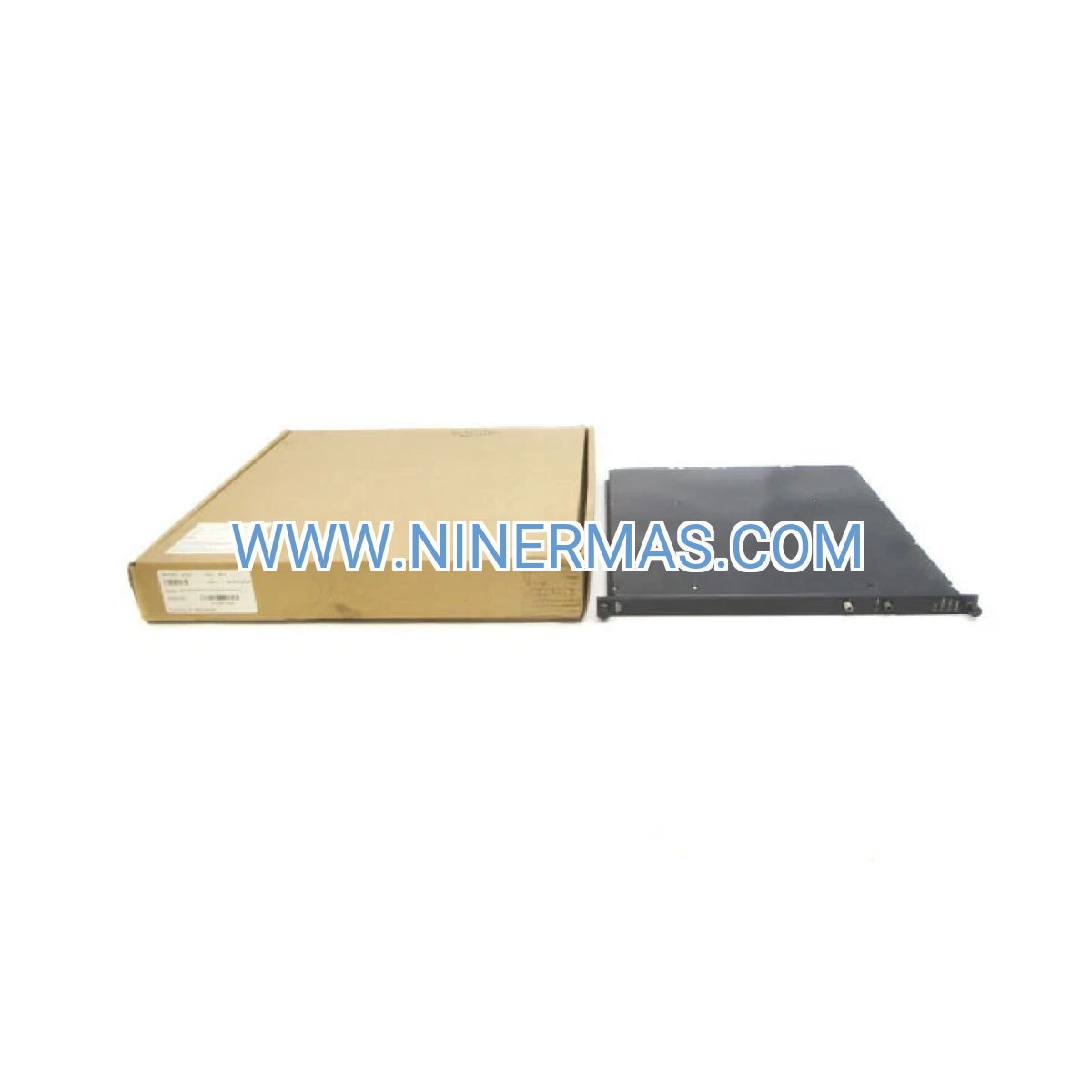

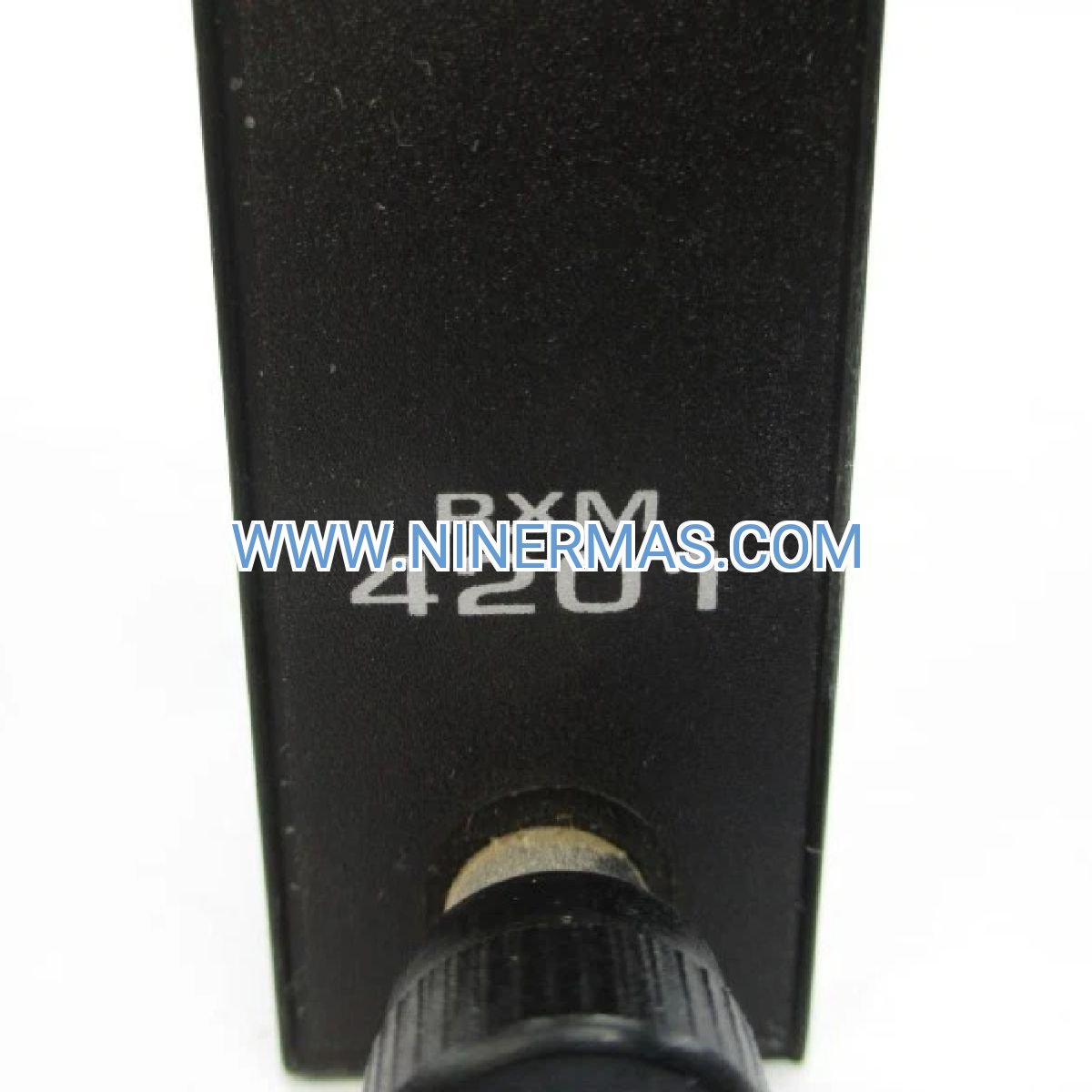

Triconex 4201 Remote Extender Module (Industrial-Grade I/O Distribution Solution)

The Triconex 4201 Remote Extender Module (RXM) represents a breakthrough in distributed safety control architecture, delivering fiber optic-based I/O expansion capabilities for mission-critical Tricon systems. This industrial-grade module enables seamless extension of input/output points across distances up to 12 kilometers, eliminating geographical constraints in large-scale process facilities while maintaining triple modular redundant (TMR) fault tolerance and SIL 3 safety integrity.

Designed for industries where control room centralization and remote field I/O placement are essential—oil refineries, chemical processing plants, offshore platforms, and power generation facilities—the 4201 RXM solves the challenge of costly copper wiring runs and multiple controller deployments. By leveraging dual redundant fiber optic links, it delivers deterministic communication with immunity to electromagnetic interference, ensuring reliable operation in harsh industrial environments.

Whether you're upgrading legacy distributed control systems, expanding existing Tricon installations, or designing new safety instrumented systems (SIS), the 4201 RXM provides the architectural flexibility and proven reliability demanded by safety-critical applications. With hot-swappable operation, comprehensive diagnostics, and seamless integration with Tricon v9+ platforms, this module streamlines deployment while reducing total cost of ownership.

Core Features & Technical Advantages

→ Extended Distance Capability: Supports I/O module placement up to 12 kilometers (7.5 miles) from the main processor chassis, enabling centralized control logic with distributed field hardware—ideal for sprawling facilities and offshore installations.

→ Triple Modular Redundant Architecture: Inherits Tricon's TMR design philosophy with three independent processing channels and voting logic, ensuring continuous operation during single-point failures while maintaining SIL 3 safety integrity levels per IEC 61508 standards.

→ Dual Redundant Fiber Optic Links: Employs two independent fiber paths for fault-tolerant communication, automatically switching to backup link during primary path failures—delivers 99.99% uptime with immunity to electrical noise and ground loops.

✓ Hot-Swappable Maintenance: Supports online replacement without system shutdown or process interruption, minimizing planned downtime and enabling proactive maintenance strategies in 24/7 operations.

✓ Comprehensive Diagnostic Capabilities: Built-in self-diagnostics monitor fiber link quality, signal strength, and module health with real-time status reporting to TriStation configuration software—accelerates troubleshooting and reduces mean time to repair (MTTR).

✓ Wide Environmental Operating Range: Qualified for 0°C to 60°C (32°F to 140°F) ambient temperatures with conformal coating protection against humidity, dust, and corrosive atmospheres—proven in harsh industrial environments worldwide.

Industrial Application Scenarios

Oil & Gas Production Facilities: In offshore platforms and remote wellhead sites, the 4201 RXM connects subsea control panels and wellhead instrumentation to centralized control rooms located kilometers away. This architecture eliminates the need for hazardous area controller enclosures while reducing copper cable installation costs by 60-70%. Operators achieve faster emergency shutdown response times and simplified maintenance access.

Chemical Process Plants: Large chemical complexes deploy the 4201 RXM to link reactor area I/O, tank farm instrumentation, and loading bay safety systems to a single control room. The fiber optic backbone eliminates ground loop issues common in multi-building facilities while supporting Emergency Shutdown (ESD) and Fire & Gas (F&G) detection systems with deterministic response times under 100ms.

Power Generation Stations: Coal-fired, combined-cycle, and nuclear power plants utilize the 4201 RXM to extend Burner Management Systems (BMS) and turbine protection I/O across turbine halls, boiler areas, and auxiliary buildings. The TMR architecture ensures compliance with NFPA 85 and IEC 61511 safety standards while reducing wiring complexity in high-EMI environments.

Petrochemical Refineries: Refinery-wide safety instrumented systems leverage the 4201 RXM to consolidate multiple process units—crude distillation, catalytic cracking, alkylation—under unified Tricon control. This reduces controller proliferation, simplifies operator training, and enables centralized safety logic management with distributed I/O placement near field devices.

Offshore Wind Farms: Emerging renewable energy installations deploy the 4201 RXM for turbine-to-substation communication, extending safety I/O across offshore converter platforms with fiber optic resilience against saltwater corrosion and lightning strikes.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 4201 RXM, verify Tricon controller firmware version compatibility (v9 minimum), calculate total fiber run distance including patch panels and slack allowances, and confirm fiber type availability in your facility infrastructure. For distances exceeding 2 km, multi-mode fiber with 50/125 μm core is recommended for optimal signal integrity. Ensure redundant power supplies are available at remote I/O chassis locations to maintain TMR fault tolerance.

Extended Functionality & Integration

Modbus TCP/IP Gateway Integration: The 4201 RXM seamlessly interfaces with Triconex 4354 communication modules, enabling Modbus TCP connectivity for SCADA integration, historian data collection, and third-party HMI systems without compromising safety loop integrity.

Cybersecurity Hardening: Supports network segmentation strategies with dedicated fiber links isolated from corporate IT networks, reducing attack surface area in compliance with IEC 62443 industrial cybersecurity standards. Optional encryption modules available for classified installations.

Scalable Architecture: Multiple 4201 RXM modules can be deployed in star or daisy-chain topologies, supporting up to 118 I/O modules per Tricon chassis—accommodating facility expansions without controller replacement.

Predictive Maintenance Enablement: Built-in fiber link quality monitoring provides early warning of cable degradation, connector contamination, or transceiver aging—enabling condition-based maintenance scheduling and preventing unplanned outages.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 2-3 business days via express courier with full tracking. Custom configurations (specific firmware versions, factory testing) require 4-6 weeks.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical applications requiring 3-5 year coverage.

Technical Support: Pre-sales application engineering assistance, post-installation commissioning support, and 24/7 emergency hotline access included. Remote diagnostics via secure VPN available for troubleshooting.

Documentation Package: Each unit includes installation manual, fiber optic termination guide, TriStation configuration examples, and AutoCAD dimensional drawings for panel layout planning.

Frequently Asked Questions

Q: What is the maximum number of remote I/O chassis supported per 4201 RXM?
A: Each 4201 module supports one remote I/O chassis. For multiple remote locations, deploy dedicated RXM pairs (main chassis + remote chassis) per site, with up to 14 remote chassis per Tricon controller.

Q: Can the 4201 RXM operate with single-mode fiber for ultra-long distances?
A: The standard 4201 is optimized for multi-mode fiber up to 12 km. For distances exceeding this range, consult factory engineering for single-mode transceiver options supporting 40+ km extensions.

Q: How does the module handle fiber link failures in redundant configurations?
A: The 4201 continuously monitors both fiber paths. Upon primary link failure, automatic switchover to the secondary link occurs within 10 milliseconds with zero data loss, maintaining uninterrupted I/O communication.

Q: Is the 4201 RXM compatible with legacy Tricon v8 controllers?
A: No, the 4201 requires Tricon v9 or later firmware. Upgrading v8 systems to v10/v11 is recommended to leverage RXM capabilities along with enhanced cybersecurity features and expanded I/O capacity.

Q: What are the power consumption requirements for remote chassis installations?
A: The 4201 RXM itself consumes 15W typical. Remote chassis require dedicated 24V DC power supplies sized for total I/O module load plus 20% margin—typically 100-150W for fully populated chassis.

Q: Does the module support online firmware updates without process shutdown?
A: Yes, firmware updates can be performed via TriStation software using the TMR architecture's bumpless transfer capability, allowing module updates while maintaining process control continuity.

Take the Next Step

Ready to extend your Tricon safety system's reach? Our application engineers are standing by to review your facility layout, recommend optimal fiber routing, and provide detailed ROI analysis comparing centralized vs. distributed controller architectures. Contact us today for a complimentary system design consultation and receive a customized bill of materials within 48 hours.

Request a quote now: Share your I/O count, distance requirements, and environmental conditions to receive tailored pricing and delivery timelines. Volume discounts available for multi-unit projects.
