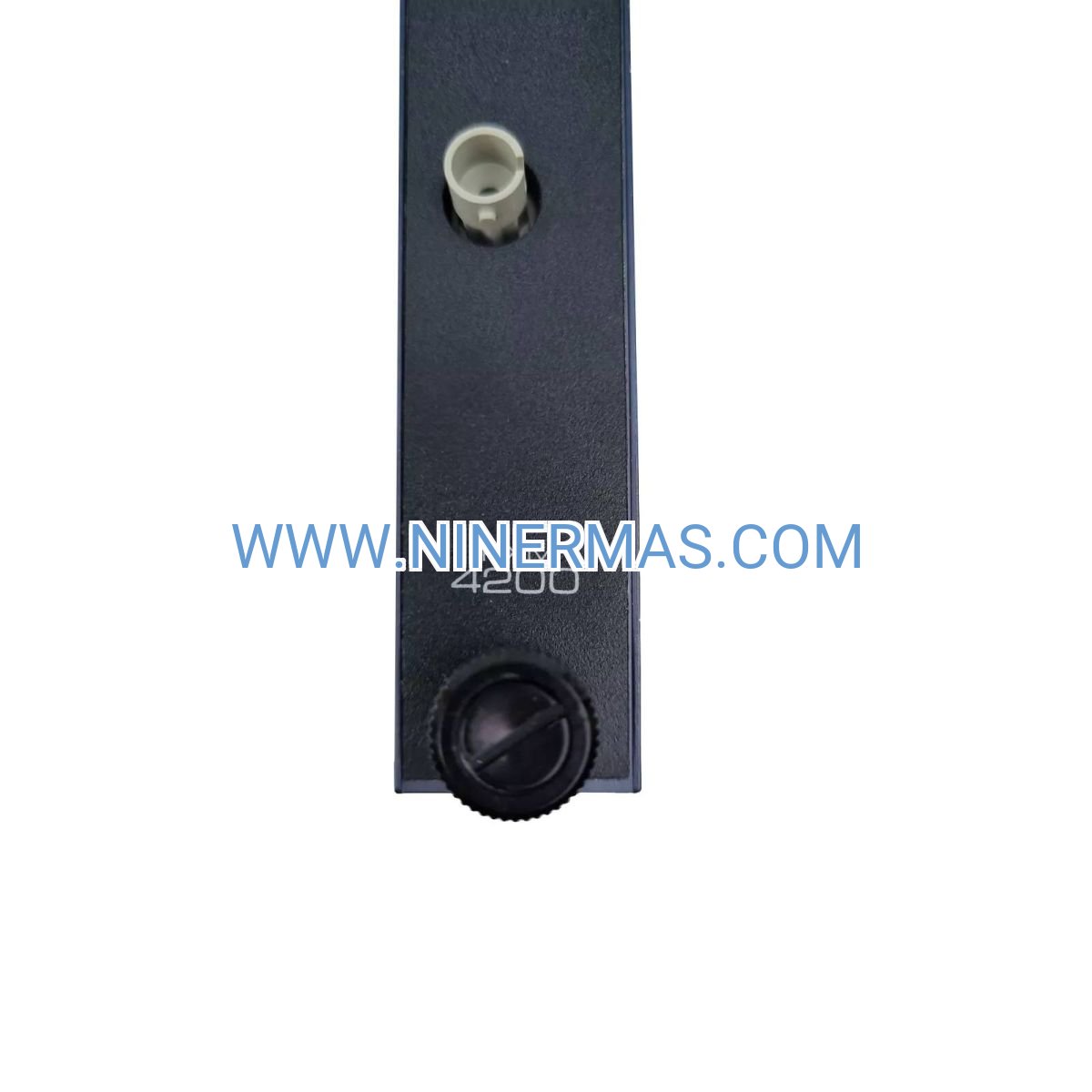

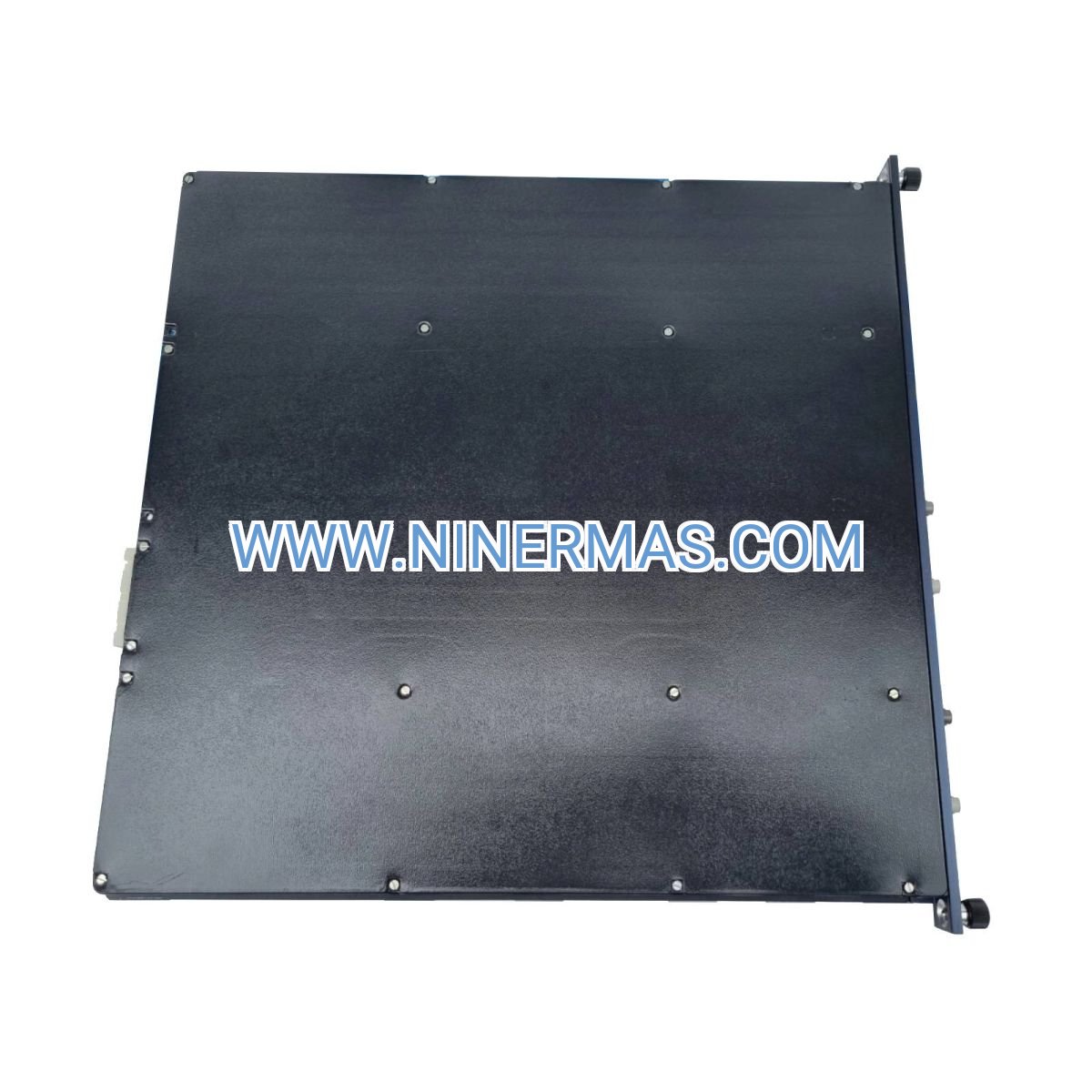

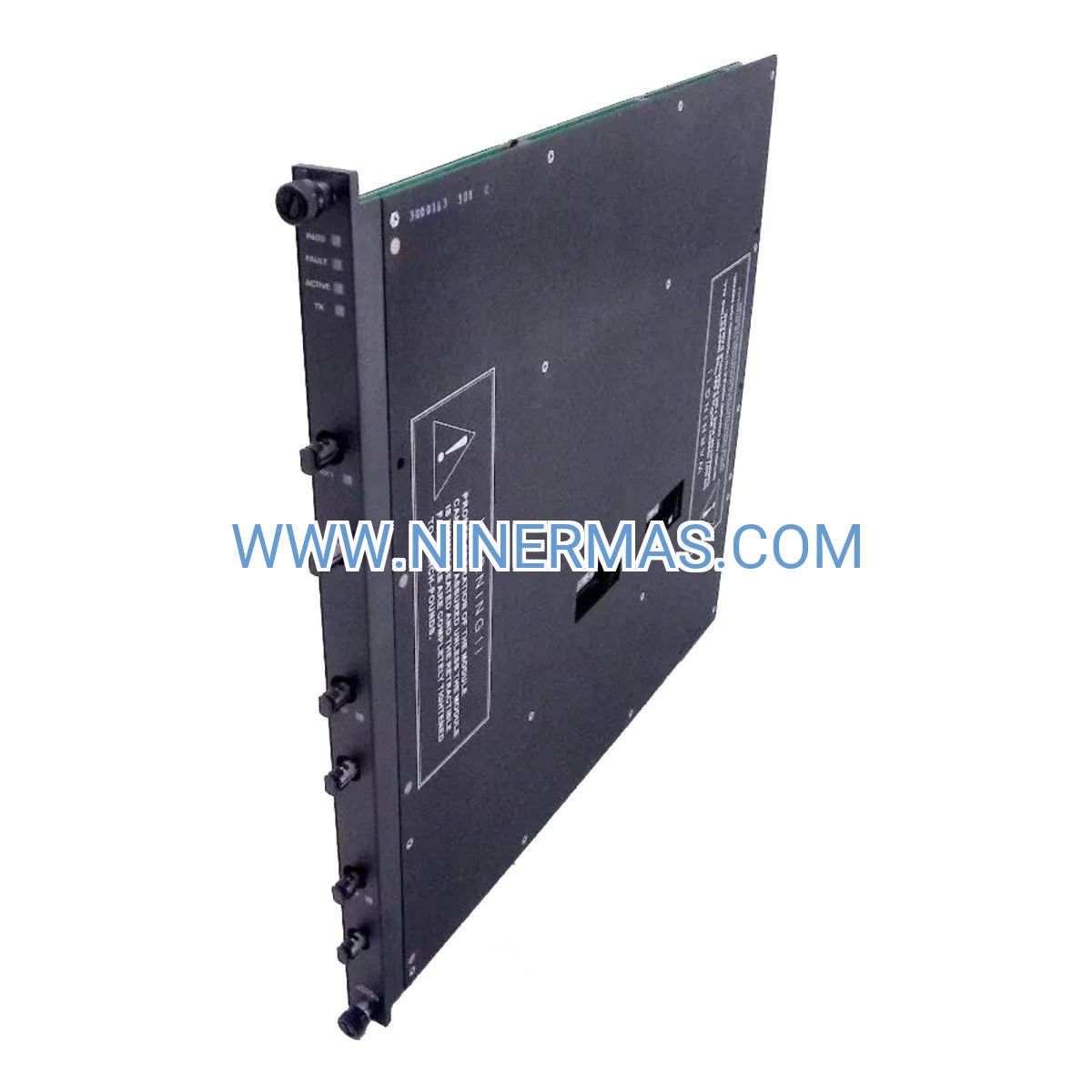

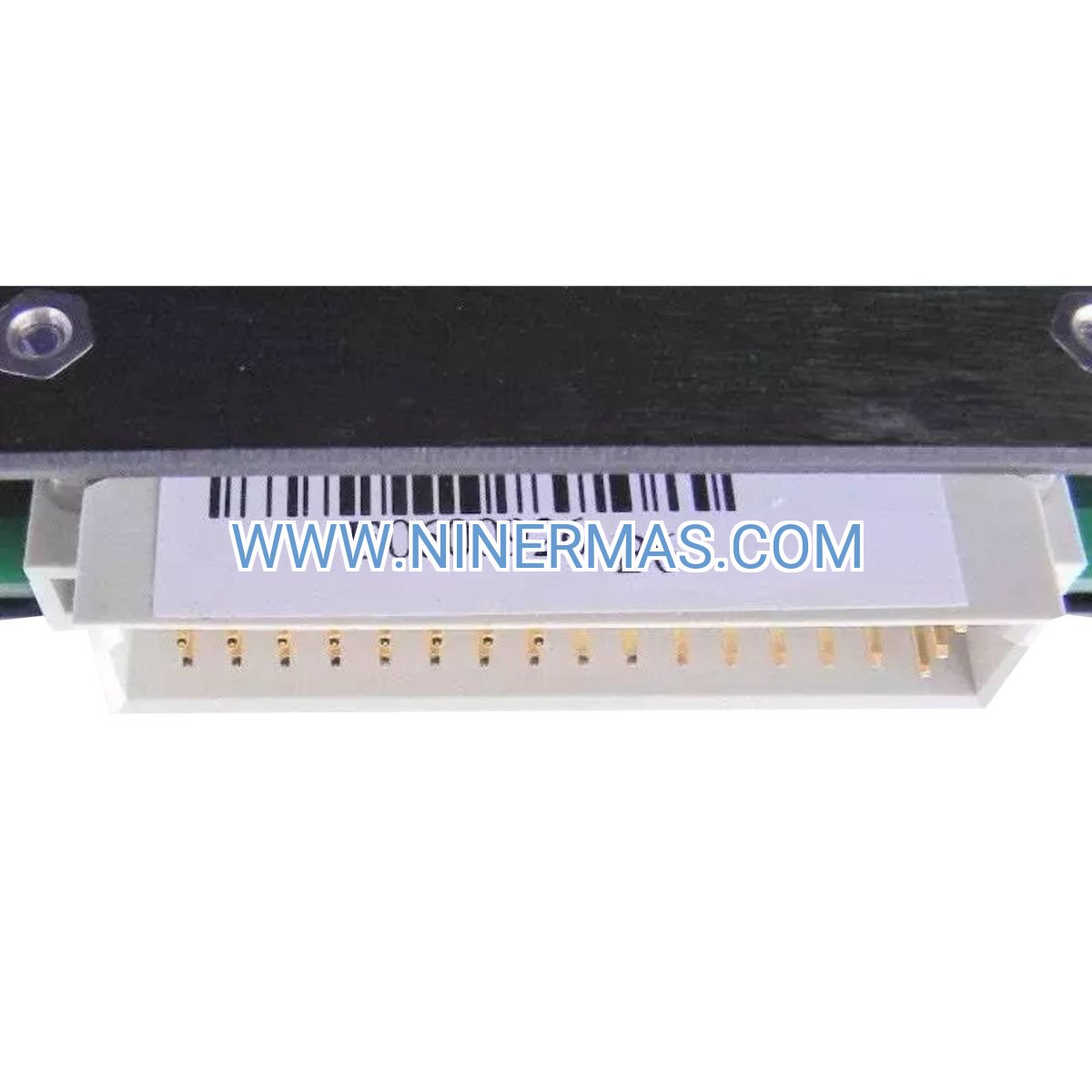

Triconex 4200 Remote Extender Module (Industrial-Grade Fiber Optic I/O Extension)

The Triconex 4200 RXM represents a mission-critical component for distributed safety instrumented systems requiring fault-tolerant communication across extended distances. This multi-mode fiber optic remote extender module bridges the gap between centralized Tricon controllers and field-mounted I/O chassis, delivering uninterrupted Triple Modular Redundant (TMR) signal integrity across distances reaching 2 kilometers.

Designed for process industries where safety and uptime are non-negotiable, the 4200 RXM solves the fundamental challenge of placing I/O equipment in hazardous zones while maintaining controllers in protected environments. By leveraging fiber optic transmission, this module eliminates electromagnetic interference vulnerabilities inherent in copper-based systems, making it the preferred solution for refineries, offshore platforms, and chemical processing facilities operating under stringent safety standards.

Target users include instrumentation engineers, control system integrators, and plant maintenance teams responsible for SIL 2/SIL 3-rated safety systems. The module's hot-swappable redundancy and diagnostic capabilities ensure continuous operation during maintenance windows, directly supporting operational excellence initiatives and regulatory compliance requirements.

Core Features & Benefits

→ EMI-Immune Fiber Optic Transmission
Multi-mode fiber technology provides complete electrical isolation between controller and remote I/O, eliminating ground loop issues and signal degradation in high-voltage environments. Delivers consistent performance in facilities with variable frequency drives, welding equipment, and high-power electrical distribution systems.

→ TMR Architecture Preservation
Maintains full Triple Modular Redundant voting logic across the extended I/O bus, ensuring that safety-critical signals retain fault-tolerant characteristics regardless of physical separation. Supports continuous operation during single-channel failures without process interruption or safety system degradation.

→ 2-Kilometer Extension Range
Enables I/O placement up to 6,562 feet from the main controller, accommodating large facility footprints and distributed process units. Reduces infrastructure costs by eliminating the need for intermediate marshalling cabinets or satellite control rooms in remote process areas.

✓ Hot-Swappable Redundancy
Field-replaceable design allows module replacement during system operation without safety system shutdown. Minimizes mean time to repair (MTTR) and supports predictive maintenance strategies through built-in diagnostic monitoring.

✓ Plug-and-Play Integration
Backward-compatible with Tricon v9 and later platforms, requiring no controller firmware modifications. Standard ST/SC fiber connectors and auto-configuration protocols reduce commissioning time by up to 40% compared to legacy copper-based extenders.

✓ Real-Time Diagnostic Visibility

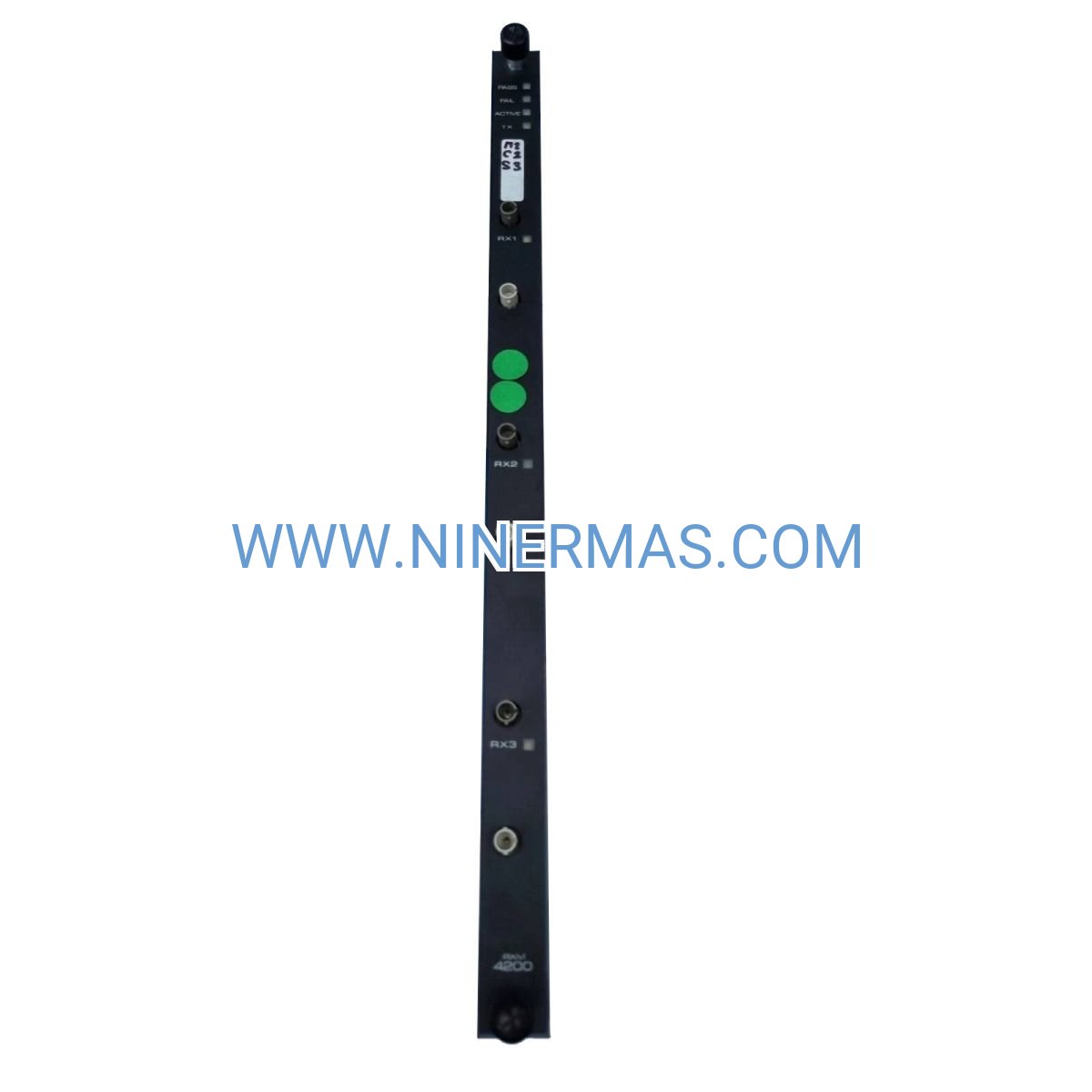

Integrated health monitoring tracks fiber link quality, signal strength, and communication error rates. Front-panel LED indicators and system software integration provide immediate fault identification, reducing troubleshooting time and improving first-time fix rates.

Application Scenarios

Offshore Oil & Gas Production Platforms
In offshore environments, the 4200 RXM enables safety shutdown systems to monitor wellhead equipment, subsea manifolds, and process separators from centralized control rooms. The fiber optic design withstands corrosive atmospheres and eliminates lightning-induced surge damage common in exposed platform installations. Typical deployment: 8-12 remote I/O chassis distributed across topside modules, reducing cable weight by 60% versus copper alternatives.

Petrochemical Complex Expansion Projects
Brownfield facility upgrades leverage the 4200 RXM to add I/O capacity without excavating existing cable trenches or installing new conduit runs. Plant engineers extend safety systems to new process units while maintaining existing controller infrastructure, achieving 30-50% cost savings versus complete system replacement. Addresses the pain point of limited cable tray capacity in mature facilities.

Power Generation Emergency Shutdown Systems
Combined-cycle power plants deploy the module to connect turbine protection systems, boiler safety interlocks, and emissions monitoring equipment across multi-acre generation sites. The 2km range accommodates typical plant layouts while the TMR architecture meets NERC reliability standards. Delivers value through reduced cable installation labor (estimated 200+ work-hours saved per project) and improved system availability metrics.

Pharmaceutical Manufacturing Clean Rooms
Critical process control in sterile environments benefits from the module's ability to position I/O equipment inside classified areas while keeping controllers in non-classified zones. Eliminates the need for control panel penetrations through clean room barriers, maintaining environmental integrity and reducing validation costs.

Mining & Mineral Processing Operations
Remote conveyor systems, crusher interlocks, and tailings management equipment connect to central safety PLCs via the 4200 RXM, overcoming distance limitations in sprawling surface mining operations. The fiber optic design resists dust ingress and mechanical vibration common in heavy industrial environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 4200 multi-mode variant for distances under 2km where installation cost is a primary concern. For distances exceeding 2km or applications requiring future-proof bandwidth, consider the single-mode 4211 RXM alternative. Evaluate fiber cable plant condition—existing multi-mode infrastructure favors the 4200, while new installations may justify single-mode for long-term flexibility. Confirm compatibility with Tricon controller firmware version (v9+ required) and verify available chassis slot capacity before procurement.

Extended Functions

SCADA Integration Capabilities: The 4200 RXM supports seamless data exchange with plant-wide supervisory systems via the Tricon controller's Ethernet interface. Real-time I/O status, diagnostic alarms, and performance metrics flow to historian databases and HMI platforms without additional gateway hardware.

Cybersecurity Hardening: When deployed with Triconex TriStation 1131 software v4.12+, the module benefits from encrypted configuration downloads and role-based access controls, meeting IEC 62443 industrial cybersecurity standards for safety system protection.

Custom Fiber Configurations: Engineering services available for non-standard installations requiring armored fiber assemblies, outdoor-rated cables, or specialized connector types for subsea or explosive atmosphere applications. Consult factory for lead times on custom fiber harness assemblies.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outage support (additional fees apply).

Custom Configuration Lead Time: 10-15 business days for factory-configured modules with pre-terminated fiber assemblies or special testing requirements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Warranty includes advance replacement service for minimal downtime.

Technical Support: Unlimited access to application engineers for installation planning, troubleshooting, and system optimization. Support includes fiber link testing guidance, diagnostic interpretation, and configuration assistance via phone, email, or remote desktop sessions.

Documentation Package: Each module ships with installation manual, fiber optic best practices guide, dimensional drawings, and certificate of conformity. Digital resources include CAD models, configuration templates, and integration examples for common SCADA platforms.

Frequently Asked Questions

How many remote I/O chassis can one Tricon controller support using 4200 RXM modules?
A single Tricon controller accommodates up to 14 remote chassis via RXM technology. Each chassis can house 8-16 I/O modules depending on module type and power budget, enabling total I/O counts exceeding 2,000 points per controller in distributed architectures.

What fiber optic cable specifications are required for reliable 4200 RXM operation?
Minimum bandwidth requirement is 500 MHz·km for 62.5/125 μm fiber or 2000 MHz·km for 50/125 μm fiber at 850nm wavelength. Cable attenuation must not exceed 3.5 dB/km. Use duplex fiber assemblies with ST or SC connectors meeting TIA-568 standards. Avoid tight bend radii (<25mm) and ensure proper strain relief at terminations.

Can I integrate 4200 multi-mode and 4211 single-mode RXM modules within the same safety system?
Yes, Triconex architecture supports heterogeneous RXM deployments. System designers commonly use 4200 modules for short-to-medium runs (<2km) and 4211 modules for long-distance links (>2km), optimizing cost versus performance across the facility. Each remote chassis operates independently, allowing mixed fiber types without cross-interference.

What diagnostic tools help identify fiber link degradation before failures occur?
The module provides continuous monitoring of optical power levels, bit error rates, and link margin. TriStation software displays real-time signal strength graphs and historical trend data. Proactive alarms trigger when received power drops below configurable thresholds (typically -20 dBm), enabling preventive fiber cleaning or replacement before communication loss occurs.

Does the 4200 RXM require special installation procedures for hazardous area compliance?
The module itself is designed for installation in non-hazardous control room environments. Remote I/O chassis connected via the 4200 RXM may be certified for Zone 2/Division 2 hazardous locations depending on chassis model and local approvals. Fiber optic cables inherently provide electrical isolation, simplifying barrier requirements compared to copper-based systems in classified areas.

How does the module perform in extreme temperature environments outside the 0-60°C range?
For applications requiring extended temperature operation (-40°C to +70°C), consult factory engineering for ruggedized variants with conformal coating and enhanced component screening. Standard modules may operate outside rated range with reduced MTBF and voided warranty; environmental enclosures with thermal management are recommended for extreme conditions.

Take the Next Step

Ready to extend your Triconex safety system with proven fiber optic technology? Our application engineers are standing by to review your facility layout, recommend optimal RXM configurations, and provide detailed project quotations. Contact us today for a complimentary system architecture consultation and discover how the 4200 RXM can reduce installation costs while improving safety system reliability.

Request a Quote: Email your I/O count, distance requirements, and project timeline to receive a customized proposal within 24 hours.
