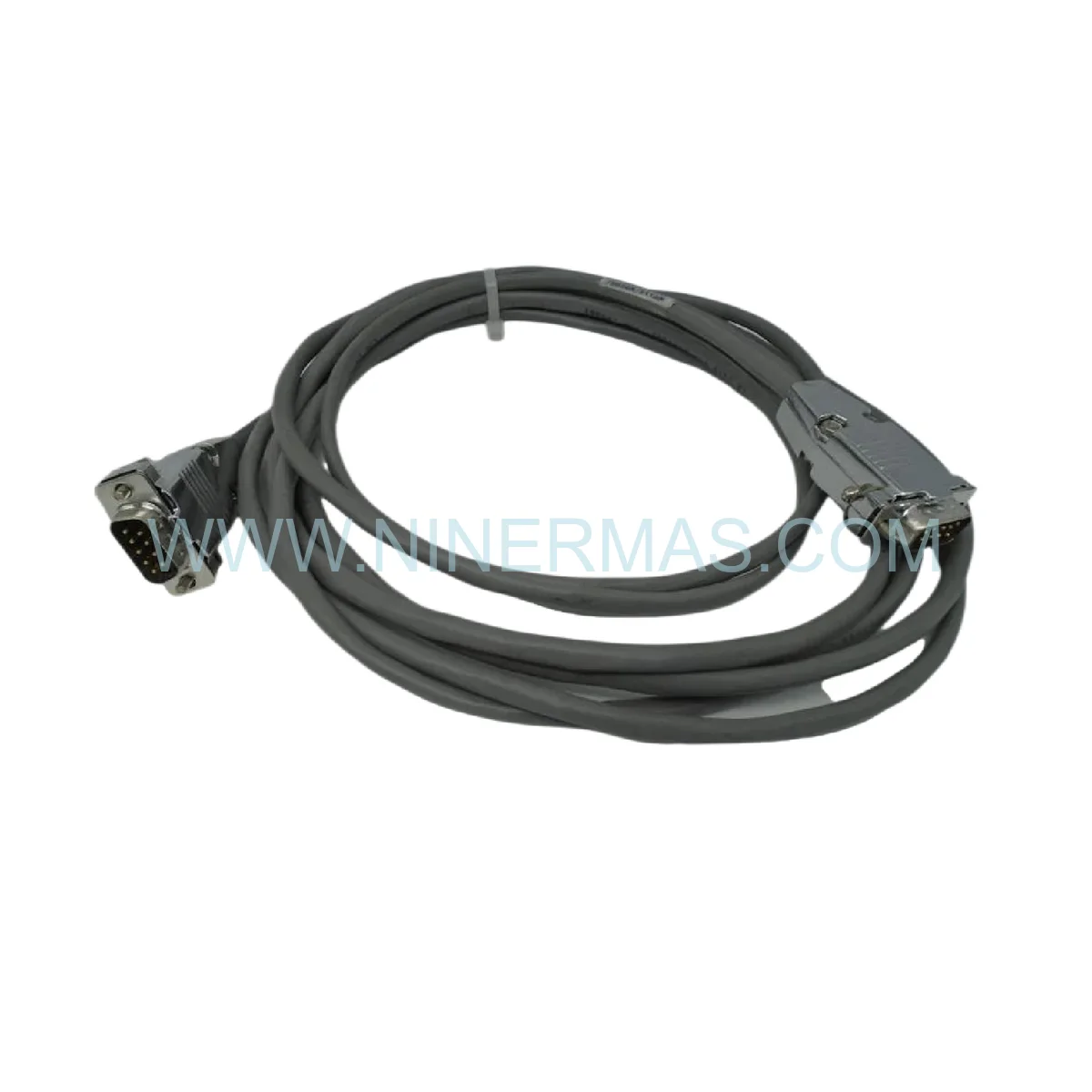

4000212-020 Trident Bus Extender Assembly (Industrial-Grade SIS Expansion Solution)

The 4000212-020 represents a critical infrastructure component for Schneider Electric Triconex Trident safety platforms, delivering robust bus extension capabilities that enable distributed I/O architectures across mission-critical industrial environments. Engineered for SIL 3 applications, this assembly kit maintains triple modular redundancy (TMR) integrity while extending communication reach beyond standard chassis limitations.

Process industries facing geographical dispersion of monitoring points—from offshore drilling platforms to sprawling chemical complexes—require reliable signal transmission over extended distances. This extender assembly solves the challenge of maintaining deterministic communication between main processors and remote I/O racks, supporting installations where safety zones span hundreds of meters. Target users include instrumentation engineers, safety system integrators, and plant automation teams managing Triconex-based emergency shutdown (ESD) and fire & gas (F&G) systems.

Key advantages include preservation of fault-tolerant architecture during expansion, hot-swappable installation for zero-downtime modifications, and full backward compatibility with existing Trident infrastructure. The assembly maintains microsecond-level synchronization across distributed nodes, ensuring coordinated safety responses even in geographically dispersed configurations.

Core Features & Benefits

→ Triple Modular Redundancy Preservation
Maintains TMR voting logic across extended bus segments, ensuring 2oo3 fault tolerance remains intact even when I/O modules are distributed across multiple physical locations. Business value: Eliminates single points of failure in expanded systems, achieving 99.99% availability targets required for continuous process operations.

→ Deterministic Communication Protocol
Proprietary Trident bus architecture guarantees fixed-cycle data exchange with sub-millisecond latency, critical for safety applications requiring predictable response times. Business value: Meets IEC 61508 timing requirements for SIL 3 certification, enabling compliance with international safety standards.

→ Hot-Swap Capability
Field-replaceable design allows module insertion/removal during live operation without disrupting active safety functions or requiring system shutdown. Business value: Reduces maintenance windows from hours to minutes, preventing production losses that typically cost $50,000-$200,000 per hour in process industries.

✓ Extended Operating Range
Rated for 0°C to 60°C ambient temperatures with 5-95% humidity tolerance, suitable for harsh industrial environments including offshore platforms and desert facilities. Business value: Eliminates need for climate-controlled enclosures, reducing installation costs by 15-25%.

✓ DIN Rail Mounting
Standardized mechanical interface enables rapid installation in existing control cabinets without custom fabrication. Business value: Cuts installation time by 40% compared to proprietary mounting systems.

✓ Mixed I/O Support
Single bus segment accommodates analog input, digital output, and specialty modules simultaneously, providing configuration flexibility. Business value: Simplifies system architecture and reduces spare parts inventory requirements.

Typical Application Scenarios

Offshore Oil & Gas Platforms
Distributed wellhead monitoring across 300+ meter platform decks requires extended bus architecture to connect remote sensor clusters to central safety controllers. The 4000212-020 enables topside/subsea integration while maintaining SIL 3 integrity for blowout prevention systems. Delivers coordinated emergency shutdown across geographically dispersed process units, preventing cascading failures during critical events.

Chemical Plant Reactor Control
Multi-zone reactor facilities with separate feed preparation, reaction, and separation areas need synchronized safety interlocks across building boundaries. This assembly extends Trident communication to remote analyzer houses and pump stations up to 500 meters from main control rooms. Solves the challenge of maintaining millisecond-level coordination for runaway reaction prevention while accommodating plant layout constraints.

Power Generation Turbine Protection
Combined-cycle plants with gas turbines, steam turbines, and heat recovery steam generators (HRSG) require integrated overspeed protection and vibration monitoring across multiple equipment skids. The extender kit links distributed vibration sensors and emergency trip valves to centralized Trident controllers. Provides unified safety response for multi-unit facilities, reducing turbine damage risk during abnormal operating conditions.

Pharmaceutical Manufacturing Clean Rooms
Aseptic processing environments with segregated production suites demand safety system coverage without compromising cleanroom classifications. Bus extension enables I/O placement within classified zones while keeping main processors in adjacent electrical rooms. Addresses contamination control requirements while maintaining comprehensive safety coverage for critical process parameters.

Mining Conveyor Systems
Long-haul conveyor networks spanning kilometers require distributed pull-cord switches, belt alignment sensors, and emergency stop stations connected to centralized safety PLCs. This assembly supports linear I/O distribution along conveyor routes with deterministic emergency stop propagation. Ensures coordinated shutdown sequences that prevent material spillage and equipment damage across extended conveyor systems.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 4000212-020, verify your existing system runs Trident firmware (not legacy Tricon architecture). Calculate total I/O count requirements and physical distances between main chassis and remote racks—distances exceeding 100 meters require shielded twisted-pair cabling with specific impedance characteristics. For systems requiring more than three extender segments, consult Triconex engineering guidelines to ensure bus loading remains within specifications. Consider environmental factors: installations in high-vibration environments (>2g) may require additional mechanical securing beyond standard DIN rail clips.

Extended Functions

SCADA Integration: The extender assembly supports transparent communication with supervisory systems via Triconex communication modules (e.g., 4351B, 4352B), enabling real-time diagnostic data streaming to plant historians and HMI platforms. This facilitates predictive maintenance strategies by exposing bus health metrics and module status to enterprise asset management systems.

Cybersecurity Hardening: When deployed with Triconex Key Manager and secure communication modules, the bus extender participates in encrypted data exchange protocols compliant with IEC 62443 industrial cybersecurity standards. This addresses growing regulatory requirements for safety system protection against cyber threats in critical infrastructure sectors.

Custom Configuration Services: NINERMAS offers pre-configured assembly kits tailored to specific application requirements, including pre-terminated cabling, custom cable lengths (50m-500m), and factory acceptance testing (FAT) documentation. Turnkey solutions reduce on-site commissioning time by 60% and minimize configuration errors during startup.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days via express courier (DHL/FedEx). Custom-configured assemblies require 7-10 business days for factory preparation and testing.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty options (24/36 months) available for critical applications requiring long-term support commitments.

Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting guidance, and system expansion planning. Support channels include email (response within 4 hours), phone hotline (business hours), and remote diagnostic sessions via secure VPN.

Documentation Package: Each assembly includes installation manual, wiring diagrams, certification documents (SIL 3, CE, UL), and configuration worksheets. Digital resources available via customer portal include CAD drawings (AutoCAD/STEP formats), firmware compatibility matrices, and video installation guides.

Frequently Asked Questions

Can the 4000212-020 bus extender work with older Tricon generation controllers?
No, this assembly is exclusively designed for Trident architecture systems. Legacy Tricon platforms require different extender modules (e.g., 4200 series). Attempting to use Trident components with Tricon systems will result in communication failures and potential safety system compromise. Contact our team for retrofit solutions if you're upgrading from Tricon to Trident.

What type of cabling is required for bus extension installations?
Triconex specifies shielded twisted-pair cable with 120-ohm characteristic impedance for distances beyond 10 meters. Cable gauge depends on run length: 18 AWG for distances up to 100m, 16 AWG for 100-300m, and 14 AWG for 300-500m. Belden 9841 or equivalent is commonly specified. The assembly kit includes connectors but cables are sold separately to accommodate site-specific length requirements.

How many I/O modules can be supported on a single extender bus segment?
Bus loading capacity depends on module types and power consumption. Typical configurations support 8-12 standard I/O modules per extender segment. High-density analog modules or communication interfaces may reduce this count. The Trident system configuration software (TriStation) provides real-time bus loading calculations during system design to prevent oversubscription.

Does installation require a full system shutdown and safety system bypass?
No, the hot-swappable design allows installation during normal operation. However, best practice recommends scheduling installation during planned maintenance windows to allow proper functional testing and documentation updates. For greenfield installations, the assembly can be pre-installed in cabinets before energization.

Are there any special environmental considerations for outdoor installations?
While the assembly operates across 0-60°C, outdoor installations require NEMA 4X or IP66-rated enclosures to protect against moisture ingress and UV degradation. In coastal environments with salt spray exposure, conformal coating of circuit boards is recommended. For extreme temperature zones (below 0°C), heated enclosures with thermostatic control maintain operational temperature ranges.

What diagnostic capabilities are available for troubleshooting bus communication issues?
TriStation software provides real-time bus health monitoring including signal quality metrics, error counters, and module response times. LED indicators on the assembly show power status and communication activity. Advanced diagnostics include cable impedance testing and signal integrity analysis tools available through Triconex service partners.

Request Technical Consultation

Expanding safety instrumented systems requires careful planning to maintain SIL integrity and system performance. Our application engineers provide complimentary pre-sales consultation to review your specific requirements, validate compatibility with existing infrastructure, and recommend optimal configuration strategies.

Contact our team today: Share your system architecture details, I/O count requirements, and physical layout constraints. We'll deliver a detailed proposal within 24 hours including bill of materials, wiring diagrams, and project timeline estimates. For urgent projects, expedited delivery and on-site commissioning support are available.
