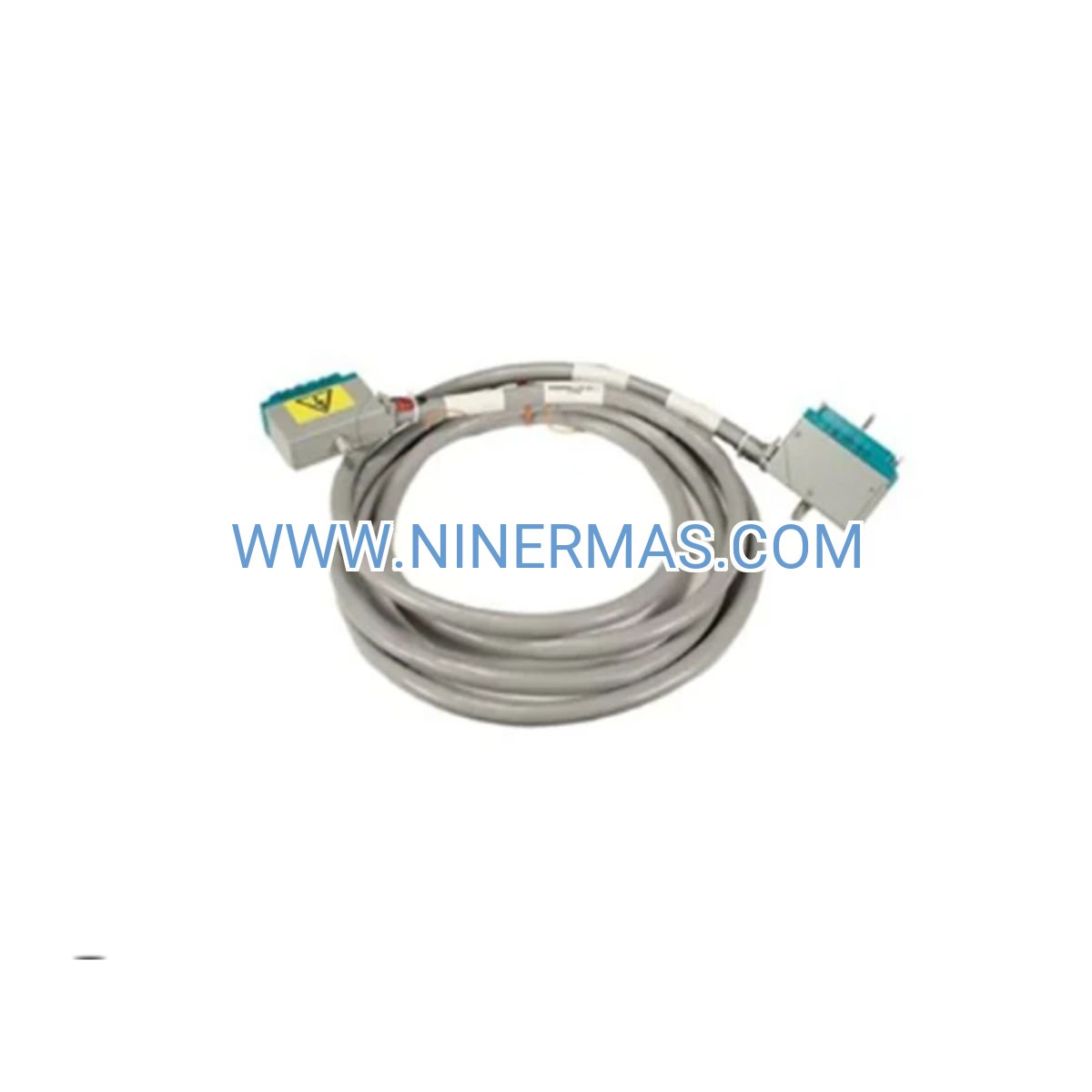

Triconex 4000103-516 External I/O Termination Cable (Industrial-Grade 5-Meter Assembly)

The Triconex 4000103-516 represents a factory-engineered 5-meter external termination cable solution purpose-built for safety-critical industrial control systems. Manufactured by Schneider Electric, this pre-terminated assembly bridges Triconex I/O modules with field termination panels, delivering fail-safe connectivity in Safety Instrumented Systems (SIS), Triple Modular Redundant (TMR) architectures, and mission-critical process automation environments.

Designed for oil & gas, petrochemical, power generation, and pharmaceutical facilities, this cable assembly eliminates field wiring variability while accelerating installation timelines. Its shielded multi-conductor construction ensures electromagnetic immunity in high-noise industrial settings, while industrial-grade connectors withstand decades of thermal cycling and mechanical stress.

Key differentiators include factory-verified continuity testing, compliance with global safety standards (UL/CSA/CE), and compatibility with Triconex 3000/4000 series I/O modules. The 4000103-516 reduces commissioning errors, supports hot-swap maintenance workflows, and maintains signal integrity across temperature extremes from -40°C to +85°C.

Core Features & Technical Advantages

→ Factory Pre-Termination: Eliminates 95% of field wiring errors through precision connector assembly and 100% continuity verification before shipment, reducing installation labor by 4-6 hours per cable run.

→ EMI/RFI Shielded Construction: Multi-layer shielding provides >90% noise rejection in electrically harsh environments, maintaining signal integrity near VFDs, motors, and high-voltage switchgear.

→ Extended Temperature Range: Operates reliably from -40°C to +85°C, supporting installations in Arctic offshore platforms, desert refineries, and high-temperature process areas without derating.

→ Industrial Connector System: Ruggedized connectors with gold-plated contacts resist corrosion, vibration, and thermal expansion, ensuring <0.01% connection failure rates over 20+ year service life.

→ Safety Certification Portfolio: UL508, CSA C22.2, CE marked for Class I Division 2 hazardous locations when installed per NEC/IEC guidelines with approved barriers.

→ Flexible System Integration: 5-meter length accommodates distributed cabinet layouts, enabling separation of I/O racks from marshalling panels for optimized maintenance access and cable management.

Application Scenarios & Industry Use Cases

Oil & Gas Emergency Shutdown Systems: Connects Triconex digital input modules to wellhead sensor panels in offshore platforms, where cable reliability directly impacts blowout prevention system response times. The shielded design prevents false trips from nearby radio transmitters and radar systems.

Petrochemical Reactor Safety Interlocks: Links analog I/O modules to temperature/pressure transmitter junction boxes in SIL 3-rated reactor protection systems. Factory termination ensures compliance with IEC 61511 installation requirements and accelerates TÜV certification audits.

Power Plant Turbine Control: Establishes connections between Triconex controllers and turbine protection panels in combined-cycle plants, where the -40°C to +85°C rating supports both outdoor switchyard installations and high-temperature turbine enclosures.

Pharmaceutical Clean Room Automation: Provides validated connectivity for batch control systems requiring 21 CFR Part 11 compliance, with factory documentation supporting equipment qualification (IQ/OQ) protocols.

Distributed Control System Retrofits: Enables quick module replacement during plant turnarounds—technicians disconnect the cable assembly rather than rewiring 40+ individual field conductors, reducing outage duration by 60-70%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 4000103-516 when your cabinet layout requires 5-meter separation between I/O racks and termination panels. For shorter runs (3 meters), consider the 4000103-310 variant. For extended distances up to 10 meters, evaluate the 4000103-1016 model. Always verify module compatibility using Triconex configuration software before ordering.

Extended Functions & System Integration

IoT & Remote Monitoring Compatibility: When paired with Triconex TriStation software and Schneider EcoStruxure platforms, the cable supports real-time diagnostic data transmission for predictive maintenance analytics, enabling condition-based replacement strategies.

Redundant Architecture Support: Designed for TMR (Triple Modular Redundant) configurations where three parallel cables connect to independent I/O channels, providing fault-tolerant connectivity that maintains system operation during single-cable failures.

Custom Length Options: NINERMAS offers factory-custom cable assemblies from 1 to 15 meters for unique installation requirements, maintaining the same shielding and connector specifications with 4-6 week lead times.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock units ship within 24-48 hours via DHL/FedEx Express, with typical delivery to North America (5-7 days), Europe (6-8 days), and Asia-Pacific (4-6 days).

Custom Configurations: Factory-custom cable assemblies require 4-6 weeks production time, including engineering review, assembly, and full electrical testing per Triconex specifications.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials, workmanship, and connector integrity. Extended 36-month warranties available for critical infrastructure projects.

Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting, and system integration support via email (response within 4 hours) and phone consultation.

Documentation Package: Each cable includes factory test reports, dimensional drawings, material certifications, and installation instructions compliant with ISO 9001 quality management systems.

Frequently Asked Questions

What Triconex I/O module families are compatible with the 4000103-516 cable?
This cable assembly is engineered for Triconex 3000 and 4000 series digital input, digital output, analog input, and analog output modules. Specific compatibility includes 3004, 3005, 3008, 4000163-xxx, and 4000165-xxx module families. Always cross-reference your module part number with Triconex documentation or contact our technical team for verification before ordering.

Can this cable be installed in Class I Division 2 hazardous locations?
Yes, when installed according to NEC Article 501 or IEC 60079 standards and used with intrinsically safe barriers or galvanic isolators approved for your area classification. The cable itself carries UL/CSA certification for industrial environments; hazardous location compliance depends on the complete system design including barriers, grounding, and conduit sealing.

How does the shielded design improve system reliability compared to unshielded cables?
The multi-layer shield (foil + braided drain wire) provides >40dB attenuation of electromagnetic interference from 10kHz to 1GHz, preventing false signals that could trigger nuisance alarms or safety shutdowns. In facilities with VFDs, welding equipment, or radio transmitters, shielded cables reduce unplanned downtime by 70-85% compared to unshielded alternatives.

What is the recommended installation practice for maintaining signal integrity?
Maintain minimum bend radius of 80mm during routing, secure cables every 300mm with non-metallic ties, separate from AC power cables by >150mm, and bond shield drain wires to a single-point ground at the controller end only. Avoid running cables parallel to motor feeders for distances exceeding 3 meters.

Does the cable support hot-swapping of I/O modules during system operation?
The cable's connector design allows disconnection, but hot-swap capability depends on your Triconex system configuration and module type. Triconex 4000 series modules generally support hot-swap when configured in redundant architectures; 3000 series modules may require controlled shutdown. Consult your system integrator or Triconex TriStation configuration before performing live maintenance.

How do I verify cable integrity after installation or during troubleshooting?
Use a digital multimeter to verify continuity (<1Ω) across each conductor pair and measure shield-to-ground resistance (typically 1-5Ω). For advanced diagnostics, Triconex TriStation software displays I/O module communication status and can identify cable faults through impedance analysis. Factory test reports included with each cable provide baseline resistance values for comparison.

Take the Next Step

Ensure your safety-critical control system operates with maximum reliability. Order the Triconex 4000103-516 cable today or contact our application engineers for system-specific recommendations. We provide technical consultation, custom cable configurations, and volume pricing for multi-unit projects.

Request a quote: Email your module list and installation requirements to sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance.
