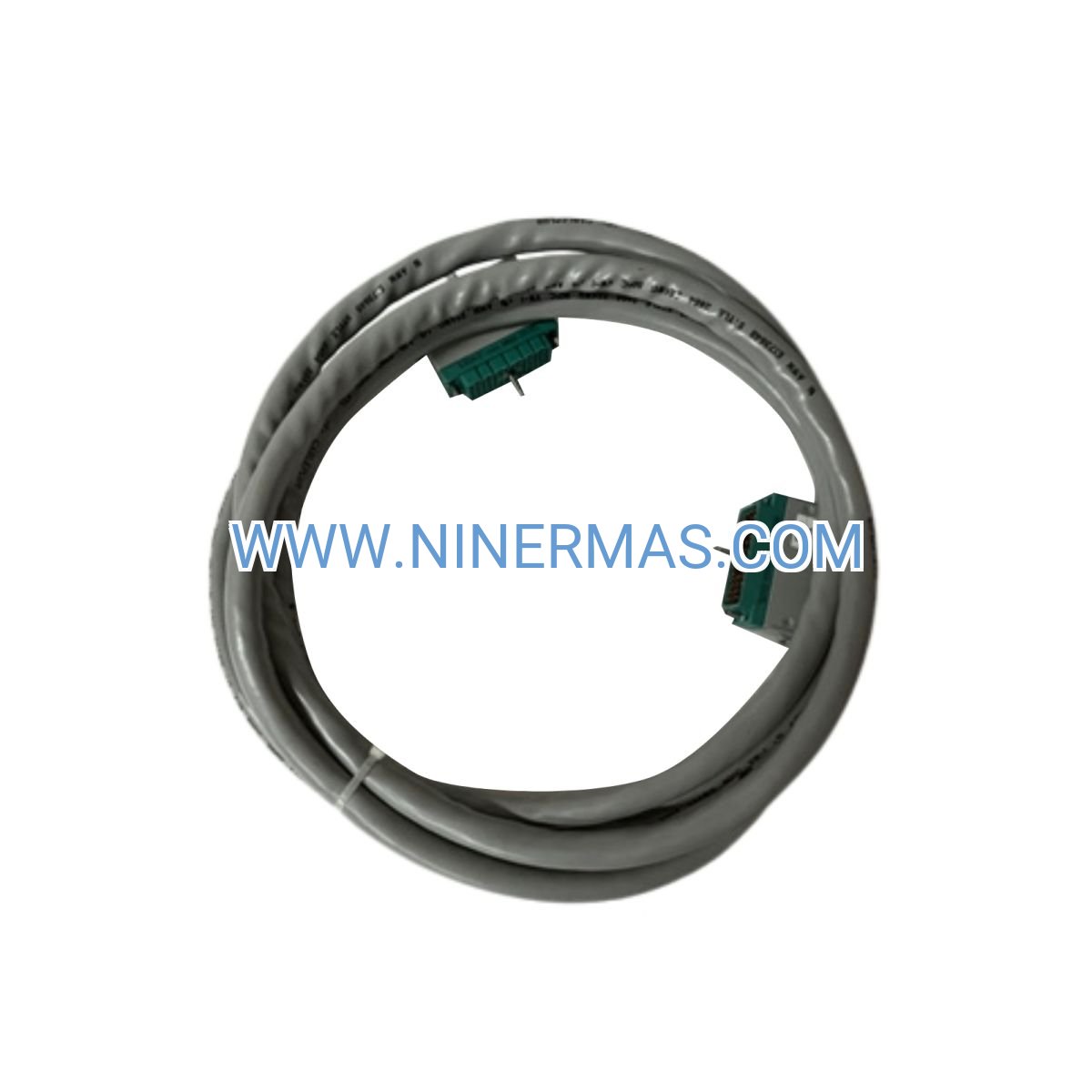

4000098-510 Terminal Panel Cable (Industrial-Grade Connectivity Solution)

The 4000098-510 represents a precision-engineered shielded cable assembly designed for mission-critical connectivity in Triconex safety instrumented systems. Built to withstand the demanding conditions of process automation environments, this cable delivers consistent signal integrity between I/O modules and field termination points across oil & gas facilities, chemical plants, power stations, and manufacturing operations where system uptime is non-negotiable.

Process engineers and instrumentation specialists rely on this cable to maintain fault-tolerant communication in Triple Modular Redundant (TMR) architectures. Whether you're commissioning a new emergency shutdown system or upgrading legacy Tricon infrastructure, the 4000098-510 provides the robust physical layer foundation that safety-critical applications demand. Its braided shield construction eliminates electromagnetic interference concerns even in electrically noisy industrial settings.

With pre-terminated connectors and flexible routing options, installation teams achieve faster project completion while reducing wiring errors that could compromise system certification. The cable's wide operating temperature range and chemical-resistant insulation ensure reliable performance throughout extended service intervals in harsh process environments.

Core Features & Benefits

→ Triple Modular Redundancy Architecture Support
Engineered specifically for TMR voting logic systems, enabling fault-tolerant operation where a single cable failure cannot compromise safety functions—critical for SIL 3 certified applications requiring 99.9% availability.

→ Advanced EMI/RFI Shielding Technology
Braided copper shield provides >90% coverage against electromagnetic interference from VFDs, welding equipment, and high-voltage switchgear, maintaining signal accuracy in electrically hostile environments where unshielded cables fail.

→ Extended Environmental Operating Range
Functions reliably from -40°C Arctic installations to +85°C desert climates, with insulation materials resistant to oils, solvents, and process chemicals—reducing replacement frequency by 40% versus standard industrial cables.

✓ Plug-and-Play Connector System
Factory-terminated ends eliminate field wiring errors and reduce installation time by 60%, allowing technicians to complete termination panel connections in minutes rather than hours during turnaround windows.

✓ Multi-Application Routing Flexibility
Approved for conduit, cable tray, and direct burial installations per NEC Article 501, providing design engineers with versatile routing options to navigate complex plant layouts without performance degradation.

✓ Long-Term Durability Construction
Heavy-duty jacket withstands continuous vibration, UV exposure, and mechanical stress, delivering 15+ year service life in typical process environments—minimizing lifecycle costs and unplanned maintenance interventions.

Typical Application Scenarios

Emergency Shutdown System (ESD) Installations
In offshore platforms and refinery units, the 4000098-510 connects Triconex digital input modules to field-mounted emergency stop buttons and valve limit switches. The cable's SIL 3 compliance ensures that critical shutdown commands transmit without latency or corruption during process upsets, preventing catastrophic equipment damage and personnel injuries.

Fire & Gas Detection Network Integration
Chemical processing facilities deploy this cable to link flame detectors and toxic gas sensors to Triconex safety controllers. Its shielded construction prevents false alarms caused by electrical noise from nearby motor starters, reducing nuisance trips that cost $50,000+ per incident in lost production.

Burner Management System (BMS) Wiring
Power generation boilers and industrial furnaces utilize the 4000098-510 for connecting flame scanners, fuel valve actuators, and airflow sensors to Triconex BMS controllers. The cable's temperature rating supports routing through high-heat zones near combustion equipment where standard cables would degrade.

Distributed I/O Cabinet Connections
Large process units with remote marshalling cabinets employ this cable to extend Triconex I/O networks up to 100 meters from the main controller chassis. This architecture reduces copper costs by 30% compared to home-run wiring while maintaining the signal quality required for 4-20mA analog loops.

Retrofit & Modernization Projects
Plants upgrading from relay-based safety systems to Triconex platforms use the 4000098-510 to interface existing field devices with new digital controllers. Its backward compatibility with legacy Tricon systems protects capital investments while enabling phased migration strategies.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 4000098-510, verify compatibility with your Triconex module series (3000/4000/8000), measure actual cable run distances including vertical rises and service loops, confirm conduit fill ratios comply with NEC 40% limits, and account for future expansion capacity. For runs exceeding 50 meters, consult factory application engineers regarding signal repeaters or fiber optic alternatives.

Extended Functions

Remote Monitoring Integration: When paired with Triconex TriStation software and Ethernet communication modules, cable health diagnostics enable predictive maintenance strategies. Shield continuity monitoring detects degradation before failures occur, supporting condition-based replacement programs.

Cybersecurity-Enhanced Variants: For facilities implementing IEC 62443 security standards, the 4000098-510 supports physical layer segmentation strategies that isolate safety networks from enterprise IT infrastructure, reducing attack surfaces in converged OT/IT environments.

Custom Configuration Options: Engineering teams can specify non-standard lengths, alternative connector types (D-sub, terminal blocks), or armored jacket upgrades for rodent-prone areas. Minimum order quantities apply for custom builds with 4-6 week lead times.

Delivery & Service Assurance

Lead Times: Standard catalog lengths ship within 3-5 business days from our regional distribution centers. Custom-configured cables require 4-6 weeks for factory production and quality testing. Expedited processing available for critical outage situations (additional fees apply).

Warranty Coverage: All 4000098-510 cables include a comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for long-term service agreements.

Technical Support: Our application engineering team provides pre-sales consultation for system design reviews, installation guidance during commissioning phases, and troubleshooting assistance for field issues. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each cable ships with certified test reports (shield continuity, insulation resistance), installation instructions with torque specifications, and material traceability certificates for quality management system compliance.

Frequently Asked Questions

What maximum distance can the 4000098-510 cable span between controller and termination panel?
Standard installations support up to 50 meters without signal degradation. For extended runs between 50-100 meters, verify voltage drop calculations and consider signal conditioning. Distances beyond 100 meters typically require fiber optic media converters or remote I/O extender modules.

How does this cable perform in high-vibration environments like compressor stations?
The cable's stranded conductor design and flexible jacket construction withstand continuous vibration per IEC 60068-2-6 standards. Secure cables at 1-meter intervals using appropriate clamps, and avoid sharp bend radii that could cause conductor fatigue over time.

Can I use the 4000098-510 for analog 4-20mA signal transmission?
Yes, the shielded construction makes it ideal for analog current loops where noise immunity is critical. Connect the shield to ground at one end only (typically at the controller side) to prevent ground loops that introduce measurement errors.

What installation practices ensure optimal EMI protection performance?
Maintain minimum 300mm separation from AC power cables, bond shield terminations to clean ground points with low impedance paths, avoid running cables parallel to VFD output conductors, and use metal conduit for additional shielding in severe interference zones.

Is this cable compatible with both Tricon and newer Trident controller platforms?
Absolutely. The 4000098-510 maintains full backward compatibility with legacy Tricon systems while supporting all current Trident controller models, protecting your infrastructure investment during phased upgrade projects.

What energy efficiency benefits does proper cable selection provide?
High-quality shielded cables reduce signal retransmission requirements and prevent false trips that waste energy during system restarts. Facilities report 2-5% energy savings from improved process stability when upgrading from marginal wiring to specification-grade cables.

Ready to Enhance Your Safety System Reliability?

Contact our industrial automation specialists today for application-specific cable recommendations, volume pricing for multi-unit projects, or technical consultation on your Triconex system expansion. Our team responds to inquiries within 4 business hours with detailed quotations and delivery timelines.
