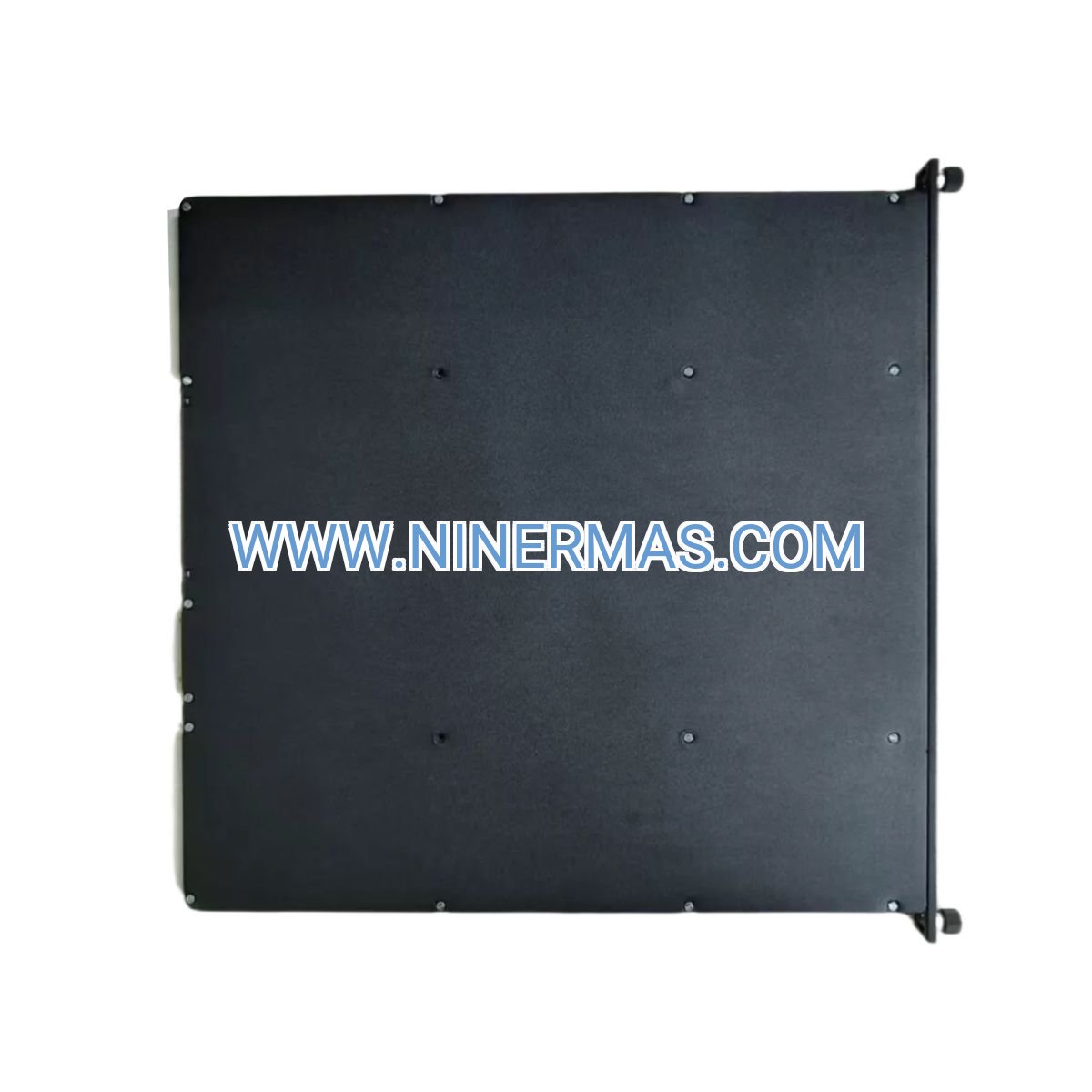

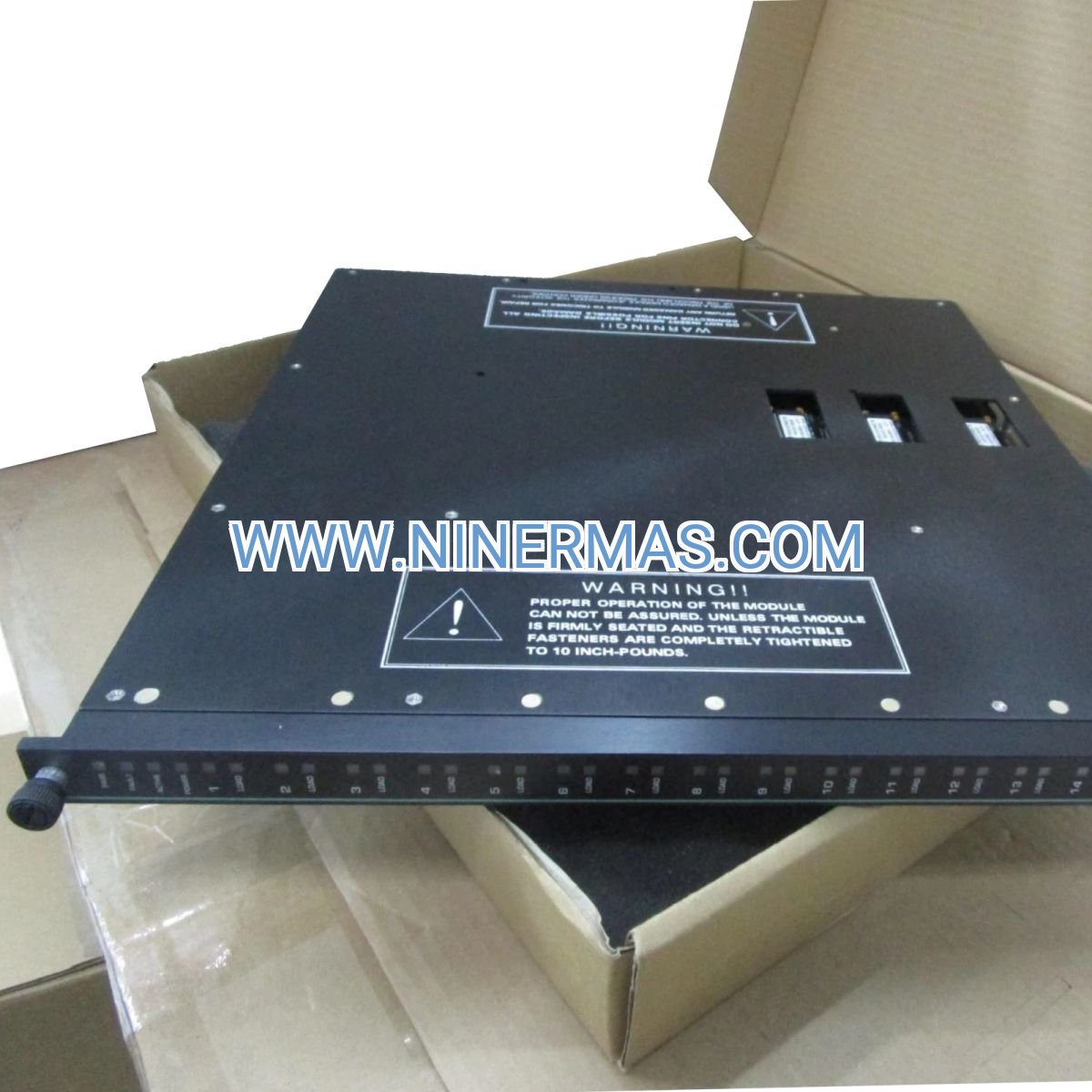

Triconex 3806E Analog Output Module (Industrial-Grade TMR Control)

The Triconex 3806E represents a proven solution for safety-critical analog control in high-stakes industrial environments. This 8-channel analog output module integrates triple modular redundancy (TMR) architecture with precision 4-20mA current loop technology, delivering fault-tolerant performance for Trident safety instrumented systems across oil & gas, petrochemical, and power generation sectors.

Designed for engineers managing emergency shutdown systems, fire & gas detection networks, and burner management applications, the 3806E addresses the fundamental challenge of maintaining continuous process control during component failures. Its TMR voting logic ensures uninterrupted operation even when individual channels experience faults, while built-in diagnostics provide real-time visibility into system health.

With IEC 61508 SIL 3 certification and TÜV approval, this module meets the most stringent safety integrity requirements for process industries. The combination of 12-bit resolution, ±0.25% accuracy, and 100ms update rates enables precise valve positioning, damper modulation, and flow control across demanding operational scenarios.

Core Features & Benefits

✓ Triple Modular Redundancy Architecture
Three parallel processing channels with majority voting eliminate single points of failure. When one channel degrades, the system maintains full operational capability while alerting maintenance teams—reducing unplanned shutdowns by up to 40% compared to simplex configurations.

✓ Precision 4-20mA Current Loop Output
12-bit digital-to-analog conversion delivers ±0.25% full-scale accuracy across 0-750Ω loads. This precision ensures valve positioners, pneumatic actuators, and variable frequency drives receive consistent command signals for repeatable process control.

✓ Comprehensive Diagnostic Monitoring
Real-time fault detection identifies open circuits, short circuits, channel deviation, and output accuracy drift. Integration with TriStation software centralizes alarm management, enabling predictive maintenance strategies that extend mean time between failures (MTBF).

✓ Hot-Swappable Design
Online insertion and removal capability minimizes process disruption during module replacement. When paired with redundant Trident power supplies, technicians can service hardware without initiating emergency shutdown sequences—critical for continuous process industries.

✓ SIL 3 Safety Certification
IEC 61508 compliance and TÜV certification validate suitability for Safety Instrumented Functions (SIF) with probability of failure on demand (PFD) below 10⁻³. This certification streamlines regulatory approval for HAZOP-identified safety layers.

✓ Wide Environmental Operating Range
0°C to 60°C operational temperature tolerance accommodates field-mounted control cabinets in both climate-controlled facilities and semi-exposed industrial environments without derating performance specifications.

Application Scenarios

→ Emergency Shutdown Systems (ESD)
In offshore oil platforms and refinery units, the 3806E controls pneumatic actuators on block valves and blowdown valves during emergency depressurization sequences. The TMR architecture ensures valve positioning commands execute reliably even during simultaneous equipment failures, preventing escalation of process upsets into catastrophic events.

→ Fire & Gas Detection Networks
Petrochemical facilities deploy the module to modulate ventilation dampers and deluge system valves based on gas concentration readings. The 100ms update rate enables rapid response to detector signals, while diagnostic monitoring verifies actuator feedback alignment with commanded positions.

→ Burner Management Systems (BMS)
Power generation boilers utilize the 3806E for fuel gas valve throttling and air-to-fuel ratio control. Precision analog output maintains optimal combustion efficiency while safety interlocks prevent unsafe light-off conditions—reducing fuel consumption by 3-5% compared to on/off control strategies.

→ Chemical Process Safety Interlocks
Batch reactor systems leverage the module to regulate pressure relief valve positioning and emergency cooling water flow. The SIL 3 certification satisfies LOPA (Layer of Protection Analysis) requirements for independent protection layers in high-consequence scenarios.

→ Steam Turbine Control
Combined-cycle power plants employ the 3806E for governor valve and bypass valve positioning during startup, load following, and trip sequences. The module's fault tolerance prevents spurious trips that cost $50,000-$150,000 per event in lost generation revenue.

Technical Parameters & Selection Guide

Selection Criteria:
Choose the 3806E when your application requires SIL 2/SIL 3 safety integrity, TMR fault tolerance, or compliance with API RP 556 (fired heaters) and API RP 2350 (overfill protection). For non-safety analog output needs with lower channel counts, consider the Triconex 3481 S2 as a cost-optimized alternative. Applications requiring voltage outputs (0-10VDC) should evaluate the Triconex 3805E variant.

Extended Functions

HART Protocol Integration
The 3806E supports HART communication superimposed on the 4-20mA signal, enabling remote configuration of smart valve positioners and transmitters without additional wiring. This capability reduces commissioning time by 30-40% in greenfield installations.

Advanced Calibration Features
TriStation software provides zero/span adjustment, output characterization (linear, square root, custom curves), and trim functions to compensate for field device non-linearities. These features eliminate the need for external signal conditioners in 85% of applications.

Redundant I/O Pairing
When deployed in redundant Trident configurations, dual 3806E modules can drive the same field device through isolation barriers, providing N+1 redundancy for ultra-critical control loops. Automatic bumpless transfer occurs during module switchover.

Cybersecurity Hardening
Firmware authentication and secure boot processes protect against unauthorized configuration changes. Integration with Triconex TriStation 1131 security features enables role-based access control and audit logging for compliance with IEC 62443 industrial cybersecurity standards.

Delivery & Service Assurance

Lead Time:
→ Standard stock items: 3-5 business days (subject to inventory availability)
→ Factory-sealed new units: 8-12 weeks from Schneider Electric distribution
→ Tested surplus inventory: 5-7 business days with full functional verification

Warranty Coverage:
All Triconex 3806E modules include a comprehensive 12-month warranty against manufacturing defects and component failures. Warranty covers parts replacement and return shipping, with optional extended coverage available for mission-critical installations.

Technical Support:
Our applications engineering team provides pre-sale configuration assistance, I/O mapping guidance, and integration support for Trident platform deployments. Post-sale troubleshooting includes remote diagnostics via TriStation connectivity and on-site commissioning services in select regions.

Documentation Package:
Each module ships with installation manual, wiring diagrams, TriStation configuration templates, and IEC 61508 safety manual excerpts. Complete technical documentation library available via download portal upon product registration.

Frequently Asked Questions

How does TMR architecture improve safety system availability compared to dual redundancy?
Triple Modular Redundancy uses 2-out-of-3 voting logic, allowing the system to tolerate one complete channel failure while maintaining full operational capability. Dual redundancy (1oo2) requires both channels operational—a single failure forces the system into a degraded state. TMR reduces spurious trip rates by 60-75% in typical process applications.

What load resistance range ensures optimal 4-20mA signal integrity?
The 3806E supports 0-750Ω loads, but best practice recommends keeping total loop resistance (including cable) below 600Ω to maintain headroom for voltage drop compensation. For long cable runs exceeding 500 meters, consider loop-powered isolators to prevent signal degradation.

Can the module interface with legacy pneumatic valve positioners?
Yes, the industry-standard 4-20mA output directly drives I/P (current-to-pneumatic) converters commonly used with spring-return pneumatic actuators. Verify the I/P converter input impedance falls within the 250-500Ω typical range for optimal performance.

Is hot-swapping supported during active process operation?
The 3806E supports online insertion and removal when installed in a Trident chassis with redundant power supplies and proper TMR configuration. The remaining two channels maintain output control during module replacement, preventing process upsets. Always follow lockout/tagout procedures per facility safety protocols.

What diagnostic capabilities help predict module failures before they occur?
Built-in diagnostics continuously monitor output current accuracy, open-circuit conditions, short-circuit faults, channel-to-channel deviation, and power supply voltage levels. Trend analysis of diagnostic parameters in TriStation enables condition-based maintenance strategies, typically identifying degradation 2-4 weeks before functional failure.

How does the 3806E integrate with distributed control systems (DCS)?
The Trident platform communicates with DCS platforms (Honeywell, Emerson, Yokogawa) via Modbus TCP, OPC UA, or proprietary gateways. The 3806E outputs are mapped to the DCS I/O database, allowing operators to monitor valve positions and override commands from the DCS HMI while maintaining SIS independence per IEC 61511 requirements.

Ready to Enhance Your Safety System Reliability?

Contact our industrial automation specialists to discuss your specific application requirements, receive detailed technical specifications, or request a formal quotation for the Triconex 3806E analog output module. Our team can assist with I/O sizing calculations, redundancy architecture design, and integration planning for Trident safety system deployments.
