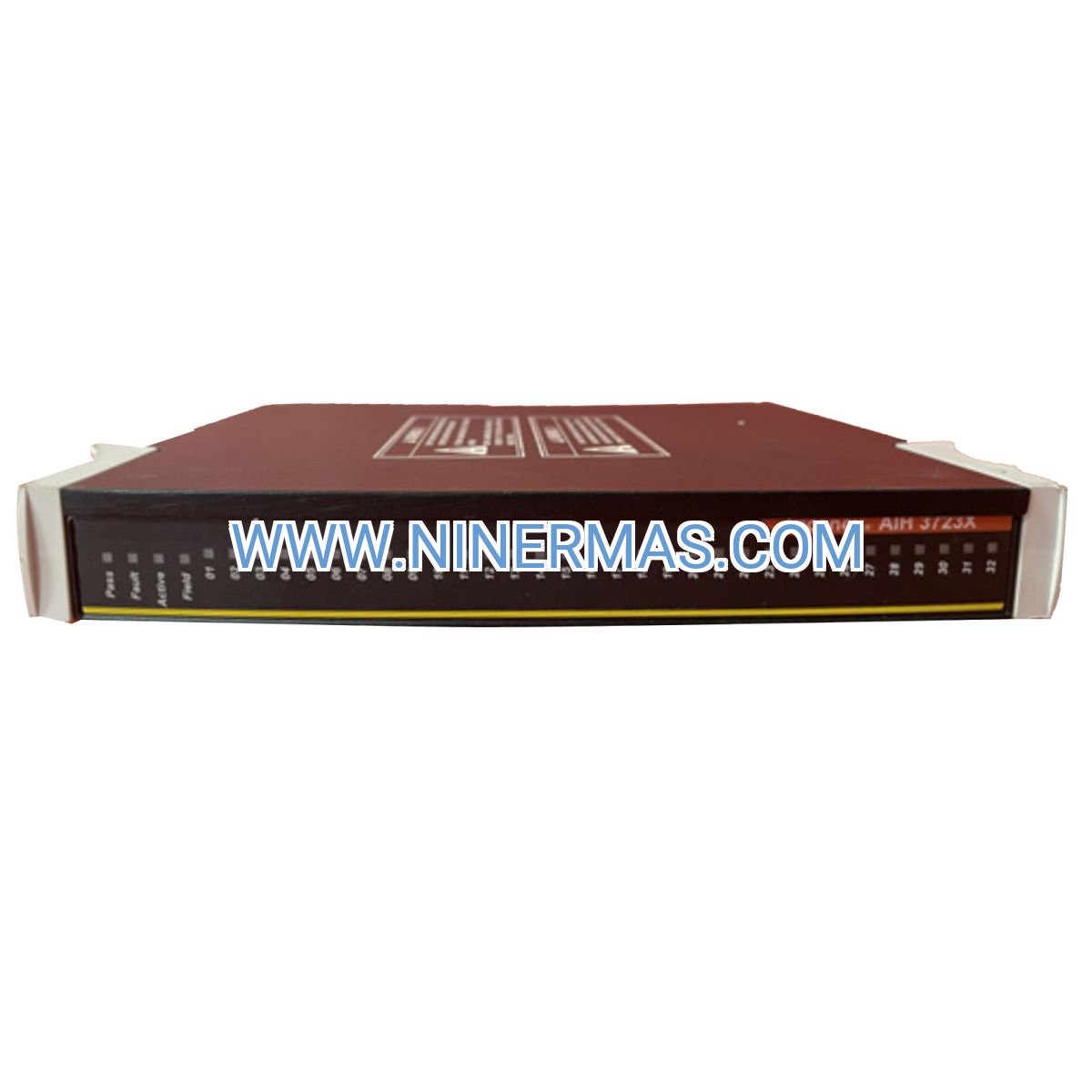

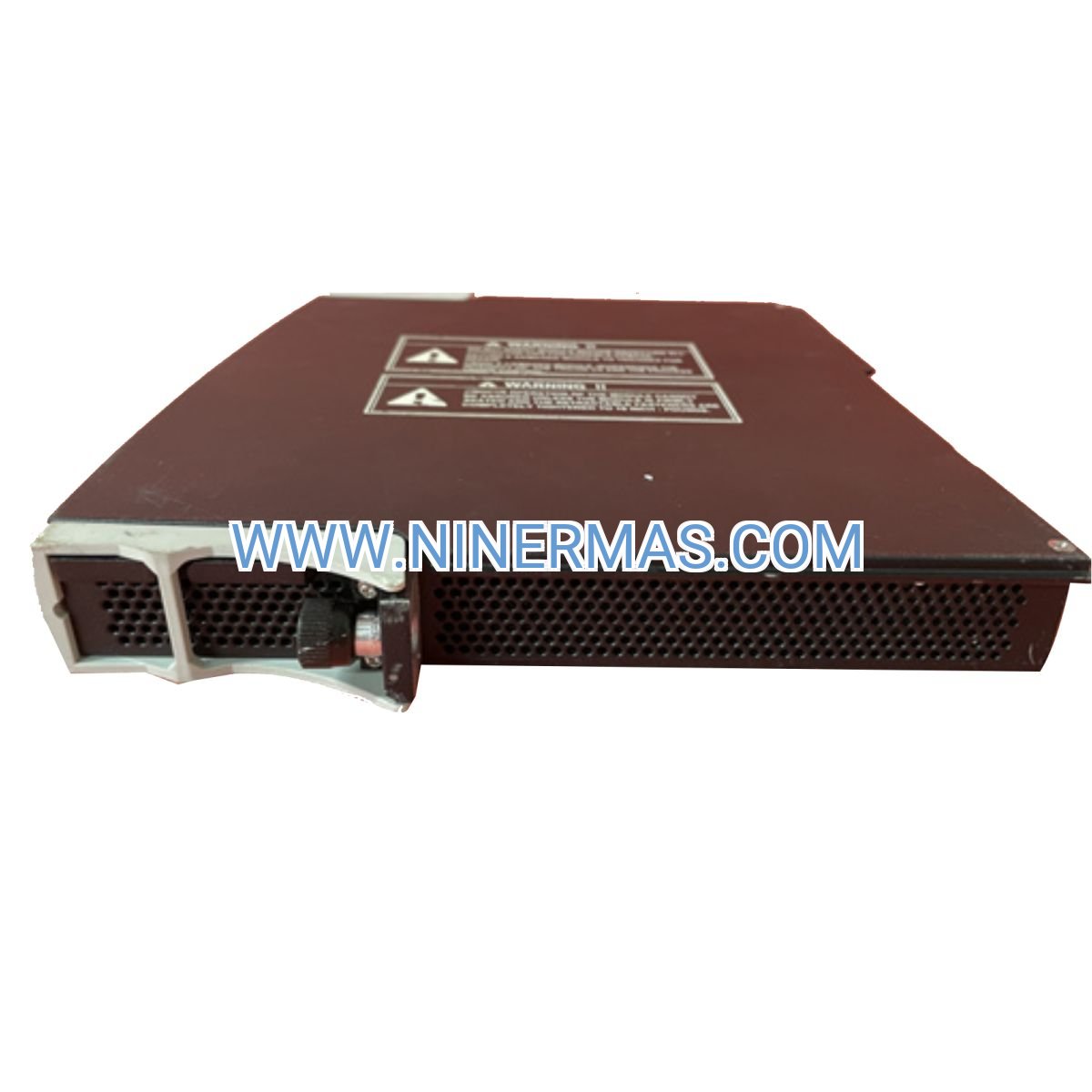

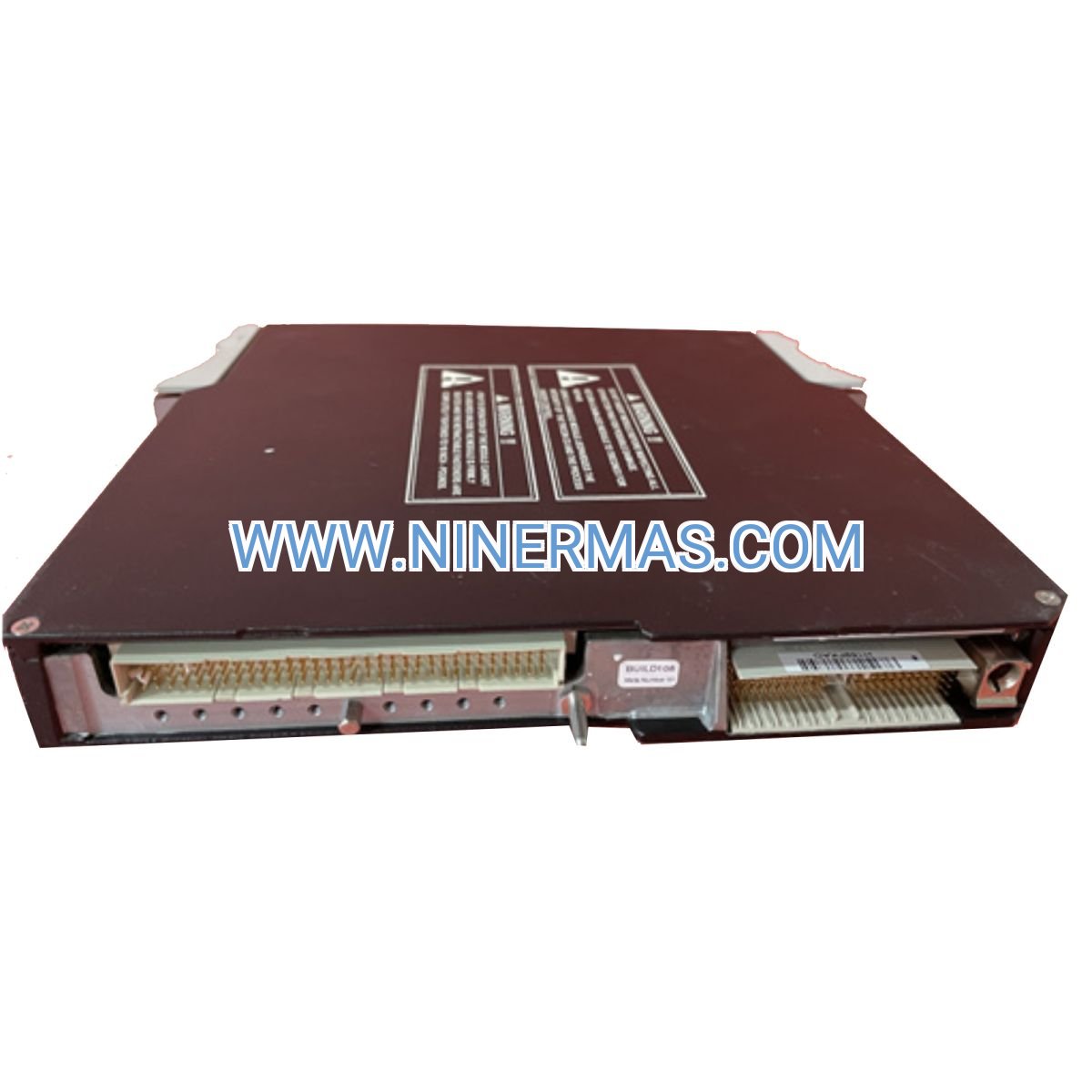

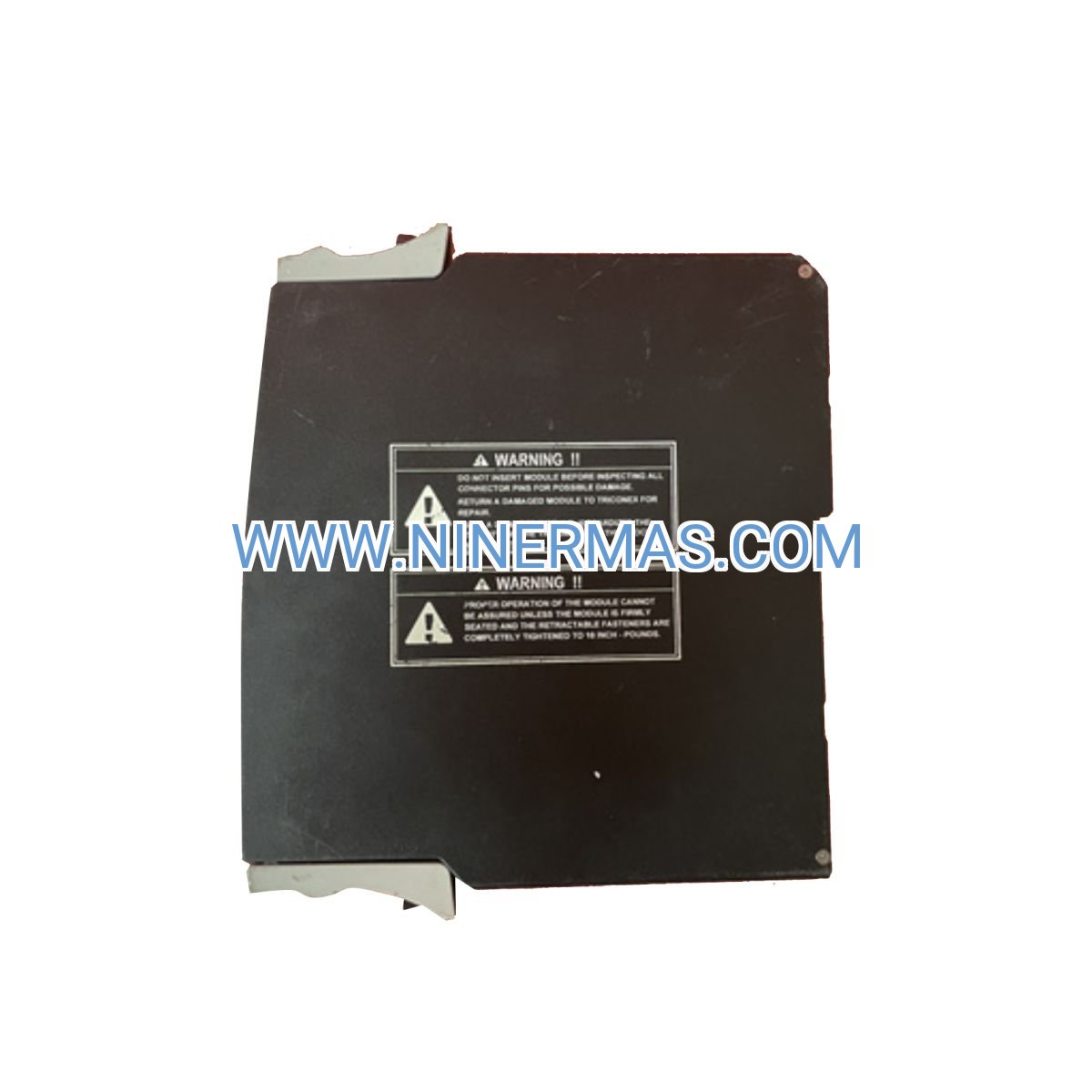

Triconex 3723X TMR Analog Input Module (Industrial-Grade Safety I/O Solution)

The Triconex 3723X stands as a cornerstone solution for safety-critical analog signal acquisition in high-stakes industrial environments. This advanced module consolidates 32 independent analog input channels within a single hot-swappable unit, each protected by triple modular redundant (TMR) architecture that ensures continuous operation even during component failures. Designed specifically for integration with Tricon and Trident safety instrumented systems, the 3723X delivers the measurement integrity demanded by SIL 3 applications across oil & gas, chemical processing, and power generation sectors.

Industrial facilities face mounting pressure to maintain operational continuity while meeting stringent safety regulations. The 3723X addresses this challenge by combining high channel density with fault-tolerant design, reducing cabinet space requirements by up to 60% compared to traditional redundant I/O architectures. Process engineers and safety system integrators choose this module when measurement accuracy, system availability, and regulatory compliance cannot be compromised.

Key advantages include certified SIL 3 performance per IEC 61508 standards, 16-bit resolution for precision process variable monitoring, and comprehensive diagnostics that identify sensor faults before they impact production. With an MTBF exceeding 100 years and field-proven reliability across thousands of global installations, the 3723X represents the industry benchmark for safety-critical analog input processing.

Core Features & Business Value

✓ Triple Modular Redundancy (TMR) Architecture
Three independent signal processing paths with 2oo3 voting logic eliminate single points of failure. Your safety system maintains full operational capability even when one channel experiences hardware degradation, protecting against unplanned shutdowns that cost $50,000-$500,000 per hour in lost production.

✓ High-Density 32-Channel Design
Consolidate analog inputs into fewer modules, reducing panel footprint by 40-60% versus conventional redundant systems. Lower installation costs through reduced wiring, fewer terminal blocks, and simplified cabinet layouts—typical projects save $15,000-$30,000 in engineering and materials.

✓ Hot-Swappable Field Replacement
Replace modules during operation without system shutdown or process interruption. Maintenance windows shrink from hours to minutes, preserving production schedules and eliminating costly downtime coordination across multiple departments.

✓ Universal Signal Compatibility
Individually configurable channels accept 0-20mA, 4-20mA, or 0-10V DC signals without hardware changes. Adapt to evolving instrumentation requirements through software reconfiguration, avoiding expensive module replacements when sensor types change.

✓ Advanced Diagnostic Capabilities
Real-time health monitoring detects open circuits, short circuits, out-of-range conditions, and channel-specific faults. Predictive maintenance alerts reduce emergency callouts by 35% and extend sensor service life through early fault detection.

✓ Extreme Environment Certification
Operates reliably from -40°C to +70°C with Class I Division 2 and ATEX Zone 2 approvals. Deploy confidently in hazardous locations, offshore platforms, and extreme climate zones without environmental enclosures or active cooling systems.

Application Scenarios & Industry Solutions

→ Oil & Gas Refinery Emergency Shutdown Systems
Monitor critical process variables including distillation column temperatures, reactor pressures, and flow transmitters that trigger emergency isolation valves. The 3723X's TMR voting prevents spurious trips that cost refineries $2-5 million per incident while ensuring genuine hazards activate protective functions within 100ms response times.

→ Chemical Plant Reactor Protection
Track exothermic reaction temperatures, cooling system flows, and pressure relief valve positions in batch and continuous processes. Fault-tolerant measurement prevents runaway reactions while eliminating nuisance shutdowns that waste raw materials and delay production schedules by 8-12 hours per event.

→ Power Generation Turbine Safeguarding
Acquire vibration sensor signals, bearing temperatures, and lube oil pressures for steam and gas turbine protection systems. High-speed 100ms scan rates detect developing mechanical failures before catastrophic damage occurs, protecting $50-200 million turbine assets and preventing extended outages.

→ Offshore Platform Fire & Gas Detection
Interface with combustible gas detectors, flame sensors, and toxic gas monitors across production facilities. The module's 1500V isolation withstands electrical noise in harsh marine environments, while SIL 3 certification satisfies API RP 14C and IEC 61511 offshore safety requirements.

→ Pharmaceutical Clean Room Environmental Monitoring
Measure differential pressures, HEPA filter status, and temperature/humidity transmitters that maintain sterile manufacturing conditions. Continuous monitoring with automatic fault detection ensures FDA 21 CFR Part 11 compliance and prevents batch contamination events costing $500,000-$3 million in lost product.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3723X when your application requires SIL 2/3 safety integrity, high channel density to minimize cabinet space, or fault-tolerant measurement in critical control loops. For applications with 16 or fewer channels, consider the standard Triconex 3721 module. If thermocouple or RTD inputs are needed, specify the Triconex 3706 temperature input module instead. Voltage-only applications may utilize the more economical 3708 module, though current loop compatibility is sacrificed.

Extended Functions & Integration Capabilities

TriStation 1131 Software Integration: Configure all 32 channels through intuitive graphical interfaces within the TriStation development environment. Set input ranges, enable filtering (0.1-10 second time constants), establish high/high-high and low/low-low alarm thresholds, and assign engineering units—all without manual register mapping or complex programming.

Modbus TCP/IP Connectivity: Access real-time process values and diagnostic data via standard Modbus TCP protocol for integration with SCADA systems, historians, and plant-wide information networks. The Tricon controller publishes 3723X channel data at user-defined rates from 100ms to 60 seconds.

Redundant Controller Support: Deploy in triple modular redundant (TMR) Tricon controller configurations where three independent controllers cross-check all I/O data. Automatic controller failover occurs within 100ms without process interruption or data loss.

Custom Linearization Tables: Apply 20-point linearization curves to non-linear sensor outputs including square-root flow calculations, custom thermocouple types, or proprietary transducer characteristics. Linearization executes in the module's local processor, offloading computational burden from the main controller.

Alarm & Event Logging: Timestamp all channel faults, out-of-range conditions, and TMR voting discrepancies with 1ms resolution. Event logs support root cause analysis during incident investigations and provide audit trails for regulatory compliance documentation.

Delivery Timeline & Service Guarantee

Standard Delivery: Factory-new modules ship within 3-5 business days via express courier (DHL/FedEx). Typical transit time to North America, Europe, and Asia-Pacific regions is 5-7 days from order confirmation.

Expedited Service: Critical replacement requirements qualify for 24-hour emergency dispatch with priority air freight. Contact our technical sales team for same-day quotations on expedited logistics.

Warranty Coverage: Every Triconex 3723X includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty service includes advance replacement shipment to minimize downtime—defective units are replaced before return shipping is required.

Technical Support: Unlimited access to application engineers with Triconex system expertise. Support services include configuration file review, troubleshooting assistance, firmware compatibility verification, and integration guidance for complex multi-vendor systems.

Documentation Package: Complete technical documentation ships with every module: installation manual, wiring diagrams, TriStation configuration examples, dimensional drawings, and safety certification documents (SIL 3, ATEX, IECEx certificates).

Frequently Asked Questions

Q: How does the 3723X handle simultaneous current and voltage input requirements?
A: Each of the 32 channels operates independently with software-selectable input types. You can configure channels 1-16 for 4-20mA current loops and channels 17-32 for 0-10V DC voltage signals within the same module, providing maximum flexibility for mixed-sensor installations.

Q: What diagnostic features help identify failing field sensors before process upsets occur?
A: The module continuously monitors for open-circuit conditions (broken wires), short-circuits, signal drift beyond configured limits, and TMR channel disagreements. Diagnostic alarms appear in the TriStation interface with specific channel identification, allowing maintenance teams to schedule sensor replacements during planned outages rather than emergency responses.

Q: Can the 3723X integrate with legacy Tricon systems installed 10-15 years ago?
A: Yes, the module maintains backward compatibility with Tricon controllers running firmware version 10.0 and later. However, advanced features like custom linearization and enhanced diagnostics require controller firmware 10.5 or newer. Our technical team provides free compatibility assessments for existing installations.

Q: What is the maximum cable length between field transmitters and the 3723X module?
A: For 4-20mA current loop signals, cable runs up to 1500 meters (5000 feet) are supported using standard 18 AWG shielded twisted-pair wire. Voltage inputs (0-10V DC) should be limited to 300 meters (1000 feet) to maintain accuracy specifications. Longer distances require signal conditioning or transmitter relocation.

Q: How does TMR voting protect against electromagnetic interference in industrial environments?
A: Each input channel uses three physically separated A/D converters with independent power supplies and ground references. The Tricon controller compares all three measurements and rejects outliers caused by EMI, electrical noise, or transient disturbances. This voting mechanism provides immunity to interference that would cause false alarms in simplex systems.

Q: Are firmware updates required when adding the 3723X to an existing Tricon system?
A: The module is recognized automatically by Tricon controllers with firmware 10.0+. No controller firmware update is mandatory for basic operation. However, we recommend updating to the latest firmware version to access enhanced diagnostic features, improved scan time performance, and expanded Modbus register mapping introduced in recent releases.

Take the Next Step

Protect your critical processes with proven TMR technology trusted by Fortune 500 companies worldwide. Contact our safety system specialists today for application-specific configuration guidance, competitive quotations, and technical documentation tailored to your project requirements.

Request a Quote: Email your system architecture details and channel count requirements to receive a detailed proposal within 4 business hours.

Technical Consultation: Schedule a 30-minute call with our Triconex-certified engineers to discuss integration challenges, retrofit scenarios, or multi-module system designs.

Documentation Access: Download complete datasheets, CAD drawings, and TriStation configuration templates from our technical resource library.
