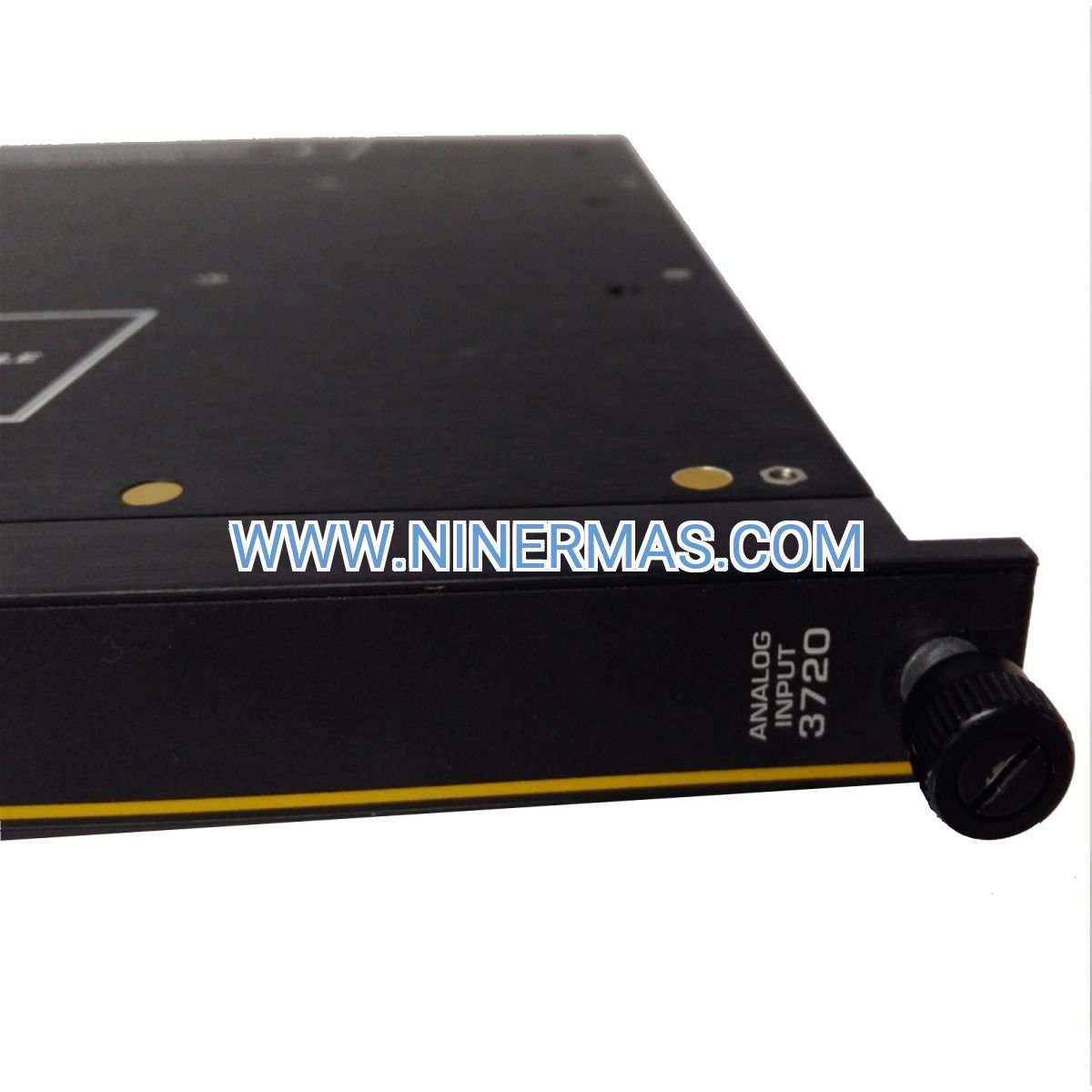

Triconex 3720 TMR Analog Input Module (Industrial-Grade Process Safety Component)

The Triconex 3720 represents a proven solution for high-integrity analog signal acquisition in safety-critical control systems. This 32-channel module leverages Triple Modular Redundancy technology to deliver continuous fault-tolerant operation across oil & gas, chemical processing, and power generation facilities. Designed for engineers who demand uncompromising reliability, the 3720 integrates seamlessly into Triconex safety platforms while maintaining SIL 3 certification standards.

Process safety engineers face mounting pressure to minimize unplanned shutdowns while protecting personnel and assets. The 3720 addresses this challenge through its self-diagnostic TMR architecture, which detects and compensates for component failures without interrupting critical measurements. Whether monitoring reactor temperatures, pressure transmitters, or flow sensors, this module ensures your safety instrumented functions remain operational when it matters most.

With field-proven performance across thousands of installations worldwide, the Triconex 3720 delivers the combination of channel density, diagnostic coverage, and environmental resilience required for modern safety applications. Its hot-swappable design and configurable input ranges provide operational flexibility while maintaining the deterministic response times essential for emergency shutdown sequences.

Core Capabilities & Technical Advantages

✓ Triple Modular Redundancy Architecture
Three independent processing channels continuously cross-verify measurements, automatically voting out faulty data paths while maintaining full operational capability. This design achieves >99.9% availability in safety-critical loops.

✓ High-Density Signal Consolidation
32 single-ended analog inputs per module reduce panel space requirements by up to 40% compared to legacy systems, lowering installation costs and simplifying cabinet layouts for retrofit projects.

✓ Configurable Input Flexibility
Software-selectable ranges accommodate 4-20mA current loops, 0-10V voltage signals, and thermocouple inputs on the same module, eliminating the need for multiple spare part inventories.

→ Extended Temperature Performance
Operates reliably from -40°C to +70°C without derating, making it suitable for outdoor enclosures, offshore platforms, and desert installations where ambient conditions exceed standard industrial ratings.

→ Online Maintenance Capability
Hot-swap functionality enables module replacement during operation without process interruption or safety system bypass, reducing maintenance windows and improving plant availability metrics.

→ Comprehensive Diagnostic Coverage
Built-in self-tests monitor signal integrity, power supply health, and communication paths, providing early warning of degradation before failures impact safety functions—critical for meeting IEC 61511 proof test requirements.

Industry Applications & Problem-Solving Scenarios

Emergency Shutdown Systems (Oil & Gas)
In offshore production platforms, the 3720 monitors wellhead pressures, separator levels, and flare header temperatures. When abnormal conditions arise, its deterministic scan rates ensure shutdown logic executes within required response times, preventing equipment damage and environmental releases.

Burner Management Systems (Chemical Plants)
Chemical facilities use the 3720 to track fuel gas pressures, air flow rates, and flame detector signals in fired heaters. The TMR voting prevents spurious trips caused by single sensor failures, reducing production losses while maintaining personnel protection.

Turbine Overspeed Protection (Power Generation)
Combined-cycle plants rely on the 3720 for vibration monitoring, bearing temperature tracking, and lube oil pressure measurement. Its SIL 3 certification satisfies regulatory requirements for independent protection layers in turbine control systems.

Reactor Temperature Monitoring (Pharmaceutical Manufacturing)
Batch pharmaceutical processes demand precise temperature control to ensure product quality and prevent runaway reactions. The 3720's fast update rates and high-resolution conversion enable tight control loops while providing independent high-temperature alarms.

Compressor Anti-Surge Control (Gas Processing)
Natural gas processing facilities integrate the 3720 into anti-surge systems that protect centrifugal compressors from damaging flow reversals. The module's low latency ensures control valves respond before surge conditions develop.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 3720 when your application requires high channel density with non-isolated inputs in electrically quiet environments. For applications with significant ground potential differences or electrical noise, consider isolated input alternatives. Verify that your existing Triconex chassis has available slots and sufficient power budget (8W per module). Confirm that 32-channel density aligns with your I/O distribution strategy to minimize field wiring runs.

Advanced Integration Features

HART Protocol Compatibility
The 3720 supports HART-enabled smart transmitters, allowing simultaneous process variable measurement and device diagnostics over the same 4-20mA loop. This capability reduces commissioning time and enables predictive maintenance strategies.

Redundant Communication Paths
Dual communication channels to the Triconex main processors ensure continued data availability even during network faults, maintaining safety function integrity during partial system failures.

Custom Linearization Tables
User-defined linearization curves accommodate non-standard sensor outputs, eliminating the need for external signal conditioning and reducing overall system complexity.

Remote Monitoring Integration
Standard Modbus TCP/IP connectivity enables integration with plant-wide SCADA systems and cloud-based condition monitoring platforms, supporting Industry 4.0 initiatives without compromising safety system independence.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via express courier with full tracking visibility
Custom Configuration: 7-10 business days for factory-programmed modules with specific parameter sets
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
Technical Support: Unlimited phone and email support from certified Triconex specialists during business hours
Documentation Package: Complete installation manual, wiring diagrams, configuration software, and IEC 61508 certification documents included with every shipment

Frequently Asked Questions

How does the TMR voting mechanism handle sensor drift over time?
The 3720 continuously compares all three measurement channels. When one channel deviates beyond configurable thresholds, the system generates a diagnostic alarm while continuing to use the two agreeing channels. This allows scheduled maintenance without emergency shutdowns.

What is the maximum cable length for 4-20mA current loop connections?
Current loop inputs support cable runs up to 1,500 meters (4,920 feet) using standard 18 AWG shielded twisted pair, making the module suitable for large process units and distributed field installations.

Can I retrofit the 3720 into existing Triconex systems running older firmware?
The 3720 maintains backward compatibility with Triconex controllers running firmware version 10.0 and later. Systems with earlier firmware may require controller upgrades, which our technical team can assess during pre-sales consultation.

Does the module require external termination resistors or barriers?
No external components are required for standard 4-20mA and voltage inputs. Intrinsically safe applications in hazardous areas require certified barriers installed in the field junction boxes per local electrical codes.

What diagnostic information is available for troubleshooting?
The module provides channel-level diagnostics including open circuit detection, short circuit identification, out-of-range alarms, and A/D converter health status. All diagnostics are accessible through the Triconex programming software and can trigger maintenance notifications.

How does power consumption scale when adding multiple modules?
Each 3720 module draws 8W from the chassis power supply. A standard Triconex chassis supports up to 14 modules, requiring approximately 112W total for a fully populated configuration—well within typical power supply capacities.

Take the Next Step

Ready to enhance your safety instrumented system with proven TMR technology? Our application engineers are available to discuss your specific requirements, provide detailed technical specifications, and develop customized I/O architectures for your facility. Contact us today for a consultation or request a formal quotation with lead time confirmation.
