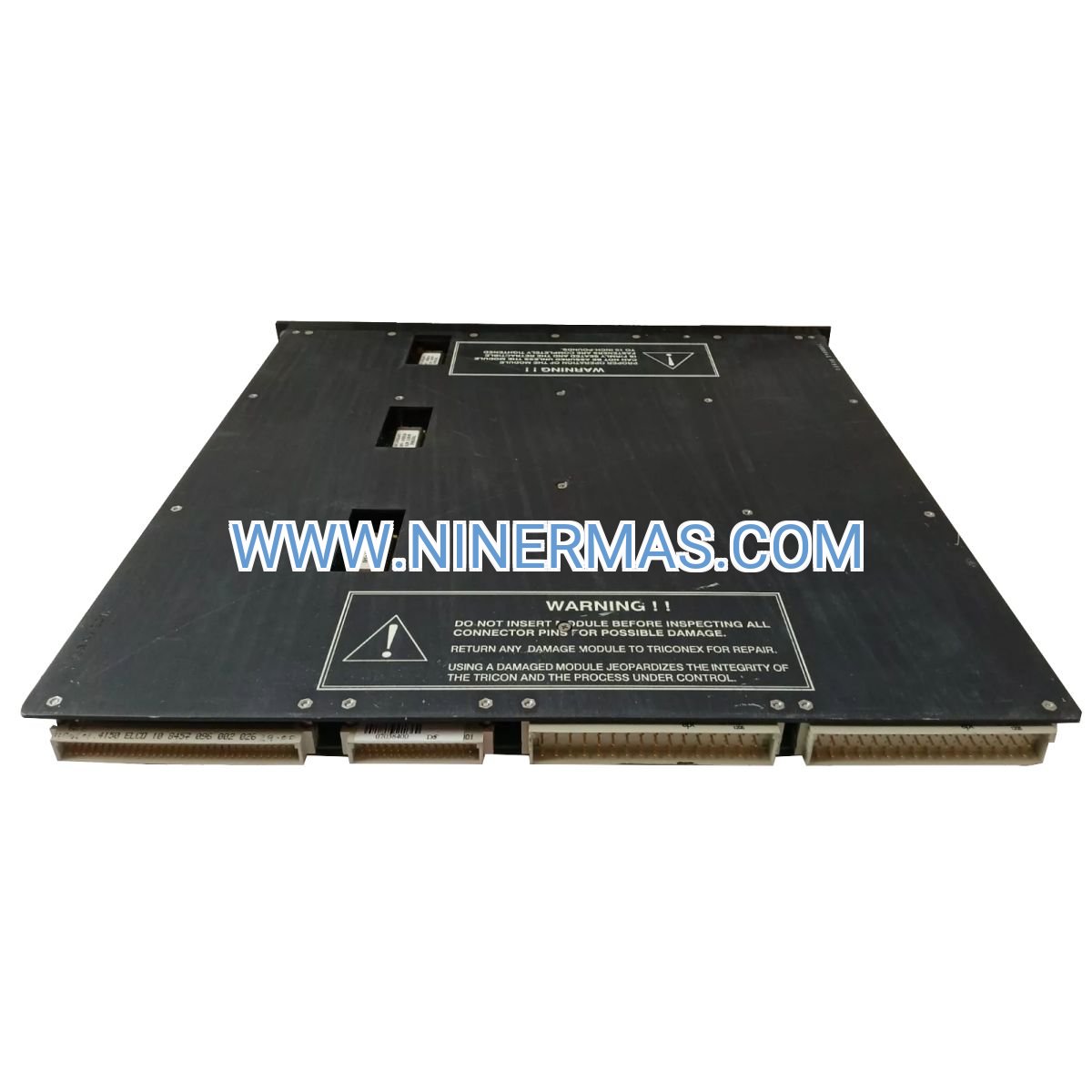

Triconex 3706A Analog Input Module (Industrial-Grade TMR Technology)

The Triconex 3706A represents a proven solution for high-integrity analog signal acquisition in safety-critical industrial environments. This 32-channel differential input module integrates seamlessly with Triconex Trident control platforms, delivering fault-tolerant performance through Triple Modular Redundant architecture. Designed for continuous operation in oil & gas, chemical processing, and power generation facilities, the 3706A ensures reliable process monitoring where system failure is not an option.

Process engineers and safety system integrators rely on the 3706A to interface field transmitters—temperature, pressure, flow, and level sensors—with certified safety controllers. Its TMR voting logic provides automatic fault detection and isolation, maintaining operational continuity even during component degradation. With SIL 3 certification per IEC 61508 standards, this module meets the most stringent functional safety requirements for emergency shutdown systems and critical process control applications.

Key advantages include hot-swappable design for zero-downtime maintenance, 1500V channel isolation to eliminate ground loop interference, and 16-bit resolution for precise signal conversion. Whether upgrading legacy systems or designing new safety instrumented systems, the 3706A delivers the reliability and performance demanded by modern industrial operations.

Core Features & Benefits

✓ Triple Modular Redundancy (TMR): Three independent processing channels continuously compare results and vote on correct values, automatically masking single-point failures without operator intervention—achieving 99.99% system availability in field-proven installations.

✓ 32 Differential Input Channels: High-density signal acquisition reduces cabinet space requirements by 40% compared to dual-channel modules while maintaining complete channel-to-channel isolation for superior noise immunity in electrically harsh environments.

✓ Flexible Input Configuration: Software-selectable ranges (0-5V DC, 1-5V DC, 4-20mA) enable connection to diverse field instruments without hardware modifications, reducing spare parts inventory and simplifying system commissioning.

✓ SIL 3 Safety Certification: Independently verified compliance with IEC 61508 functional safety standards provides documented risk reduction for safety instrumented functions, supporting regulatory compliance and insurance requirements.

✓ Advanced Diagnostics: Continuous monitoring of wire integrity, signal range violations, A/D converter health, and voter discrepancies with real-time alarm reporting to TriStation workstations—reducing troubleshooting time by up to 60%.

✓ Hot-Swappable Architecture: Field-replaceable design allows module exchange during live operation without process shutdown or safety system bypass, minimizing mean time to repair (MTTR) and maximizing production uptime.

Application Scenarios

→ Oil & Gas Production Facilities: Emergency shutdown (ESD) systems monitoring wellhead pressures, separator levels, and compressor temperatures require fail-safe signal acquisition. The 3706A's TMR architecture ensures critical shutdown logic receives accurate data even during sensor or wiring failures, preventing catastrophic releases and protecting personnel.

→ Chemical Process Plants: Reactor temperature control and pressure relief systems demand continuous, reliable analog inputs for exothermic reaction monitoring. Differential input design rejects electrical noise from variable frequency drives and high-voltage equipment, maintaining ±0.1% accuracy in challenging electromagnetic environments.

→ Power Generation Stations: Turbine control systems and boiler safety interlocks process dozens of analog signals from steam pressure, bearing vibration, and flame detection sensors. The 3706A's 16-bit resolution captures subtle process variations, enabling predictive maintenance strategies that reduce unplanned outages by 35%.

→ Pharmaceutical Manufacturing: Clean room environmental monitoring and sterile process control require validated, traceable signal acquisition. Built-in diagnostics provide audit trails for regulatory compliance (FDA 21 CFR Part 11), while SIL 3 certification supports quality risk management frameworks.

→ Offshore Platforms: Fire and gas detection systems in marine environments face extreme temperature swings, vibration, and corrosive atmospheres. The 3706A's rugged construction (0°C to 60°C operating range) and conformal coating options ensure reliable operation in harsh offshore conditions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3706A when your application requires more than 16 analog inputs with TMR fault tolerance. For lower channel counts, consider the Triconex 3704E (16 channels with enhanced diagnostics). If standard dual-redundancy suffices, the 3700E offers cost-effective 32-channel acquisition. Verify your Trident chassis backplane supports the 3706A module type before ordering—contact our technical team for compatibility confirmation if upgrading from legacy Tricon systems.

Extended Functions

IoT Integration Capabilities: The 3706A interfaces with modern SCADA and historian systems through the Triconex communication gateway, enabling real-time data streaming to cloud-based analytics platforms. OPC UA and Modbus TCP connectivity support Industry 4.0 initiatives, allowing predictive maintenance algorithms to analyze signal trends and identify sensor drift before calibration errors impact process quality.

Cybersecurity Features: Embedded security protocols protect against unauthorized configuration changes and data tampering. Role-based access control through TriStation software ensures only qualified personnel can modify safety-critical parameters, supporting compliance with IEC 62443 industrial cybersecurity standards.

Customization Options: Factory configuration services are available for pre-programmed channel assignments, custom termination panel labeling, and application-specific testing protocols. Conformal coating treatments provide enhanced protection for corrosive or high-humidity environments common in offshore and chemical processing applications.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited delivery options available for emergency replacement scenarios—contact our sales team for rush order capabilities.

Warranty Coverage: Every Triconex 3706A module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs (up to 36 months) available for critical applications requiring long-term protection.

Technical Support: Our certified Triconex specialists provide 24/7 phone and email assistance for installation guidance, troubleshooting, and configuration optimization. Remote diagnostic services help resolve issues without on-site visits, reducing downtime and travel costs.

Documentation Package: Each module ships with installation manual, wiring diagrams, TriStation configuration templates, and SIL 3 certification documents. Downloadable firmware updates and technical bulletins available through our customer portal.

Frequently Asked Questions

Q: How does the TMR voting mechanism handle sensor failures in safety-critical applications?
A: The 3706A's three independent processing channels continuously compare analog readings. When one channel deviates beyond configured tolerance (typically ±2% of span), the voting logic automatically excludes the faulty channel and continues operation using the two remaining channels. System alarms notify operators of the discrepancy, allowing scheduled maintenance without emergency shutdown.

Q: What termination panel accessories are required for 4-20mA current loop connections?
A: Current input operation requires 250-ohm precision termination resistors installed on the 9761-210 or 9771-2XX termination panels. Each panel accommodates 16 channels, so two panels are needed per 3706A module. Resistor kits (part number 9761-RES) are sold separately and include all necessary components for proper current-to-voltage conversion.

Q: Can I mix voltage and current inputs on the same 3706A module without hardware changes?
A: Yes, each of the 32 channels is independently configurable via TriStation software. Simply select the appropriate input type (0-5V, 1-5V, or 4-20mA) for each channel during system configuration. Ensure termination panels are wired correctly—voltage inputs connect directly while current inputs require termination resistors.

Q: What diagnostic capabilities help reduce troubleshooting time during commissioning?
A: Built-in diagnostics continuously monitor wire break conditions, out-of-range signals (under/over scale), A/D converter health, and TMR voter discrepancies. TriStation software displays real-time channel status with color-coded indicators, pinpointing faulty wiring or sensor issues within seconds. Historical alarm logs track intermittent problems for root cause analysis.

Q: Is the 3706A compatible with legacy Tricon safety systems or only Trident platforms?
A: The 3706A is specifically designed for Triconex Trident platforms and is not backward-compatible with original Tricon chassis. For Tricon system upgrades, migration to Trident hardware is required. Our engineering team provides migration planning services to minimize downtime during platform transitions.

Q: How does channel isolation protect against ground loop interference in large distributed systems?
A: Each input channel features 1500V RMS galvanic isolation from the backplane and other channels, breaking ground loops that cause measurement errors in systems with sensors located hundreds of meters apart. This isolation allows safe connection of field devices at different ground potentials without signal degradation or safety hazards.

Ready to Enhance Your Safety System?

Contact our industrial automation specialists today for application-specific guidance, competitive pricing, and fast delivery of the Triconex 3706A analog input module. Our team provides complimentary system design reviews to ensure optimal configuration for your safety instrumented functions.
