Triconex 3481 Analog Output Module | 4-Channel TMR Safety System for SIL 3 Applications

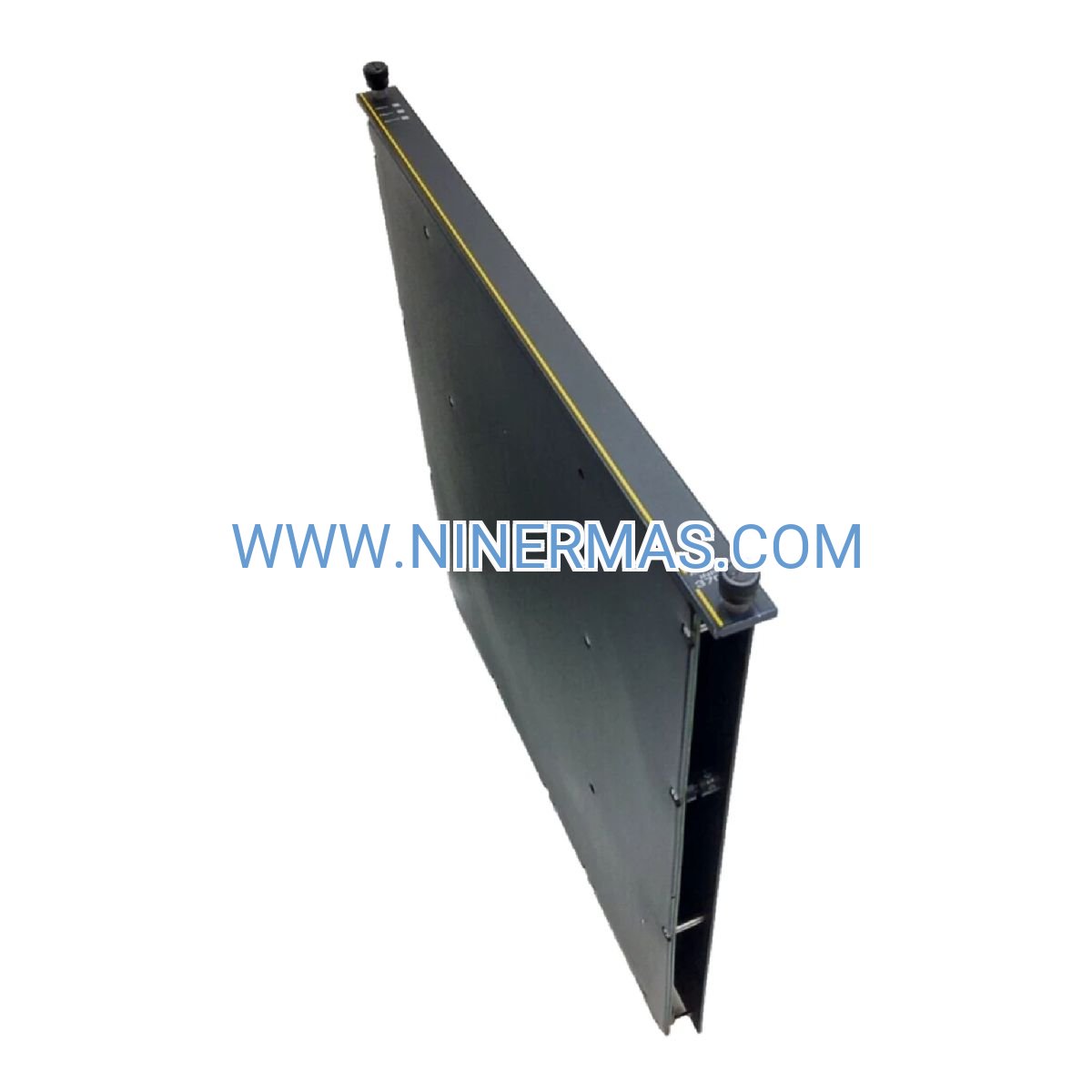

Triconex 3481 Analog Output Module (Industrial-Grade TMR Safety I/O System)

The Triconex 3481 Analog Output Module is a high-integrity I/O component designed for Safety Instrumented Systems (SIS) requiring SIL 3 certification. Through its Triple Modular Redundant (TMR) architecture, this module delivers continuous 4-20mA analog control signals with fault-tolerant operation, ensuring uninterrupted safety-critical process control in emergency shutdown (ESD), fire & gas (F&G), and burner management applications.

Engineered for oil & gas facilities, chemical plants, power generation stations, and pharmaceutical manufacturing, the 3481 module addresses challenges such as single-point failures, unplanned downtime, signal drift under harsh conditions, and complex maintenance procedures. Its hot-swappable design enables online replacement without system shutdown, minimizing production interruptions.

With standardized configuration options and field-proven reliability, this module offers deterministic response times, comprehensive diagnostics, and seamless integration with Triconex TriStation software. Ideal for design engineers, system integrators, plant maintenance teams, and EPC contractors seeking certified safety solutions. Contact our application engineers for project-specific configuration guidance and technical documentation.

Core Features & Engineering Advantages

• Triple Modular Redundant (TMR) Architecture
  Three independent processing channels with majority voting logic ensure continuous operation even during single-channel faults, meeting IEC 61508 SIL 3 requirements without spurious trips.
• Four Independent 4-20mA Output Channels
  Each channel provides isolated analog signals with ±0.1% accuracy, suitable for controlling final control elements such as pneumatic valves, variable frequency drives, and electro-pneumatic positioners.
• Hot-Swappable Field Replacement
  Module extraction and insertion under power eliminates scheduled maintenance windows, reducing mean time to repair (MTTR) by up to 60% compared to non-redundant systems.
• Comprehensive Built-In Diagnostics
  Real-time monitoring of output loop integrity, wire break detection, overcurrent protection, and channel deviation alarms enable predictive maintenance and rapid fault isolation.
• Harsh Environment Qualification
  Operating temperature range of -40°C to +70°C, conformal coating for humidity/chemical resistance, and EMI/RFI immunity per IEC 61000 standards ensure reliable performance in Zone 2 hazardous areas.
• Seamless System Integration
  Native compatibility with Triconex controllers (3008, 3009, 4000 series), TriStation configuration software, and industry-standard HART protocol for advanced device diagnostics.

Typical Application Scenarios

This module is engineered for safety-critical and high-availability process control systems, particularly in:

• Emergency Shutdown Systems (ESD)
  Controls shutdown valves, vent systems, and isolation actuators in offshore platforms, refineries, and LNG terminals, ensuring fail-safe response to hazardous conditions such as overpressure, gas leaks, or fire detection.
• Fire & Gas Detection Systems
  Interfaces with deluge valves, foam concentrate pumps, and HVAC dampers to execute automated suppression sequences, meeting API 2350 and NFPA 72 compliance requirements.
• Burner Management Systems (BMS)
  Regulates fuel gas flow control valves, air dampers, and ignition transformers in boilers, furnaces, and gas turbines, preventing unsafe combustion conditions per NFPA 85 and IEC 61511.
• Critical Process Control
  Maintains precise control of reactor temperatures, distillation column pressures, and compressor anti-surge valves in continuous chemical production, where process deviations can lead to product quality loss or equipment damage.
• Pipeline & Terminal Automation
  Operates pump speed controllers, pressure relief valves, and tank level regulators in custody transfer systems, ensuring operational integrity and environmental protection.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide detailed specifications aligned with industry standards. Custom configurations are available for project-specific requirements.

Selection Considerations: When specifying this module, engineers should evaluate: (1) total number of analog control loops required, (2) field device power supply architecture (loop-powered vs. external), (3) maximum loop resistance based on cable length and device impedance, (4) environmental classification (temperature extremes, vibration, EMI sources), and (5) integration with existing DCS/SCADA systems via Modbus or OPC protocols. Our application engineers can review P&IDs and provide optimized I/O allocation recommendations.

Advanced Integration Capabilities

• HART Protocol Support: Enables digital communication overlay on 4-20mA signals for remote device configuration, calibration, and diagnostics without interrupting process control.
• Redundant Power Supply Compatibility: Operates seamlessly with dual 24VDC power modules (3601/3603 series) for uninterrupted operation during power source failures.
• Distributed I/O Architecture: Supports remote installation up to 12,000 feet from main controller via fiber-optic communication modules, reducing marshalling cabinet costs in large facilities.
• Cybersecurity Features: Firmware authentication, secure boot processes, and role-based access control align with IEC 62443 industrial cybersecurity standards.

Delivery, Documentation & Technical Support

Lead Time: Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom-configured modules or large project quantities require 4-6 weeks; expedited processing available upon request.

Warranty & Service: All modules include a 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and on-site commissioning support are available for turnkey projects.

Technical Documentation Package: Each shipment includes product datasheet, installation manual with wiring diagrams, TriStation configuration guide, IEC 61508 safety manual, and calibration certificates. CAD drawings (DWG/PDF) and 3D STEP models provided upon request for panel design integration.

Training & Commissioning: We offer remote technical consultation for system configuration, loop testing procedures, and troubleshooting. On-site factory acceptance testing (FAT) and site acceptance testing (SAT) support available for critical infrastructure projects.

Frequently Asked Questions (FAQ)

Q: How does the Triconex 3481 analog output module integrate with existing non-Triconex control systems?
A: The module outputs standard 4-20mA signals compatible with any control system accepting analog inputs. For digital integration, Triconex controllers support Modbus TCP/RTU, OPC DA/UA, and proprietary TriStation protocols. Gateway modules enable seamless data exchange with DCS platforms from Honeywell, Emerson, Yokogawa, and ABB.

Q: What is the maximum number of 3481 modules supported in a single safety controller chassis?
A: A standard Triconex chassis (3006/3008 series) accommodates up to 118 I/O modules. For the 3481 specifically, configuration limits depend on total backplane power budget and scan time requirements—typically 20-30 modules per chassis. Distributed I/O racks extend capacity for large-scale applications.

Q: Can the module be calibrated in the field, and what equipment is required?
A: Yes, field calibration is supported via TriStation software using a precision current meter (0.01mA resolution) and calibrated signal source. The procedure involves zero/span adjustment and linearity verification per manufacturer guidelines. Typical calibration interval is 24-36 months depending on application criticality.

Q: What environmental protection rating does the module have for installation in outdoor or corrosive atmospheres?
A: The module itself is rated for controlled environment installation (IP20 equivalent). For outdoor or corrosive locations, it must be housed in NEMA 4X or IP66-rated enclosures with climate control. Conformal coating provides additional protection against humidity and chemical vapors in Zone 2 classified areas.

Q: Does the 3481 support partial stroke testing (PST) for safety valve diagnostics?
A: While the module provides precise analog output control suitable for PST sequences, the testing logic must be programmed in the Triconex controller application. Integration with smart valve positioners (HART/Foundation Fieldbus) enables automated PST with position feedback verification and signature analysis.

Q: Are there any known compatibility issues with legacy Triconex systems from the 1990s?
A: The 3481 is backward-compatible with Triconex v9.x and later firmware. Systems running v7.x or earlier may require controller firmware upgrades. Our technical team can perform compatibility assessments and provide migration roadmaps for obsolete hardware replacement projects.

Request Engineering Support & Quotation

To receive a detailed technical proposal, budget pricing, or application-specific configuration assistance, please provide the following project information:

• Project name and end-user facility location
• Application type (ESD, F&G, BMS, process control)
• Total number of analog output points required
• Field device specifications (valve actuators, VFDs, positioners)
• Electrical classification (hazardous area zone/division)
• Existing control system platform and communication protocols
• Project timeline and delivery requirements

Our certified application engineers will respond within 24 hours with tailored recommendations, compliance documentation, and commercial terms.
