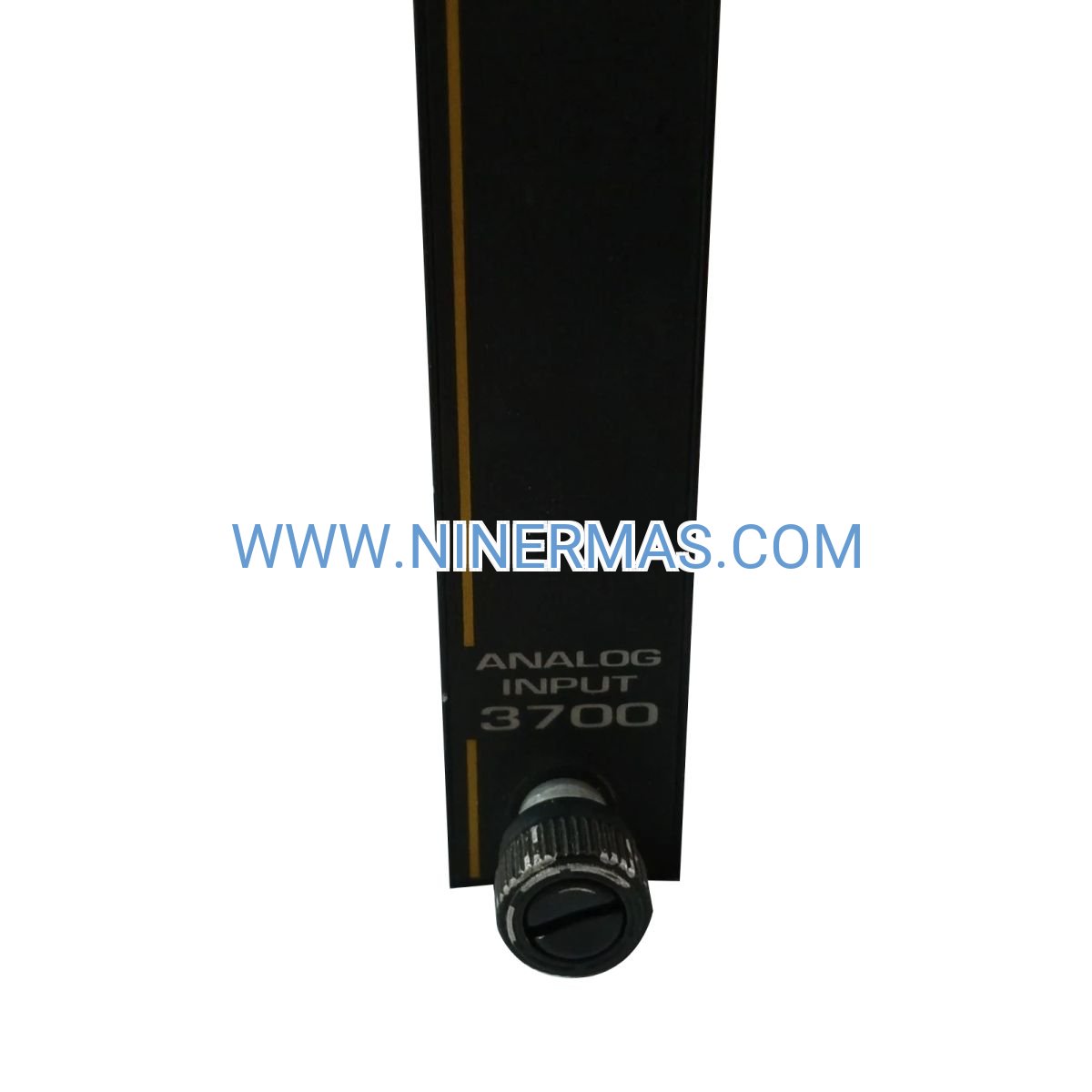

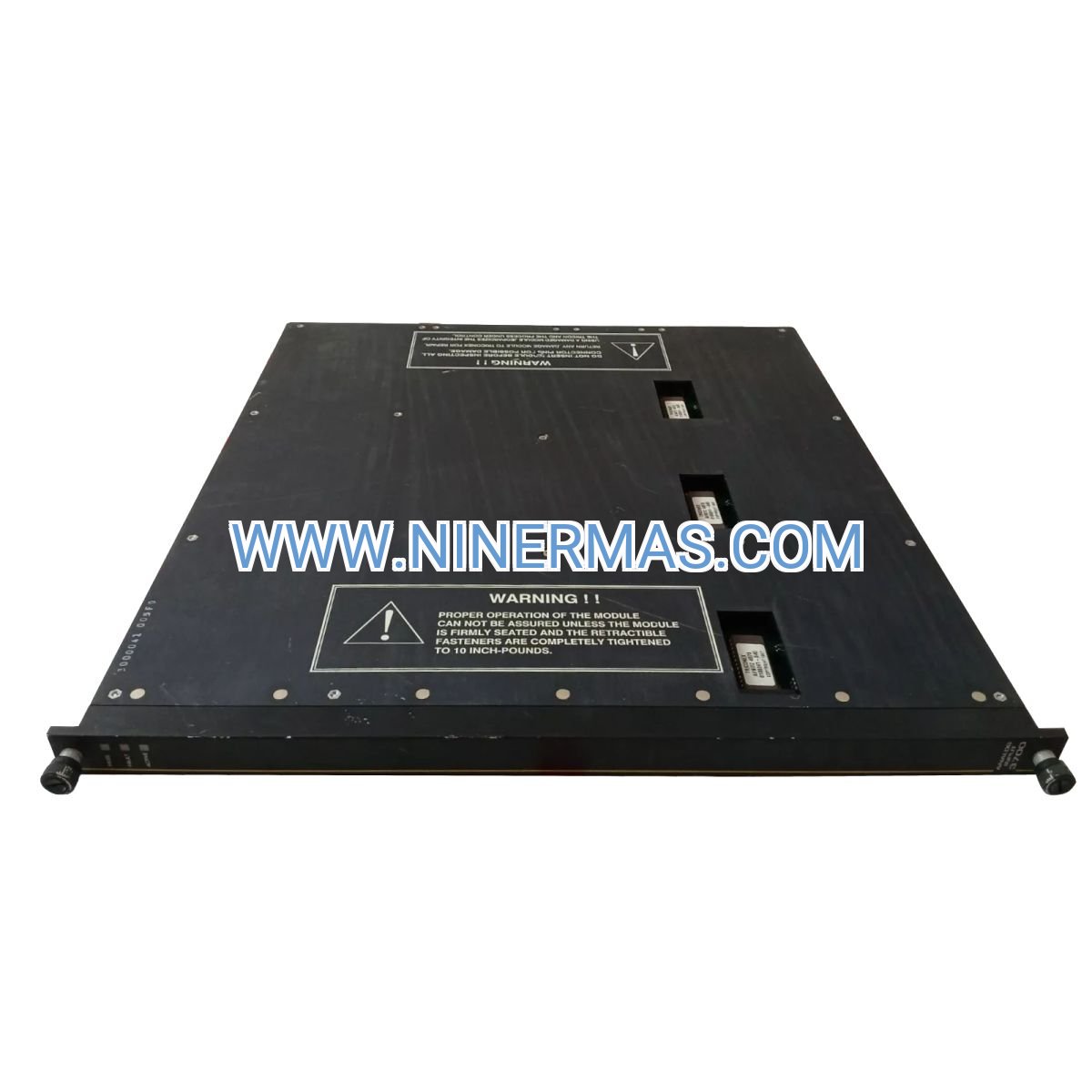

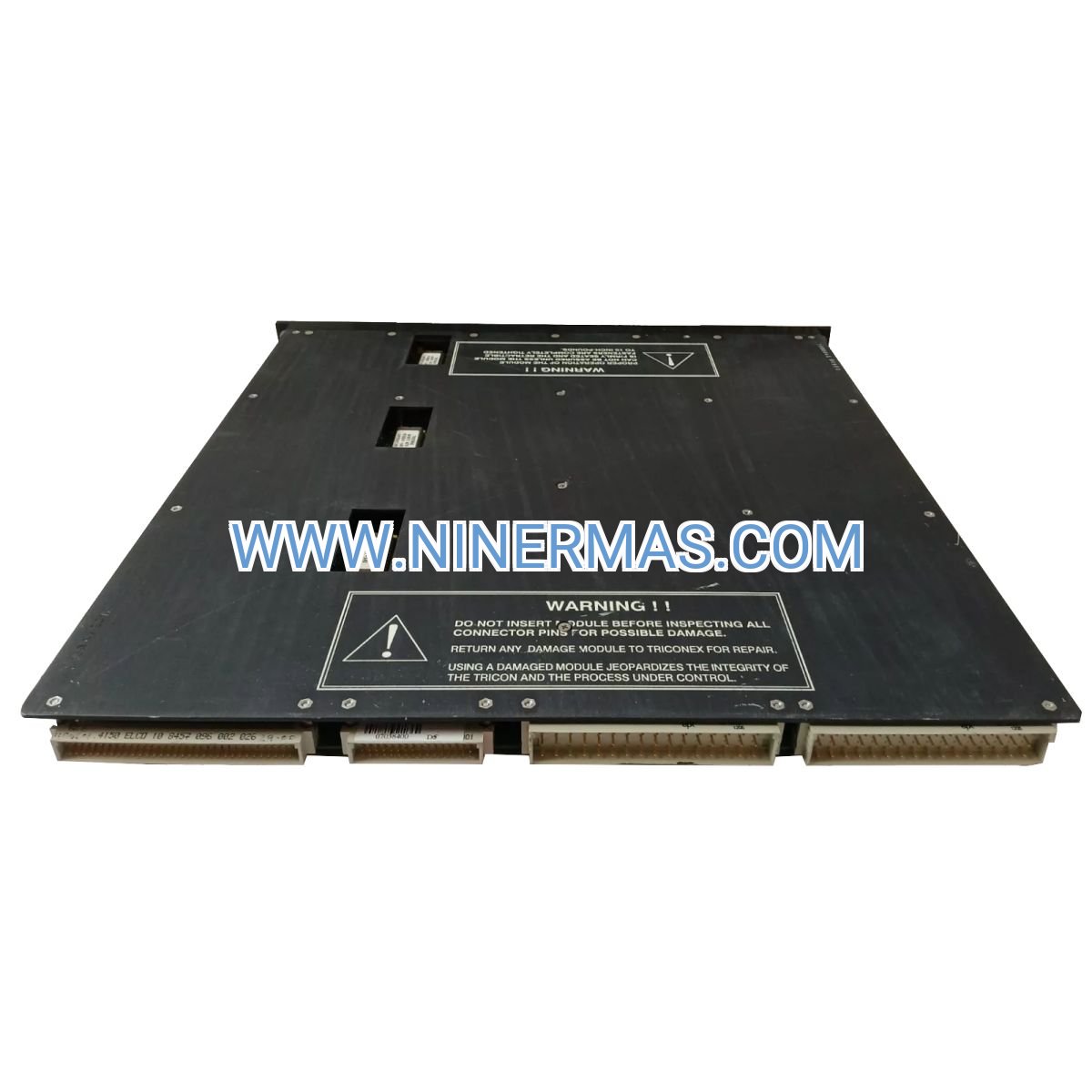

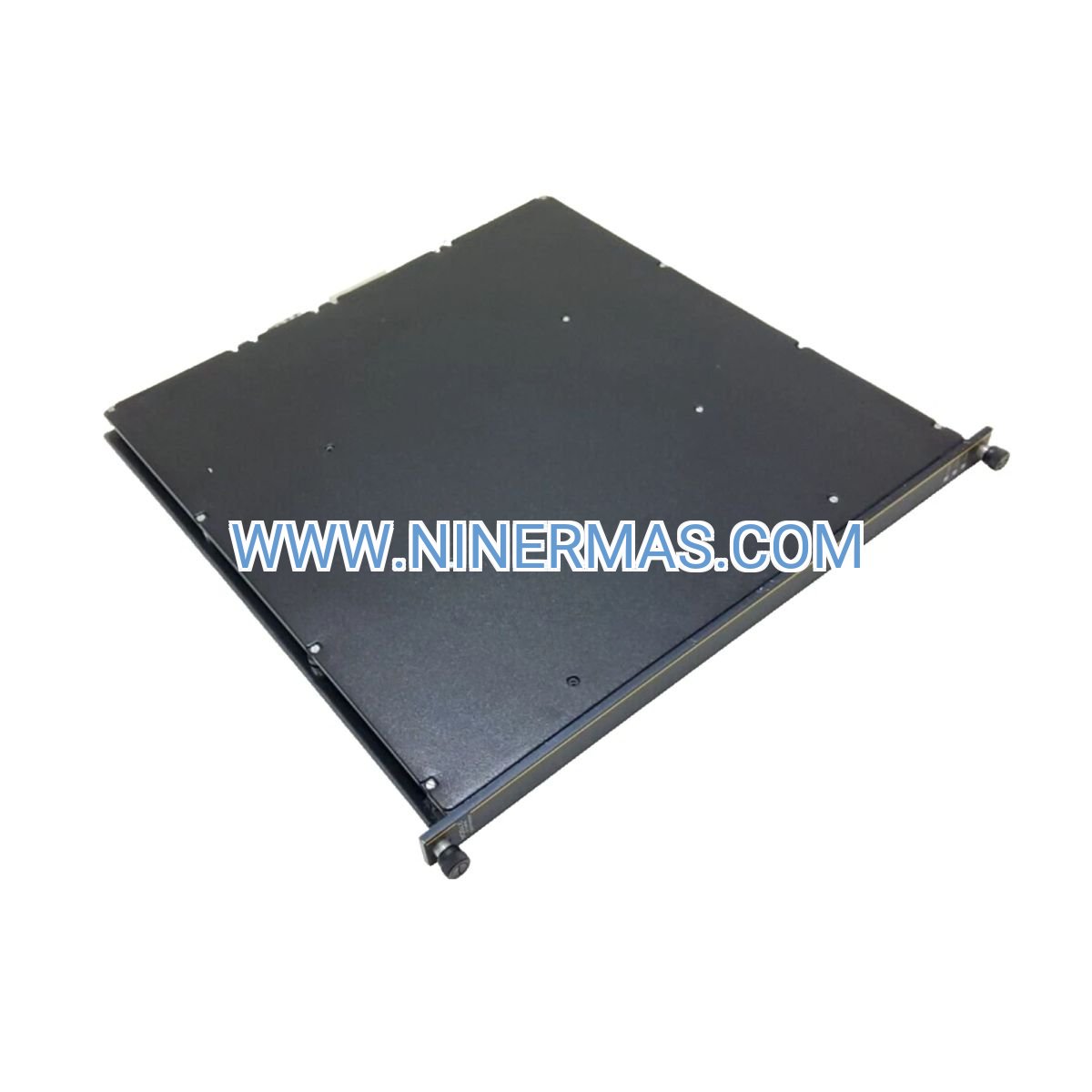

Triconex 3700E Analog Input Module (Industrial-Grade TMR Safety I/O)

The Triconex 3700E represents a mission-critical analog input solution engineered for safety instrumented systems where process integrity cannot be compromised. Built on proven Triple Modular Redundant architecture, this module transforms analog field signals into fault-tolerant digital data streams that drive emergency shutdown logic, process interlocks, and continuous safety monitoring across high-consequence industrial operations.

Designed for integration within Tricon safety controllers, the 3700E addresses the fundamental challenge of analog sensor reliability in hazardous environments. Whether monitoring pressure transmitters in offshore platforms, temperature sensors in chemical reactors, or level indicators in power generation facilities, this module delivers deterministic signal processing with built-in fault detection that meets SIL 3 integrity requirements per IEC 61508 standards.

Process engineers and safety system integrators rely on the 3700E for applications demanding continuous uptime, diagnostic transparency, and proven failure mitigation. Its hot-swappable design, self-diagnostic capabilities, and seamless TriStation integration reduce total cost of ownership while maintaining the highest safety integrity levels required by modern industrial facilities.

Core Capabilities & Technical Advantages

✓ Triple Modular Redundancy (TMR) Signal Processing
Three independent input channels continuously vote on signal accuracy, automatically detecting and compensating for sensor drift, wiring faults, or module degradation without process interruption. This architecture delivers 99.99% availability in safety-critical loops.

✓ 0-5 VDC Precision Analog Conversion
12-bit resolution A/D converters provide 0.024% measurement granularity across the full input range, enabling precise monitoring of process variables where small deviations trigger protective actions. Channel-to-channel isolation prevents ground loop interference.

✓ SIL 3 Certified Safety Integrity
Independently certified to IEC 61508 SIL 3 standards with proven-in-use documentation spanning millions of operational hours. Systematic capability and random hardware failure rates meet the most stringent safety lifecycle requirements for process industries.

✓ Hot-Swap Maintenance Architecture
Removable terminal blocks and online module replacement capability enable field service without system shutdown or safety function bypass. Automatic configuration download from the Tricon controller restores operation within seconds of module insertion.

✓ Comprehensive Diagnostic Monitoring
Continuous self-testing validates input signal quality, power supply integrity, A/D converter performance, and TMR voting synchronization. Predictive fault annunciation routes through the backplane to TriStation for proactive maintenance scheduling.

✓ Environmental Hardening for Industrial Deployment
Operates reliably across 0°C to 60°C ambient temperatures with conformal coating protection against humidity, dust, and chemical exposure. Low power consumption minimizes thermal stress in densely populated chassis configurations.

Industrial Application Scenarios

→ Oil & Gas Refining – Emergency Shutdown Systems
Monitor pressure transmitters on distillation columns, reactor vessels, and pipeline headers where analog signal integrity directly controls emergency isolation valves. The 3700E's TMR voting detects transmitter failures before they propagate to unsafe conditions, maintaining SIL 3 protection layers required by API standards.

→ Chemical Processing – Reactor Temperature Control
Interface with RTD and thermocouple signal conditioners to track exothermic reaction temperatures in batch reactors. Continuous diagnostic monitoring identifies sensor degradation trends, enabling predictive maintenance that prevents runaway reactions and thermal excursions.

→ Power Generation – Turbine Protection Systems
Process vibration sensor outputs, bearing temperature signals, and lube oil pressure transmitters that feed turbine trip logic. The module's deterministic scan time and fault tolerance ensure protective functions remain active during grid disturbances or electrical transients.

→ Pharmaceutical Manufacturing – Clean Room Environmental Monitoring
Acquire differential pressure, humidity, and temperature signals from critical production zones where environmental deviations compromise product quality. Isolated input channels prevent cross-contamination between monitoring loops in multi-zone facilities.

→ Water Treatment – Process Optimization & Safety
Track pH, chlorine residual, and flow rate transmitters in municipal treatment plants where analog control loops balance treatment efficiency with regulatory compliance. The 3700E's reliability reduces false trips that disrupt service delivery to communities.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 3700E when your application requires 0-5 VDC signal processing with SIL 3 integrity. For 4-20mA transmitter loops, consider external signal conditioning or alternative Triconex modules with current input capability. Verify that your field devices provide voltage output within the 0-5 VDC range, or specify appropriate signal converters. When designing multi-loop safety systems, calculate total I/O density to determine chassis slot allocation and power budget requirements.

Extended Integration & Connectivity Options

The 3700E integrates seamlessly with TriStation 1131 engineering software for configuration, diagnostics, and online monitoring. Ladder logic, function block, or structured text programming environments access module data through standard IEC 61131-3 function calls. Modbus TCP/IP and OPC UA gateways enable SCADA integration for plant-wide visibility of safety system status.

For comprehensive temperature monitoring architectures, pair the 3700E with Triconex 3706 thermocouple input modules to create hybrid analog input subsystems. Combine with 3481 analog output modules for closed-loop control strategies where safety logic directly manipulates control valves or variable frequency drives. Digital I/O modules like the 3625A provide discrete output capability for solenoid valve control and alarm annunciation.

Advanced deployments leverage the module's diagnostic data streams for predictive maintenance analytics. Export fault logs and signal quality metrics to asset management platforms that correlate I/O health with process performance trends, enabling condition-based maintenance strategies that optimize uptime and safety integrity.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock modules with factory-sealed packaging and full traceability documentation.
Custom Configuration: 10-15 business days for pre-programmed modules with customer-specific I/O mapping and diagnostic thresholds.
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues.
Technical Support: Lifetime access to application engineering support for configuration assistance, troubleshooting, and system integration guidance.
Documentation Package: Product datasheet, installation manual, TriStation configuration guide, and SIL 3 certification documents included with every shipment.

Frequently Asked Questions

How does the 3700E handle 4-20mA transmitter signals commonly used in process industries?
The 3700E is optimized for 0-5 VDC voltage inputs. For 4-20mA current loop transmitters, install 250-ohm precision resistors across the input terminals to convert current signals to 1-5 VDC voltage range, or specify Triconex modules with native current input capability like the 3706 series for direct 4-20mA interfacing.

What diagnostic capabilities help identify field wiring issues before they cause safety system failures?
Built-in diagnostics continuously monitor input signal levels, TMR voting discrepancies, and open/short circuit conditions. The module flags out-of-range signals, sensor drift beyond configurable thresholds, and channel-to-channel disagreements that indicate wiring faults or transmitter degradation, routing alarms to TriStation for operator action.

Can I replace a 3700E module during live operation without shutting down the safety system?
Yes. The TMR architecture maintains safety function integrity when one module is removed for service. After inserting a replacement module, the Tricon controller automatically downloads configuration data and synchronizes the new module with the redundant channels, typically completing the process within 10-15 seconds without process interruption.

What calibration procedures are required to maintain SIL 3 certification over the module's lifecycle?
Factory calibration ensures accuracy across the full operating range with certificates traceable to national standards. Field calibration is not required for normal operation. However, your safety lifecycle procedures may mandate periodic proof testing using calibrated voltage sources to verify end-to-end loop accuracy, typically performed during scheduled maintenance outages.

How many 3700E modules can I install in a single Triconex chassis for large analog input applications?
Chassis capacity depends on your Tricon controller model and power supply configuration. Standard 8-slot and 16-slot chassis accommodate multiple 3700E modules, with total I/O count limited by backplane communication bandwidth and power budget. Consult the Triconex system planning guide or contact our application engineers for multi-chassis architectures supporting hundreds of analog inputs.

Does the module support remote monitoring and predictive maintenance through Industrial IoT platforms?
Diagnostic data from the 3700E is accessible through TriStation software and can be exported via Modbus TCP/IP or OPC UA protocols to SCADA systems, historians, and cloud-based analytics platforms. This enables remote monitoring of signal quality trends, fault frequency analysis, and predictive maintenance algorithms that forecast module replacement needs before failures occur.

Take the Next Step

Ready to enhance your safety instrumented system with proven TMR analog input technology? Contact our technical sales team for application-specific guidance, system architecture reviews, and competitive quotations. We provide comprehensive support from initial specification through commissioning and lifecycle management.
