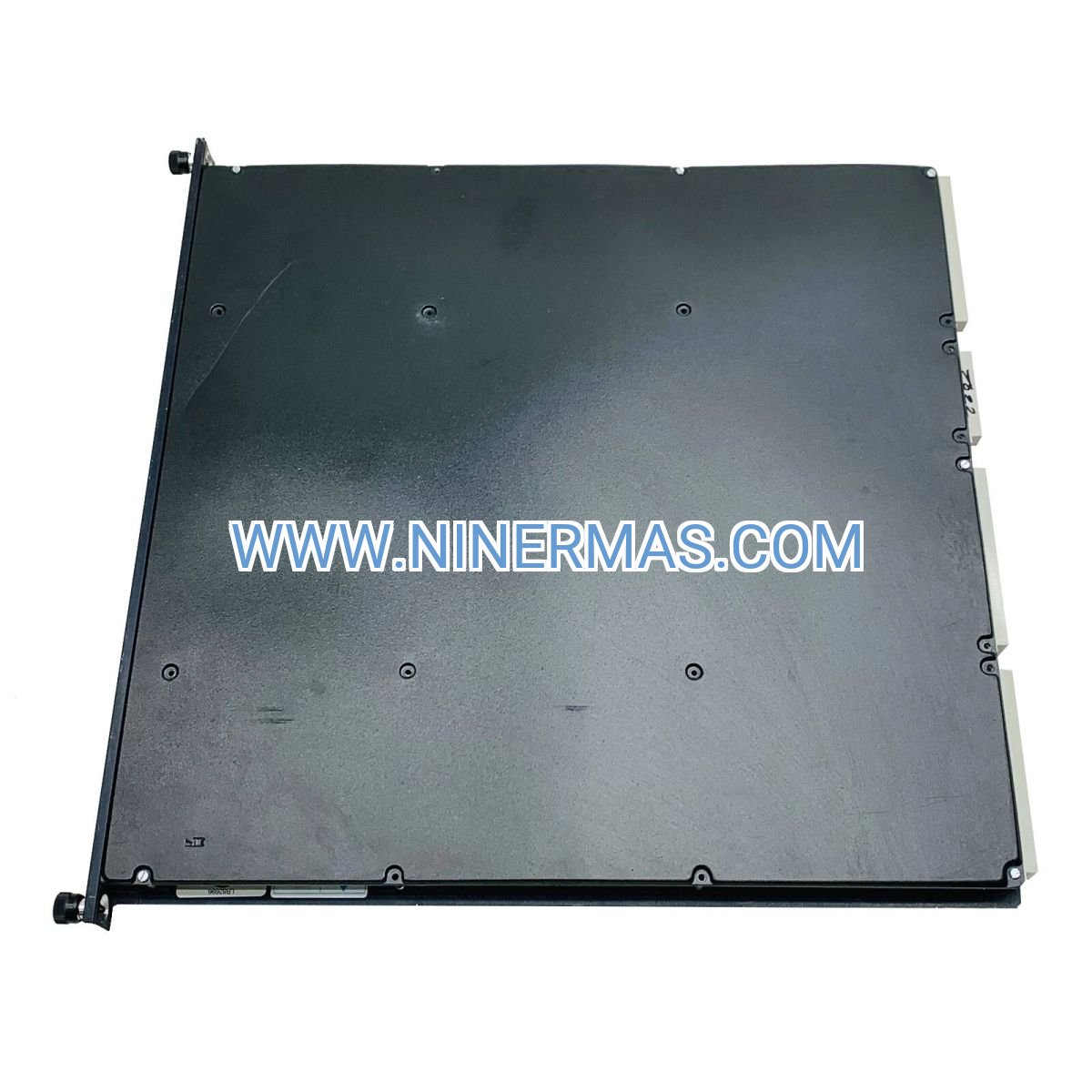

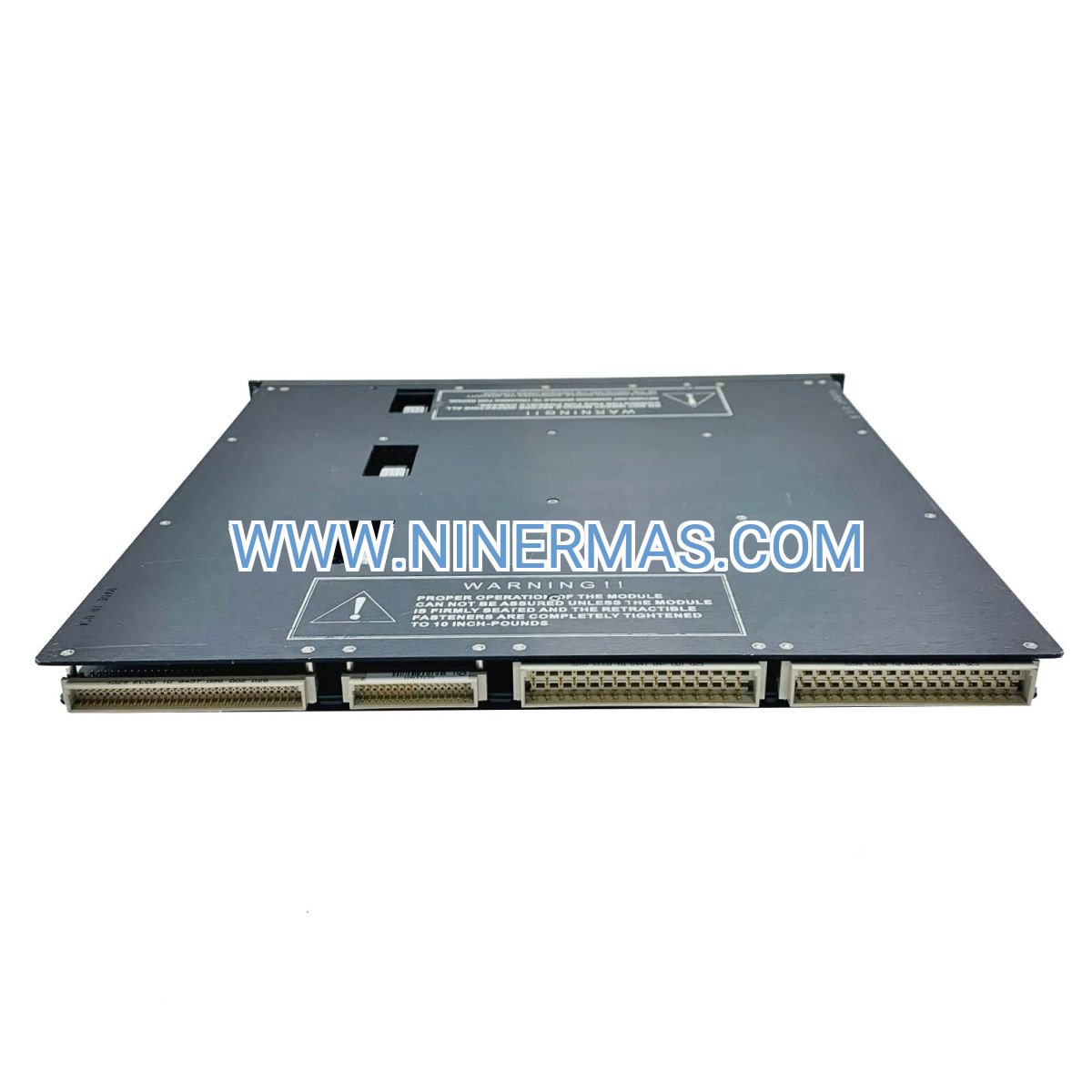

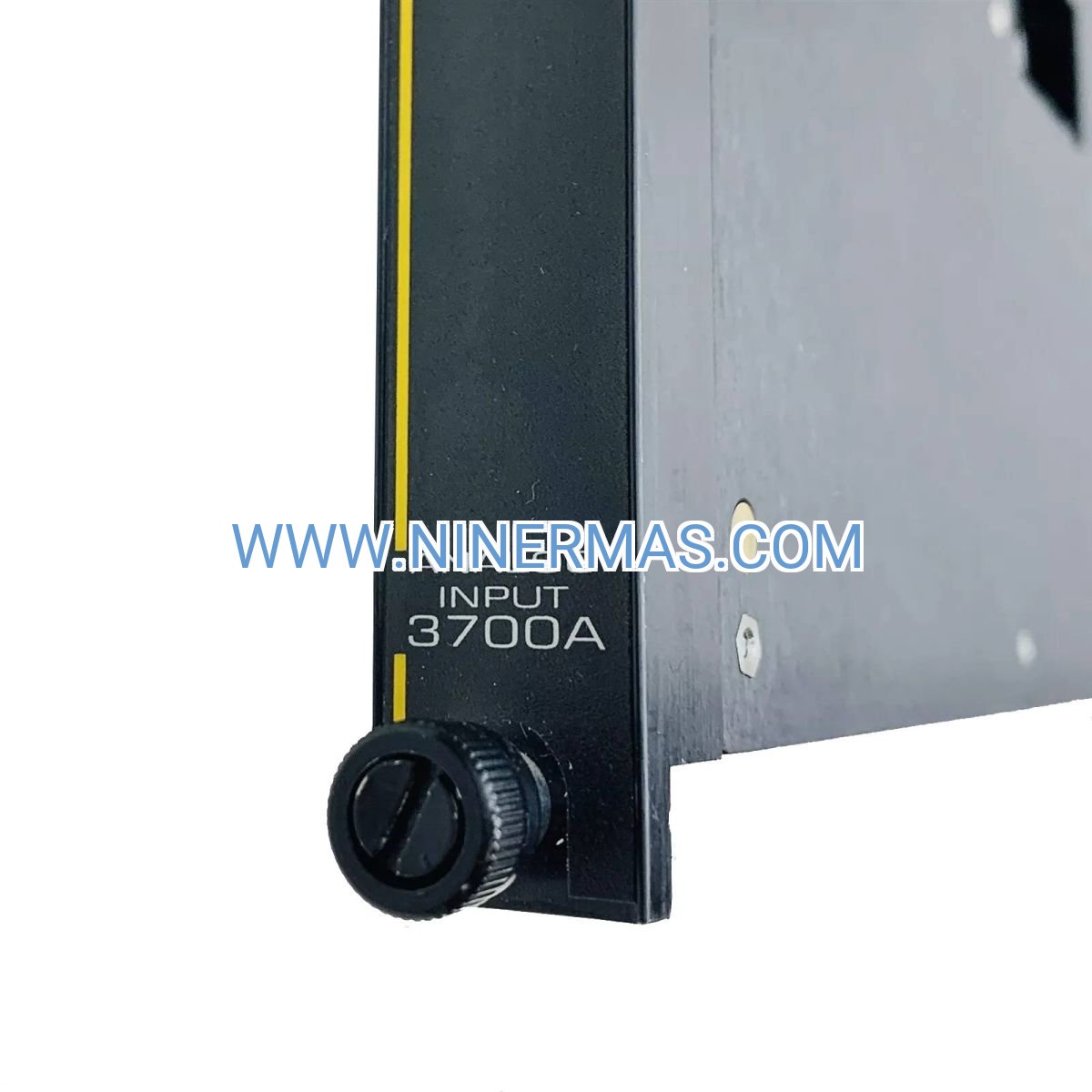

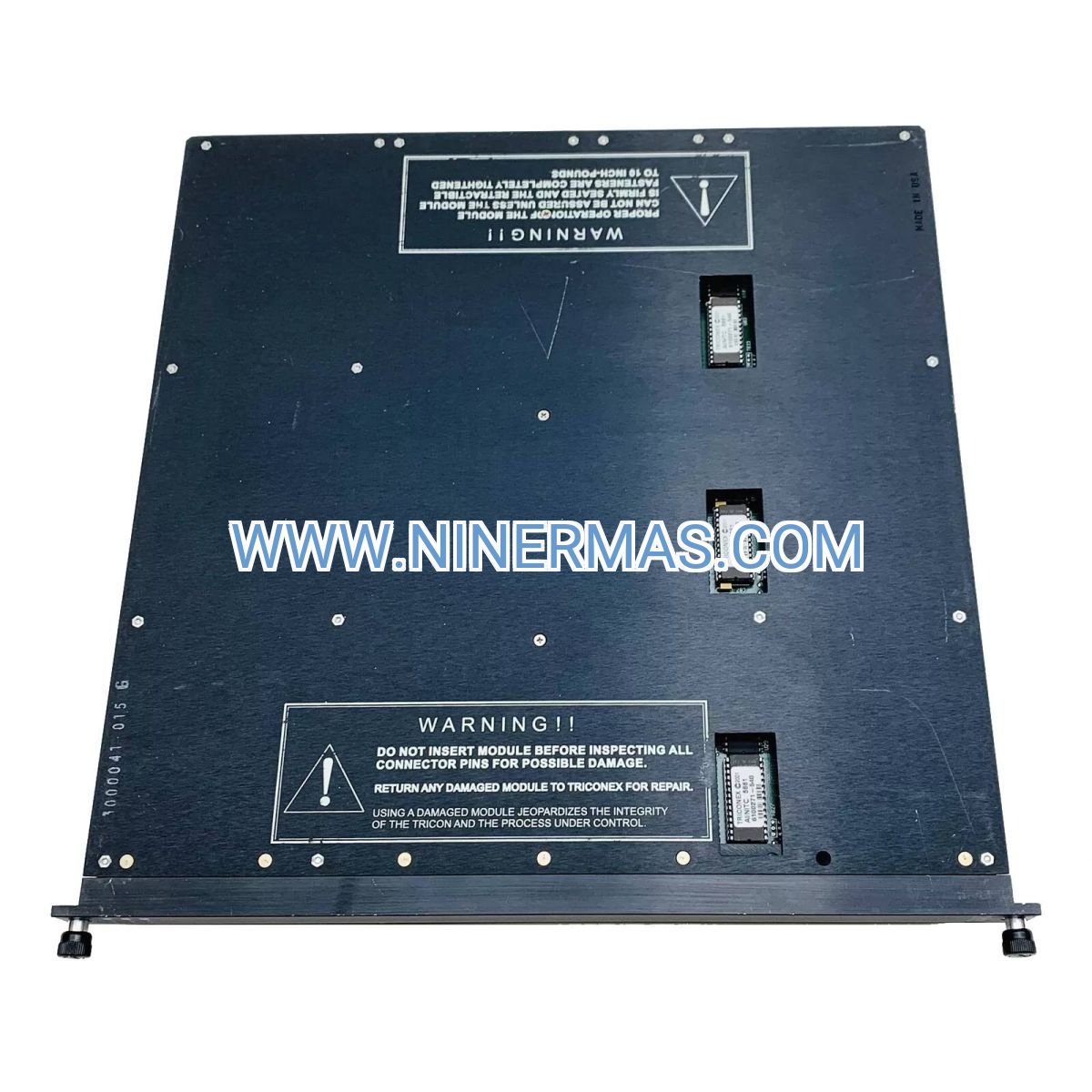

Triconex 3700A Analog Input Module (Industrial-Grade TMR Safety I/O)

The Triconex 3700A represents a proven solution for high-integrity analog signal acquisition in safety-critical industrial environments. Built on Triple Modular Redundant (TMR) architecture, this 32-channel input module delivers continuous fault-tolerant operation for emergency shutdown systems, fire and gas detection networks, and process safety applications where downtime is not an option.

Designed for process industries requiring SIL 3 certification under IEC 61508 standards, the 3700A serves as the frontline interface between field transmitters and Triconex safety controllers. Its hot-swappable design and comprehensive diagnostics enable maintenance without compromising system availability, making it the preferred choice for refineries, chemical plants, offshore platforms, and power generation facilities worldwide.

Whether you're upgrading legacy safety systems or designing new installations, the 3700A combines field-proven reliability with modern diagnostic capabilities to protect personnel, assets, and the environment.

Core Features & Benefits

✓ Triple Modular Redundant Architecture
Three independent processing channels with 2-out-of-3 voting logic eliminate single-point failures. If one channel fails, the system continues operating safely while diagnostics alert maintenance teams—no emergency shutdowns required.

✓ 32 Isolated Analog Input Channels
Accommodates voltage signals from 0-5V DC or 0-10V DC (field-selectable). Channel-to-channel isolation prevents ground loops and cross-talk, ensuring signal integrity even in electrically noisy industrial environments.

✓ SIL 3 Certified Safety Integrity
Certified to IEC 61508 SIL 3 standards with systematic capability SC3. Meets the most stringent safety requirements for emergency shutdown systems, burner management, and critical process control applications.

✓ Hot-Swap Capability Without System Interruption
Replace failed modules during live operation without halting safety functions. TMR voting continues on remaining channels while technicians perform maintenance—maximizing uptime and operational flexibility.

✓ Comprehensive Built-In Diagnostics
Continuous self-testing detects module faults, open/short circuits, out-of-range signals, and power supply issues. Diagnostic data integrates with TriStation software for predictive maintenance and troubleshooting.

✓ 12-Bit Resolution with High Accuracy
12-bit A/D conversion delivers 0.025% accuracy across the full signal range. Sufficient precision for pressure, temperature, level, and flow measurements in demanding process applications.

Typical Application Scenarios

→ Emergency Shutdown Systems (ESD) in Oil & Gas
Challenge: Offshore platforms and refineries require fail-safe monitoring of critical parameters like separator pressure, flare header temperature, and tank levels.
Solution: The 3700A interfaces with field transmitters to provide redundant signal acquisition. If dangerous conditions are detected, the Triconex controller initiates automated shutdown sequences to prevent catastrophic failures.
Value: Protects personnel and assets while meeting API RP 14C and IEC 61511 regulatory requirements.

→ Fire & Gas Detection Networks in Petrochemical Plants
Challenge: Chemical processing facilities need reliable integration with analog gas detectors (H2S, CO, combustible gases) and UV/IR flame sensors.
Solution: The 3700A acquires 4-20mA signals (via signal conditioning) from distributed detectors, enabling the safety system to activate deluge systems, ventilation, and evacuation alarms.
Value: Reduces false alarms through TMR voting while ensuring genuine hazards trigger immediate protective actions.

→ Burner Management Systems in Power Generation
Challenge: Boiler control systems require precise monitoring of fuel pressure, air flow, flame intensity, and furnace draft to prevent explosions.
Solution: The 3700A provides high-integrity signal acquisition for combustion control loops, working alongside Triconex logic solvers to enforce safe start-up, operation, and shutdown sequences.
Value: Complies with NFPA 85 and FM approval requirements while optimizing fuel efficiency.

→ Critical Process Monitoring in Chemical Manufacturing
Challenge: Exothermic reactions, high-pressure vessels, and toxic material handling demand continuous safety oversight.
Solution: The 3700A monitors reactor temperature, pressure relief valve positions, and containment system status, feeding data to safety interlocks that prevent runaway reactions.
Value: Minimizes risk of environmental releases and production losses through proactive hazard mitigation.

→ Pharmaceutical Clean Room Environmental Control
Challenge: Sterile manufacturing environments require precise control of differential pressure, temperature, and humidity with full audit trails.
Solution: The 3700A acquires signals from calibrated sensors, enabling the safety system to maintain critical parameters within validated ranges and trigger alarms for deviations.
Value: Supports FDA 21 CFR Part 11 compliance and protects product quality.

Technical Parameters & Selection Guide

Selection Criteria:

• Signal Type: Choose 3700A for voltage inputs (0-5V/0-10V). For 4-20mA current loops, consider the 3721 module or use external signal conditioners.
• Channel Count: Each module provides 32 inputs. Calculate total I/O requirements and add 20% spare capacity for future expansion.
• Environmental Conditions: Verify operating temperature range matches your installation environment. For extreme conditions, consider environmental enclosures.
• Termination Panels: Requires compatible analog input termination assemblies (9761-210 or 9771-210 series) for field wiring connections.
• Controller Compatibility: Confirm compatibility with your Triconex controller version (Tricon v9, v10, or Trident platforms).

Extended Functions

Advanced Diagnostic Capabilities
Beyond basic fault detection, the 3700A provides detailed diagnostic information including individual channel status, voting discrepancies, calibration drift alerts, and historical fault logs. Integration with TriStation 1131 software enables remote monitoring and predictive maintenance scheduling.

Flexible Configuration Options
Supports software-configurable input filtering, alarm setpoints, and scaling parameters through TriStation programming. Custom diagnostic routines can be implemented to meet specific application requirements without hardware modifications.

System Integration & Expansion
Seamlessly integrates with Triconex communication modules (TCM, EICM) for data sharing with DCS systems, historians, and asset management platforms. Supports Modbus, OPC, and proprietary Triconex protocols for enterprise-level connectivity.

Cybersecurity Features
When paired with modern Triconex controllers, benefits from built-in security features including role-based access control, encrypted communications, and audit logging to meet IEC 62443 industrial cybersecurity standards.

Delivery & Service Assurance

Lead Time & Availability
→ Standard Delivery: In-stock units ship within 2-3 business days via express courier (DHL, FedEx, UPS)
→ Custom Configurations: Factory-configured modules available with 7-10 business day lead time
→ Expedited Service: Same-day shipping available for urgent requirements (contact sales team)

Warranty Coverage
→ Standard Warranty: 12-month comprehensive coverage against manufacturing defects and component failures
→ Extended Warranty: Optional 24-month and 36-month plans available with priority support
→ Warranty Terms: Covers parts, labor, and return shipping; excludes damage from misuse or environmental factors

Technical Support
→ Pre-Sales Consultation: Application engineering support for system design and module selection
→ Installation Assistance: Remote guidance for commissioning, configuration, and integration
→ Troubleshooting: Expert diagnostics and repair coordination with 24-hour response time
→ Training Resources: Access to technical documentation, wiring diagrams, and configuration guides

Documentation Package
Each module ships with:
• Product datasheet and specifications
• Installation and wiring instructions
• Safety certification documents (SIL 3 certificate)
• Compatibility matrix and system integration notes
• Warranty registration card

Frequently Asked Questions

Q: How does the 3700A integrate with existing Triconex safety controllers?
A: The 3700A is compatible with Triconex Tricon v9, v10, and Trident controllers. Installation requires appropriate analog input termination panels (9761-210 or 9771-210 series) and available slots in a compatible I/O chassis. Configuration is performed through TriStation 1131 software using standard function blocks.

Q: What is the maximum recommended cable length for field wiring connections?
A: For voltage signals, we recommend a maximum of 300 meters (1000 feet) using shielded twisted-pair cable with proper grounding. Longer distances may require signal conditioning or conversion to 4-20mA current loops to maintain accuracy and noise immunity.

Q: Can different voltage ranges be configured on individual channels within the same module?
A: No, the 3700A uses hardware jumpers to set the voltage range (0-5V or 0-10V) for the entire module. All 32 channels share the same range configuration. If your application requires mixed ranges, you'll need separate modules or external signal conditioning.

Q: What happens if one of the three TMR channels fails during operation?
A: The system continues operating normally using 2-out-of-3 voting logic. Diagnostics immediately alert operators to the fault through TriStation software and controller status indicators. The failed channel can be repaired during the next scheduled maintenance window without system shutdown.

Q: Is the 3700A suitable for hazardous area installations requiring intrinsic safety?
A: The 3700A itself is designed for installation in safe areas (control rooms, marshalling cabinets). For hazardous area field devices, use intrinsically safe barriers or isolators between field transmitters and the module inputs. Consult your local safety authority for specific zoning requirements.

Q: How do I verify proper module operation after installation?
A: Use TriStation software to perform diagnostic tests including channel continuity checks, voting verification, and signal injection tests. The module's built-in diagnostics continuously monitor all channels and report status. We recommend establishing baseline readings during commissioning for future comparison.

Take the Next Step

Ready to enhance your safety instrumented system with proven TMR technology? Our technical sales team is standing by to assist with module selection, system design consultation, and competitive quotations for single units or complete system upgrades.

Contact us today:
→ Request a detailed technical specification package
→ Discuss your specific application requirements
→ Obtain pricing for volume orders or system integration projects
→ Schedule a consultation with our safety system specialists

Protect what matters most with industrial-grade safety I/O engineered for zero compromise.
