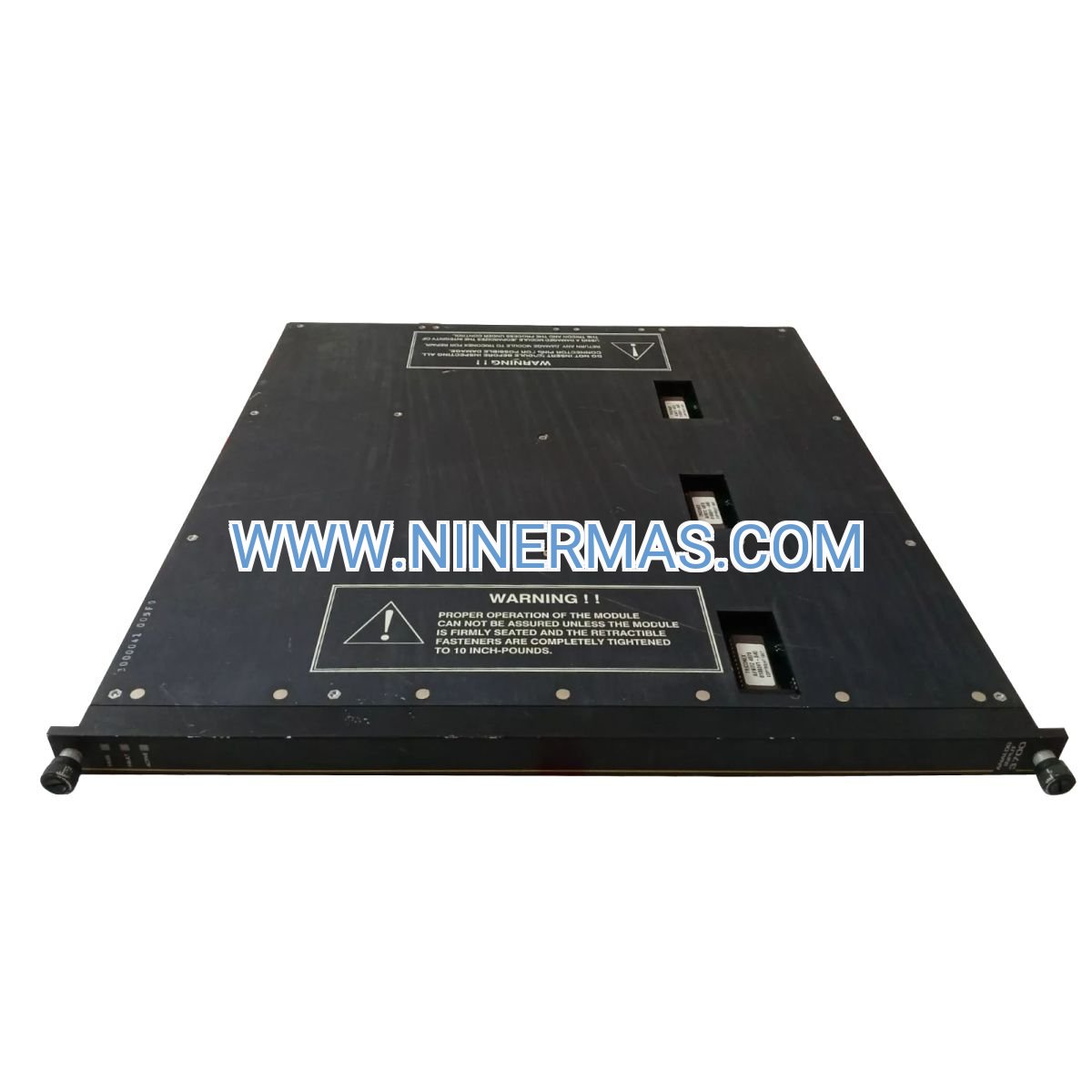

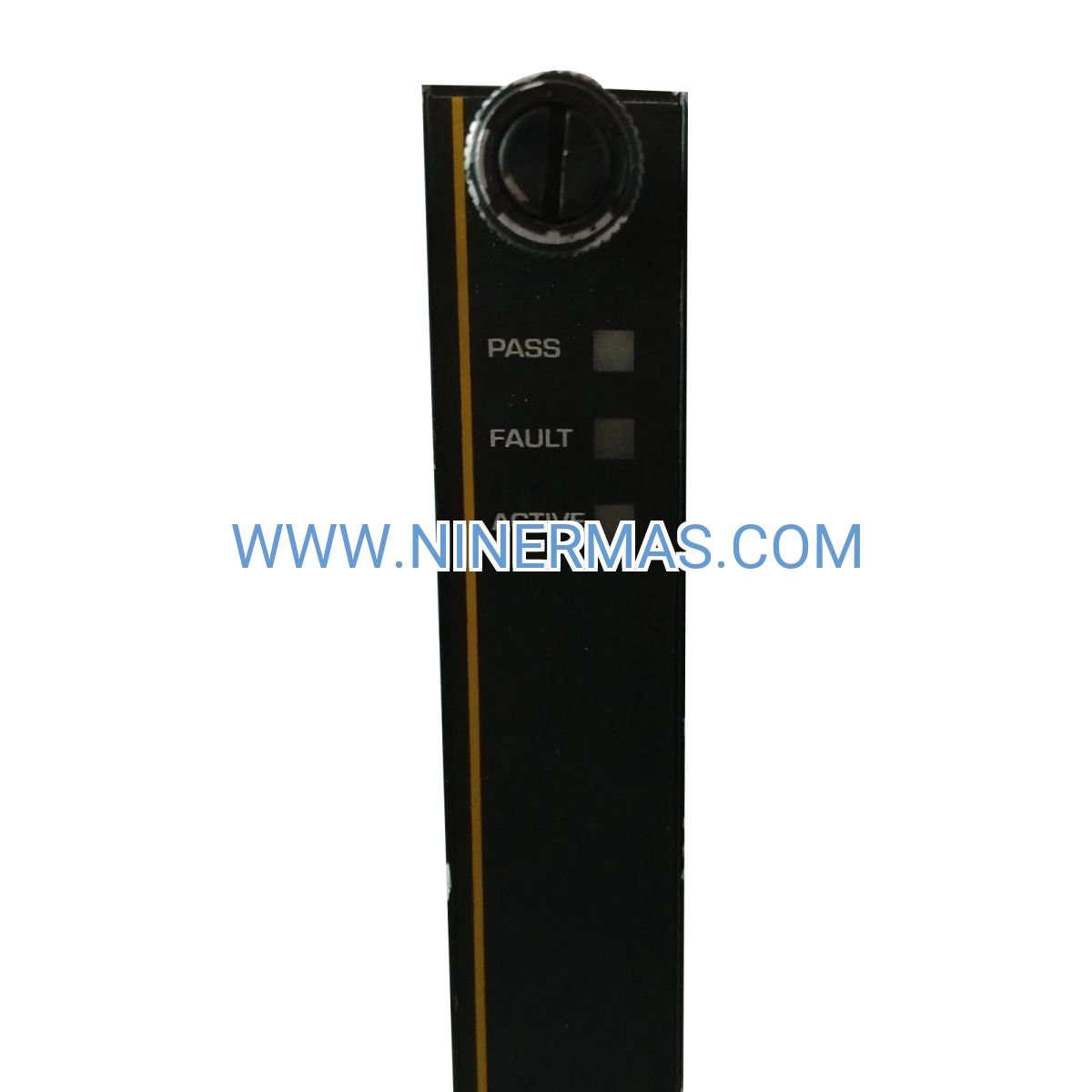

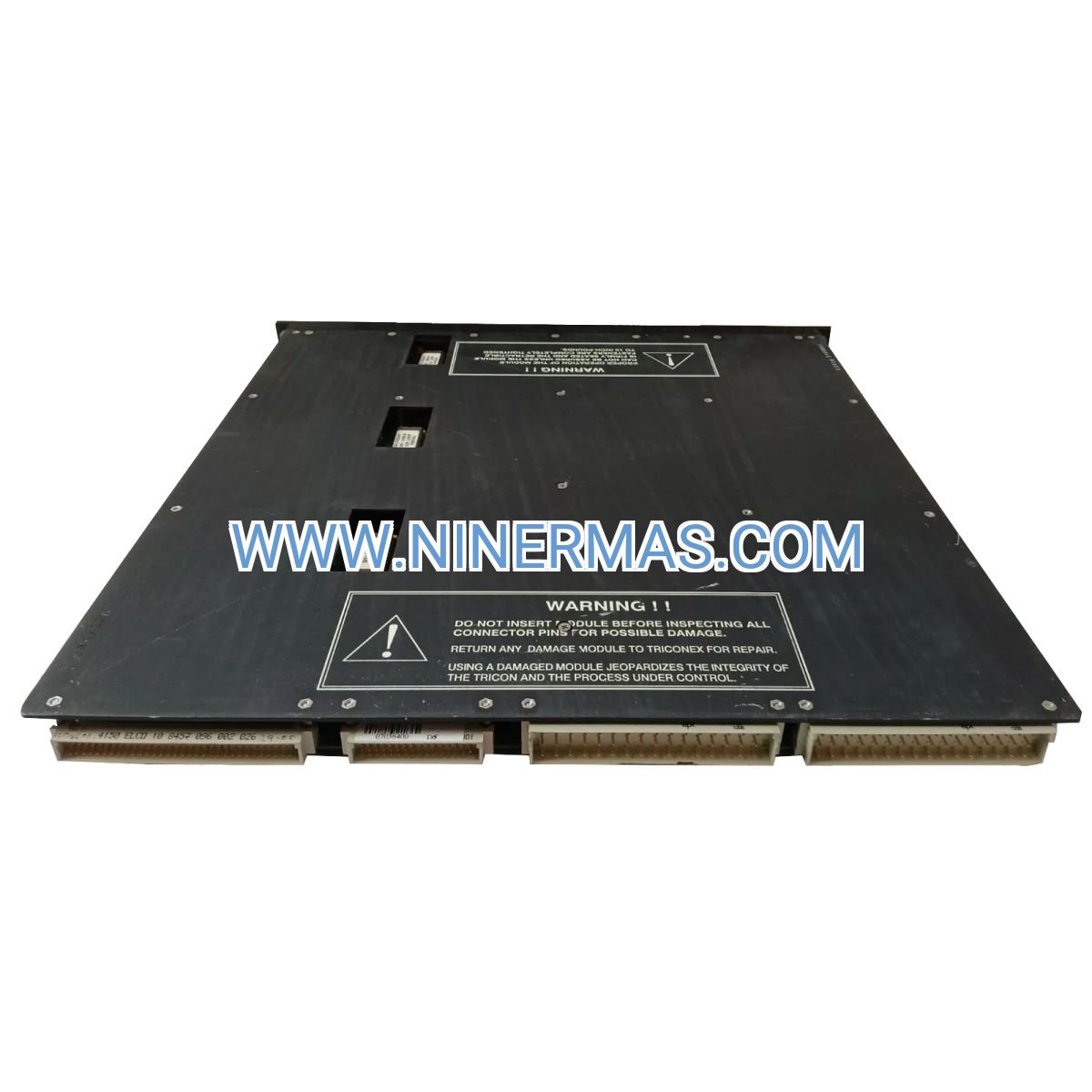

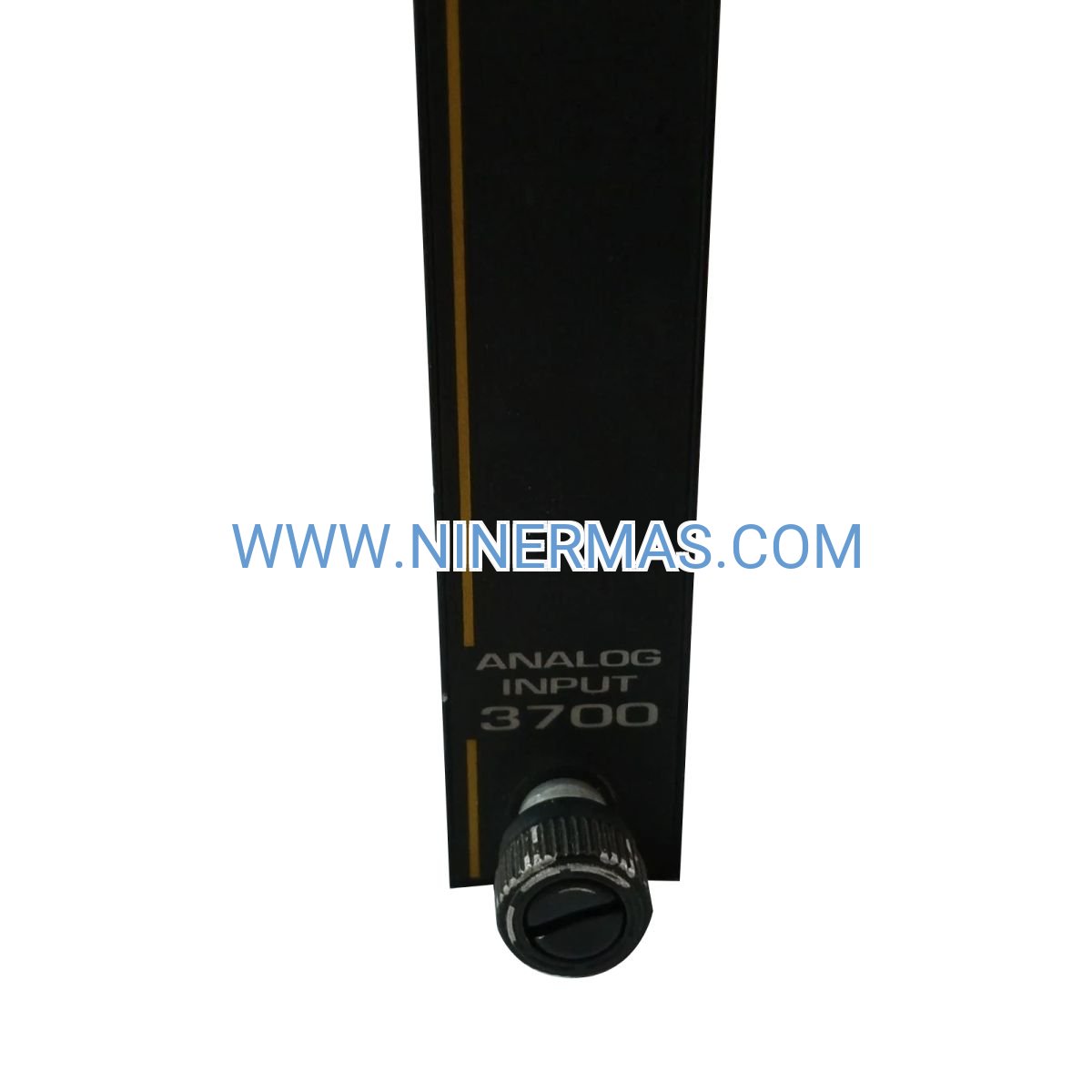

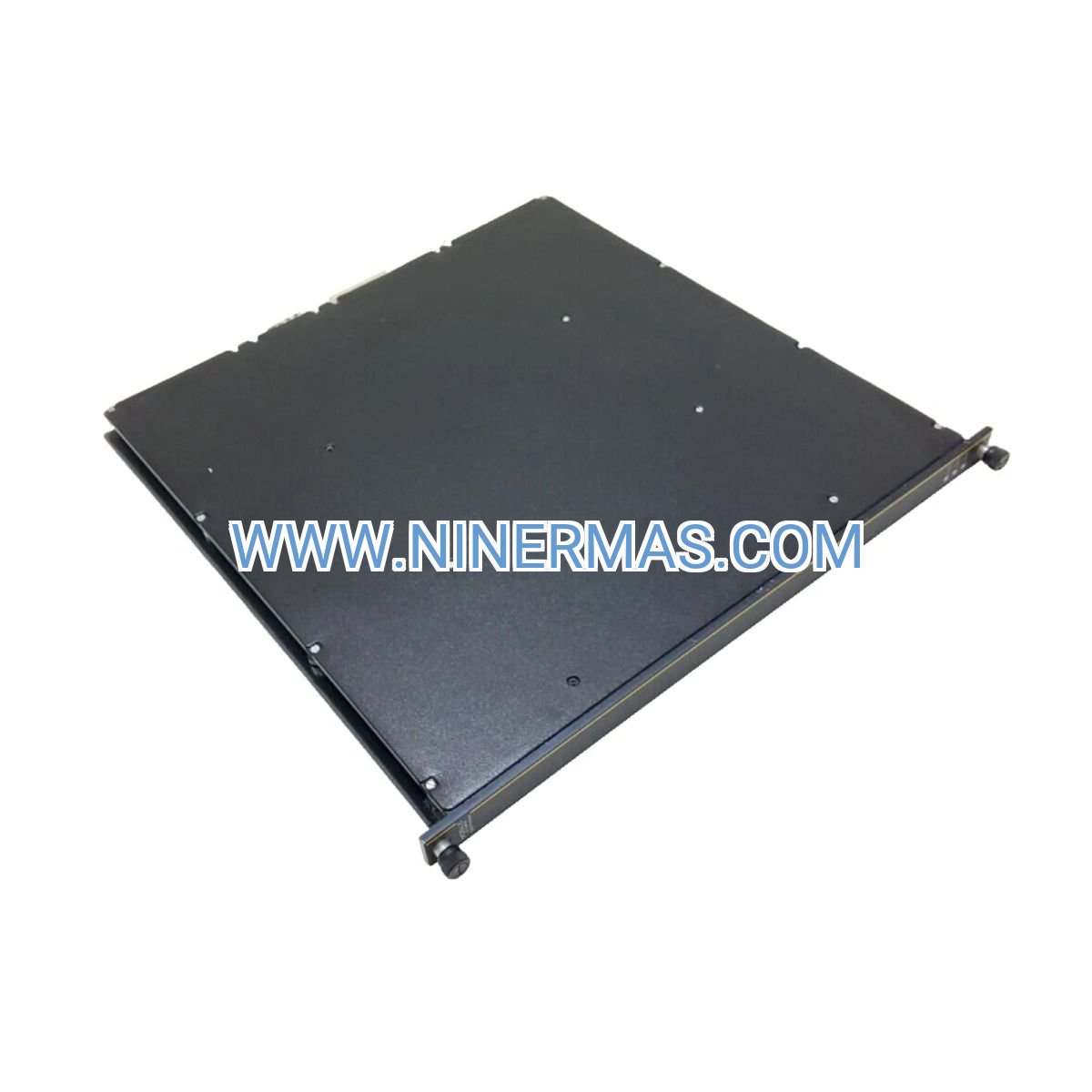

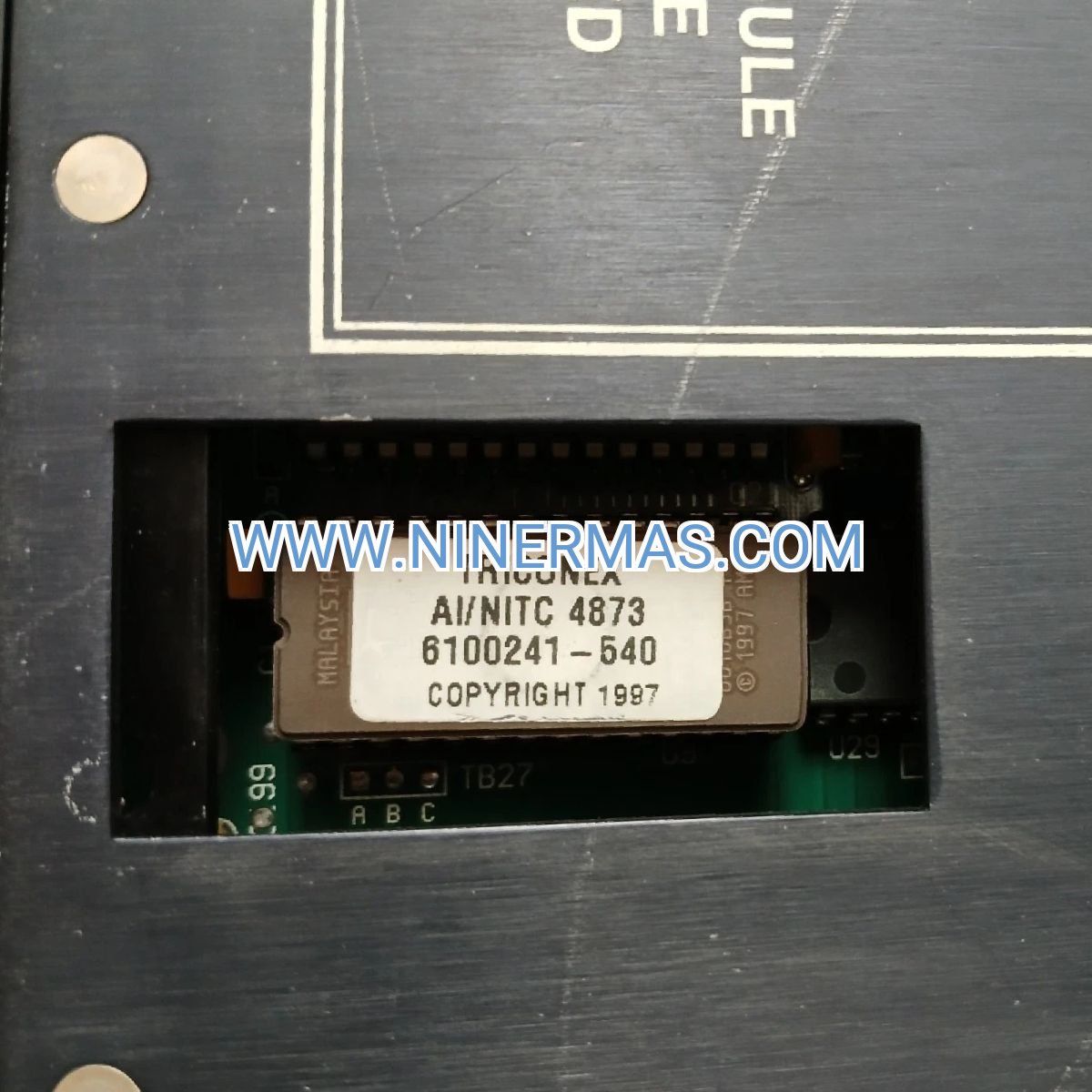

Triconex 3700 Analog Input Module (Industrial-Grade TMR Architecture)

The Triconex 3700 represents a proven solution for high-integrity analog signal acquisition in safety-critical industrial environments. Built on triple modular redundant (TMR) technology, this 32-channel differential input module continuously validates data across three independent processing paths, automatically compensating for single-point failures without operator intervention. Designed for oil refineries, chemical plants, power stations, and offshore platforms where process uptime directly impacts operational safety and profitability.

Process engineers and control system integrators rely on the 3700 for applications demanding SIL 3-rated reliability—from reactor temperature monitoring to turbine vibration analysis. Its self-diagnostic capabilities detect sensor faults, wiring issues, and module degradation in real time, triggering predictive maintenance alerts before failures occur. When integrated with Triconex Tricon controllers, the system achieves mean time between failures (MTBF) exceeding 100 years, making it the benchmark for mission-critical analog I/O.

Unlike conventional input modules that sacrifice accuracy for redundancy, the 3700 maintains ±0.1% precision across all 32 channels while executing TMR voting logic at 100ms scan intervals. This combination of speed, accuracy, and fault tolerance eliminates the traditional tradeoff between safety and performance, enabling tighter process control with reduced safety margins.

Core Capabilities & Business Impact

→ Triple Modular Redundancy (TMR) with Automatic Fault Masking
Three independent microprocessors simultaneously process each input signal, comparing results through majority voting algorithms. When one channel deviates due to component aging or electrical noise, the system automatically masks the faulty data while maintaining full operational capability. This architecture eliminates single points of failure and supports hot-swappable module replacement during live operation—reducing planned maintenance windows by 40% compared to simplex systems.

✓ 32 Differential Analog Inputs with Channel-to-Backplane Isolation
Each input pair features 1500V DC galvanic isolation from the TriBus backplane, preventing ground loops and electrical interference from propagating across the control system. The differential configuration rejects common-mode noise up to 120V, ensuring accurate signal acquisition in electrically harsh environments with variable frequency drives, welding equipment, or high-voltage switchgear.

✓ 12-Bit Resolution with 0.1% Full-Scale Accuracy
4096-count resolution translates 0-5V DC signals into precise digital values, enabling detection of 1.22mV signal changes. Factory calibration certificates document ±0.1% accuracy at 25°C, with temperature drift specifications of ±50ppm/°C. This precision supports advanced control strategies like cascade loops, ratio control, and feedforward compensation that require high signal fidelity.

✓ Hot-Swappable Design with Bumpless Transfer
Replace failed modules during operation without interrupting process control or triggering safety shutdowns. The TriBus backplane maintains power and communication to remaining TMR channels while the new module synchronizes, achieving full redundancy within 3 scan cycles (300ms). This capability reduces unplanned downtime costs by $15,000-$50,000 per incident in typical refinery applications.

✓ Comprehensive Self-Diagnostics with Predictive Alerts
Continuous monitoring of power supply voltages, reference accuracy, A/D converter linearity, and channel-to-channel correlation. Diagnostic codes pinpoint specific failure modes—open sensor, shorted wiring, out-of-range signals, or module hardware faults—enabling technicians to resolve issues 60% faster than troubleshooting with generic error messages.

Industry Applications & Problem Resolution

Petrochemical Reactor Temperature Monitoring
Deploy 3700 modules to acquire RTD transmitter signals (converted to 0-5V) from exothermic reactor vessels. TMR voting ensures accurate temperature readings even when individual sensors drift due to catalyst fouling or thermal cycling. Prevents false high-temperature trips that cost $200,000+ per unplanned shutdown while maintaining SIL 3 overpressure protection integrity.

Gas Turbine Vibration & Bearing Temperature Surveillance
Monitor proximity probe outputs and RTD signals from critical rotating equipment. The 100ms scan rate captures transient vibration events that slower systems miss, enabling early detection of bearing wear or shaft misalignment. Isolation prevents electrical noise from generator excitation systems from corrupting sensor data, reducing false alarms by 75%.

Offshore Platform Level & Pressure Measurement
Acquire signals from separator level transmitters and wellhead pressure sensors in marine environments with salt fog, humidity, and electromagnetic interference from radio equipment. Conformal-coated 3700A variant withstands corrosive atmospheres while maintaining calibration accuracy, extending service intervals from 12 to 24 months.

Power Plant Boiler Feedwater Control
Process flow, pressure, and temperature signals for three-element drum level control systems. TMR architecture meets NERC reliability standards for critical auxiliary systems, while differential inputs reject ground potential differences between boiler structure and control room, eliminating a common source of measurement error in large facilities.

Pharmaceutical Batch Reactor Monitoring
Track pH, conductivity, and dissolved oxygen transmitter outputs during sterile fermentation processes. FDA 21 CFR Part 11-compliant audit trails document all configuration changes and diagnostic events, supporting validation requirements. High accuracy enables tighter process control, improving batch yield consistency by 3-5%.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 3700 when your application requires 0-5V DC input range with maximum channel density (32 inputs per slot). For transmitters outputting 1-5V signals, the 3721 provides optimized scaling. Applications needing channel-to-channel isolation (not just channel-to-backplane) should specify the 3703E model. Harsh environment installations benefit from the 3700A variant with conformal coating and extended temperature rating.

Advanced Integration Features

TriStation 1131 Software Compatibility
Configure all 32 channels through intuitive graphical interfaces using IEC 61131-3 programming languages (Ladder Diagram, Function Block, Structured Text). Built-in scaling functions convert raw counts to engineering units, eliminating manual calculations. Diagnostic screens display real-time channel status, historical trends, and fault logs for rapid troubleshooting.

Modbus TCP/IP & OPC UA Connectivity
When paired with Triconex communication modules, analog input data streams to SCADA systems, historians, and enterprise MES platforms via industry-standard protocols. Supports up to 100ms data refresh rates for real-time dashboards and alarm management systems.

Redundant Controller Integration
Seamlessly operates with dual or triple Triconex main processors in fault-tolerant configurations. Automatic failover occurs within 50ms if the active controller fails, maintaining continuous data acquisition and control output without process disruption.

Custom Calibration & Linearization
Apply multi-point linearization curves for non-linear sensors (thermocouples via transmitters, tank level with irregular geometry). Store up to 11 breakpoints per channel, achieving ±0.05% accuracy after characterization. Factory custom calibration available for specialized voltage ranges.

Delivery Timeline & Support Services

Standard Delivery: 3-5 business days for in-stock modules via express courier (DHL/FedEx). Includes factory-sealed packaging, calibration certificate, installation manual, and TriStation configuration file templates.

Custom Configuration: 10-15 business days for pre-programmed modules with customer-specific channel assignments, scaling parameters, and alarm setpoints loaded prior to shipment. Reduces commissioning time by 40%.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and calibration drift beyond published specifications. Includes advance replacement service with 24-hour shipment of swap modules to minimize downtime.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting guidance, and system expansion planning. Phone/email support available 8:00-20:00 CST with 2-hour response time for critical issues.

Documentation Package: Complete technical manual set including wiring diagrams, terminal block layouts, TriStation programming examples, and preventive maintenance procedures. Available in PDF format for immediate download upon order confirmation.

Frequently Asked Questions

What termination panels are required for field wiring connections?
The 3700 requires Triconex 4351B termination assemblies, with each panel accommodating 16 input channels (8 differential pairs). A fully populated 32-channel module needs two 4351B panels. Panels include screw terminals rated for 14-22 AWG wire and integrated surge protection.

Can I mix different input voltage ranges on a single module?
No, the 3700 is factory-configured for 0-5V DC across all 32 channels. Mixing ranges requires separate modules—use 3721 for 1-5V signals or 3704E for 0-20mA current inputs converted to voltage via precision resistors.

How does TMR voting handle gradual sensor drift versus sudden failures?
The voting algorithm distinguishes between slow drift (all three channels trend together) and abrupt faults (one channel deviates sharply). Drift triggers calibration alerts but doesn't mask channels, while sudden deviations activate fault masking within one scan cycle. Configurable deviation thresholds balance sensitivity and nuisance alarm prevention.

What's the difference between 3700 and 3700A models?
The 3700A adds conformal coating for corrosive atmospheres, extended temperature range (-40°C to +70°C), and enhanced diagnostics with per-channel deviation tracking. Electrical specifications remain identical. Specify 3700A for offshore, chemical, or outdoor installations.

Does the module support HART communication for smart transmitters?
No, the 3700 acquires only analog voltage signals. HART digital data requires the 3805H HART analog input module, which provides both 4-20mA measurement and bidirectional HART communication for device configuration and diagnostics.

Can I retrofit 3700 modules into existing Triconex systems?
Yes, the 3700 is backward-compatible with all Tricon chassis generations (v9, v10, v11) and TriStation software versions 1.4.0 and later. Firmware updates may be required for advanced diagnostic features. Consult your system integrator for configuration file migration procedures.

Order Your Triconex 3700 Module Today

Ensure uninterrupted operation of your critical process control systems with genuine Triconex 3700 TMR analog input modules. Our inventory includes factory-fresh units with current firmware revisions, full documentation, and expedited shipping to minimize project delays. Contact our technical sales team for quantity discounts on multi-module orders, system design consultation, or compatibility verification with your existing Triconex infrastructure.

Request a quote: Email detailed specifications including required channel count, environmental conditions, and delivery timeline to receive a customized proposal within 4 business hours.
