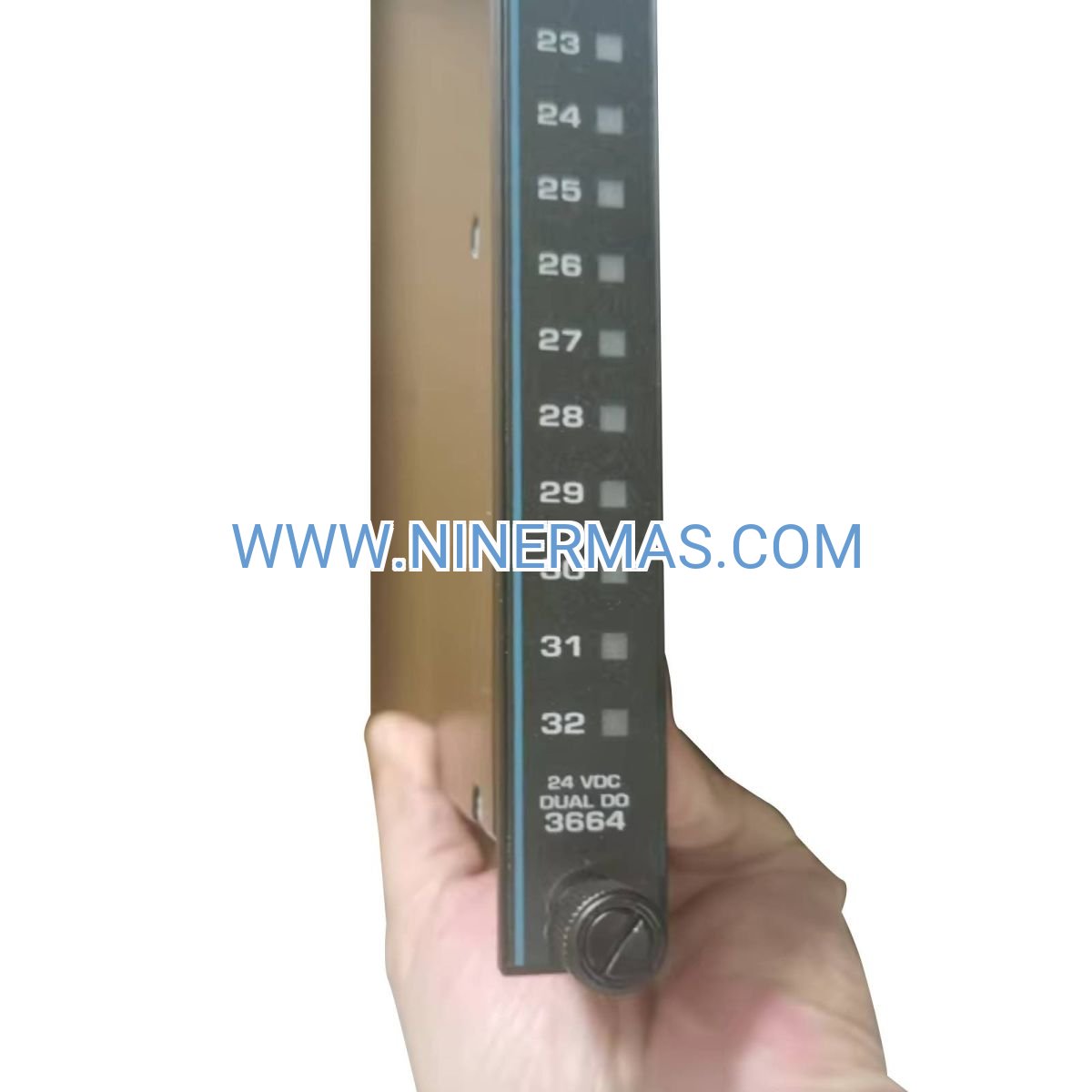

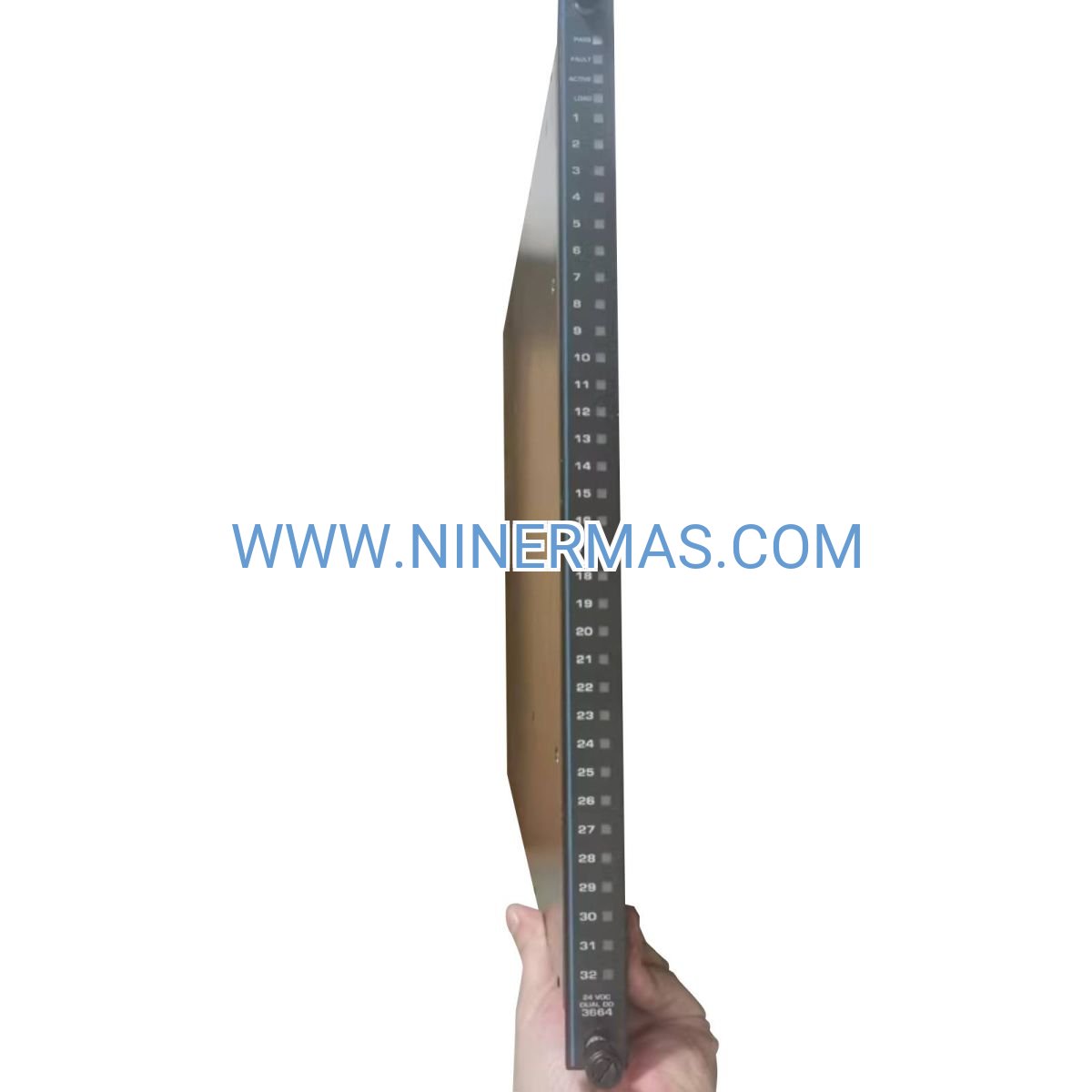

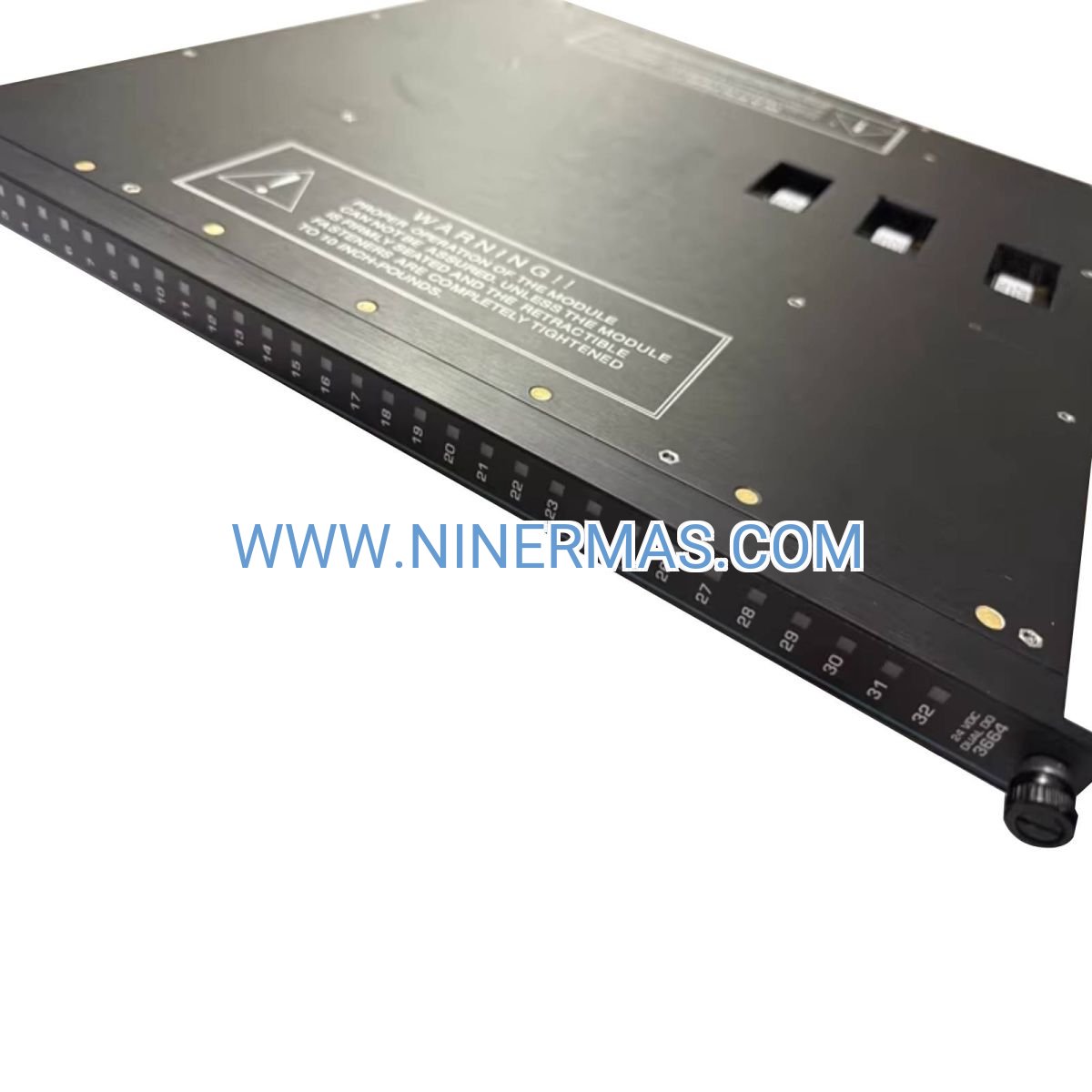

Triconex 3664 Digital Output Module (Industrial-Grade Safety Controller)

The Triconex 3664 represents a mission-critical digital output solution engineered for fail-safe industrial control systems. This 24 VDC output module integrates triple modular redundancy (TMR) technology to deliver uninterrupted operation in safety instrumented systems where downtime is not an option. Designed for process industries demanding SIL 3 compliance, the 3664 ensures your emergency shutdown sequences execute flawlessly when milliseconds matter.

Built for engineers managing high-consequence facilities—from offshore platforms to chemical reactors—this module eliminates single points of failure through its redundant architecture. When your safety integrity depends on deterministic response and fault tolerance, the 3664 provides the reliability backbone for critical valve control, burner management, and fire/gas detection integration.

What sets this module apart is its de-energize-to-trip design philosophy: power loss automatically triggers safe-state activation, meeting the most stringent fail-safe requirements. Combined with advanced diagnostics and hot-swappable capability, you gain both operational continuity and predictive maintenance intelligence.

Core Capabilities & Business Value

→ Triple Modular Redundancy (TMR)
Three parallel processing channels with voting logic ensure continuous operation during component failures. Your system stays online while faulty modules are replaced—zero unplanned shutdowns, maximum production uptime.

✓ De-Energize-to-Trip Safety Logic
Inherent fail-safe design activates protective actions during power loss or communication faults. Meets IEC 61508/61511 requirements for high-demand safety functions without additional safety barriers.

→ SIL 3 Certification
Proven safety integrity level 3 compliance reduces risk of catastrophic events by 99.9%. Simplifies regulatory audits and insurance reviews with third-party verified performance data.

✓ Real-Time Diagnostics
Continuous self-monitoring detects degraded components before failure. Shift from reactive maintenance to condition-based strategies—reduce spare parts inventory by 30-40% while improving system availability.

→ Wide Operating Range
-40°C to +70°C temperature tolerance handles extreme environments from Arctic facilities to desert installations. Low power consumption (typically <5W per channel) minimizes heat generation in densely packed cabinets.

✓ DIN Rail Mounting
Standardized installation reduces commissioning time by 50% compared to custom mounting solutions. Hot-swappable design enables module replacement in under 2 minutes without system shutdown.

Application Scenarios

Emergency Shutdown Systems (Oil & Gas)
Controls critical isolation valves on offshore platforms and refineries. When gas detection triggers ESD sequences, the 3664's <10ms response time closes block valves before flammable atmospheres develop. Operators report 99.97% availability in North Sea installations.

Chemical Reactor Interlocks
Manages exothermic reaction safeguards in batch processing. De-energize-to-trip logic ensures cooling water valves open and agitators stop during power anomalies—preventing runaway reactions that could cause vessel rupture.

Burner Management Systems (Power Generation)
Executes fuel valve shutoff sequences in boiler protection systems. TMR architecture maintains flame safety supervision even during controller maintenance, meeting NFPA 85 requirements for redundant trip systems.

Fire & Gas Detection Integration
Activates deluge systems and HVAC isolation in petrochemical facilities. Deterministic scan times (typically 12ms) ensure water curtains deploy within regulatory time limits after detector activation.

Pipeline Valve Control
Operates mainline block valves in hazardous liquid pipelines. SIL 3 certification satisfies API 1164 requirements for high-consequence areas, reducing third-party liability exposure.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3664 when your application requires fail-safe 24 VDC outputs with SIL 3 integrity. For energize-to-trip logic or higher channel density, consider the 3636T variant. Applications needing AC outputs should evaluate the 3625 series. Verify load current requirements—inductive loads (solenoid valves) may require external surge suppression.

Extended Functions

TriStation Integration: Full compatibility with TriStation 1131 programming environment enables ladder logic, function block, and structured text development. Remote monitoring via Ethernet/IP or Modbus TCP provides real-time I/O status to SCADA systems.

Partial Stroke Testing: Supports automated valve testing protocols without process shutdown. Configurable test sequences verify actuator movement and feedback loop integrity—satisfying ISA-TR84.00.03 proof test requirements.

Cybersecurity Features: Role-based access control and encrypted communications meet IEC 62443 industrial cybersecurity standards. Audit logging tracks all configuration changes for forensic analysis and compliance documentation.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules with factory testing require 4-6 weeks. Expedited processing available for emergency outage support.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects and performance deviations. Extended warranty programs available for critical sparing applications.

Technical Support: Application engineering assistance includes loop drawings review, SIL verification calculations, and commissioning support. 24/7 emergency hotline for production-down scenarios.

Documentation Package: Each module ships with calibration certificates, IEC 61508 certification, installation manual, and TriStation configuration files. Dimensional drawings and spare parts lists provided in digital format.

Frequently Asked Questions

How does the TMR voting mechanism handle channel disagreements?
The system uses 2-out-of-3 voting logic. If one channel deviates, the other two outvote it while diagnostics flag the fault. Operations continue uninterrupted while maintenance replaces the faulty channel—no spurious trips, no safety compromise.

What is the maximum cable distance for 24 VDC outputs?
Typically 300 meters with 1.5mm² wire, limited by voltage drop and load current. For longer runs, consider local power injection or 4-20mA signal conversion. Shielded cable recommended in high-EMI environments.

Can this module interface with legacy relay-based systems?
Yes, the 24 VDC outputs can drive interposing relays for backward compatibility. Ensure relay coil resistance matches module current rating (2A max). Flyback diodes required for inductive loads to prevent voltage spikes.

Does the 3664 support remote I/O configurations?
The module operates as local I/O on the Triconex chassis backplane. For distributed architectures, pair with Tricon communication modules supporting HART, Foundation Fieldbus, or Profibus protocols.

What proof testing is required to maintain SIL 3 certification?
IEC 61511 mandates functional testing at intervals based on calculated PFD (Probability of Failure on Demand). Typical test intervals range from 12-24 months. Automated partial stroke testing can extend intervals to 36 months in some applications.

How does power consumption compare to competitive modules?
The 3664 draws approximately 4.5W per channel versus 6-8W for comparable TMR modules. Over a 100-module installation, this saves roughly 350W—reducing cooling loads and energy costs by $200-300 annually.

Ready to Enhance Your Safety System?

Contact our application engineers to discuss your specific safety integrity requirements. We'll provide SIL verification calculations, system architecture recommendations, and competitive quotations within 24 hours. For immediate technical questions, reach our support team at the contact details below.
