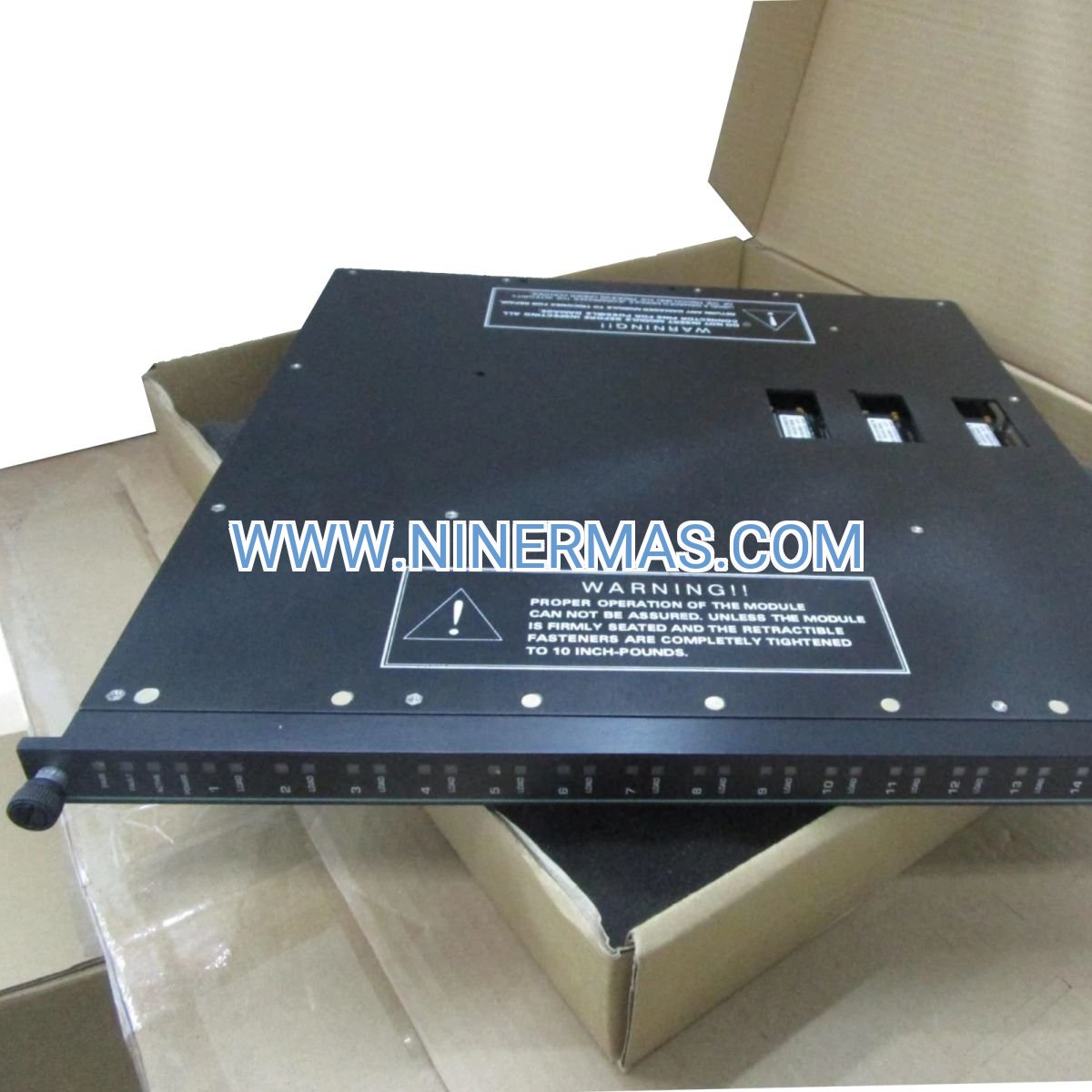

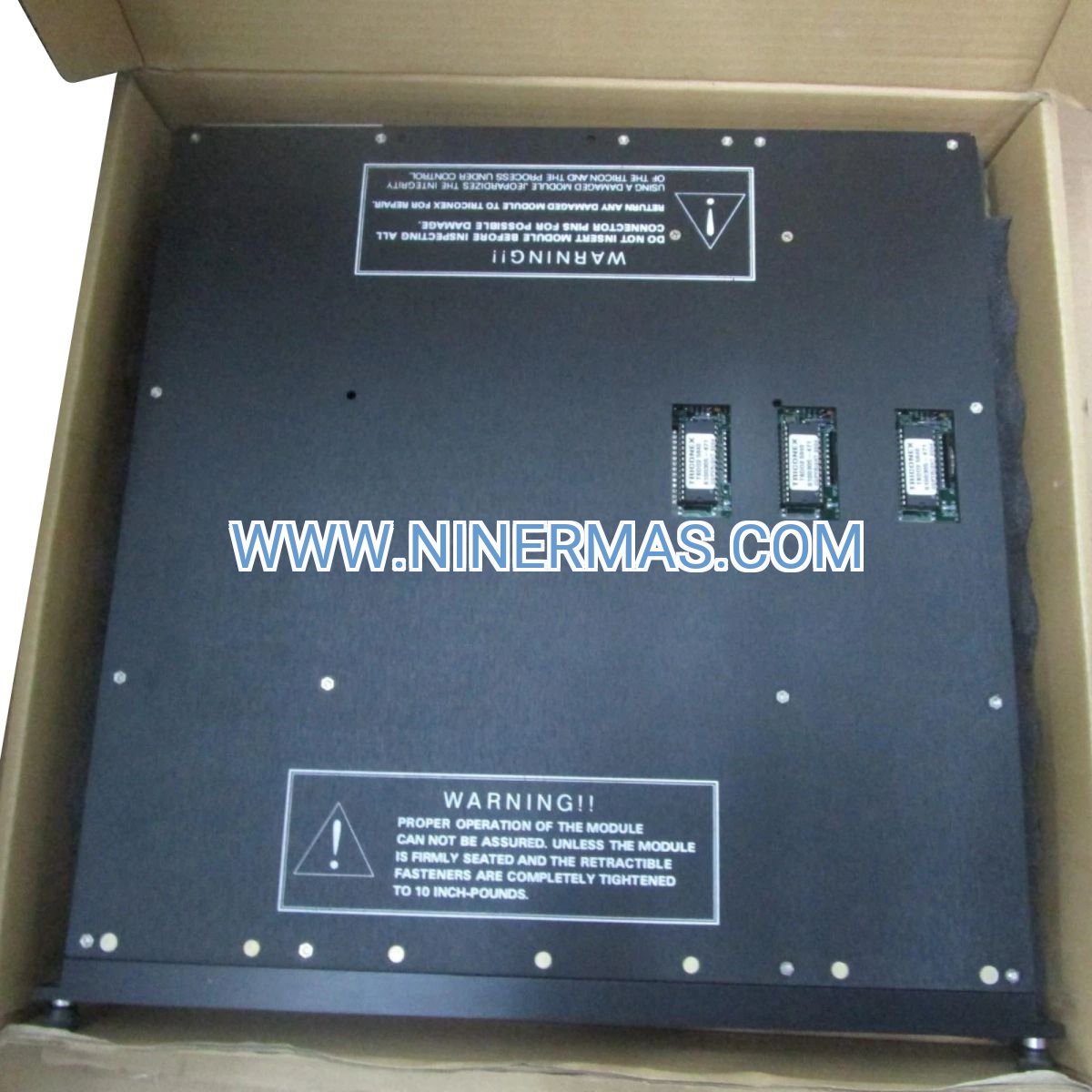

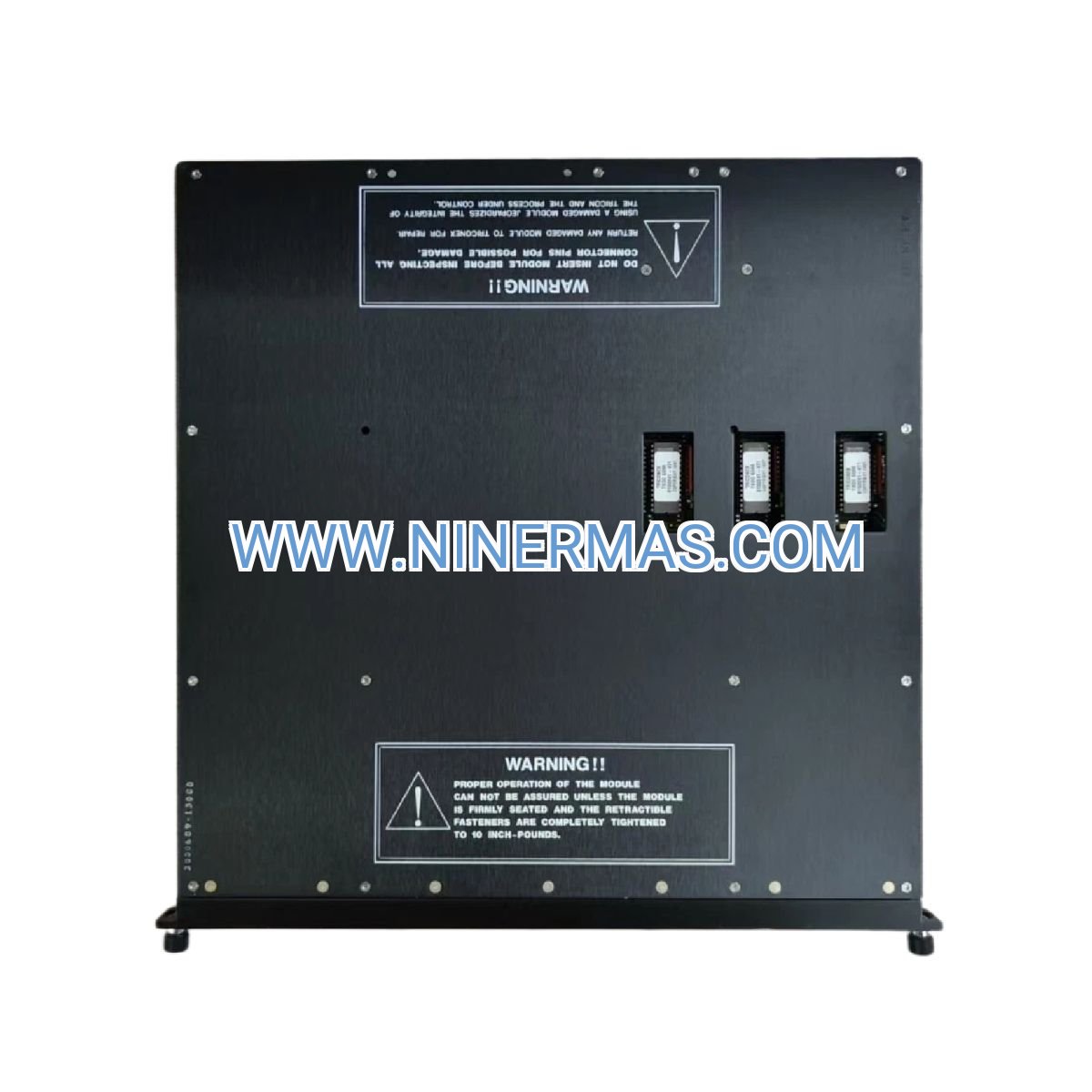

Triconex 3625N Output Module (Industrial-Grade Safety I/O)

The Triconex 3625N represents a proven solution for safety-critical digital output control in high-consequence industrial environments. Featuring 32 independently supervised channels with Triple Modular Redundant architecture, this module serves as the final control element in Safety Instrumented Systems where equipment protection, personnel safety, and environmental compliance demand verified SIL 3 performance. Designed for continuous operation in oil refineries, chemical plants, power stations, and offshore platforms, the 3625N combines deterministic response times with comprehensive diagnostic coverage to ensure fail-safe actuation of shutdown valves, motor contactors, and alarm devices.

Process engineers and safety system integrators rely on the 3625N for applications requiring supervised field wiring, hot-swap maintainability, and seamless integration with Triconex TriStation programming environments. Whether retrofitting legacy DCS systems or designing greenfield SIS architectures, this module delivers the reliability and certification pedigree necessary for IEC 61511 compliance and risk reduction verification.

With global installed base exceeding thousands of safety-critical applications, the 3625N offers proven field performance, extensive third-party certification, and backward compatibility with existing Triconex chassis infrastructure—reducing total cost of ownership while maintaining the highest safety integrity levels.

Core Features & Benefits

→ Triple Modular Redundant Architecture: Three independent processing channels with 2oo3 voting logic eliminate single points of failure, achieving SIL 3 capability with hardware fault tolerance and diagnostic coverage exceeding 99%.

→ Supervised Output Technology: Continuous field wiring monitoring detects open circuits, short circuits, and load faults in real-time, triggering immediate alarms and preventing dangerous undetected failures in critical shutdown paths.

→ Hot-Swap Capability: Replace failed modules during live operation without system shutdown or process interruption, reducing mean time to repair (MTTR) and maximizing plant availability in 24/7 production environments.

→ High-Density Channel Configuration: 32 outputs per module reduce panel footprint by 40% compared to legacy relay-based systems, lowering installation costs and simplifying cabinet design for space-constrained retrofits.

→ Comprehensive Diagnostics: Built-in self-test routines monitor power supply integrity, backplane communication, output driver health, and field termination status—accessible via TriStation HMI for predictive maintenance scheduling.

→ Wide Environmental Range: Operates reliably from -40°C to +70°C with conformal coating protection against humidity, dust, and corrosive atmospheres typical in upstream oil & gas and chemical processing facilities.

Application Scenarios

Emergency Shutdown Systems (ESD): In offshore production platforms and refinery process units, the 3625N controls pneumatic shutdown valves, motor-operated isolation valves, and emergency depressurization systems. Supervised outputs ensure valve position feedback integrity, while TMR voting prevents spurious trips that cost $500K+ per incident. Typical applications include compressor anti-surge protection, fired heater fuel isolation, and reactor emergency cooling activation.

Fire & Gas Detection Networks: Chemical plants and LNG terminals deploy the 3625N to interface with deluge systems, foam suppression skids, and HVAC isolation dampers. Field wiring supervision detects cable damage before emergency events, while hot-swap capability allows detector loop maintenance without disabling protection zones—critical for maintaining continuous hazard coverage during turnarounds.

Burner Management Systems (BMS): Power generation facilities and industrial boilers utilize the 3625N for fuel valve sequencing, ignition transformer control, and flame safeguarding relay actuation. Deterministic scan times (≤12ms) ensure NFPA 85 compliance, while output isolation prevents cross-channel faults during multi-burner light-off sequences.

High-Integrity Pressure Protection (HIPPS): Pipeline operators and subsea production systems implement the 3625N in HIPPS logic solvers to control fast-acting isolation valves that prevent pipeline overpressure. SIL 3 certification combined with proof test intervals up to 10 years reduces operational expenditure while meeting API RP 14C requirements for platform safety systems.

Turbomachinery Protection: Compressor and turbine skids integrate the 3625N for trip valve actuation, lube oil pump control, and seal gas isolation. Supervised outputs detect wiring faults in hazardous area field termination panels, while TMR architecture ensures protection system availability exceeds 99.9% for critical rotating equipment valued at $10M+.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3625N when your application requires SIL 3 certification, supervised output monitoring, or TMR fault tolerance. For non-safety applications or SIL 1/2 requirements, consider the Triconex 3624 series. Verify field device compatibility with 24 VDC nominal voltage and 2A maximum load current. For inductive loads (solenoid valves, relay coils), install external flyback diodes to prevent voltage transients. Consult factory application notes for hazardous area installations requiring intrinsic safety barriers or galvanic isolation.

Extended Functions

✓ Partial Stroke Testing Integration: Supports automated valve partial stroke test (PST) routines via TriStation logic programming, enabling online proof testing without full process shutdown—extending proof test intervals and reducing safety lifecycle costs.

✓ Asset Management Connectivity: Compatible with AMS Device Manager and PACTware FDT/DTM frameworks for centralized configuration management, firmware updates, and predictive maintenance analytics across distributed SIS architectures.

✓ Cybersecurity Hardening: Firmware supports IEC 62443 security features including role-based access control, configuration change logging, and encrypted TriStation communication when paired with Triconex CyberSentry modules.

✓ Custom Output Configurations: Factory-configurable options include pulse-width modulation (PWM) outputs for proportional valve control, time-delayed energization for motor starter coordination, and latching output modes for alarm annunciation panels.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or large quantity orders (>10 units) require 4-6 weeks factory lead time. Expedited processing available for emergency shutdown system outages.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Extended warranty programs available for critical spares inventory and long-term service agreements.

Technical Support: Global application engineering support via phone, email, and remote diagnostics. On-site commissioning assistance and SIL verification services available through certified Triconex system integrators.

Documentation Package: Each module includes installation manual, wiring diagrams, TriStation configuration templates, SIL certificate, and material traceability documentation for quality management system compliance.

Frequently Asked Questions

Q: How does supervised output mode enhance safety integrity for emergency shutdown valves?
A: Supervised mode injects a low-level monitoring current through field wiring when outputs are de-energized, detecting open circuits (broken wires) and short circuits (insulation faults) before demand events. This increases diagnostic coverage from 90% to >99%, directly improving SIL capability and reducing probability of dangerous undetected failures (PFDu).

Q: What is the maximum cable length between the 3625N module and field termination panels?
A: Triconex specifies 300 meters (1000 feet) maximum for supervised outputs using 18 AWG shielded cable with <50pF/ft capacitance. Longer runs require field-mounted isolation barriers or fiber optic extenders to maintain signal integrity and supervision accuracy.

Q: Can the 3625N interface with HART-enabled smart positioners on control valves?
A: The 3625N provides discrete on/off control only. For HART communication with intelligent valve positioners, use Triconex analog output modules (3604E/3607E series) or integrate a separate HART multiplexer in the field termination assembly.

Q: Does hot-swapping a 3625N module require TriStation software intervention or controller restart?
A: No software action required. The Triconex controller automatically detects module insertion, downloads configuration from redundant processors, and synchronizes output states within 2 scan cycles (typically <25ms). Outputs remain in their last commanded state during swap via chassis backplane hold-up circuitry.

Q: What proof test procedures are recommended to maintain SIL 3 certification over the module lifecycle?
A: IEC 61511 requires periodic proof testing at intervals defined by SIL verification calculations (typically 1-10 years). Recommended tests include: output driver functional test (energize each channel under load), supervision circuit verification (inject fault conditions), and TMR voting logic validation. Consult Triconex Safety Manual 51306-028 for detailed procedures.

Q: Are conformal coating or potting options available for offshore or corrosive environments?
A: Standard 3625N modules include conformal coating rated for industrial environments (ISA-71.04-2013 G2/G3). For severe offshore applications (salt spray, H2S exposure), specify factory potting option or install modules in NEMA 4X/IP66 enclosures with environmental controls.

Take the Next Step

Ensure your safety instrumented systems meet the highest integrity standards with the Triconex 3625N. Contact our application engineering team for SIL verification support, system architecture review, or technical specifications tailored to your process safety requirements. Request a quote today or speak with a certified Triconex specialist.
