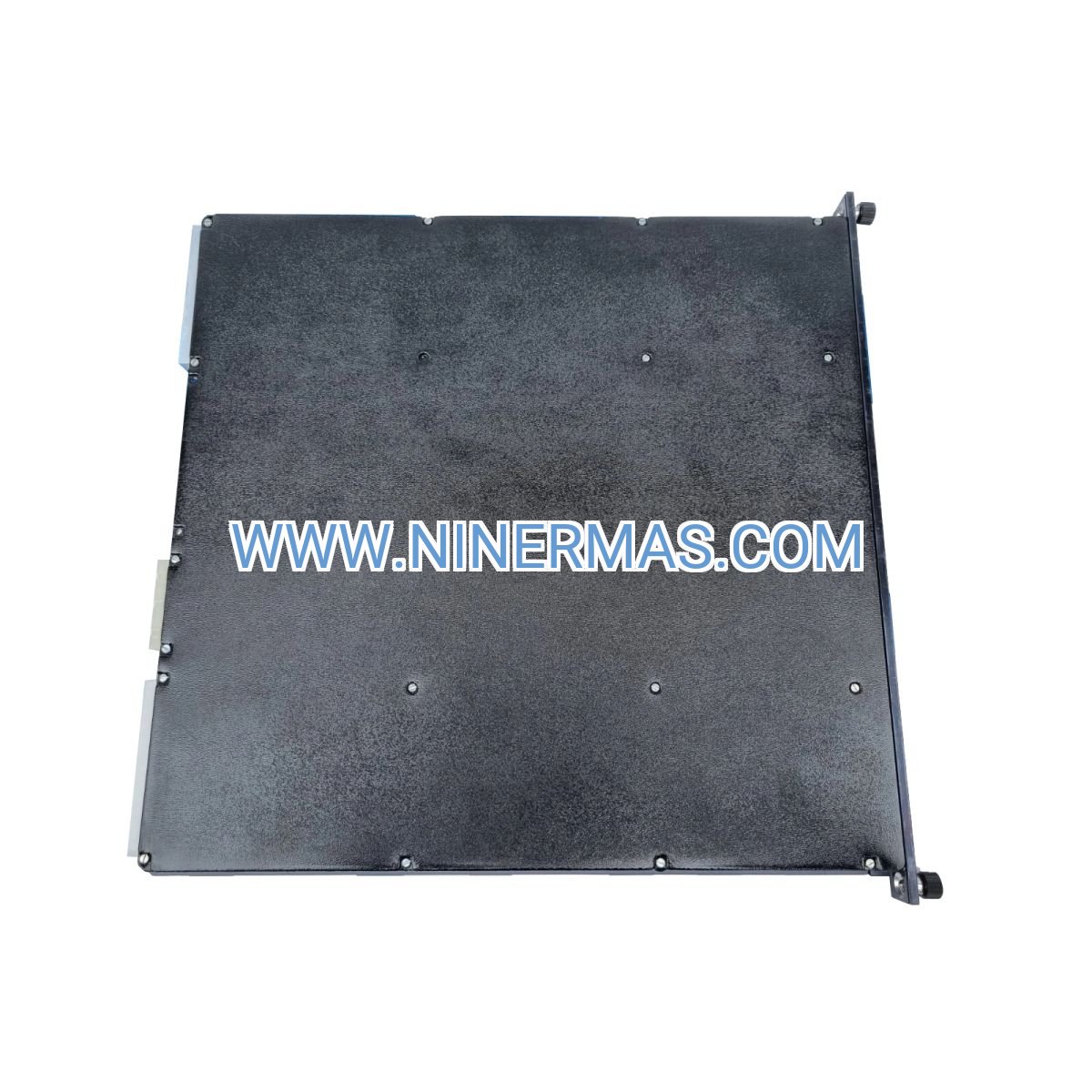

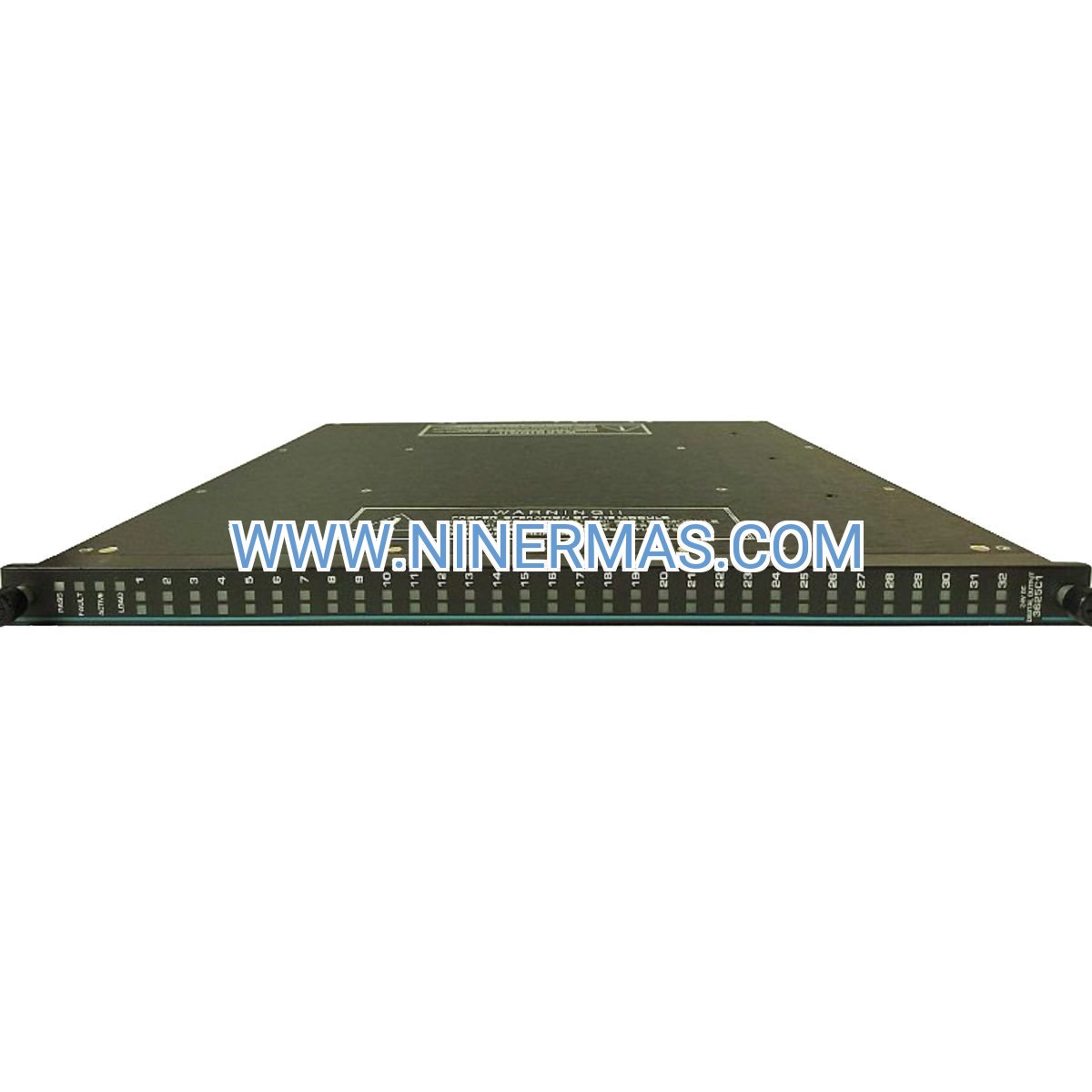

3625C1-J Digital Output Module (Industrial-Grade TMR Safety Controller)

The 3625C1-J represents Schneider Electric's advanced approach to fail-safe digital output control within Triconex Tricon Safety Instrumented Systems. Built on proven Triple Modular Redundant technology, this 24VDC output module serves mission-critical applications where unplanned shutdowns translate directly to production losses and safety risks.

Designed for process industries demanding IEC 61508 SIL 3 compliance, the module addresses a fundamental challenge: maintaining continuous safety function availability while detecting and isolating faults before they compromise system integrity. Target users include instrumentation engineers, safety system integrators, and plant reliability teams managing emergency shutdown systems, fire & gas detection networks, and burner management sequences.

What sets the 3625C1-J apart is its combination of supervised output diagnostics, field-replaceable architecture, and seamless backward compatibility with existing Tricon installations—delivering both operational flexibility and long-term asset protection.

Core Features & Benefits

✓ Triple Modular Redundant Voting Logic
Three independent processing channels continuously compare outputs, automatically masking single-point failures without spurious trips. Business value: Eliminates unplanned downtime that costs $50,000+ per hour in refining operations.

✓ Supervised & Non-Supervised Output Modes
Continuous loop monitoring detects open circuits, short circuits, and actuator malfunctions in real time. Business value: Reduces proof test intervals and maintenance costs by 30-40% through predictive diagnostics.

✓ Hot-Swap Field Replacement
Replace modules during operation without controller shutdown or process interruption. Business value: Maintains 99.99% system availability during maintenance windows.

→ Channel-to-Channel Isolation
Electrical isolation prevents fault propagation between output circuits and ground planes. Business value: Protects against common-cause failures in harsh electromagnetic environments.

→ Extended Temperature Range (-40°C to +70°C)
Operates reliably in extreme climates from Arctic installations to Middle East desert facilities. Business value: Eliminates need for climate-controlled enclosures in remote locations.

→ Native TriStation 1131 Integration
Direct programming support through IEC 61131-3 compliant development environment. Business value: Reduces engineering time by 50% compared to proprietary configuration tools.

Application Scenarios

1. Emergency Shutdown Systems (ESD) - Oil & Gas Production
Scenario: Offshore platform requires fail-safe isolation valve control for high-pressure separators and wellhead shutdown sequences.
Pain Point Addressed: Spurious trips caused by single-channel failures result in $2M+ daily production losses.
Value Delivered: TMR voting eliminates false trips while maintaining SIL 3 risk reduction, achieving 99.7% system availability.

2. Fire & Gas Detection Networks - Chemical Processing
Scenario: Petrochemical complex needs reliable alarm annunciation and deluge system activation across 200+ detection points.
Pain Point Addressed: Undetected wiring faults compromise safety system integrity between proof tests.
Value Delivered: Supervised outputs provide continuous diagnostics, reducing dangerous undetected failures by 95%.

3. Burner Management Systems - Power Generation
Scenario: Combined-cycle plant requires coordinated fuel valve control and flame safeguarding for six gas turbines.
Pain Point Addressed: Legacy relay-based systems lack diagnostic coverage and require monthly manual testing.
Value Delivered: Automated self-testing extends proof test intervals from 1 month to 12 months, cutting maintenance costs 85%.

4. Process Safety Interlocks - Pharmaceutical Manufacturing
Scenario: Batch reactor control demands precise sequencing of isolation valves and vent systems during exothermic reactions.
Pain Point Addressed: Regulatory audits require documented proof of safety function performance.
Value Delivered: Built-in diagnostics generate audit-ready logs demonstrating >99% fault detection coverage.

5. Turbomachinery Protection - LNG Facilities
Scenario: Compressor train protection requires instantaneous trip relay activation upon vibration or temperature excursions.
Pain Point Addressed: Response time delays of 50-100ms increase risk of catastrophic equipment damage.
Value Delivered: Deterministic scan cycles guarantee <20ms trip response, protecting $50M+ rotating equipment assets.

Technical Parameters & Selection Guide

Selection Guidance: Choose supervised outputs for applications requiring continuous loop monitoring (ESD valves, critical alarms). Use non-supervised outputs for non-safety auxiliary functions (status indicators, non-critical alarms) to optimize channel utilization. For systems requiring >32 outputs, deploy multiple modules across redundant I/O chassis for maximum availability.

Extended Functions

IoT & Remote Monitoring Integration: The 3625C1-J supports Modbus TCP/IP communication through Tricon communication modules, enabling integration with SCADA systems, historian databases, and cloud-based asset performance management platforms. Real-time diagnostic data streams to predictive maintenance algorithms for early fault detection.

Advanced Partial Stroke Testing: When paired with intelligent valve positioners, the module executes automated partial stroke tests on ESD valves without process interruption—validating mechanical integrity while maintaining safety function availability.

Cybersecurity Hardening: Firmware supports secure boot verification and encrypted configuration downloads, meeting IEC 62443 industrial cybersecurity standards for critical infrastructure protection.

Custom Output Sequencing: TriStation programming environment allows complex time-delayed output sequences, pulse-width modulation, and conditional logic—eliminating external relay panels and reducing panel footprint by 40%.

Delivery & Service Assurance

Lead Time:
→ Standard stock items: 3-5 business days (express shipping available)
→ Factory-sealed units: 2-3 weeks
→ Custom-configured modules: 4-6 weeks

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical applications requiring 3-5 year coverage.

Technical Support:
→ 24/7 emergency hotline for safety system troubleshooting
→ Remote diagnostic assistance via secure VPN connections
→ On-site commissioning support and FAT/SAT coordination
→ Application engineering consultation for system design optimization

Documentation Package:
Every module ships with installation manual, wiring diagrams, safety manual per IEC 61508-2, ATEX/IECEx certificates, and TriStation configuration examples. Digital documentation library includes 3D CAD models, loop drawings, and spare parts cross-reference guides.

Frequently Asked Questions

Q: How does the 3625C1-J handle output short circuit conditions?
A: Supervised outputs detect short circuits within 100ms and annunciate faults to the operator while maintaining TMR voting integrity. The affected channel is automatically isolated, and the remaining two channels continue controlling the output until maintenance is performed.

Q: What is the maximum cable length for reliable operation?
A: Recommended maximum is 300 meters using shielded twisted-pair cable (0.75mm² minimum). For longer runs up to 500 meters, use supervised mode with increased loop resistance compensation settings.

Q: Can this module reduce energy consumption in safety systems?
A: Yes—intelligent output management reduces steady-state power draw by 15-20% compared to legacy relay-based systems. Pulse-width modulation capabilities further optimize solenoid valve power consumption during holding states.

Q: What installation requirements must be met for SIL 3 compliance?
A: Install in Tricon chassis with redundant power supplies, maintain proper grounding per installation manual, use screened cables with 360° shield termination, and follow separation requirements between safety and non-safety circuits (minimum 50mm spacing).

Q: Does the module support remote configuration and firmware updates?
A: Configuration changes require TriStation connection (Ethernet or serial). Firmware updates are performed via TriStation with automatic version verification. Remote updates are supported through secure VPN tunnels following site cybersecurity policies.

Q: How do I verify compatibility with existing Tricon controllers?
A: The 3625C1-J is compatible with Tricon v9.x through v11.x firmware. Check your main processor module part number—controllers with MP3008 or later processors support this module. Contact technical support with your chassis serial number for definitive compatibility confirmation.

Take the Next Step

Ready to enhance your safety instrumented system reliability? Contact our application engineering team for a complimentary system assessment. We'll review your I/O requirements, recommend optimal module configurations, and provide detailed ROI analysis comparing lifecycle costs versus legacy relay-based solutions.

Request a quote today: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance. Mention reference code 3625C1-J-IND for priority processing.
