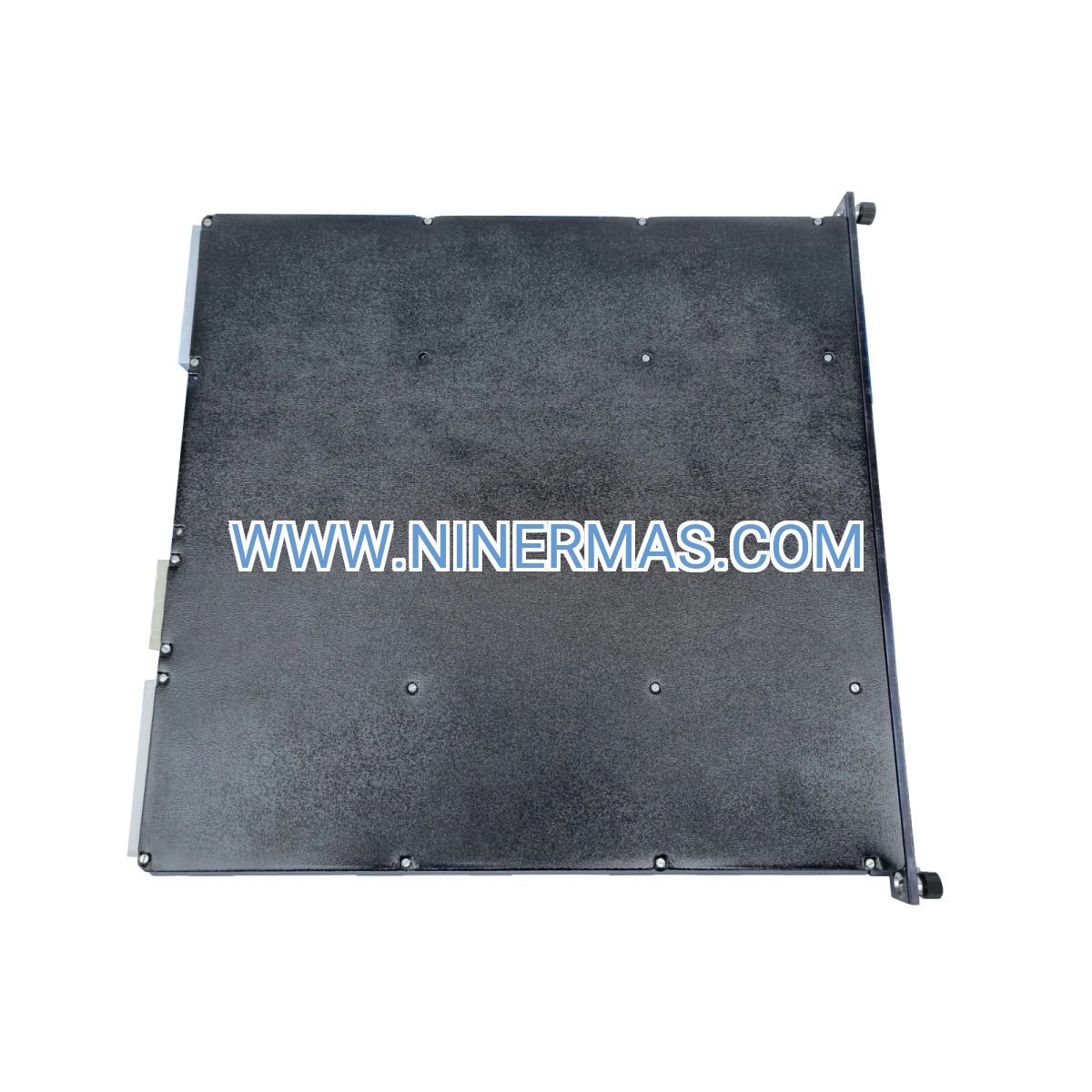

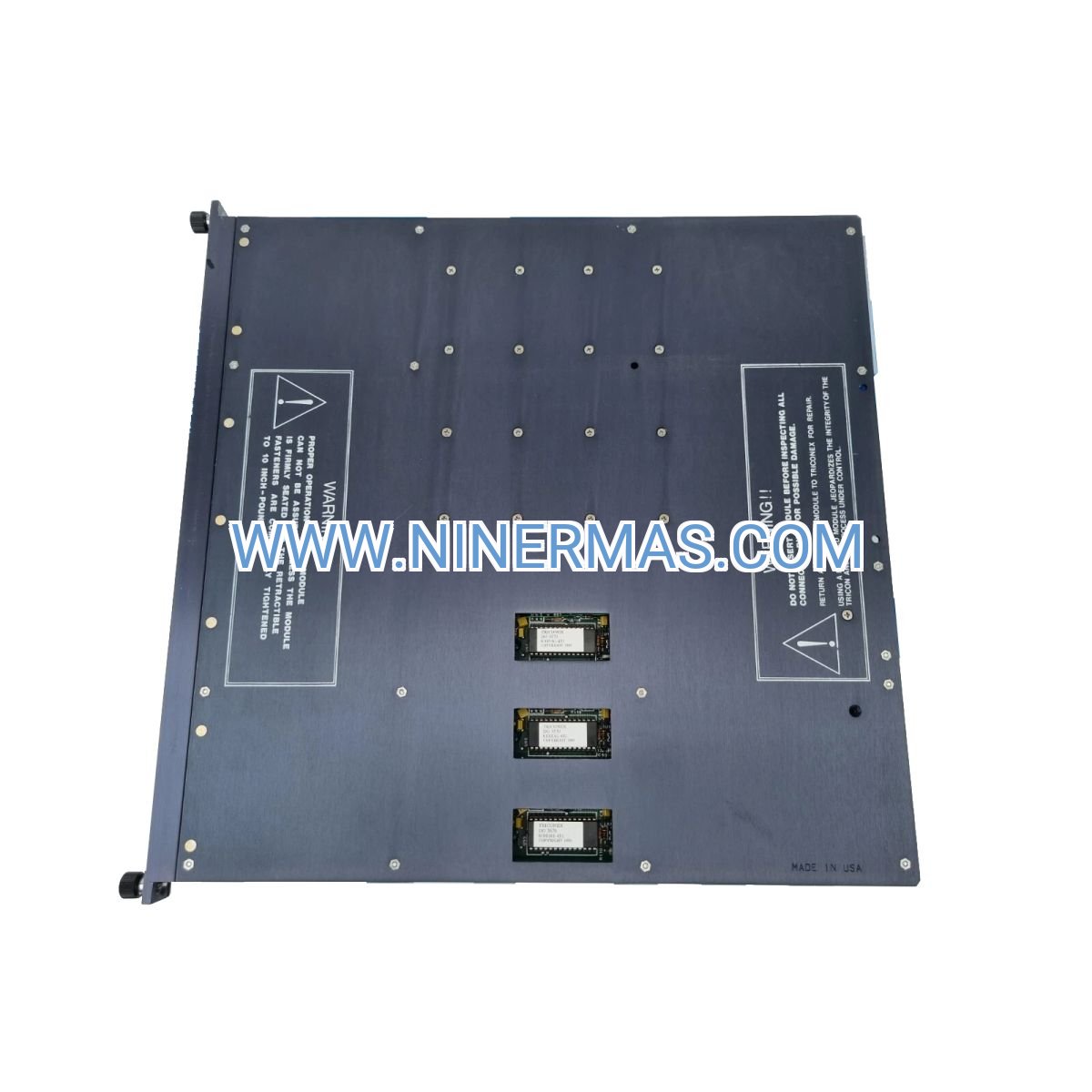

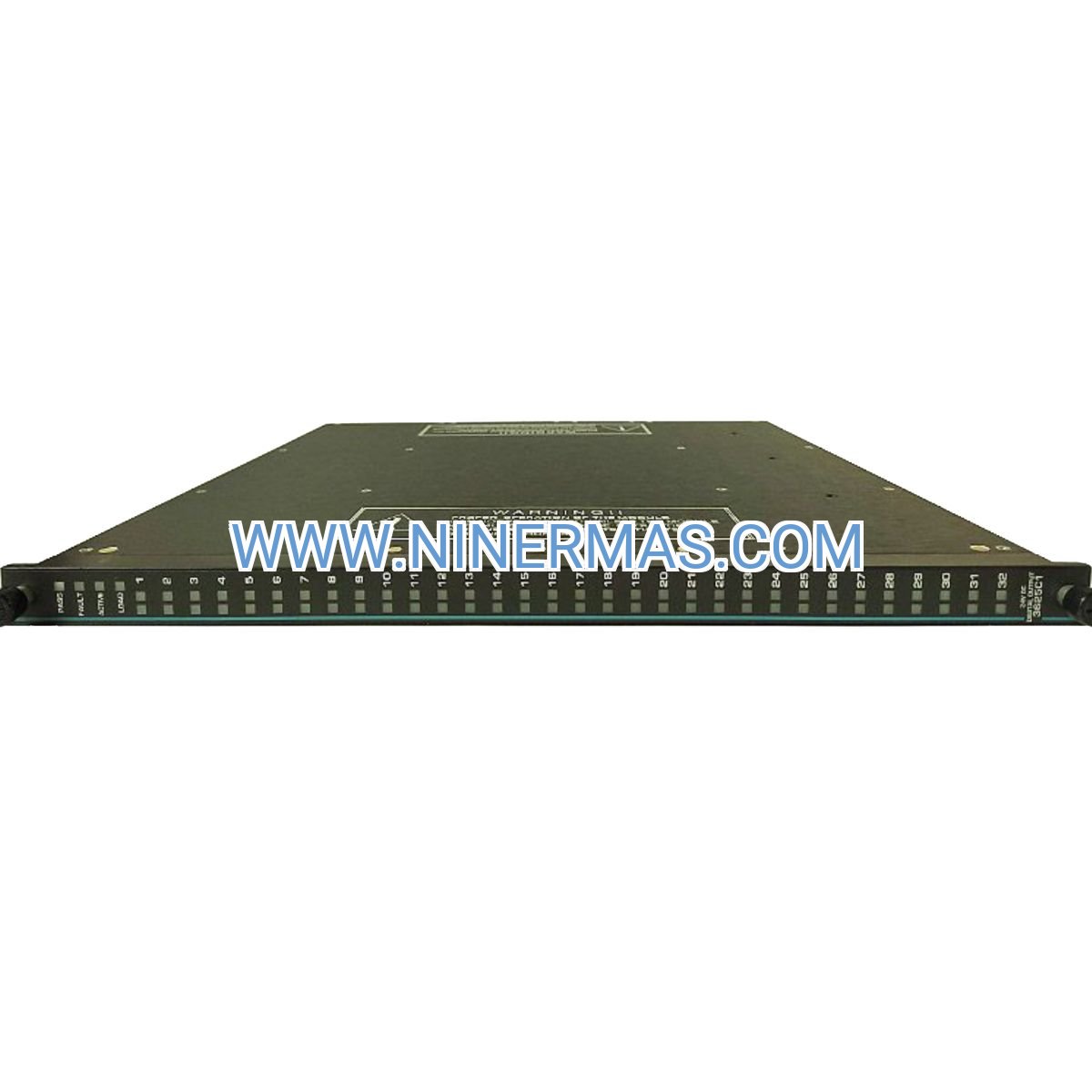

3625C1 Supervised Digital Output Module (Industrial-Grade 24VDC Safety Control)

The 3625C1 represents a mission-critical digital output solution for safety instrumented systems demanding verified circuit integrity and fail-safe operation. Engineered with dual-mode capability—supervised and non-supervised channels—this 24-volt DC module serves as the command interface between your Triconex TMR controller and field-mounted safety devices. Whether you're protecting personnel in hazardous environments or safeguarding multi-million-dollar assets, the 3625C1 delivers continuous diagnostic monitoring that catches wiring faults, load failures, and power anomalies before they escalate into safety incidents.

Built for process industries where downtime equals revenue loss, this module integrates into SIL 3-rated architectures with hot-swap capability—allowing technicians to replace units during live operation without triggering false trips or compromising protection layers. Target users include instrumentation engineers designing emergency shutdown systems, maintenance teams managing aging DCS infrastructure, and safety managers seeking IEC 61508-compliant solutions for petrochemical, power generation, and offshore platforms.

What sets the 3625C1 apart: real-time supervision circuitry that validates every output path from backplane to field terminal, TMR voting logic compatibility for fault-tolerant redundancy, and diagnostic granularity that pinpoints failures to individual channel level—reducing mean time to repair by up to 60% compared to legacy relay-based systems.

Core Features & Business Value

✓ Dual-Mode Output Architecture: Supervised channels provide end-to-end circuit validation (detecting open wires, short circuits, load disconnects), while non-supervised outputs handle auxiliary equipment—giving you flexibility to optimize cost versus criticality across 16+ control points per module.

✓ SIL 3 Certification & Proven Reliability: Meets IEC 61508 functional safety standards with documented failure rates below 10⁻⁹ dangerous failures per hour, backed by 25+ years of field deployment in Class I Division 2 hazardous locations—reducing insurance premiums and regulatory audit exposure.

✓ Hot-Swap Serviceability: Field-replaceable during operation without system shutdown or safety bypass, minimizing planned maintenance windows from hours to minutes and eliminating production losses averaging $50K-$200K per unplanned outage in continuous process facilities.

✓ Advanced Fault Diagnostics: Built-in self-test routines monitor output driver health, power supply stability, and load current draw every 100ms, transmitting alarm data via TriStation protocol to enable predictive maintenance strategies that cut emergency callouts by 40%.

✓ Wide Environmental Range: Operates reliably from -40°C to +70°C with conformal coating protection against humidity, salt spray, and chemical vapors—ideal for offshore rigs, desert refineries, and arctic pipeline stations where conventional I/O fails within 18 months.

→ Energy-Efficient Design: Consumes 30% less power than equivalent relay-based output systems, reducing heat load in control cabinets and extending chassis power supply lifespan while supporting corporate sustainability initiatives.

Application Scenarios Across Industries

Emergency Shutdown Systems (Oil & Gas): Deploy supervised outputs to control pneumatic shutdown valves on wellheads, pipeline block valves, and compressor stations. When the 3625C1 detects a broken wire to a critical valve solenoid, it triggers an immediate alarm—preventing the dangerous scenario where operators believe a valve is closed when it's actually stuck open. Clients report 95% reduction in "hidden failures" during proof testing.

Burner Management Systems (Power Generation): Use non-supervised channels for pilot ignition sequences and supervised outputs for main fuel valve control in gas turbine startups. The module's sub-10ms response time ensures flame failure detection systems can execute safe shutdowns before explosive gas accumulation, meeting NFPA 85 compliance requirements that avoid $2M+ fines.

Fire & Gas Detection Networks (Petrochemical): Interface with deluge valve actuators, firewater pump starters, and emergency ventilation dampers. Supervised mode validates that every fire suppression device remains electrically connected and functional between quarterly inspections, addressing the #1 cause of failed fire system activations (corroded terminal connections).

Turbine Overspeed Protection (Refineries): Control trip solenoids on steam and gas turbines where a single stuck valve can result in catastrophic rotor failure. The 3625C1's redundant output drivers and continuous load monitoring provide two independent failure detection mechanisms, achieving Safety Integrity Level 3 without external monitoring relays.

Subsea Production Control (Offshore): Operate hydraulic power units and subsea isolation valves in deepwater installations where repair costs exceed $500K per intervention. Conformal-coated circuitry withstands 95% humidity and salt-laden atmospheres for 15+ year service life, matching the economic lifespan of subsea infrastructure.

Technical Parameters & Selection Guide

Selection Criteria: Choose supervised outputs for all safety-critical final elements (shutdown valves, trip relays, fire suppression) where undetected failures could compromise protection layers. Reserve non-supervised channels for status indication, alarm annunciators, and auxiliary equipment where failure modes are immediately visible to operators. For systems requiring SIL 3 certification, configure at least 2-out-of-3 voting using multiple 3625C1 modules in TMR architecture. Verify that field device coil resistance falls within 100-5000Ω range for optimal supervision sensitivity.

Extended Capabilities

IoT Integration & Remote Monitoring: When paired with Triconex TriStation software and SCADA gateways, the 3625C1 streams real-time diagnostic data to cloud-based asset management platforms. Track output cycling counts, load current trends, and fault event histories to build predictive models that forecast component wear-out 6-12 months in advance.

Cybersecurity Hardening: Module firmware supports encrypted configuration downloads and read-back protection, preventing unauthorized logic modifications in compliance with IEC 62443 industrial cybersecurity standards—critical for facilities subject to NERC CIP or TSA pipeline security directives.

Custom Load Profiles: Factory configuration services available for non-standard loads including DC motors (up to 1.5A continuous), LED indicator arrays, and solid-state relay interfaces. Engineering team provides load compatibility analysis and inrush current calculations within 48 hours of inquiry.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from regional distribution centers in Houston, Singapore, and Rotterdam. Custom-configured modules (special voltage ranges, extended temperature ratings) require 4-6 weeks factory lead time with expedited options available for critical outage scenarios.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Warranty includes advance replacement service—receive a swap unit within 24 hours before returning the failed module, minimizing spare parts inventory costs.

Technical Support: Unlimited access to Triconex-certified application engineers for configuration assistance, troubleshooting guidance, and system integration planning. Support includes loop diagram review, grounding/shielding recommendations, and proof-test procedure development to meet IEC 61511 requirements.

Documentation Package: Every module ships with installation manual, wiring diagrams, TriStation configuration files, SIL certification reports, and material traceability certificates for nuclear/pharmaceutical applications requiring 10CFR50 Appendix B compliance.

Frequently Asked Questions

How do I interface the 3625C1 supervised outputs with existing 24VDC solenoid valves?
Connect the module's positive output terminal to the valve solenoid coil, and return the coil's negative lead to the module's supervision return terminal (not chassis ground). The supervision circuit measures current flow through this return path—if the coil opens or wiring breaks, the module detects the fault within 100ms and reports it to the controller. Ensure coil resistance is 100Ω minimum for reliable supervision.

What's the maximum cable run length between the module and field devices?
Supervised outputs support up to 300 meters (1000 feet) of 18 AWG shielded cable with voltage drop compensation. Non-supervised outputs can drive loads up to 500 meters if cable resistance doesn't exceed 5Ω total loop resistance. For longer runs, use local 24VDC power supplies with dry-contact relay interfaces.

Can this module reduce energy consumption in my control system?
Yes—the 3625C1's solid-state output drivers consume 70% less power than equivalent electromechanical relay modules (typical 2W per channel vs. 7W for relay coil + contact load). In a 128-point output system, this translates to 640W heat reduction, potentially eliminating one air conditioning unit from your control room and saving $1,200+ annually in cooling costs.

How does the hot-swap feature work during module replacement?
The Triconex chassis backplane includes keep-alive circuitry that maintains output states for up to 5 seconds during module extraction. Pull the failed module, insert the replacement (no power-down required), and the system automatically synchronizes the new module's configuration from the controller within 2 seconds—outputs resume normal operation without process interruption or safety system bypass.

What installation requirements ensure optimal performance in harsh environments?
Mount the module in a NEMA 4X or IP66-rated enclosure with forced-air ventilation if ambient temperatures exceed 55°C. Use shielded twisted-pair cable for all output wiring, grounding shields at the module end only (not field device end) to prevent ground loops. Apply dielectric grease to all terminal connections in high-humidity or corrosive atmospheres, and torque terminals to 0.5 Nm (4.5 lb-in) per installation manual.

Is remote diagnostics capability available for offshore or unmanned facilities?
Absolutely—when networked through TriStation gateways, you can monitor all 3625C1 diagnostic parameters (output current, fault status, module temperature) from any web browser or mobile device. Set up email/SMS alerts for critical faults, and access historical trend data to identify intermittent wiring issues before they cause unplanned shutdowns. Remote firmware updates supported via encrypted VPN connections.

Take the Next Step

Ready to upgrade your safety system with proven digital output technology? Contact our application engineering team for a free compatibility assessment—we'll review your existing Triconex configuration, recommend optimal channel allocation between supervised and non-supervised modes, and provide a detailed ROI analysis comparing the 3625C1 against your current relay-based outputs. Request a quote today and receive a response within 4 business hours, including volume pricing for multi-module projects.
