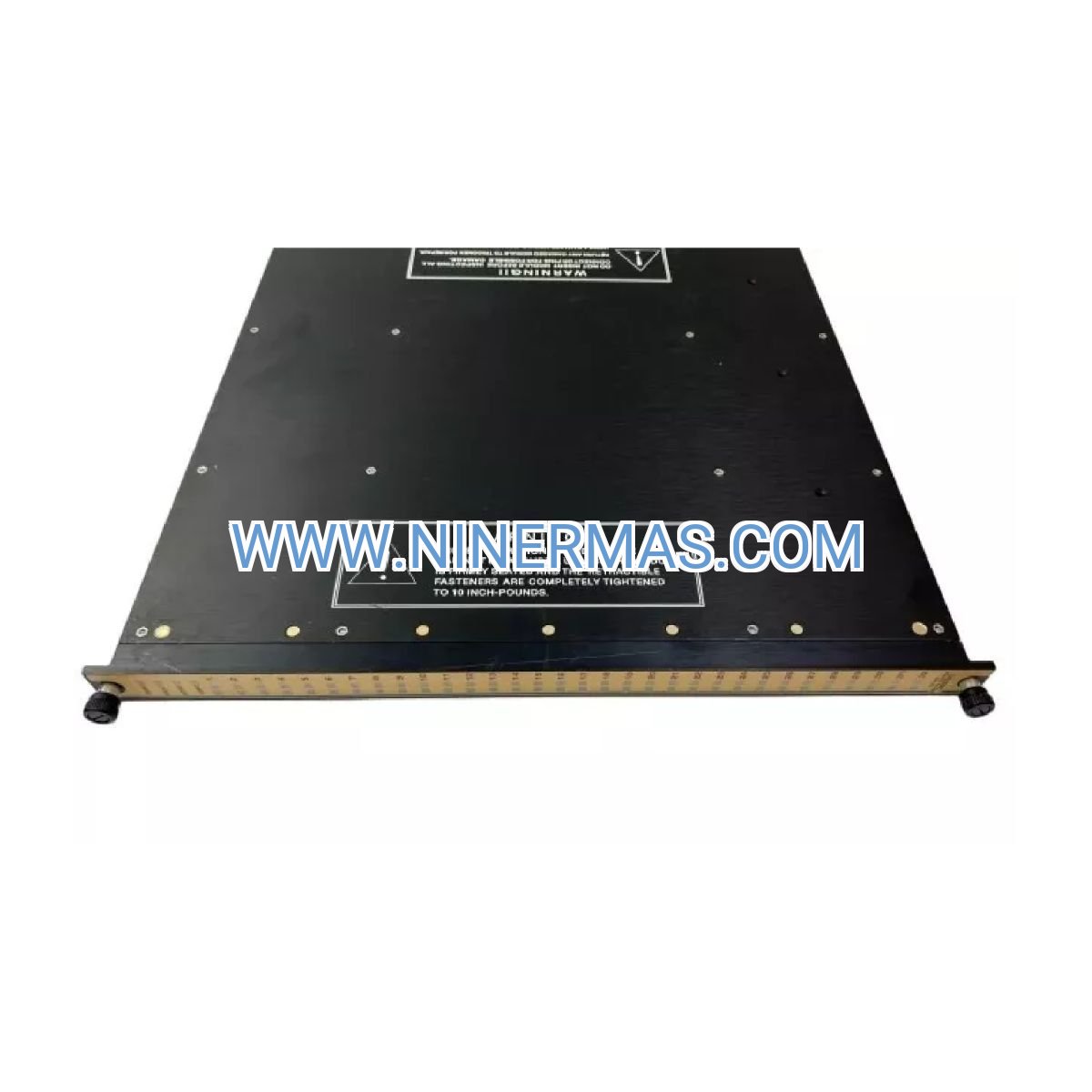

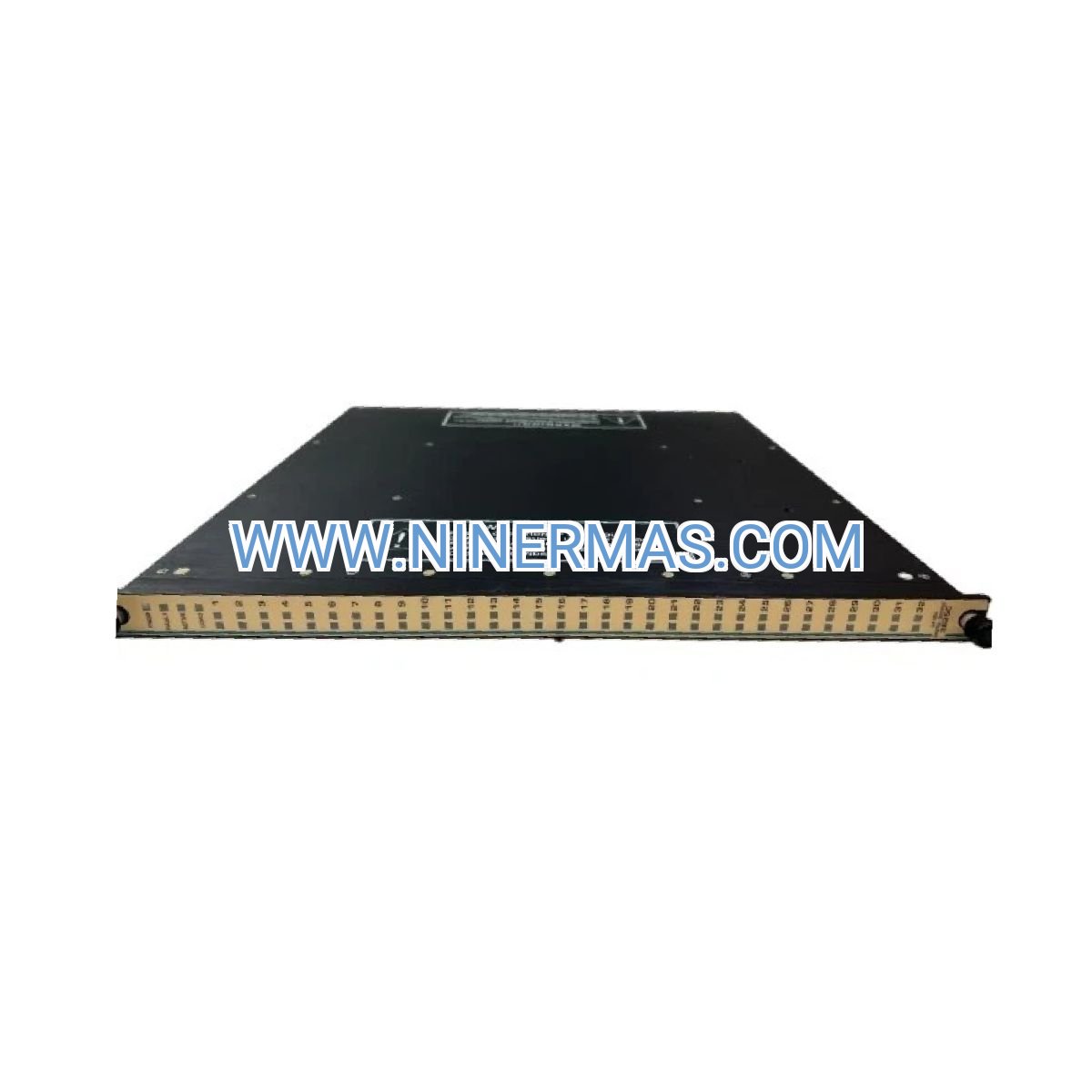

Triconex 3625C TMR Digital Output Module (Industrial-Grade Safety I/O)

The Triconex 3625C represents a proven solution for safety-critical output control in high-consequence industrial environments. Built on Triple Modular Redundant technology, this 32-channel digital output module maintains operational integrity through hardware failures, enabling continuous protection for emergency shutdown systems, fire suppression networks, and turbomachinery safeguarding applications across oil & gas, petrochemical, power generation, and pharmaceutical sectors.

Designed for facilities where unplanned downtime translates to production losses exceeding $100K per hour, the 3625C delivers fault-tolerant output control with hot-swap serviceability and comprehensive self-diagnostics. Each output channel operates through three independent voting circuits, ensuring that single-point failures never compromise safety function execution.

Whether you're upgrading legacy relay-based systems or expanding existing Triconex platforms, the 3625C integrates seamlessly into Tricon, Trident, and Tri-GP architectures while meeting IEC 61508 SIL 3 requirements for safety instrumented functions with demand rates up to 10⁻⁵ probability of failure on demand.

Core Features & Benefits

→ Triple Modular Redundant Architecture
Three independent output circuits vote on every switching decision, eliminating single points of failure. When one channel develops a fault, the remaining two maintain control while diagnostics isolate the failed component for online replacement.

→ Hot-Swap Capability Without Process Interruption
Replace failed modules during operation without initiating spurious trips or compromising safety functions. Removable terminal blocks preserve field wiring integrity during maintenance, reducing MTTR from hours to minutes.

→ 99%+ Diagnostic Coverage
Continuous self-testing monitors output driver circuits, backplane communications, and field wiring for opens, shorts, and degradation. Predictive fault detection enables proactive maintenance before failures impact operations.

✓ 32 Discrete 24V DC Outputs
Each channel delivers 0.5A continuous current with 1.5A surge capability for inductive loads. Optical isolation between channels and backplane prevents ground loops and electrical noise propagation.

✓ SIL 3 Certified for Safety Functions
FM, CSA, ATEX, and IECEx approvals validate deployment in hazardous area classifications including Class I Division 2 and Zone 2 environments. Certified MTBF exceeds 150 years per IEC 61508 calculations.

✓ Auto-Configuration Upon Installation
Module identification and I/O mapping occur automatically when inserted into chassis slots. TriStation 1131 software recognizes hardware changes and updates configuration databases without manual intervention.

Application Scenarios

Emergency Shutdown Systems (ESD)
In offshore platforms and refinery process units, the 3625C controls pneumatic shutdown valves, motor-operated isolation valves, and emergency depressurization systems. When process sensors detect overpressure, high temperature, or toxic gas release, the module executes de-energize-to-trip logic within 50 milliseconds, isolating hazardous inventories before escalation. TMR voting prevents spurious trips that cost $500K+ in lost production while ensuring genuine hazards trigger immediate protective action.

Fire & Gas Detection Networks
Chemical plants and LNG terminals deploy the 3625C to activate deluge systems, foam suppression, and emergency ventilation upon confirmed fire or combustible gas detection. The module's triple-redundant outputs ensure that suppression actuators receive activation signals even if two output channels fail simultaneously—a critical requirement for systems protecting personnel evacuation routes and high-value assets.

Burner Management Systems (BMS)
Power generation facilities and industrial boilers rely on the 3625C for fuel valve control, ignition sequencing, and flame safeguarding. The module manages main fuel valves, pilot gas valves, and purge dampers according to NFPA 85 and IEC 61511 requirements, preventing furnace explosions through verified valve position feedback and interlock enforcement.

Turbomachinery Protection
Compressor stations and gas turbine installations use the 3625C to execute emergency trips based on vibration monitors, bearing temperature sensors, and surge detection. When critical parameters exceed safe operating limits, the module simultaneously closes fuel valves, opens blowdown valves, and activates lube oil pumps—coordinated actions that prevent catastrophic equipment damage and multi-million dollar repair costs.

Pipeline Emergency Isolation
Midstream operators integrate the 3625C into leak detection and pipeline isolation systems. Upon detecting pressure anomalies or third-party intrusion, the module closes block valves at segment boundaries, minimizing product release and environmental impact while maintaining flow in unaffected pipeline sections.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3625C when your application requires SIL 3 certification, hot-swap maintenance capability, or TMR fault tolerance. For non-safety applications with lower integrity requirements, consider standard DCS output modules. If you need analog output control or higher current capacity (>0.5A per point), evaluate the Triconex 3604E analog module or external relay interfaces. Confirm that your field devices operate at 24V DC and draw ≤0.5A continuous current; inductive loads require external flyback diodes or RC suppression networks.

Extended Functions

Remote Diagnostics Integration: The 3625C supports SNMP traps and Modbus TCP reporting for integration with plant-wide asset management systems. Diagnostic data streams to condition monitoring platforms, enabling predictive maintenance scheduling based on output driver degradation trends.

Cybersecurity Hardening: When deployed with Triconex TriStation 1131 Developer v5.0+, the module benefits from role-based access controls, encrypted configuration downloads, and audit logging compliant with IEC 62443 industrial cybersecurity standards.

Custom Output Configurations: Field-selectable jumpers enable sourcing or sinking output modes without module replacement. This flexibility accommodates mixed field device populations and simplifies spare parts inventory management across multi-site operations.

Delivery & Service Assurance

Lead Time: Stock units ship within 3-5 business days via DHL/FedEx with tracking. Custom-configured modules (pre-loaded firmware, labeled terminals) require 10-15 business days for preparation and testing.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and performance deviations from published specifications. Warranty includes advance replacement service with cross-shipment to minimize downtime.

Technical Support: Our automation engineers provide configuration assistance, troubleshooting guidance, and integration support via email, phone, and remote desktop sessions. Support includes TriStation programming examples, wiring diagrams, and loop checkout procedures.

Documentation Package: Each module ships with installation manual, safety certification documents, dimensional drawings, and terminal block wiring schematics. Digital resources include CAD models, HART device descriptions, and sample ladder logic for common applications.

Frequently Asked Questions

Q: How does the 3625C handle output channel failures during operation?
A: The TMR voting architecture detects discrepancies between the three output circuits within one scan cycle (typically 10-20ms). The system continues operating on the two healthy channels while flagging the fault for operator attention. You can replace the module during operation without process interruption.

Q: What field devices are compatible with the 3625C output specifications?
A: Any 24V DC device drawing ≤0.5A continuous current works directly—solenoid valves, pilot relays, indicator lamps, and solid-state actuators. For higher-current loads like motor starters or large contactors, use the 3625C to drive intermediate relay coils rated at 24V DC / 0.3A.

Q: Can I mix sourcing and sinking outputs on the same module?
A: No, the output mode (sourcing vs. sinking) is set globally for all 32 channels via hardware jumpers. If your application requires mixed output types, use separate modules configured for each mode or employ external signal conditioning.

Q: Does the 3625C support partial stroke testing for valve diagnostics?
A: The module provides the output control capability, but partial stroke test logic resides in the Triconex controller application program. You'll implement test sequences in TriStation 1131 software using timed output pulses and valve position feedback monitoring.

Q: What's the maximum cable length between the module and field devices?
A: With 24V DC signals and 0.5A loads, cable runs up to 300 meters (1000 feet) are feasible using 18 AWG shielded twisted pair. Longer distances require voltage drop calculations and may need larger conductors or local power injection to maintain adequate voltage at the load.

Q: How do I verify output channel integrity after installation?
A: Use the TriStation diagnostic display to command individual outputs ON/OFF while monitoring field device response. The module's loopback diagnostics automatically detect open circuits, shorts to ground, and shorts to power supply—faults appear immediately in the diagnostic status registers.

Take the Next Step

Ready to enhance your safety instrumented system with proven TMR technology? Contact our team for application-specific recommendations, pricing for multi-module projects, or technical consultation on system architecture. We'll help you determine the optimal configuration for your process safety requirements and provide detailed quotations within 24 hours.
