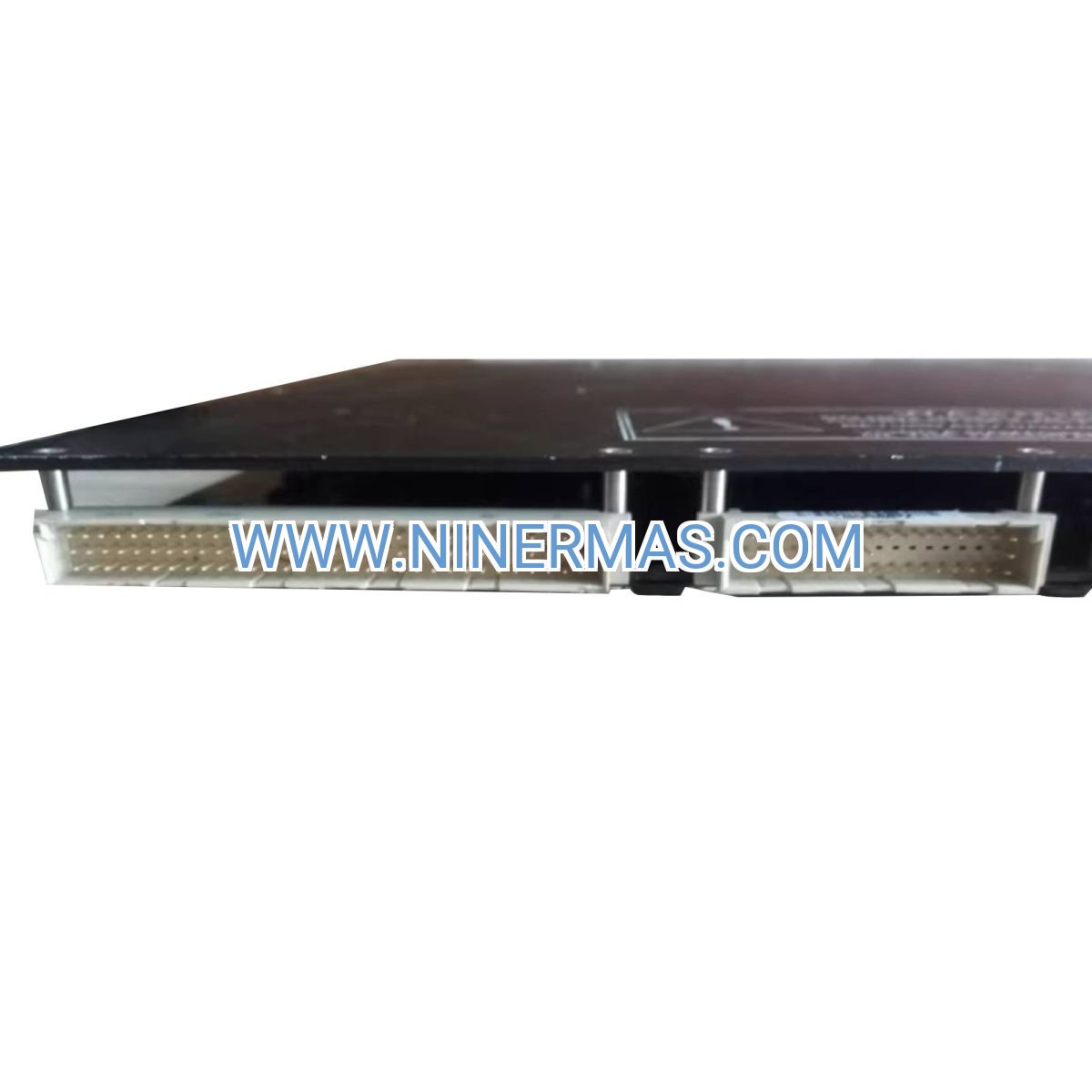

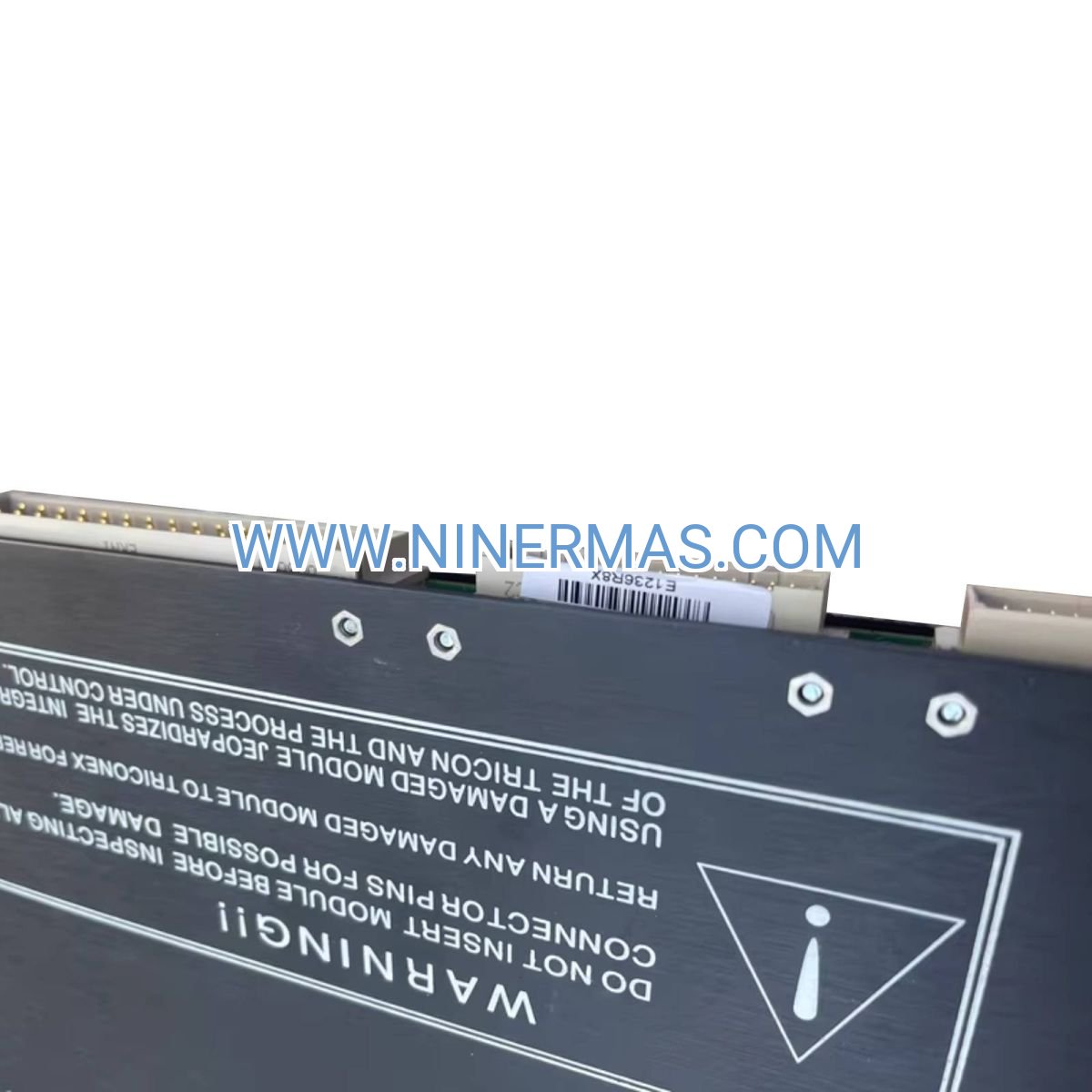

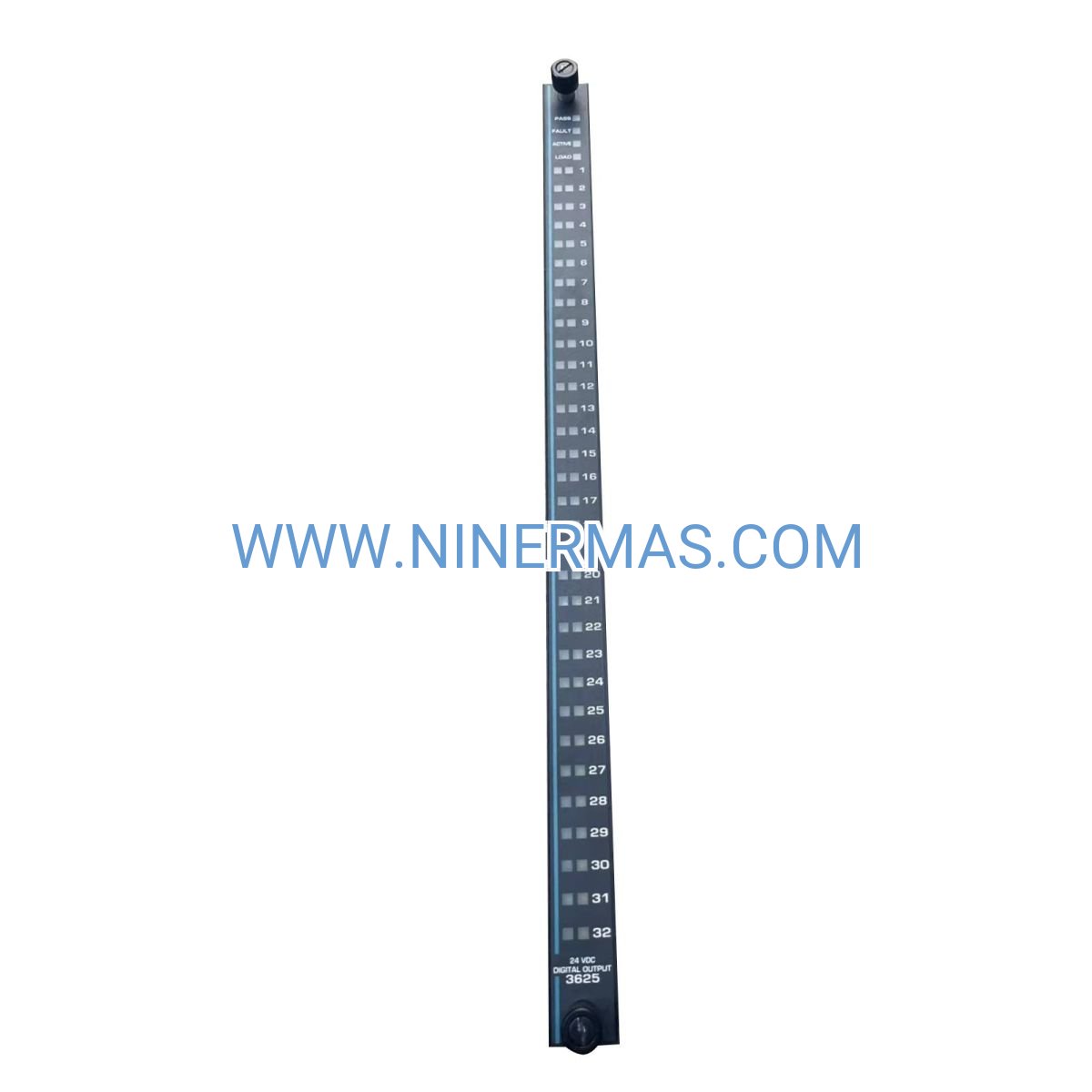

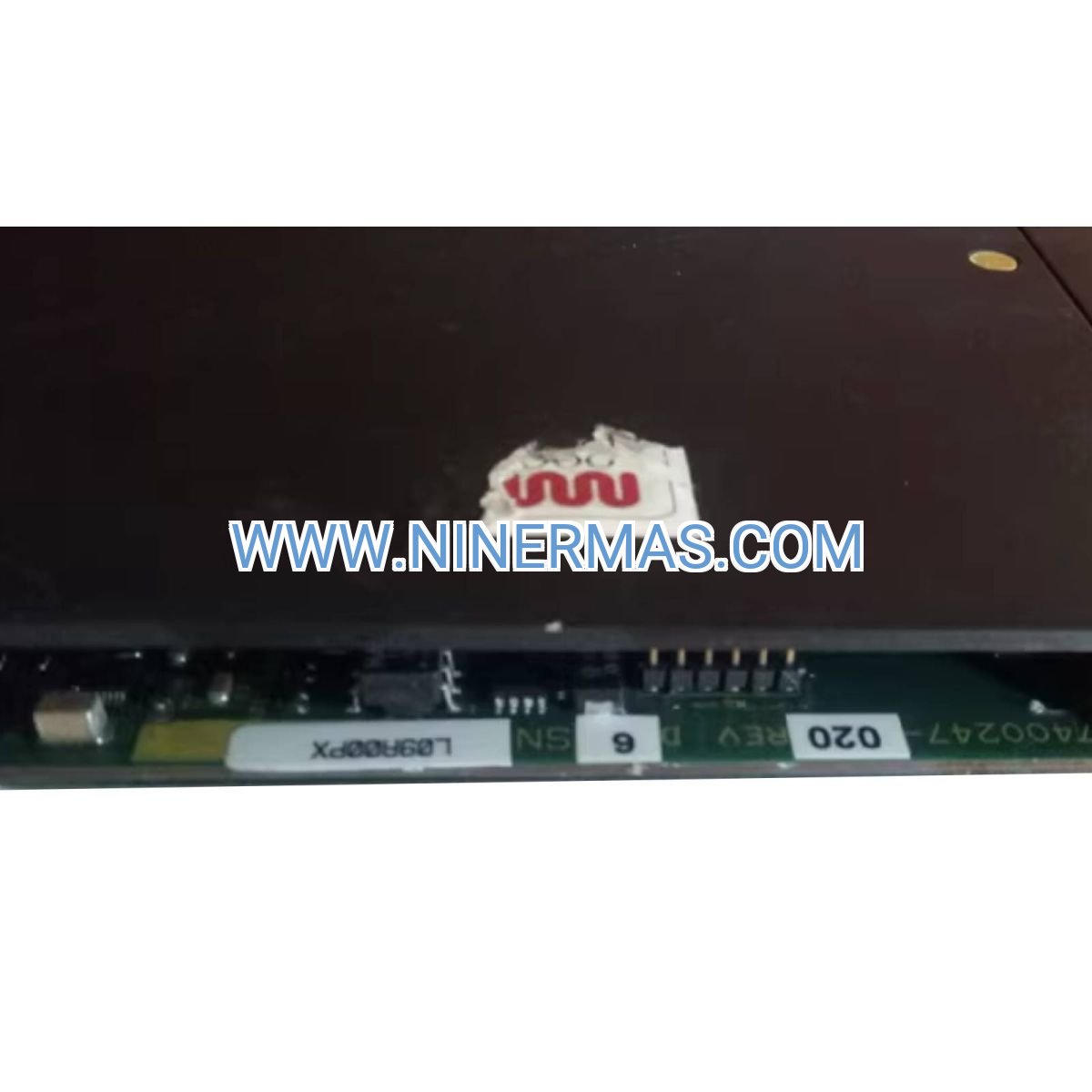

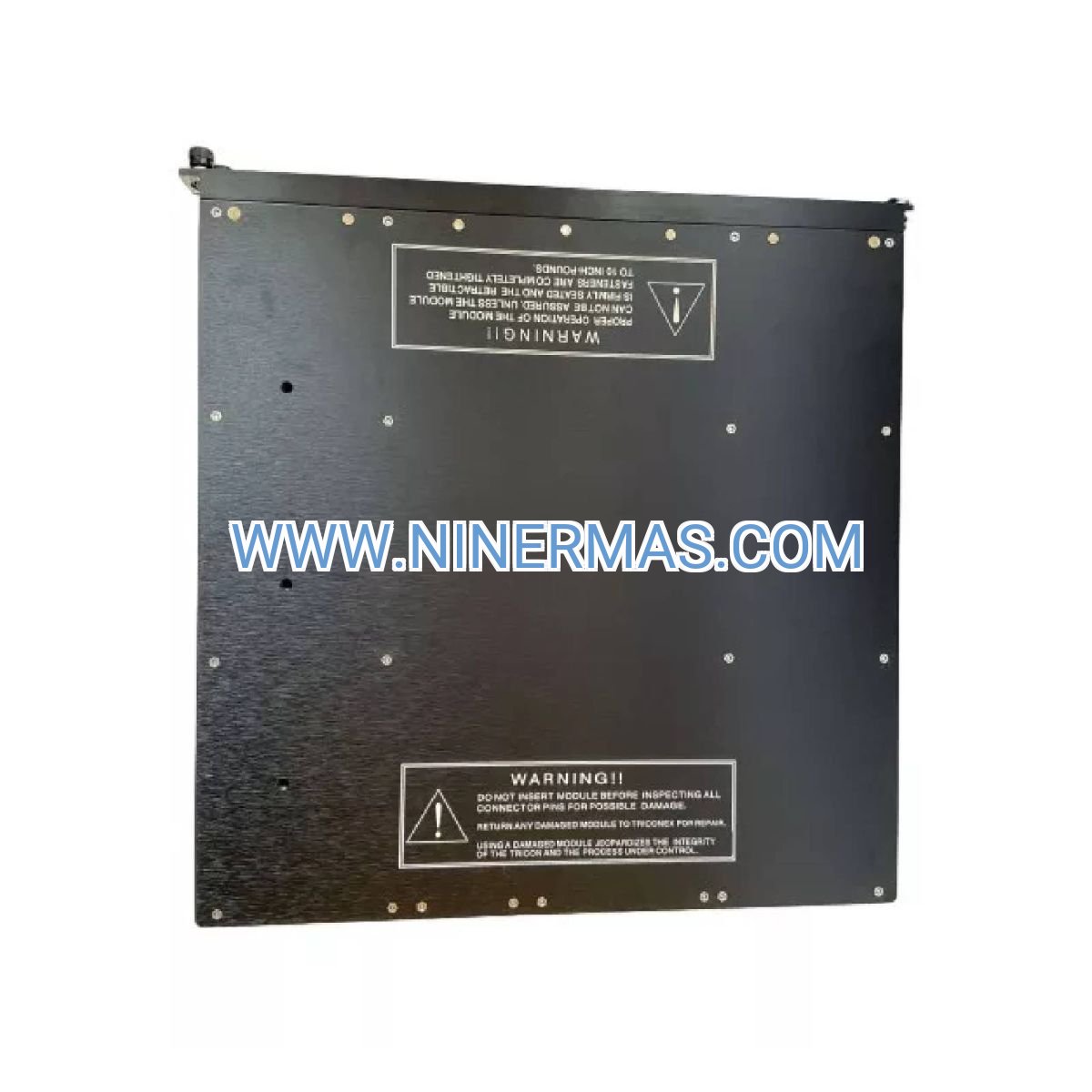

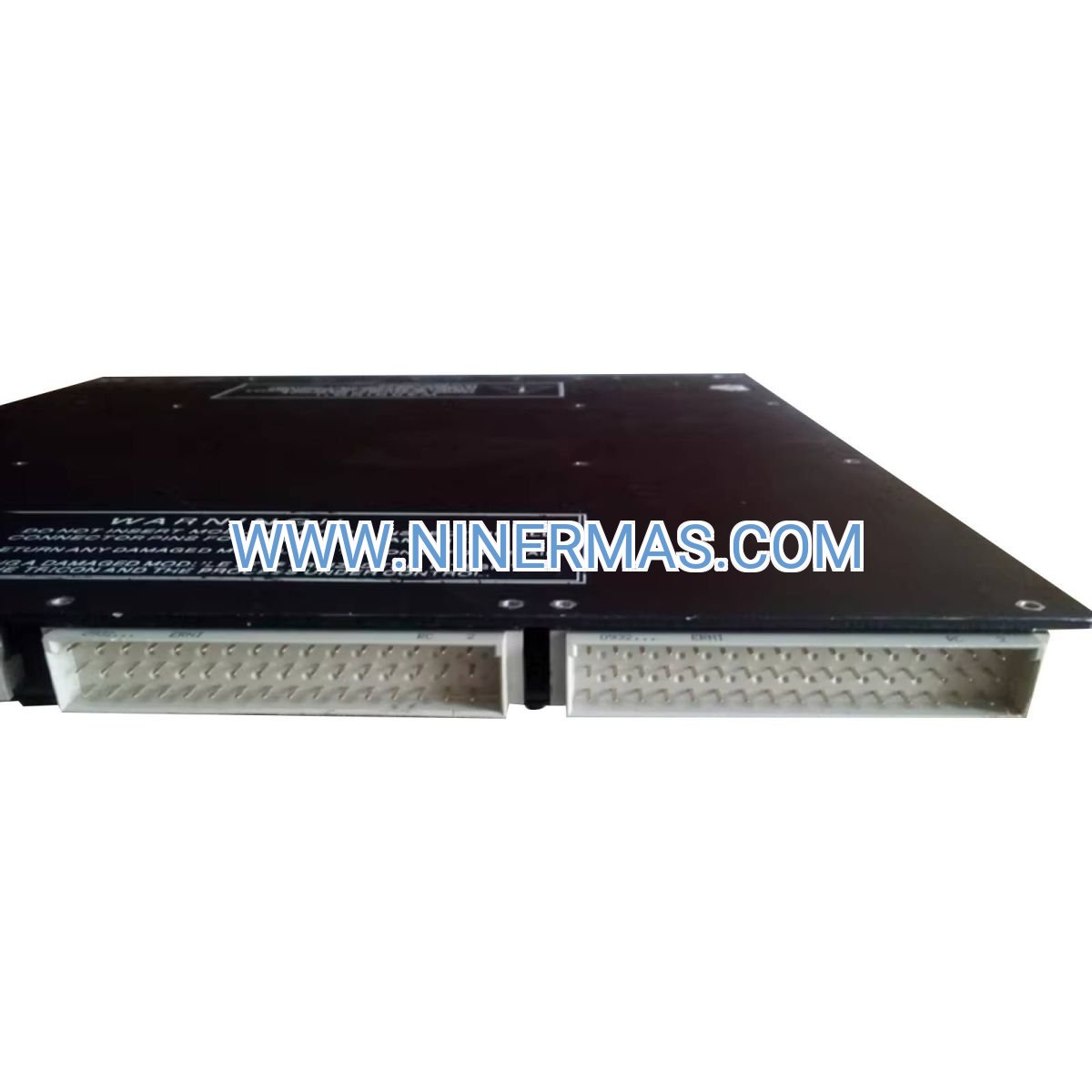

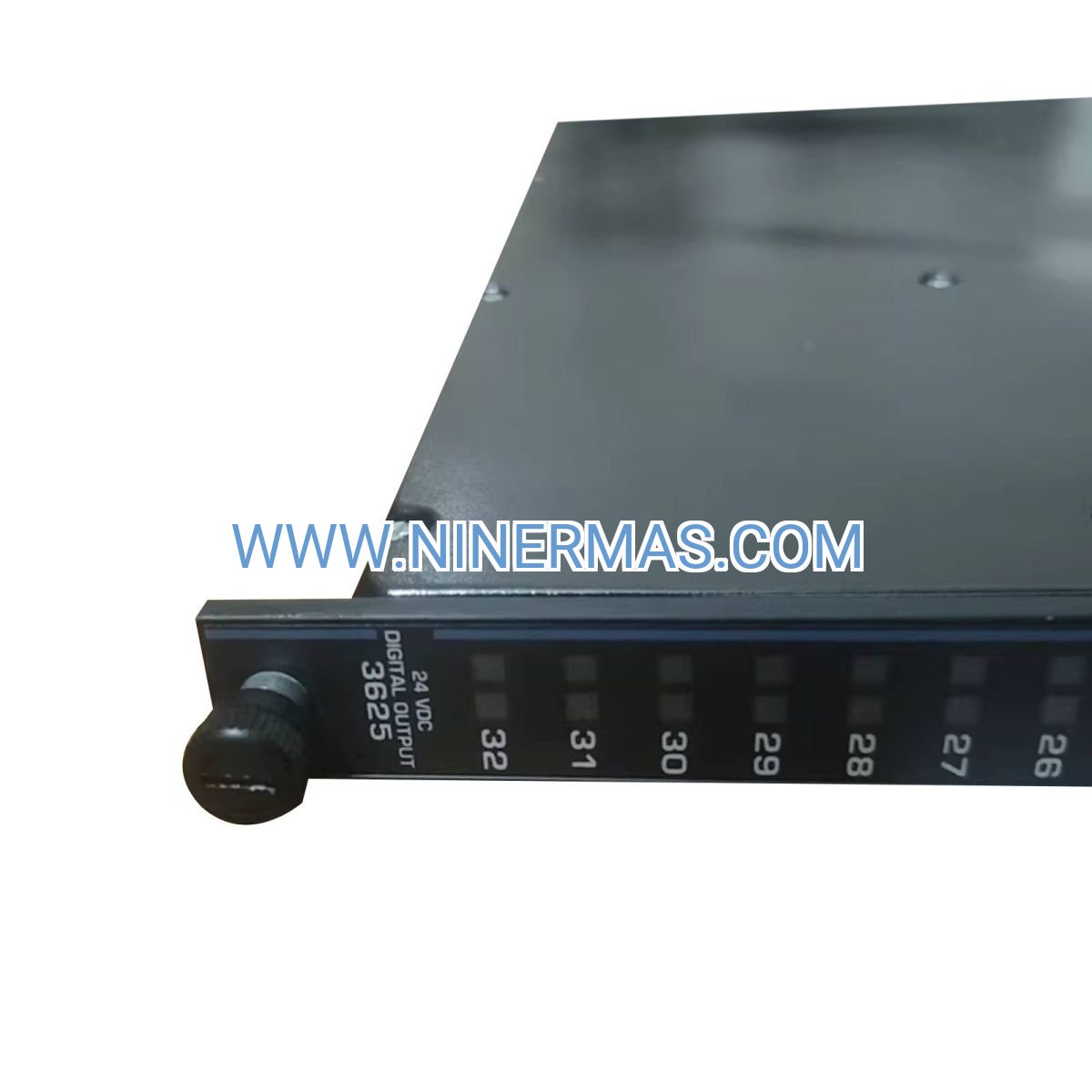

Triconex 3625 TMR Digital Output Module (Industrial-Grade Safety Control)

The Triconex 3625 represents a mission-critical component in fault-tolerant safety instrumented systems, delivering 32 independently supervised 24VDC digital outputs through proven Triple Modular Redundancy architecture. This industrial-grade module serves as the final control element in safety chains where equipment protection, personnel safety, and environmental compliance cannot be compromised.

Designed for process industries demanding SIL 3 integrity, the 3625 addresses the fundamental challenge of maintaining continuous safety function availability while detecting and isolating faults before they escalate into dangerous failures. Target users include safety engineers, instrumentation specialists, and plant operators managing critical shutdown systems, fire protection networks, and turbomachinery safeguarding applications across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing facilities.

What sets this module apart is its combination of high-density I/O (32 channels per slot), comprehensive line supervision, and seamless integration with Triconex Tricon controllers—enabling you to build compact, reliable safety systems with reduced cabinet footprint and simplified maintenance protocols. Every output channel features continuous diagnostics that detect open circuits, short circuits, and load anomalies in real time, triggering immediate safe-state actions and operator notifications.

Core Features & Benefits

✓ Triple Modular Redundancy (TMR) Architecture
Three independent processing channels vote on every output command, automatically masking single-point failures without process interruption. This translates to unplanned downtime reduction of up to 40% compared to simplex systems, while maintaining continuous safety availability even during module replacement.

✓ 32 Supervised Output Channels
High-density configuration delivers 0.5A per channel with individual fault monitoring, reducing panel space requirements by 60% versus legacy relay-based systems. Each channel supports standard 24VDC solenoid valves, motor starters, and alarm annunciators commonly deployed in process safety applications.

✓ SIL 3 Certified Safety Integrity
IEC 61508 certification ensures compliance with international functional safety standards, providing documented proof factor (PFDavg) values required for safety lifecycle validation. This certification accelerates regulatory approvals and simplifies third-party safety audits.

✓ Advanced Diagnostic Capabilities
Continuous self-testing and output supervision detect 95% of dangerous failures within one diagnostic cycle (typically <100ms). Predictive maintenance alerts identify degrading field wiring before failures occur, extending mean time between failures (MTBF) beyond 150,000 hours.

✓ Hot-Swappable Design
Online module replacement capability eliminates scheduled downtime for maintenance activities. Technicians can replace failed modules under full system operation, with automatic configuration download and seamless transition—critical for continuous process industries operating 24/7/365.

✓ Industrial Environmental Hardening
0°C to 60°C operating range with 1500V channel-to-backplane isolation protects against electrical noise, ground loops, and transient surges common in heavy industrial environments. Conformal coating options available for corrosive atmosphere protection.

Application Scenarios

→ Emergency Shutdown Systems (ESD)
In offshore oil platforms and refinery units, the 3625 controls final shutdown valves, blowdown systems, and isolation barriers. When process parameters exceed safe operating limits, the module executes coordinated shutdown sequences within milliseconds, preventing catastrophic overpressure events, fires, or toxic releases. Typical installations achieve 99.9% safety function availability.

→ Fire & Gas Detection Networks
Chemical plants and LNG terminals deploy the 3625 to activate deluge systems, ventilation dampers, and emergency lighting upon confirmed fire/gas detection. The supervised outputs ensure that safety devices respond reliably even after years of dormancy, while continuous diagnostics verify readiness without spurious activations that disrupt production.

→ Burner Management Systems (BMS)
Power generation facilities and industrial boilers utilize the module to control fuel valves, ignition systems, and purge sequences. TMR voting prevents single-point failures from causing unsafe startups or failed shutdowns, while diagnostic coverage meets NFPA 85 and IEC 61511 requirements for combustion safety.

→ Turbomachinery Protection
Compressor stations and gas turbine installations rely on the 3625 for trip valve actuation, lube oil pump control, and auxiliary system management. Sub-100ms response times protect multi-million dollar rotating equipment from destructive overspeed, vibration, or lubrication failures, minimizing repair costs and production losses.

→ Critical Process Interlocks
Pharmaceutical batch reactors and specialty chemical processes implement the module for temperature control valves, agitator interlocks, and material addition sequencing. The combination of high reliability and comprehensive diagnostics ensures product quality consistency while preventing batch contamination or runaway reactions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3625 when your application requires high-density supervised outputs (>16 channels) with SIL 3 integrity. For applications needing <16 channels, consider the Triconex 3603T for cost optimization. If operating in extreme environments (-40°C or corrosive atmospheres), specify the 3625C variant with enhanced environmental protection. Verify that your field devices draw <0.5A continuous; for higher current loads, use external relay interfaces or the 3604E high-current module.

Extended Functions

IoT Integration & Remote Monitoring: When paired with Triconex TriStation software and secure network gateways, the 3625 enables real-time output status monitoring, diagnostic data trending, and predictive maintenance analytics accessible from centralized control rooms or cloud-based asset management platforms. Integration with OPC UA servers facilitates data exchange with enterprise MES/ERP systems for comprehensive safety performance tracking.

Advanced Diagnostic Features: Beyond basic fault detection, the module provides detailed diagnostic codes identifying specific failure modes (open load, short to ground, short to power, overcurrent). Diagnostic data logs support root cause analysis and regulatory compliance documentation, while configurable alarm thresholds enable early warning of degrading field wiring before complete failure.

Customization Options: Factory configuration services available for pre-programmed output assignments, custom diagnostic thresholds, and application-specific testing protocols. Consult with our engineering team for projects requiring specialized environmental ratings, extended temperature ranges, or integration with legacy control systems.

Delivery & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via expedited carrier with full tracking and insurance. International shipments typically arrive within 7-10 business days, with all export documentation and customs clearance support included.

Custom Configuration: Factory-programmed modules ship within 10-15 business days, including full functional testing, configuration documentation, and as-built drawings certified for safety lifecycle records.

Warranty Coverage: Comprehensive 12-month warranty protects against manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service with 24-hour shipment of exchange units to minimize downtime.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting guidance, system integration planning, and safety lifecycle documentation support. Emergency support available 24/7 for critical system failures affecting safety function availability.

Documentation Package: Every module ships with installation manual, wiring diagrams, safety manual (per IEC 61508-2), proof test procedures, and certificate of conformity. Digital documentation library includes CAD drawings, configuration templates, and sample ladder logic for common applications.

Frequently Asked Questions

Q: How does the TMR architecture improve safety system reliability compared to redundant configurations?
A: TMR provides continuous 2oo3 voting that masks single failures without switching to backup channels, eliminating transition delays and maintaining full diagnostic coverage during fault conditions. Redundant (1oo2) systems require switchover logic that introduces potential common-cause vulnerabilities and diagnostic gaps during transitions.

Q: What field devices are compatible with the 3625 output specifications?
A: The module drives standard 24VDC industrial devices including solenoid valves (0.3-0.5A), pilot relays, motor contactors, indicator lamps, and alarm horns. For devices exceeding 0.5A continuous draw, use external interposing relays rated for the load current. Inductive loads require external suppression (flyback diodes) to prevent voltage spikes.

Q: Can this module be retrofitted into existing Triconex systems without controller upgrades?
A: Yes, the 3625 maintains backward compatibility with all Tricon controller generations (v9.x through current v11.x firmware). Installation requires only chassis slot availability and configuration database updates—no controller hardware changes needed. Consult compatibility matrices for specific controller/module firmware pairings.

Q: What proof testing intervals are required to maintain SIL 3 certification?
A: IEC 61511 mandates proof testing at intervals not exceeding the calculated proof test interval (PTI) based on target PFDavg values. For typical SIL 3 applications, annual testing suffices when using manufacturer-provided test procedures. The module's online diagnostics reduce required manual testing scope by automatically verifying >95% of failure modes continuously.

Q: How do I verify proper output supervision functionality during commissioning?
A: Execute the factory-supplied diagnostic test sequence that simulates open circuit, short circuit, and overcurrent conditions on each channel. The module should detect and annunciate each fault within one diagnostic cycle (<100ms) and transition outputs to configured safe states. Document test results for safety validation records per IEC 61511-1 clause 12.

Q: What cybersecurity measures protect the module from unauthorized access or manipulation?
A: The Triconex platform implements defense-in-depth security including hardware key switches, role-based access control, encrypted configuration downloads, and audit logging of all configuration changes. For networked installations, deploy dedicated safety network segments isolated from business networks, with industrial firewalls and intrusion detection systems per IEC 62443 guidelines.

Take the Next Step

Ready to enhance your safety system reliability with proven TMR technology? Contact our safety system specialists for application-specific configuration guidance, compatibility verification with your existing Triconex infrastructure, or detailed quotations for multi-module projects. Our team provides complimentary pre-sales engineering support including I/O mapping reviews, safety integrity calculations, and lifecycle cost analysis.

Request a quote: Email your system requirements, target delivery schedule, and any special configuration needs to our technical sales team.
Technical consultation: Schedule a call with our certified safety engineers to discuss your specific application challenges and optimal module selection.
Documentation access: Download complete datasheets, installation guides, and safety manuals from our technical library.
