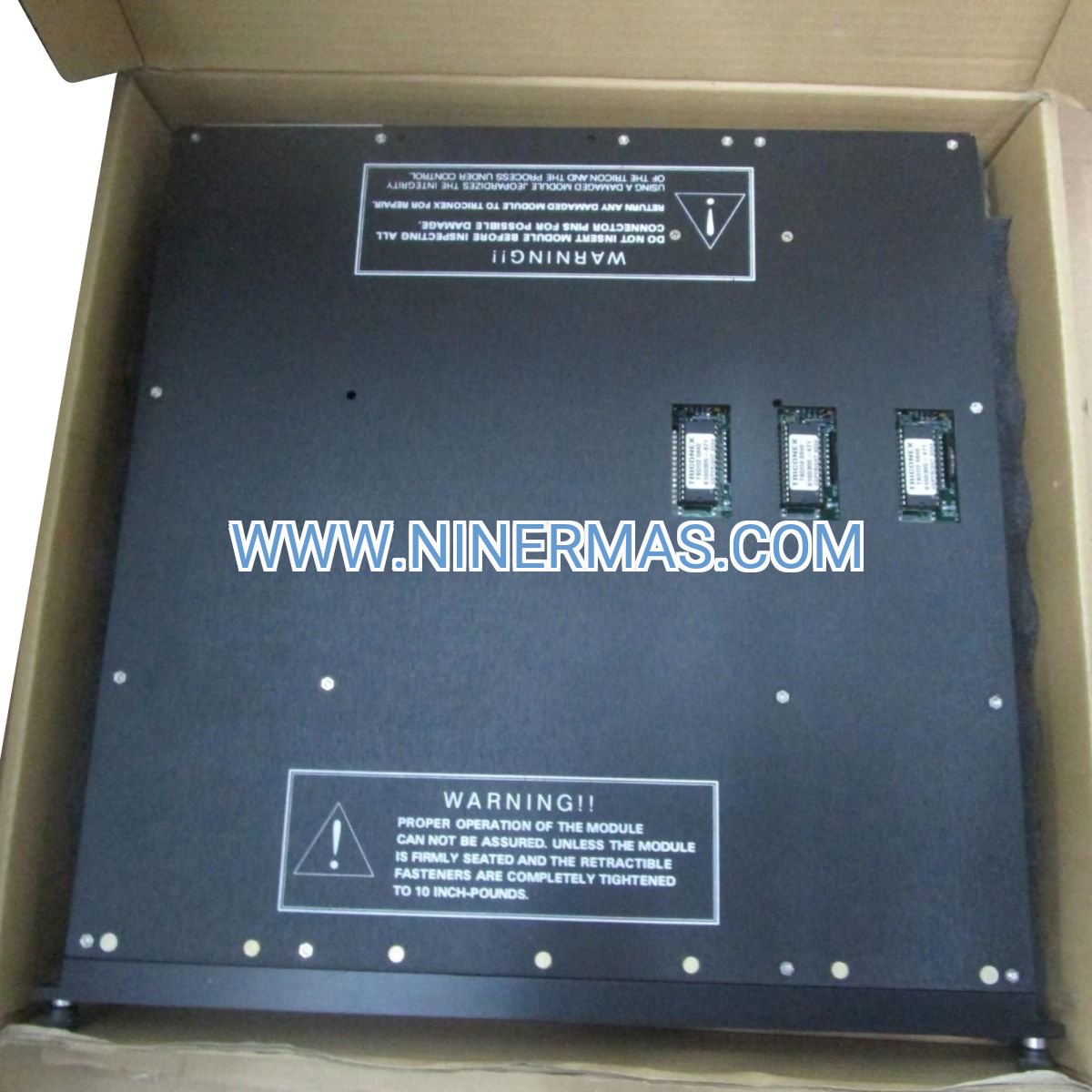

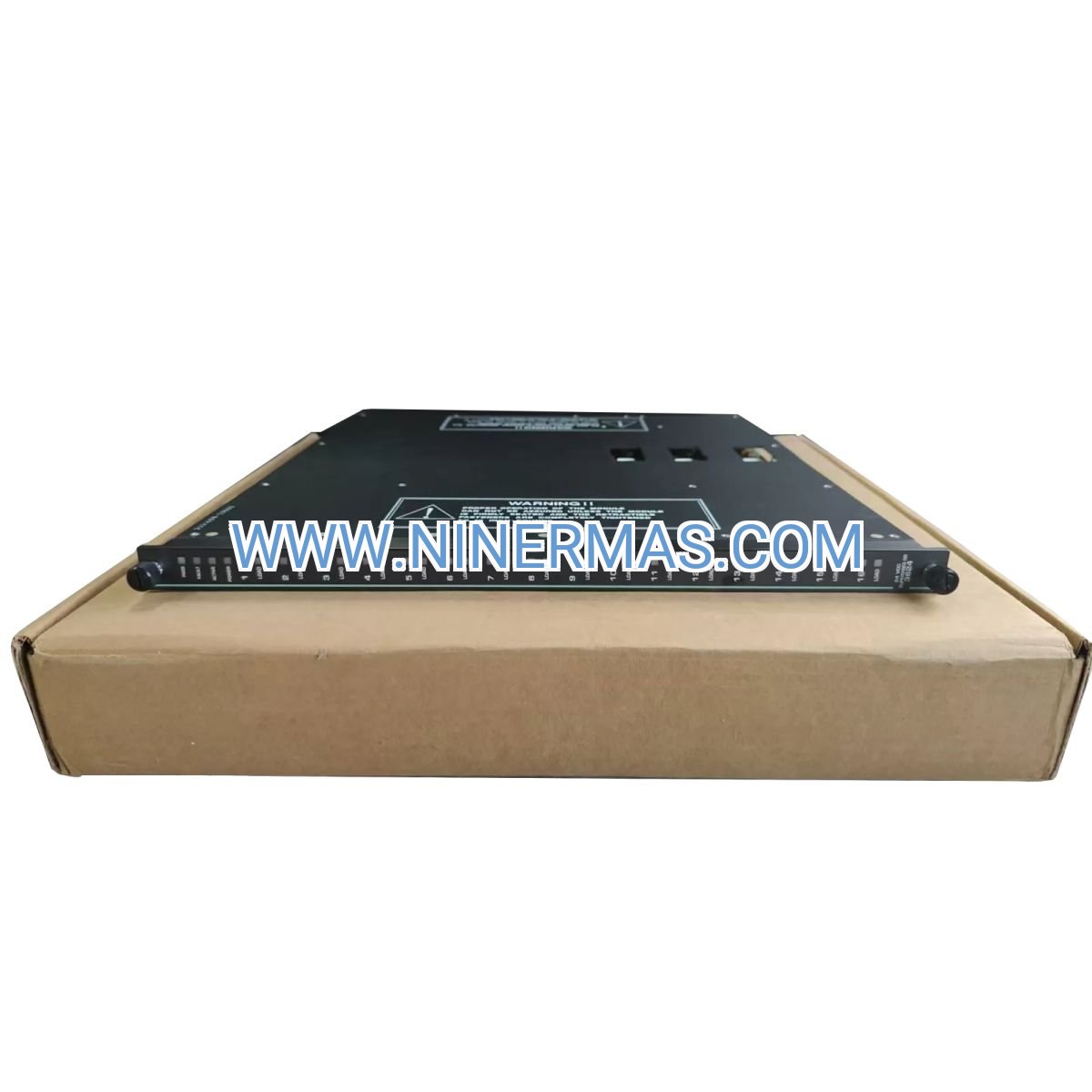

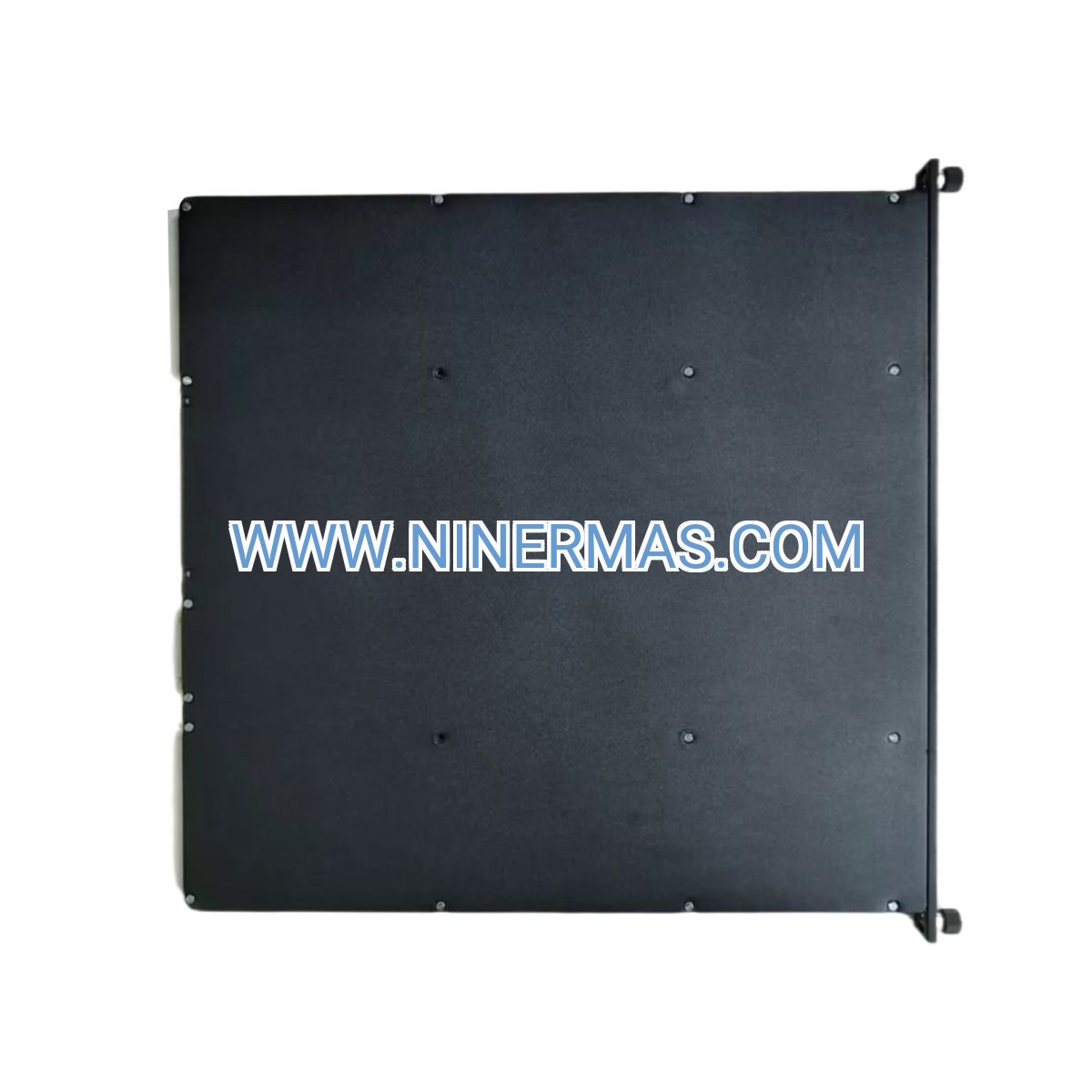

Triconex 3624 Supervised Digital Output Module (Industrial-Grade TMR Safety Controller)

The Triconex 3624 represents a mission-critical digital output solution engineered for safety instrumented systems where process integrity cannot be compromised. Built on triple modular redundant architecture, this 16-channel supervised output module delivers SIL 3-certified performance for emergency shutdown systems, fire protection networks, and critical process interlocks across high-hazard industrial environments.

Designed for facilities operating under stringent safety regulations—including oil refineries, chemical processing plants, offshore platforms, and power generation stations—the 3624 module provides continuous diagnostic monitoring with >99% fault coverage. Its 2oo3 voting logic ensures fail-safe operation even during component degradation, while integrated supervision circuits detect field wiring faults, load failures, and power anomalies in real-time.

Whether you're upgrading legacy safety systems or designing new SIS architectures, the 3624 module integrates seamlessly into Triconex chassis configurations, supporting hot-swappable maintenance and online diagnostics without compromising system availability. Each output channel handles up to 2A with comprehensive short-circuit and overload protection, making it ideal for controlling solenoid valves, motor contactors, alarm devices, and safety interlocks in hazardous area classifications.

Core Features & Technical Advantages

✓ Triple Modular Redundancy (TMR) Architecture
Three independent processing channels with 2oo3 voting logic eliminate single-point failures, ensuring continuous safe operation even during module faults or maintenance activities. This redundancy delivers 99.99% availability for critical safety functions.

✓ SIL 3 Certified Safety Integrity
Complies with IEC 61508 standards for functional safety, providing documented proof factor (PFD) calculations and systematic capability ratings required for safety lifecycle management and regulatory compliance audits.

✓ Comprehensive Output Supervision
Real-time monitoring of output current, voltage, and load characteristics detects open circuits, short circuits, and load degradation within 10ms response time, triggering immediate fault annunciation and safe-state transitions.

→ High-Density I/O Configuration
16 supervised outputs in a single module slot maximize chassis utilization while reducing wiring complexity, installation labor, and panel footprint—critical factors in brownfield retrofits and space-constrained installations.

→ Industrial Environmental Ratings
Operates reliably across 0°C to 60°C temperature ranges with conformal coating protection against humidity, dust, and corrosive atmospheres typical of process industry environments.

→ Integrated Load Protection
Each channel features flyback diode suppression for inductive loads, reverse polarity protection, and thermal shutdown safeguards, extending field device lifespan and reducing nuisance trips.

Industrial Application Scenarios

Emergency Shutdown Systems (ESD)
In offshore oil platforms and refinery units, the 3624 module controls final control elements including block valves, blowdown valves, and isolation actuators. When process parameters exceed safe operating limits, the TMR architecture ensures reliable valve actuation even if individual output channels experience failures, preventing catastrophic releases and protecting personnel.

Fire & Gas Detection Networks
Chemical processing facilities deploy the 3624 to interface with deluge systems, fire suppression valves, and emergency ventilation dampers. The supervised output capability verifies field device readiness during periodic proof testing, while diagnostic coverage meets performance requirements for SIL 3 risk reduction.

Burner Management Systems (BMS)
Power generation and steam production facilities utilize the module for fuel valve control, ignition sequencing, and flame safeguard interlocks. The <10ms output response time supports rapid purge cycles and flame failure detection, while TMR voting prevents spurious trips that impact plant availability.

Critical Process Interlocks
Pharmaceutical manufacturing and semiconductor fabrication environments require validated safety systems for reactor temperature control, pressure relief activation, and containment isolation. The 3624's documented safety parameters and audit trail capabilities support FDA 21 CFR Part 11 and GAMP 5 compliance requirements.

Subsea Production Control
Offshore subsea installations leverage the module's fault-tolerant design for hydraulic power unit (HPU) control, subsea isolation valve (SSIV) actuation, and emergency quick disconnect (EQD) systems where repair access is severely limited and system reliability directly impacts production economics.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3624 module when your application requires SIL 3 safety integrity for digital output functions controlling solenoid valves, motor starters, or alarm devices rated 24 VDC with current draw up to 2A per point. For higher current loads (up to 8A per channel), consider the 3625A variant. Applications requiring 120/240 VAC output capability should specify the 3636 or 3636R relay output modules. Verify total module current does not exceed 8A aggregate when sizing field devices.

Extended Functionality & Integration

TriStation Protocol Integration: The 3624 communicates via the Triconex proprietary backplane, supporting real-time data exchange with main processors (3008, 3009) and peer I/O modules. Configuration and diagnostics utilize TriStation 1131 software with IEC 61131-3 programming languages including Function Block Diagram (FBD), Ladder Diagram (LD), and Structured Text (ST).

Remote Monitoring Capabilities: When paired with Triconex communication modules (4351 Ethernet, 4609 Modbus), the 3624 enables SCADA integration, historian connectivity, and remote diagnostic access. Output status, fault conditions, and diagnostic counters stream to plant-wide asset management systems for predictive maintenance and performance trending.

Customization Options: Field-configurable parameters include output pulse testing intervals, supervision threshold levels, and fault response modes (hold last state, de-energize, or energize). Custom terminal block assemblies accommodate various wire gauges and termination styles to match existing installation standards.

Delivery Timeline & Service Assurance

Standard Delivery: 3-5 business days for in-stock modules with factory testing and calibration certificates
Custom Configuration: 10-15 business days for pre-programmed modules with application-specific parameter sets
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues
Technical Support: Unlimited phone and email support for configuration assistance, troubleshooting, and integration guidance
Documentation Package: Includes user manual, installation guide, wiring diagrams, safety manual, and IEC 61508 certification documents

Frequently Asked Questions

How does the TMR voting mechanism handle output channel failures?
The 2oo3 voting logic requires at least two of three redundant channels to agree before energizing outputs. If one channel fails, the remaining two maintain control while the system annunciates the fault for scheduled maintenance, ensuring zero downtime for safety functions.

What load types are compatible with the supervised output channels?
The 3624 drives resistive, inductive, and capacitive loads including solenoid valves (with integrated flyback protection), pilot relays, LED indicators, motor contactors, and solid-state relay inputs. Maximum inductive load is 50mH at rated current.

Can I mix the 3624 module with other Triconex I/O families in the same chassis?
Yes, the 3624 is fully compatible with all Triconex main processor models and can coexist with analog input/output modules, digital input modules, and communication modules in any available chassis slot configuration.

What diagnostic information is available for troubleshooting output faults?
The module provides per-channel diagnostics including output current measurement, load voltage monitoring, short-circuit detection, open-circuit detection, and supervision fault counters accessible through TriStation software or communication module interfaces.

Does the module support partial stroke testing for valve diagnostics?
Yes, the 3624 can execute programmable pulse sequences for partial stroke testing (PST) of safety valves, allowing proof testing without full process shutdown. Pulse width, frequency, and current thresholds are configurable via TriStation.

What are the power supply requirements for the 3624 module?
The module draws logic power from the Triconex chassis backplane (24 VDC system power) and requires external 24 VDC field power for output channels. Field power and logic power must be isolated per safety standards.

Request Technical Consultation

Our industrial automation specialists are available to assist with system architecture design, I/O point allocation, safety integrity calculations, and migration planning from legacy DCS/PLC platforms to Triconex safety systems. Contact our engineering team for application-specific guidance, CAD drawings, and project quotations.
