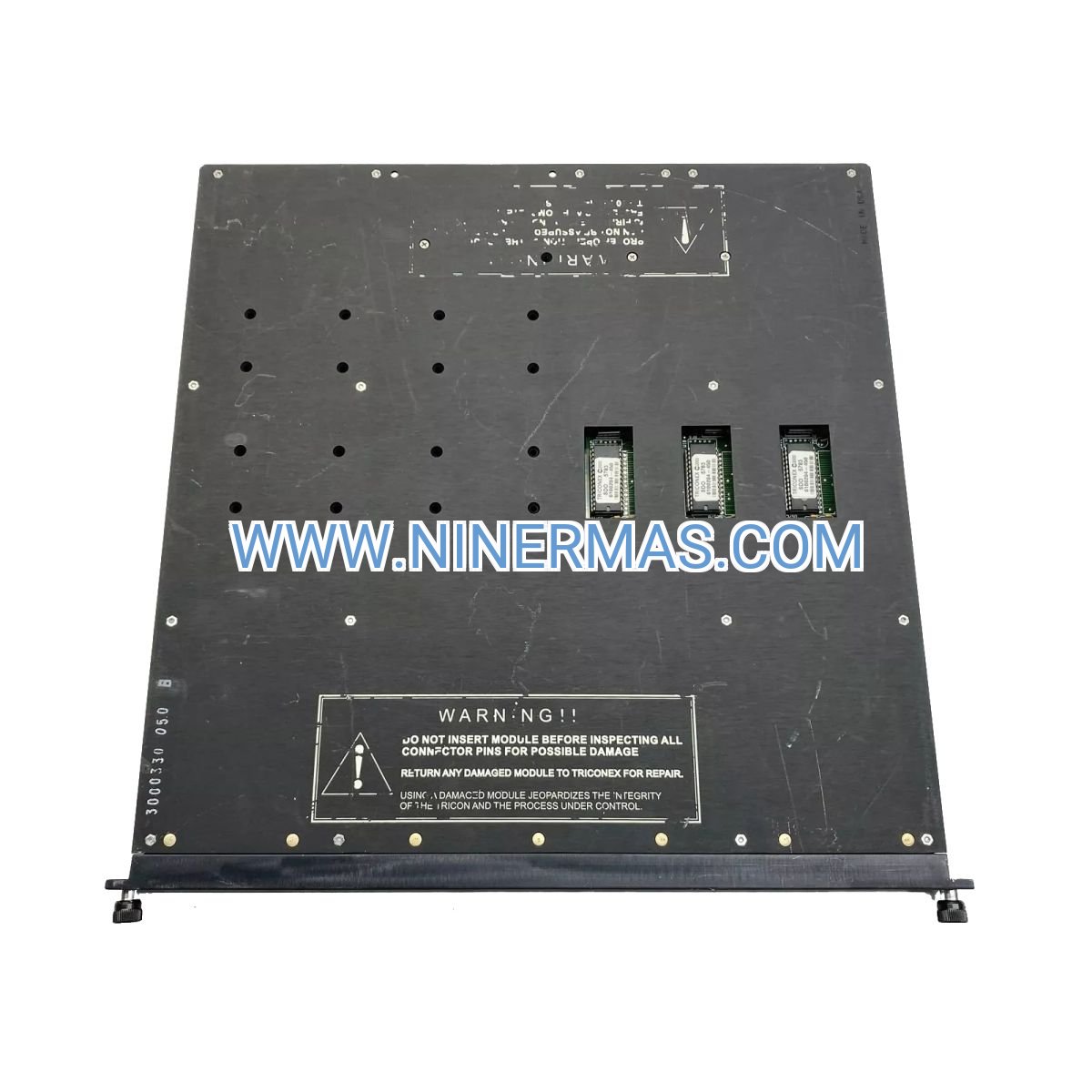

Triconex 3623T Digital Output Module (Industrial-Grade 120V DC TMR Safety Control)

The Triconex 3623T is a supervised digital output module engineered for mission-critical safety instrumented systems, featuring 16 channels of 120V DC outputs with full Triple Modular Redundant (TMR) architecture. Designed for Trident safety platforms, this module delivers fault-tolerant control in emergency shutdown systems, fire and gas detection, and process safety applications where operational continuity and personnel protection are paramount.

Built to address the challenges of unplanned downtime and safety compliance in hazardous environments, the 3623T serves process engineers, safety system integrators, and plant operators in oil & gas, petrochemical, power generation, and pharmaceutical manufacturing sectors. Its self-diagnostic capabilities and hot-swappable design minimize maintenance windows while maintaining SIL 3 integrity throughout the asset lifecycle.

Key differentiators include 2oo3 voting logic that sustains operations during single-point failures, supervised output circuits that eliminate external feedback wiring, and pre-certified compliance with IEC 61508, IEC 61511, and API RP 556 standards—reducing engineering validation time by up to 60% compared to custom-designed safety solutions.

Core Features & Benefits

→ Triple Modular Redundancy (TMR) Architecture
Three independent processing channels execute parallel output commands with continuous cross-verification. When one channel degrades, the system automatically isolates the fault while maintaining full safety functionality through the remaining two channels—enabling predictive maintenance without forced shutdowns.

→ Supervised Output Technology
Integrated supervision circuits monitor each output for open-circuit, short-circuit, and load faults in real-time. This eliminates the need for separate feedback wiring, reducing installation costs by 35-40% and cutting potential failure points in half compared to unsupervised designs.

→ SIL 3 Certified Safety Integrity
Pre-certified to IEC 61508 SIL 3 with >99% diagnostic coverage and proven failure rates documented in TÜV-validated FMEDA reports. Simplifies safety case documentation and accelerates regulatory approval for HAZOP studies and SIL verification audits.

✓ Hot-Swappable Maintenance
Replace modules during live operation without system shutdown or safety function interruption. The Trident backplane automatically reconfigures TMR voting when modules are inserted or removed, supporting zero-downtime maintenance strategies.

✓ High-Speed Response Performance
Output energization occurs within 10 milliseconds of command execution, meeting the stringent timing requirements for turbomachinery trip systems, fast-acting isolation valves, and high-speed process interlocks.

✓ Hazardous Area Certification
Approved for Class I Division 2 / Zone 2 installations with FM, CSA, ATEX, and IECEx certifications. Operates reliably in explosive atmospheres without requiring additional enclosure protection or purge systems.

Typical Application Scenarios

Emergency Shutdown Systems (ESD)
Controls pneumatic shutdown valves in offshore production platforms and refinery process units. When sensors detect overpressure, toxic gas release, or fire conditions, the 3623T energizes solenoid pilot valves to initiate fail-safe closure sequences. Supervised outputs continuously verify valve position, detecting stuck actuators before they compromise safety integrity.

Fire & Gas Detection Networks
Interfaces with deluge systems, firewater pumps, and HVAC dampers in petrochemical facilities. The 120V DC rating directly drives industry-standard solenoid valves and alarm annunciators without intermediate relays, simplifying loop design and reducing component count by 25-30%.

Turbomachinery Protection Systems
Activates emergency trip mechanisms for steam turbines, centrifugal compressors, and high-speed pumps when vibration, bearing temperature, or shaft speed exceed safe operating limits. Sub-10ms response time prevents catastrophic mechanical failures in rotating equipment valued at $2-5 million per unit.

Process Safety Interlocks
Implements permissive logic for reactor feed controls, distillation column sequencing, and batch process automation. Prevents hazardous material releases by enforcing correct valve states before allowing process transitions—critical for runaway reaction prevention in exothermic chemical processes.

Burner Management Systems (BMS)
Controls fuel gas isolation valves, ignition transformers, and flame safeguard relays in industrial boilers and furnaces. Ensures proper purge cycles and flame supervision to prevent explosive atmospheres in combustion chambers, meeting NFPA 85 and FM Global requirements.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3623T when your application requires 120V DC outputs for solenoid valves, relay coils, or annunciators in SIL 2/SIL 3 safety loops. For 24V DC field devices, consider the Triconex 3625A alternative. If you need more than 16 outputs per module, evaluate the T8471 32-channel variant. Verify that your existing Trident chassis has available slots and that firmware version is 10.5 or later for full diagnostic functionality.

Extended Functions

IoT Integration & Remote Monitoring
The 3623T integrates with Triconex TriStation 1131 software for real-time diagnostics, alarm management, and configuration backup. Export diagnostic data to SCADA systems, asset management platforms (Maximo, SAP PM), or cloud-based condition monitoring services via OPC UA or Modbus TCP gateways for predictive maintenance analytics.

Advanced Diagnostic Capabilities
Built-in self-testing detects degrading output drivers, wiring faults, and load anomalies before they cause safety function failures. Diagnostic logs timestamp each fault event with channel-specific details, supporting root cause analysis and regulatory compliance documentation.

Customization Options
Factory configuration services available for pre-programmed output supervision timeouts, custom diagnostic thresholds, and application-specific firmware variants. Consult with our engineering team for high-vibration environments, extended temperature ranges (-20°C to +70°C), or conformal coating for corrosive atmospheres.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or bulk orders (>10 units) require 4-6 weeks for factory programming and testing. Expedited shipping available for emergency replacements with same-day dispatch from regional distribution centers.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Extended warranty programs (24/36 months) available for critical applications with on-site spares management.

Technical Support: 24/7 global support hotline staffed by certified Triconex engineers. Regional service centers provide on-site commissioning, system health checks, and emergency troubleshooting. Average response time: <2 hours for critical safety system issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, FMEDA safety reports, IEC 61508 certificates, and TriStation configuration templates. Digital documentation library includes AutoCAD drawings, 3D STEP models, and loop testing procedures.

Frequently Asked Questions

How does the 3623T integrate with existing Tricon legacy systems?
The module maintains full backward compatibility with Tricon chassis and can operate alongside older 3603/3604 modules in mixed configurations. However, Trident firmware v10.5 or later is required to access enhanced diagnostic features and supervision parameter adjustments.

What is the maximum wiring distance for reliable 120V DC output operation?
Using 18 AWG shielded twisted-pair cable, you can drive loads up to 300 meters (1000 feet) with voltage drop <5%. For distances exceeding 300m, install local marshalling panels with relay amplifiers or upgrade to 4-20mA analog signals with remote I/O conversion.

Can modules be replaced during live system operation without safety function interruption?
Yes, the Trident backplane supports hot-swap capability. When a module is removed, the TMR architecture automatically reconfigures to 1oo2 voting using the remaining channels. Safety functionality continues uninterrupted, though redundancy is temporarily reduced until the replacement module is installed.

How do I configure output supervision timeout parameters for different valve types?
Use TriStation 1131 configuration software to set individual channel timeouts from 50ms to 10 seconds. Fast-acting solenoid valves typically use 200-500ms settings. Motor-operated valves require 2-5 seconds based on measured stroke time plus 20% safety margin to prevent nuisance trips.

What preventive maintenance schedule is recommended for the 3623T module?
The solid-state design requires no routine maintenance beyond quarterly visual inspections and diagnostic log reviews. Annual proof testing of the complete safety loop (sensor through final element) is mandated by IEC 61511, but the module itself typically achieves >100,000 hours MTBF with no component replacement needed.

Does the module support partial stroke testing for ESD valve diagnostics?
While the 3623T provides supervised outputs, partial stroke testing requires intelligent valve positioners with embedded diagnostics. The module can interface with HART-enabled positioners to initiate partial stroke sequences and monitor response times, but the diagnostic intelligence resides in the field device.

Take the Next Step

Enhance your safety instrumented system with proven TMR technology trusted by over 12,000 installations worldwide. Contact our engineering team for application-specific sizing, SIL verification support, or system migration planning from legacy DCS-based safety systems.

Request a technical consultation: Our certified safety engineers will review your P&ID drawings, perform SIL calculations, and provide detailed bill of materials with budget pricing within 48 hours.
