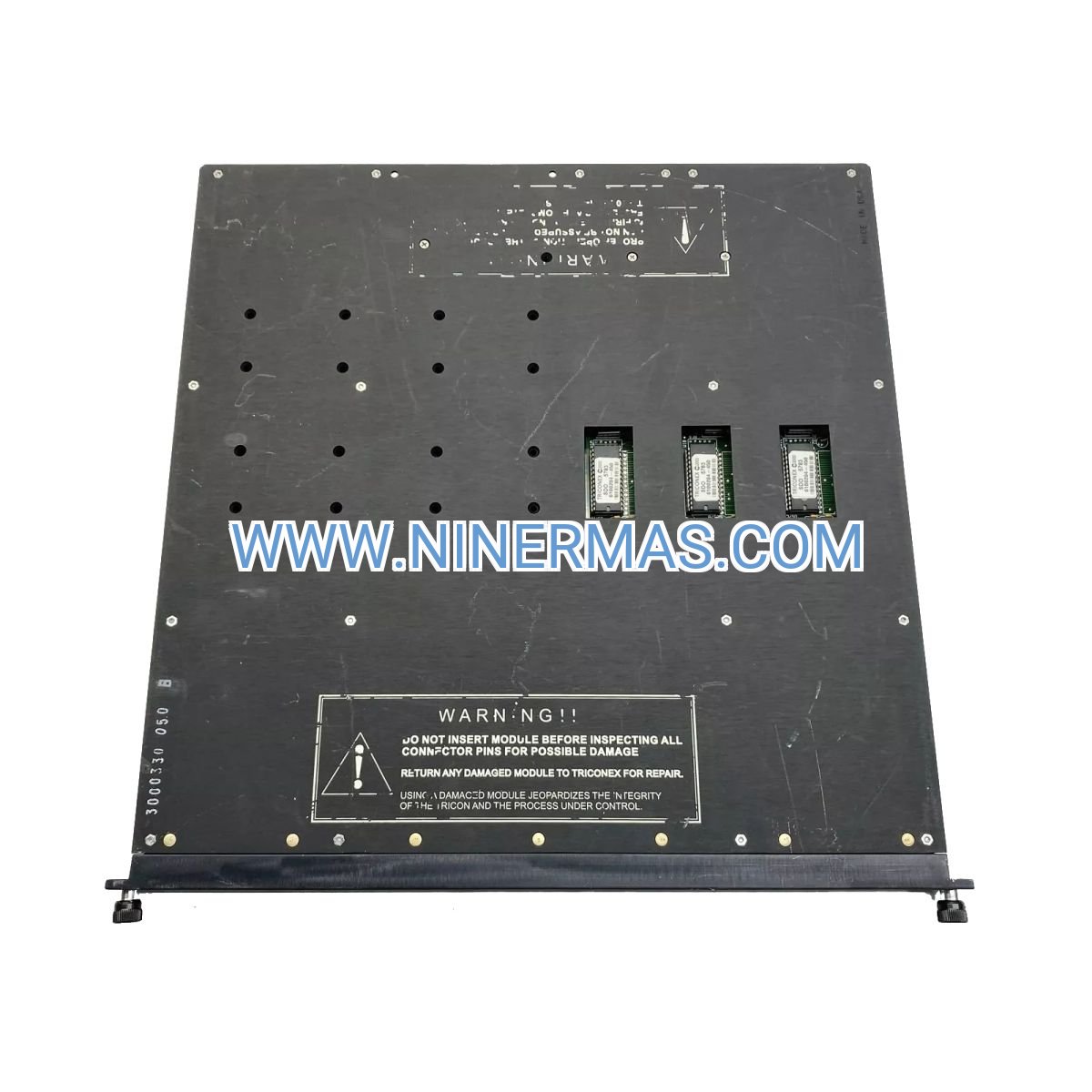

Triconex 3623 Digital Output Module (Industrial-Grade TMR Safety Controller)

The Triconex 3623 represents a proven solution for supervised digital output control in safety-instrumented systems. Built on Triple Modular Redundant architecture, this 16-channel module provides continuous fault detection and voting logic to maintain process integrity in critical shutdown applications. Designed for facilities requiring SIL 3 certification, the 3623 combines diagnostic supervision with hot-swappable redundancy to minimize unplanned downtime.

Industrial operators face mounting pressure to prevent catastrophic failures while maintaining production uptime. The 3623 addresses this challenge through real-time circuit monitoring that detects wiring faults, load failures, and ground conditions before they escalate into safety events. Target users include instrumentation engineers, safety system integrators, and plant maintenance teams managing emergency shutdown systems, fire suppression controls, and burner management sequences.

Key advantages include 99%+ diagnostic coverage through continuous self-testing, field-proven reliability with MTBF exceeding 100,000 hours, and seamless integration with existing Triconex safety platforms. The module's supervised output architecture ensures every actuation command reaches its intended final element, providing verifiable proof of execution for regulatory compliance and audit trails.

Core Features & Benefits

✓ Triple Modular Redundant Architecture
Three independent processing channels vote on every output decision, automatically masking single-point failures without process interruption. This delivers continuous operation during component faults, eliminating costly emergency shutdowns and extending maintenance windows.

✓ Supervised Output Diagnostics
Real-time monitoring of short-circuit, open-circuit, and ground fault conditions on all 16 channels. Immediate fault annunciation reduces troubleshooting time by 60% and prevents nuisance trips caused by intermittent wiring issues.

✓ SIL 3 Safety Integrity Certification
IEC 61508 certified design meets the highest safety integrity requirements for process industries. Proven failure rates and systematic capability documentation simplify safety lifecycle management and regulatory approvals.

✓ Hot-Swappable Module Design
Online replacement capability allows maintenance activities without system shutdown. Reduces planned outage requirements and supports 24/7 operational availability in continuous process facilities.

✓ Wide Operating Temperature Range
0°C to 60°C (32°F to 140°F) qualification supports installation in non-climate-controlled equipment rooms and harsh industrial environments. Eliminates need for dedicated HVAC systems in remote locations.

→ Low Power Consumption Profile
Typical 8W per module reduces heat generation in densely populated cabinets and lowers total cost of ownership through decreased cooling requirements and energy expenses.

Typical Application Scenarios

Emergency Shutdown Systems (Oil & Gas Production)
Controls pneumatic shutdown valves, motor contactors, and isolation devices in offshore platforms and onshore processing facilities. Addresses the critical need for fail-safe actuation during overpressure events, gas detection alarms, and manual emergency stops. Delivers verifiable valve closure confirmation and diagnostic feedback to central control rooms, reducing response time from detection to safe state by 40%.

Fire & Gas Suppression (Chemical Manufacturing)
Activates deluge systems, foam generators, emergency ventilation dampers, and audible/visual alarms in hazardous area classifications. Solves the challenge of coordinating multiple suppression zones while maintaining individual circuit supervision. Provides documented proof of actuation for post-incident analysis and insurance compliance.

Burner Management Systems (Power Generation)
Manages fuel valve sequencing, ignition transformers, flame rod circuits, and purge dampers in boiler applications. Eliminates the risk of unsafe light-off conditions through interlocked permissive logic and supervised flame detection. Achieves 99.9% availability through redundant output paths and continuous diagnostic monitoring.

Process Safety Interlocks (Refining & Petrochemical)
Operates relief valve pilots, blowdown systems, reactor isolation valves, and emergency cooling pumps. Addresses regulatory requirements for independent protection layers (IPL) in LOPA studies. Reduces safety system proof test intervals from 12 months to 24+ months through superior diagnostic coverage.

Pipeline Emergency Isolation (Midstream Transportation)
Controls remotely operated block valves, pump shutdown circuits, and leak detection response systems across distributed pipeline networks. Solves communication reliability challenges through local voting logic that maintains safe operation during network outages. Minimizes environmental release volumes through rapid isolation response.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3623 module when your application requires supervised output verification for safety-critical final elements. For non-supervised 24VDC outputs, consider the 3625A module. For relay contact outputs with higher current capacity, evaluate the 3604E module. Confirm termination panel compatibility and field wiring voltage requirements before ordering. Consult factory application engineers for custom configurations involving intrinsically safe barriers or HART communication integration.

Extended Functions

IoT Integration & Remote Monitoring: The 3623 module integrates with Triconex communication modules (CM3201, 4354, 4609) to enable real-time data exchange with SCADA systems, DCS platforms, and cloud-based analytics services. Support for Modbus TCP/IP, OPC UA, and proprietary TriStation protocols allows seamless connectivity to enterprise asset management systems for predictive maintenance and performance trending.

Advanced Diagnostic Capabilities: Beyond standard circuit supervision, the module provides detailed fault classification including load current measurement, contact wear indication, and wiring resistance trending. These diagnostics feed into condition-based maintenance programs that optimize spare parts inventory and schedule repairs during planned outages.

Customization Options: Field-configurable output types allow mixing of relay and solid-state outputs within a single module to match diverse load requirements. Custom termination panels can accommodate intrinsically safe barriers, surge protection devices, and field-mounted indicators. Contact our engineering team for application-specific configurations including extended temperature ratings and conformal coating for corrosive environments.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from our regional distribution centers. Custom-configured modules with specialized termination panels require 2-3 weeks for factory assembly and testing. Expedited delivery options available for emergency replacement scenarios.

Warranty Coverage: Every Triconex 3623 module includes a comprehensive 12-month warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for critical applications requiring 3-year or 5-year coverage.

Technical Support: Our application engineering team provides pre-sale consultation for system architecture design, I/O point allocation, and safety integrity calculations. Post-sale support includes configuration assistance, troubleshooting guidance, and on-site commissioning services. 24/7 emergency support hotline available for production-critical issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, and SIL certification documentation. Digital resources include CAD drawings, 3D STEP models, and sample ladder logic for common applications. Access to online knowledge base with application notes, technical bulletins, and firmware updates.

Frequently Asked Questions

How does the supervised output feature improve safety system reliability?
Supervised outputs continuously monitor the complete circuit path from module terminals to field device, detecting open wires, short circuits, and ground faults in real-time. This eliminates dangerous undetected failures where an output command is issued but the final element fails to respond. The diagnostic feedback allows operators to identify and repair wiring faults during normal operation rather than discovering them during emergency demand, improving overall system availability by 25-30%.

What termination panel options are compatible with the 3623 module?
The 3623 interfaces with Triconex 9863-series termination panels for standard applications and 8984 panels for high-density installations. These panels provide removable terminal blocks, integrated fusing, and optional surge protection. For hazardous area installations, the panels accommodate intrinsically safe barriers and ATEX/IECEx certified components. Custom termination solutions available for retrofit projects with existing field wiring infrastructure.

Can the 3623 module integrate with non-Triconex control systems?
Yes, through Triconex communication modules the 3623 exchanges data with third-party DCS, PLC, and SCADA platforms via industry-standard protocols including Modbus TCP/IP, Modbus RTU, OPC DA/UA, and Ethernet/IP. This allows the Triconex safety system to operate as an independent protection layer while sharing status information and process variables with the basic process control system for coordinated shutdown sequences.

What is the typical proof test interval for the 3623 in SIL 3 applications?
Due to the module's high diagnostic coverage (>99%), typical proof test intervals range from 24 to 36 months depending on the overall safety instrumented function (SIF) architecture and target risk reduction. The continuous self-testing and online diagnostics detect most dangerous failures automatically, reducing the need for manual functional testing. Consult your safety lifecycle documentation and regulatory requirements to determine appropriate intervals for your specific application.

How much cabinet space and power budget should I allocate for the 3623?
The 3623 occupies one standard Triconex module slot in the chassis, with typical spacing of 25mm between modules for adequate cooling airflow. Power consumption is 8W per module, so a fully populated 12-slot chassis with all 3623 modules would require approximately 96W for the output modules alone (plus main processor and communication module power). Ensure cabinet ventilation provides adequate heat dissipation for ambient temperatures up to 60°C.

What energy efficiency improvements does the 3623 offer compared to legacy relay-based systems?
The 3623's solid-state output option consumes 70% less power than equivalent electromechanical relay modules, reducing both energy costs and heat generation in control cabinets. The supervised diagnostic capability eliminates the need for separate monitoring relays and auxiliary contacts, further reducing component count and power consumption. Over a 10-year lifecycle, the energy savings and reduced cooling requirements typically offset 15-20% of the initial module investment.

Ready to Enhance Your Safety System?

Contact our industrial automation specialists today for application-specific guidance, system architecture consultation, and competitive quotations. Our team will help you configure the optimal Triconex safety solution for your facility's unique requirements. Request technical documentation, schedule a virtual demonstration, or discuss your project timeline with our engineering experts.
