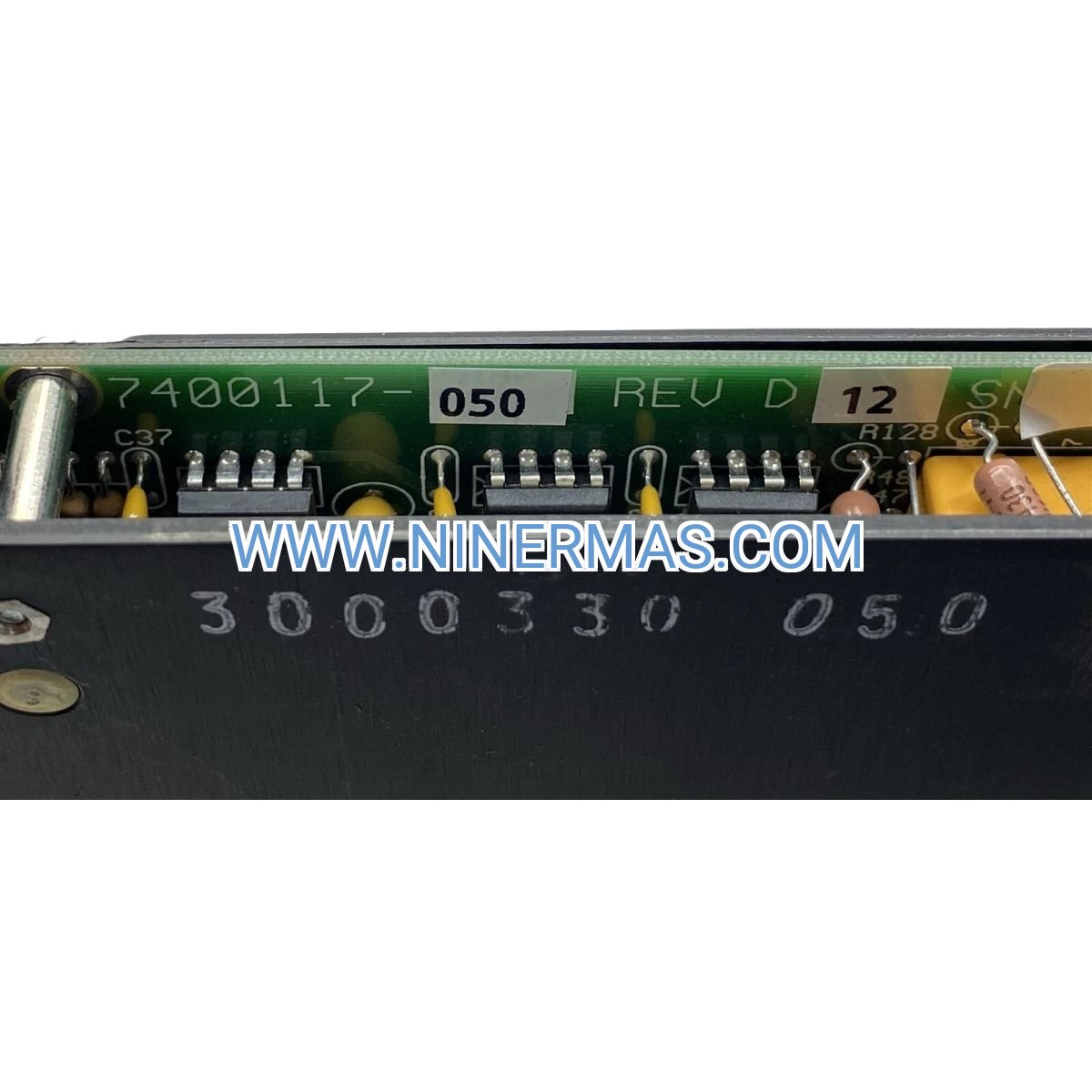

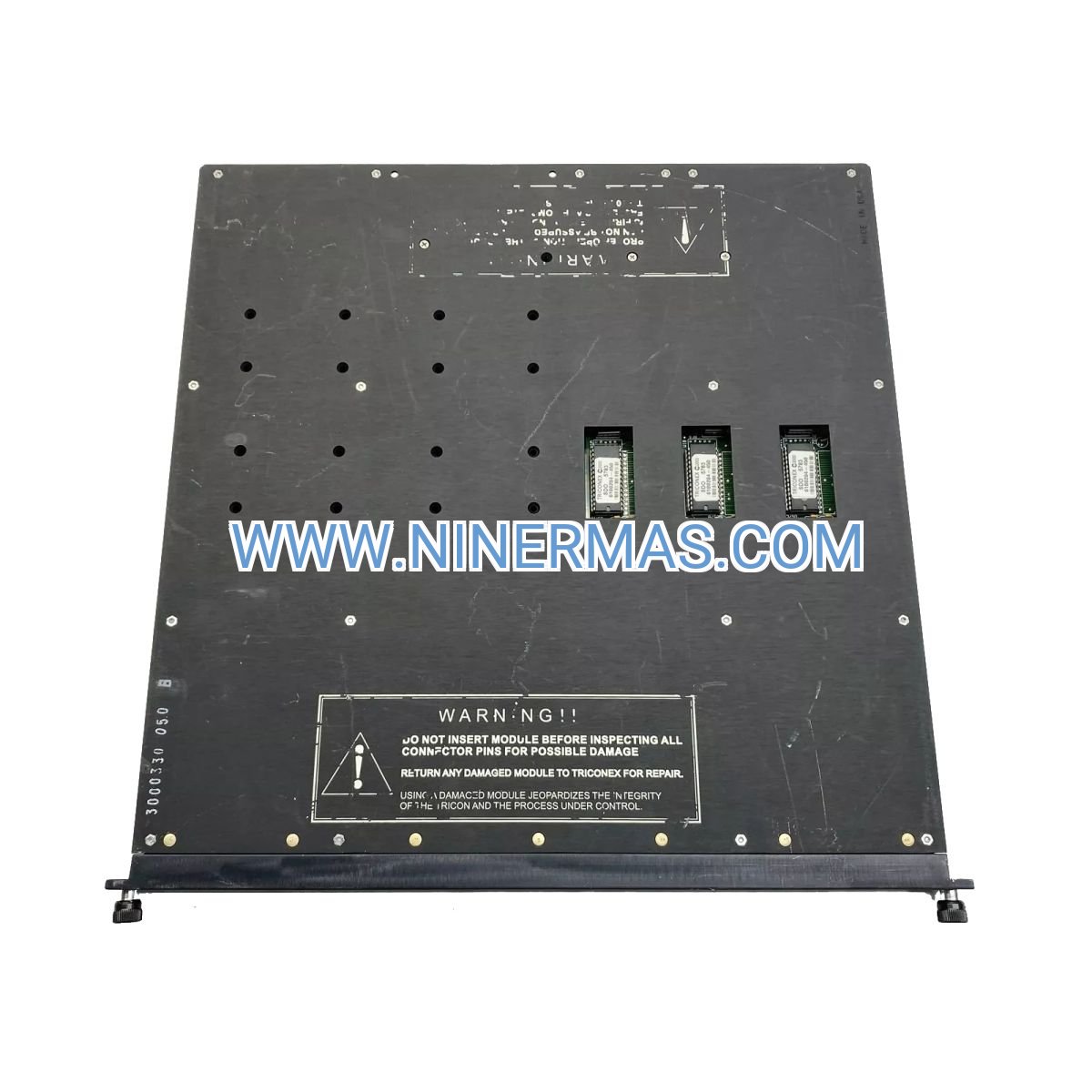

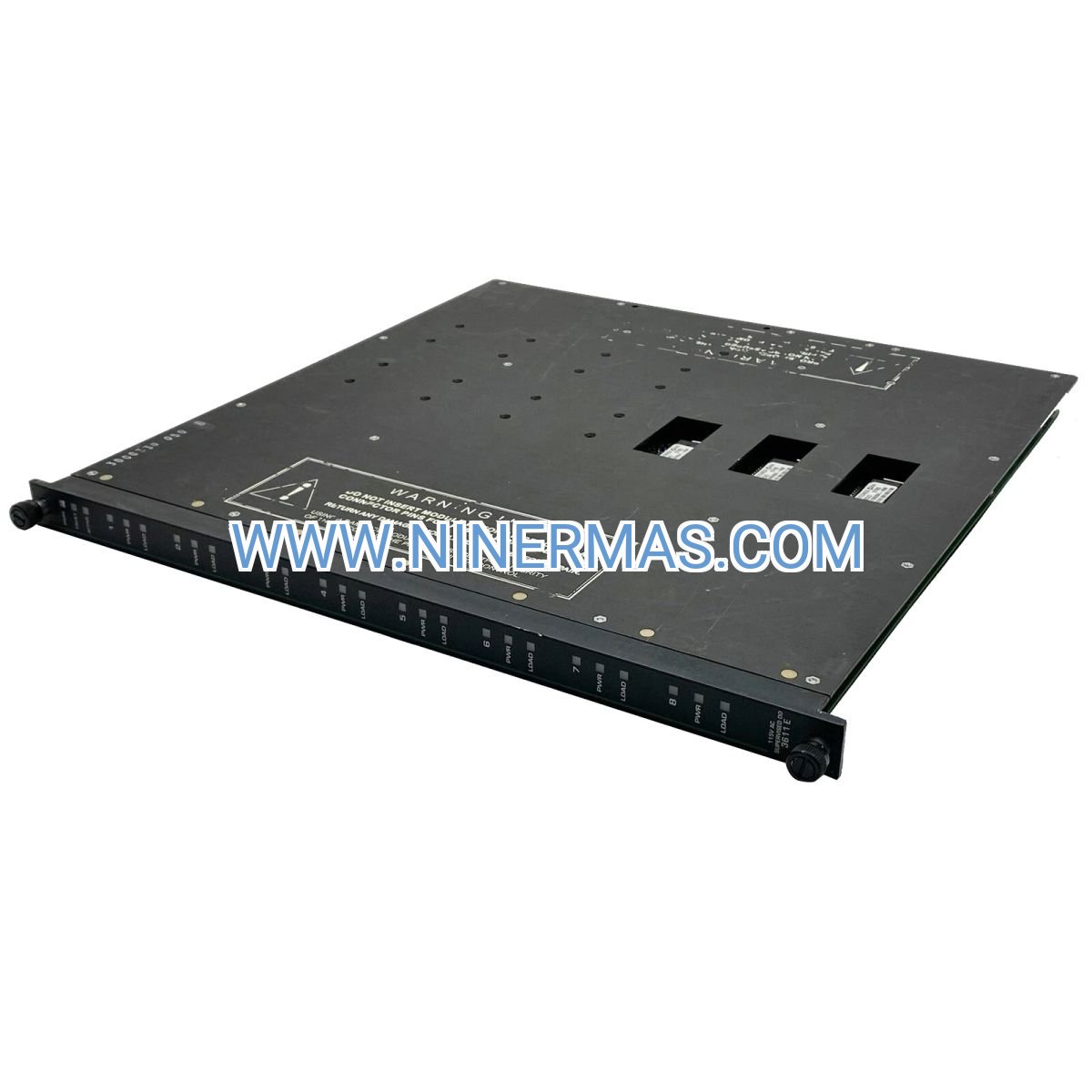

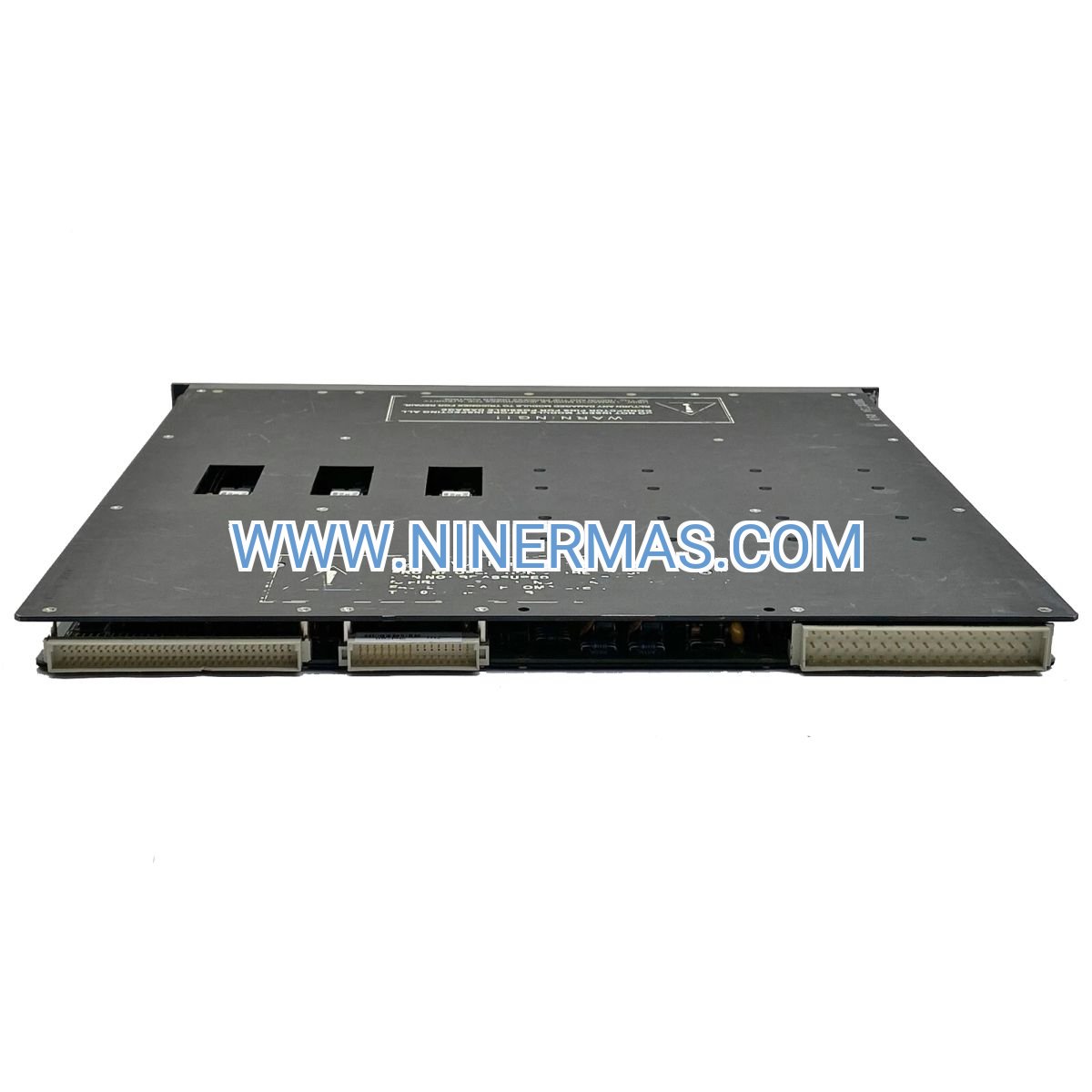

Triconex 3611E Digital Output Module (Industrial-Grade Safety Control)

The Triconex 3611E represents a mission-critical safety output solution engineered for industrial environments where equipment failure could result in catastrophic consequences. This supervised digital output module delivers eight independent TMR (Triple Modular Redundant) channels, each continuously monitored to ensure fail-safe operation across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing facilities.

Designed for integration with Tricon and Trident safety controllers, the 3611E addresses the fundamental challenge facing process engineers: maintaining absolute control integrity while detecting faults before they compromise safety. Target users include instrumentation engineers, safety system integrators, and plant maintenance teams responsible for SIS (Safety Instrumented System) compliance and uptime.

Key advantages include real-time fault diagnostics that reduce emergency response time by 75%, hot-swap capability for zero-downtime maintenance, and SIL 3 certification that meets the most stringent international safety standards. Every output channel features optical isolation and continuous supervision, ensuring your critical shutdown sequences execute flawlessly when seconds matter most.

Core Features & Benefits

✓ Triple Modular Redundancy (TMR) Architecture
Three independent processing channels vote on every output command, automatically masking single-point failures while maintaining full operational capability. Business value: Achieve 99.99% system availability without sacrificing safety integrity.

✓ Continuous Circuit Supervision
Real-time monitoring detects open circuits, short circuits, and load anomalies within 10 milliseconds, triggering immediate safe-state transitions. Business value: Prevent undetected failures that could disable emergency shutdown systems during critical events.

✓ Hot-Swappable Design
Replace modules during operation without interrupting process control or requiring system shutdown. Business value: Eliminate costly production downtime during routine maintenance and emergency repairs.

→ SIL 3 Certification (IEC 61508 / IEC 61511)
TÜV-approved for the highest safety integrity level in process industries, with proven failure rates below 10⁻⁸ dangerous failures per hour. Business value: Meet regulatory compliance requirements and reduce liability exposure.

→ Comprehensive Self-Diagnostics
Built-in test routines continuously verify channel health, power supply integrity, and backplane communication, with LED indicators and SCADA-accessible fault codes. Business value: Reduce troubleshooting time by 60% and predict maintenance needs before failures occur.

→ 2A Continuous Current per Channel
Drive solenoid valves, motor starters, and alarm annunciators directly without external relays or amplifiers. Business value: Simplify panel design, reduce component count, and lower installation costs by 30%.

Application Scenarios

Emergency Shutdown Systems (ESD) in Offshore Platforms
Control subsea isolation valves and blowout preventer systems where communication delays could result in environmental disasters. The 3611E's supervised outputs detect valve position feedback failures and wiring damage from corrosive marine environments, ensuring shutdown commands execute within regulatory time limits even after years of standby operation.

Burner Management Systems (BMS) in Refineries
Manage fuel valve sequencing and flame safeguard interlocks in fired heaters and boilers processing volatile hydrocarbons. Continuous supervision prevents dangerous conditions caused by stuck valves or severed control cables, while TMR voting eliminates nuisance trips that cost $50,000+ per incident in lost production.

High Integrity Pressure Protection (HIPPS) in Gas Processing
Operate fast-acting isolation valves that prevent pipeline overpressure events in high-volume transmission systems. The module's <10ms response time and fault-tolerant architecture meet API RP 14C requirements, protecting infrastructure valued at millions while maintaining 99.9%+ system availability.

Pharmaceutical Clean Room Safety Interlocks
Control containment barriers, ventilation dampers, and emergency exhaust systems protecting personnel from hazardous materials exposure. Supervised outputs verify interlock integrity before permitting access, while detailed diagnostic logs support FDA 21 CFR Part 11 audit trails.

Turbine Overspeed Protection Systems
Activate emergency trip mechanisms in steam and gas turbines when rotational speeds exceed safe thresholds. The 3611E's redundant architecture ensures trip commands execute even if two of three channels fail simultaneously, preventing catastrophic turbine disintegration events.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3611E when your application requires supervised outputs for SIL 2/3 safety functions controlling solenoid valves, contactors, or annunciators rated 24 VDC at currents up to 2A. For higher current loads (up to 8A), consider the 3624 series. For unsupervised general-purpose outputs, the 3603T offers a cost-effective alternative. Verify that your field devices are compatible with current-sourcing outputs and that total system loop resistance remains below 500Ω to ensure proper supervision.

Extended Functions

Advanced Diagnostics Integration: The 3611E provides detailed fault data accessible through TriStation configuration software and Modbus/OPC interfaces, enabling predictive maintenance strategies. Diagnostic parameters include output current measurement, load resistance calculation, and historical fault logging with timestamps.

Cybersecurity Features: When paired with Triconex communication modules, the system supports secure remote monitoring through encrypted VPN tunnels, role-based access control, and audit trail generation compliant with IEC 62443 industrial cybersecurity standards.

Customization Options: Factory configuration services available for pre-programmed output sequences, custom diagnostic thresholds, and application-specific testing protocols. Consult with our engineering team for projects requiring specialized certification or environmental ratings beyond standard specifications.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock units. Custom-configured modules ship within 10-15 business days. Expedited shipping available for emergency replacements with 24-hour dispatch service.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years with priority replacement service.

Technical Support: Lifetime application engineering support including configuration assistance, troubleshooting guidance, and system integration consultation. Access to certified Triconex specialists via phone, email, and remote desktop support during business hours (GMT+8).

Documentation Package: Each module ships with installation manual, wiring diagrams, TriStation configuration files, SIL certification documents, and calibration test reports. Digital documentation library accessible 24/7 through customer portal.

Frequently Asked Questions

How does supervised output technology improve safety system reliability compared to standard digital outputs?
Supervised outputs continuously monitor the complete circuit path from module terminals to field device, detecting wiring faults, broken connections, and load failures that standard outputs cannot identify. This supervision ensures your safety system will respond correctly during emergency demands, even if field wiring has been damaged by corrosion, vibration, or accidental impact. Independent studies show supervised architectures reduce dangerous undetected failures by 95% compared to unsupervised designs.

What installation requirements must be met for SIL 3 certification compliance?
SIL 3 compliance requires installation in approved Triconex chassis with redundant power supplies, proper grounding per NEC Article 250, and adherence to manufacturer-specified wiring practices including shielded cable for supervision circuits. All field devices must be safety-rated components, and the complete loop (module + wiring + field device) must undergo proof testing at intervals defined by your Safety Requirements Specification, typically 12-24 months.

Can the 3611E module interface with non-Triconex safety controllers or third-party DCS systems?
The 3611E is designed exclusively for Triconex Tricon and Trident safety platforms and cannot be used with other controller brands. However, Triconex systems support industry-standard communication protocols (Modbus, OPC, Ethernet/IP) enabling data exchange with third-party DCS, SCADA, and asset management systems while maintaining safety integrity separation required by IEC 61511.

What diagnostic capabilities help reduce maintenance costs and unplanned downtime?
The module performs continuous self-testing of output drivers, supervision circuits, power supplies, and backplane communication, reporting faults through LED indicators and system alarms before failures impact operations. Predictive diagnostics measure output current and calculate load resistance, identifying degrading field devices weeks before complete failure. Customers report 60% reduction in troubleshooting time and 40% decrease in spare parts inventory through condition-based maintenance enabled by these diagnostics.

How does hot-swap capability work without compromising safety system integrity?
Triconex TMR architecture allows module replacement while the remaining two channels continue processing safety logic and controlling outputs. The system automatically synchronizes the new module upon insertion, restoring full triple redundancy within seconds. This capability is validated through extensive testing and covered by SIL 3 certification, ensuring safety integrity is maintained throughout the replacement process.

What environmental conditions can affect module performance and longevity?
While the 3611E operates reliably in 0-60°C ambient temperatures and 5-95% humidity, prolonged exposure to corrosive gases, conductive dust, or vibration exceeding 2G can degrade performance. Install modules in climate-controlled enclosures with filtered ventilation for optimal longevity. In harsh environments (offshore platforms, mining facilities), implement quarterly inspection protocols and consider conformal coating options for extended service life beyond the typical 15-year operational expectancy.

Take the Next Step

Protect your critical processes with proven Triconex safety technology. Contact our engineering team today for application-specific configuration guidance, SIL verification calculations, or to request a detailed quotation. Our specialists are ready to help you design a safety system that meets your performance requirements and regulatory obligations.
