Triconex 3604E TMR Digital Output Module (Industrial-Grade 16-Channel Safety Controller)

The Triconex 3604E represents a proven solution for safety-critical digital output control in high-stakes industrial environments. Built on Triple Modular Redundancy (TMR) technology, this 16-channel module achieves SIL 3 certification under IEC 61508 standards, making it the preferred choice for emergency shutdown systems, fire and gas safety networks, and mission-critical process automation where operational continuity cannot be compromised.

Designed for oil refineries, chemical plants, power generation stations, and pharmaceutical facilities, the 3604E addresses the fundamental challenge of maintaining safe operations during component failures. Its fault-tolerant architecture ensures that your safety instrumented functions remain operational even when individual circuit paths experience degradation, protecting personnel, assets, and environmental compliance.

With field-proven reliability exceeding 100-year MTBF calculations and hot-swap capability for zero-downtime maintenance, the 3604E delivers both immediate safety assurance and long-term operational efficiency. Whether you're upgrading legacy systems or designing new safety networks, this module provides the technical foundation for regulatory compliance and risk mitigation.

Core Features & Benefits

✓ Triple Modular Redundancy (TMR) Architecture
Three independent processing channels continuously cross-verify every output decision. When one channel detects a fault, the remaining two maintain control while diagnostics alert your team—eliminating single-point failures that could compromise safety.

✓ SIL 3 Safety Integrity Level Certification
Meets IEC 61508 requirements for the highest level of safety-critical applications. Achieve probability of failure on demand (PFD) below 10⁻³, satisfying regulatory mandates for emergency shutdown valves, burner management, and hazardous area isolation.

✓ Hot-Swappable Module Design
Replace failed modules during live operation without process interruption. Redundant channels maintain output control while you perform maintenance, reducing planned downtime to zero and unplanned outages to minutes instead of hours.

✓ 16 High-Current Digital Outputs
Each channel delivers 2A continuous current at 24VDC, sufficient to drive solenoid valves, motor contactors, and alarm annunciators directly. Sourcing output configuration simplifies wiring and reduces external relay requirements.

✓ Comprehensive Diagnostic Coverage (>99%)

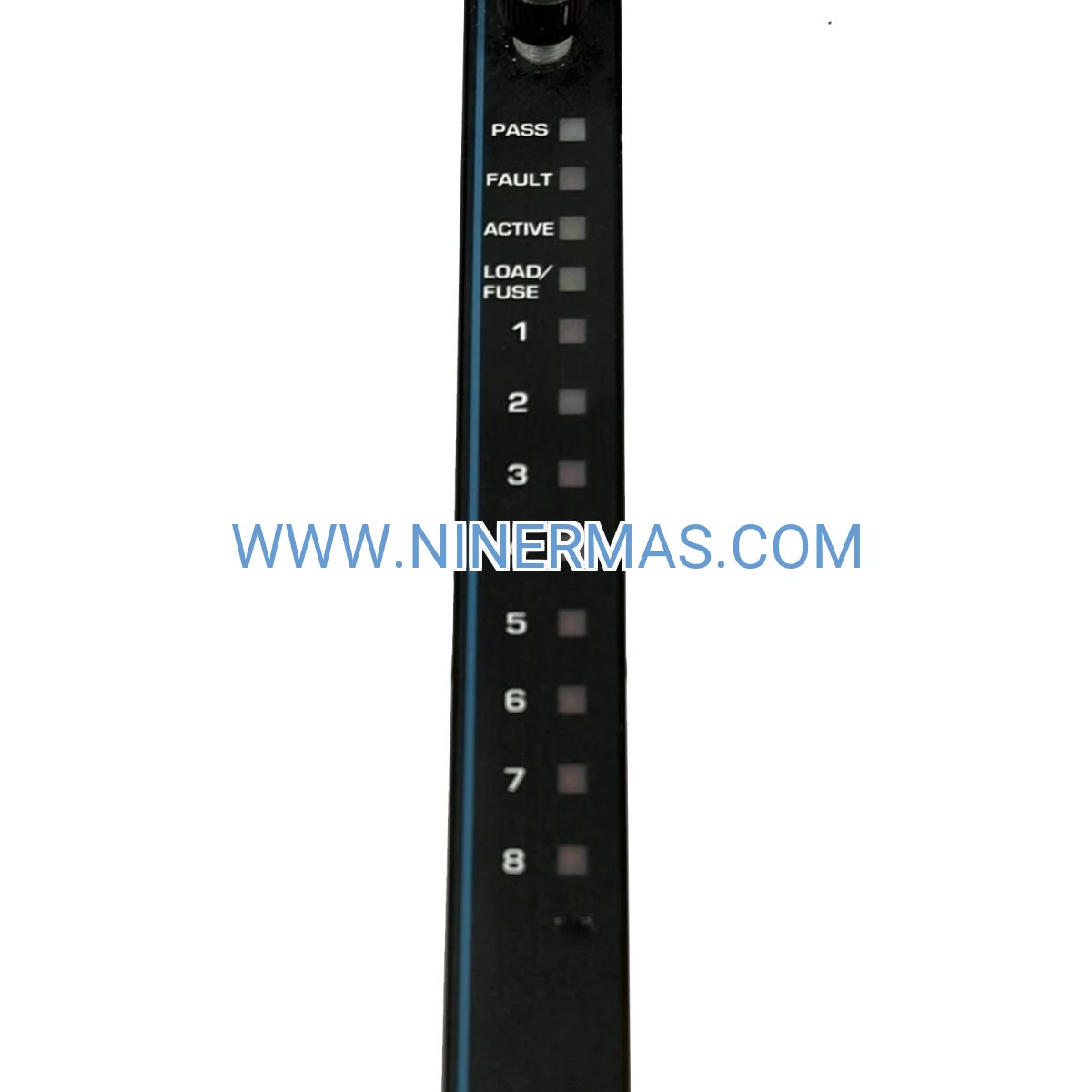

Continuous self-testing monitors output circuit integrity, load current, short-circuit conditions, and open wiring. Front-panel LEDs provide instant status visibility, while TriStation software delivers detailed fault analysis for predictive maintenance.

✓ Extended Temperature Range (-40°C to +70°C)
Operate reliably in extreme environments from Arctic installations to desert facilities. Conformal coating protects against humidity, dust, and corrosive atmospheres common in offshore platforms and chemical processing areas.

Application Scenarios

→ Emergency Shutdown Systems (ESD)
Control final shutdown elements in oil and gas facilities. When process conditions exceed safe limits, the 3604E activates isolation valves, depressurization systems, and flare headers to bring the plant to a safe state. TMR voting ensures shutdown commands execute even during controller failures.

→ Burner Management Systems (BMS)
Manage fuel valve sequencing, ignition control, and flame safeguarding in boilers and furnaces. The module's deterministic response time and fail-safe logic prevent explosive atmospheres while maintaining thermal efficiency during normal operation.

→ Fire & Gas Detection Networks
Activate deluge systems, ventilation dampers, and evacuation alarms when hazardous conditions are detected. The 3604E's high diagnostic coverage ensures that safety devices respond correctly during the critical moments when lives depend on system reliability.

→ Turbine Overspeed Protection
Trigger emergency trip valves when rotational speed exceeds safe thresholds. Sub-millisecond response times combined with TMR fault tolerance protect multi-million dollar assets from catastrophic mechanical failure.

→ Compressor Anti-Surge Control
Operate recycle valves and blow-off systems to prevent surge conditions that damage compressor internals. The module's continuous diagnostics detect valve positioning errors before they escalate into equipment failures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3604E when your application requires SIL 3 safety integrity, hot-swap maintenance capability, and direct drive of 24VDC loads up to 2A. For higher channel counts, consider the 3625A (32 channels). For relay outputs or AC loads, specify the 3603E variant. Verify controller firmware compatibility (requires Tricon v10.0+) before ordering.

Extended Functions

Advanced Diagnostic Integration: Connect to TriStation 1131 software for real-time output monitoring, historical trend analysis, and predictive maintenance alerts. Export diagnostic logs to plant-wide asset management systems via OPC UA or Modbus TCP gateways.

Flexible Safety Logic: Configure outputs for normally energized (fail-safe de-energize) or normally de-energized (fail-safe energize) operation to match your process safety philosophy. Programmable pulse testing verifies final element integrity without process disruption.

Cybersecurity Features: Firmware authentication prevents unauthorized code modifications. Role-based access control in TriStation limits configuration changes to qualified personnel. Audit trails document all parameter adjustments for compliance reporting.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock units. Custom configurations or bulk orders ship within 10-15 business days. Expedited shipping available for emergency replacements.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Warranty includes free firmware updates and technical support access. Extended warranty plans available for up to 5 years.

Technical Support: Application engineering assistance for system design, configuration guidance, and troubleshooting. Phone and email support available during business hours (GMT+8). Emergency support contracts provide 24/7 access to senior engineers.

Documentation Package: Each module ships with installation manual, wiring diagrams, safety certification documents, and TriStation configuration templates. Online access to firmware release notes, application notes, and video tutorials.

Frequently Asked Questions

Q: How does TMR voting improve safety system reliability compared to simplex designs?
A: TMR architecture uses three independent circuits that vote on every output. If one circuit fails, the other two maintain correct operation while alerting maintenance. This eliminates dangerous failures that could prevent safety actions, achieving SIL 3 certification that simplex systems cannot reach.

Q: Can I replace a 3604E module without shutting down the safety system?
A: Yes, hot-swap capability allows module replacement during operation. The redundant TMR channels continue controlling outputs while you remove and install the new module. Total swap time is typically under 60 seconds with zero process interruption.

Q: What load types can the 3604E outputs drive directly?
A: The 2A per channel rating supports most 24VDC solenoid valves, pilot relays, indicator lamps, and alarm horns. For loads exceeding 2A or requiring AC power, use external contactors or relay interfaces. Inductive loads should include flyback diodes for voltage spike suppression.

Q: How do I verify compatibility with my existing Triconex controller?
A: The 3604E requires Tricon or Trident controllers running firmware version 10.0 or higher. Check your controller's firmware in TriStation under System → Controller Information. Firmware upgrades are available from Schneider Electric if needed.

Q: What diagnostic information does the module provide for troubleshooting?
A: Front-panel LEDs indicate module health, channel status, and fault conditions. TriStation software displays detailed diagnostics including output current, short-circuit detection, open-wire alarms, and voting discrepancies. Diagnostic coverage exceeds 99% of potential failure modes.

Q: Does the 3604E support remote monitoring and predictive maintenance?
A: Yes, integrate with TriStation for real-time monitoring and historical data logging. Export diagnostic data to CMMS platforms via OPC UA or Modbus TCP. Set up email or SMS alerts for fault conditions to enable predictive maintenance strategies.

Take the Next Step

Protect your critical processes with proven TMR safety technology. Contact our application engineers to discuss your specific requirements, receive configuration assistance, or request a detailed quotation. We provide technical support throughout system design, installation, and lifecycle management.

Ready to order? Add to cart for immediate purchase, or reach out to our team for volume pricing and custom integration services.
