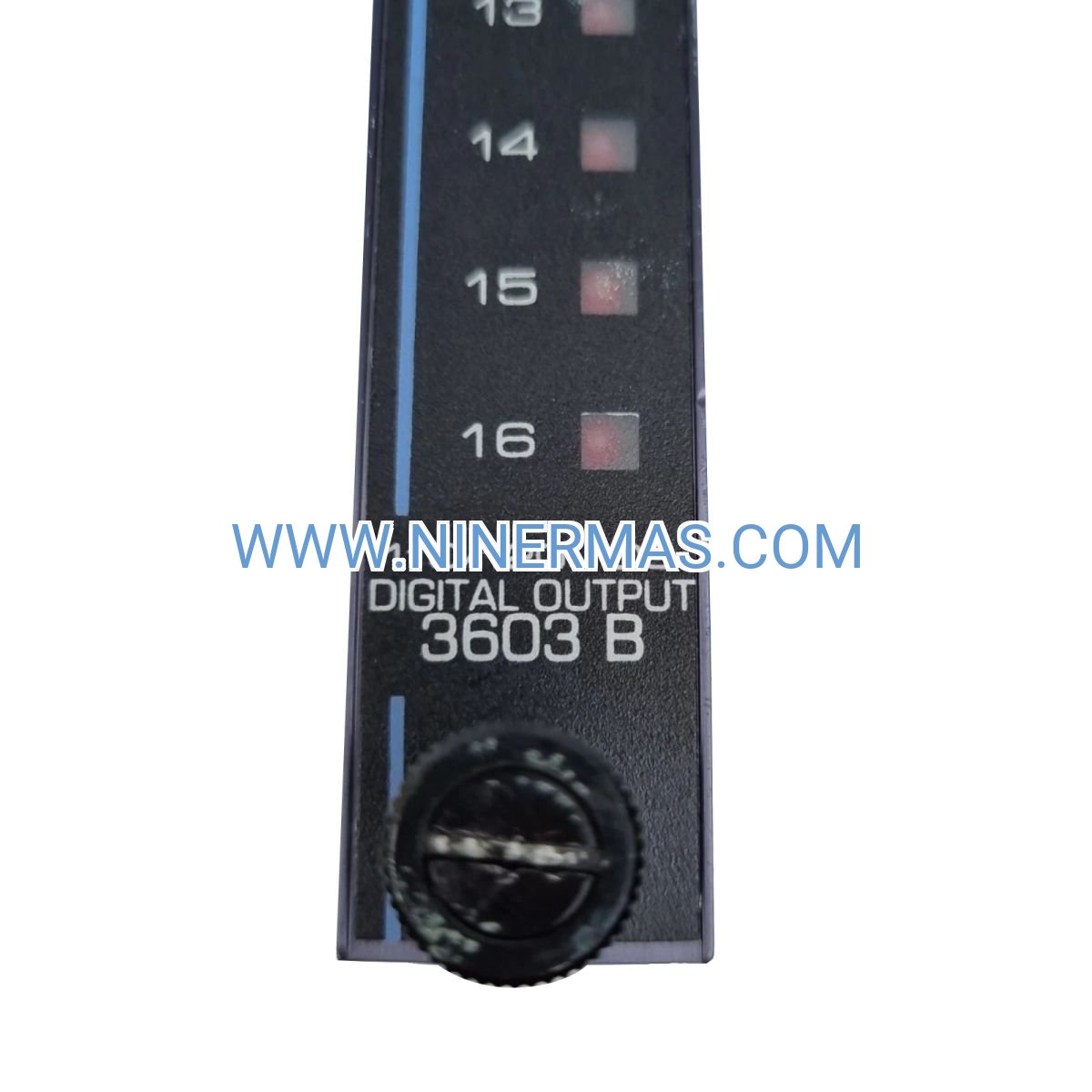

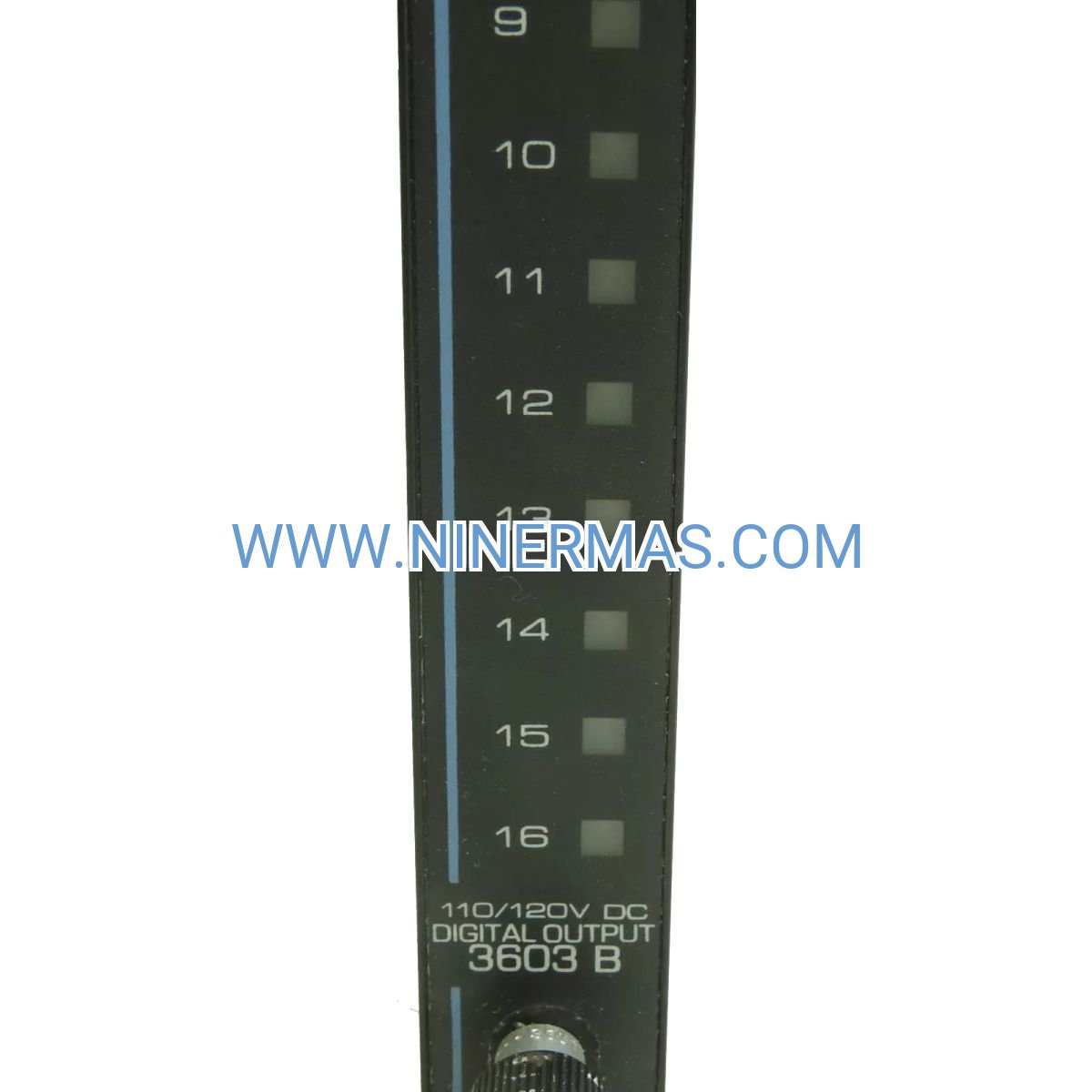

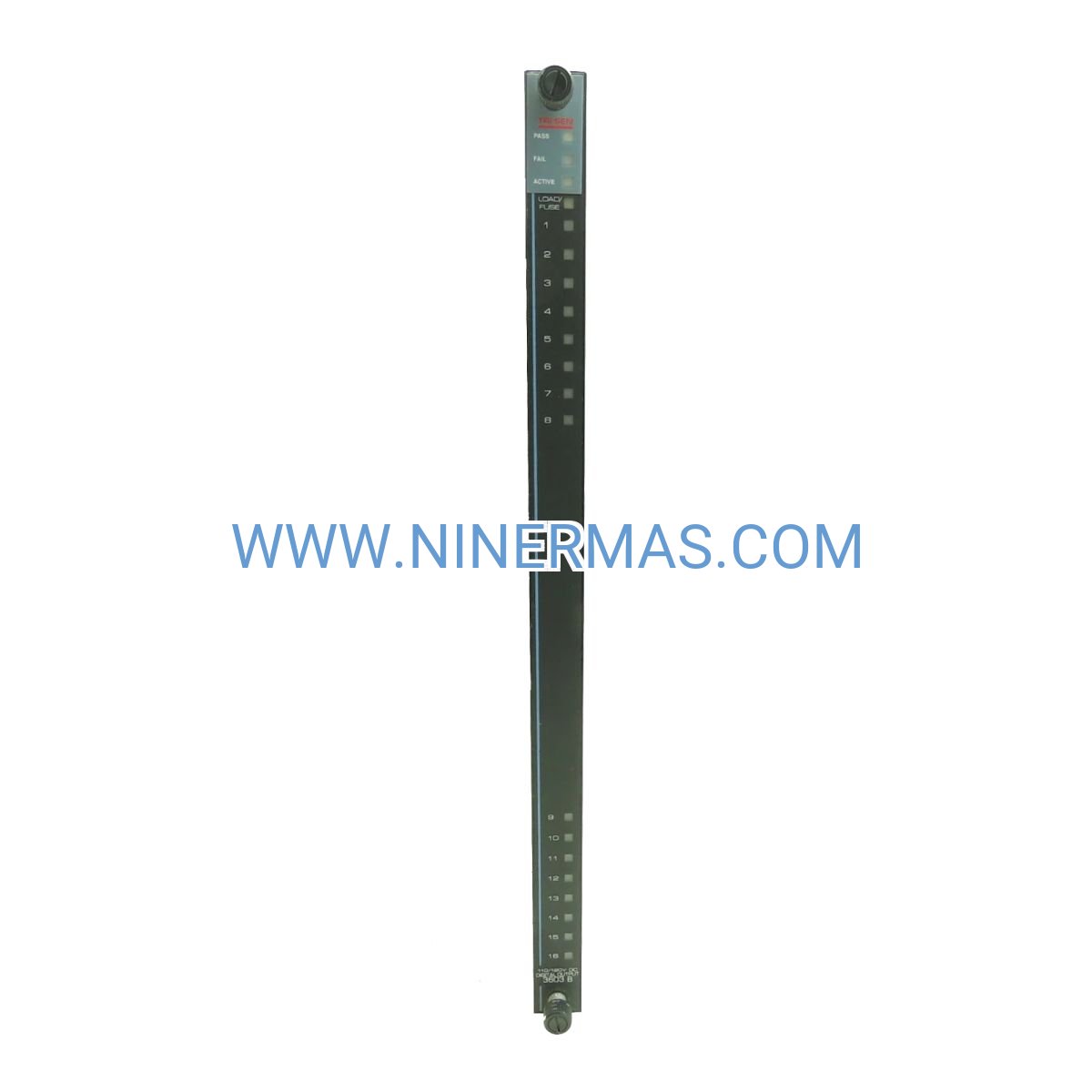

Triconex 3603B 48VDC Digital Output Module (Industrial-Grade TMR Safety Controller)

The Triconex 3603B represents a proven solution for safety-critical digital output control in high-stakes industrial environments. Built on Triple Modular Redundancy (TMR) technology, this 16-channel output module delivers SIL 3-rated performance for applications where system failure is not an option. Whether you're managing emergency shutdown sequences, controlling safety interlocks, or coordinating fire suppression systems, the 3603B provides the fault-tolerant architecture that keeps your operations running safely.

Designed for process industries including oil & gas, petrochemical, power generation, and pharmaceutical manufacturing, this module addresses the challenge of maintaining continuous safety system availability while meeting stringent regulatory compliance requirements. Its hot-swappable design minimizes planned downtime, while comprehensive diagnostics enable predictive maintenance strategies that reduce total cost of ownership.

With over two decades of field-proven reliability in the world's most demanding installations, the 3603B combines robust hardware design with intelligent fault detection, delivering the confidence you need for mission-critical safety applications. Each output channel operates independently with full isolation, ensuring that a single-point failure cannot compromise your entire safety system.

Core Features & Benefits

✓ Triple Modular Redundancy (TMR) Architecture
Three parallel processing channels with 2-out-of-3 voting logic ensure continuous operation even when individual components fail. This translates to near-zero unplanned downtime and eliminates the need for emergency maintenance during critical production periods.

✓ SIL 3 Safety Integrity Level Certification
Meets IEC 61508 requirements for the highest level of safety instrumented systems, providing documented proof of compliance for regulatory audits and insurance requirements while reducing liability exposure.

✓ 16 Independent Digital Output Channels
Non-commoned outputs with individual channel isolation prevent cross-contamination of faults. Each channel delivers up to 1A at 48VDC, suitable for driving solenoid valves, contactors, alarm annunciators, and other field devices.

✓ Hot-Swappable Module Design
Replace failed modules without system shutdown or process interruption. Automatic configuration download from the controller eliminates manual programming, reducing mean time to repair (MTTR) from hours to minutes.

✓ Advanced Diagnostic Capabilities
Built-in self-testing with >99% fault coverage detects wiring faults, output short circuits, open loads, and internal component degradation before they impact safety performance. Real-time status via LED indicators and TriStation software integration.

✓ Wide Operating Voltage Range
36-60 VDC operating window accommodates voltage fluctuations in industrial power systems without nuisance trips or output degradation, ensuring reliable operation in electrically noisy environments.

Application Scenarios

→ Emergency Shutdown (ESD) Systems
Control critical shutdown valves in refineries and chemical plants during emergency conditions. The 3603B's fail-safe design ensures valves move to their safe state even during controller failures, preventing catastrophic releases and protecting personnel.

→ Fire & Gas Detection Systems
Activate deluge systems, fire suppression equipment, and emergency ventilation based on detector inputs. TMR architecture eliminates false trips while guaranteeing response to genuine hazards, balancing safety with operational continuity.

→ Burner Management Systems (BMS)
Sequence fuel valves, ignition systems, and flame safeguard controls in boilers and furnaces. Precise timing and fault detection prevent dangerous fuel accumulation and ensure safe light-off procedures in compliance with NFPA standards.

→ Turbine Overspeed Protection
Trip steam or gas turbines when overspeed conditions are detected, protecting multi-million dollar assets from catastrophic mechanical failure. Sub-millisecond response times meet the most demanding turbine manufacturer specifications.

→ Safety Interlock Systems
Enforce operational sequences that prevent hazardous conditions in batch processes, reactor control, and material handling systems. Configurable logic ensures that critical steps cannot be bypassed or executed out of sequence.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3603B when your application requires 48VDC output voltage for field devices such as high-power solenoid valves or industrial contactors. For 24VDC applications, consider the Triconex 3625A. If you need higher channel density, the T8471 offers 32 channels at 120VDC. Verify that your field device current requirements do not exceed 1A per channel; for higher current loads, use external relay interfaces.

Extended Functions

System Integration Capabilities: The 3603B seamlessly integrates with all Triconex main processor modules including Tricon, Trident, and TriStation 1131 platforms. It supports both safety and non-safety applications within the same chassis, allowing you to consolidate control architectures and reduce spare parts inventory.

Remote Monitoring & Diagnostics: When connected to TriStation software, the module provides real-time channel status, historical fault logs, and predictive maintenance alerts. Integration with plant-wide DCS systems via OPC interfaces enables centralized monitoring of safety system health across multiple units.

Customization Options: Field-configurable output characteristics including pulse width, frequency, and fault response behavior can be tailored to specific application requirements through TriStation programming. Custom cable assemblies and terminal blocks are available to simplify installation and reduce commissioning time.

Delivery & Service Assurance

Standard Lead Time: In-stock modules ship within 1-3 business days via express courier with full tracking. For bulk orders or project-specific configurations, typical delivery is 2-4 weeks from order confirmation.

Warranty Coverage: Every 3603B module includes a comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs are available for long-term projects and critical applications.

Technical Support: Our certified Triconex specialists provide pre-sales application engineering, installation guidance, configuration assistance, and post-installation troubleshooting. Support is available via email, phone, and remote desktop sessions during your local business hours.

Documentation Package: Each module ships with installation manual, wiring diagrams, safety certification documents, and configuration templates for TriStation software. Complete technical specifications and CAD drawings are available for download from our support portal.

Frequently Asked Questions

How does the TMR architecture improve safety system reliability compared to simplex designs?
TMR provides continuous operation during single-point failures by using three independent processing channels with 2-out-of-3 voting. If one channel fails, the system continues operating safely while alerting maintenance personnel. This eliminates the forced shutdowns common with simplex systems, improving both safety availability and production uptime.

What field devices are compatible with the 48VDC output specification?
The 3603B drives any 48VDC device drawing up to 1A per channel, including solenoid valves, motor starters, alarm horns, beacon lights, and industrial relays. It's particularly well-suited for applications requiring higher voltage for long cable runs or electrically noisy environments where 24VDC systems may experience interference.

Can I replace a 3603B module during operation without shutting down the safety system?
Yes, the module is fully hot-swappable. The TMR architecture maintains safety function continuity while you remove and replace the module. Upon insertion, the new module automatically downloads its configuration from the main processor and synchronizes with the other channels within seconds, requiring no manual programming.

What diagnostic information is available for troubleshooting output channel problems?
Each channel has individual LED status indicators showing normal operation, fault conditions, and communication status. TriStation software provides detailed diagnostics including output current measurement, load resistance calculation, short-circuit detection, and open-circuit identification. Historical fault logs help identify intermittent problems and trending issues.

How do I determine the maximum cable length for field wiring connections?
Recommended maximum distance is 300 meters (1000 feet) using 18 AWG shielded twisted-pair cable with proper grounding. For longer distances, use heavier gauge wire or install local relay interfaces. Cable capacitance and inductance must be considered for applications with fast switching requirements; consult the installation manual for detailed calculations.

Is the 3603B suitable for offshore platform installations with harsh environmental conditions?
Yes, the module is designed for industrial environments including offshore oil & gas platforms. It meets stringent vibration, shock, and EMI/RFI immunity requirements. The conformal coating on circuit boards provides additional protection against humidity and corrosive atmospheres. Ensure proper enclosure selection (NEMA 4X or IP66 minimum) for direct exposure to marine environments.

Ready to Enhance Your Safety System?

The Triconex 3603B delivers the proven reliability and safety integrity your critical applications demand. Whether you're upgrading an existing safety system, expanding capacity, or designing a new installation, our team is ready to assist with technical specifications, application engineering, and competitive pricing.

Contact our safety systems specialists today:
→ Request a detailed quotation with project-specific pricing
→ Schedule a technical consultation to discuss your application requirements
→ Download complete technical documentation and certification packages
→ Inquire about volume discounts for multi-module projects
