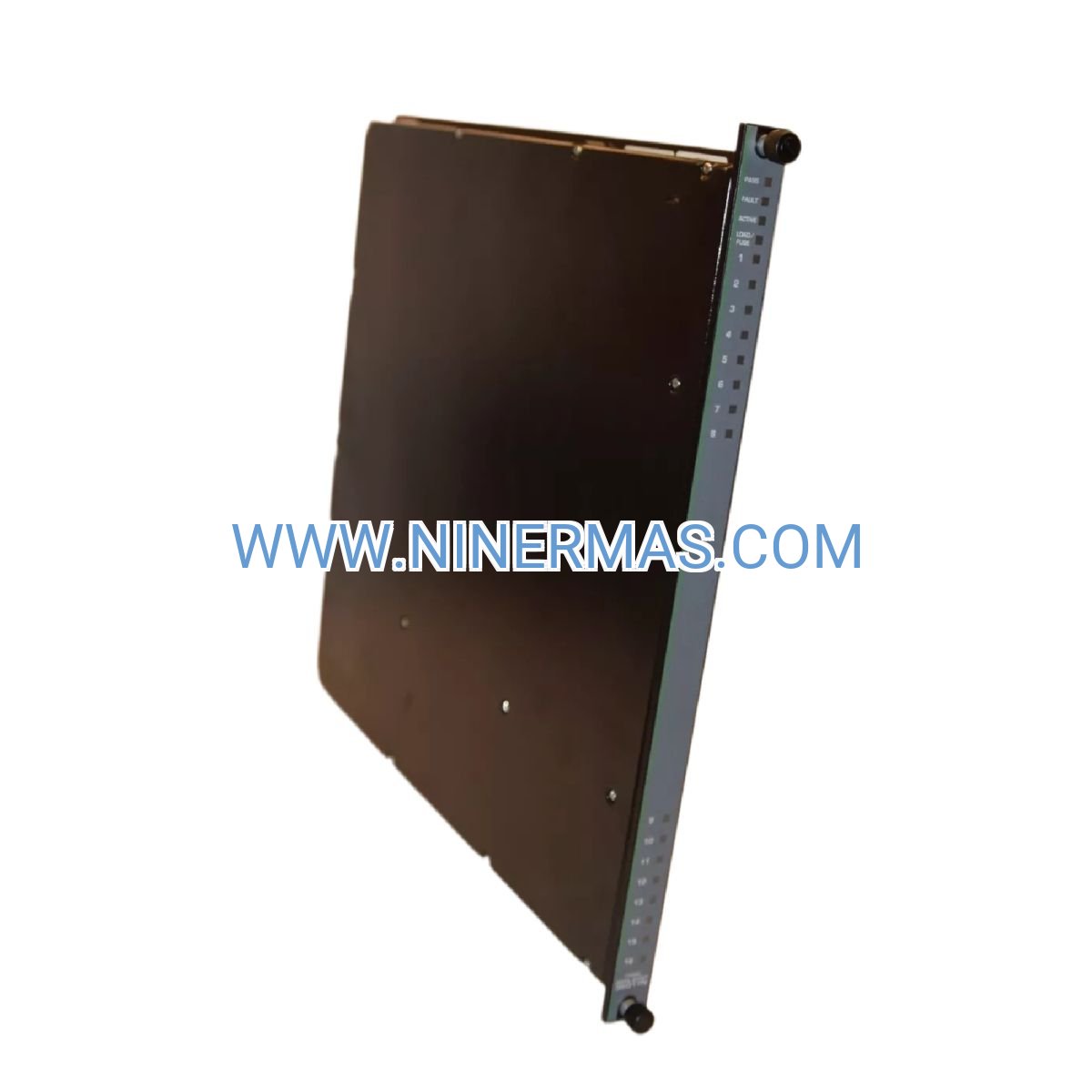

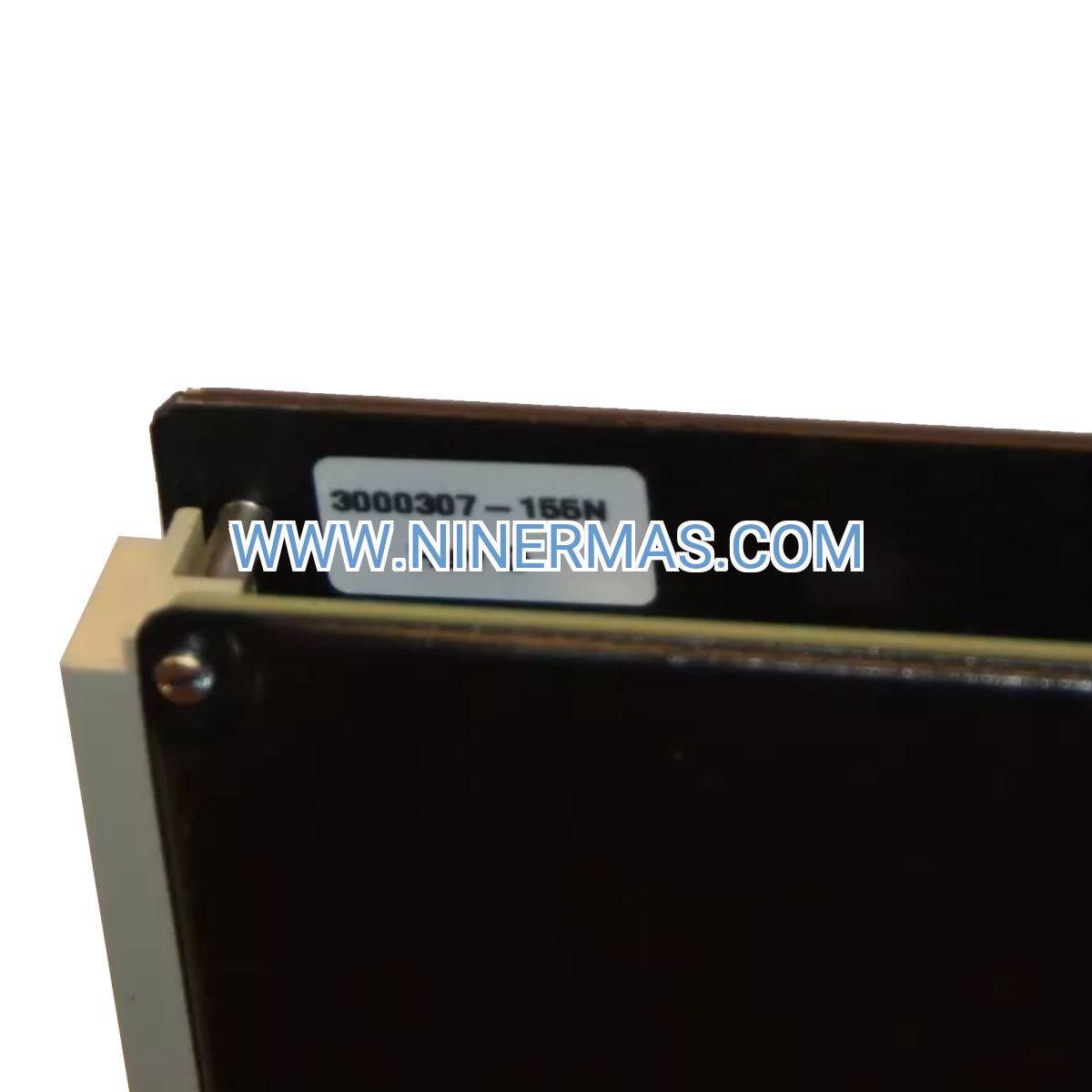

Triconex 3601TN Digital Output Module (Industrial-Grade TMR Safety I/O)

The Triconex 3601TN represents a proven solution for safety-critical digital output control in process industries worldwide. Built on Triple Modular Redundant architecture, this 32-channel module delivers deterministic performance for emergency shutdown systems, fire protection networks, and turbomachinery safeguarding applications where failure is not an option.

Designed for environments demanding IEC 61508 SIL 3 compliance, the 3601TN addresses the operational challenges faced by plant engineers, safety managers, and automation specialists who require continuous availability without compromising functional safety integrity. From offshore platforms to refinery complexes, this module provides the foundation for life-safety and asset-protection strategies.

Key differentiators include hot-swappable maintenance capability, comprehensive diagnostic coverage exceeding 99%, and seamless integration within Tricon/Trident control platforms—enabling predictable lifecycle costs and simplified spare parts management across multi-site operations.

Core Capabilities & Business Value

✓ Triple Modular Redundancy (TMR) Voting Logic
Three independent processing channels continuously compare outputs and automatically mask single-point failures, ensuring uninterrupted operation during component degradation while maintaining full safety function integrity—eliminating unplanned shutdowns that cost $50K-$500K per incident.

✓ 32 Discrete Safety-Rated Output Channels
Solid-state switching with 0.5A per channel capacity controls solenoid valves, alarm annunciators, and isolation devices across distributed field locations—reducing panel footprint by 40% compared to relay-based legacy systems.

✓ Online Insertion & Removal (OIR) Support
Replace modules during live operation without process interruption or safety system bypass, cutting maintenance windows from 8 hours to 15 minutes and preserving production continuity during turnarounds.

→ Comprehensive Built-In Diagnostics
Continuous self-testing monitors channel health, power supply integrity, and backplane communication—providing 72-hour advance warning of potential failures through TriStation software integration, enabling condition-based maintenance strategies.

→ Extended Environmental Tolerance
-40°C to +70°C operating range with 1500V AC isolation supports deployment in harsh climates from Arctic gas fields to Middle Eastern desert facilities without additional environmental enclosures.

→ Multi-Agency Safety Certification
CE, UL508, CSA C22.2, ATEX Zone 2, and IECEx compliance accelerates project approval cycles and ensures regulatory acceptance across global jurisdictions—critical for multinational capital projects.

Industry Applications & Problem Resolution

Emergency Shutdown (ESD) Systems – Oil & Gas Production
Execute final element control during process upsets, managing block valves, blowdown systems, and depressurization sequences with <10ms response times. Addresses the challenge of coordinating 50+ shutdown devices across multi-platform installations while maintaining SIL verification requirements.

Burner Management Systems (BMS) – Power Generation
Control fuel valve trains, ignition sequences, and flame safeguarding logic in boiler and gas turbine applications. Solves the complexity of managing interlocked permissive chains where timing precision prevents furnace explosions and equipment damage exceeding $2M per event.

Fire & Gas Detection Networks – Chemical Processing
Activate deluge systems, HVAC isolation dampers, and emergency ventilation during toxic release scenarios. Eliminates the reliability concerns of pneumatic actuation systems while providing verifiable proof-of-function for insurance and regulatory audits.

Compressor Anti-Surge Protection – Pipeline Transmission
Operate recycle valves and vent systems protecting centrifugal compressors from destructive surge conditions. Resolves the challenge of sub-second response requirements where mechanical protection devices alone cannot prevent $500K+ rotor failures.

Pharmaceutical Batch Processing – Clean Room Environments
Manage sterile barrier isolation, CIP/SIP valve sequencing, and environmental control interlocks meeting 21 CFR Part 11 traceability requirements. Addresses validation documentation burdens through built-in audit trail capabilities and deterministic operation.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 3601TN when your application requires 16-32 safety-rated outputs with standard current capacity. For higher channel density (48-64 outputs), consider the 3603T variant. Applications demanding supervised field device monitoring should evaluate the 3664 model with integrated NAMUR sensor support. Verify compatibility with your Tricon chassis revision—the 3601TN requires firmware v9.0 or later for full diagnostic functionality.

Advanced Integration Features

TriStation 1131 Software Integration: Configure, monitor, and troubleshoot the 3601TN through the unified TriStation development environment. Access real-time channel status, historical fault logs, and predictive maintenance alerts without requiring specialized diagnostic tools—reducing engineering training costs by 60% compared to proprietary programming interfaces.

Modbus TCP/IP Connectivity: Optional communication modules enable integration with DCS platforms (Honeywell, Emerson, Yokogawa) for coordinated process control and safety system visualization. Supports OPC UA for Industry 4.0 data analytics and cloud-based asset performance monitoring.

Cybersecurity Hardening: Firmware-level authentication, encrypted configuration downloads, and role-based access control align with IEC 62443 industrial cybersecurity standards—addressing audit findings and insurance requirements for connected safety systems.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units; 6-8 weeks for factory-fresh modules with full traceability documentation
Expedited Service: 24-hour emergency shipment available for critical outage scenarios (additional fees apply)

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for up to 60 months with annual health checks and firmware update services.

Technical Assistance: Access to application engineers with 15+ years Triconex experience for system design review, SIL verification support, and troubleshooting guidance. Remote diagnostic services available via secure VPN connection.

Documentation Package: Each module ships with installation manual, wiring diagrams, SIL certification documents, and TriStation configuration templates—accelerating commissioning timelines by 40% compared to legacy documentation sets.

Frequently Asked Questions

Can the 3601TN module be replaced during active safety system operation without triggering spurious trips?
Yes, the TMR architecture allows online insertion and removal (OIR) of any single module while the remaining two channels maintain full voting logic and safety function execution. The system automatically reintegrates the replacement module within 3 seconds of installation without requiring manual synchronization.

What field device current capacity does each output channel support for solenoid valve applications?
Each channel provides 0.5A continuous current at 24V DC, sufficient for standard industrial solenoid valves (8-12W coil power). For higher-current devices (1-2A), use external interposing relays or consider the 3624E high-current variant rated for 2A per channel.

How does the 3601TN integrate with existing DCS systems for coordinated shutdown sequences?
The module operates within the Triconex safety controller, which communicates with DCS platforms via Modbus TCP/IP, OPC, or proprietary protocols (Honeywell TPS, Emerson DeltaV). Hardwired discrete signals can also provide backup shutdown initiation independent of network communication.

What diagnostic capabilities help predict module failures before they impact safety system availability?
Continuous self-diagnostics monitor power supply voltage, backplane communication integrity, output driver health, and TMR voting discrepancies. TriStation software provides 72-hour advance warning of degrading components through predictive algorithms analyzing fault pattern trends—enabling proactive replacement during planned maintenance windows.

Is the 3601TN suitable for hazardous area installations requiring ATEX or IECEx certification?
The module itself is certified for Zone 2 / Division 2 hazardous locations when installed in approved Triconex chassis enclosures. For Zone 1 / Division 1 applications, use intrinsically safe barrier modules between the 3601TN and field devices located in classified areas.

What firmware compatibility requirements exist for retrofitting 3601TN modules into legacy Triconex systems?
The 3601TN requires Tricon controller firmware version 9.0 or later for full functionality. Systems running v8.x firmware can physically accept the module but will operate with reduced diagnostic capabilities. Firmware upgrades are available through authorized Schneider Electric service centers with minimal downtime (4-6 hours typical).
