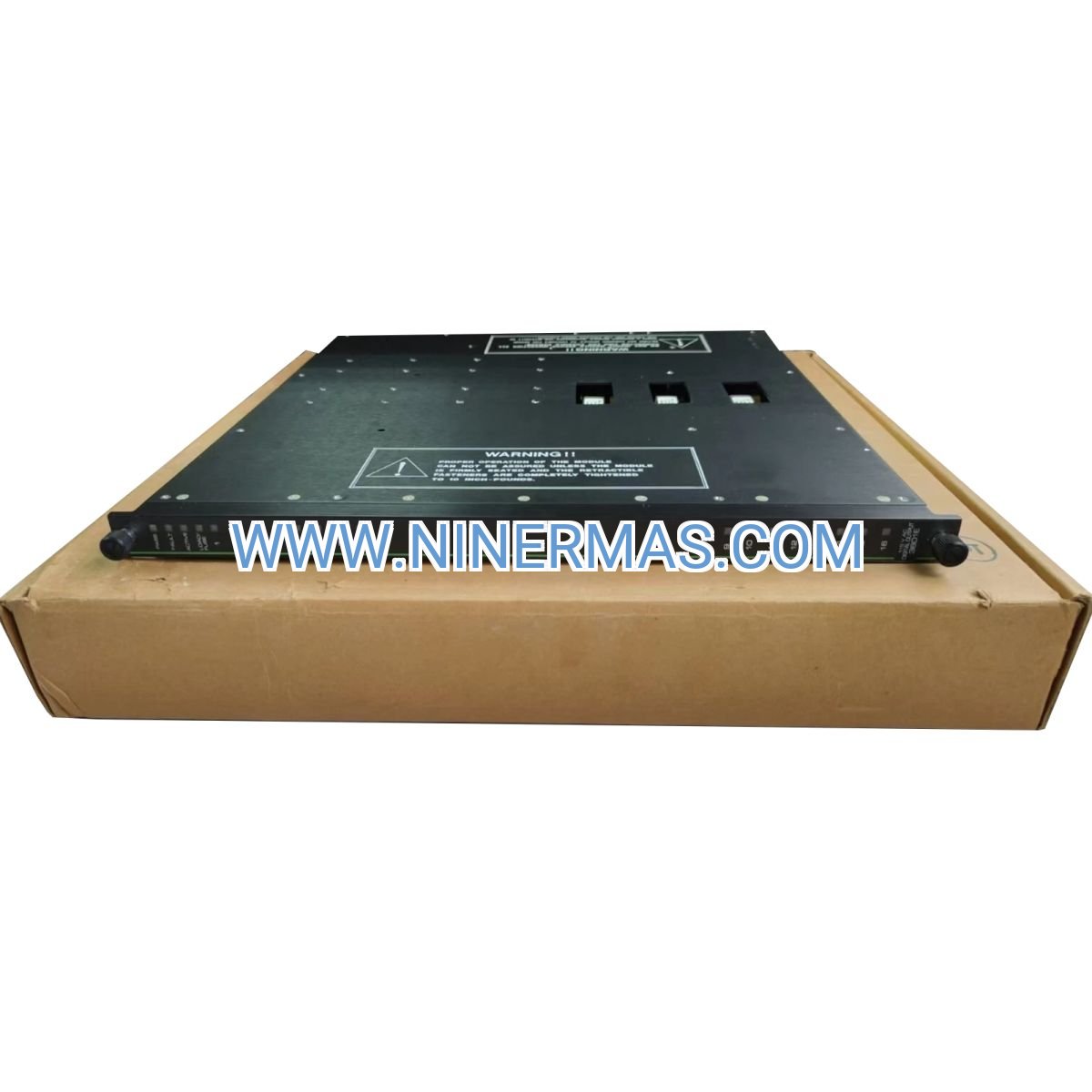

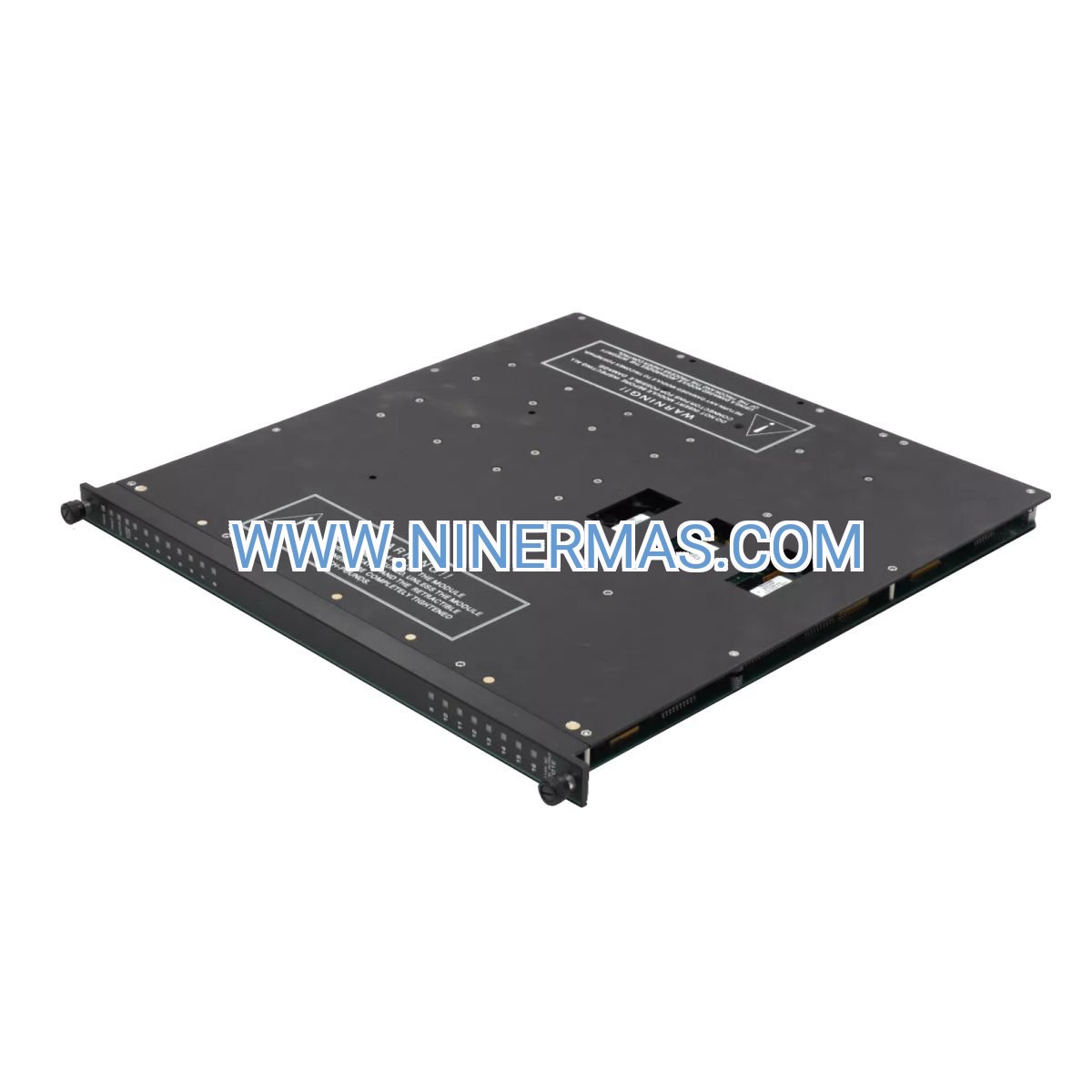

3601E TMR Digital Output Module (Industrial-Grade 115VAC Safety Control)

The 3601E represents a proven solution for high-availability industrial control systems demanding fail-safe 115 VAC output switching. Built on Triple Modular Redundant architecture, this safety-rated module serves process industries where unplanned shutdowns translate to significant operational and financial risk. With 16 galvanically isolated output points and continuous self-diagnostics, the 3601E ensures your critical actuators respond precisely when safety protocols demand action.

Designed for integration into Triconex safety instrumented systems, this module addresses the stringent requirements of emergency shutdown (ESD), fire and gas (F&G), and burner management systems (BMS) across oil and gas, petrochemical, power generation, and pharmaceutical manufacturing sectors. Engineers specify the 3601E when system availability, diagnostic coverage, and regulatory compliance converge as non-negotiable project requirements.

Whether you're retrofitting legacy relay logic or designing greenfield safety layers, the 3601E delivers field-proven reliability backed by SIL 3 certification and comprehensive technical documentation. Its hot-swappable design minimizes maintenance windows, while TMR voting logic maintains output integrity even during component-level faults.

Core Features & Benefits

✓ Triple Modular Redundancy (TMR) Architecture
Three independent processing channels vote on every output command, automatically masking single-point failures without process interruption. This translates to >99.9% system availability and eliminates spurious trips that cost operations thousands per incident.

✓ 16 Isolated 115 VAC Output Channels
Non-commoned design prevents fault propagation between channels. Each output handles 2A continuous load, suitable for solenoid valves, motor contactors, and annunciator panels without external isolation relays.

✓ SIL 3 Safety Integrity Level Certification
IEC 61508 compliant with proven-in-use data spanning millions of operational hours. Meets regulatory mandates for safety instrumented functions (SIF) in API, OSHA PSM, and Seveso III jurisdictions.

✓ Comprehensive Fault Diagnostics
Continuous monitoring detects open circuits, short circuits, and degraded insulation before failures impact operations. Diagnostic coverage exceeds 99%, enabling predictive maintenance strategies that reduce unplanned downtime by 40-60%.

✓ Hot-Swap Capability
Replace modules during operation without system shutdown or output disruption. Maintenance teams execute repairs during normal production, eliminating costly turnaround dependencies.

✓ Wide Operating Temperature Range
0°C to 60°C (32°F to 140°F) qualification supports installation in non-climate-controlled equipment rooms and harsh industrial environments without derating.

Application Scenarios

→ Emergency Shutdown Systems (ESD)
In offshore platforms and refinery process units, the 3601E drives pneumatic actuators via 115VAC solenoid valves during high-integrity pressure protection (HIPPS) events. When pressure transmitters detect overpressure conditions, the module's sub-50ms response time initiates valve closure before relief systems activate, preventing flaring and production losses.

→ Fire & Gas Detection Networks
Chemical plants deploy the 3601E to control deluge valve solenoids, HVAC damper actuators, and audible/visual alarm devices. Upon gas detector activation, the module simultaneously triggers ventilation changes and evacuation signals while maintaining independent control of suppression systems—critical for meeting NFPA 72 and ISA-84 response time requirements.

→ Burner Management Systems (BMS)
Power generation facilities utilize the 3601E for fuel valve train control and ignition sequencing in boiler applications. The module's isolated outputs prevent common-cause failures in redundant fuel shutoff valves, satisfying NFPA 85 and FM approval requirements for large combustion systems.

→ Turbomachinery Protection
Compressor stations integrate the 3601E into trip systems monitoring vibration, temperature, and surge conditions. When protection algorithms detect abnormal operation, the module actuates lube oil dump valves and inlet guide vane positioning systems, protecting multi-million-dollar rotating equipment from catastrophic damage.

→ Pipeline Safety & Isolation
Midstream operators specify the 3601E for remotely operated valve (ROV) control in leak detection and pipeline isolation applications. The module's diagnostic capabilities enable continuous valve health monitoring, while TMR architecture ensures isolation commands execute reliably during emergency pipeline shutdown (EPS) scenarios.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3601E when your application requires 115 VAC output control with SIL 3 safety integrity. For 24 VDC loads, consider the 3625A variant. Verify that connected actuators operate within the 85-132 VAC range and draw less than 2A per channel. For applications requiring more than 16 outputs, multiple modules can be installed in the same chassis with independent addressing.

Extended Functions

IoT & Remote Monitoring Integration
When paired with Triconex communication modules (TCM), the 3601E enables real-time output status monitoring via Modbus TCP, OPC UA, or proprietary TriStation protocols. Operations teams access diagnostic data through SCADA/DCS interfaces, enabling condition-based maintenance and performance trending.

Advanced Diagnostic Features
Beyond standard open/short circuit detection, the module monitors output current draw patterns to identify degrading solenoid coils and relay contacts before complete failure. Predictive alerts integrate with asset management systems (AMS) for automated work order generation.

Customization Options
Engineered configurations support non-standard voltage ranges, conformal coating for corrosive environments, and extended temperature qualifications for extreme climates. Consult factory application engineers for project-specific requirements exceeding standard catalog specifications.

Delivery & Service Assurance

Lead Time: Standard catalog items ship within 3-5 business days. Custom configurations require 4-6 weeks for factory programming and testing. Expedited processing available for critical outage support.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for installed base support contracts.

Technical Support: Application engineering assistance includes system architecture review, I/O point allocation, and safety integrity level (SIL) verification calculations. Post-installation support covers configuration troubleshooting, firmware updates, and performance optimization.

Documentation Package: Each module ships with installation manual, wiring diagrams, safety manual per IEC 61508-2, and certificate of compliance. CAD drawings and 3D STEP files available for mechanical integration planning.

Frequently Asked Questions

What load types can the 3601E control with 115VAC outputs?
The module drives inductive loads (solenoid valves, relay coils, contactor coils) and resistive loads (indicator lamps, heaters) up to 2A per channel. For motor starters exceeding 2A, use the output to control an intermediate relay rated for the motor load.

How does TMR architecture improve safety system reliability?
Triple Modular Redundancy employs three independent processing paths that vote on every output decision. If one path fails, the remaining two maintain correct operation without spurious trips or dangerous failures. This architecture achieves SIL 3 certification while supporting online maintenance.

Can I replace a 3601E module without shutting down the safety system?
Yes. The module supports hot-swapping during operation. The TMR architecture maintains output control through the remaining two channels while you replace the third. Follow proper ESD procedures and verify module seating after insertion.

What certifications does the 3601E hold for hazardous area installation?
The module carries FM approval for Class I Division 2 locations, ATEX certification for Zone 2 environments, and IECEx approval for international projects. Consult certification documentation for specific gas group and temperature class ratings applicable to your installation.

How do I integrate the 3601E with existing DCS or SCADA systems?
Install a Triconex communication module (TCM) in the same chassis to enable Modbus TCP, OPC UA, or proprietary protocol connectivity. The TCM maps I/O point status to network registers accessible by third-party control systems for monitoring and alarming.

What diagnostic information does the module provide for predictive maintenance?
The 3601E continuously monitors output current, voltage levels, and insulation resistance. Diagnostic registers flag degraded components before failure, including weak solenoid coils, corroded terminals, and aging relay contacts. Integrate these diagnostics with your CMMS for automated maintenance scheduling.

Ready to Enhance Your Safety System?

Contact our application engineering team to discuss your project requirements, request technical documentation, or place an order. We provide rapid quotations, system architecture consultation, and expedited shipping for critical projects.
