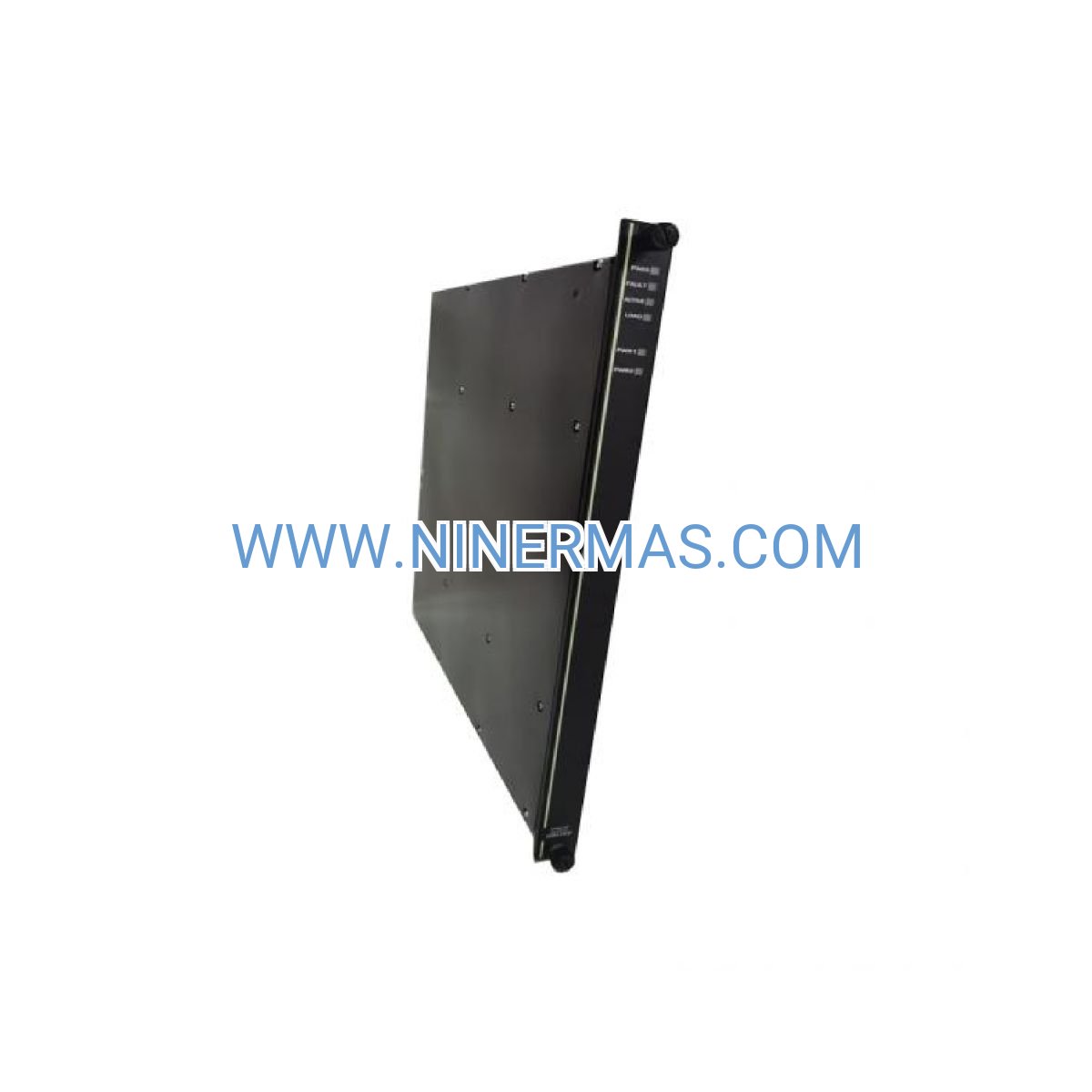

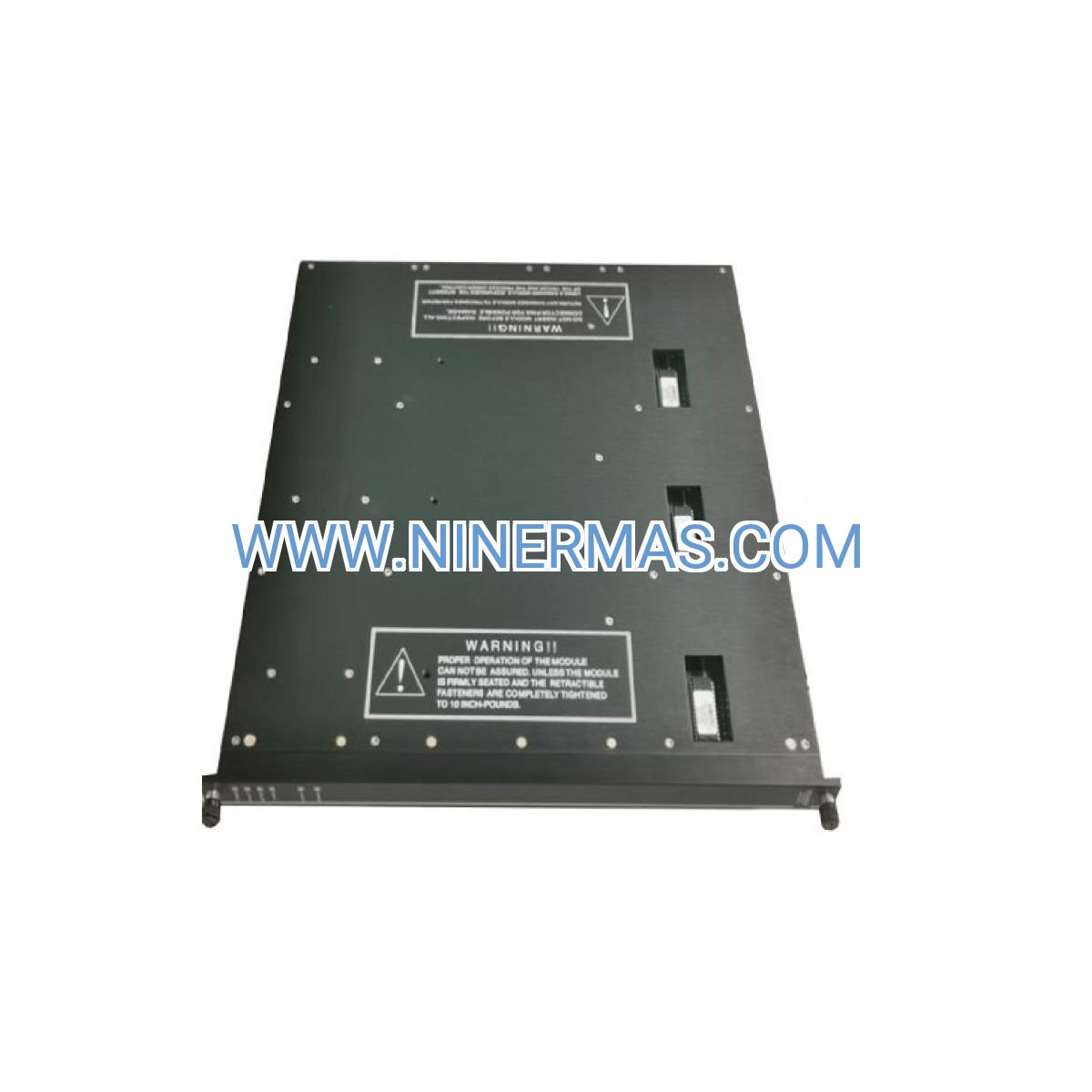

Triconex 3515 Pulse Input Module (Industrial-Grade High-Frequency Signal Processor)

The Triconex 3515 represents a specialized pulse counting solution engineered for safety-instrumented systems where signal integrity and continuous availability are non-negotiable. This 8-channel module processes high-frequency pulse trains from turbine flowmeters, proximity probes, and encoder devices while maintaining Triple Modular Redundant (TMR) fault tolerance throughout the entire signal path.

Designed for industries where equipment overspeed, flow measurement errors, or position tracking failures can trigger catastrophic events, the 3515 delivers deterministic performance under IEC 61508 SIL 3 requirements. Its architecture eliminates single points of failure through triplicated input circuitry, independent A/D conversion, and majority-voted processing—ensuring that sensor faults, wiring issues, or component degradation never compromise system integrity.

Whether you're protecting turbomachinery in oil & gas facilities, totalizing critical process flows in chemical plants, or monitoring conveyor positioning in automated production lines, the 3515 provides the reliability foundation your safety layer demands. Hot-swappable design and comprehensive diagnostics minimize planned and unplanned downtime while maintaining full operational transparency.

Core Capabilities & Technical Advantages

→ Triple Modular Redundant Signal Processing
Three independent input channels per logical point continuously compare readings and vote out discrepancies in real-time. This architecture maintains accurate counting even when individual components fail, delivering 99.99% availability in safety-critical loops without requiring system shutdown for repairs.

→ 10 kHz Maximum Input Frequency
Captures fast-rotating shaft speeds, high-velocity flow pulses, and rapid event sequences that standard I/O modules cannot track. Wide frequency range (DC to 10 kHz) accommodates both slow-speed monitoring and high-performance applications within a single module platform.

→ 32-Bit Accumulator Resolution
Each channel maintains a 32-bit counter capable of tracking over 4 billion pulses before rollover, eliminating the need for frequent software resets in long-duration totalizing applications. Configurable scaling and gate timing enable direct engineering unit conversion.

→ 1500V Channel-to-Backplane Isolation
Protects sensitive controller circuitry from field-side electrical transients, ground loops, and voltage surges common in industrial environments. Isolation barriers prevent fault propagation between I/O channels and the control backplane, enhancing overall system robustness.

✓ Hot-Swappable Maintenance
Replace failed modules during operation without interrupting process control or safety functions. Automatic configuration download and TMR synchronization restore full redundancy within seconds of module insertion, reducing mean time to repair (MTTR) by up to 75%.

✓ Comprehensive Built-In Diagnostics
Continuous self-testing monitors input signal quality, power supply health, and internal processing integrity. Diagnostic data accessible through TriStation software enables predictive maintenance and rapid fault isolation without external test equipment.

Application Scenarios & Industry Solutions

Turbomachinery Overspeed Protection
In gas turbine and steam turbine installations, the 3515 monitors shaft speed via magnetic pickups or proximity probes, triggering emergency shutdown systems when rotational velocity exceeds safe thresholds. TMR voting ensures that sensor failures or wiring faults never cause spurious trips or—more critically—fail to detect genuine overspeed conditions. Typical deployment: dual-redundant speed sensors feeding independent 3515 channels with 2oo3 voting logic.

Custody Transfer Flow Measurement
Chemical processing and pipeline operations rely on the 3515 for fiscal-grade flow totalizing where measurement accuracy directly impacts revenue and regulatory compliance. The module integrates with turbine flowmeters to accumulate volumetric totals while detecting flow anomalies that indicate meter degradation, process upsets, or potential leaks. SIL 3 certification satisfies safety requirements for hazardous fluid handling.

High-Speed Packaging Line Control
Automated filling, capping, and labeling systems use the 3515 to track product position, count completed units, and synchronize multi-axis motion. Precise pulse counting at speeds exceeding 600 units/minute ensures accurate product delivery while safety interlocks prevent equipment damage during jam conditions or emergency stops.

Conveyor Position Tracking
Material handling systems in mining, cement, and bulk processing facilities employ the 3515 with incremental encoders to monitor belt position, detect slip conditions, and calculate throughput rates. Fault-tolerant counting prevents loss of position reference during encoder failures, maintaining production continuity and preventing material spillage.

Emergency Shutdown System Integration
Safety instrumented systems (SIS) protecting against runaway reactions, pressure excursions, or equipment failures incorporate the 3515 for monitoring critical process variables derived from pulse signals. The module's proven-in-use status and extensive failure mode analysis simplify SIL verification calculations and regulatory approval processes.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 3515 when your application requires SIL 2/3 certification, input frequencies exceed 1 kHz, or system availability targets demand fault-tolerant I/O. For non-safety applications with lower channel counts, consider standard pulse input modules. If you need more than 8 channels, the Triconex 3510 (16-channel variant) offers higher density in the same footprint. Applications involving quadrature encoders benefit from dedicated encoder modules that provide direction sensing and position tracking beyond simple pulse counting.

Verify that your sensor output voltage and current drive capability match the 3515 input specifications—most proximity probes and NPN/PNP sensors interface directly, while passive magnetic pickups may require signal conditioning. Consult factory application engineers for complex installations involving long cable runs (>100m) or electrically noisy environments.

Extended Functionality & System Integration

TriStation Configuration Environment
The 3515 integrates seamlessly with Triconex Tricon and TriStation 1131 development platforms, enabling graphical configuration of scaling factors, gate timing, alarm setpoints, and diagnostic thresholds. Function block programming allows direct access to accumulated counts, instantaneous frequency, and diagnostic status without custom coding.

Modbus TCP/IP Connectivity
Pulse count data and module diagnostics are accessible via standard Modbus registers, facilitating integration with SCADA systems, historians, and third-party analytics platforms. Real-time data streaming supports predictive maintenance algorithms and process optimization initiatives.

Redundant Controller Architecture
Deploy the 3515 in dual or triple controller configurations for applications requiring controller-level redundancy beyond I/O fault tolerance. Automatic failover and state synchronization ensure bumpless transfer during controller maintenance or failure events.

Custom Calibration Services
For applications with unique sensor characteristics or extreme accuracy requirements, factory calibration services can optimize input thresholds, hysteresis settings, and filtering parameters to match your specific installation conditions.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outages
Custom Configuration: 7-10 business days for factory-programmed modules with pre-loaded application settings
Warranty Coverage: 12 months comprehensive warranty covering manufacturing defects, component failures, and workmanship issues
Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting, and system optimization
Documentation Package: Complete installation manual, wiring diagrams, TriStation configuration examples, and SIL certification documentation included with every shipment

Replacement modules ship with matching firmware revisions to ensure drop-in compatibility with existing systems. Advance replacement programs minimize downtime for mission-critical installations—contact our support team to establish a rapid-response service agreement tailored to your operational requirements.

Frequently Asked Questions

How does the 3515 handle noisy pulse signals in industrial environments?
The module incorporates programmable input filtering with adjustable time constants (10 µs to 10 ms) to reject electrical noise while preserving signal edges. Schmitt trigger input circuitry provides hysteresis that prevents false triggering from slow-rising waveforms or contact bounce. For severe EMI environments, external RC filtering or shielded cabling may be recommended—our application engineers can specify appropriate solutions based on your installation details.

Can I use the 3515 for bidirectional counting applications?
The 3515 is optimized for unidirectional pulse accumulation. For applications requiring up/down counting or quadrature encoder tracking (direction sensing), consider the Triconex 3511 Encoder Input Module, which provides dedicated A/B channel processing and position tracking functionality.

What happens to accumulated counts during power loss or module replacement?
Count values are maintained in controller memory, not within the 3515 module itself. During power interruptions, the Triconex controller's battery-backed RAM preserves all accumulated totals. When replacing a 3515 module, counting resumes from the last stored value without data loss—the new module automatically synchronizes with the controller's current count state.

Does the 3515 support remote monitoring and diagnostics?
Yes, comprehensive diagnostic data including input signal status, TMR voting discrepancies, and module health indicators are accessible through TriStation software locally or via secure remote connections. Integration with plant-wide asset management systems enables centralized monitoring of all installed 3515 modules across multiple control systems.

What is the maximum cable length between sensors and the 3515 module?
Typical installations support cable runs up to 300 meters (1000 feet) using shielded twisted-pair wiring with proper grounding practices. Longer distances may require signal repeaters or 4-20mA transmitters to maintain signal integrity. Specific recommendations depend on sensor output characteristics, cable type, and electromagnetic environment—consult our technical documentation or contact support for site-specific guidance.

How do I verify proper operation after installation?
TriStation software provides built-in diagnostic tools including forced input simulation, count verification, and TMR channel comparison displays. The module's self-test routines continuously monitor internal circuitry and report any anomalies through diagnostic registers. For field verification, apply known pulse trains using a function generator and compare accumulated counts against expected values—detailed test procedures are included in the installation manual.

Take the Next Step

Ready to enhance your safety instrumented system with proven TMR pulse counting technology? Our application engineering team is available to discuss your specific requirements, recommend optimal configurations, and provide detailed technical specifications. Contact us today for a consultation, request a formal quotation, or place your order for immediate shipment.

Need assistance with system design or integration? Schedule a technical review session with our certified Triconex specialists to ensure your 3515 deployment meets all safety, performance, and regulatory requirements.
