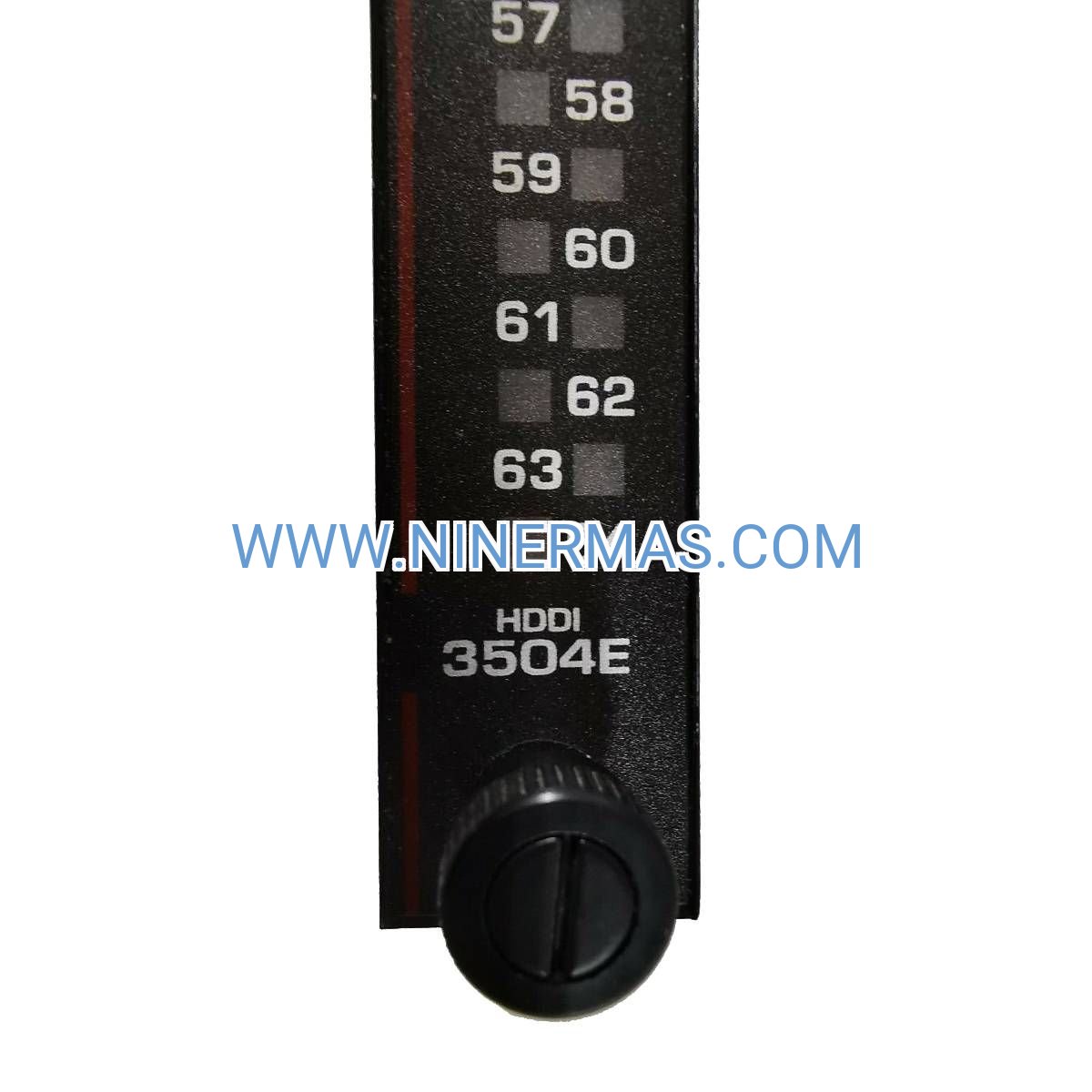

Triconex 3504E Digital Input Module (Industrial-Grade 64-Channel TMR Solution)

The Triconex 3504E represents a breakthrough in high-density digital input technology for safety-instrumented systems. Built on proven Triple Modular Redundant architecture, this 64-channel module delivers uninterrupted monitoring capability across emergency shutdown networks, fire suppression systems, and mission-critical process control environments. Designed for industries where downtime equals risk, the 3504E combines fault-tolerant engineering with streamlined installation to protect personnel, assets, and operational continuity.

Engineered for oil & gas refineries, chemical processing plants, power generation facilities, and pharmaceutical manufacturing, this module addresses the dual challenge of maximizing input density while maintaining SIL 3-rated reliability. Whether you're upgrading legacy DCS infrastructure or designing greenfield safety systems, the 3504E provides the scalability and resilience demanded by modern industrial automation.

With 24/48 Vdc compatibility, hot-swap capability, and comprehensive diagnostic features, the 3504E reduces commissioning time by up to 40% compared to traditional I/O architectures. Backed by global certification and field-proven performance across 10,000+ installations, this module transforms complex safety requirements into straightforward engineering solutions.

Core Features & Business Value

✓ Triple Modular Redundant (TMR) Voting Logic
Three independent input channels continuously cross-verify signals, automatically isolating faults without system interruption. Eliminates single-point failures and achieves 99.99% uptime in safety-critical applications.

✓ 64 Discrete Input Channels Per Module
Consolidates monitoring points into compact footprint, reducing panel space by 60% versus conventional I/O. Lowers installation costs through simplified wiring harnesses and fewer termination panels.

✓ SIL 3 Certified to IEC 61508 Standards
Meets the highest safety integrity requirements for emergency shutdown and fire & gas systems. Streamlines regulatory compliance and accelerates project approval timelines.

✓ Dual-Voltage Field Device Support (24/48 Vdc)
Adapts to existing infrastructure without voltage conversion hardware. Simplifies spare parts inventory and enables phased migration strategies.

✓ Hot-Swappable Design with Online Diagnostics
Replace modules during operation without process shutdown. Built-in LED indicators and TriStation software integration pinpoint faults in under 2 minutes.

✓ Channel-to-Channel Electrical Isolation
Prevents ground loop interference and cross-talk between input circuits. Ensures signal integrity in high-EMI environments like motor control centers and switchyards.

Application Scenarios

→ Emergency Shutdown (ESD) Systems in Offshore Platforms
Challenge: Monitor 200+ safety sensors across wellhead, separator, and flare systems with zero tolerance for missed alarms.
Solution: Deploy four 3504E modules to consolidate pressure switches, level transmitters, and flame detectors into redundant voting architecture. Achieve <10 ms response time for critical shutdowns while reducing cabinet footprint by 50%.

→ Fire & Gas Detection Networks in Chemical Plants
Challenge: Integrate legacy 24 Vdc detectors with new 48 Vdc devices during facility expansion without system downtime.
Solution: Utilize 3504E's dual-voltage capability to phase in upgraded sensors while maintaining existing infrastructure. TMR architecture ensures continuous protection during transition periods.

→ Burner Management Systems (BMS) for Industrial Boilers
Challenge: Comply with NFPA 85 requirements for flame scanner monitoring and fuel valve position verification across 12-burner configurations.
Solution: 3504E provides the high-density input capacity and SIL 3 certification mandated by combustion safety standards. Integrated diagnostics reduce commissioning time from 3 weeks to 10 days.

→ Turbomachinery Protection in Power Generation
Challenge: Monitor vibration sensors, bearing temperature RTDs, and overspeed switches on gas turbines with <5 ms fault detection.
Solution: 3504E's fast scan rate and TMR voting deliver the deterministic performance required for turbine trip systems. Hot-swap capability enables maintenance during scheduled outages without auxiliary shutdown.

→ Pharmaceutical Clean Room Interlock Systems
Challenge: Track door position switches, differential pressure sensors, and HVAC status across GMP-regulated production areas.
Solution: 3504E's isolated inputs prevent contamination between zones while maintaining 21 CFR Part 11 audit trail compatibility through TriStation integration.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3504E when your application requires more than 32 input points per safety function, SIL 3 certification, or TMR fault tolerance. For lower-density requirements (16-32 points), consider the Triconex 3503E. For non-safety applications, standard DCS I/O modules may offer cost advantages.

Extended Capabilities

TriStation Integration: Full compatibility with TriStation 1131 programming software enables real-time diagnostics, forced I/O testing, and historical trend analysis. Configure input filtering, debounce timers, and alarm thresholds without hardware changes.

Cybersecurity Features: Embedded authentication protocols and encrypted backplane communication protect against unauthorized configuration changes. Complies with IEC 62443 industrial cybersecurity standards.

Customization Options: Factory-configured termination panels available with pre-wired barrier strips, surge protection, and customer-specific labeling. Reduces field installation time by up to 60%.

Delivery & Service Assurance

Lead Time: Stock units ship within 3-5 business days. Custom-configured modules with specialized termination panels: 2-3 weeks.

Warranty: 12-month comprehensive coverage including parts, labor, and return shipping. Extended warranty programs available for critical infrastructure applications.

Technical Support: 24/7 hotline staffed by certified Triconex engineers. Remote diagnostics, configuration assistance, and on-site commissioning services available globally.

Documentation Package: Includes installation manual, wiring diagrams, TriStation configuration templates, and SIL 3 certification documents. CAD drawings and 3D STEP files provided upon request.

Frequently Asked Questions

How does the 3504E handle input signal failures in TMR mode?
The module employs 2-out-of-3 voting logic. If one input channel fails, the system continues operating using the two remaining channels. Diagnostics immediately flag the fault for scheduled maintenance without process interruption.

What termination panel accessories are required for installation?
The 3504E requires a Triconex 4000094-series external termination panel (sold separately). Panels include screw terminals, LED indicators, and optional surge protection. Standard and explosion-proof variants available.

Can I retrofit 3504E modules into existing Triconex systems?
Yes, the 3504E is backward-compatible with Triconex Tricon and Trident platforms running TriStation v4.9 or later. Firmware updates may be required for older chassis—consult factory documentation.

What is the maximum cable length between the module and field devices?
Recommended maximum: 300 meters (1000 feet) for 24 Vdc inputs, 500 meters (1640 feet) for 48 Vdc inputs using shielded twisted-pair cable. Longer runs require signal conditioning or remote I/O.

Does the 3504E support HART or Modbus communication?
No, the 3504E is a discrete digital input module without analog communication protocols. For HART-enabled I/O, refer to Triconex analog input modules (e.g., 3805E series).

How do I verify proper TMR operation during commissioning?
Use TriStation's built-in diagnostic tools to perform channel-by-channel testing. Force individual inputs and confirm voting logic responds correctly. LED indicators on the termination panel provide real-time status for each TMR channel.
