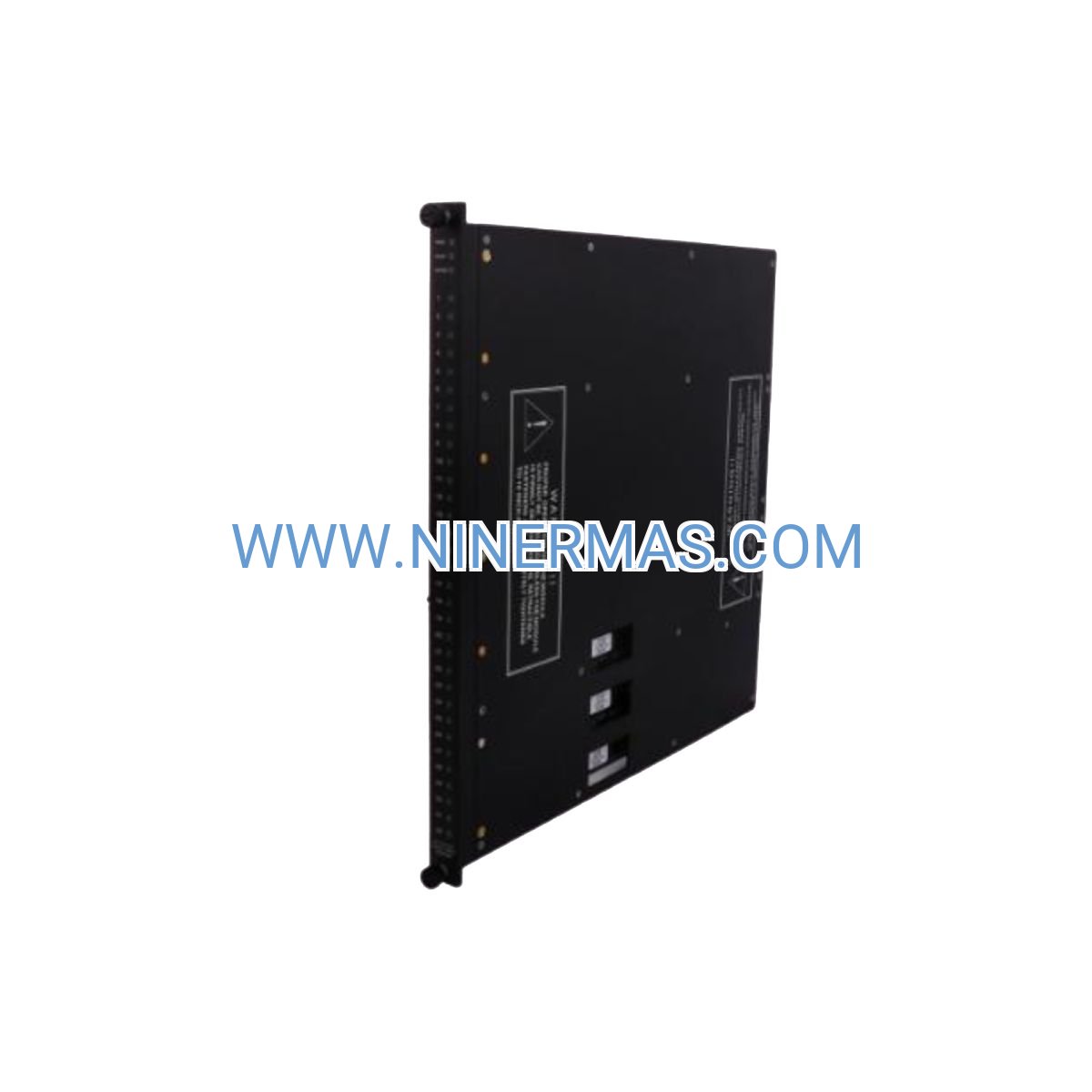

Triconex 3503N Triple Modular Redundant Input Module (Industrial-Grade Safety I/O)

The Triconex 3503N represents a proven solution for safety-critical digital input acquisition in process industries. Built on triple modular redundant (TMR) architecture, this 32-channel module processes 24VAC/VDC field signals with continuous fault detection and automatic voting logic, delivering SIL 3-certified reliability for emergency shutdown systems, fire and gas detection networks, and burner management applications.

Designed for integration with Tricon and Trident safety controllers, the 3503N addresses the operational challenge of maintaining system availability during component degradation. Its hot-swappable construction enables field replacement without process interruption, while optical isolation on each channel prevents ground loop interference and electrical noise propagation across distributed control architectures.

Industrial facilities requiring IEC 61508 compliance benefit from the module's TÜV certification and proven track record in oil refineries, chemical plants, power stations, and pharmaceutical manufacturing environments where unplanned shutdowns carry significant financial and safety consequences.

Core Capabilities & Business Value

→ Triple Modular Redundancy: Three independent processing channels vote on every input state, automatically masking single-point failures without operator intervention—reducing false trip events by up to 95% compared to simplex systems while maintaining safety integrity.

→ 32 Discrete Input Channels: High-density I/O configuration minimizes cabinet footprint and wiring costs; each module replaces three conventional input cards, cutting installation time by 40% and reducing spare parts inventory requirements.

→ Universal Voltage Acceptance: 18-30V operating range accommodates both AC and DC field devices without external signal conditioning, simplifying panel design and eliminating voltage-specific module variants across multi-site deployments.

✓ Hot-Swap Serviceability: Field-replaceable under power without system shutdown or safety function bypass—critical for continuous process industries where scheduled maintenance windows occur quarterly rather than weekly.

✓ 1500V Channel Isolation: Optical isolation protects controller backplane from field voltage transients and ground potential differences common in large distributed systems spanning multiple buildings or outdoor substations.

✓ Sub-10ms Response Time: Fast scan update enables detection of rapid process upsets in turbine overspeed protection, high-integrity pressure protection systems (HIPPS), and other time-critical safety functions.

Industrial Application Scenarios

Offshore Oil & Gas Production Platforms: Emergency shutdown (ESD) systems monitoring wellhead pressure switches, subsea isolation valve position feedback, and platform fire/gas detectors in SIL 3 safety loops. The module's TMR architecture maintains protection during North Sea weather conditions where maintenance access is limited to quarterly helicopter visits.

Petrochemical Reactor Protection: High-temperature alarm monitoring, reactor pressure relief valve position confirmation, and toxic gas detection in alkylation and polymerization units. Facilities achieve 99.97% safety availability while reducing nuisance trips that cost $500K-2M per incident in lost production.

Combined Cycle Power Plants: Gas turbine flame detection, steam turbine vibration monitoring, and generator protection relay interfaces. The 3503N's fast response time supports protective relay coordination in systems where 8-12ms detection-to-action timing prevents catastrophic equipment damage.

Pharmaceutical Clean Room Environmental Monitoring: Differential pressure switch monitoring, HVAC interlock verification, and critical alarm aggregation for FDA-regulated manufacturing spaces. TMR voting eliminates false alarms that trigger unnecessary batch holds and regulatory documentation burdens.

LNG Liquefaction Terminals: Cryogenic valve position monitoring, leak detection system integration, and marine loading arm emergency release circuits. Modules operate reliably in -40°C to +60°C ambient conditions typical of Arctic and Middle Eastern installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3503N when your application requires SIL 3 safety integrity with high availability (99.9%+), operates with 24V field devices, and benefits from TMR fault masking to avoid spurious trips. For analog signal acquisition, consider the Triconex 3805E analog input module. For lower safety integrity requirements (SIL 1-2), conventional redundant I/O may offer cost advantages.

Extended Integration Capabilities

TriStation 1131 Programming Environment: Configure input filtering (2-500ms), alarm setpoints, and diagnostic thresholds through IEC 61131-3 compliant software. Support for function block, ladder logic, and structured text programming styles accelerates commissioning for multi-discipline engineering teams.

Modbus TCP/IP Connectivity: Real-time I/O status and diagnostic data accessible via Ethernet for integration with DCS historian systems, asset management platforms, and remote operations centers—enabling predictive maintenance strategies based on channel fault trending.

Termination Assembly Options: Compatible with 9853-610 (barrier) and 9853-630 (non-barrier) field wiring panels supporting both sinking and sourcing input configurations. Spring-clamp terminals accept 12-22 AWG wire without ferrules, reducing installation labor by 30% versus screw terminals.

Cybersecurity Hardening: Firmware supports secure boot verification and encrypted configuration downloads when paired with Triconex TCM 4351B communication modules, meeting IEC 62443 industrial cybersecurity requirements for critical infrastructure applications.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock modules with factory-sealed packaging and full traceability documentation. Expedited same-day shipping available for emergency outage support at offshore and remote facilities.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Advance replacement program ensures 24-hour module delivery for critical path projects and unplanned failures.

Technical Support: Application engineering assistance for I/O mapping, termination panel selection, and safety integrity calculations. Post-installation support includes remote diagnostics, firmware update guidance, and integration troubleshooting via phone and email channels.

Documentation Package: Each module ships with installation manual, wiring diagrams, dimensional drawings, and SIL certification documents required for safety lifecycle documentation and regulatory compliance audits.

Frequently Asked Questions

What termination panel configuration works best for hazardous area installations with intrinsic safety barriers?
The 9853-610 barrier-compatible termination assembly provides dedicated barrier mounting positions and maintains proper spacing for Class I Division 2 / Zone 2 installations. Each channel supports MTL, Pepperl+Fuchs, and Stahl barrier interfaces without custom modifications.

Can the 3503N module handle both dry contact and wet contact input signals simultaneously?
Yes—the module auto-detects input signal type on a per-channel basis. Channels 1-16 can monitor dry contacts (switch closures) while channels 17-32 simultaneously process wet contacts (voltage sources) without configuration changes or jumper settings.

How does TMR voting improve system availability compared to traditional redundant I/O architectures?
TMR voting allows continued operation with one failed channel (2oo3 voting), whereas conventional 1oo2 redundancy requires immediate repair to maintain safety integrity. This extends mean time between forced outages from 18 months to 7+ years in typical process applications.

What diagnostic capabilities help predict module failures before they impact safety functions?
Built-in diagnostics monitor channel current draw, voting discrepancies, power supply voltage, and backplane communication integrity. Predictive fault alerts trigger 30-90 days before hard failures, enabling planned maintenance during scheduled turnarounds rather than emergency shutdowns.

Is the 3503N compatible with legacy Tricon chassis from 1990s installations?
Full backward compatibility exists with all Tricon chassis models (8110, 8111, 8112) manufactured since 1993. The module can be mixed with earlier 3503E and 3503F variants in the same chassis without firmware updates or controller reconfiguration.

What input filtering options address contact bounce in mechanical relay and switch applications?
Software-configurable filters range from 2ms (fast-acting protective relays) to 500ms (mechanical float switches and pressure switches). Adaptive filtering algorithms automatically adjust for contact wear over time, maintaining consistent response without manual recalibration.

Take the Next Step

Enhance your safety instrumented system reliability with proven TMR technology. Contact our application engineering team for I/O count optimization, termination panel selection, and project-specific pricing. Request a detailed quotation with lead time confirmation and technical documentation package.
