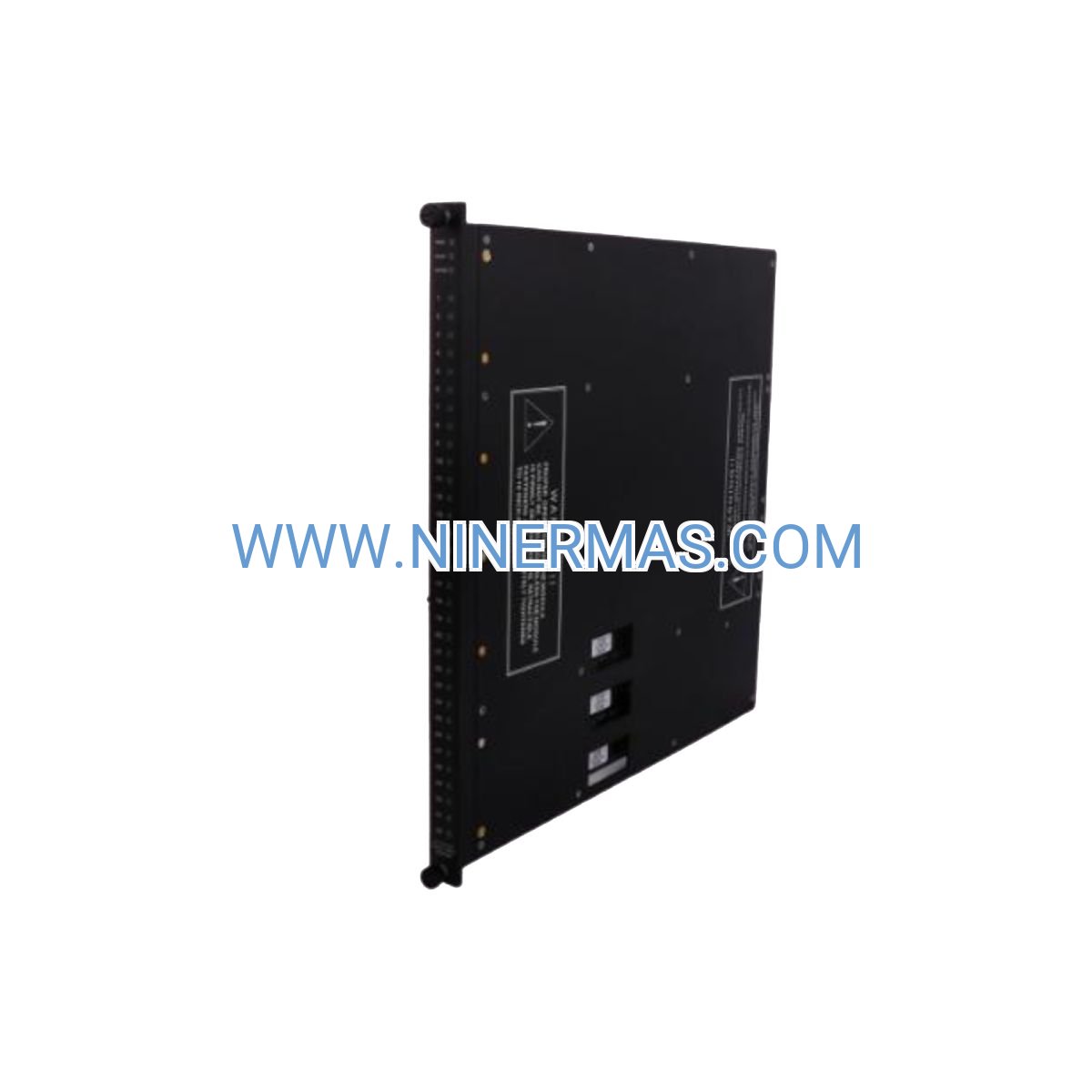

Industrial-Grade Triconex 3503F TMR Digital Input Module

The Triconex 3503F represents the pinnacle of safety-critical input monitoring technology for process industries worldwide. This 32-channel digital input module leverages Triple Modular Redundant architecture to deliver uninterrupted signal acquisition even when individual components fail, ensuring your safety instrumented systems maintain SIL 3 integrity throughout their operational lifecycle. Designed for environments where sensor reliability directly impacts personnel safety and asset protection, the 3503F transforms discrete field signals into actionable safety logic with microsecond precision and zero compromise on availability.

Process engineers and safety system integrators rely on the 3503F to bridge the gap between field instrumentation and safety controllers in refineries, chemical plants, offshore platforms, and power generation facilities. Whether you're monitoring emergency stop circuits, flame detection arrays, or critical process interlocks, this module provides the redundancy and diagnostic depth required to meet IEC 61508 certification standards while simplifying maintenance workflows through hot-swap capability and comprehensive self-diagnostics.

Built on decades of proven Triconex engineering, the 3503F delivers measurable risk reduction through continuous voting logic that automatically compensates for single-point failures without operator intervention. When combined with Triconex controllers and output modules, it forms a complete safety layer capable of achieving risk reduction factors exceeding 10,000:1—the benchmark for high-demand safety applications in hazardous process environments.

Core Features & Business Value

✓ Triple Modular Redundant Architecture
Three independent input circuits per channel continuously compare readings and vote on the correct state. If one circuit develops a fault, the system maintains full operational capability using the two remaining channels while generating maintenance alerts—eliminating spurious trips that cost facilities an average of $500K per unplanned shutdown.

✓ 32 Discrete Input Channels
Monitor up to 32 field devices per module with 24V DC nominal operation (18-30V range). Each channel accepts dry contact closures or voltage-sourced signals with channel-to-channel isolation preventing ground loop interference—critical for accurate signal acquisition in electrically noisy industrial environments.

✓ SIL 3 Certification Compliance
Factory-certified to IEC 61508 Safety Integrity Level 3 with documented proof test intervals and failure rate data. Meets regulatory requirements for safety instrumented functions in OSHA PSM, API RP 754, and international process safety standards without requiring additional validation testing.

✓ Hot-Swappable Installation
Replace modules during live operation without system shutdown or process interruption. Automatic configuration recognition and sub-second synchronization reduce mean time to repair by 75% compared to non-redundant systems, translating to improved safety availability and lower maintenance labor costs.

✓ Advanced Diagnostic Capabilities
Built-in self-testing detects open circuits, short circuits, wiring faults, and module degradation before they compromise safety functions. Real-time status reporting through TriStation software enables predictive maintenance strategies that extend equipment life and prevent unexpected failures.

✓ Proven Backward Compatibility
Drop-in replacement for legacy 3503 and 3503E modules with identical footprint and pinout. Retrofit existing Triconex systems without controller reprogramming or extensive rewiring—reducing upgrade costs by up to 60% while gaining enhanced diagnostic features and extended product support.

Application Scenarios

→ Emergency Shutdown Systems (ESD)
In offshore oil platforms and onshore production facilities, the 3503F monitors critical shutdown initiators including high-pressure switches, low-level sensors, and emergency stop pushbuttons. When hazardous conditions develop, the module's ≤10ms response time ensures safety logic executes before process parameters exceed safe operating limits, preventing equipment damage and protecting personnel from exposure to toxic releases or fire scenarios.

→ Fire & Gas Detection Networks
Chemical processing plants deploy the 3503F to interface with multi-point combustible gas detectors, toxic gas sensors, and optical flame detectors. The TMR architecture eliminates false alarms caused by single-sensor failures while ensuring genuine hazard conditions trigger immediate response actions—maintaining the delicate balance between safety and operational continuity that defines modern process safety management.

→ Burner Management Systems (BMS)
Power generation facilities and industrial boilers utilize the 3503F to track flame scanner outputs, air flow proving switches, fuel valve limit switches, and purge confirmation signals. Compliance with NFPA 85 and FM approval requirements demands the fault-tolerant monitoring that only TMR input modules can provide, preventing furnace explosions that result in catastrophic equipment loss and extended outages.

→ Turbomachinery Protection
Compressor stations and gas turbine installations rely on the 3503F to capture vibration monitor trip outputs, bearing temperature alarms, overspeed detection signals, and lube oil pressure switches. The module's isolation specifications prevent electrical noise from rotating equipment from corrupting safety signals, ensuring protection systems respond accurately to genuine mechanical failures while ignoring transient electrical disturbances.

→ Pipeline Leak Detection
Midstream operators integrate the 3503F with fiber optic leak detection systems, pressure differential monitors, and valve position feedback devices to create comprehensive pipeline integrity monitoring solutions. When combined with Triconex safety logic, the system can automatically isolate pipeline segments within seconds of detecting anomalous conditions—minimizing environmental impact and regulatory exposure from product releases.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3503F when your application requires SIL 3 certification, continuous availability during component failures, or compliance with IEC 61508 functional safety standards. For non-safety-critical monitoring with lower channel counts, consider standard digital input modules. When field devices are located more than 100 meters from the control room, pair with remote I/O extenders to minimize voltage drop and improve signal integrity. Verify that your existing Triconex chassis has available slots and sufficient backplane power capacity (5W per module) before ordering.

Extended Functions

Remote Monitoring Integration: The 3503F seamlessly connects to SCADA systems and plant historians through Triconex communication modules, enabling real-time safety system status visualization from centralized control rooms. OPC UA and Modbus TCP protocols support integration with third-party analytics platforms for predictive maintenance and safety performance trending.

Cybersecurity Hardening: When deployed with Triconex TriStation 1131 software version 4.12 or later, the module benefits from enhanced authentication protocols and encrypted configuration downloads that meet IEC 62443 industrial cybersecurity standards—critical for facilities subject to NERC CIP or TSA pipeline security directives.

Custom Configuration Options: Factory pre-configuration services are available for large-scale deployments requiring standardized I/O assignments, custom diagnostic thresholds, or specific voting logic parameters. Pre-configured modules reduce commissioning time by up to 40% and eliminate configuration errors that can delay startup schedules.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited processing available for emergency replacement scenarios with 24-hour turnaround on in-stock units.

Warranty Coverage: Every Triconex 3503F includes a comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for up to 5 years with priority replacement services and advance exchange options to minimize downtime.

Technical Support: Our certified Triconex specialists provide configuration assistance, troubleshooting guidance, and application engineering support throughout the product lifecycle. Access to TriStation software training resources, wiring diagrams, and integration best practices documentation included with every purchase.

Documentation Package: Each module ships with installation manual, safety certification documents, dimensional drawings, terminal block wiring diagrams, and TriStation configuration templates. Digital copies available for download immediately upon order confirmation.

Frequently Asked Questions

How does the TMR voting mechanism handle sensor failures?
The 3503F employs 2-out-of-3 voting logic where each input channel has three independent circuits. If one circuit detects a different state than the other two, the majority vote determines the reported value while the discrepancy triggers a diagnostic alarm. This allows the system to continue operating safely while maintenance teams investigate the fault—preventing both dangerous failures and nuisance trips.

What field wiring changes are required when upgrading from standard input modules?
None. The 3503F uses identical terminal block pinouts as non-redundant modules, accepting standard single-wire-per-channel connections. The TMR redundancy is entirely internal to the module and controller architecture, eliminating the cost and complexity of triplicated field wiring while still achieving SIL 3 certification.

Can the module interface with both 2-wire and 3-wire proximity sensors?
Yes. The field-selectable sourcing/sinking configuration accommodates 2-wire proximity switches, 3-wire NPN/PNP sensors, dry contact relays, and voltage-sourced signals. Internal jumpers allow customization per 8-channel group to match your specific field device requirements without requiring external signal conditioning.

What diagnostic information is available during commissioning and operation?
TriStation software displays real-time channel status, voting discrepancies, fault timestamps, and historical alarm logs. Front-panel LEDs provide instant visual confirmation of power status, communication health, and fault conditions. Diagnostic data can be exported to maintenance management systems for trend analysis and reliability reporting.

How quickly can a failed module be replaced in an operating system?
The hot-swap design allows module removal and insertion while the system runs. Upon insertion, the controller automatically recognizes the new module, downloads the configuration, and synchronizes within one scan cycle (typically <20ms). No manual intervention or system restart required—maintenance teams can complete replacements in under 5 minutes.

Does the module support integration with wireless field devices?
While the 3503F itself accepts hardwired inputs, it can interface with wireless I/O gateways that convert WirelessHART or ISA100 signals to discrete 24V DC outputs. This enables integration of wireless sensors in remote or hazardous locations while maintaining the safety integrity of the TMR input architecture.

Take the Next Step

Enhance your safety instrumented system with the industry-proven Triconex 3503F Digital Input Module. Our team is ready to assist with technical specifications, compatibility verification, and integration planning. Contact us today for application-specific recommendations and volume pricing for multi-module projects.
