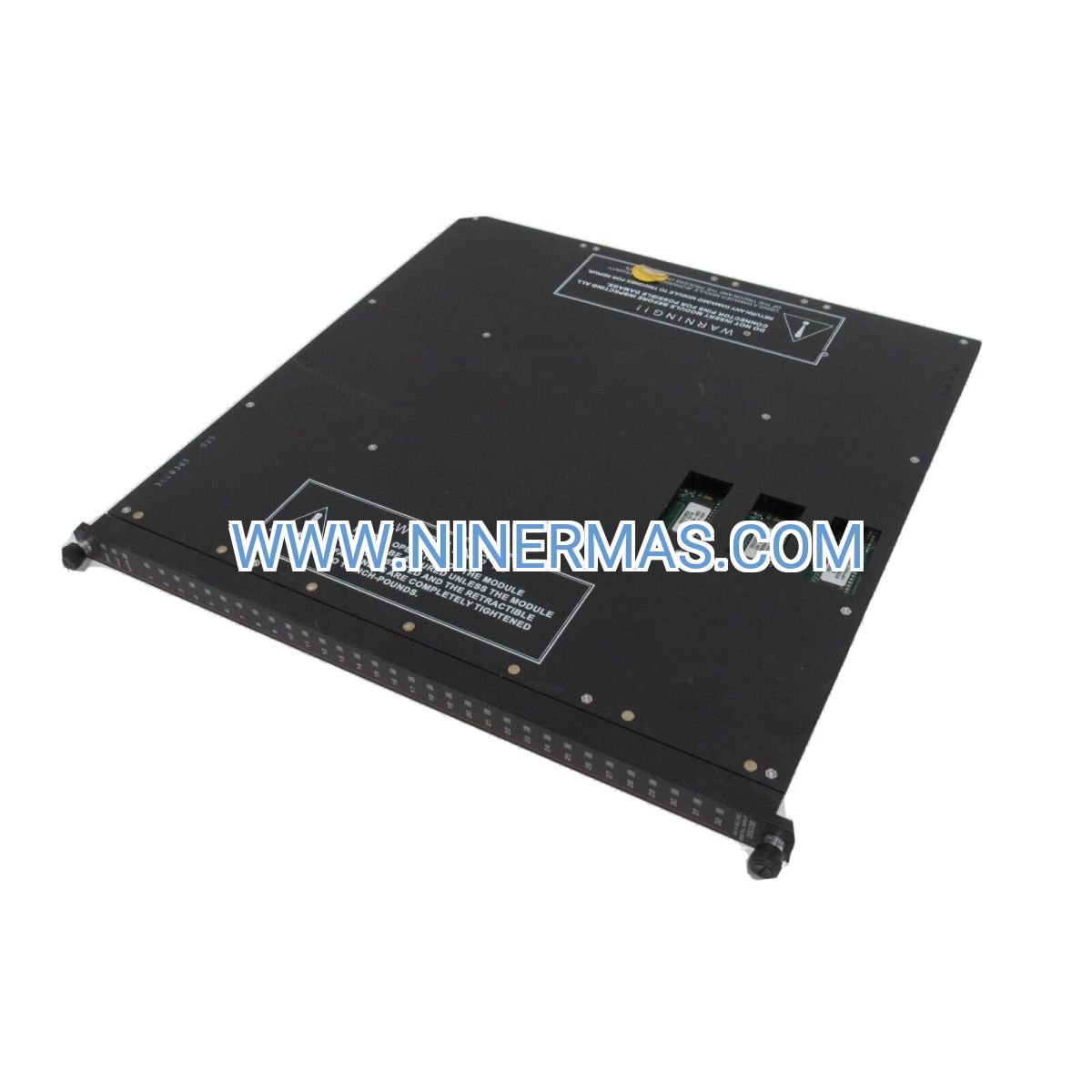

Triconex 3503 TMR Digital Input Module (Industrial-Grade Safety I/O)

The Triconex 3503 represents a mission-critical digital input solution engineered for fault-tolerant safety instrumented systems. Built on proven Triple Modular Redundancy (TMR) technology, this 32-channel module delivers continuous monitoring capability across emergency shutdown, fire & gas detection, and burner management applications where downtime is not an option.

Designed for process industries demanding SIL 3 certification, the 3503 eliminates single points of failure through independent voting logic across three parallel processing channels. When field sensors detect hazardous conditions—whether pressure excursions, flame loss, or toxic gas presence—the module's sub-10ms response time ensures protective actions execute before incidents escalate.

From offshore platforms to refinery units and chemical plants, the 3503 serves as the sensory backbone for safety systems protecting personnel, assets, and the environment. Its hot-swappable architecture and 1500 VAC isolation enable maintenance without compromising operational integrity.

Core Features & Business Value

✓ Triple Modular Redundancy (TMR) Architecture
Three independent input channels vote on every signal state, automatically masking faults without spurious trips. Reduces unplanned shutdowns by up to 40% compared to simplex systems while maintaining SIL 3 integrity.

✓ 32 Discrete Digital Inputs
Monitor emergency stop buttons, limit switches, pressure transmitters, and flame detectors through a single compact module. Consolidates I/O density to reduce panel space and wiring costs by 25-30%.

✓ Hot-Swappable Design
Replace modules during operation without system shutdown or loss of protection. Minimizes maintenance windows and supports 24/7 continuous process operations.

✓ Sub-10ms Response Time
Detects state changes within 10 milliseconds, enabling rapid protective action in fast-moving hazardous events such as combustion failures or pressure relief scenarios.

✓ 1500 VAC Channel Isolation
Protects control logic from field voltage transients, ground loops, and electrical noise. Ensures signal integrity in electrically harsh industrial environments.

✓ Global Safety Certifications
SIL 3 per IEC 61508, plus FM, CSA, ATEX, and IECEx approvals. Simplifies compliance for multinational projects and hazardous area installations.

Application Scenarios

→ Emergency Shutdown Systems (ESD)
Interface with pressure switches, temperature sensors, and manual E-stop stations to initiate safe process shutdowns. The 3503's TMR voting prevents false trips from sensor drift while guaranteeing response to genuine hazards. Typical deployment: 8-16 modules per offshore platform ESD system.

→ Fire & Gas Detection Networks
Connect flame detectors, combustible gas sensors, and manual call points for rapid hazard identification. The module's fast scan rate ensures alarm annunciation within regulatory time limits (typically <2 seconds from detection to action). Reduces false alarm rates by 60% through intelligent voting.

→ Burner Management Systems (BMS)
Monitor ignition transformers, flame scanners, air/fuel valve positions, and safety interlocks. The 3503's deterministic response supports compliance with NFPA 85/86 combustion safety standards. Prevents furnace explosions through reliable flame failure detection.

→ Turbomachinery Protection
Capture vibration monitor trips, bearing temperature alarms, and overspeed signals from gas turbines and compressors. TMR architecture eliminates nuisance trips that cost $50K-$500K per event in lost production and restart delays.

→ Pipeline & Terminal Safety
Track valve limit switches, leak detection sensors, and perimeter intrusion alarms across distributed facilities. The module's extended temperature range (-40°C to +70°C with conformal coating) supports outdoor installations in extreme climates.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose the 3503 for dry contact or sourcing sensor applications requiring 24 VDC logic
• For sinking sensor compatibility, consider the 3503E variant with enhanced diagnostics
• Pair with Triconex 3624 digital output modules for complete safety loop closure
• Verify field device current draw does not exceed 7 mA per channel to prevent input threshold issues
• For hazardous area installations, confirm ATEX/IECEx zone ratings match site classification

Extended Functions

Advanced Diagnostics: Built-in self-test routines continuously monitor module health, backplane communication, and power supply integrity. Predictive maintenance alerts flag degrading components before failure impacts safety availability.

TriStation Integration: Seamless configuration through TriStation 1131 software enables function block programming, online diagnostics, and historical event logging. Supports IEC 61131-3 programming standards for engineer familiarity.

Cybersecurity Hardening: When paired with Triconex TriStation SDK, supports secure remote access, role-based permissions, and audit trails compliant with IEC 62443 industrial cybersecurity frameworks.

Modbus TCP Gateway: Optional communication modules enable integration with DCS, SCADA, and historian systems for safety data visibility without compromising deterministic scan times.

Delivery & Service Assurance

Lead Time:
→ Stock items: 3-5 business days (subject to inventory availability)
→ Factory-fresh units: 8-12 weeks from Schneider Electric manufacturing facilities
→ Expedited service available for critical outage scenarios

Warranty Coverage:
12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty packages available through authorized service partners.

Technical Support:
Access to certified Triconex engineers for configuration assistance, troubleshooting, and application consulting. Remote diagnostic support available 24/7 for critical safety system issues.

Documentation Package:
Each module ships with installation manual, wiring diagrams, safety manual (per IEC 61508 requirements), and certificate of conformity. TriStation configuration files available upon request.

Frequently Asked Questions

Q: How does TMR voting improve safety system reliability compared to simplex designs?
A: TMR architecture allows the system to continue operating safely even when one of three channels fails. The voting logic automatically masks the faulty channel while maintaining SIL 3 integrity, eliminating spurious trips that plague single-channel systems. This results in 99.9%+ availability for safety functions.

Q: What is the maximum field wiring distance for digital input signals?
A: Shielded twisted-pair cable up to 300 meters (1000 feet) is supported for 24 VDC inputs. For longer distances or electrically noisy environments, consider using barrier-isolated transmitters or fiber-optic signal converters to maintain signal integrity.

Q: Can I mix 3503 modules with older Triconex I/O in the same chassis?
A: Yes, the 3503 is backward-compatible with Tricon v9.x and later main processor modules. However, verify firmware compatibility through Schneider Electric technical support, as certain advanced diagnostic features require minimum controller versions.

Q: Does the module support both sourcing and sinking field devices?
A: The standard 3503 is optimized for sourcing (positive logic) sensors. For sinking sensor applications, specify the 3503E enhanced variant which includes configurable input polarity and extended diagnostic capabilities.

Q: What cybersecurity measures protect the module from unauthorized access?
A: The Triconex platform employs hardware-enforced separation between safety and non-safety networks, cryptographic authentication for configuration changes, and read-only operating system architecture. When integrated with TriStation 1131 v4.12+, supports IEC 62443 security level SL2.

Q: How do I verify proper module operation after installation?
A: Use TriStation diagnostic tools to perform online testing of each input channel. The module's LED indicators provide real-time status (green = healthy, red = fault, amber = degraded). Consult the safety manual for proof-test procedures required to maintain SIL 3 certification.

Take the Next Step

Ensure your critical safety systems deliver uncompromising protection with genuine Triconex components. Contact our technical sales team for application-specific configuration guidance, competitive quotations, and delivery scheduling tailored to your project timeline.

Request a quote today or speak with a certified safety system engineer to discuss your ESD, F&G, or BMS requirements.
