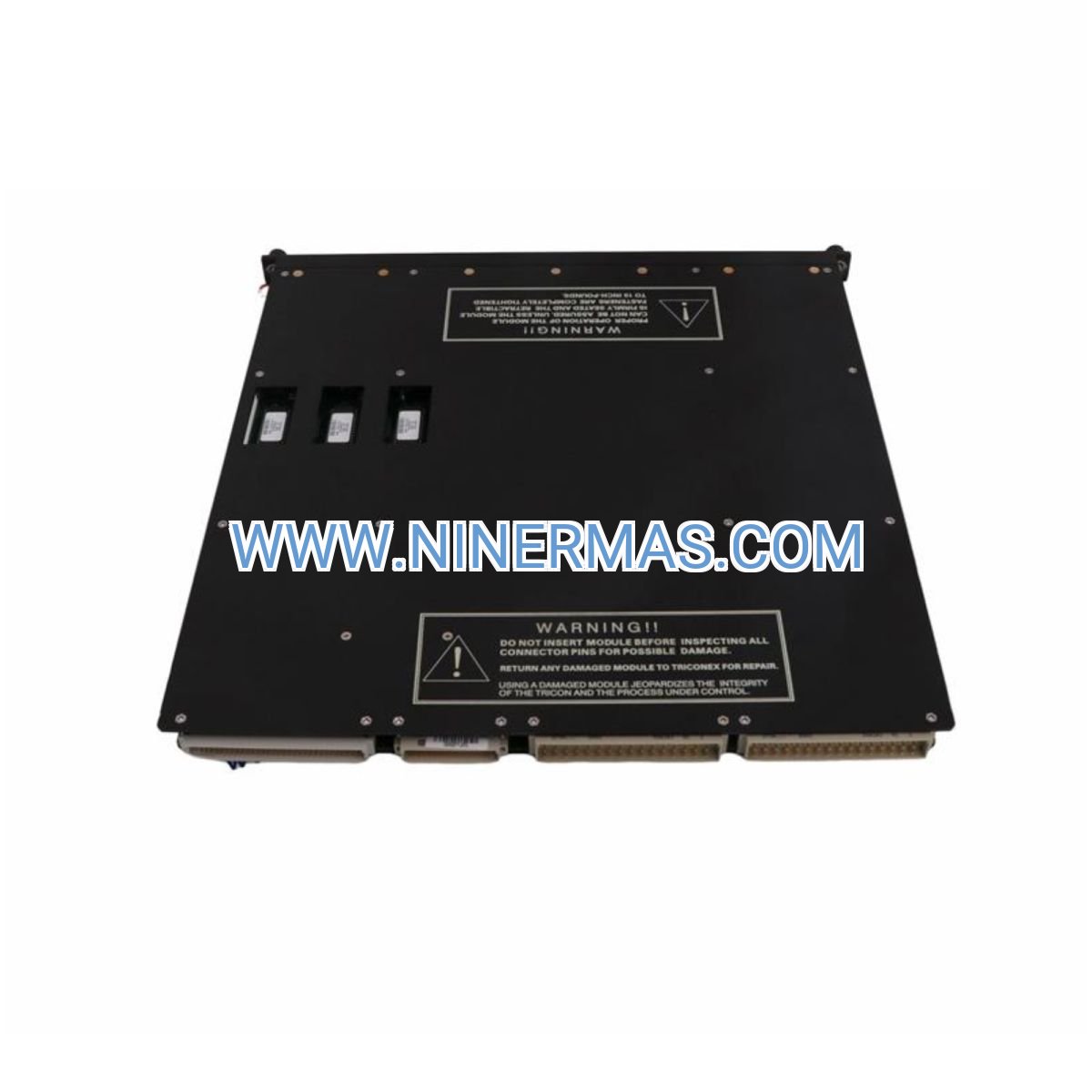

Triconex 3501T Digital Input Module (Industrial-Grade TMR Safety Controller)

The Triconex 3501T represents a proven solution for safety-critical digital signal acquisition in high-consequence industrial environments. Built on Triple Modular Redundant architecture, this 32-channel input module transforms discrete field signals into fault-tolerant data streams that protect personnel, assets, and production continuity. Designed for oil refineries, chemical plants, power stations, and pharmaceutical facilities where safety instrumented systems must meet IEC 61508 SIL 3 requirements without compromise.

Process industries face escalating regulatory demands and zero-tolerance safety expectations. Traditional single-channel input systems create vulnerability—a single component failure can blind operators to critical hazards or trigger unnecessary shutdowns. The 3501T eliminates this risk through continuous triple-channel voting that detects faults instantly while maintaining uninterrupted operation. Whether monitoring emergency stop circuits, flame detectors, or toxic gas sensors, this module delivers deterministic response when milliseconds matter.

What sets the 3501T apart is its combination of proven TMR technology with practical operational benefits: hot-swappable replacement during live operation, comprehensive channel-level diagnostics accessible through TriStation software, and field-proven reliability across millions of installed I/O points worldwide. For safety engineers and plant managers seeking regulatory compliance without sacrificing uptime, the 3501T provides the foundation for dependable emergency shutdown and process safety systems.

Core Features & Benefits

→ Triple Modular Redundancy (TMR) Architecture
Three independent processing channels execute identical logic and cross-compare results every scan cycle. Automatic fault masking maintains operation even when one channel fails, while diagnostic alerts guide maintenance teams to the affected circuit—eliminating single points of failure that plague conventional input systems.

→ 32 Isolated Digital Input Points
High-density channel configuration reduces cabinet footprint and wiring complexity. Each input features optical isolation to prevent ground loops and electrical noise from compromising signal integrity, critical for reliable operation in electrically harsh industrial environments with VFDs, welders, and high-power switching equipment.

→ 115 VAC/VDC Universal Input Compatibility
Accepts both AC and DC discrete signals from field devices including relay contacts, proximity sensors, limit switches, and push buttons. Eliminates need for external signal conditioning while simplifying spare parts inventory—one module type handles diverse input requirements across your facility.

✓ IEC 61508 SIL 3 Certification
TÜV-certified for Safety Integrity Level 3 applications with proven failure rates and diagnostic coverage. Meets global functional safety standards required for emergency shutdown systems, burner management, and high-demand safety functions—providing documentation auditors demand and the reliability your operations require.

✓ Hot-Swappable Online Replacement
Replace failed modules during live operation without interrupting safety protection or halting production. Removable terminal blocks and keyed connectors prevent mis-wiring during maintenance, reducing mean time to repair from hours to minutes while maintaining continuous safety coverage.

✓ Sub-10ms Response Time
Deterministic input scanning delivers consistent response to safety events. Fast signal acquisition ensures emergency shutdown sequences initiate within specified time budgets, critical for preventing runaway reactions, overpressure events, and other time-sensitive hazards in process industries.

Application Scenarios

Oil & Gas Production Facilities
Emergency shutdown systems protecting offshore platforms, FPSOs, and onshore processing plants rely on 3501T modules to monitor critical shutdown valves, fire and gas detectors, and process high-high alarms. When hydrogen sulfide sensors detect dangerous concentrations or pressure transmitters exceed safe operating limits, the 3501T's deterministic response initiates automated isolation sequences that prevent catastrophic releases—meeting API RP 14C and IEC 61511 requirements for offshore safety systems.

Chemical Manufacturing & Petrochemical Complexes
Reactor protection systems use 3501T modules to continuously monitor temperature switches, level sensors, and emergency stop circuits surrounding exothermic batch processes. The TMR architecture ensures that single-point failures in field wiring or sensor circuits never compromise safety—critical when handling toxic intermediates, flammable solvents, or runaway polymerization reactions where seconds determine whether an upset becomes a disaster.

Power Generation & Cogeneration Plants
Turbine control and boiler management systems depend on 3501T input modules for flame scanner monitoring, vibration trip circuits, and generator protection relays. Hot-swappable capability allows maintenance during scheduled outages without de-energizing safety circuits, while SIL 3 certification satisfies NERC CIP requirements and insurance underwriter demands for critical infrastructure protection.

Pharmaceutical & Biotechnology Production
Clean room environmental monitoring and fermentation safety systems utilize 3501T modules to track differential pressure switches, temperature limits, and sterile barrier integrity sensors. The module's diagnostic capabilities provide audit trails required for FDA 21 CFR Part 11 compliance, while TMR reliability prevents batch losses worth millions when contamination or temperature excursions threaten product quality.

Water Treatment & Municipal Infrastructure
Chlorine gas detection systems and high-service pump protection schemes employ 3501T modules to monitor toxic gas sensors and critical valve position switches. The module's ability to operate through single-channel faults ensures continuous public safety protection even when lightning strikes or rodent damage affects field wiring—critical for facilities serving populations that cannot tolerate service interruptions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3501T when your application requires 115 VAC or 115 VDC discrete input monitoring with SIL 3 safety integrity. For 24 VDC applications, consider the Triconex 3503E module instead. Verify that your field devices can source sufficient current to reliably drive the module's input impedance—typically 10-15 mA minimum. For applications mixing AC and DC signals, deploy separate modules as mixing voltage types on a single module is not supported. Consult factory application engineers when integrating with legacy relay panels or unusual field device configurations.

Extended Functions

Advanced Diagnostic Capabilities: The 3501T provides granular fault reporting beyond simple channel status. Diagnostics identify TMR voting discrepancies, power supply anomalies, backplane communication errors, and individual channel wire-off conditions. TriStation software displays real-time channel states, historical fault logs, and predictive maintenance alerts—enabling condition-based maintenance strategies that reduce unplanned downtime.

Cybersecurity Integration: When deployed with Triconex controllers running firmware v11.3 or later, the 3501T participates in secure communication protocols that prevent unauthorized configuration changes and detect intrusion attempts. Role-based access controls and encrypted TriStation connections satisfy IEC 62443 industrial cybersecurity requirements increasingly mandated for critical infrastructure.

Third-Party System Integration: The module's input states are accessible to DCS platforms, SCADA systems, and plant historians through standard protocols including Modbus TCP, OPC DA/UA, and proprietary Triconex communication interfaces. This enables consolidated alarm management, production reporting, and enterprise-level analytics while maintaining the independence of safety-critical control logic.

Customization Options: Field-configurable input filtering allows adjustment of debounce times to match specific sensor characteristics—eliminating nuisance trips from chattering contacts while maintaining fast response to genuine safety events. Custom terminal block labeling and color-coded wiring schemes can be factory-installed to match customer specifications, reducing commissioning time and field wiring errors.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via express courier with full tracking. Custom configurations or large quantity orders typically require 4-6 weeks—contact our sales team for expedited production scheduling when project timelines are critical.

Warranty Coverage: Every 3501T module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes advance replacement service—we ship a replacement module before you return the failed unit, minimizing downtime during warranty claims.

Technical Support: Our application engineers provide pre-sale configuration assistance, integration guidance, and post-installation troubleshooting support. Access to technical documentation includes I/O wiring diagrams, TriStation configuration examples, and safety manual excerpts required for SIL verification calculations.

Documentation Package: Each module ships with installation instructions, safety manual supplement, and certificate of compliance. Complete technical manuals, CAD drawings, and SIL certification documents are available for download from our technical library—providing the documentation your safety engineers need for HAZOP studies and SIS design verification.

Frequently Asked Questions

Can the 3501T module be installed in an existing Triconex chassis without system shutdown?
Yes, the module supports hot-insertion into energized chassis backplanes. The TMR architecture automatically integrates the new module into the voting scheme within seconds of installation. However, best practice recommends using TriStation software to place the affected I/O in bypass mode before physical insertion to prevent transient fault alarms during the insertion process.

What is the maximum cable length between field devices and the 3501T input terminals?
For 115 VAC inputs, cable runs up to 300 meters (1000 feet) are typically acceptable using shielded twisted-pair wiring with proper grounding. DC input applications may require shorter runs or higher-impedance field devices to compensate for voltage drop—consult the installation manual's voltage drop calculations for your specific wire gauge and device current draw.

How does the 3501T improve safety system availability compared to simplex input modules?
TMR architecture enables online repair—you can replace a failed channel without taking the safety function offline or requesting a bypass from operations. This eliminates the dangerous practice of operating with degraded safety protection during maintenance windows. Field data shows TMR systems achieve 99.99%+ availability versus 98-99% for simplex architectures requiring shutdown for repairs.

Is special training required to configure and maintain 3501T modules?
Basic installation and replacement procedures can be performed by instrumentation technicians familiar with industrial I/O systems. However, safety logic programming and SIL verification require Triconex-certified engineers trained in TriStation software and IEC 61511 functional safety principles. We offer training courses and can recommend certified system integrators for complex projects.

Can I monitor 3501T input status from my existing DCS or SCADA system?
Yes, Triconex controllers provide multiple communication interfaces (Modbus TCP, OPC, proprietary protocols) that allow DCS/SCADA systems to read input states for operator displays and historical trending. However, safety-critical control logic executes independently within the Triconex controller—external systems can monitor but cannot override safety decisions, maintaining the separation required by IEC 61511.

What happens if all three TMR channels fail simultaneously on a single input point?
Simultaneous three-channel failures are extremely rare (probability <10⁻⁹ per year) but the system responds according to your configured fail-safe strategy. Most applications use "de-energize to trip" logic where loss of all channels triggers a safe shutdown. The TriStation software allows configuration of fail-safe behavior on a per-point basis to match your process hazard analysis requirements.
