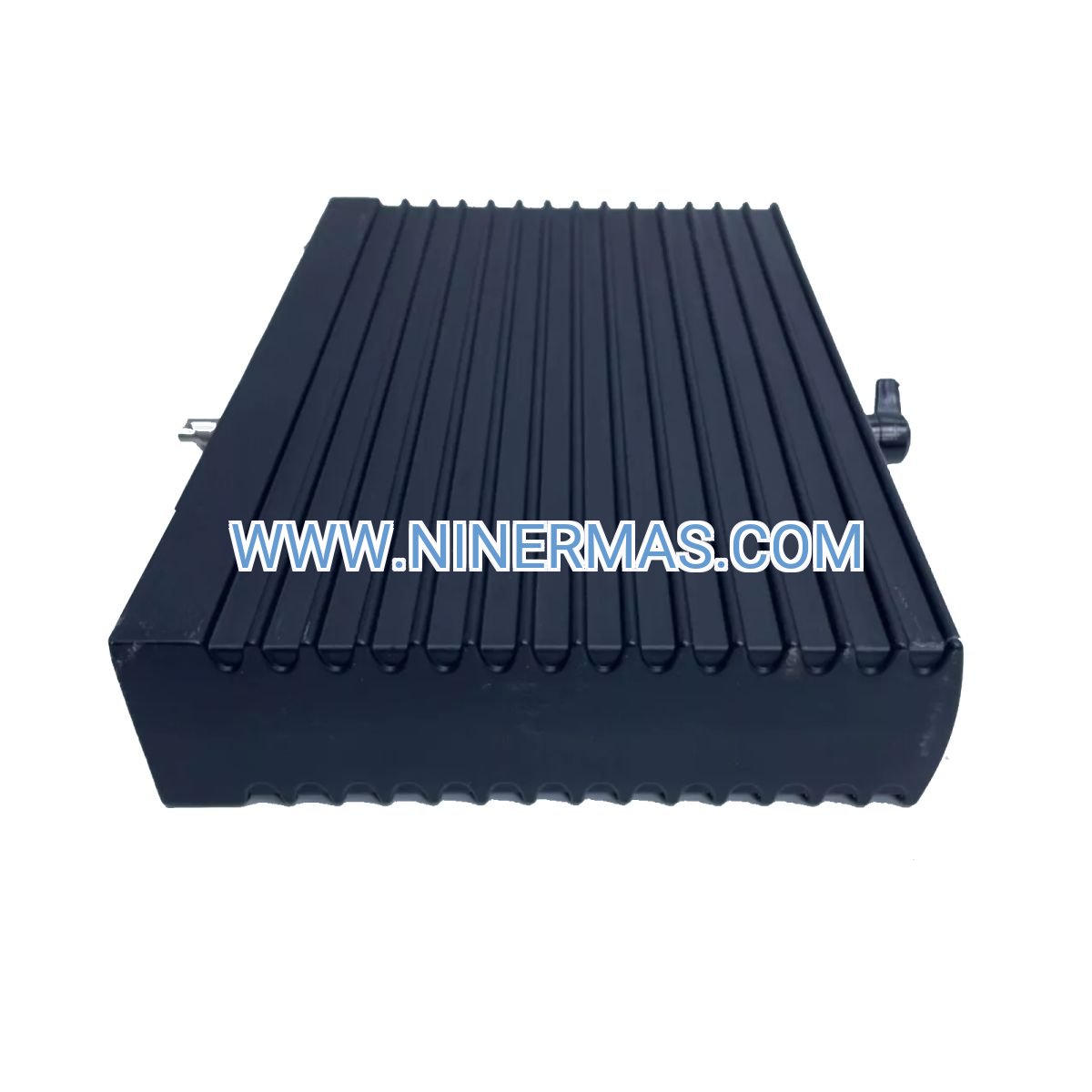

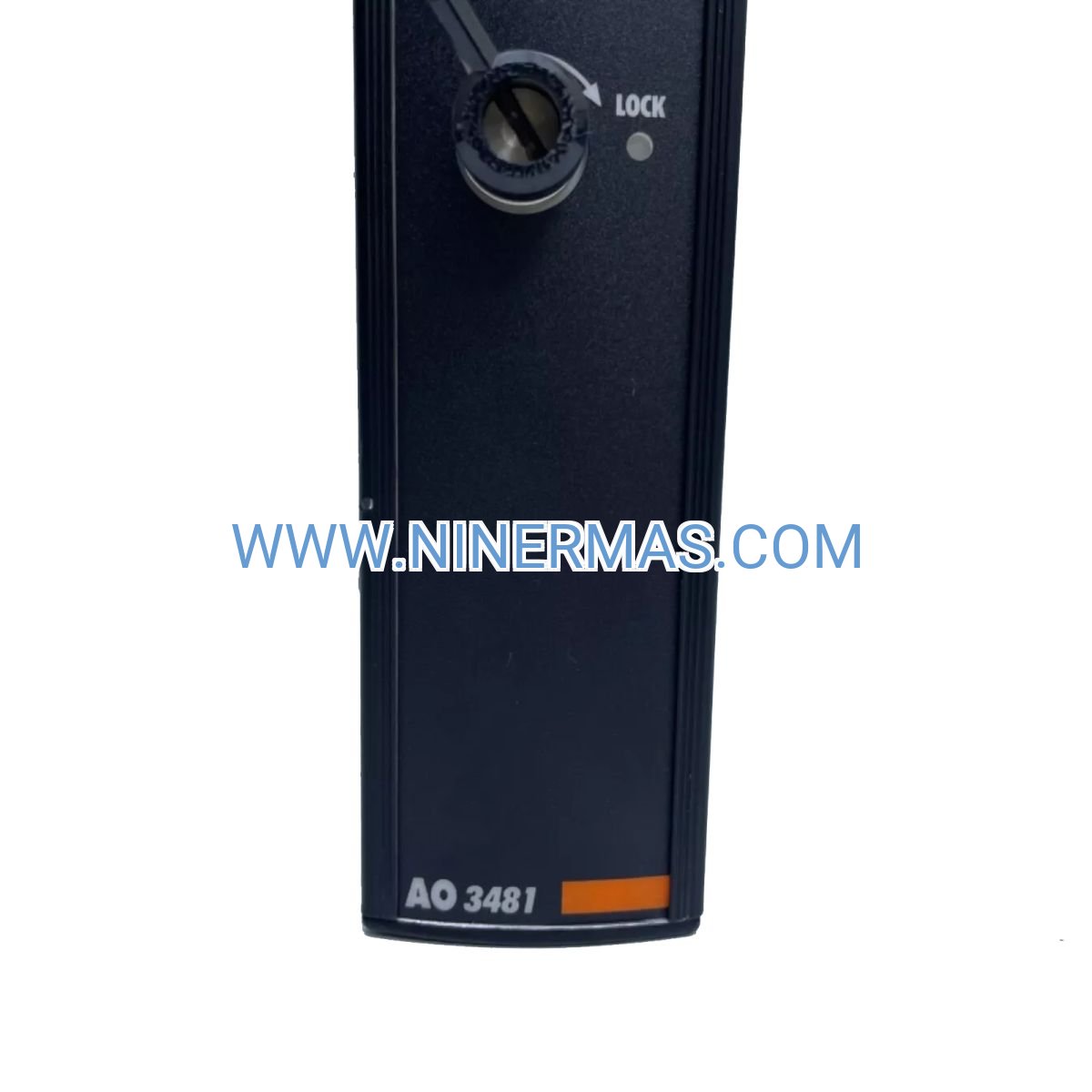

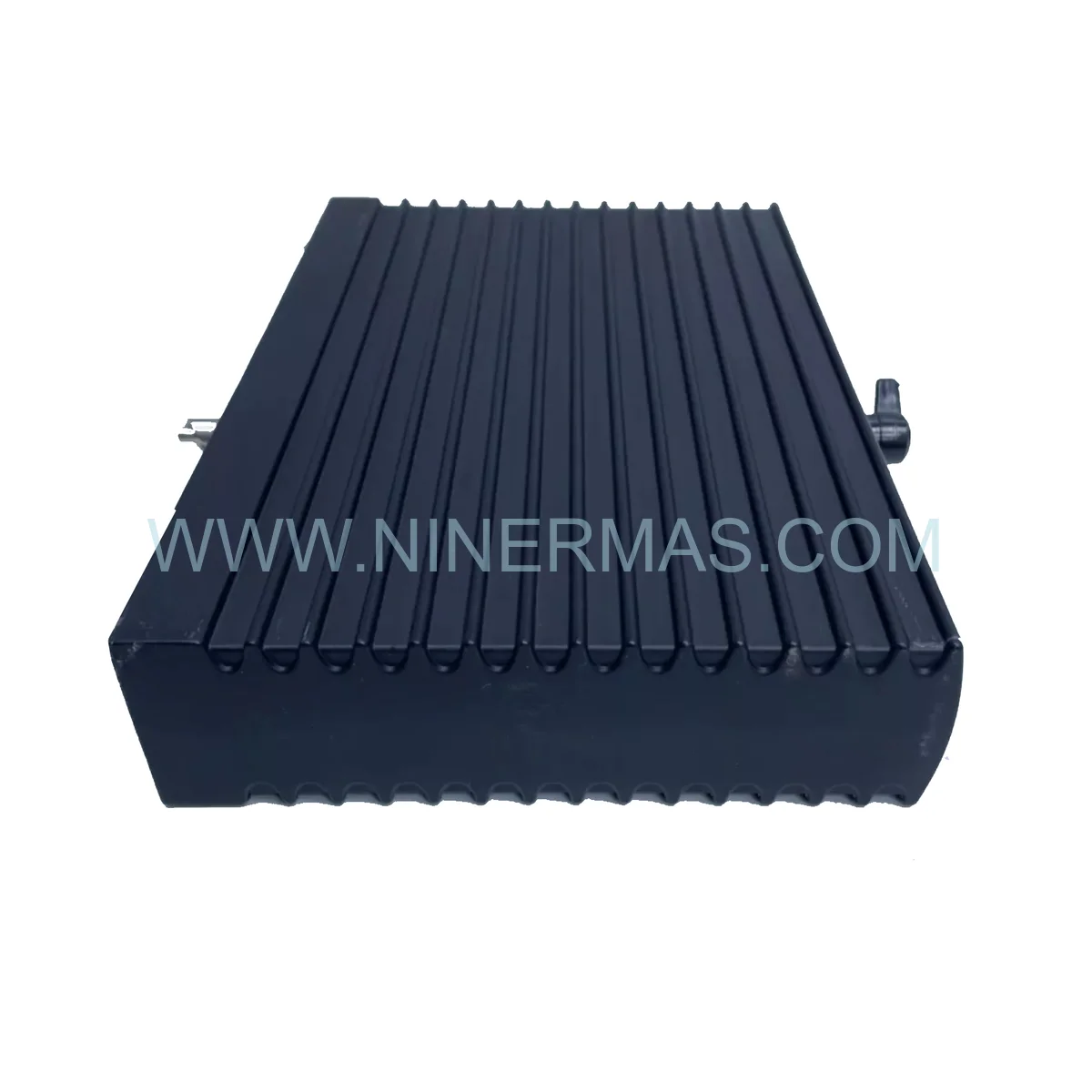

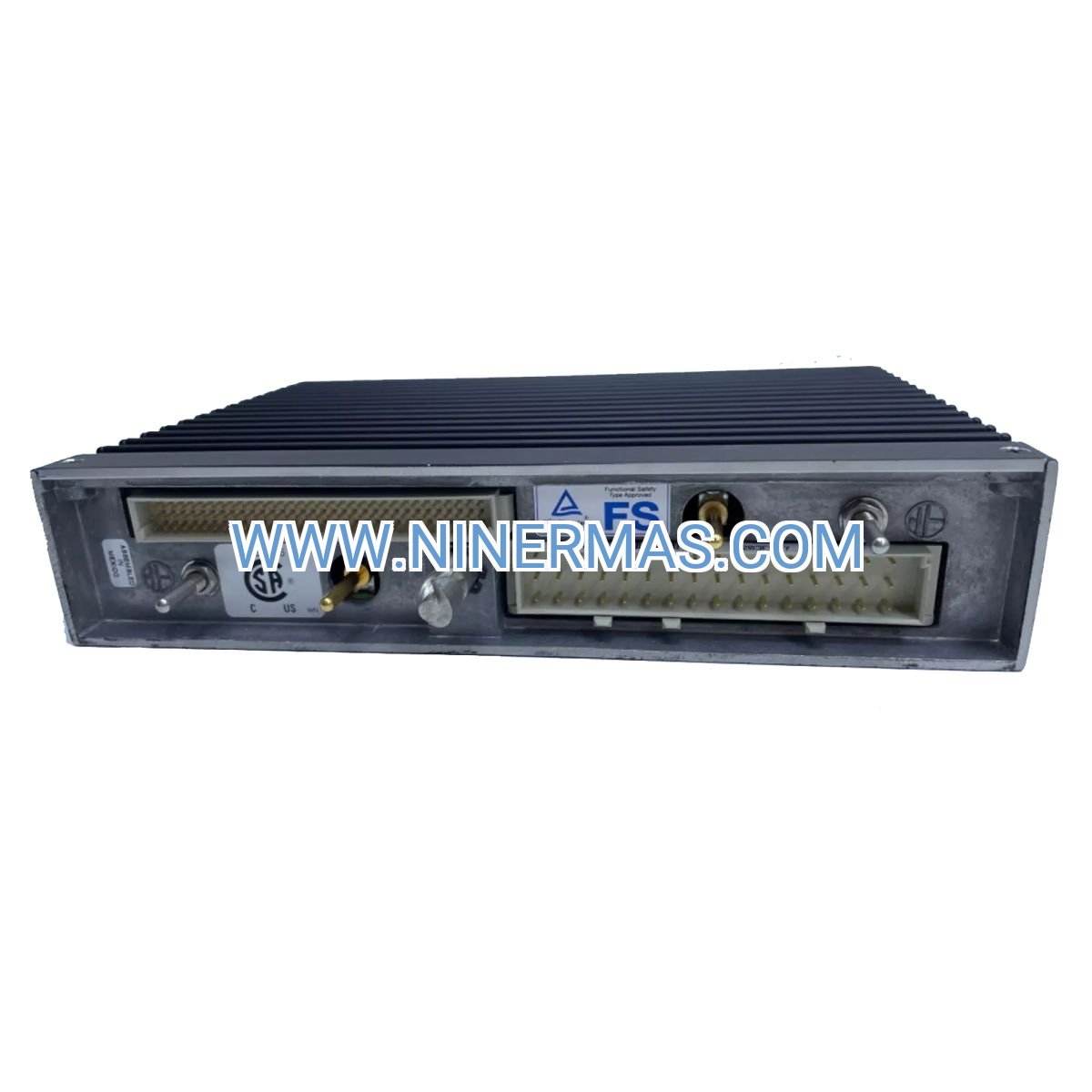

Triconex 3481 4-Channel Analog Output Module (Industrial-Grade TMR Safety I/O)

The Triconex 3481 is a fault-tolerant analog output module engineered for safety instrumented systems where process control accuracy and continuous uptime are non-negotiable. Designed around Triple Modular Redundant (TMR) architecture, this module delivers four independent 4-20 mA current loop outputs with commoned-return configuration, enabling precise control of final elements such as control valves, variable speed drives, and actuator positioning systems in hazardous industrial environments.

Built for sectors where equipment failure can trigger catastrophic consequences—oil refineries, chemical reactors, power turbines, and pharmaceutical clean rooms—the 3481 module provides SIL 3-certified protection with zero single-point failures. Its 12-bit resolution ensures granular control over process variables, while built-in diagnostics and hot-swap capability minimize maintenance windows and eliminate unplanned downtime.

Whether you're retrofitting legacy DCS systems or designing greenfield safety loops, the 3481 integrates seamlessly with Triconex TriStation programming environments and supports HART protocol for simultaneous analog control and digital asset management over standard two-wire installations.

Core Features & Benefits

→ Triple Modular Redundant Architecture
Three independent processing channels continuously cross-verify output signals. If one channel fails, the system automatically isolates the fault and maintains full control authority using the remaining two channels—ensuring zero process interruption during component degradation.

→ SIL 3 Safety Integrity Certification
Certified to IEC 61508 standards for use in Safety Instrumented Functions (SIF) with probability of failure on demand (PFD) below 10⁻³. Meets regulatory requirements for emergency shutdown systems, fire & gas detection, and burner management applications.

→ 12-Bit Output Resolution
4096 discrete signal levels provide 0.024% accuracy across the 4-20 mA range, enabling precise valve positioning, flow metering, and temperature control in processes requiring tight tolerance management.

→ Galvanic Isolation Protection
Channel-to-channel and channel-to-logic isolation eliminates ground loop interference, protects against voltage transients, and ensures signal integrity across extended cable runs up to 1000 meters in electrically noisy industrial environments.

→ HART Protocol Compatibility
Supports Highway Addressable Remote Transducer (HART) communication over the same 4-20 mA wiring, allowing simultaneous analog control and digital diagnostics without additional cabling infrastructure.

→ Hot-Swap Capability
Replace modules during live operation without system shutdown or process disturbance. The TMR voting mechanism maintains control using redundant channels while technicians service the third channel—critical for 24/7 continuous operations.

Application Scenarios

✓ Emergency Shutdown Systems (ESD) in Offshore Platforms
Challenge: Subsea blowout preventers require fail-safe valve actuation with redundant control paths to prevent environmental disasters.
Solution: The 3481's TMR architecture provides triple-redundant 4-20 mA signals to hydraulic actuators, ensuring valve closure even during simultaneous dual-channel failures. SIL 3 certification meets API RP 14C requirements for offshore safety systems.

✓ Reactor Temperature Control in Chemical Manufacturing
Challenge: Exothermic reactions demand precise coolant valve modulation to prevent thermal runaway and maintain product quality within ±0.5°C tolerance.
Solution: 12-bit resolution enables smooth valve positioning with minimal hysteresis, while diagnostic monitoring detects loop degradation before process deviations occur. HART integration provides real-time valve travel feedback for predictive maintenance.

✓ Turbine Governor Control in Power Generation
Challenge: Steam turbine speed regulation requires millisecond-level response to grid frequency fluctuations while maintaining N+1 redundancy for uninterrupted power delivery.
Solution: Configurable scan rates down to 10 ms enable rapid governor valve adjustment, while TMR voting ensures continuous control during module replacement or calibration activities.

✓ Clean Room Pressure Cascade in Pharmaceutical Production
Challenge: FDA-regulated sterile manufacturing requires documented control system validation with 21 CFR Part 11 compliance and zero contamination risk from control system failures.
Solution: SIL 3 certification simplifies validation documentation, while non-volatile calibration storage maintains accuracy across power cycles. Hot-swap capability eliminates cleanroom breaches during maintenance.

✓ Compressor Anti-Surge Control in LNG Facilities
Challenge: Centrifugal compressor protection requires sub-second valve actuation to prevent mechanical damage during flow reversals, with failure rates below 10⁻⁴ per year.
Solution: The 3481's fault-tolerant design meets API 670 machinery protection standards, while galvanic isolation protects against electrical faults in hazardous Zone 1 classified areas.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose the 3481 for standard 4-20 mA unipolar applications with commoned-return wiring
• For bipolar ±20 mA signals, specify the Triconex 3807 module instead
• If >4 channels are required, consider the 3806E (8-channel) for higher I/O density
• Verify termination panel compatibility: requires 9863-710 or 9863-710F field wiring panels
• Confirm loop power budget: 24 VDC supply must support (20 mA × load resistance) + module overhead

Extended Functions

Advanced Diagnostics Suite
Continuous monitoring of loop integrity, open-circuit detection, short-circuit identification, and out-of-range current detection. Diagnostic status reported via TriStation software with configurable alarm thresholds and event logging for regulatory compliance.

Calibration Management
Software-based zero and span adjustments eliminate potentiometer drift. Calibration coefficients stored in non-volatile EEPROM maintain accuracy across power cycles and module replacements. Supports NIST-traceable calibration procedures with audit trail documentation.

Redundant Communication Paths
Dual Tricon communication modules (TCM) provide redundant backplane connectivity. If one TCM fails, the module automatically switches to the backup path without interrupting I/O updates—critical for systems requiring 99.999% availability.

Customization Options
Factory configuration services available for pre-programmed output ranges, custom calibration tables, and application-specific diagnostic thresholds. Consult factory for lead times on customized modules.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock modules with factory-sealed packaging and full traceability documentation.

Custom Configuration: 10-15 business days for factory-programmed modules with customer-specific calibration and testing requirements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service with 24-hour shipment for critical applications.

Technical Support: Unlimited phone and email support for configuration assistance, troubleshooting guidance, and integration consulting. Remote diagnostic services available via secure VPN connections.

Documentation Package: Each module ships with installation manual, wiring diagrams, calibration certificates, and TriStation configuration examples. Additional resources include application notes, safety manual addendums, and IEC 61508 certification documents.

Frequently Asked Questions

Q: What termination hardware is required for field wiring connections?
A: The 3481 module requires Triconex termination panels—either the 9863-710 (standard) or 9863-710F (with fused outputs). These panels provide screw-terminal blocks for field wiring and facilitate organized cable management in control cabinets.

Q: Can the module drive multiple devices from a single output channel?
A: Yes, provided the total loop resistance remains below 600 Ω at 24 VDC supply voltage. For example, two 300 Ω devices can be wired in series on one channel. Parallel wiring is not recommended due to current splitting uncertainties.

Q: How does the TMR voting mechanism handle calibration drift across channels?
A: The system continuously compares outputs from all three channels. If one channel drifts beyond the configured tolerance (typically ±0.5%), the system flags a diagnostic alarm but continues operation using the median value of the three signals. This allows scheduled calibration without emergency shutdowns.

Q: Is the module compatible with legacy Tricon v9 controllers?
A: Yes, the 3481 is backward-compatible with all Tricon controller generations from v9 through current v11 platforms. Firmware updates may be required for advanced diagnostic features on older controllers—consult Triconex technical support for compatibility verification.

Q: What cable specifications are recommended for long-distance installations?
A: Use twisted-pair shielded cable (Belden 8761 or equivalent) with 18 AWG conductors for runs up to 1000 meters. Shield should be grounded at the module end only to prevent ground loops. For HART communication, cable capacitance must not exceed 65 pF/meter.

Q: Can output channels be individually disabled for maintenance without affecting other channels?
A: Yes, TriStation software allows per-channel enable/disable control. Disabled channels output 0 mA and are excluded from TMR voting, allowing technicians to isolate specific loops for testing or calibration while maintaining control on remaining channels.

Take the Next Step

Ready to enhance your safety instrumented system with proven TMR technology? Contact our application engineers for system integration consulting, custom configuration services, or technical specifications tailored to your process requirements. Request a quote today and receive detailed wiring diagrams, loop calculations, and SIL verification documentation within 24 hours.

Need immediate assistance? Our technical support team is available to discuss compatibility with your existing Triconex infrastructure, recommend optimal I/O configurations, and provide guidance on safety certification requirements for your industry.
