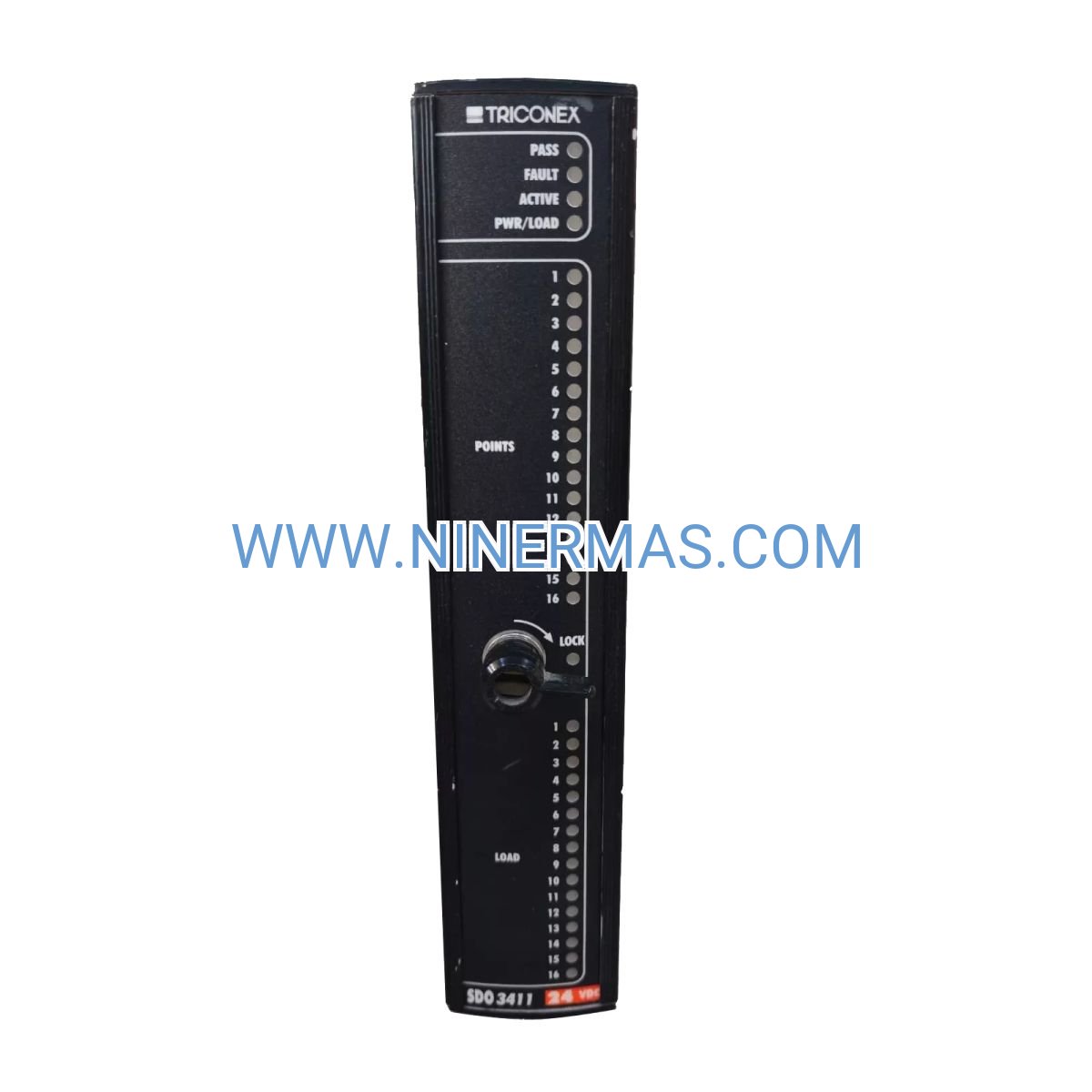

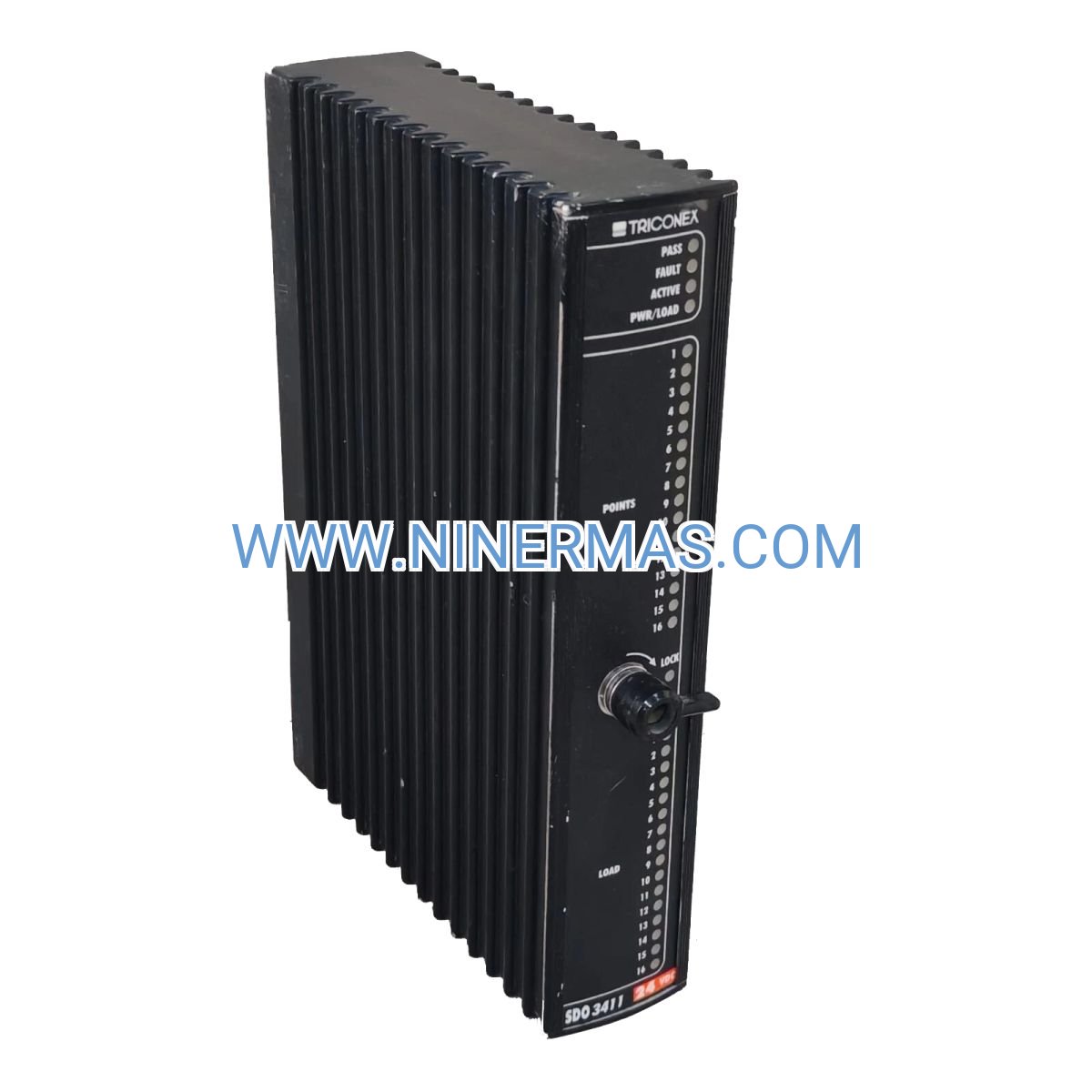

Triconex 3411 TMR Digital Output Module (Industrial-Grade Safety Control)

The Triconex 3411 represents a proven solution for safety-critical digital output control in high-stakes industrial environments. Built on Triple Modular Redundancy (TMR) technology, this 16-channel module provides fault-tolerant operation for emergency shutdown systems, process interlocks, and safety instrumented functions across oil & gas, chemical processing, and power generation facilities.

Designed for integration with Trident and Tricon safety platforms, the 3411 addresses the fundamental challenge of maintaining continuous protection while managing field device control. Target users include safety engineers, control system integrators, and plant maintenance teams who require IEC 61508 SIL 3 compliance without sacrificing operational flexibility. The module's hot-swap capability and >99% diagnostic coverage deliver both reliability and maintainability in a single package.

Key advantages include automatic fault masking through TMR voting logic, channel-level isolation to prevent cascade failures, and seamless compatibility with legacy Tricon v9+ systems. Whether you're upgrading aging safety infrastructure or designing new installations, the 3411 provides the foundation for scalable, certifiable protection layers.

Core Features & Benefits

✓ Triple Modular Redundancy (TMR) Architecture
Three independent output channels per point continuously cross-verify signals, automatically masking single-point failures while maintaining safe state control—eliminating unplanned shutdowns and reducing spurious trip rates by up to 90%.

✓ SIL 3 Safety Integrity Level Certification
IEC 61508 certified for the highest level of safety-critical applications, enabling compliance with industry regulations for emergency shutdown, fire & gas, and burner management systems—reducing liability exposure and insurance premiums.

✓ Hot-Swap Maintenance Capability
Replace modules during live operation without system shutdown or safety compromise, cutting maintenance windows from hours to minutes and preserving production continuity worth thousands per hour in high-value processes.

✓ Comprehensive Diagnostic Coverage (>99%)
Real-time monitoring detects open circuits, short circuits, overcurrent conditions, and voting mismatches with detailed fault logging—enabling predictive maintenance strategies that reduce emergency callouts by 60%.

✓ 16 Discrete 24VDC Output Channels
2A per channel drives solenoid valves, motor starters, and alarm devices directly, eliminating external relay panels and reducing installation costs by 30% while improving response times to sub-100ms levels.

✓ Channel-to-Channel Isolation
Electrical isolation prevents fault propagation between outputs and from field to logic circuits, protecting upstream processors from voltage transients and ground loops common in harsh industrial environments.

Application Scenarios

→ Oil & Gas Emergency Shutdown Systems (ESD)
In offshore platforms and refinery units, the 3411 controls critical isolation valves, blowdown systems, and depressurization sequences. When gas detectors trigger alarms, TMR voting ensures fail-safe valve closure even if one output channel fails—preventing catastrophic releases that could cost $50M+ in damages and regulatory penalties.

→ Chemical Reactor Protection & Interlock Systems
Manage exothermic reaction control through precise sequencing of cooling valves, agitator motors, and feed isolation. The module's deterministic response times enable tight process control during upset conditions, preventing runaway reactions while maintaining product quality in batch operations worth $100K+ per cycle.

→ Power Plant Turbine & Boiler Safety
Coordinate turbine trip systems, boiler flame monitoring, and generator protection relays across steam and gas turbine installations. Hot-swap capability allows maintenance during scheduled outages without extending downtime, preserving megawatt-hours of generation capacity.

→ Pharmaceutical Clean Room Environmental Control
Regulate differential pressure dampers, HEPA filter systems, and sterile barrier controls in GMP-compliant facilities. SIL 3 certification supports FDA validation requirements while TMR architecture prevents contamination events that could invalidate entire production batches.

→ Subsea Production Control Systems
Drive hydraulic control modules, subsea isolation valves, and Christmas tree actuators in deepwater installations where intervention costs exceed $500K per trip. The module's extended temperature range and vibration resistance withstand harsh subsea conditions for 20+ year service life.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3411 when your application requires SIL 3 safety integrity with 24VDC field device control. For higher channel density, consider the 3625A (32-channel variant). If your outputs drive AC loads or require relay isolation, pair with external interface modules. Verify that your Tricon/Trident chassis firmware is v9.0 or later for full compatibility. For new installations, budget one spare module per 10 installed for rapid fault recovery.

Extended Functions

IoT Integration & Remote Monitoring: The 3411 integrates with Triconex TriStation software for real-time diagnostics, configuration management, and alarm visualization. Export fault logs to SCADA systems via Modbus TCP or OPC UA for enterprise-level asset health monitoring and predictive maintenance analytics.

Advanced Voting Algorithms: Configure custom voting logic beyond standard 2oo3 (two-out-of-three) schemes, including 1oo2, 2oo2D (with diagnostics), and energize-to-trip vs. de-energize-to-trip modes to match specific safety requirements and failure mode analysis.

Customization Options: Factory configuration services available for pre-programmed output assignments, custom diagnostic thresholds, and application-specific firmware tuning. Consult with certified Triconex system integrators for hazardous area installations requiring ATEX/IECEx documentation packages.

Delivery & Service Assurance

Lead Time: Standard delivery 3-5 business days for in-stock units; custom-configured modules ship within 10-15 business days. Expedited shipping available for critical outage support.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for multi-year service agreements.

Technical Support: Access to certified Triconex engineers for configuration assistance, troubleshooting, and system integration consulting. Phone and email support included; on-site commissioning services available separately.

Documentation Package: Each module ships with installation manual, wiring diagrams, safety certification documents, and TriStation configuration files. Downloadable resources include application notes, firmware release notes, and interoperability matrices.

Frequently Asked Questions

Q: How does the Triconex 3411 TMR output module handle single-channel failures in safety-critical applications?
A: The TMR architecture continuously compares all three output channels using majority voting logic. When one channel fails, the system automatically masks the faulty channel and continues operating on the remaining two channels while generating a diagnostic alarm. This allows scheduled maintenance without emergency shutdowns, maintaining safety integrity throughout the repair cycle.

Q: What field devices can the 3411 module control directly without external relays?
A: The 2A per channel rating supports direct control of most industrial solenoid valves (1.5A typical), pilot-operated valve actuators, motor contactors up to 1.5HP, alarm horns/strobes, and indicator lamps. For higher-current loads like large motor starters or heaters, use the 3411 to drive intermediate relay modules rated for the specific load.

Q: Can I retrofit the 3411 into existing Tricon systems without upgrading the entire chassis?
A: Yes, the 3411 is backward-compatible with Tricon v9 and later main processors. Verify your chassis firmware version through TriStation software before ordering. Systems running v8.x or earlier require main processor upgrades to support the 3411's enhanced diagnostic features. Consult factory documentation for specific compatibility matrices.

Q: What diagnostic information does the module provide for predictive maintenance programs?
A: The 3411 logs open circuit detection, short circuit events, overcurrent conditions, TMR voting mismatches, channel-to-channel deviation percentages, and cumulative operating hours per channel. Export this data via TriStation to maintenance management systems for trend analysis, enabling replacement scheduling before failures occur.

Q: How do I configure the 3411 for energize-to-trip versus de-energize-to-trip safety logic?
A: Output polarity is configured through TriStation software during system programming. De-energize-to-trip (fail-safe closed) is standard for most ESD applications, ensuring valves close on power loss. Energize-to-trip mode suits applications where the safe state requires active output, such as fire suppression deluge valves. Configuration changes require safety review and revalidation per IEC 61511 procedures.

Q: What installation requirements ensure optimal performance in high-EMI industrial environments?
A: Route output wiring in grounded metal conduit separate from AC power cables (minimum 12-inch separation). Use shielded twisted-pair cable for runs exceeding 100 feet, grounding shields at the module end only. Install surge suppressors on inductive loads (solenoid valves, contactors) to prevent voltage spikes. Maintain chassis grounding resistance below 1 ohm to equipment ground.

Get Started with Triconex 3411 Safety I/O

Ready to enhance your safety instrumented system with proven TMR technology? Contact our technical sales team for application-specific configuration guidance, compatibility verification, and volume pricing. Request a detailed quotation including recommended spare parts, installation accessories, and commissioning support packages tailored to your project timeline.
