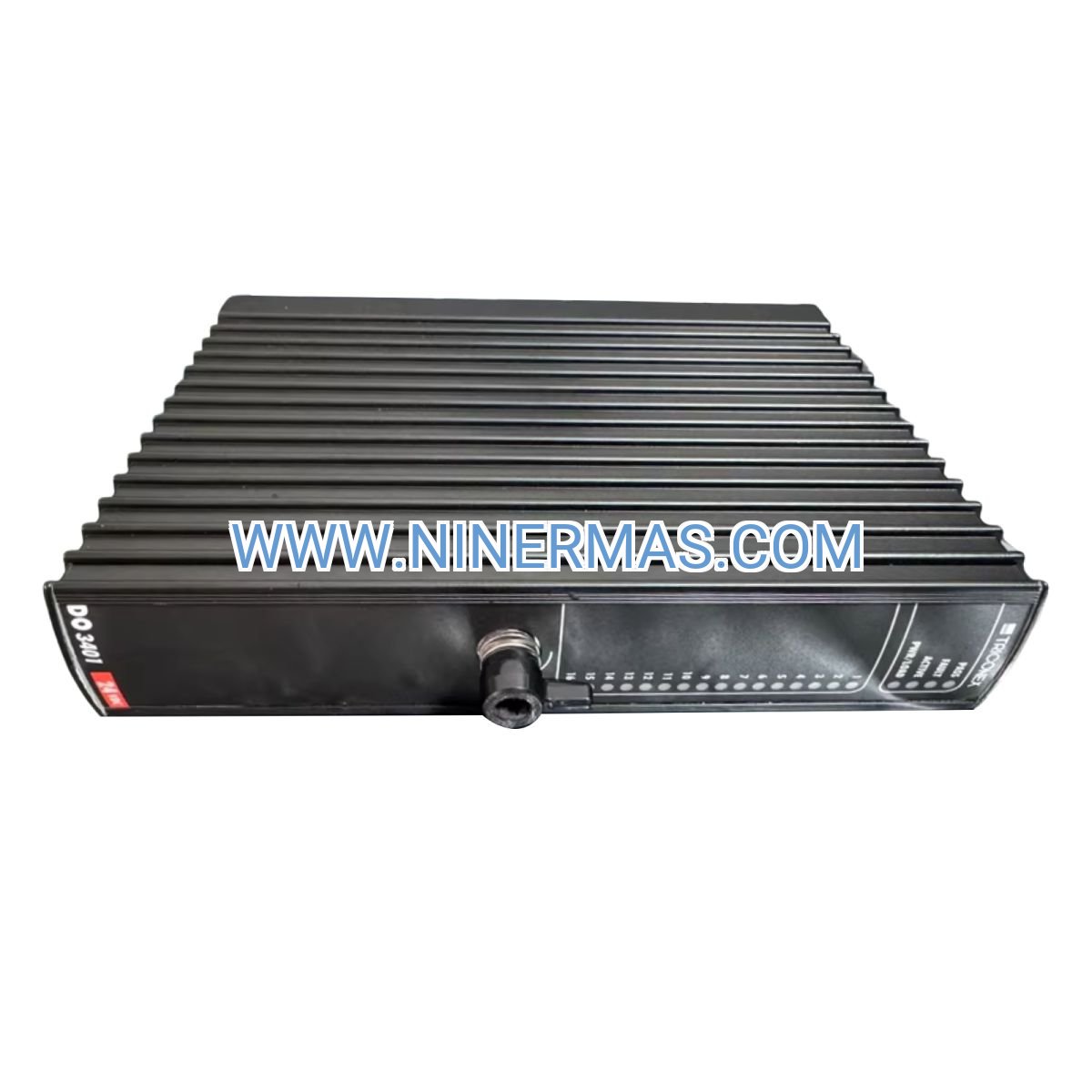

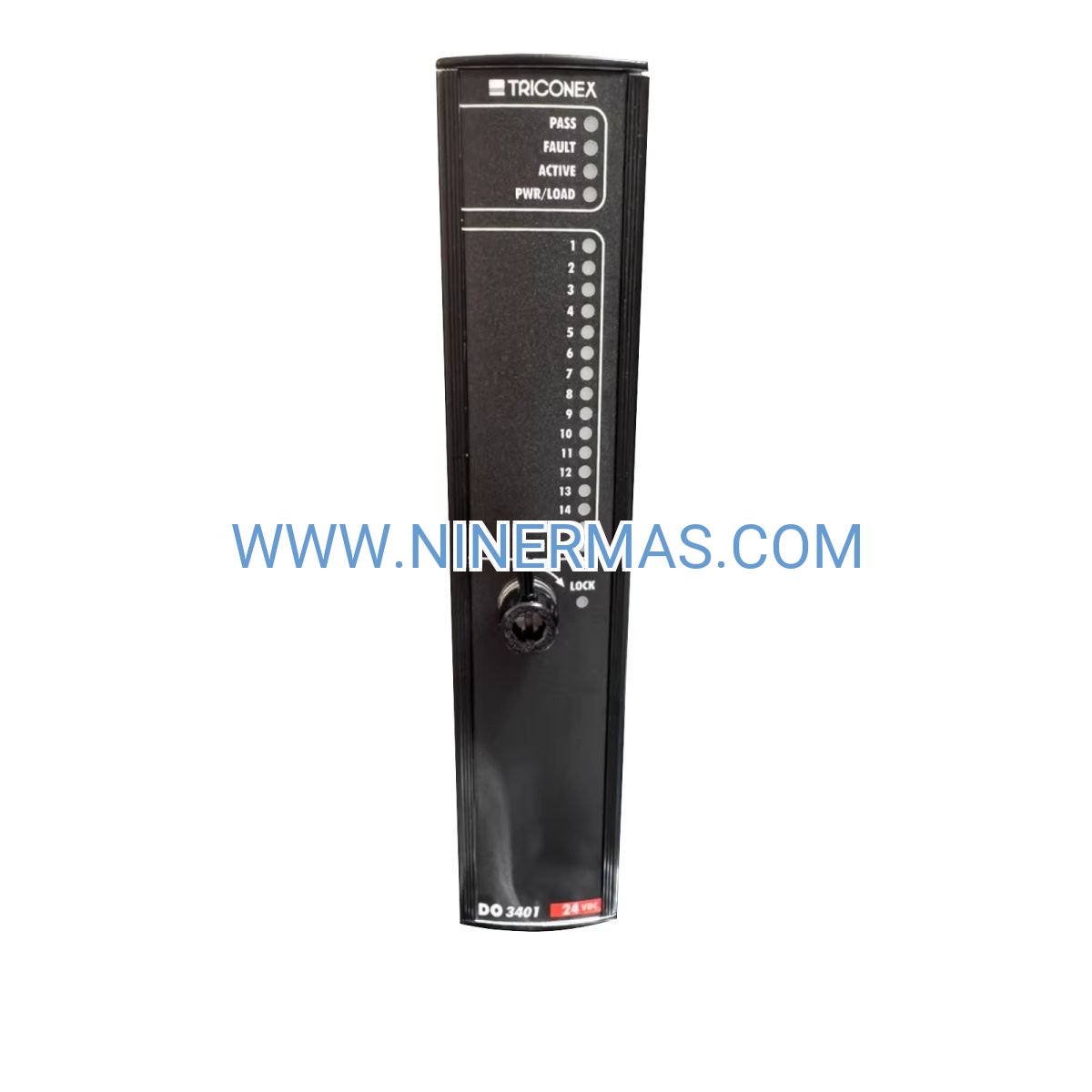

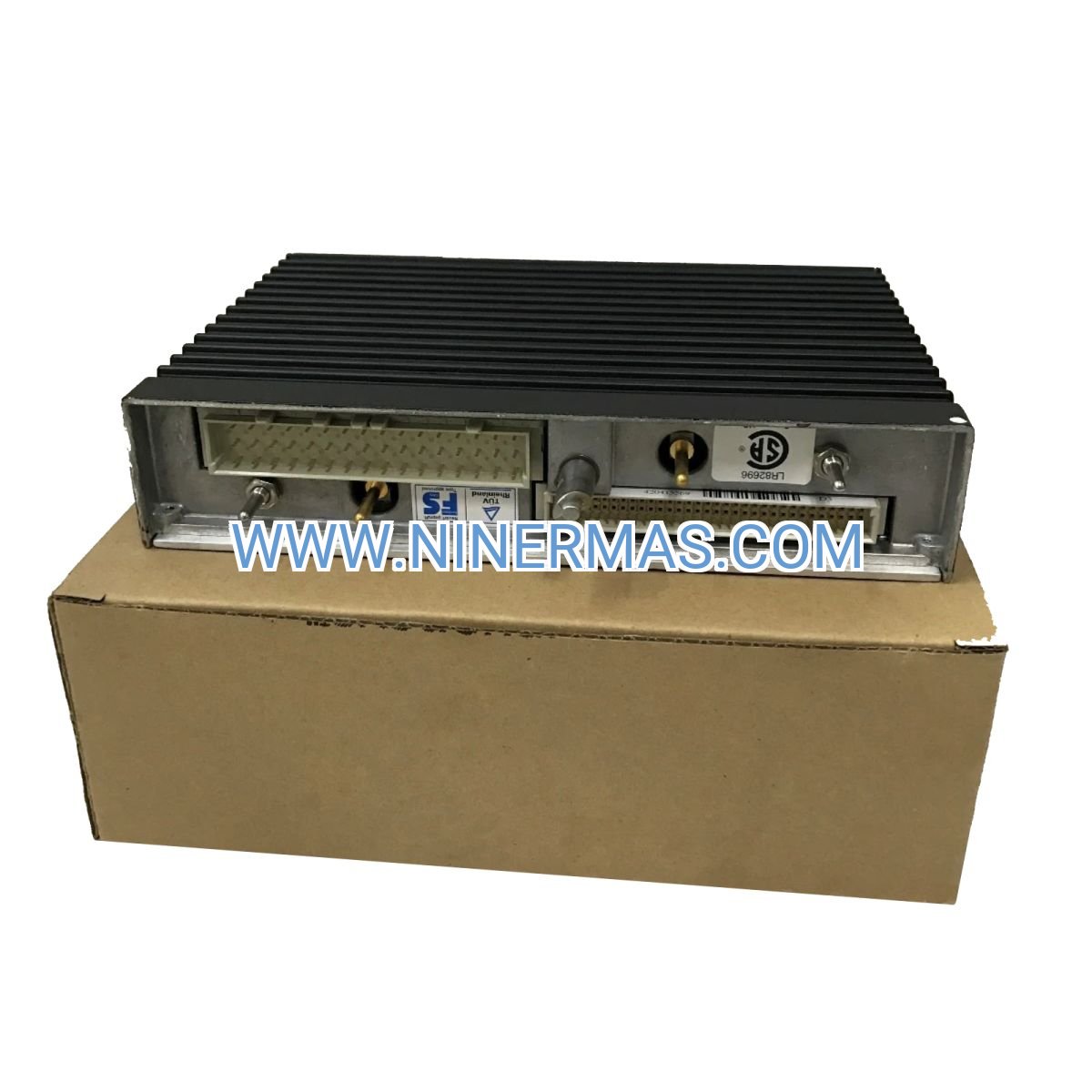

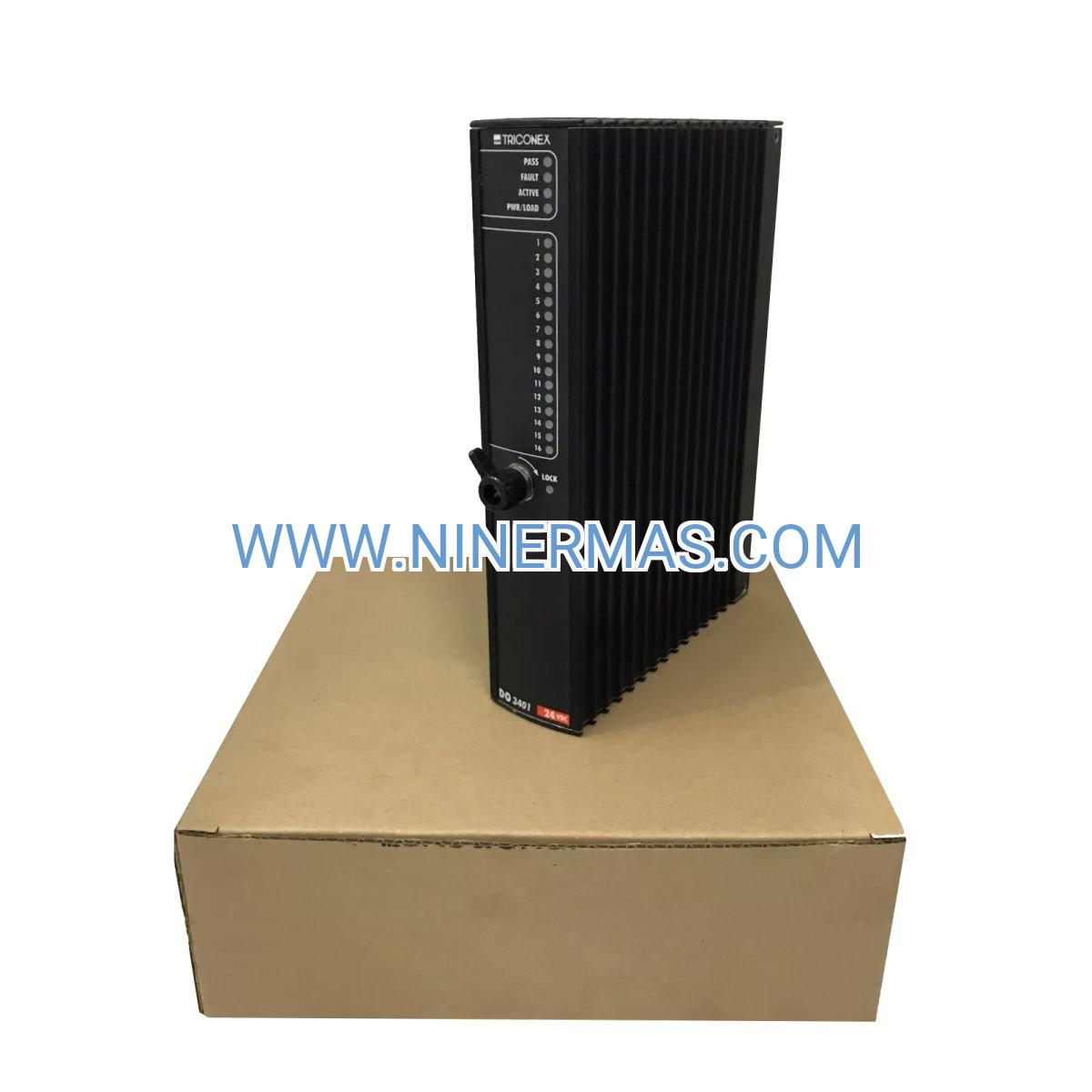

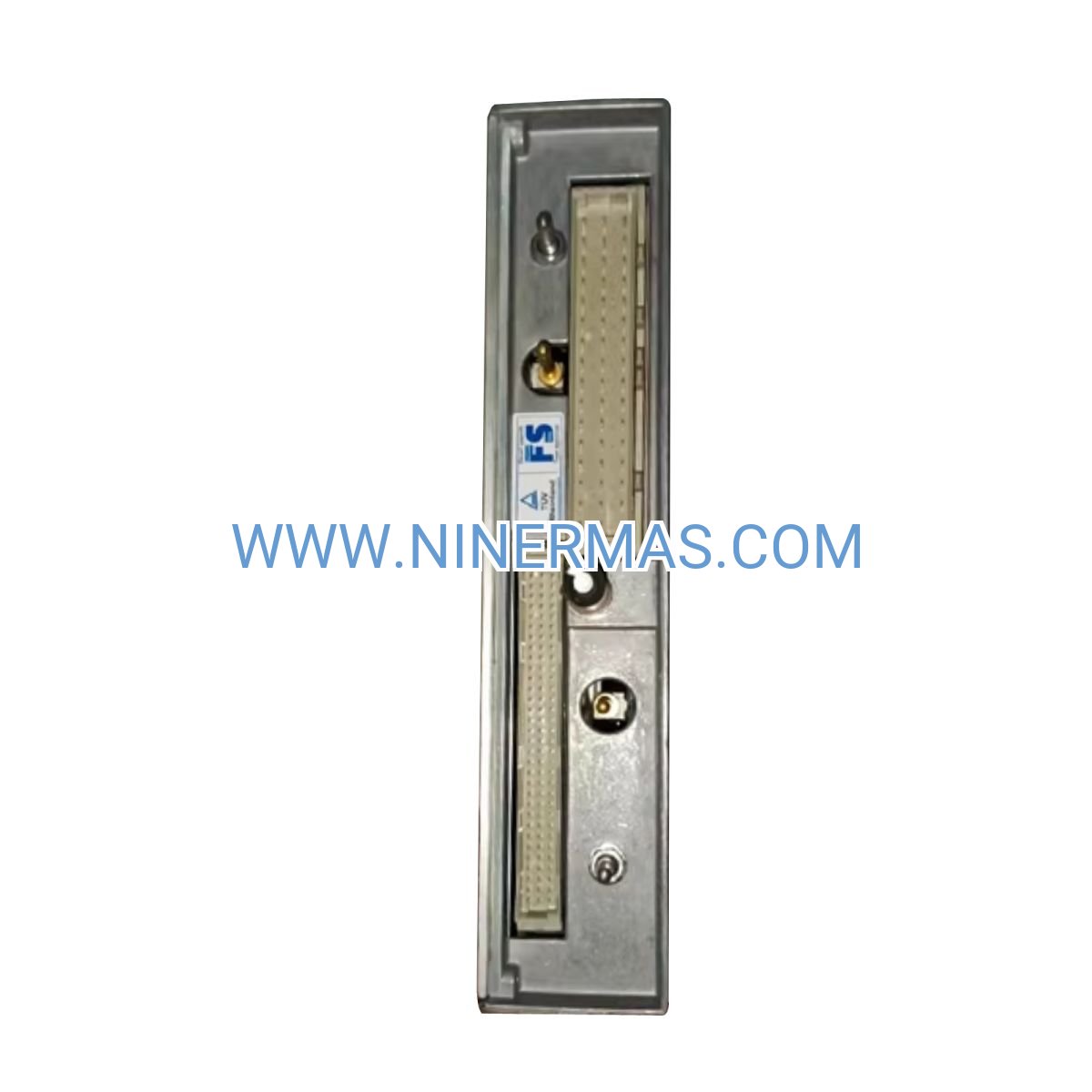

Triconex 3401 Digital Output Module (Industrial-Grade TMR Architecture)

Engineered for mission-critical safety applications, the Triconex 3401 represents the gold standard in fault-tolerant digital output control. This 16-channel module leverages Triple Modular Redundant (TMR) technology to deliver uninterrupted operation in emergency shutdown systems, fire and gas detection networks, and turbomachinery safeguarding installations where a single output failure could result in catastrophic consequences.

Designed for process industries demanding IEC 61508 SIL 3 compliance, the 3401 module provides deterministic control of solenoid valves, motor contactors, alarm beacons, and other final control elements. Its 24 VDC output architecture supports industry-standard field devices while maintaining galvanic isolation between channels and logic circuits.

Whether you're retrofitting legacy safety systems or designing greenfield installations, the Triconex 3401 delivers the reliability, diagnostics, and certification credentials required for high-consequence protection layers. Request a technical consultation to validate compatibility with your safety instrumented functions.

Core Features & Benefits

✓ Triple Modular Redundancy (TMR) Voting Logic
Three independent output circuits execute 2oo3 voting on every command, automatically masking hardware faults without spurious trips or process interruption. Achieve >99% diagnostic coverage with continuous self-testing.

✓ Hot-Swappable Maintenance
Replace failed modules during operation without de-energizing the safety system. Reduce mean time to repair (MTTR) by 70% compared to non-redundant architectures while maintaining SIL integrity.

✓ 2A High-Current Output Capability
Drive inductive loads including large solenoid valves, relay coils, and pneumatic actuators directly. Built-in flyback diode protection eliminates external suppression components and simplifies wiring.

✓ Comprehensive Fault Diagnostics
Real-time detection of open circuits, short circuits, overload conditions, and power supply anomalies. Diagnostic alarms integrate with TriStation HMI for predictive maintenance scheduling.

✓ Global Safety Certification
TÜV-certified to IEC 61508 SIL 3, IEC 61511, and API 2350 standards. Pre-approved for use in ATEX Zone 2 and Class I Division 2 hazardous locations when paired with certified barriers.

✓ Extended Environmental Range
Operate reliably in ambient temperatures from 0°C to 60°C with conformal coating protection against humidity, salt spray, and industrial contaminants. MTBF exceeds 150,000 hours in typical installations.

Typical Application Scenarios

→ Emergency Shutdown (ESD) Systems
Challenge: Refineries and chemical plants require fail-safe isolation of hazardous processes during upset conditions.
Solution: The 3401 module controls pneumatic shutdown valves, motor trip circuits, and vent system actuators with SIL 3-rated reliability. TMR architecture prevents dangerous failures while minimizing false trips that cost $50K-$500K per incident.

→ Fire & Gas Detection Networks
Challenge: Offshore platforms need instantaneous activation of deluge systems and HVAC isolation upon hydrocarbon detection.
Solution: Deploy 3401 modules to energize deluge valve solenoids, close fire dampers, and trigger audio-visual alarms. Deterministic response times under 100ms ensure compliance with API 2350 and NFPA 72 requirements.

→ Turbomachinery Protection
Challenge: Gas turbines and centrifugal compressors require immediate trip capability to prevent bearing failures and blade damage.
Solution: Interface 3401 outputs with hydraulic trip valves, lube oil pumps, and seal gas systems. Redundant voting eliminates single-point failures in API 670 vibration monitoring and API 617 surge control loops.

→ Burner Management Systems (BMS)
Challenge: Industrial boilers and process heaters demand safe fuel valve sequencing to prevent furnace explosions.
Solution: Control main fuel valves, pilot gas solenoids, and ignition transformers with certified SIL 3 logic. The 3401's diagnostic capabilities detect valve position discrepancies and wiring faults before they compromise safety.

→ Pipeline Emergency Isolation
Challenge: Crude oil and natural gas transmission systems require rapid block valve closure during leak detection events.
Solution: Operate pneumatic actuators on 24-inch+ ball valves with the 3401's 2A output capacity. Integrate with SCADA leak detection algorithms for automated response within regulatory time limits.

Technical Parameters & Selection Guide

Selection Criteria: Choose the Triconex 3401 when your application requires SIL 3-rated digital outputs for safety-critical final elements. For higher channel density, consider the 3625 (32-point) module. For relay contact outputs, evaluate the 3604 or 3607 modules. Consult factory application notes for proper derating in high-temperature or high-vibration environments.

Extended Functions

TriStation Integration: Program output logic using IEC 61131-3 compliant languages (Ladder Diagram, Function Block, Structured Text) within the TriStation 1131 development environment. Download configurations via Ethernet or serial links with automatic version control.

Remote Monitoring: Access real-time output status, diagnostic counters, and fault logs through Triconex's proprietary TriBus communication protocol. Integrate with third-party SCADA systems using Modbus TCP or OPC UA gateways for enterprise-wide visibility.

Customization Options: Factory-configured modules available with pre-tested logic for common safety functions (2oo3 voting, partial stroke testing, proof test sequencing). Contact engineering services for application-specific firmware or extended temperature ratings.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 4-6 weeks for factory programming and testing. Expedited delivery available for critical outage support.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty plans available for up to 60 months with annual health checks.

Technical Support: Unlimited access to certified Triconex engineers for configuration assistance, troubleshooting, and system optimization. Average response time under 4 hours for critical safety system issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, IEC 61508 safety manual, TÜV certificates, and TriStation configuration templates. CAD drawings and 3D STEP files available for panel design integration.

Frequently Asked Questions

Q: What is the maximum wiring distance for 24 VDC outputs on the Triconex 3401?
A: Recommended maximum cable length is 300 meters (984 feet) using 18 AWG shielded twisted-pair cable. For longer runs, use local I/O marshalling cabinets or fiber-optic remote I/O systems to maintain signal integrity and minimize voltage drop.

Q: Can the 3401 module control AC-powered solenoid valves?
A: No, the 3401 is designed exclusively for 24 VDC loads. For AC control applications (120 VAC or 230 VAC), use Triconex relay output modules (3604/3607 series) or interface through certified safety relays with force-guided contacts.

Q: How does the module handle output short-circuit conditions?
A: Each channel incorporates electronic current limiting and thermal shutdown protection. Short circuits are detected within 50ms and reported to the controller with channel-specific fault codes. The affected channel is automatically disabled while remaining channels continue operation.

Q: Is the Triconex 3401 compatible with legacy Tricon controllers?
A: Yes, the 3401 module is backward-compatible with Tricon v9 and v10 controllers when installed in compatible chassis. Firmware updates may be required for full diagnostic functionality. Consult the Triconex product compatibility matrix for specific controller/module pairings.

Q: What proof testing procedures are required for SIL 3 compliance?
A: IEC 61511 mandates periodic proof testing at intervals determined by your safety integrity level calculations (typically 12-24 months). Triconex provides automated partial stroke test (PST) routines and diagnostic coverage reports to extend proof test intervals up to 10 years for certain configurations.

Q: Can I mix 3401 modules with other Triconex I/O types in the same chassis?
A: Absolutely. Triconex chassis support heterogeneous I/O configurations. You can combine digital inputs (3503/3505), analog inputs (3706A), analog outputs (3721), and communication modules (4351B) in any available slot, subject to power budget constraints.

Ready to Enhance Your Safety System Reliability?

The Triconex 3401 digital output module delivers the fault tolerance and certification credentials your critical applications demand. Our automation specialists are standing by to assist with:

• SIL verification calculations and safety integrity assessments
• I/O channel allocation and load compatibility analysis
• Chassis configuration and power budget planning
• Migration strategies from legacy DCS or PLC systems
• Spare parts optimization and lifecycle cost modeling

Contact our team today for a customized quotation and technical feasibility review. Volume discounts available for multi-module projects and system integrators.
