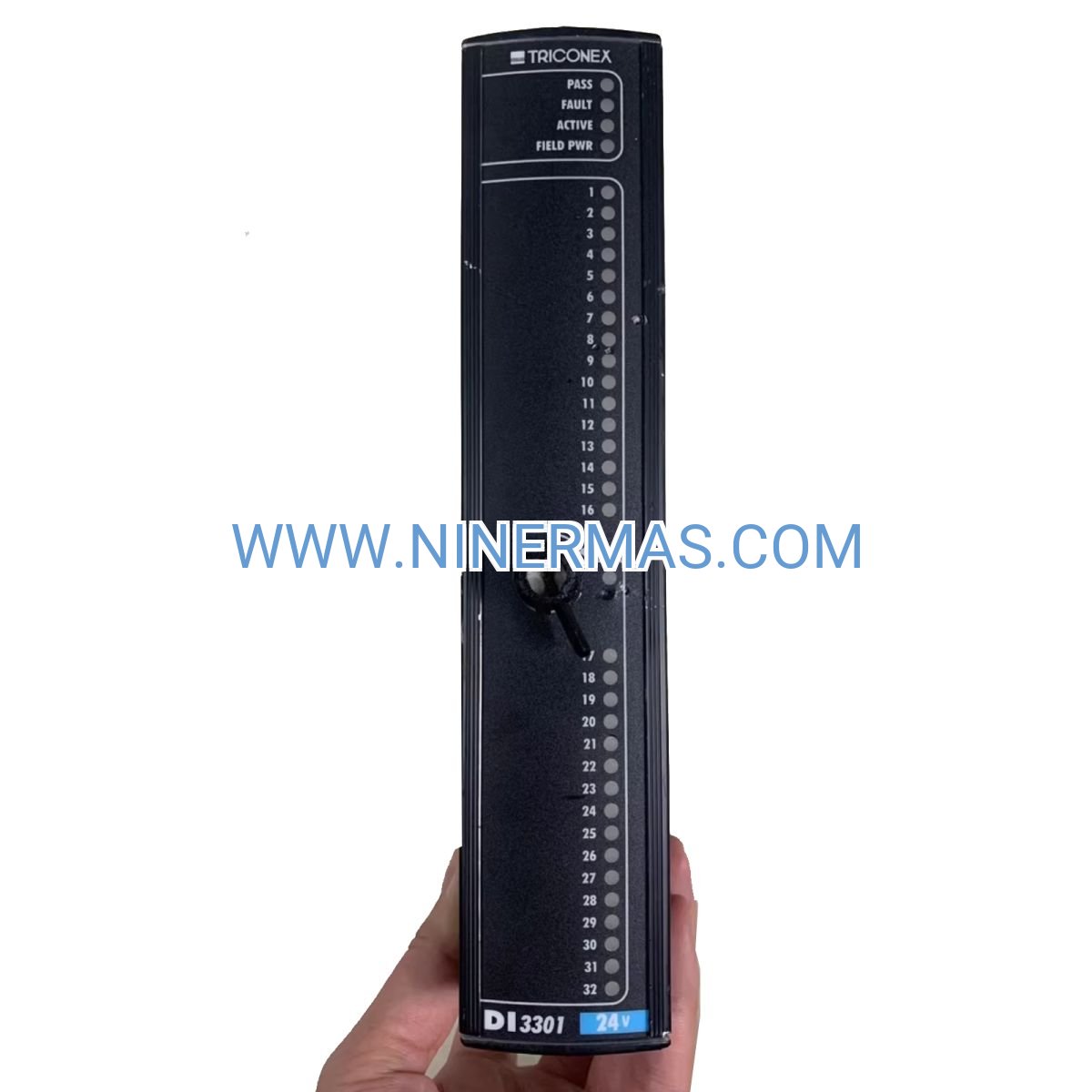

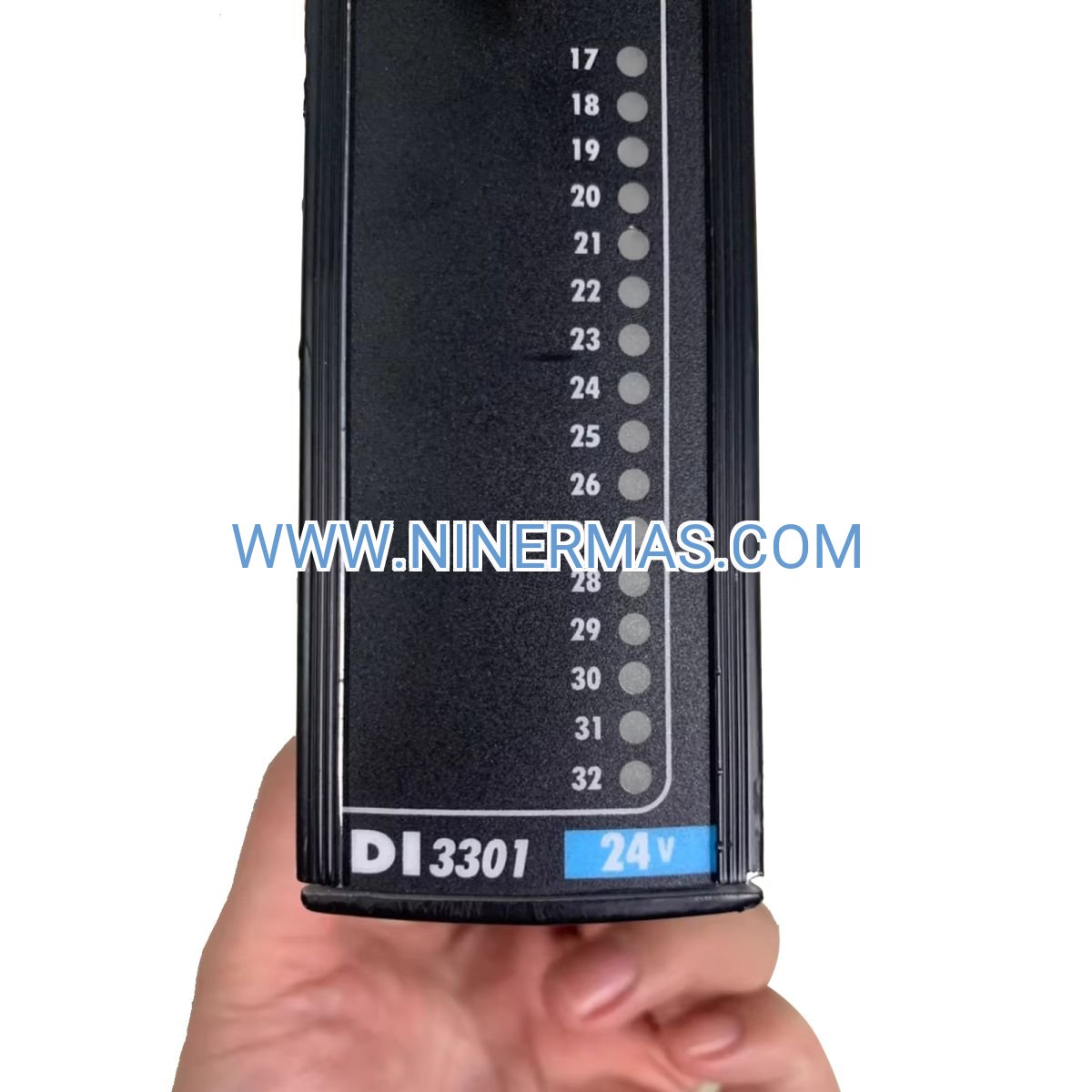

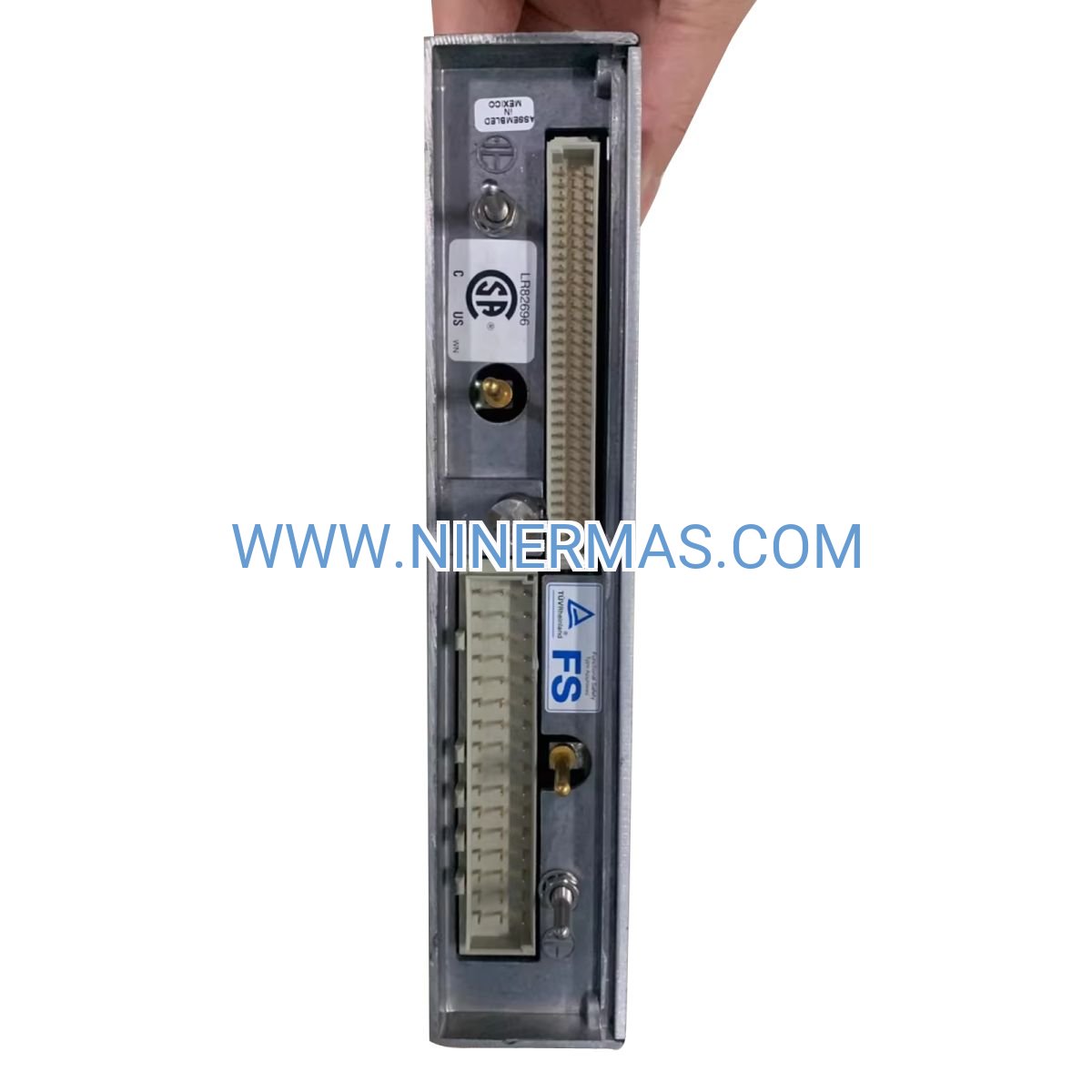

Triconex 3301 TMR Digital Input Module (Industrial-Grade 32-Channel Safety Controller)

The Triconex 3301 is a high-reliability digital input module engineered for Triple Modular Redundant (TMR) safety instrumented systems. Featuring 32 discrete 24VDC input channels, this module delivers continuous fault detection and automatic failover capabilities essential for SIL 3-rated process safety applications. Designed for seamless integration into Tricon and TriStation platforms, the 3301 ensures uninterrupted monitoring of critical field devices across oil & gas, chemical processing, power generation, and pharmaceutical manufacturing environments.

Industrial facilities requiring certified safety integrity face constant pressure to prevent catastrophic failures while maintaining operational uptime. The 3301 addresses these challenges through its TMR voting architecture, which compares three parallel input circuits in real-time to mask single-point hardware failures without triggering false alarms or system shutdowns. Process engineers and safety managers rely on this module to monitor emergency shutdown valves, fire detection systems, turbine protection circuits, and burner management interlocks where regulatory compliance and personnel safety are non-negotiable.

With hot-swappable design, >99% diagnostic coverage, and compatibility with both sourcing and sinking field devices, the Triconex 3301 reduces maintenance windows while extending mean time between failures (MTBF). Its proven track record in harsh industrial environments makes it the preferred choice for safety-critical applications demanding IEC 61508 certification and zero-tolerance fault management.

Core Features & Technical Advantages

✓ Triple Modular Redundancy (TMR) Architecture
Three independent input circuits operate in parallel with continuous voting logic, automatically masking single-channel faults while maintaining full operational status. This design eliminates single points of failure and achieves SIL 3 certification without requiring redundant modules.

✓ 32 Discrete 24VDC Input Channels
High-density configuration reduces panel space requirements by 40% compared to dual-channel alternatives. Each channel supports 18-30 VDC operating range with 7 mA typical current draw, ensuring compatibility with standard industrial sensors and switches.

✓ Hot-Swappable Field Replacement
Replace failed modules during live operation without system shutdown or process interruption. Automatic configuration download from the controller eliminates manual programming and reduces mean time to repair (MTTR) to under 5 minutes.

✓ Advanced Diagnostic Coverage (>99%)
Continuous self-testing detects open circuits, short circuits, power supply deviations, and communication errors. Real-time fault annunciation through TriStation software enables predictive maintenance and reduces unplanned downtime by 60%.

✓ 1500 VAC Channel Isolation
Galvanic isolation between field circuits and backplane protects against ground loops, electrical noise, and voltage transients common in heavy industrial environments. Maintains signal integrity in installations with multiple grounding points.

✓ Sub-10ms Response Time
Fast state-change detection ensures timely response to emergency conditions. Critical for high-speed safety functions such as turbine overspeed protection and burner flame monitoring where milliseconds determine outcome severity.

Industrial Application Scenarios

→ Emergency Shutdown (ESD) Systems in Offshore Platforms
Monitors subsea valve position switches, pressure transmitter alarms, and gas detector contacts across distributed control networks. The 3301's TMR design ensures continuous protection even during maintenance activities, preventing hydrocarbon releases and meeting API RP 14C requirements.

→ Fire & Gas Detection Networks
Interfaces with flame detectors, combustible gas sensors, and manual call points in refineries and chemical plants. Voting logic eliminates nuisance trips from sensor drift while guaranteeing response to genuine hazards, reducing false alarm rates by 75% compared to simplex systems.

→ Turbine Protection Systems
Processes overspeed trip signals, vibration monitor outputs, and bearing temperature alarms in power generation facilities. Fast response time combined with fault tolerance prevents catastrophic turbine damage while avoiding costly false trips that impact grid stability.

→ Pharmaceutical Clean Room Monitoring
Tracks differential pressure switches, HEPA filter status indicators, and airlock door positions in GMP-compliant manufacturing areas. Diagnostic capabilities provide audit trails for FDA validation while maintaining sterile environment integrity.

→ Pipeline Leak Detection Systems
Monitors flow meter pulse outputs, pressure differential switches, and valve limit switches across multi-kilometer transmission networks. Extended cable length support (up to 300m) reduces field junction box requirements and installation costs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3301 when your application requires SIL 3 certification with 24VDC discrete inputs. For higher density requirements (64+ points), consider the DI3311 module. Applications needing enhanced diagnostics or HART pass-through should evaluate the 3503E variant. Verify that your Tricon chassis has available I/O slots and that field device current draw remains within 7 mA per channel limits.

Extended Functionality & Integration

TriStation Software Integration: Full configuration, monitoring, and diagnostic access through TriStation 1131 development environment. Real-time channel status display, historical fault logging, and remote troubleshooting capabilities reduce on-site maintenance visits.

Modbus TCP/IP Connectivity: Publish input states to SCADA systems, historians, and asset management platforms via Ethernet communication modules. Enables predictive analytics and condition-based maintenance strategies.

Customization Options: Factory configuration services available for pre-programmed logic, custom cable assemblies, and application-specific testing protocols. Consult with our engineering team for projects requiring unique specifications or third-party certification witness testing.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier with full tracking and insurance. All modules ship factory-sealed with calibration certificates and test reports.

Custom Configuration: 10-15 business days for pre-programmed modules or special testing requirements. Expedited processing available for emergency shutdown projects.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for multi-year service agreements.

Technical Support: Lifetime access to application engineering support via email, phone, and remote desktop assistance. Configuration file review, troubleshooting guidance, and replacement part cross-referencing included at no additional cost.

Documentation Package: Each shipment includes installation manual, wiring diagrams, dimensional drawings, IEC 61508 certification documents, and TriStation configuration examples. Digital library access provided for firmware updates and technical bulletins.

Frequently Asked Questions

What wiring configurations does the Triconex 3301 support for field devices?
The module accepts both wet contact (self-powered) and dry contact (module-powered) configurations. Wet contacts supply their own 24VDC source to the input terminals, while dry contacts draw power through the module's internal supply. Input logic is software-configurable for sourcing (PNP) or sinking (NPN) field devices without hardware changes.

How does the TMR voting logic handle partial module failures?
When one of the three input circuits fails, the voting algorithm automatically excludes the faulty channel and continues operation using the two remaining healthy circuits. The system generates a diagnostic alarm but maintains full safety function integrity. Only when two circuits fail does the module enter a safe failure mode.

Can I replace a 3301 module without shutting down the safety system?
Yes, the hot-swap capability allows field replacement during live operation. After physically removing the failed module, insert the replacement unit and the controller automatically downloads the configuration within 30 seconds. No manual programming or system restart required.

What maximum cable distance is supported between the module and field devices?
Up to 300 meters (984 feet) using 18 AWG shielded twisted-pair cable with proper grounding practices. For installations exceeding 150 meters, use low-capacitance cable and verify voltage drop remains within the 18-30 VDC operating window under maximum load conditions.

Does the 3301 require external termination resistors or barriers?
No external termination is required for standard installations. However, applications in hazardous areas (Zone 1/Division 1) require intrinsically safe barriers or galvanic isolators between field devices and module terminals. Consult ATEX/IECEx documentation for specific barrier selection criteria.

How do I verify the module is operating correctly after installation?
Use TriStation software to access the module's diagnostic page, which displays real-time channel status, voting results, and fault counters. Perform a functional test by toggling each input and verifying state changes appear in the controller logic. The module's front-panel LEDs also provide quick visual confirmation of power, communication, and fault status.

Take the Next Step

Ready to enhance your safety instrumented system with proven TMR technology? Contact our industrial automation specialists today for application-specific guidance, pricing quotations, and technical documentation. Whether you're upgrading legacy systems or designing new installations, our team provides expert support from initial specification through commissioning and beyond.

Request a quote: sale@ninermas.com
Technical inquiries: +0086 187 5021 5667
Documentation downloads: Available upon request
