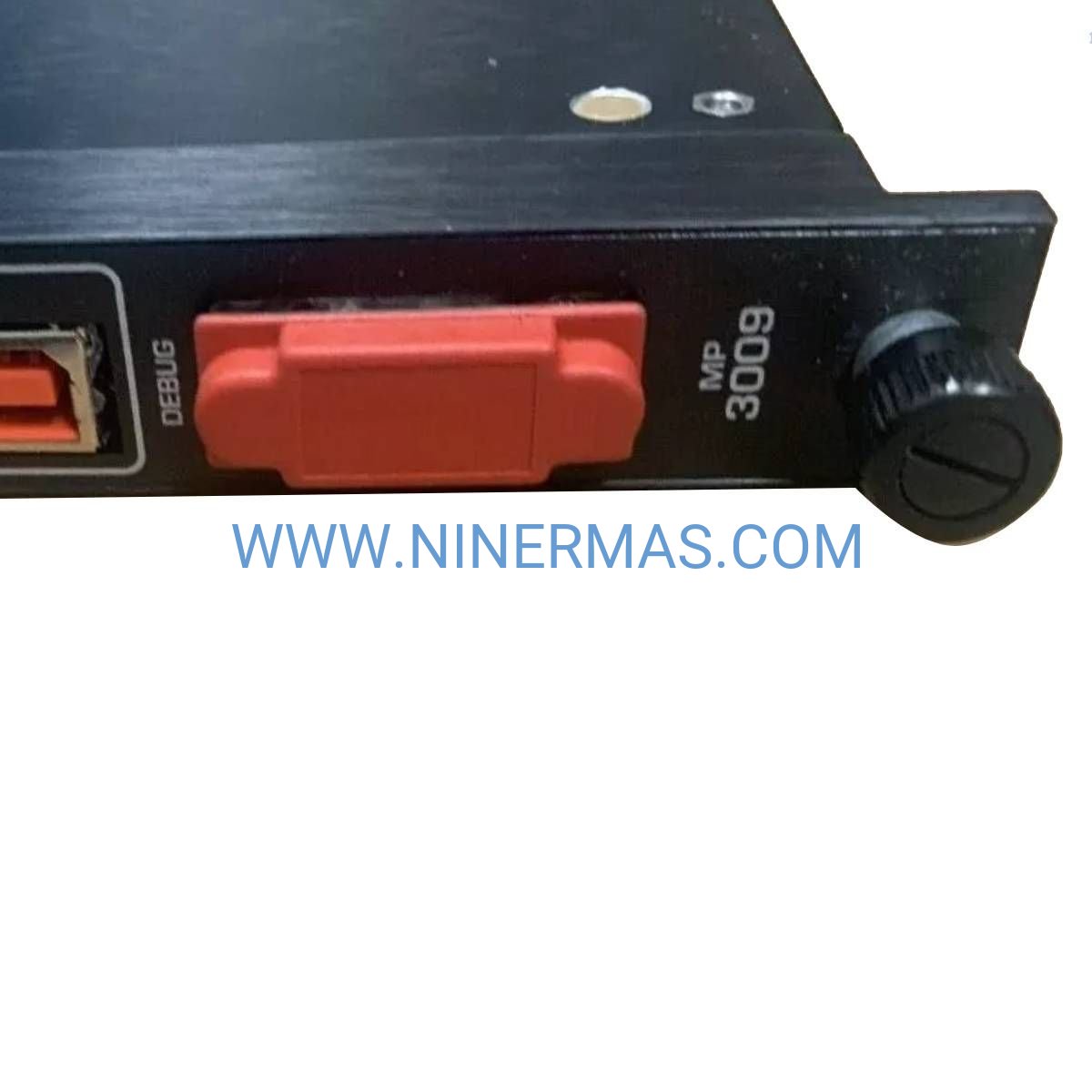

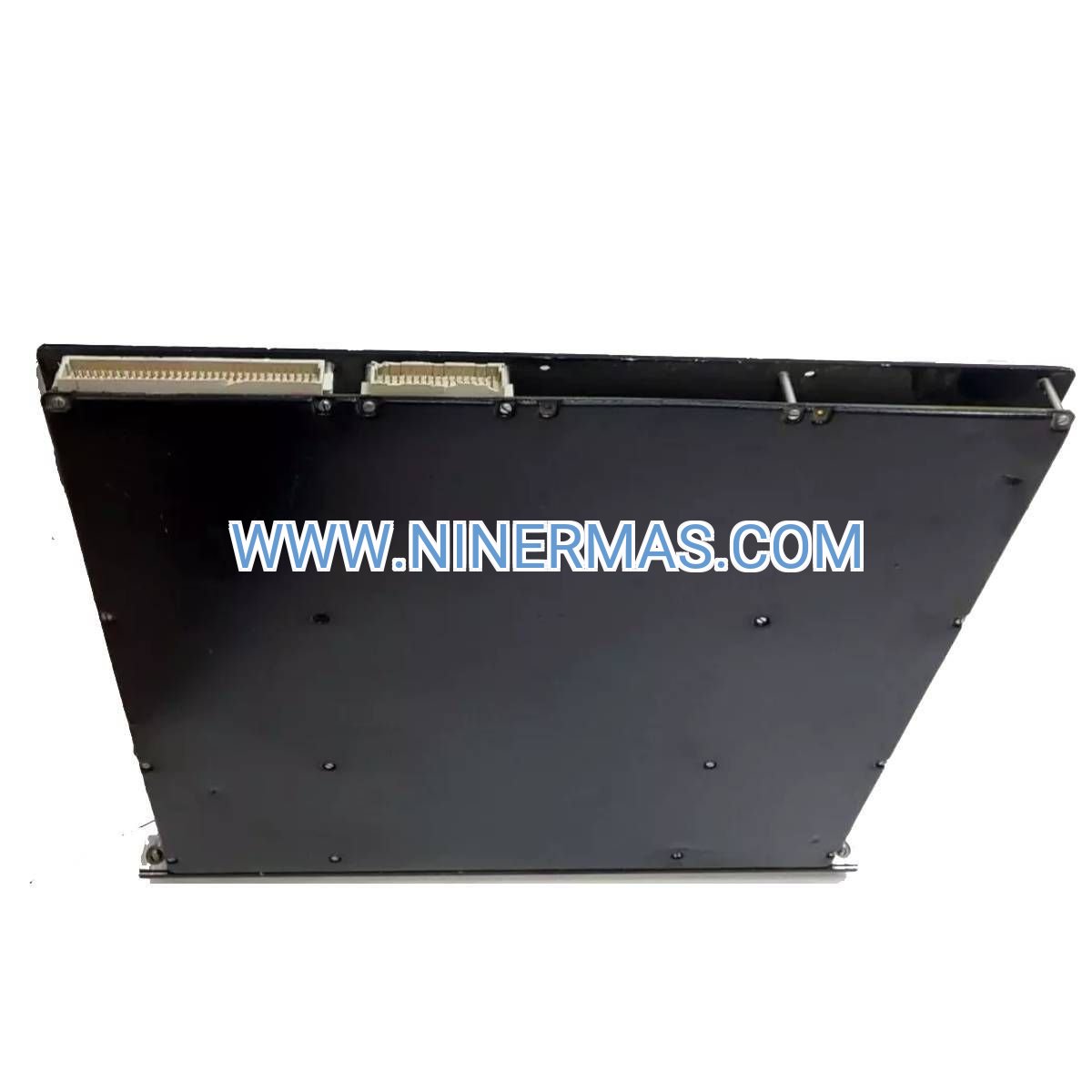

Triconex 3009 TMR Processor (Industrial-Grade Safety Controller)

The Triconex 3009 represents a mission-critical processing solution engineered for environments where system failure is not an option. Built on proven Triple Modular Redundant technology, this processor module delivers uninterrupted safety control for high-stakes industrial operations across energy, chemical processing, and manufacturing sectors.

Designed for plant engineers and safety managers who demand zero-compromise reliability, the 3009 eliminates single points of failure through continuous self-diagnostics and automatic fault isolation. Whether protecting personnel in hazardous areas or safeguarding multi-million-dollar assets, this processor maintains operational integrity even when individual components fail.

With SIL 3 certification and field-proven performance in thousands of installations worldwide, the 3009 delivers the confidence needed for emergency shutdown systems, fire protection networks, and turbomachinery safeguarding—backed by comprehensive technical support and rapid replacement services.

Core Capabilities & Business Value

→ Continuous Operation During Failures
TMR voting logic compares outputs from three independent processors every scan cycle, automatically bypassing faulty modules while maintaining full system functionality—eliminating costly unplanned shutdowns and production losses.

✓ Hot-Swappable Maintenance
Replace processor modules during live operation without process interruption or safety system bypass, reducing maintenance windows from hours to minutes and maximizing plant availability.

✓ Deterministic Response Times
Configurable scan cycles with guaranteed execution intervals ensure sub-100ms reaction to critical events, meeting the most stringent safety response requirements for high-speed processes.

→ Scalable I/O Architecture
Supports up to 118 input/output modules per chassis, accommodating complex safety applications from compact skid systems to plant-wide emergency shutdown networks without processor bottlenecks.

✓ Regulatory Compliance Built-In
IEC 61508 SIL 3 certification and comprehensive diagnostic coverage simplify safety lifecycle documentation, accelerating project approvals and reducing engineering overhead.

→ Legacy System Integration
Backward compatibility with existing Tricon infrastructure protects capital investments, enabling phased upgrades without complete system replacement or extended outages.

Industry Applications & Problem Solving

Oil & Gas Production Facilities
Manages emergency shutdown sequences for offshore platforms and onshore processing units, monitoring pressure vessels, separation systems, and pipeline networks. Prevents catastrophic releases by executing coordinated valve closures and equipment isolation within safety-critical timeframes.

Chemical Manufacturing Plants
Controls reactor protection systems and hazardous material handling, detecting abnormal conditions such as runaway reactions, loss of cooling, or containment breaches. Initiates automated responses that protect personnel and prevent environmental incidents.

Power Generation Stations
Orchestrates boiler management and turbine protection for coal, gas, and combined-cycle facilities. Manages fuel-air ratios during startup, monitors flame stability, and executes emergency trips to prevent equipment damage or safety hazards.

Pharmaceutical Production
Ensures sterile processing environment integrity through continuous monitoring of HVAC systems, clean room pressurization, and critical utility supplies. Maintains product quality and regulatory compliance by preventing contamination events.

Pipeline & Terminal Operations
Supervises leak detection systems, overfill protection, and emergency isolation valves across storage facilities and transmission networks. Minimizes spill volumes and environmental impact through rapid automated response to abnormal conditions.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 3009 processor for applications requiring SIL 3 safety integrity with moderate to high I/O counts (50-118 modules). For smaller systems under 50 I/O points, consider cost-optimized alternatives. For applications demanding SIL 4 or requiring advanced cybersecurity features, evaluate next-generation processor options with enhanced capabilities.

Advanced Integration & Customization

SCADA & DCS Connectivity: Seamless integration with plant-wide control systems through Modbus TCP/IP and OPC interfaces enables coordinated process control and safety management, providing operators with unified visibility across production and protection layers.

Remote Diagnostics & Monitoring: Optional communication modules support secure remote access for system health monitoring, alarm analysis, and predictive maintenance—reducing site visits and enabling faster troubleshooting response.

Redundant Network Architectures: Dual Ethernet ports facilitate fault-tolerant communication networks, ensuring continuous data exchange with HMI systems and historians even during network infrastructure failures.

Application-Specific Programming: Factory-configured logic packages available for common applications including burner management, compressor anti-surge, and tank overfill protection—accelerating commissioning and reducing engineering costs.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units with factory-sealed packaging and full traceability documentation.

Custom Configuration: 10-15 business days for pre-programmed modules with customer-specific logic and tested configurations.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues with advance replacement service.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting guidance, and system optimization recommendations throughout product lifecycle.

Documentation Package: Complete technical manuals, wiring diagrams, safety certification documents, and TriStation programming examples included with every shipment.

Frequently Asked Questions

How does the TMR architecture maintain safety integrity during processor replacement?
The remaining two processors continue executing control logic with full voting capability while the third module is removed and replaced. System diagnostics verify the new module's operation before reintegrating it into the triad, ensuring continuous SIL 3 compliance throughout the maintenance procedure.

What programming environment is required for the 3009 processor configuration?
TriStation 1131 Developer software provides IEC 61131-3 compliant programming with function block diagram, ladder logic, and structured text languages. The environment includes simulation tools, version control, and comprehensive diagnostics for efficient application development.

Can the 3009 integrate with legacy relay-based safety systems during migration projects?
Yes, hybrid architectures are supported where the 3009 monitors relay panel outputs and provides supervisory logic while maintaining existing hardwired interlocks. This approach enables phased modernization without complete system replacement.

What cybersecurity measures protect the processor from unauthorized access?
Multi-level password protection, encrypted communication protocols, and physical keyswitch controls restrict configuration changes to authorized personnel. Audit logging tracks all programming modifications for compliance documentation.

How does scan time affect safety response performance in emergency scenarios?
Shorter scan cycles (10-20ms) provide faster reaction to critical inputs but consume more processor resources. Most applications achieve optimal balance with 50-100ms scans, delivering sub-second total response including I/O propagation delays and output device actuation times.

Is the 3009 suitable for outdoor installations or harsh environmental conditions?
The processor requires installation in climate-controlled enclosures meeting IP54 minimum protection. For extreme environments, specify ruggedized chassis with enhanced cooling, conformal coating, and extended temperature ratings.

Ready to Enhance Your Safety System Reliability?

Contact our safety systems specialists for application-specific recommendations, configuration support, and competitive pricing on the Triconex 3009 TMR processor. Our team provides rapid quotations, technical validation, and expedited delivery to meet your project timelines.
