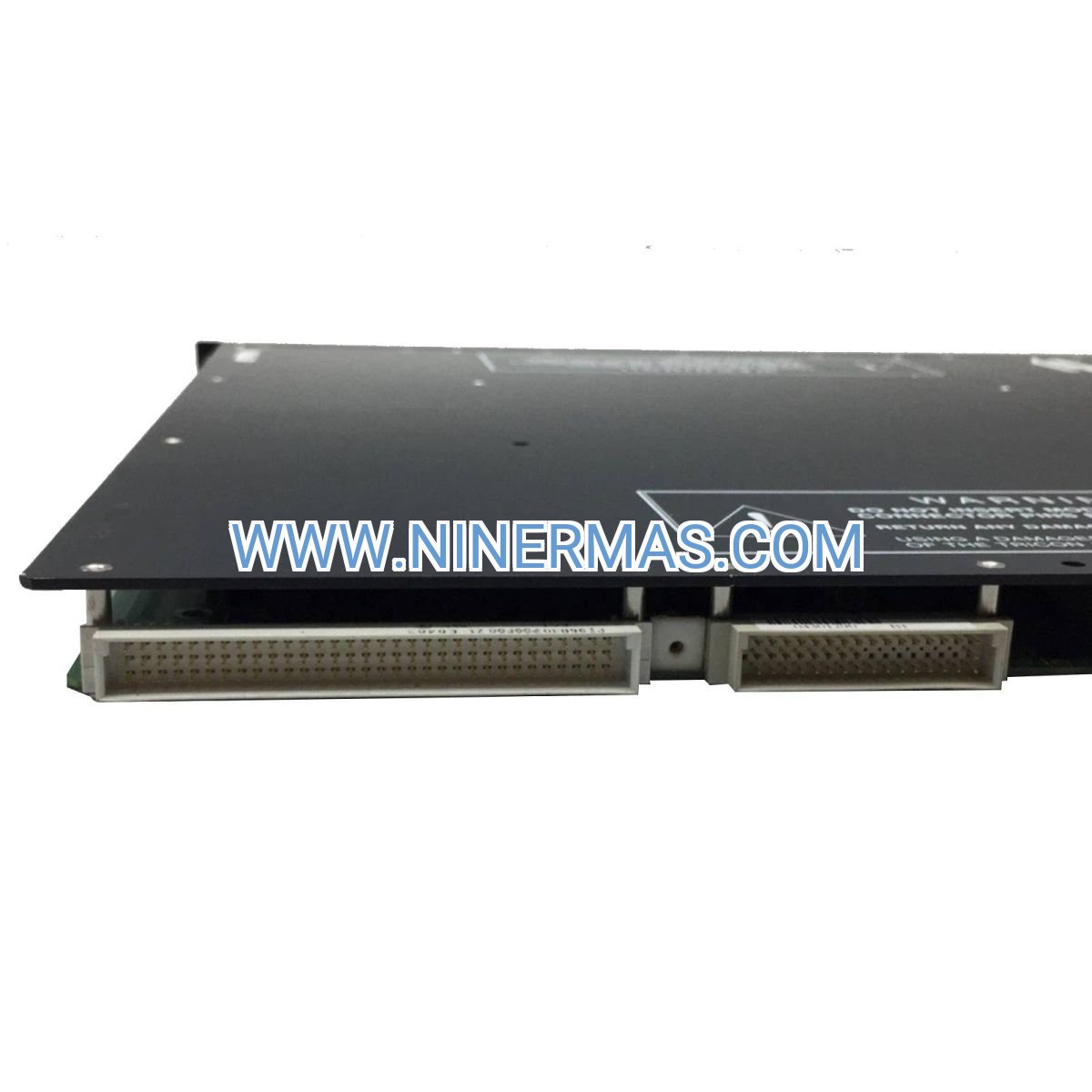

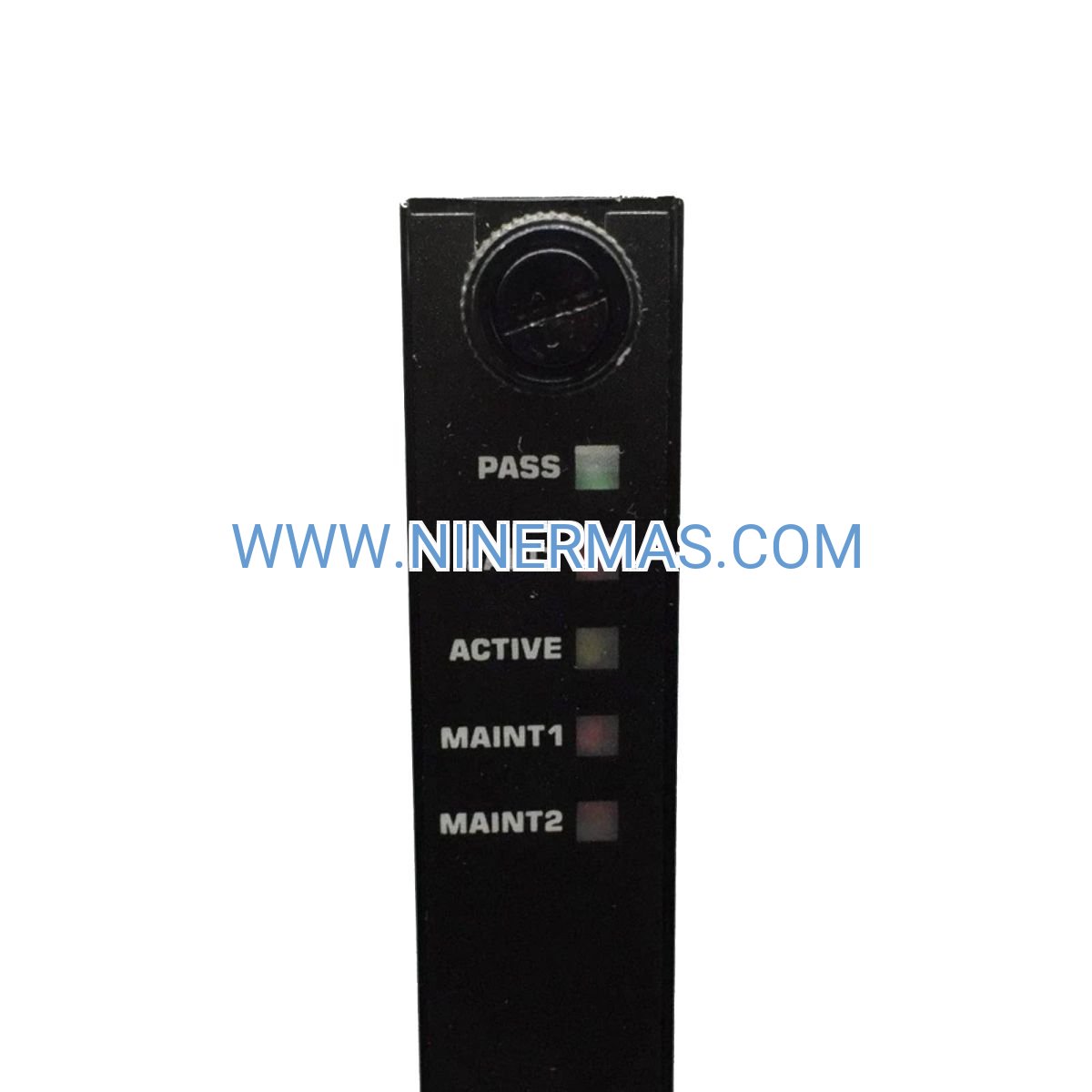

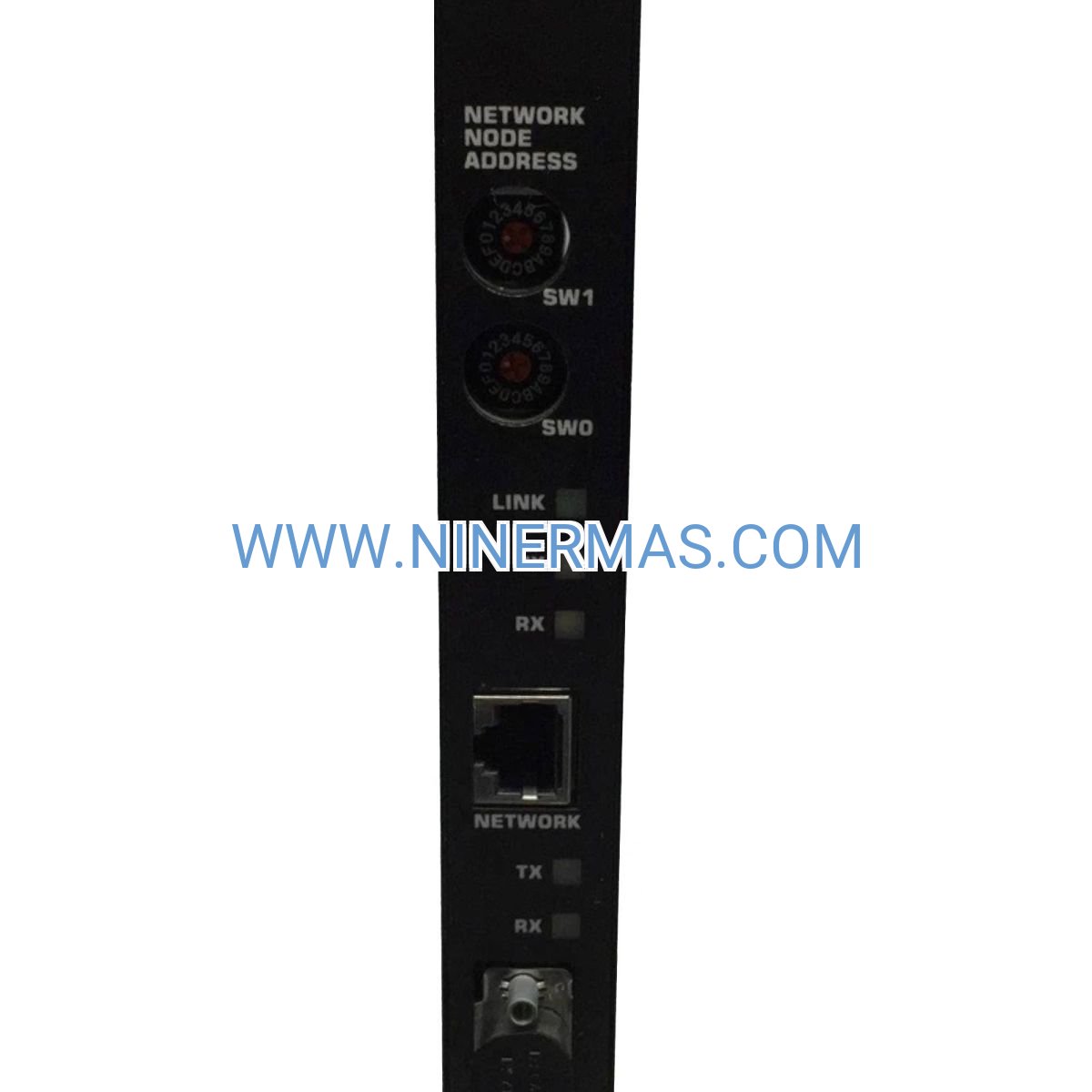

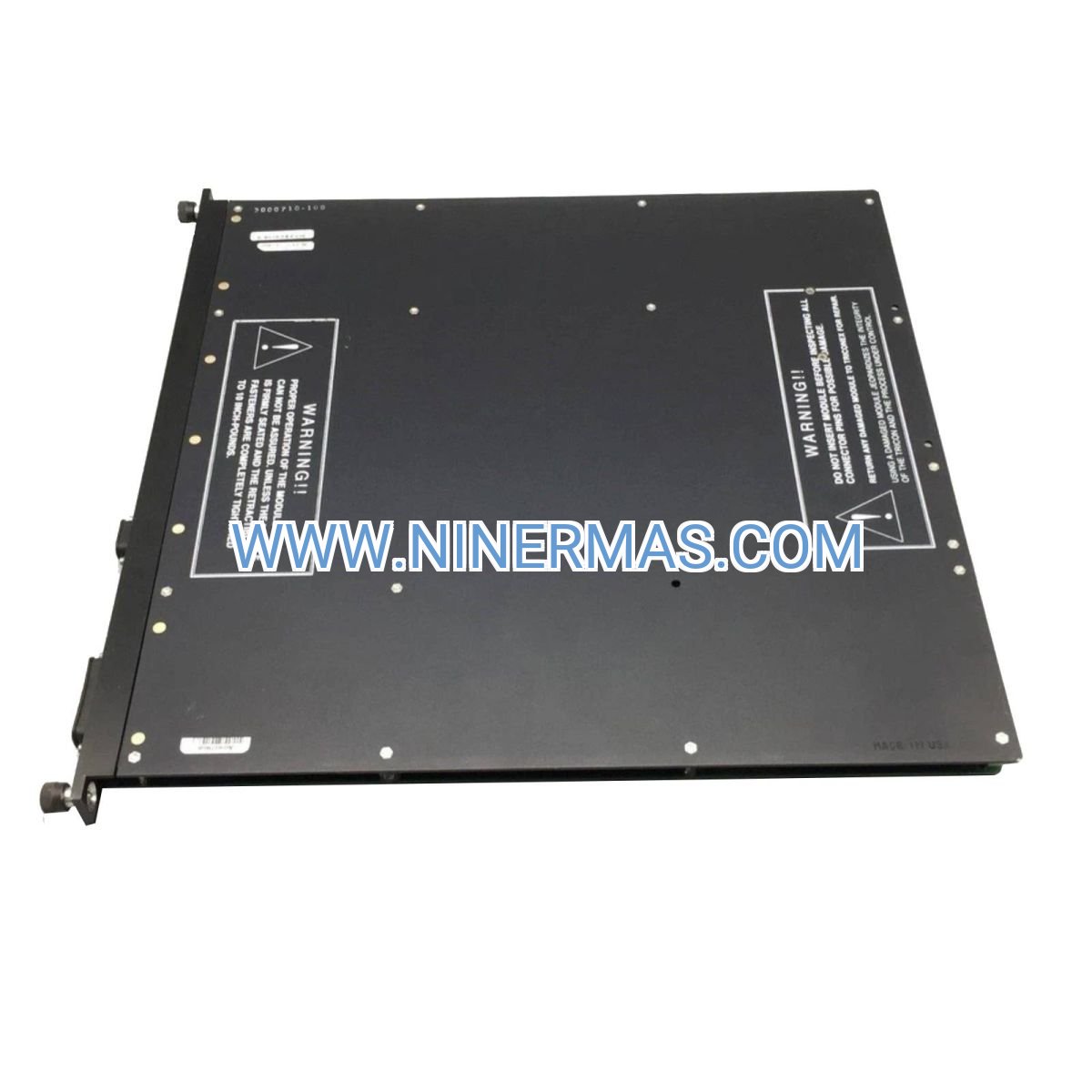

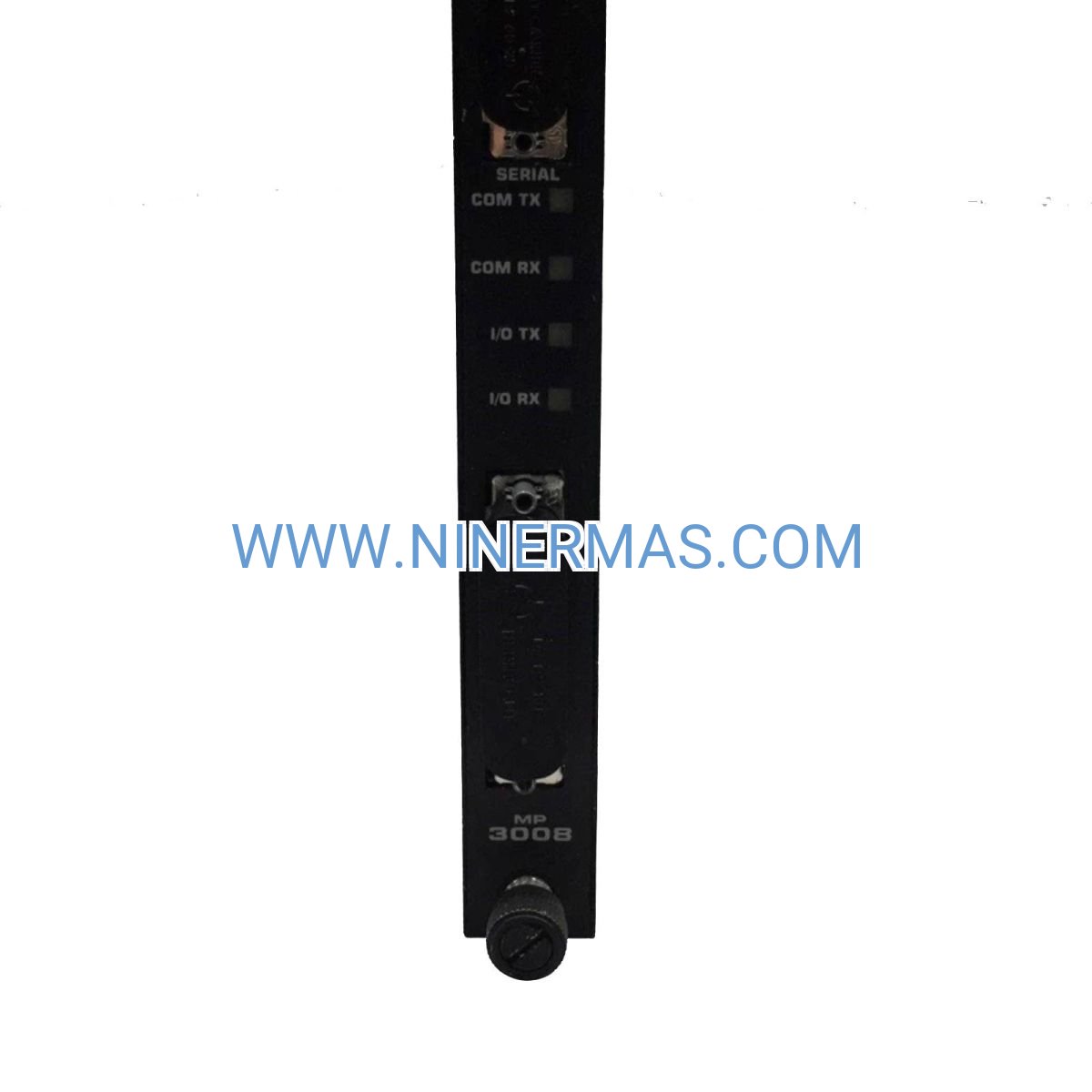

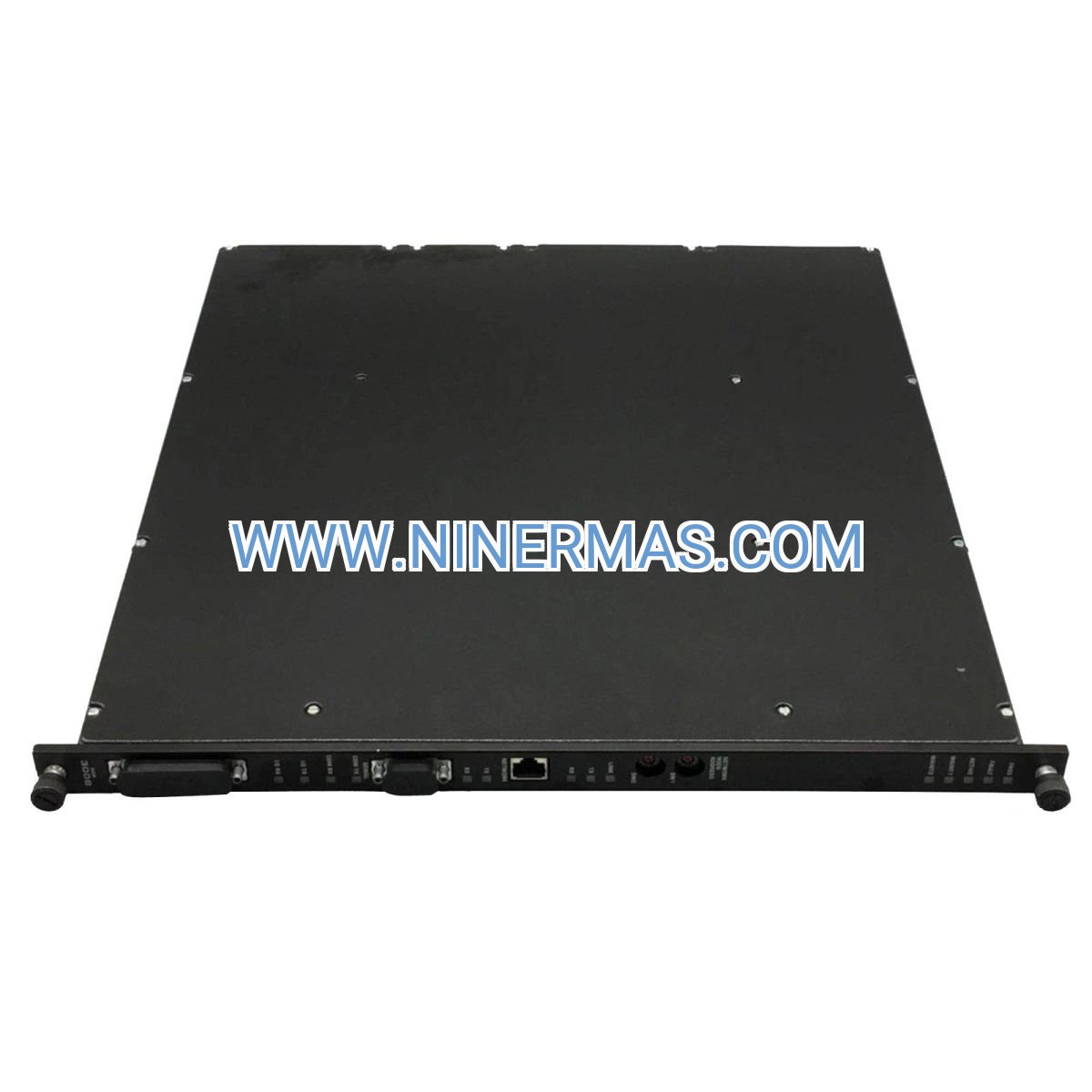

Triconex 3008 V10.3 Main Processor – Industrial-Grade TMR Safety Controller

The Triconex 3008 V10.3 main processor represents the pinnacle of fault-tolerant control technology for safety-critical industrial environments. Built on Triple Modular Redundant (TMR) architecture, this processor module delivers uninterrupted operation in emergency shutdown systems, fire and gas detection networks, and burner management applications where downtime is not an option. Designed for oil refineries, chemical plants, power stations, and offshore platforms, the 3008 V10.3 combines deterministic performance with cybersecurity-hardened firmware to meet the most stringent safety integrity requirements.

Process engineers and safety system integrators choose the 3008 V10.3 for its proven track record in SIL 3-rated applications and its ability to maintain control authority even when individual components fail. With hot-swappable redundancy and online programming capabilities, maintenance teams can perform updates without halting production, reducing operational risk and maximizing asset availability.

Whether you're upgrading legacy Tricon systems or designing new safety instrumented systems from the ground up, the 3008 V10.3 provides the computational backbone for mission-critical control logic, delivering microsecond-level response times and comprehensive diagnostic coverage that exceeds IEC 61508 standards.

Core Features & Benefits

→ Triple Modular Redundancy (TMR) with 2oo3 Voting
Three independent processors execute identical logic simultaneously, with continuous cross-comparison to detect and isolate faults. This architecture ensures that single-point failures never compromise system integrity, delivering 99.99% availability in critical safety applications.

→ Motorola MPC860 PowerQUICC at 50 MHz
High-performance RISC processor handles complex control algorithms, PID loops, and sequential logic with deterministic scan times ranging from 10ms to 100ms. Sufficient computational headroom supports future expansion without hardware upgrades.

→ 16 MB DRAM + 6 MB Flash PROM
Generous memory allocation accommodates large control programs, extensive I/O configurations, and historical data buffering. Non-volatile Flash storage retains firmware and configuration data through power cycles, enabling rapid recovery after outages.

→ Dual Redundant Ethernet Interfaces
Built-in network redundancy ensures continuous communication with HMI systems, DCS platforms, and remote diagnostic tools. Supports Modbus TCP, OPC, and proprietary TriStation protocols for seamless integration into existing infrastructure.

→ Hot-Swappable Module Replacement
Replace failed processors without shutting down the control system. The remaining two modules maintain full control authority while the third is serviced, eliminating costly production interruptions during maintenance activities.

✓ SIL 3 Certified (IEC 61508) / SIL 4 Capable
Independently certified for use in safety instrumented functions up to SIL 3, with architectural capability for SIL 4 when deployed in specific configurations. Meets global safety standards including IEC 61511 for process industry applications.

Application Scenarios

Emergency Shutdown Systems (ESD) in Refineries
The 3008 V10.3 monitors process variables across distillation columns, reactors, and storage tanks, executing protective shutdowns within 100 milliseconds when pressure, temperature, or level excursions threaten equipment integrity. Handles up to 2,000 I/O points per chassis, coordinating valve closures, pump trips, and alarm annunciation across multi-unit facilities.

Fire & Gas Detection Networks
Processes inputs from UV/IR flame detectors, catalytic bead sensors, and manual pull stations to activate deluge systems, HVAC isolation, and emergency lighting. Deterministic logic execution ensures that suppression systems respond before fire propagation, protecting personnel and assets in hazardous areas.

Burner Management Systems (BMS)
Controls ignition sequences, pilot flame monitoring, and main fuel valve modulation in industrial boilers and process heaters. Enforces permissive interlocks and purge cycles per NFPA 85/86 standards, preventing explosive atmospheres and ensuring safe combustion equipment operation.

Turbomachinery Protection Systems
Monitors vibration transducers, bearing temperature RTDs, and thrust position sensors on centrifugal compressors and gas turbines. Initiates emergency shutdowns before catastrophic bearing failures or blade rubs occur, preserving multi-million-dollar rotating equipment investments.

Offshore Platform Safety Systems
Provides integrated control for ESD, F&G, and process shutdown functions on FPSOs, drilling rigs, and production platforms. Withstands harsh marine environments with conformal coating and extended temperature ratings, maintaining reliability in salt fog and vibration-prone installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3008 V10.3 when your application requires SIL 3 safety integrity, TMR fault tolerance, and compatibility with existing Tricon chassis infrastructure. For new installations, verify that your I/O module count and scan time requirements fall within the processor's capacity (typically up to 2,000 I/O points with 20ms scan). Ensure TriStation programming software version compatibility before ordering.

Extended Functions

Online Programming & Diagnostics
Download logic changes to the running system without interrupting process control. Built-in diagnostics continuously monitor processor health, memory integrity, and communication status, with detailed fault logs accessible via TriStation software.

Cybersecurity Hardening
Role-based access control restricts configuration changes to authorized personnel. Encrypted communication channels and audit logging comply with IEC 62443 industrial cybersecurity standards, protecting against unauthorized access and malware threats.

DCS Integration Capabilities
Seamless connectivity to Honeywell Experion, Emerson DeltaV, Yokogawa Centum, and Siemens PCS 7 systems via Modbus TCP or OPC interfaces. Enables coordinated control strategies between safety and basic process control layers.

Customization & Expansion
Supports user-defined function blocks, custom communication drivers, and third-party I/O integration through open architecture design. Field-upgradable firmware allows feature enhancements without hardware replacement.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or large quantity orders may require 2-3 weeks for factory preparation and quality verification.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and firmware issues. Extended warranty programs available for critical applications requiring multi-year coverage.

Technical Support: Our certified Triconex specialists provide configuration assistance, troubleshooting guidance, and rapid replacement services. 24/7 emergency support available for critical system failures to minimize downtime.

Documentation Package: Each module ships with installation manual, configuration guide, safety manual, and certificate of conformity. Digital copies of firmware release notes and cybersecurity advisories provided via secure portal.

Frequently Asked Questions

How does the 3008 V10.3 maintain control during processor module replacement?
The TMR architecture allows two of three processors to maintain full control authority while the third module is removed and replaced. The system automatically synchronizes the new module upon insertion, restoring triple redundancy without process interruption or logic reset.

What is the maximum I/O capacity supported by a single 3008 processor?
A single Tricon chassis with three 3008 processors typically supports up to 2,000 I/O points, depending on scan time requirements and logic complexity. For larger systems, multiple chassis can be networked using Tricon communication modules.

Can I upgrade from earlier 3008 versions to V10.3 without replacing the entire chassis?
Yes, V10.3 processors are backward compatible with earlier Tricon chassis generations. However, you must verify TriStation software compatibility and may need to update communication module firmware to leverage new cybersecurity features.

Does the module support remote monitoring and diagnostics?
Yes, the dual Ethernet interfaces enable remote access via TriStation software over secure VPN connections. Real-time diagnostics, alarm history, and performance metrics can be monitored from central control rooms or off-site engineering facilities.

What cybersecurity measures protect against unauthorized configuration changes?
V10.3 firmware includes role-based access control, encrypted communication protocols, and comprehensive audit logging. All configuration changes are timestamped and attributed to specific user accounts, creating a traceable record for compliance audits.

How do I verify the authenticity of a Triconex 3008 module?
Genuine modules feature holographic security labels, serialized firmware with cryptographic signatures, and traceable manufacturing codes. Always purchase from authorized distributors and verify serial numbers with the manufacturer to ensure warranty validity and product authenticity.

Take the Next Step

Ready to enhance your safety instrumented system with proven TMR technology? Contact our technical sales team for application-specific configuration guidance, competitive pricing, and fast delivery options. Whether you're replacing aging processors or designing new safety systems, we provide the expertise and inventory to keep your critical operations running safely.
