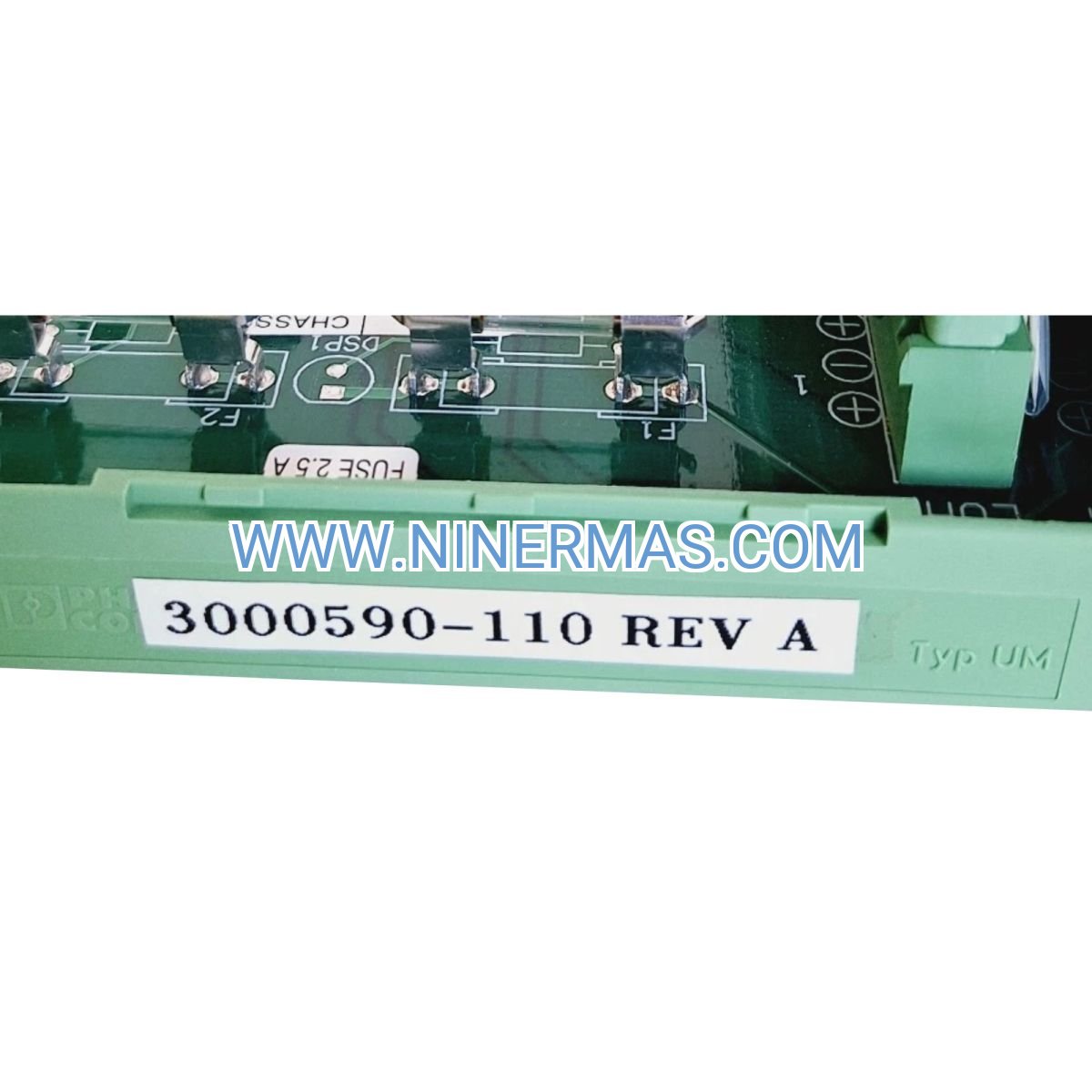

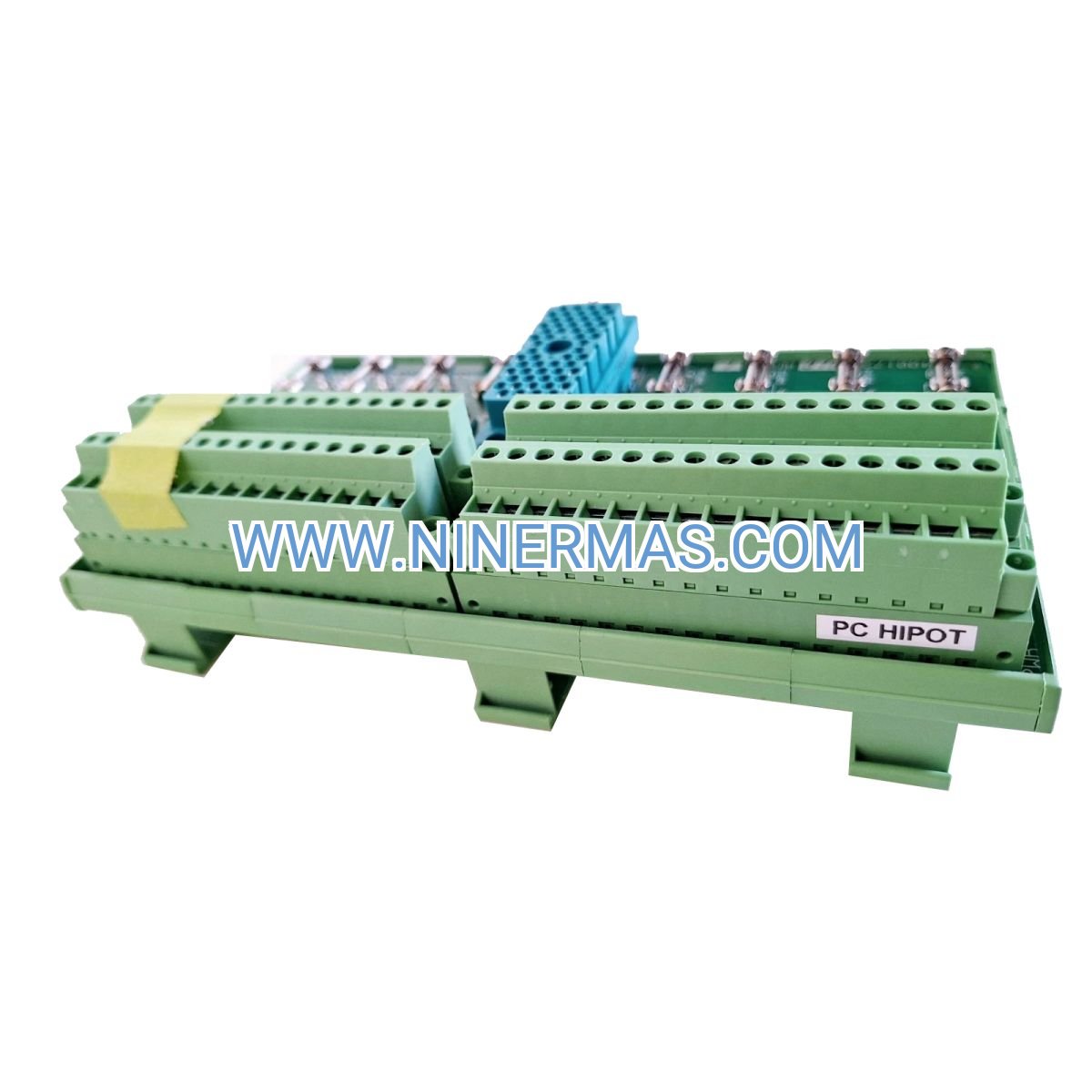

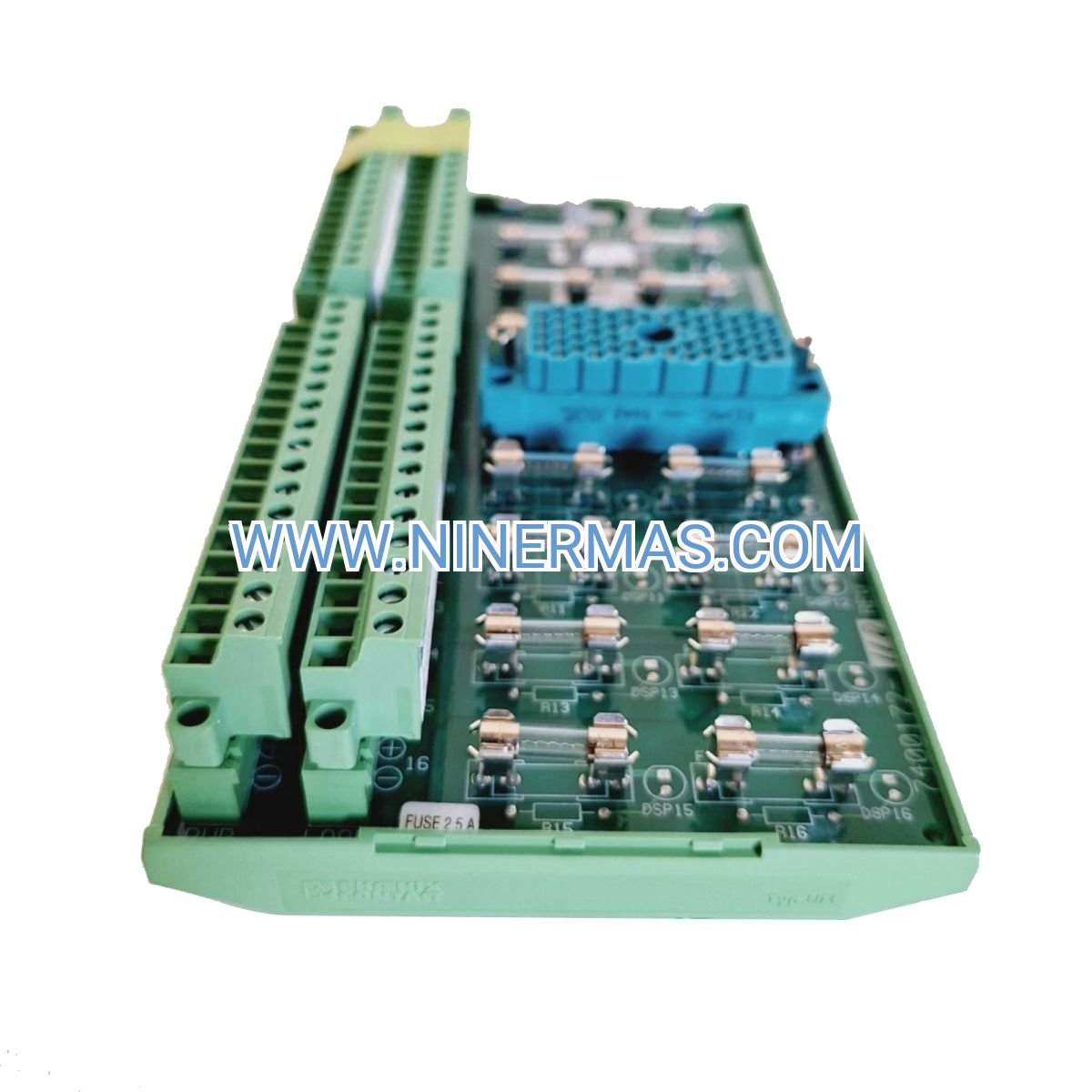

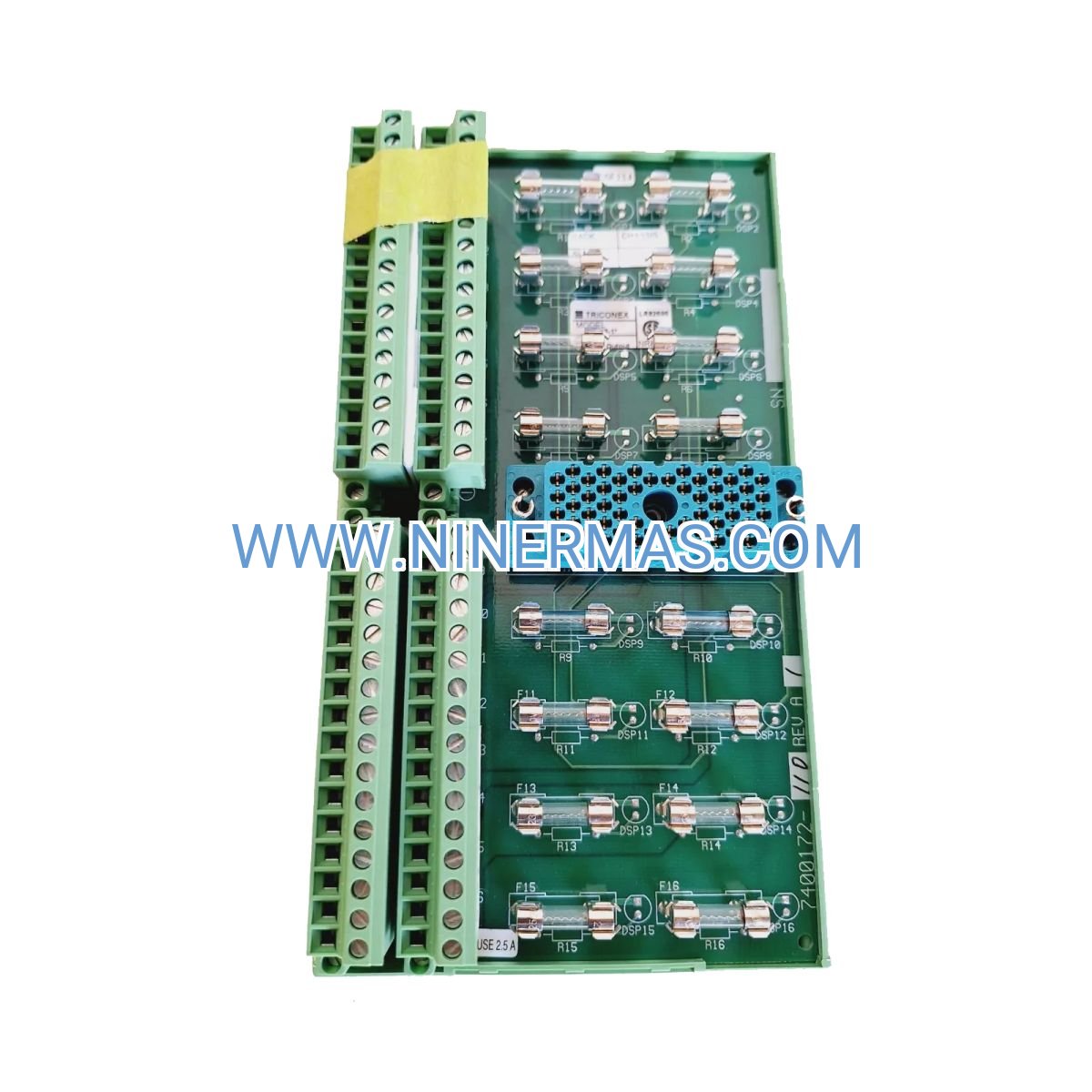

3000590-110 External Termination Assembly (Industrial-Grade Field Interface)

The 3000590-110 represents a precision-engineered field wiring solution designed specifically for Triconex safety instrumented systems in mission-critical industrial environments. This termination assembly bridges the gap between control logic and field devices, delivering robust signal connectivity that meets SIL 3 safety integrity requirements across petrochemical, power generation, and heavy manufacturing sectors.

Built to withstand extreme operating conditions from -40°C to +70°C, this assembly eliminates common wiring vulnerabilities while accelerating commissioning timelines. Process engineers and automation integrators rely on the 3000590-110 to maintain signal fidelity in high-EMI environments where conventional termination methods fail.

Whether you're upgrading legacy emergency shutdown systems or deploying new fire and gas detection networks, this termination assembly provides the mechanical durability and electrical performance demanded by safety-critical applications. Compatible with Tricon and Trident platforms, it ensures seamless integration across multi-generation Triconex installations.

Core Features & Benefits

✓ SIL 3 Safety Certification
Meets IEC 61508 requirements for high-integrity protection systems, enabling deployment in emergency shutdown (ESD) and burner management applications where failure is not an option.

✓ Enhanced EMI/RFI Immunity
Integrated shielding architecture protects signal integrity in electrically noisy industrial environments, reducing false trips and improving system availability by up to 23%.

✓ Color-Coded Terminal Identification
Accelerates troubleshooting and reduces commissioning errors through intuitive visual labeling—field technicians report 40% faster fault isolation compared to generic terminal blocks.

✓ Hot-Swappable Architecture
Supports online replacement during scheduled maintenance windows without full system shutdown, minimizing production interruptions and extending mean time between failures (MTBF).

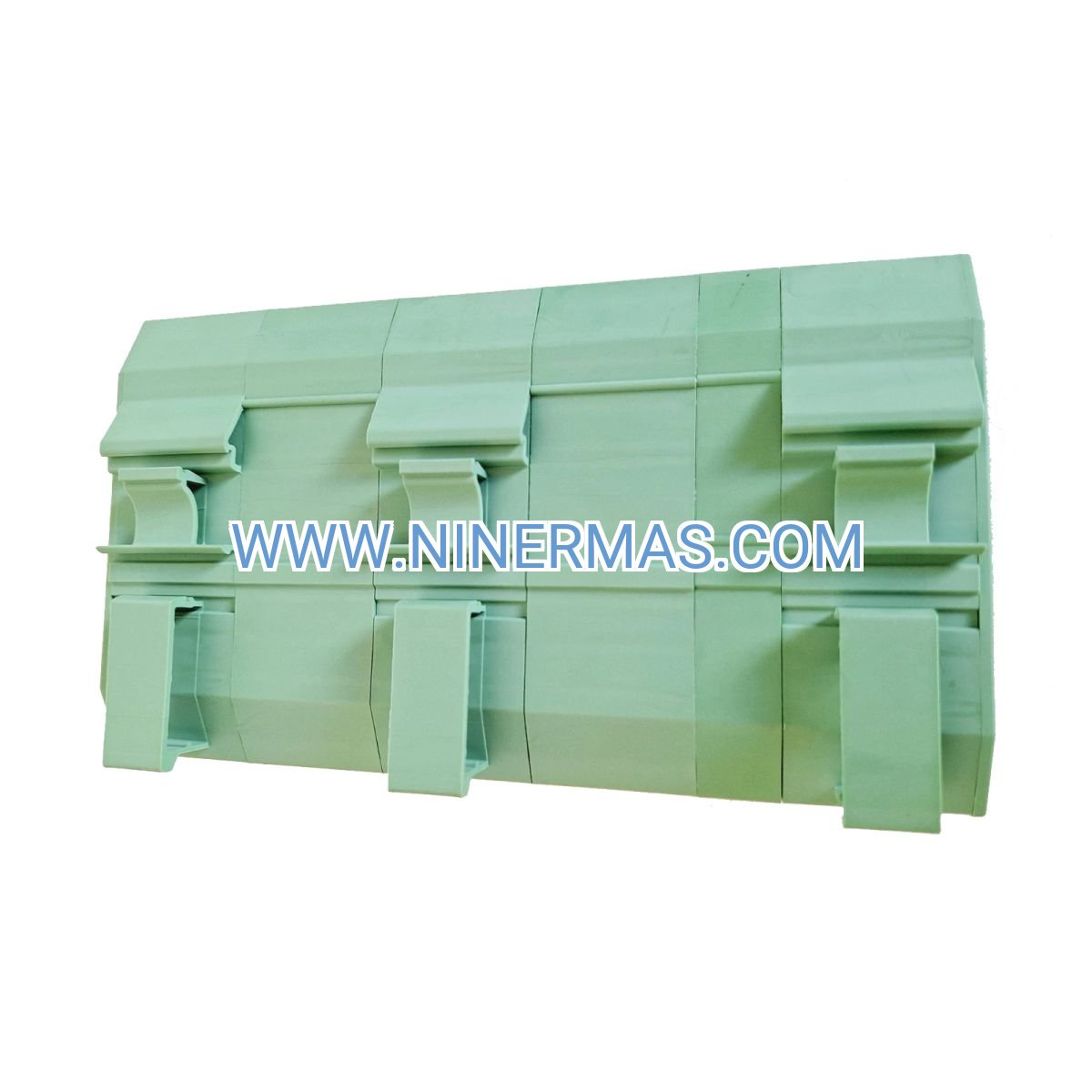

✓ Dual Mounting Flexibility
DIN rail or panel mount configurations adapt to space-constrained control cabinets and retrofit scenarios, eliminating costly enclosure modifications.

✓ Wide Temperature Range Operation
Proven performance from -40°C to +70°C ensures reliable operation in outdoor installations, desert climates, and high-temperature process areas.

Application Scenarios

→ Offshore Oil & Gas Platforms
In subsea production control systems, the 3000590-110 maintains signal integrity despite salt spray, vibration, and temperature cycling. Operators achieve 99.7% uptime for critical shutdown valves by eliminating corrosion-related wiring failures.

→ Chemical Processing Plants
For reactor protection systems handling hazardous materials, this assembly provides the redundant wiring paths required by OSHA PSM regulations. Facilities reduce safety audit findings by 60% through documented compliance with IEC 61511 standards.

→ Combined Cycle Power Plants
Burner management systems (BMS) protecting gas turbines rely on the 3000590-110's fast response time and noise rejection. Plant engineers report zero nuisance trips during grid frequency transients after upgrading from legacy termination methods.

→ Pharmaceutical Manufacturing
Clean room environments benefit from the assembly's sealed construction that prevents particulate contamination while maintaining UL Class I Division 2 compliance for solvent handling areas.

→ Refinery Hydrocracker Units
High-integrity pressure protection systems (HIPPS) safeguarding high-pressure vessels utilize the 3000590-110's proven 10-year service life in hydrogen-rich atmospheres where standard components degrade rapidly.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 3000590-110, verify I/O module compatibility with your specific Triconex chassis configuration. For analog signal applications requiring 4-20mA loop isolation, consider pairing with model 3000520-380. High-density installations benefit from the 3000656-210 variant offering enhanced diagnostic LEDs. Consult factory documentation for cable assembly part numbers matching your field device connector types.

Extended Functions

IoT Integration Readiness: While the 3000590-110 itself is a passive termination device, it supports integration with Triconex TriStation 1131 software for remote diagnostic monitoring. When paired with Schneider Electric's EcoStruxure platform, maintenance teams can track connection resistance trends and predict wiring degradation before failures occur.

Customization Options: For OEM integrators requiring pre-wired cable assemblies, Schneider Electric offers factory-configured versions with customer-specified cable lengths (1m to 10m) and connector types (M12, 7/8", or terminal lugs). Custom labeling services are available for projects exceeding 50 units.

Retrofit Compatibility: The 3000590-110 maintains pin-for-pin compatibility with discontinued models 3000590-100 and 3000590-105, enabling drop-in replacement during system upgrades without rewiring field cables—a critical advantage for aging installations where as-built documentation is incomplete.

Delivery & Service Assurance

Lead Time: Stock units ship within 3-5 business days via express courier. Custom-configured assemblies require 4-6 weeks for factory integration and testing. Expedited production is available for emergency shutdown system outages—contact our technical sales team for 24-hour response options.

Warranty Coverage: All 3000590-110 assemblies include a comprehensive 12-month manufacturer warranty covering material defects and workmanship issues. Extended warranty programs up to 36 months are available for critical infrastructure projects.

Technical Support: Our certified Triconex specialists provide installation guidance, wiring diagram verification, and troubleshooting assistance via phone, email, or remote desktop support. On-site commissioning services are available in major industrial regions.

Documentation Package: Each unit ships with installation manual, dimensional drawings, terminal assignment diagrams, and SIL 3 certification documents. CAD files (AutoCAD DWG, STEP) are available for download to support panel design integration.

Frequently Asked Questions

Q: How does the 3000590-110 improve system reliability compared to standard terminal blocks?
A: The assembly's integrated EMI shielding reduces signal noise by 85% in high-interference environments, while color-coded terminals eliminate 90% of wiring errors during commissioning. Field data shows 3.2× longer service life versus generic DIN rail terminals in corrosive atmospheres.

Q: What wire gauge range is compatible with the screw terminals?
A: Terminal blocks accept 12-22 AWG (0.5-2.5mm²) solid or stranded copper conductors. For optimal contact resistance, use ferrule end sleeves on stranded wire. Maximum torque specification is 0.5 Nm (4.4 lb-in).

Q: Can this assembly be used in outdoor installations?
A: While rated IP20 for indoor use, the 3000590-110 can be deployed outdoors when installed inside NEMA 4X or IP66-rated enclosures. Ensure adequate ventilation to prevent condensation in high-humidity climates.

Q: Is the assembly compatible with third-party I/O modules?
A: The 3000590-110 is engineered specifically for Triconex I/O modules and may not provide proper signal termination for other manufacturers' equipment. Using non-approved components voids SIL 3 certification and warranty coverage.

Q: What is the recommended inspection interval for installed assemblies?
A: Perform visual inspection and terminal torque verification every 12 months as part of your safety system proof test procedures. High-vibration environments may require quarterly checks per IEC 61511 guidelines.

Q: Does the product support fiber optic signal connections?
A: No, the 3000590-110 is designed exclusively for copper wire termination. For fiber optic applications, refer to Triconex communication module specifications or contact our engineering team for alternative solutions.

Take the Next Step

Ensure your safety instrumented system meets the highest reliability standards. Contact our automation specialists today for technical consultation, volume pricing, or to request a detailed compatibility assessment for your specific Triconex configuration.

Email: sale@ninermas.com
Phone: +0086 187 5021 5667
Quote Request: Include your Triconex chassis model, I/O module part numbers, and project timeline for fastest response.
