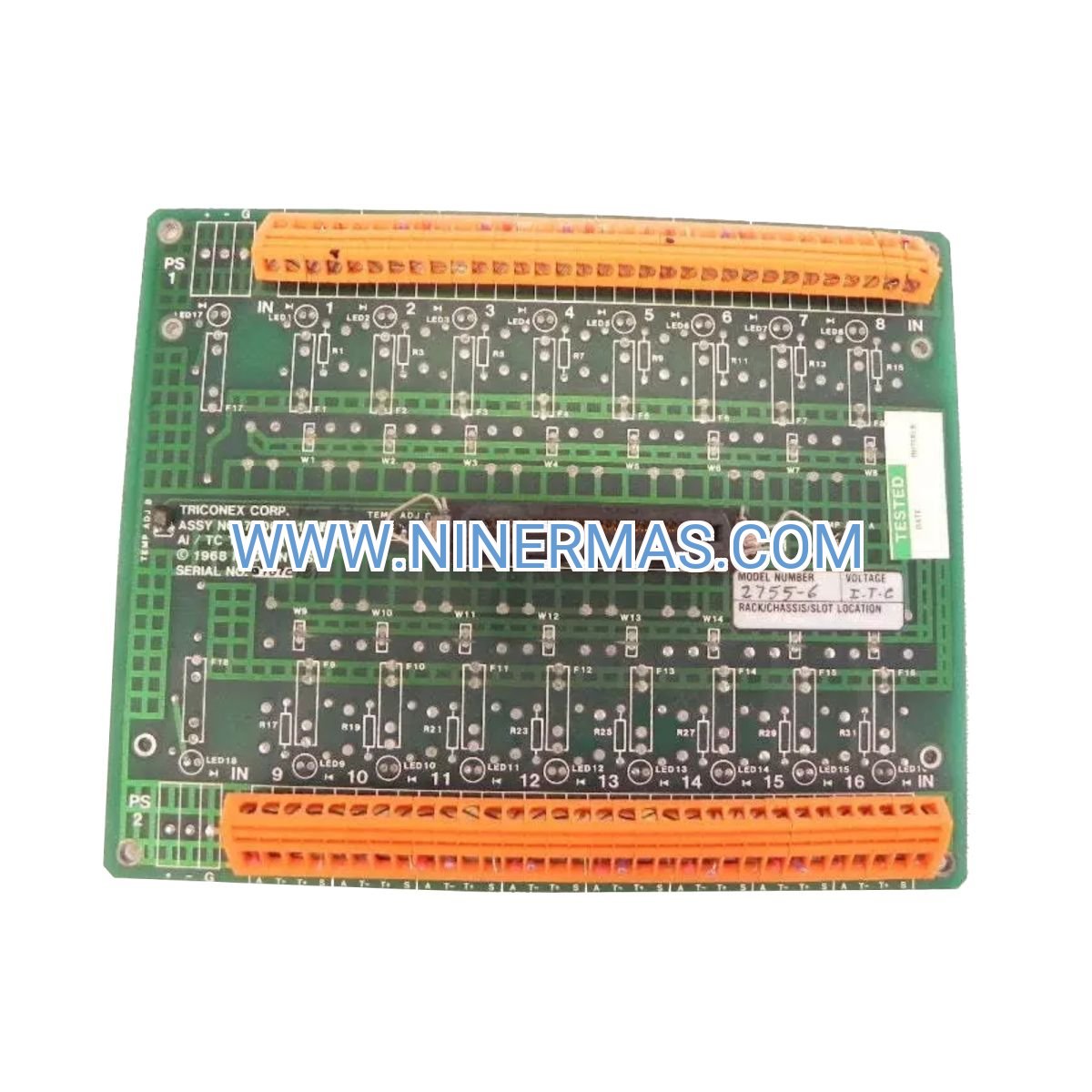

Triconex 2755 ITC Card – Industrial-Grade Field Wiring Termination

The Triconex 2755 Interface Termination Card (ITC) provides mission-critical field wiring connectivity for Triple Modular Redundant (TMR) safety instrumented systems. This industrial-grade termination solution bridges field devices to Triconex I/O modules, delivering secure signal routing and fault-tolerant performance in high-stakes process control applications.

Designed for oil & gas, chemical processing, power generation, and pharmaceutical industries, the 2755 ITC supports both digital and analog I/O configurations while maintaining SIL 3 safety integrity levels. Its modular architecture enables rapid installation, simplified maintenance, and seamless integration with Tricon, Trident, and TriStation controller platforms.

With organized screw terminal blocks, LED diagnostic indicators, and rugged construction rated for harsh environments, the Triconex 2755 reduces commissioning time, minimizes wiring errors, and ensures long-term reliability in safety-critical operations.

Core Features & Benefits

✓ Triple Modular Redundancy Support
Maintains fault-tolerant operation through TMR architecture, ensuring continuous process safety even during component failures. Ideal for emergency shutdown systems and burner management applications.

✓ Simplified Field Installation
Color-coded terminal blocks with clear labeling accelerate wiring tasks by up to 40%, reducing installation errors and commissioning delays in complex safety systems.

✓ SIL 3 Safety Certification
IEC 61508 compliant design meets international functional safety standards for high-demand process industries, supporting risk reduction requirements in hazardous environments.

✓ Diagnostic LED Indicators
Real-time status monitoring enables rapid troubleshooting and predictive maintenance, minimizing unplanned downtime and optimizing system availability.

✓ DIN Rail Mounting Flexibility
Standard DIN rail compatibility allows quick module replacement and system expansion without custom mounting hardware or panel modifications.

✓ Wide Environmental Range
Operates reliably in temperatures from 0°C to 60°C and humidity up to 95% non-condensing, suitable for offshore platforms, refineries, and industrial facilities.

Typical Application Scenarios

Emergency Shutdown Systems (ESD) – Oil & Gas
In offshore production platforms, the 2755 ITC terminates field signals from pressure transmitters, valve position sensors, and emergency stop buttons. When abnormal conditions occur, the TMR architecture ensures fail-safe shutdown sequences execute reliably, protecting personnel and assets from catastrophic events.

Reactor Protection – Chemical Processing
Chemical plants deploy the 2755 for batch reactor monitoring, connecting temperature sensors, level transmitters, and agitator speed monitors. The card's SIL 3 rating supports safety instrumented functions that prevent runaway reactions and hazardous material releases.

Turbine Control – Power Generation
Power stations utilize the 2755 ITC for steam turbine overspeed protection and generator excitation control. Rapid signal processing and redundant termination paths maintain grid stability during load transients and fault conditions.

Clean Room Monitoring – Pharmaceutical Manufacturing
Pharmaceutical facilities integrate the 2755 with environmental sensors monitoring differential pressure, particle counts, and HVAC performance. Compliance with 21 CFR Part 11 requirements ensures product quality and regulatory adherence.

Machine Safety Interlocks – Automated Manufacturing
Production lines employ the 2755 for safety light curtain interfaces, guard door monitoring, and emergency stop circuits. The card's diagnostic capabilities support predictive maintenance programs and reduce safety system proof test intervals.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the Triconex 2755 ITC, verify compatibility with your existing I/O module configuration (digital vs. analog, input vs. output). Confirm that your control cabinet provides adequate DIN rail space and environmental conditions fall within operating specifications. For hazardous area installations, ensure proper grounding and cable gland selection per local electrical codes.

Extended Functions

IoT Integration Readiness
When paired with Triconex communication modules, the 2755 ITC supports data connectivity to SCADA systems, historians, and cloud-based analytics platforms. This enables remote monitoring, predictive maintenance algorithms, and digital twin implementations for Industry 4.0 initiatives.

Advanced Diagnostic Capabilities
Beyond basic LED indicators, the 2755 integrates with TriStation software for detailed channel-level diagnostics, wiring fault detection, and loop integrity verification. These features reduce troubleshooting time by up to 60% compared to conventional termination methods.

Customization Options
For specialized applications requiring non-standard terminal configurations or extended temperature ratings, consult our engineering team. Custom labeling, conformal coating, and factory acceptance testing services are available for large-scale projects.

Delivery & Service Assurance

Standard Delivery: In-stock units ship within 1-2 business days via DHL, FedEx, or UPS with full tracking. Typical transit time ranges from 3-7 days for international destinations.

Custom Configuration: Factory-configured modules with pre-labeled terminals or special testing require 2-3 weeks lead time depending on specification complexity.

Warranty Coverage: Every Triconex 2755 ITC includes a comprehensive 12-month warranty covering manufacturing defects and functional failures. Extended warranty programs available upon request.

Technical Support: Our certified Triconex specialists provide installation guidance, configuration assistance, and troubleshooting support via phone, email, and remote desktop sessions. Response time: within 4 business hours for critical issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, compliance certificates, and TriStation configuration templates for rapid commissioning.

Frequently Asked Questions

How does the Triconex 2755 ITC improve system reliability compared to standard terminal blocks?
The 2755 ITC is specifically engineered for TMR safety systems with built-in diagnostic capabilities, organized channel grouping, and vibration-resistant terminal retention. Unlike generic terminal blocks, it supports hot-swap operations in redundant configurations and provides real-time fault detection through LED indicators and software diagnostics.

What wire gauge range does the 2755 terminal block accommodate?
The screw terminals accept wire sizes from 14 AWG to 22 AWG (2.5mm² to 0.5mm²). For optimal connection reliability, use ferrules on stranded wire and torque terminals to manufacturer specifications (typically 0.5-0.6 Nm).

Can the 2755 ITC be used in hazardous area Zone 2 installations?
Yes, when installed in properly rated enclosures with appropriate cable glands and grounding practices. The module itself is suitable for Zone 2 / Division 2 applications. For Zone 0/1 or Division 1 installations, consult your area classification documentation and local electrical inspector.

Is firmware update required when replacing a 2755 ITC module?
No, the 2755 is a passive termination card without embedded firmware. Replacement involves physical wiring transfer and verification through TriStation diagnostics. System configuration remains unchanged during module swap operations.

What is the expected service life of the Triconex 2755 under continuous operation?
With proper installation and environmental control, the 2755 ITC typically provides 15-20 years of reliable service. Key longevity factors include maintaining ambient temperature below 50°C, preventing moisture ingress, and following recommended proof test intervals per IEC 61511 guidelines.

Does NINERMAS provide installation and commissioning services for the 2755 ITC?
While we primarily supply hardware, we can recommend certified Triconex system integrators in your region. Our technical team provides remote commissioning support, configuration file review, and troubleshooting assistance as part of our standard service offering.

Ready to Enhance Your Safety System?

Contact our industrial automation specialists today to discuss your Triconex 2755 ITC requirements. Whether you need a single replacement module or complete system upgrade, we provide expert guidance, competitive pricing, and fast global delivery.
