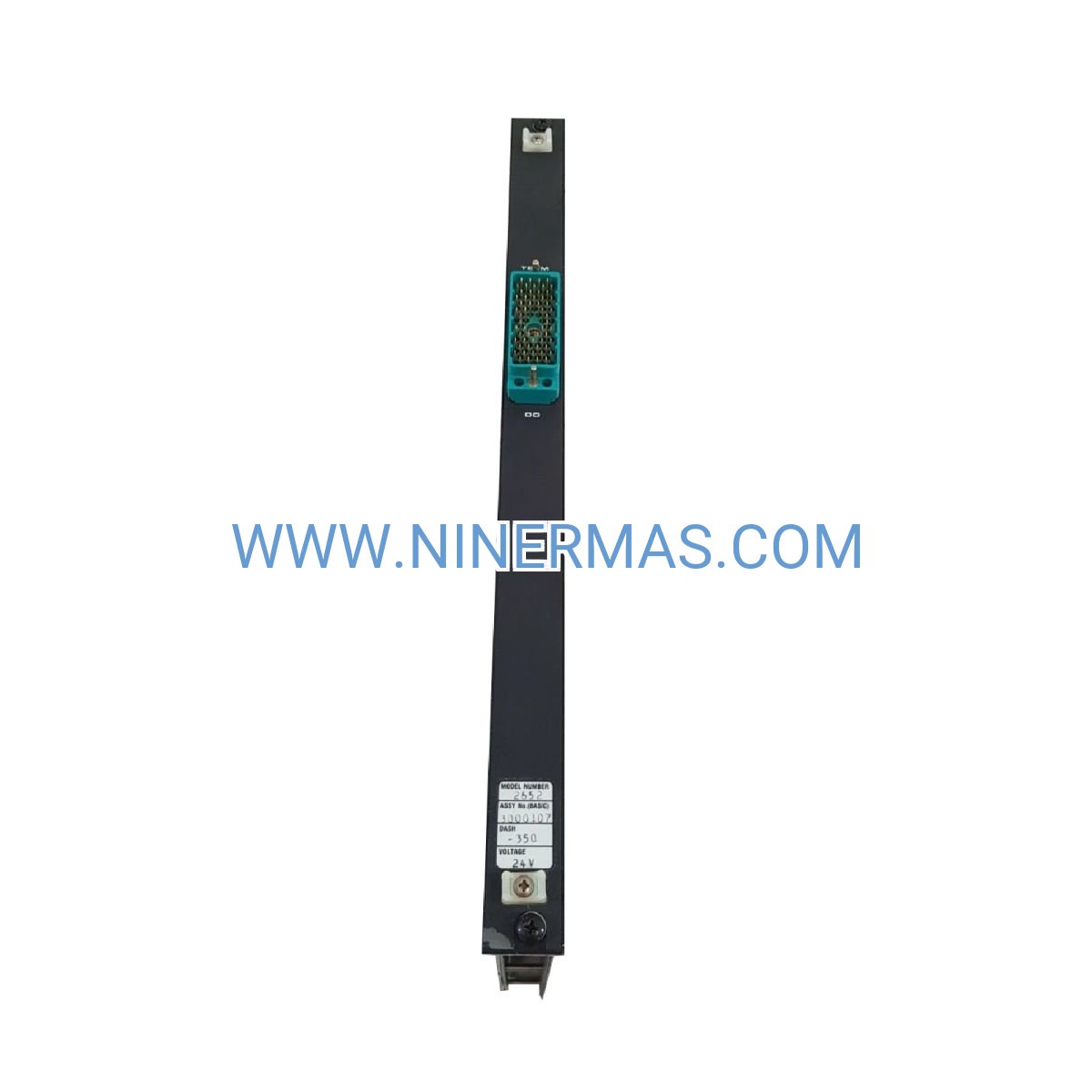

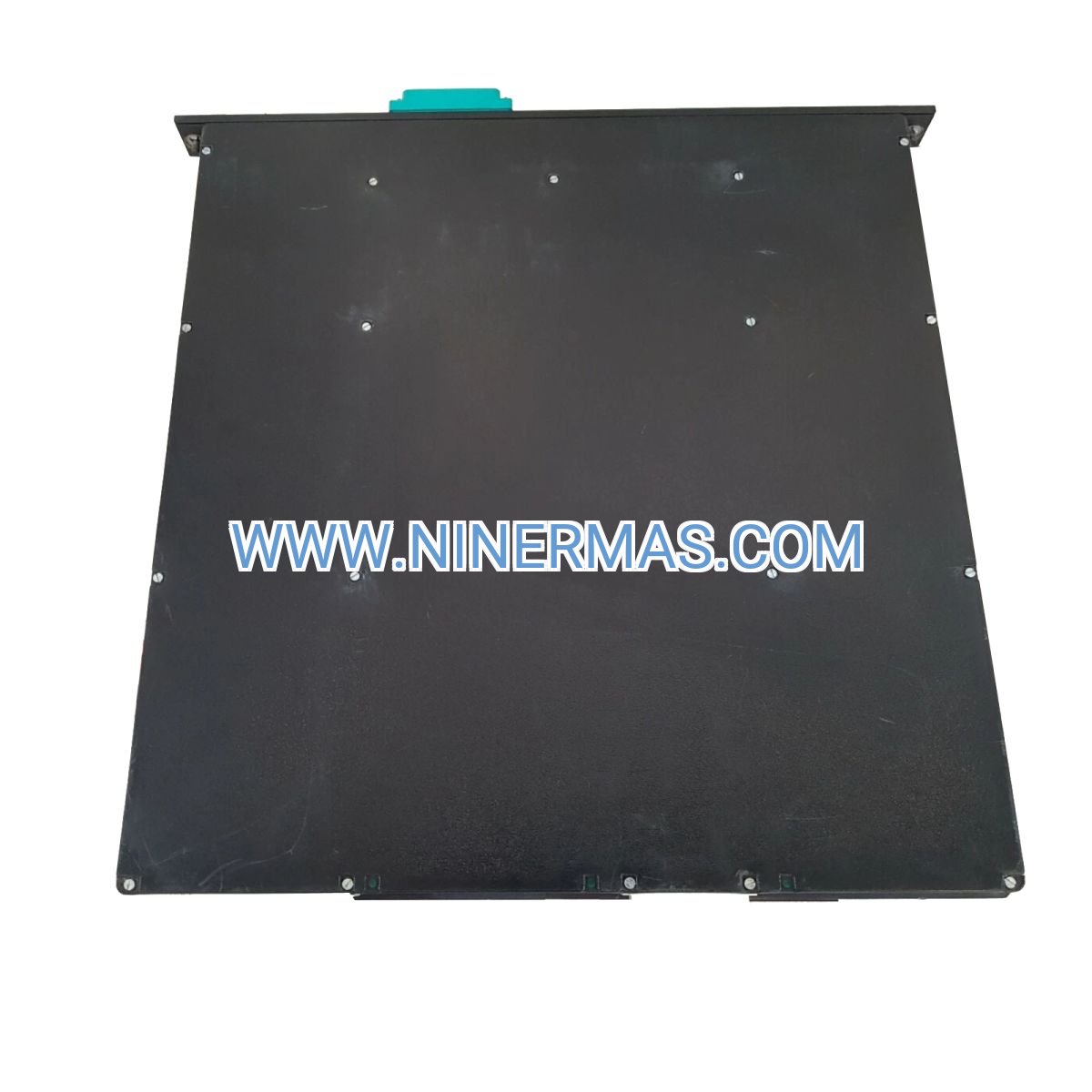

Triconex 2652 Digital Output Terminal Board (Industrial-Grade Signal Interface)

The Triconex 2652 terminal board (Part Number: 7400058-350) serves as a critical signal distribution component within Triple Modular Redundant (TMR) safety instrumented systems. Designed for mission-critical industrial environments, this terminal interface enables reliable digital output connectivity between Triconex control processors and field actuators across oil & gas, petrochemical, and power generation installations.

Process industries demand uncompromising safety integrity for emergency shutdown sequences, burner management, and fire suppression systems. The 2652 addresses these requirements through TMR-compatible architecture that maintains signal continuity even during component-level failures, ensuring your safety logic executes without interruption in SIL 3-rated applications.

Built for engineers and system integrators managing high-consequence process control, this terminal board delivers field-proven performance in hazardous area classifications where conventional I/O solutions cannot meet functional safety standards. Backed by comprehensive technical documentation and global support infrastructure, the 2652 simplifies compliance with IEC 61508 and industry-specific safety regulations.

Core Features & Technical Advantages

✓ TMR-Compatible Architecture
Seamless integration with Triconex redundant output modules ensures fault-tolerant signal distribution. Your control logic maintains voting integrity across all three channels, eliminating single points of failure in safety-critical circuits.

✓ Extended Temperature Range (-40°C to +70°C)
Operate reliably in extreme ambient conditions from Arctic installations to desert refineries. Wide thermal tolerance reduces cooling infrastructure costs while maintaining signal accuracy across seasonal variations.

✓ Screw Terminal Connectivity
Accepts 14-22 AWG (0.5-2.5 mm²) field wiring with tool-accessible terminal blocks. Ferrule-compatible design ensures vibration-resistant connections that withstand industrial environments without periodic re-torquing.

✓ Dual Mounting Options
DIN rail or panel mount configurations adapt to cabinet space constraints. Standardized footprint enables retrofit installations within existing Triconex chassis without mechanical modifications.

✓ IEC 61508 SIL 3 / ATEX Certified
Pre-certified for hazardous area deployment (Zone 1/2, Division 1/2). Eliminates months of compliance testing and accelerates project commissioning timelines in regulated industries.

✓ Passive Signal Distribution Design
No active electronics minimize failure modes and simplify troubleshooting. Diagnostic intelligence resides in connected output modules, reducing spare parts inventory complexity.

Industrial Application Scenarios

→ Emergency Shutdown (ESD) Systems
Distribute trip signals to isolation valves, blowdown systems, and depressurization equipment in offshore platforms and onshore processing facilities. The 2652's TMR compatibility ensures shutdown commands execute even during simultaneous channel faults, meeting API RP 14C and IEC 61511 requirements for high-demand safety functions.

→ Fire & Gas Detection Networks
Interface detection logic with deluge valves, ventilation dampers, and alarm annunciators. Redundant signal paths prevent spurious trips while guaranteeing actuation during genuine hazard conditions, reducing false alarm costs by up to 40% compared to simplex architectures.

→ Burner Management Systems (BMS)
Control fuel valve sequencing, ignition systems, and flame safeguard interlocks in boilers and furnaces. Deterministic output timing maintains NFPA 85/86 compliance for combustion safety, preventing explosive atmospheres in fired equipment.

→ Compressor Anti-Surge Control
Drive recycle valves and blow-off systems protecting centrifugal compressors from surge damage. Sub-100ms response times enabled by direct terminal board connections prevent mechanical failures that cost $500K+ in unplanned downtime.

→ Pipeline Leak Detection
Activate block valves and pump shutdowns upon detecting pressure anomalies or flow imbalances. Geographic distribution of I/O across pipeline corridors benefits from the 2652's rugged construction and extended temperature ratings.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify output module compatibility before ordering—the 2652 pairs with 24VDC, 48VDC, and 120VDC Triconex output modules. For applications requiring >32 output points per chassis, plan for multiple terminal boards with dedicated power distribution. Consult your system integrator regarding TMR voting configuration and field wiring segregation to maintain SIL integrity.

Extended Functionality & System Integration

IoT & Remote Monitoring: While the 2652 itself provides passive connectivity, pairing with Triconex communication modules (e.g., TCM 4351B) enables SCADA integration via Modbus TCP or OPC UA. Real-time output status monitoring through plant DCS reduces mean time to repair (MTTR) by 30% through predictive maintenance alerts.

Cybersecurity Hardening: Deploy within segmented control networks following IEC 62443 zone/conduit models. The terminal board's lack of network interfaces eliminates attack surfaces, while connected output modules support encrypted diagnostics for secure remote access.

Customization Options: Factory-configured terminal labeling available for large projects (MOQ 10+ units). Custom wire harness assemblies with pre-terminated ferrules reduce field installation time by 50% and improve first-pass inspection rates.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outages (subject to inventory availability).

Custom Configurations: 10-15 business days for factory labeling or harness assembly services.

Warranty Coverage: 12-month comprehensive warranty against manufacturing defects and material failures. Extended warranty programs available for long-term service agreements.

Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting, and system optimization. Support available via email (sale@ninermas.com), phone (+0086 187 5021 5667), or scheduled video consultation.

Documentation Package: Each shipment includes installation manual, wiring diagrams, compliance certificates (ATEX/IECEx), and material traceability records for asset management systems.

Frequently Asked Questions

Q: Can the Triconex 2652 terminal board be replaced during system operation?
A: No, hot-swapping is not supported. The terminal board must be de-energized and isolated from field wiring before removal to prevent TMR voting disruptions and potential safety system trips. Follow lockout/tagout procedures per your facility's safety protocols.

Q: What wire gauge and termination method ensure optimal connection reliability?
A: Use 14-22 AWG (0.5-2.5 mm²) stranded copper conductors with insulated ferrule terminations. Ferrules prevent wire strand fraying and maintain consistent contact pressure under vibration. Torque screw terminals to manufacturer specifications (typically 0.5-0.6 Nm).

Q: Does the 2652 provide diagnostic LEDs or status indication?
A: The terminal board uses passive signal distribution without onboard diagnostics. Output status monitoring and fault detection are handled by the connected Triconex output modules, which report to the main processor for display in TriStation engineering software.

Q: How does this terminal board improve energy efficiency in control systems?
A: Passive architecture eliminates standby power consumption (0W draw). When integrated with modern Triconex output modules featuring intelligent power management, overall cabinet heat load decreases by 15-20%, reducing cooling requirements and extending component lifespan.

Q: What installation clearances are required for proper thermal management?
A: Maintain minimum 50mm (2") spacing above and below the terminal board for convective airflow. In high-density cabinets exceeding 30% fill ratio, consider forced ventilation to keep ambient temperatures within the -40°C to +70°C operating range.

Q: Is remote configuration or firmware updates supported?
A: The 2652 contains no programmable logic or firmware—it's a hardwired signal distribution interface. All configuration resides in the connected output modules and Triconex controller, which support remote updates via TriStation software over secure network connections.

Take the Next Step

Ensure your safety instrumented systems meet the highest reliability standards. Contact our technical sales team today for application-specific guidance, compatibility verification, and volume pricing for multi-site deployments. Request a detailed datasheet or schedule a consultation to discuss your project requirements.
