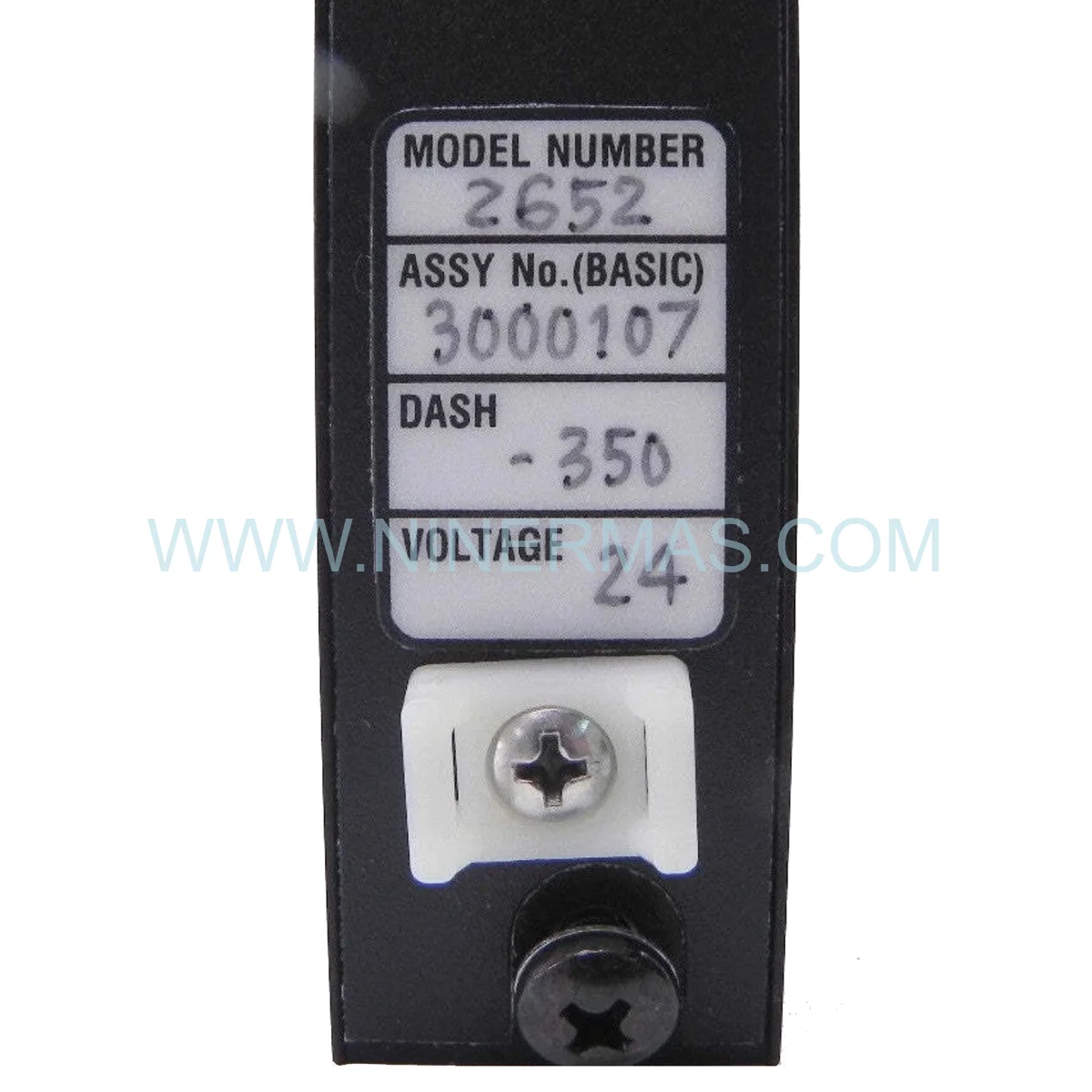

Triconex 2652/1/1 Digital Output Module (Industrial-Grade TMR Safety Controller)

The Triconex 2652/1/1 is a fault-tolerant digital output module engineered for safety-critical industrial control systems requiring SIL3 certification. Built on Triple Modular Redundant (TMR) architecture, this 24VDC output module delivers continuous operation even during component failures, making it the preferred choice for emergency shutdown systems, fire and gas detection, and process safety applications across oil & gas, chemical, power generation, and pharmaceutical industries.

Designed for integration within Schneider Electric's Tricon safety platform, the 2652/1/1 addresses the challenge of maintaining operational continuity in high-consequence environments where unplanned shutdowns result in significant financial loss, environmental risk, or safety hazards. Target users include control system engineers, safety instrumented system designers, plant maintenance teams, and automation integrators responsible for IEC 61508-compliant installations.

Key advantages include field-proven TMR voting logic that masks single-point failures automatically, comprehensive diagnostic coverage exceeding 99%, hot-swap capability for zero-downtime maintenance, and backward compatibility with legacy Tricon platforms—delivering both immediate reliability and long-term investment protection.

Core Features & Benefits

✓ Triple Modular Redundant Architecture
Three parallel processing channels with 2-out-of-3 voting eliminate single points of failure. Business value: Achieve 99.99% uptime in safety-critical loops, reducing unplanned shutdown costs by up to 40%.

✓ SIL3-Certified Safety Integrity
IEC 61508 SIL3 certification with systematic capability SC3 and hardware fault tolerance HFT=1. Business value: Meet regulatory compliance requirements while protecting personnel and assets in hazardous process areas.

✓ 32-Channel High-Density I/O
24VDC outputs rated at 0.5A per channel with optical isolation. Business value: Control more field devices per module, reducing cabinet space requirements and installation costs by 25-30%.

✓ Hot-Swap Field Replacement
Replace faulty modules during live operation without process interruption. Business value: Schedule maintenance during normal operations instead of costly planned shutdowns, saving 8-12 hours of downtime per replacement.

→ Advanced Diagnostic Monitoring
Continuous self-testing detects wiring faults, short circuits, open loads, and power supply anomalies in real-time. Business value: Predictive maintenance alerts prevent 85% of field failures before they impact production.

→ Extended Temperature Range
Operates reliably from -40°C to +70°C without derating. Business value: Deploy in extreme environments—offshore platforms, desert facilities, arctic installations—without additional climate control infrastructure.

Application Scenarios

Oil & Gas Emergency Shutdown Systems
In offshore production platforms, the 2652/1/1 controls critical ESD valves, blowdown systems, and fire suppression actuators. When gas detectors sense hydrocarbon leaks, the module executes isolation sequences within 100ms, preventing catastrophic incidents. Pain point addressed: Eliminates dangerous delays caused by single-channel controller failures during emergency events.

Chemical Reactor Protection Circuits
Chemical plants use the module to manage reactor cooling systems, pressure relief valves, and toxic gas isolation dampers. TMR architecture ensures exothermic runaway reactions trigger immediate cooling activation even if one processing channel fails. Value delivered: Protects multi-million dollar reactor vessels and prevents environmental releases that could result in regulatory fines exceeding $500K.

Power Plant Turbine Control
Combined-cycle power stations deploy the 2652/1/1 for turbine trip systems, generator breaker control, and auxiliary cooling pump sequencing. During grid disturbances, the module coordinates protective actions across 32 discrete outputs simultaneously. Pain point addressed: Prevents equipment damage during transient events while maintaining grid stability requirements.

Pharmaceutical Clean Room Environmental Control
Sterile manufacturing facilities utilize the module to control HVAC dampers, differential pressure alarms, and contamination isolation barriers. When particulate monitors detect excursions, automated responses maintain ISO Class 5 conditions. Value delivered: Prevents batch contamination losses averaging $200K-$800K per incident in biologics production.

Water Treatment Chemical Dosing Systems
Municipal water plants employ the 2652/1/1 for chlorine injection control, pH adjustment valve actuation, and pump interlock circuits. Redundant control prevents both under-dosing (regulatory violations) and over-dosing (public safety hazards). Pain point addressed: Maintains EPA compliance while eliminating manual intervention during controller maintenance.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 2652/1/1 when your application requires SIL3-rated digital outputs for solenoid valves, motor starters, alarm annunciators, or indicator lights in safety instrumented functions. For applications requiring higher current capacity (up to 2A per channel), consider the Triconex 3664 model. If your system uses 120VAC field devices, specify the 3604E AC output module instead. Verify chassis compatibility—the 2652/1/1 requires Tricon v9.x firmware or later and occupies one I/O slot in the main chassis or remote I/O rack.

Extended Functions

IoT Integration & Remote Monitoring: When paired with Triconex TriStation software and Schneider Electric's EcoStruxure platform, the 2652/1/1 enables cloud-based diagnostics, predictive maintenance analytics, and remote configuration management. Real-time performance data streams to SCADA systems via Modbus TCP, OPC UA, or proprietary TriStation protocols, supporting Industry 4.0 initiatives.

Advanced Pulse Output Capability: Beyond simple on/off control, the module supports pulse-width modulation (PWM) for proportional valve control and stepper motor positioning applications, expanding functionality beyond traditional safety shutdown scenarios.

Customization Options: Factory-configured modules are available with pre-programmed output sequencing logic, custom terminal block labeling, and application-specific diagnostic thresholds. Contact our engineering team for projects requiring 10+ modules with specialized configurations.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days via DHL/FedEx Express. Typical delivery to North America, Europe, and Asia-Pacific regions: 5-7 business days.

Custom Configuration Lead Time: Factory-programmed modules with specialized settings require 3-4 weeks for engineering review, configuration, and factory acceptance testing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for critical infrastructure applications.

Technical Support: Unlimited access to certified Triconex specialists for configuration assistance, troubleshooting guidance, firmware updates, and integration support. Average response time: <4 hours for critical issues.

Documentation Package: Each module includes installation manual, wiring diagrams, configuration templates, safety certification documents, and compliance declarations (CE, ATEX, FM, CSA).

Frequently Asked Questions

How does the hot-swap capability work during module replacement?
The TMR architecture continuously compares outputs from three parallel channels. When you remove a module for replacement, the remaining two channels maintain control using 1-out-of-2 voting logic. Once the new module is installed and passes self-diagnostics (typically 30-45 seconds), it automatically synchronizes with the active channels and full TMR operation resumes. No programming or configuration downloads are required during the swap process.

What is the maximum cable distance between the module and field devices?
For 24VDC outputs, recommended maximum cable length is 300 meters (984 feet) using shielded twisted-pair cable with minimum 0.75mm² conductor cross-section. Longer distances up to 500 meters are possible with voltage drop compensation and increased wire gauge. Always calculate voltage drop based on load current and verify field device minimum operating voltage requirements.

Can this module achieve energy savings in my control system?
While the 2652/1/1 is optimized for safety rather than energy efficiency, its diagnostic capabilities enable precise control of pumps, fans, and actuators, eliminating unnecessary runtime. Customers report 12-18% energy reduction in auxiliary systems by replacing relay-based controls with intelligent TMR output modules that support demand-based operation.

What installation requirements must I meet for SIL3 certification?
To maintain SIL3 integrity, install the module in a Triconex chassis with redundant power supplies, use screened cables with 360° shield termination, implement proper grounding per IEC 61000-5-2, and follow Triconex wiring practices documented in manual 51306117-100. Third-party safety validation is recommended for new installations. Our engineering team provides installation review services to verify compliance before commissioning.

Is remote diagnostics capability included with the module?
Yes, the 2652/1/1 continuously reports channel health, output status, load current, fault conditions, and diagnostic counters to the Tricon main processor. This data is accessible via TriStation software locally or through secure VPN connections for remote monitoring. Integration with plant-wide asset management systems (e.g., Schneider Electric Avantis PRO) enables predictive maintenance workflows and automated work order generation.

How do I select between this module and the Triconex 3664 for my application?
Choose the 2652/1/1 for standard 24VDC applications requiring 0.5A per channel with proven field reliability. Select the 3664 when you need 40 channels instead of 32, or when driving higher-current loads up to 2A per channel. Both modules offer identical TMR architecture and SIL3 certification; the decision typically depends on I/O density requirements and load characteristics. Contact our application engineers for load analysis and module selection assistance.

Take the Next Step

Ready to enhance your safety instrumented system with proven TMR technology? Request a technical consultation with our certified Triconex specialists to discuss your specific application requirements, receive customized configuration recommendations, and obtain a detailed quotation. For urgent projects, our expedited delivery service can ship in-stock modules within 24 hours to minimize your project timeline.
