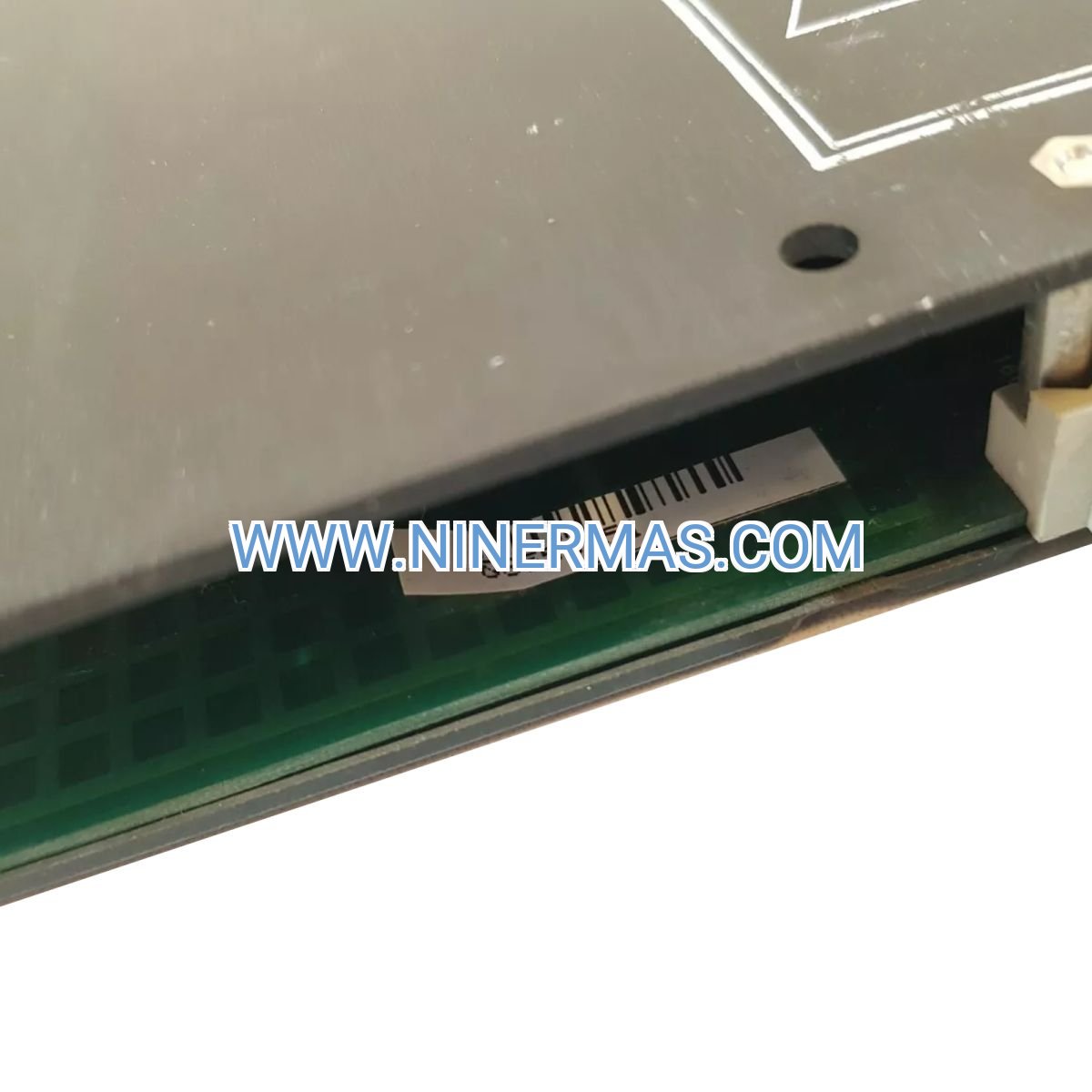

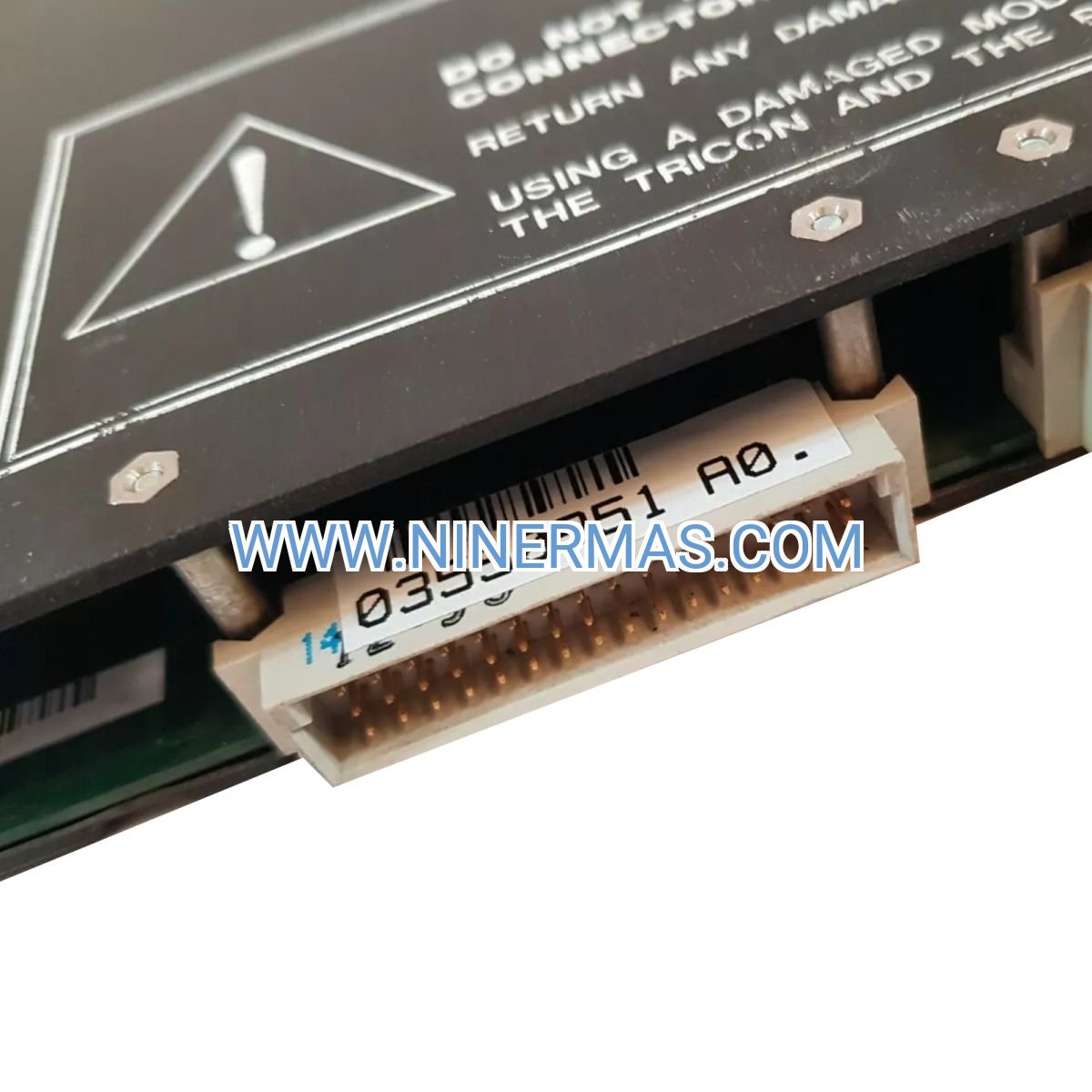

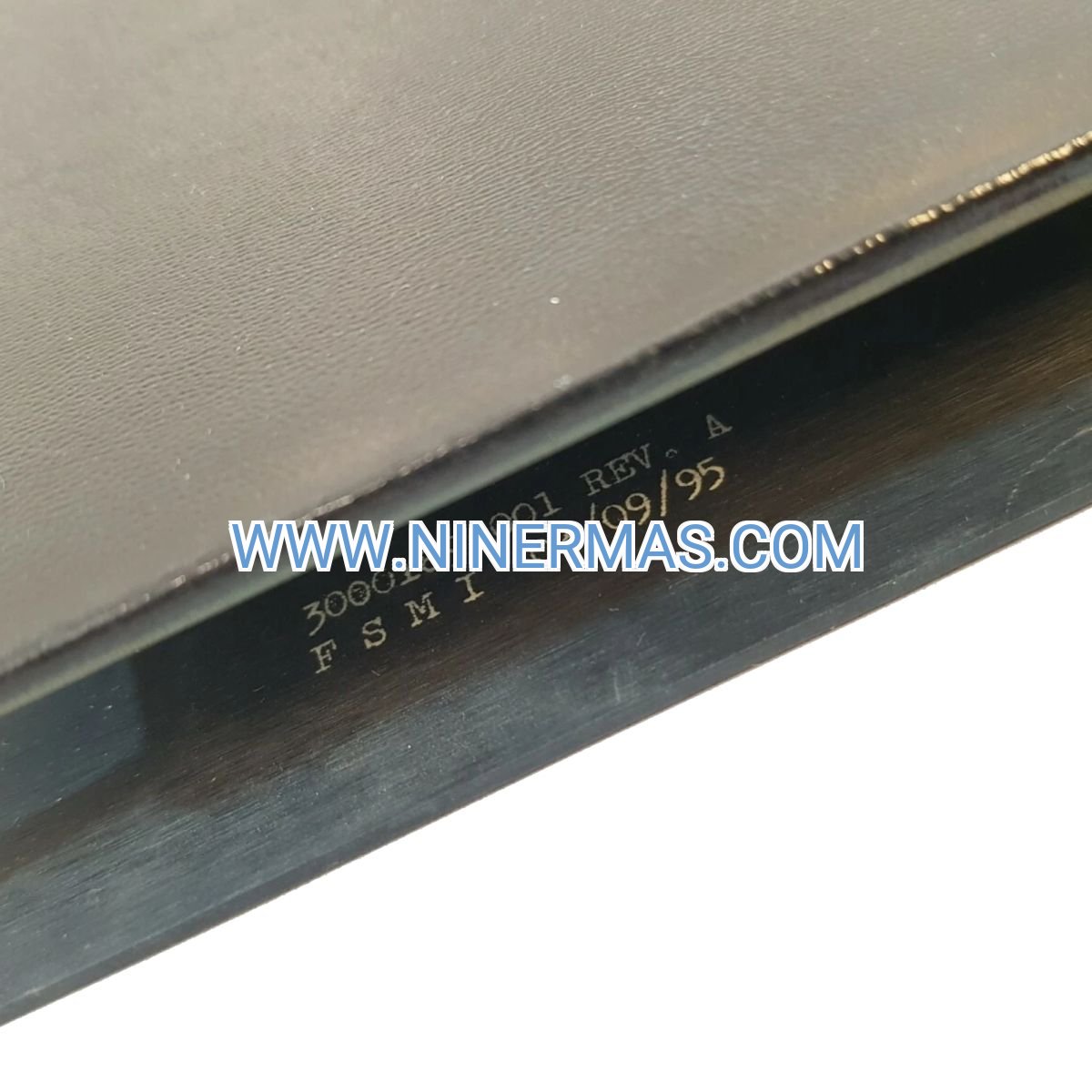

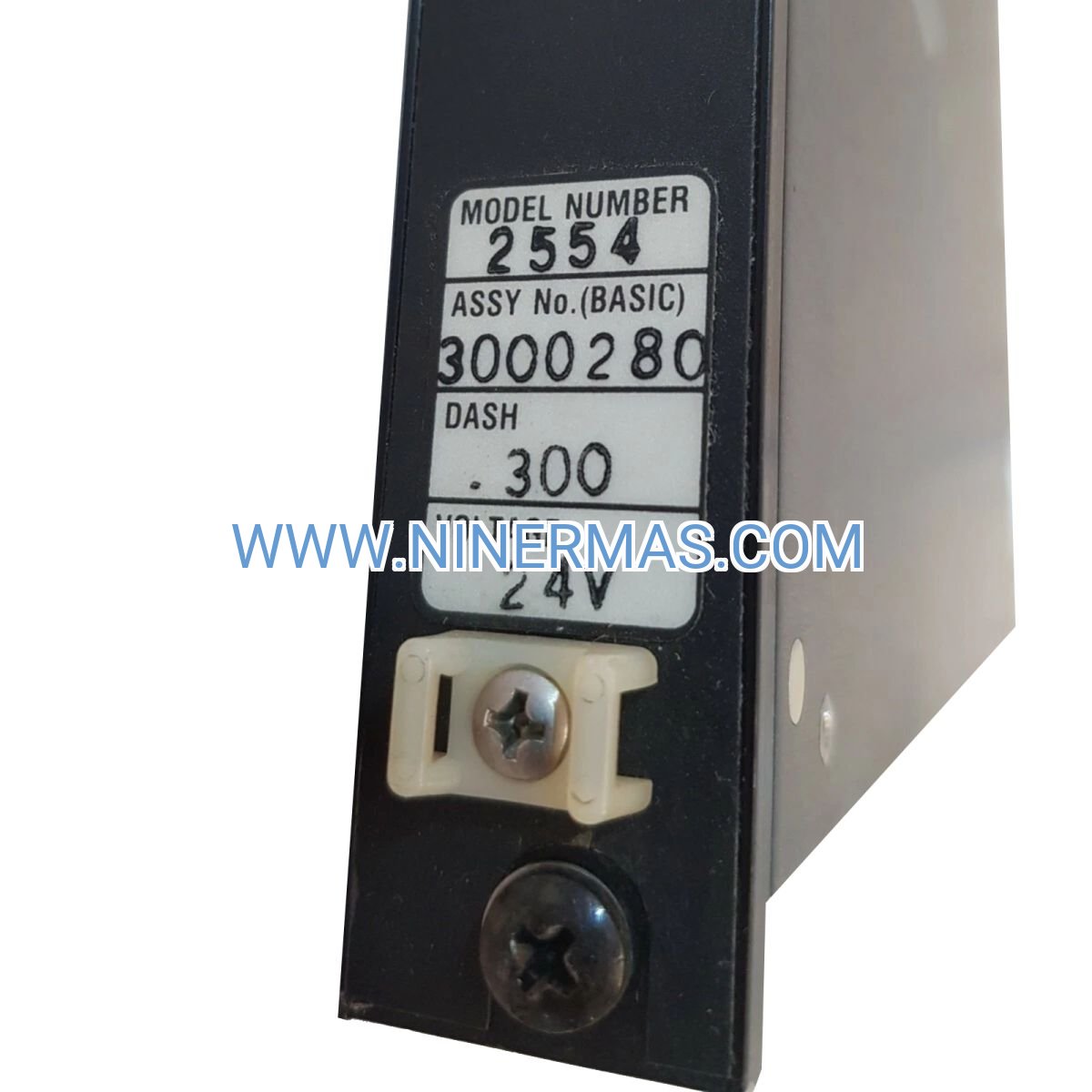

2554 Digital Output Baseplate (Industrial-Grade TMR Foundation)

The 2554 baseplate kit serves as the mechanical and electrical backbone for Triconex digital output modules deployed in safety-instrumented systems. Engineered for Triple Modular Redundant configurations, this component enables fault-tolerant control architectures that meet IEC 61508 SIL 3 requirements across oil & gas, chemical processing, and power generation facilities.

Designed for environments where system availability directly impacts operational safety, the 2554 provides hot-swappable module support and integrated diagnostics. Plant engineers rely on this baseplate to maintain continuous protection even during component replacement or maintenance activities, eliminating the need for costly process shutdowns.

Whether you're upgrading legacy safety systems or building new emergency shutdown networks, the 2554 delivers proven reliability with global certification compliance. Its rugged construction withstands temperature extremes, vibration, and electromagnetic interference common in heavy industrial settings.

Core Features & Benefits

✓ Triple Modular Redundant Architecture
Three parallel processing channels with voting logic ensure system integrity even when individual components fail, achieving 99.99% availability in critical safety loops.

✓ Zero-Downtime Module Replacement
Hot-swap capability allows technicians to replace output modules during operation without interrupting process control or triggering false alarms, reducing maintenance windows by 75%.

✓ Built-In Diagnostic Intelligence
Continuous self-testing detects wiring faults, module degradation, and communication errors before they impact safety functions, enabling predictive maintenance strategies.

✓ Global Safety Certification
IEC 61508 SIL 3, ATEX Zone 2, IECEx, and FM approvals qualify the baseplate for deployment in hazardous locations worldwide, simplifying compliance documentation.

✓ Environmental Resilience
Operates reliably from 0°C to 60°C with 95% humidity tolerance, meeting the demands of offshore platforms, desert refineries, and tropical chemical plants.

✓ Flexible Mounting Options
DIN rail and panel mount compatibility accelerates installation in both new construction and retrofit projects, with vibration-resistant hardware included.

Typical Application Scenarios

→ Offshore Oil & Gas Platforms
Emergency shutdown systems protecting wellheads, separators, and export pipelines require the 2554's corrosion-resistant design and salt-fog tolerance. The TMR architecture prevents spurious trips that could halt production worth millions per day.

→ Chemical Reactor Protection
Exothermic reaction control systems use the baseplate to interface with emergency cooling valves and vent systems. Diagnostic features detect valve coil failures before runaway reactions occur, protecting personnel and assets.

→ Power Plant Turbine Control
Steam and gas turbine overspeed protection relies on the 2554's microsecond response times and fail-safe output states. Hot-swap capability enables maintenance during scheduled outages without extending downtime.

→ Pharmaceutical Clean Room Monitoring
Critical environment control systems leverage the baseplate's low electromagnetic emissions and sealed construction to maintain ISO Class 5 cleanroom standards while ensuring personnel safety interlocks.

→ Water Treatment Overflow Prevention
Municipal and industrial wastewater facilities deploy the 2554 in pump control and level monitoring systems where environmental discharge violations carry severe penalties. Redundant outputs prevent single-point failures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 2554 baseplate when your application requires SIL 3 safety integrity with digital output modules in the 3636T, DO3624, or 3604E families. For analog output applications, consider the 2553 baseplate variant. Verify controller chassis compatibility before ordering—Tri-GP systems use different backplane pinouts than legacy Tricon platforms.

Extended Functions

IoT Integration Capabilities: The 2554 supports Schneider Electric's EcoStruxure platform through Triconex controller connectivity, enabling remote diagnostics, predictive analytics, and cloud-based asset management. OPC UA and Modbus TCP protocols facilitate integration with SCADA systems and enterprise MES platforms.

Advanced Diagnostic Features: Beyond standard TMR voting, the baseplate monitors backplane communication integrity, module insertion status, and power supply health. Diagnostic data streams to controller memory for historian archiving and trend analysis, supporting condition-based maintenance programs.

Customization Options: While the standard 2554 meets most applications, Schneider Electric offers conformal coating for extreme humidity environments and extended temperature variants (-20°C to 70°C) for specialized installations. Consult factory representatives for custom configurations.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Custom configurations require 4-6 weeks factory lead time depending on specification complexity.

Warranty Coverage: 12-month manufacturer warranty covers material defects and workmanship failures. Extended warranty programs available for up to 5 years with annual inspection services.

Technical Support: Our certified Triconex specialists provide 24/7 phone and email support for installation guidance, troubleshooting, and system optimization. On-site commissioning services available in major industrial regions.

Documentation Package: Each baseplate ships with installation manual, dimensional drawings, wiring diagrams, and safety certification documents. Digital copies available for download immediately upon order confirmation.

Frequently Asked Questions

How does the 2554 baseplate integrate with existing Triconex safety systems?
The baseplate mounts directly to Tri-GP chassis backplanes using keyed connectors that prevent incorrect installation. It provides power distribution and communication pathways for up to three digital output modules in TMR configuration. Compatibility with legacy Tricon systems requires adapter kits—contact technical support for migration planning.

What output module capacity does this baseplate support?
The 2554 accommodates digital output modules ranging from 8 to 32 channels per module, with total system capacity determined by controller I/O limits. Common pairings include the 3636T (32-channel), DO3624 (24-channel), and 3604E (16-channel enhanced) modules.

Can the baseplate reduce energy consumption in safety systems?
While the baseplate itself draws minimal power (< 5W), its diagnostic capabilities identify malfunctioning output modules that may draw excessive current. Predictive maintenance enabled by these diagnostics prevents energy waste from degraded components and reduces emergency repair costs by 40%.

What installation requirements must be met for proper operation?
Minimum clearances of 50mm above and below the baseplate ensure adequate ventilation. Grounding resistance must not exceed 1 ohm to chassis ground. Ambient temperature should remain within 0-60°C range, with forced air cooling recommended for enclosed cabinets exceeding 50°C.

Does the 2554 support remote monitoring and diagnostics?
Yes, when connected to Triconex controllers with Ethernet communication modules, the baseplate's diagnostic data becomes accessible via Schneider Electric's TriStation software and EcoStruxure cloud platform. This enables remote troubleshooting, firmware updates, and performance analytics without site visits.

How long does typical installation take for experienced technicians?
Mechanical mounting and backplane connection require approximately 15-20 minutes per baseplate. Module installation and wiring verification add 30-45 minutes depending on channel count. Complete system commissioning including loop testing typically completes within 4-6 hours for standard configurations.

Take the Next Step

Secure your critical processes with proven TMR technology. Contact our safety system specialists today for application-specific recommendations, pricing, and delivery timelines. We'll help you design a solution that meets your safety integrity requirements while optimizing total cost of ownership.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance.
