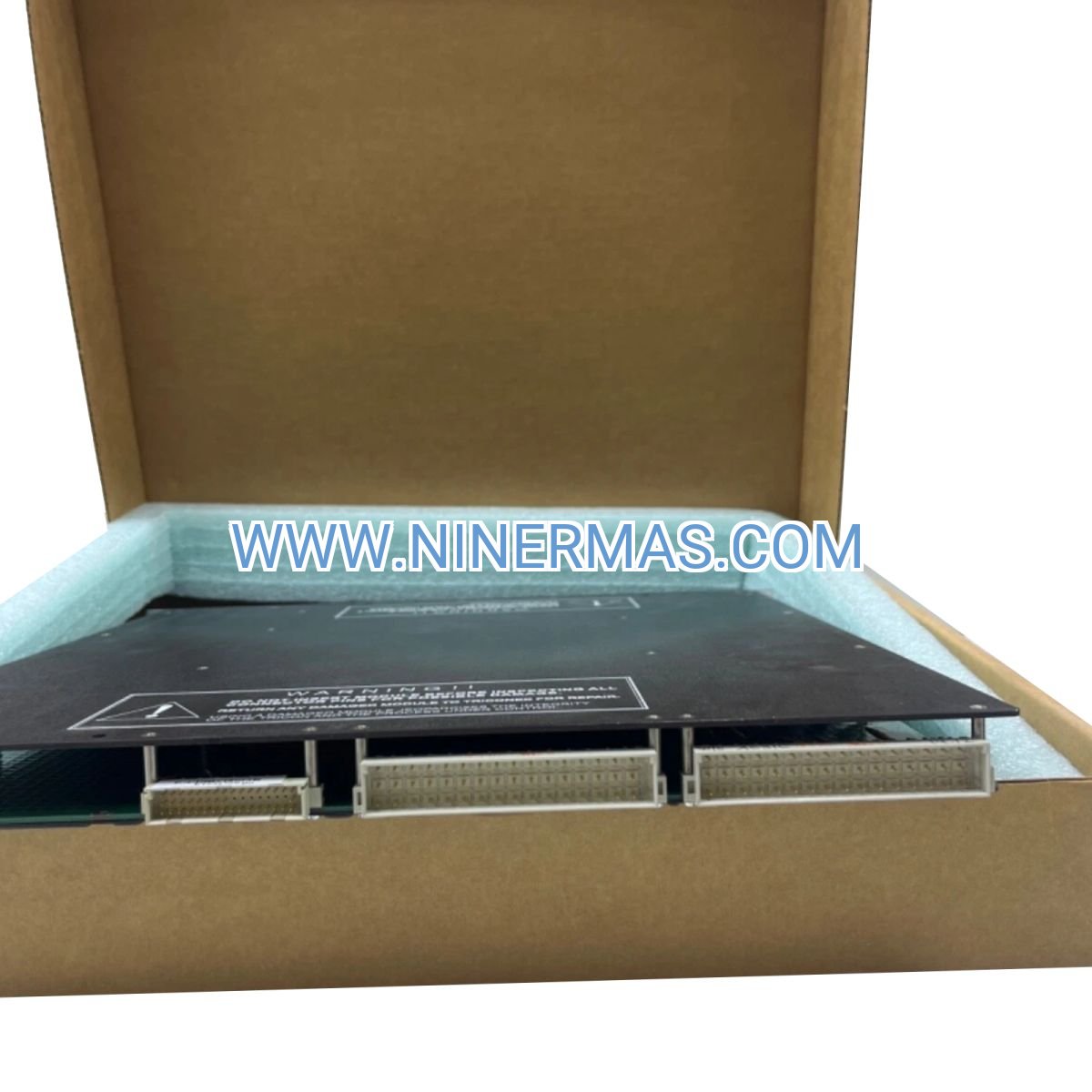

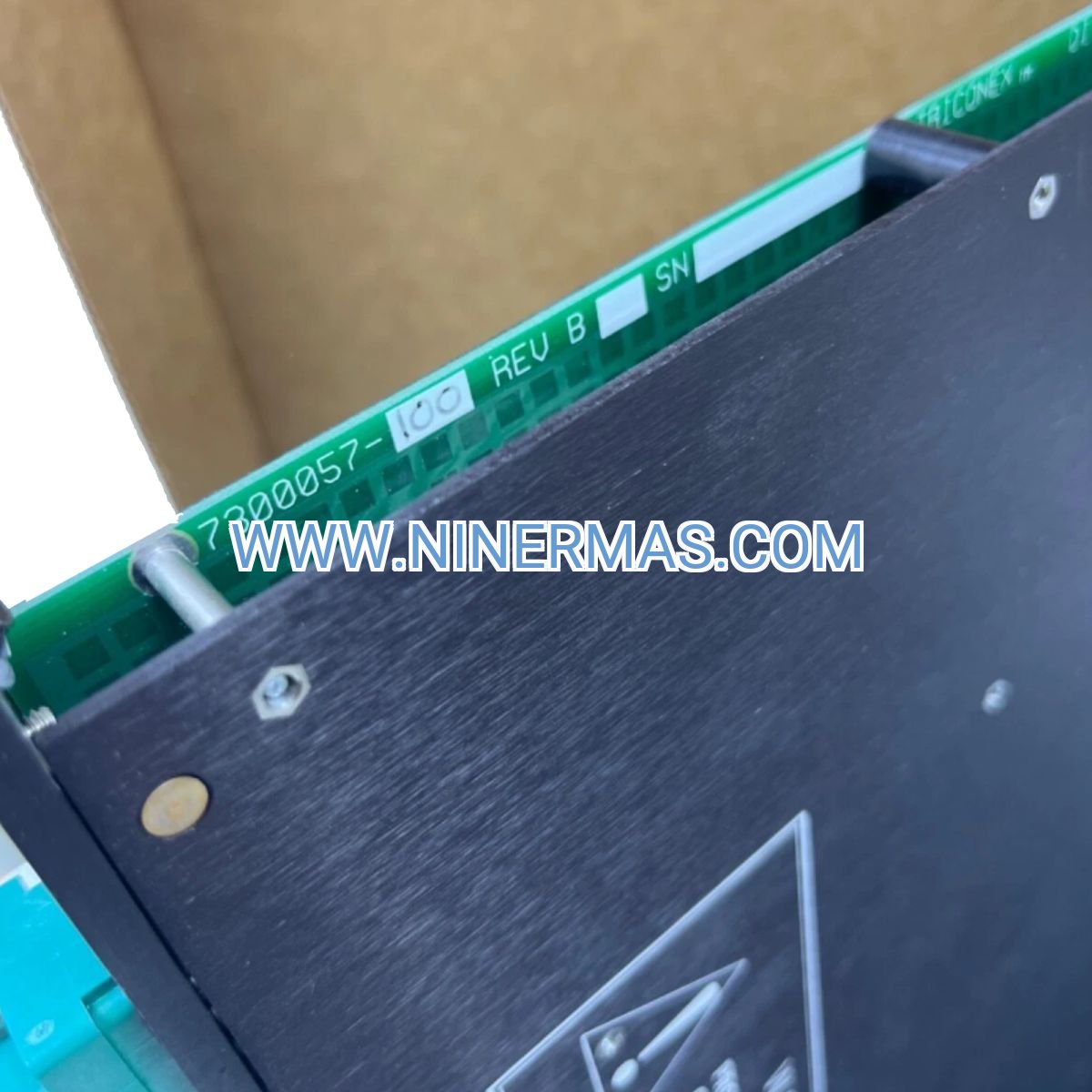

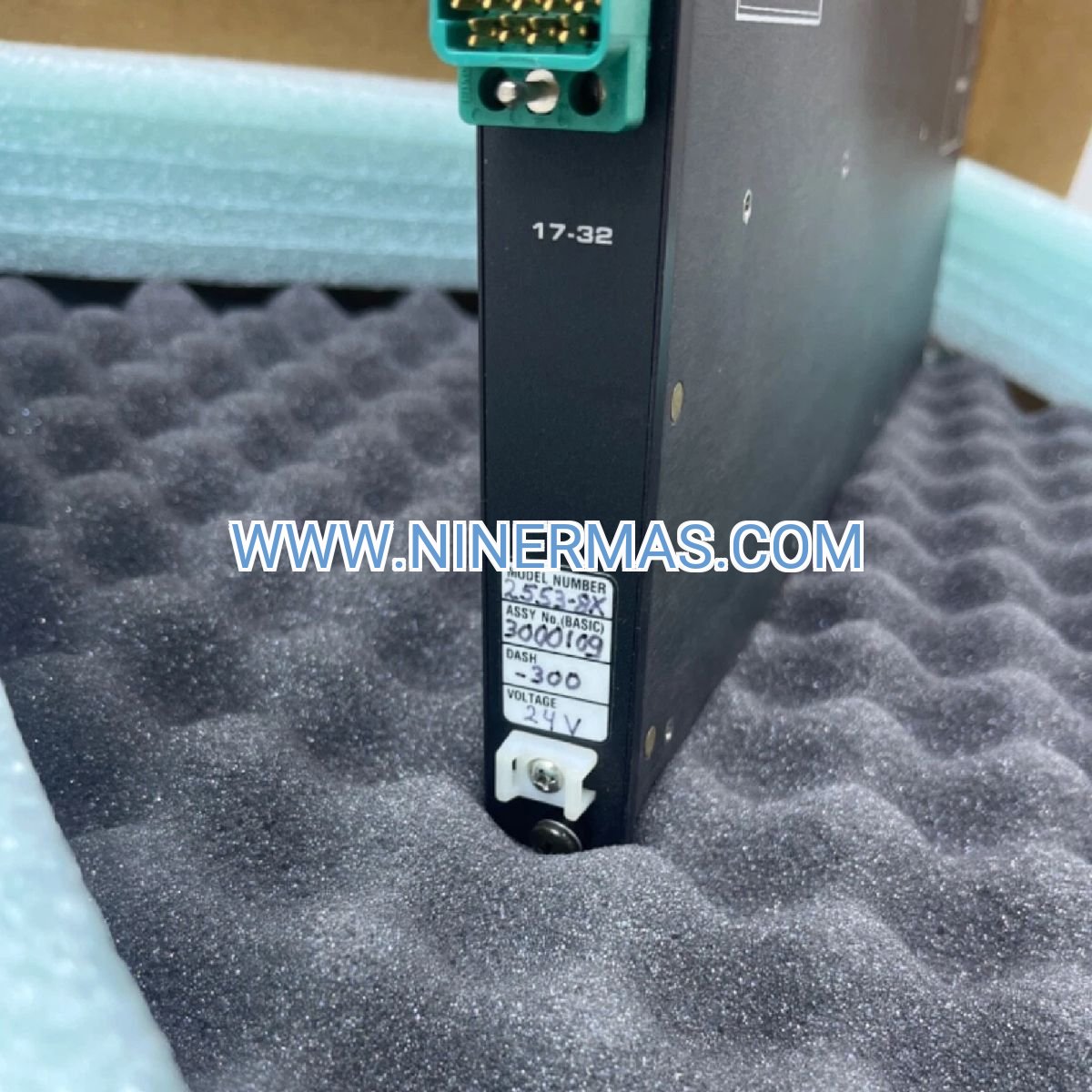

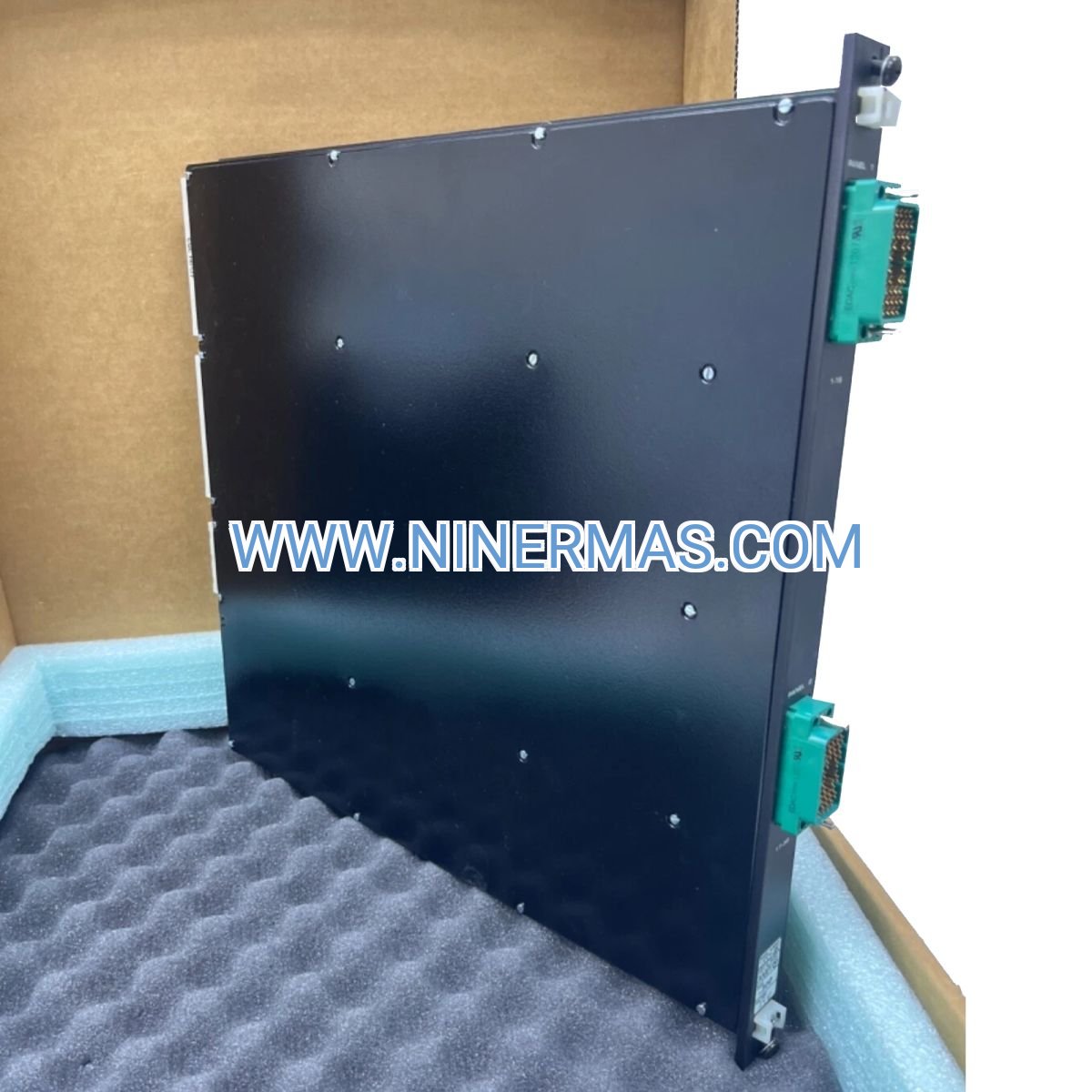

Triconex 2553 Terminal Board (Industrial-Grade Field Signal Interface)

The Triconex 2553 digital input terminal board (P/N: 7400056-310) represents a mission-critical component in safety instrumented systems where signal integrity and operational continuity cannot be compromised. Manufactured by Schneider Electric under the Triconex brand, this terminal board provides robust field-to-module connectivity for digital input channels in Triple Modular Redundant (TMR) safety controllers.

Designed for process industries operating under IEC 61508 and IEC 61511 safety standards, the 2553 terminal board addresses the fundamental challenge of maintaining reliable electrical connections in environments subject to vibration, temperature cycling, and electromagnetic interference. System integrators and plant engineers rely on this component to establish dependable signal pathways between field instrumentation and Triconex DI modules including the DI3301, DI3311, and 3503E series.

With SIL-3 certification and proven performance across thousands of installations worldwide, the 7400056-310 terminal board delivers the connection reliability that safety-critical applications demand while simplifying installation, commissioning, and long-term maintenance workflows.

Core Features & Technical Advantages

→ Triple Modular Redundancy Support
Engineered specifically for TMR architectures, ensuring fault-tolerant signal distribution across redundant input channels with isolated termination points that prevent cross-channel interference.

→ SIL-3 Safety Certification
Meets IEC 61508 Safety Integrity Level 3 requirements, providing documented proof of fitness for use in emergency shutdown systems, fire & gas detection networks, and burner management applications.

→ Industrial-Grade Contact Technology
Gold-plated screw terminals resist oxidation and maintain low contact resistance over extended service life, reducing false trips caused by intermittent connections in corrosive atmospheres.

✓ Comprehensive Diagnostic Access
Integrated test points enable non-intrusive signal verification during commissioning and troubleshooting, cutting loop testing time by 40-50% compared to conventional terminal blocks.

✓ Vibration-Resistant Construction
Reinforced terminal housing and spring-loaded contact mechanisms withstand continuous vibration environments typical of compressor stations, pump houses, and rotating equipment installations.

✓ Hot-Swap Compatibility
When configured with appropriate Triconex I/O modules, supports online module replacement without process interruption—critical for maintaining production uptime in 24/7 operations.

Industrial Application Scenarios

Upstream Oil & Gas Production
In offshore platforms and wellhead control systems, the 2553 terminal board interfaces pressure transmitters, level switches, and valve position indicators to emergency shutdown logic. The board's salt-fog resistance and wide temperature tolerance ensure reliable operation in harsh marine environments where connection failures could trigger unnecessary platform shutdowns costing $500K+ per incident.

Chemical & Petrochemical Processing
Reactor protection systems depend on the 2553 to terminate signals from temperature sensors, high-level alarms, and pressure relief indicators. The SIL-3 rating provides the safety integrity required for preventing runaway reactions, while the organized terminal layout accelerates annual safety system proof testing mandated by regulatory frameworks.

Power Generation & Cogeneration
Turbine control and boiler management systems utilize the 2553 for flame scanner inputs, vibration monitor connections, and overspeed detection circuits. The terminal board's diagnostic test points enable technicians to verify protective function integrity during scheduled outages without extensive wiring disconnection.

Pharmaceutical Manufacturing
Clean room environmental monitoring and batch reactor control applications leverage the 2553's reliable termination for critical process interlocks. The board's compact footprint and DIN-rail mounting capability support space-constrained control panel designs common in GMP-compliant facilities.

Water & Wastewater Treatment
Pump protection schemes and clarifier control systems employ the 2553 to interface float switches, flow monitors, and motor overload contacts. The terminal board's 14-22 AWG wire acceptance accommodates both control cabinet wiring and direct field cable termination, simplifying installation in retrofit projects.

Technical Specifications & Selection Guide

Selection Criteria: When specifying the 2553 terminal board, verify compatibility with your installed Triconex DI module generation. Earlier controller platforms may require alternative terminal board models. For applications requiring extended temperature ranges (-40°C to +70°C), consider the 7400056-380 variant. Consult factory documentation to confirm channel count alignment between your I/O module and terminal board configuration.

Extended Capabilities & System Integration

Modular Expansion Architecture: The 2553 terminal board integrates seamlessly with Triconex chassis-based I/O systems, supporting distributed control topologies where field termination occurs in remote marshalling cabinets connected via redundant communication networks.

Retrofit Compatibility: Backward-compatible design enables direct replacement of legacy terminal boards in existing Triconex installations without requiring controller reprogramming or I/O module changes—minimizing upgrade costs and commissioning time.

Documentation & Labeling: Factory-applied terminal identification corresponds to Triconex module channel numbering, reducing wiring errors during installation. Custom labeling options available for OEM panel builders requiring project-specific nomenclature.

Spare Parts Strategy: As a field-replaceable component with no configuration requirements, the 2553 terminal board represents an ideal spare part for maintenance inventory. Typical recommended spare quantity: 10% of installed base, minimum 2 units per site.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via express courier (DHL, FedEx, UPS). Typical delivery to major industrial centers: 3-5 business days for Asia-Pacific, 4-7 days for Europe and Middle East, 5-8 days for Americas.

Custom Configuration: Factory-configured terminal boards with pre-installed jumpers or custom labeling require 2-3 weeks lead time. Consult our application engineering team for project-specific requirements.

Warranty Coverage: Every Triconex 2553 terminal board includes a comprehensive 12-month warranty against manufacturing defects and material failures. Warranty covers replacement unit shipping and provides access to technical support for installation troubleshooting.

Technical Support: Our certified Triconex specialists provide complimentary pre-sales consultation, wiring diagram review, and commissioning assistance. Post-installation support available via email, phone, and remote diagnostics for rapid issue resolution.

Documentation Package: Each terminal board ships with installation instructions, dimensional drawings, and terminal assignment diagrams. Complete technical manuals and CAD files available for download from our technical library.

Frequently Asked Questions

What is the maximum current rating per terminal on the Triconex 2553 board?
Each screw terminal is rated for 5A continuous current at 300V. For digital input applications, typical signal currents range from 5-50mA, providing substantial derating margin that enhances long-term reliability and reduces terminal heating.

Can the 2553 terminal board be used with non-Triconex control systems?
While physically compatible with standard DIN-rail mounting, the 2553 is optimized for Triconex module pinouts and TMR wiring schemes. Using this terminal board with third-party controllers may result in incorrect channel mapping and is not recommended for safety-critical applications.

How does the terminal board support online module replacement without process shutdown?
When paired with hot-swappable Triconex I/O modules and configured for redundant operation, the terminal board's fixed field wiring remains connected while technicians replace the module. The TMR voting architecture maintains control integrity during the swap procedure, provided proper safety protocols are followed.

What wire preparation is recommended for optimal connection reliability?
Use ferrule-terminated stranded wire for maximum contact area and vibration resistance. Strip length should be 8-10mm. Torque screw terminals to 0.5-0.6 N⋅m (4.4-5.3 lb⋅in) using a calibrated screwdriver. Avoid over-tightening which can damage terminal threads or deform wire strands.

Is the 2553 terminal board suitable for intrinsically safe (IS) barrier applications?
The terminal board itself is not intrinsically safe rated. For IS applications, install approved safety barriers between field devices and the terminal board, ensuring barrier grounding and voltage/current limitations comply with hazardous area classification requirements.

How do I verify signal continuity during commissioning without disconnecting field wiring?
The 2553 features accessible test points adjacent to each terminal position. Using a digital multimeter, measure voltage or continuity at test points while field wiring remains connected—streamlining loop checks and reducing commissioning time by 30-40% compared to conventional terminal blocks.

Take the Next Step

Ensure your safety instrumented system delivers the reliability your process demands. Contact our Triconex specialists today for application-specific guidance, volume pricing, or technical consultation on terminal board selection and system integration.

Request a quote now or reach out with your project requirements—our team responds within 4 business hours with detailed proposals and delivery timelines.
