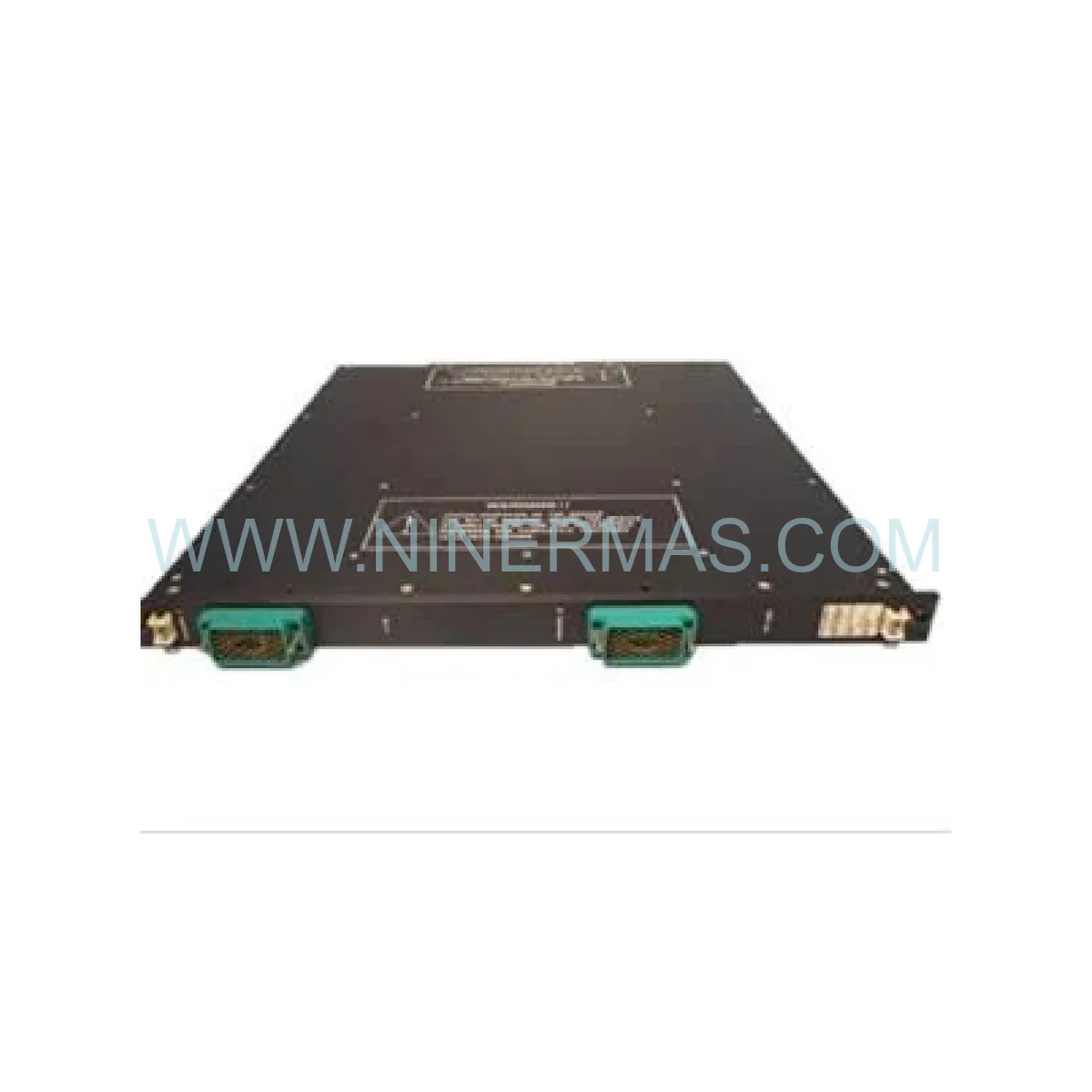

Triconex 2553/8/1 TMR Digital Input Module (Industrial-Grade Safety I/O)

The Triconex 2553/8/1 is a high-integrity digital input module designed for safety-critical applications requiring SIL 3 certification. Leveraging Triple Modular Redundant (TMR) technology, this module processes 24V AC/DC field signals with fault-tolerant precision, ensuring your emergency shutdown systems and process safety interlocks operate without compromise.

Engineered for industries where downtime equals danger, the 2553/8/1 addresses the challenge of maintaining continuous safety monitoring in harsh industrial environments. Oil refineries, chemical plants, and power generation facilities trust this module to interface with critical field devices—pressure transmitters, flame detectors, and emergency stop buttons—while providing diagnostic transparency that simplex systems cannot match.

What sets the 2553/8/1 apart is its ability to detect and compensate for component failures in real-time. The TMR architecture compares three independent signal paths simultaneously, voting on the correct input state while isolating faulty channels. This means your safety system remains operational even when hardware faults occur, eliminating the single points of failure that plague conventional input modules.

Core Capabilities & Business Value

✓ Triple Modular Redundancy (TMR) Architecture
Three independent input channels with 2oo3 voting logic ensure fault tolerance. When one channel fails, the system continues operating safely while alerting maintenance—no emergency shutdowns, no production losses. This translates to 99.9%+ availability for your safety instrumented functions.

✓ SIL 3 Certification Per IEC 61508
Meets the highest safety integrity level for single-channel architectures, enabling compliance with industry regulations (API, OSHA, ATEX). Reduces liability exposure and insurance premiums while satisfying third-party safety audits without costly system redesigns.

✓ Universal 24V AC/DC Input Compatibility
Auto-detects signal type (AC or DC) across 18-30V range, eliminating the need for separate modules or external signal conditioning. Simplifies spare parts inventory and reduces engineering complexity during plant expansions or retrofits.

✓ Hot-Swappable Design with Online Diagnostics
Replace modules during operation without process interruption or safety system bypass. Built-in diagnostics identify wiring faults (open/short circuits) down to individual channels, cutting troubleshooting time from hours to minutes and reducing mean time to repair (MTTR) by 60%.

→ Sub-10ms Signal Processing Speed
Deterministic response times ensure rapid detection of hazardous conditions. Critical for fast-acting safety functions like burner management systems and high-speed turbine protection where milliseconds matter.

→ 1500V Channel-to-Backplane Isolation
Protects control system electronics from field-side electrical transients and ground loops. Prevents cascade failures during lightning strikes or motor starter switching events, safeguarding your entire Triconex platform investment.

Application Scenarios Across Industries

Oil & Gas Emergency Shutdown Systems (ESD)
Monitor wellhead pressure switches, H2S gas detectors, and fire/gas panel inputs in offshore platforms and onshore processing facilities. The 2553/8/1's TMR design ensures that critical shutdown logic remains active even during North Sea storms or desert heat extremes, preventing blowouts and environmental disasters.

Chemical Process Safety Interlocks
Interface with reactor temperature switches, level transmitters, and manual emergency stops in batch and continuous chemical manufacturing. When handling flammable or toxic materials, the module's diagnostic coverage (>99%) detects sensor failures before they compromise safety barriers, maintaining compliance with RAGAGEP standards.

Power Generation Turbine Protection
Acquire signals from vibration monitors, overspeed detectors, and bearing temperature sensors in steam and gas turbines. The module's ability to operate through single-channel failures prevents nuisance trips that cost $500K+ per event in lost generation revenue, while still protecting multi-million-dollar turbomachinery.

Pharmaceutical Cleanroom Environmental Monitoring
Track differential pressure alarms, HEPA filter status, and airlock door positions in GMP-regulated production areas. The 2553/8/1's validated design simplifies 21 CFR Part 11 compliance documentation, reducing audit preparation time and ensuring batch integrity for high-value biologics manufacturing.

Water Treatment Plant Safety Systems
Monitor chlorine gas leak detectors, high-level alarms, and pump seal failure switches in municipal and industrial water facilities. TMR redundancy ensures public safety protection remains active 24/7, even during maintenance activities or component aging.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 2553/8/1 when your application requires SIL 3 capability for digital input monitoring with TMR redundancy. For applications needing only SIL 2 or where simplex architecture is acceptable, consider standard DI modules. If monitoring analog signals (4-20mA, thermocouples), pair with Triconex 3706 or 3481 modules. Ensure your Triconex chassis has available slots and sufficient power budget (consult system capacity planning tools).

Extended Integration Capabilities

TriStation 1131 Software Integration: Configure I/O mapping, alarm setpoints, and diagnostic thresholds through the intuitive TriStation development environment. IEC 61131-3 programming support enables seamless logic development using Function Block Diagram (FBD) or Structured Text (ST) languages.

SCADA/DCS Connectivity: Module status and diagnostic data integrate with plant-wide monitoring systems via Modbus TCP, OPC UA, or proprietary Triconex protocols. Real-time fault notifications enable predictive maintenance strategies that reduce unplanned downtime by 40%.

Cybersecurity Features: Embedded security measures align with IEC 62443 industrial cybersecurity standards, protecting safety systems from unauthorized access and malicious code injection. Critical for facilities subject to NERC CIP or TSA pipeline security directives.

Custom Configuration Services: Our engineering team provides factory acceptance testing (FAT), pre-configured I/O databases, and application-specific logic templates. Accelerate commissioning timelines by 30% while ensuring first-time-right deployments.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units (express shipping available)
Custom Configurations: 10-15 business days including FAT documentation
Warranty Coverage: 12 months comprehensive warranty covering manufacturing defects and workmanship
Technical Support: Lifetime application engineering assistance via phone/email (response within 4 business hours)
Documentation Package: User manual, wiring diagrams, safety certification documents, and TriStation configuration examples included

Extended warranty programs (24/36 months) and on-site commissioning support available for large-scale projects. Our global logistics network ensures delivery to remote sites worldwide, with customs documentation and export compliance handled seamlessly.

Frequently Asked Questions

How does TMR redundancy improve safety system reliability compared to simplex modules?
TMR modules like the 2553/8/1 use three independent signal processing channels that continuously cross-check each other. If one channel develops a fault, the other two maintain correct operation through majority voting. This provides fault tolerance that simplex modules cannot achieve—your safety function remains active even during component failures, meeting SIL 3 requirements without requiring 1oo2 or 2oo3 external voting architectures.

Can the 2553/8/1 interface with both AC and DC field devices simultaneously?
Yes, the module auto-detects signal type on a per-channel basis. You can connect 24V DC proximity switches on some channels and 24V AC limit switches on others within the same module. This flexibility reduces spare parts inventory and simplifies panel design when integrating mixed field instrumentation.

What diagnostic capabilities help reduce troubleshooting time during commissioning?
The module provides channel-level diagnostics including open circuit detection, short circuit identification, and signal quality monitoring. TriStation software displays real-time wiring status with color-coded indicators, allowing technicians to identify and correct wiring errors in minutes rather than hours. Diagnostic coverage exceeds 99%, catching faults before they impact safety function performance.

Is the module compatible with existing Triconex Tricon and Trident platforms?
The 2553/8/1 is designed for Triconex safety platforms and requires compatible chassis and controller versions. Verify system compatibility using Triconex configuration tools or consult our application engineers with your current system details (controller model, firmware version, chassis type). Retrofit installations typically require minimal logic modifications.

What certifications support compliance with international safety standards?
The module holds SIL 3 certification per IEC 61508/61511, FM approval for hazardous locations (Class I Div 2), and CE marking for European markets. These certifications satisfy regulatory requirements across oil & gas (API RP 14C), chemical (OSHA PSM), and power generation (NERC) industries, streamlining third-party safety audits and insurance underwriting.

How do I size power supply requirements when adding multiple I/O modules?
Each 2553/8/1 module draws approximately 8W from the chassis backplane. Use Triconex system capacity planning worksheets to calculate total power budget, ensuring your power supply modules have 20% margin above calculated load. Our engineering team provides complimentary load calculations for projects involving 10+ modules.
