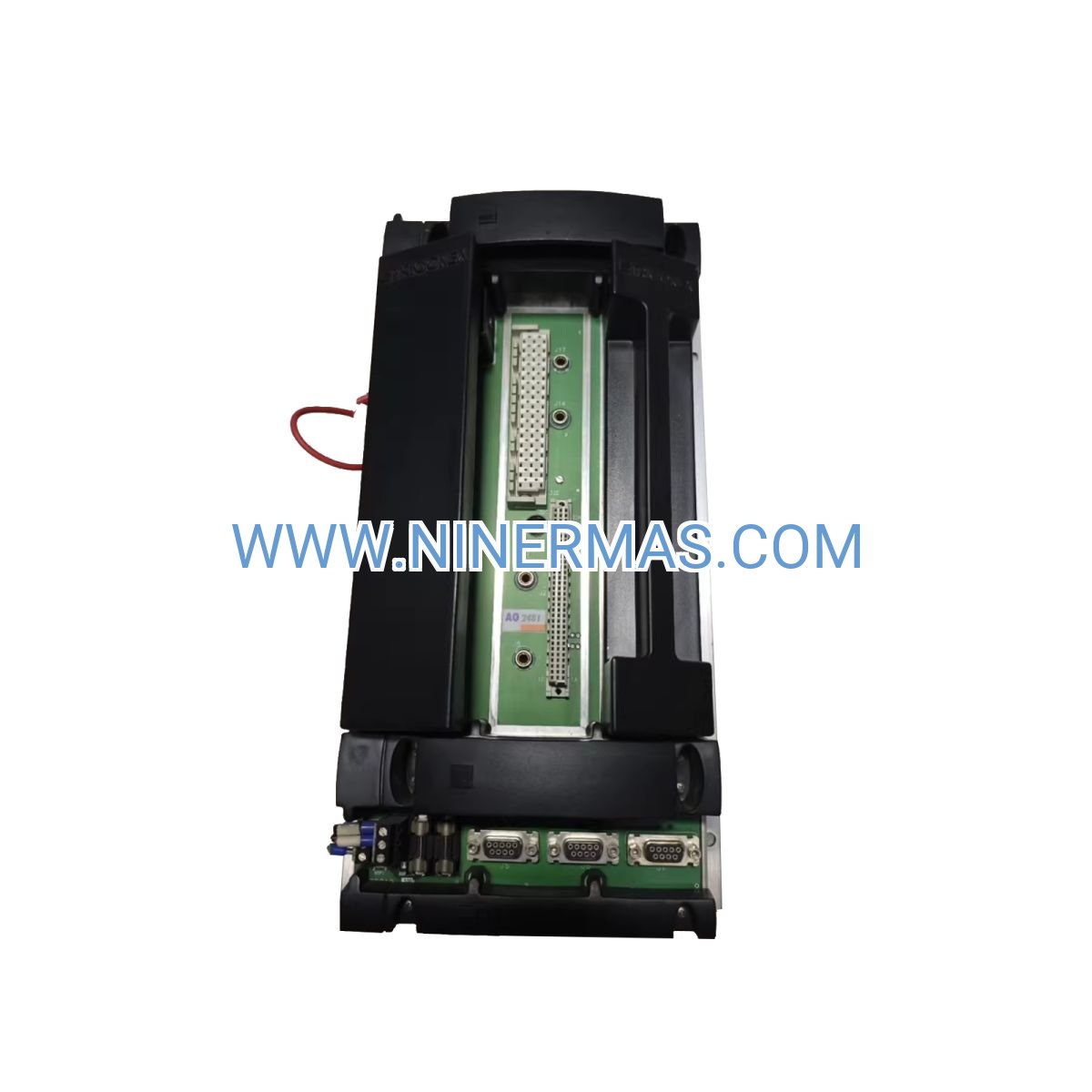

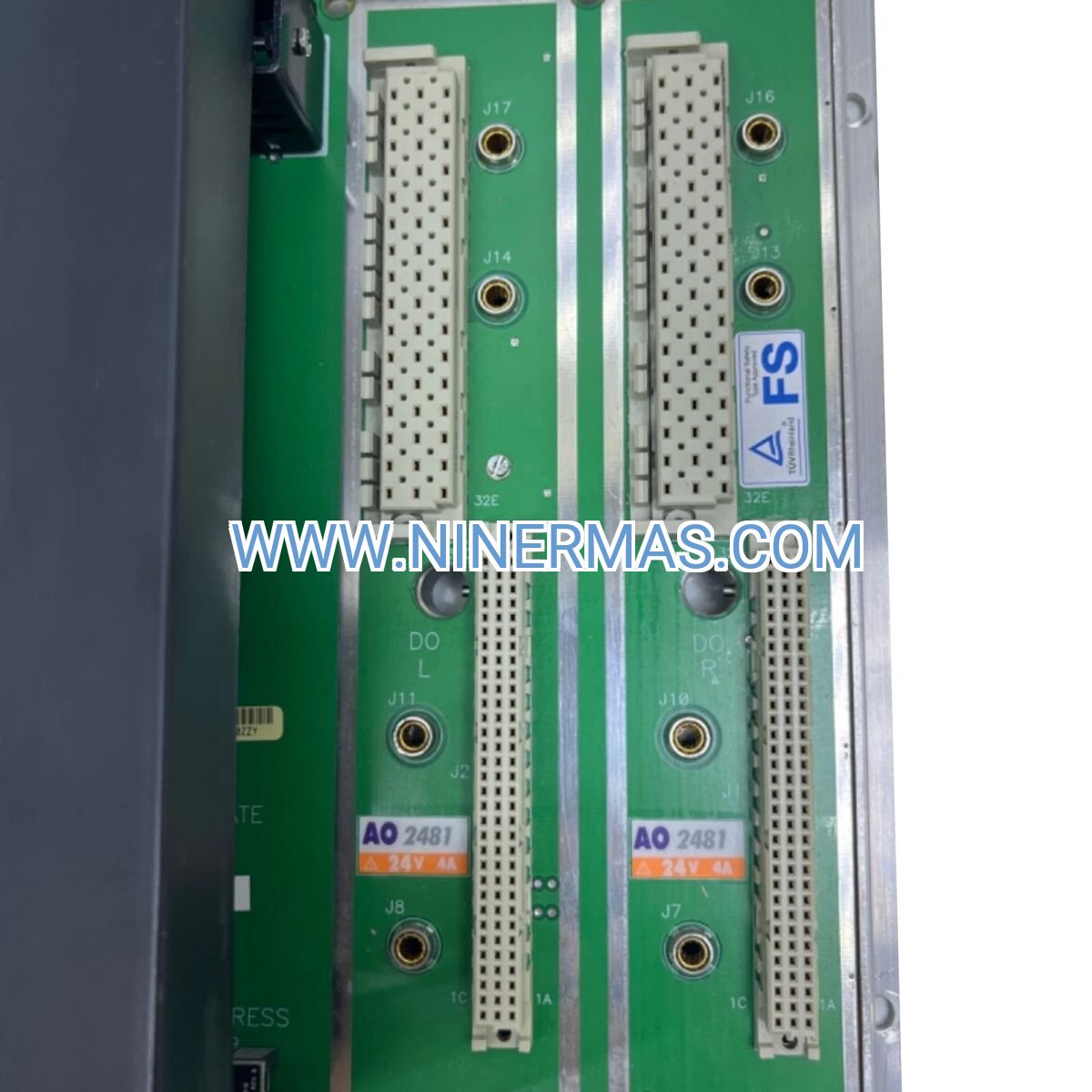

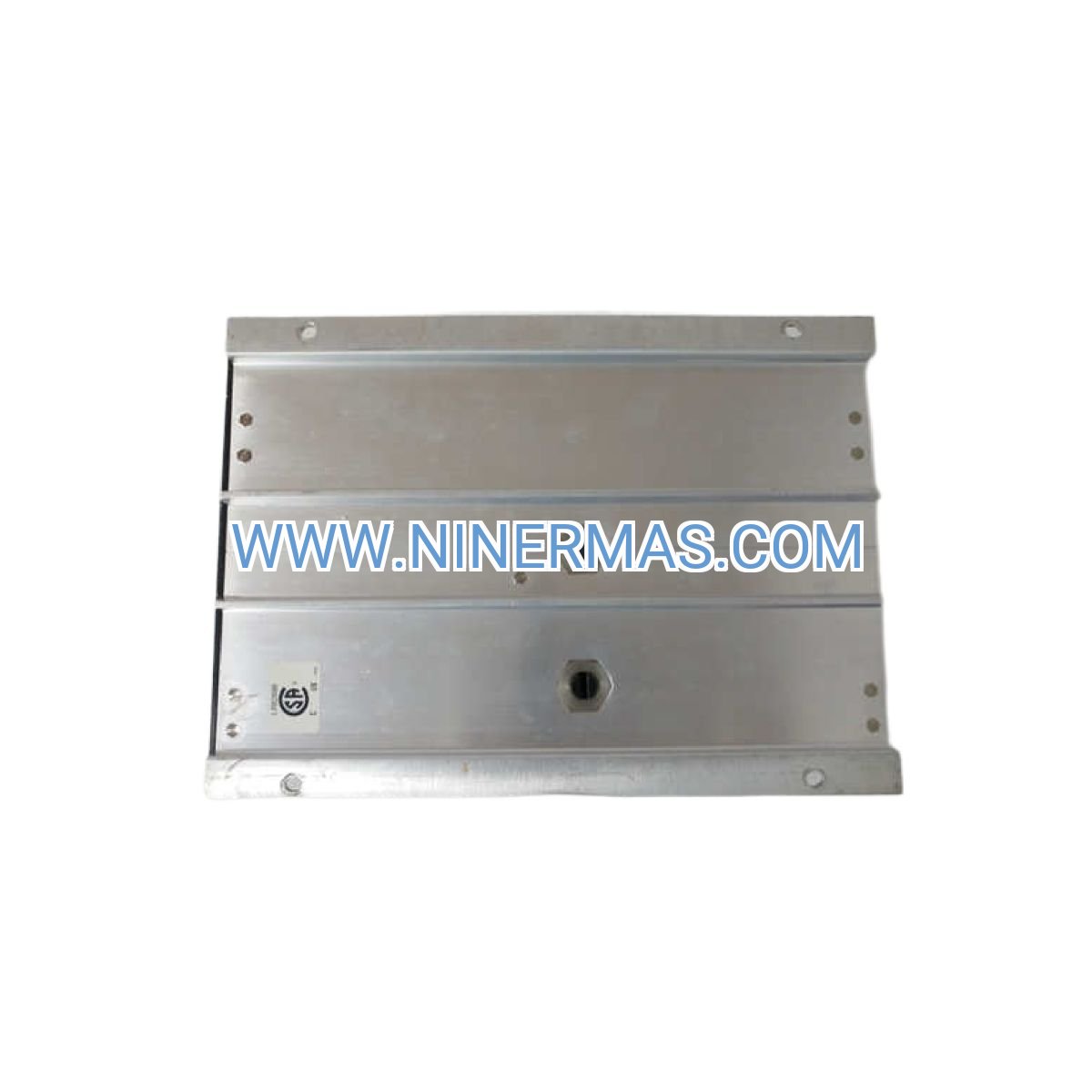

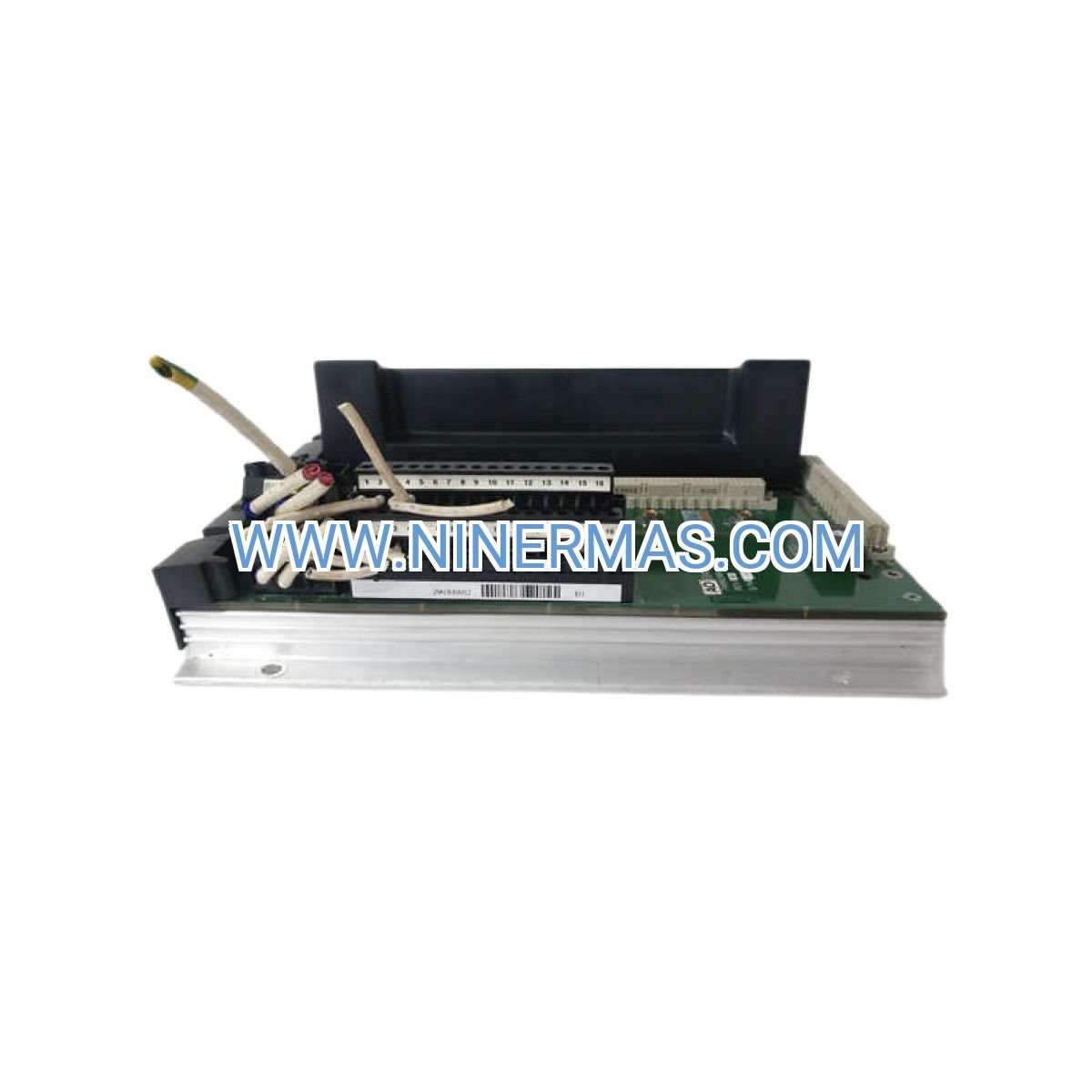

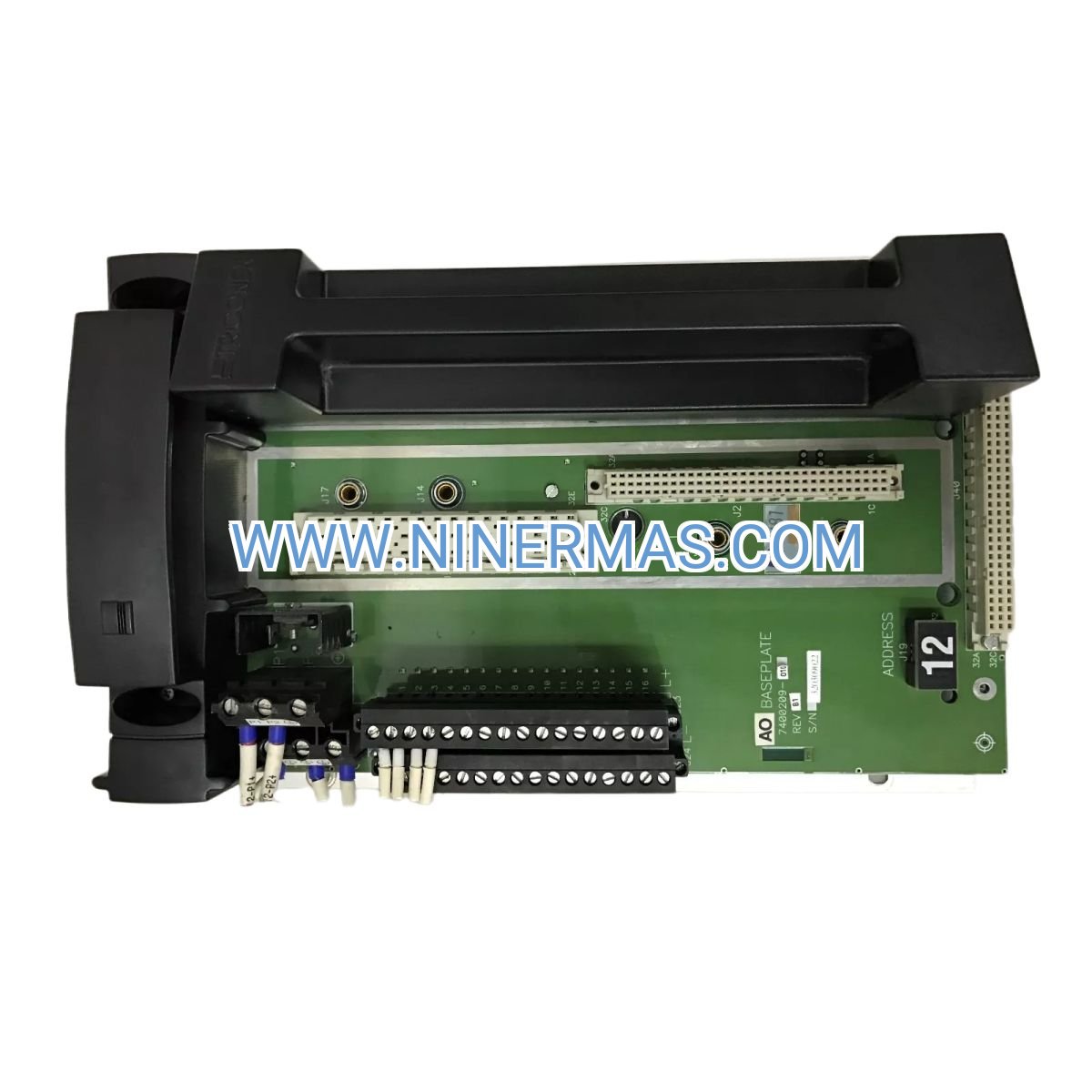

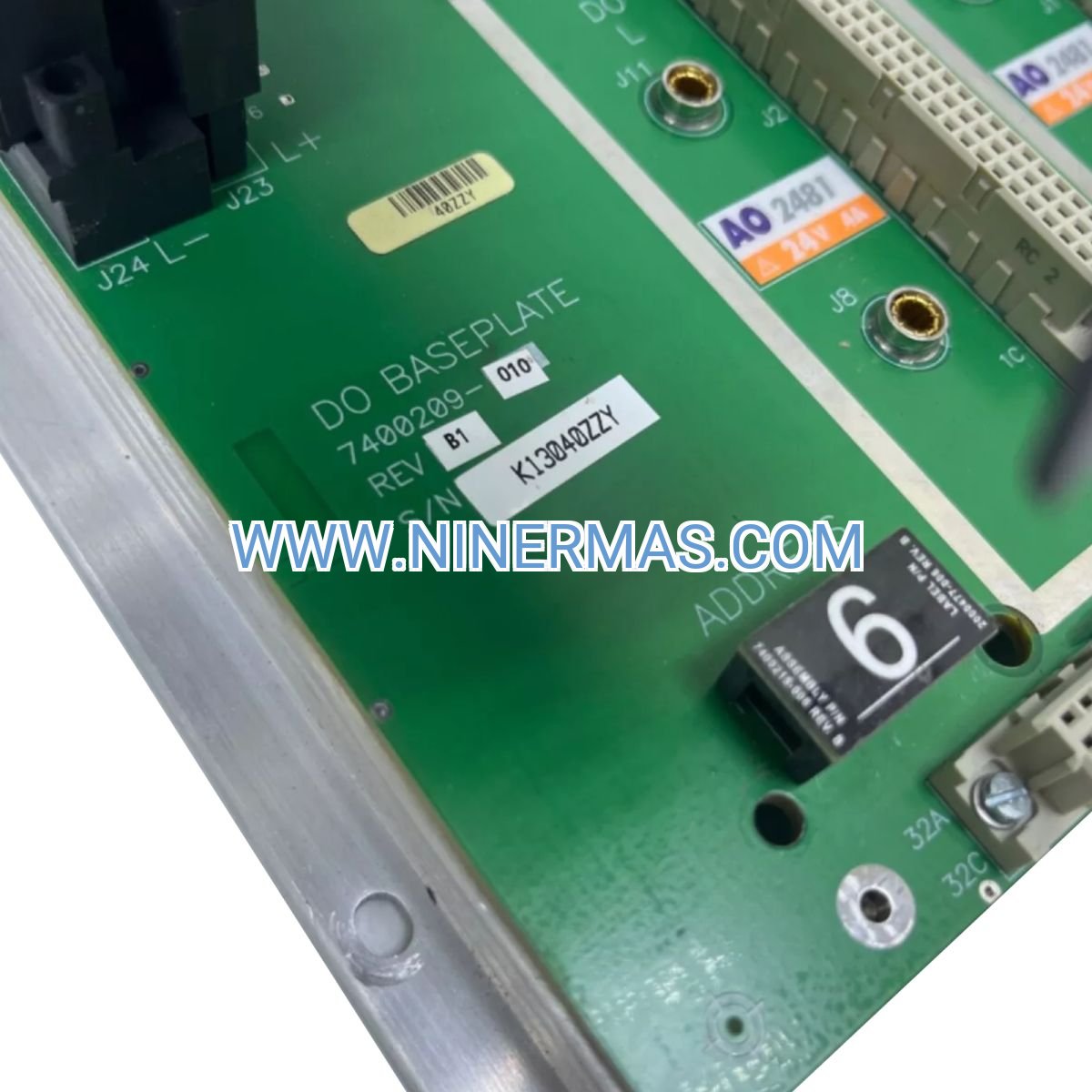

Triconex 2481 Analog Output Baseplate (Industrial-Grade Interface Platform)

The Triconex 2481 represents a mission-critical mounting and interconnection platform engineered specifically for analog output modules within Schneider Electric's Trident triple modular redundant (TMR) safety systems. This baseplate assembly delivers the mechanical foundation and electrical pathways required to maintain SIL 3-rated fault tolerance across 4-20 mA control loops in process industries where safety integrity cannot be compromised.

Designed for environments demanding continuous operation under extreme conditions, the 2481 baseplate addresses three fundamental challenges: maintaining signal integrity across redundant output channels, enabling field maintenance without process shutdown, and providing diagnostic visibility into channel health. Target users include instrumentation engineers, safety system integrators, and plant maintenance teams responsible for emergency shutdown systems, burner management, and critical process control loops.

Key advantages include hot-swappable module support for zero-downtime maintenance, optical isolation preventing ground loop interference, and comprehensive diagnostics that enable predictive maintenance strategies—reducing unplanned outages by up to 40% compared to non-redundant architectures.

Technical Capabilities & Business Value

→ 8-Channel TMR Architecture
Supports eight independent analog output channels with full triple modular redundancy. Each channel operates three parallel circuits simultaneously, automatically masking single-point failures while maintaining precise control—eliminating costly emergency shutdowns caused by component failures.

✓ Hot-Swap Maintenance Design
Enables module replacement during live operation without interrupting process control. Maintenance windows reduced from hours to under 60 seconds, directly improving plant availability metrics and reducing production losses during scheduled maintenance.

→ 1500V Optical Isolation
Channel-to-backplane isolation eliminates ground loop currents and electrical noise coupling. Ensures signal accuracy within ±0.1% across harsh industrial environments with high electromagnetic interference—critical for precise valve positioning and flow control.

✓ Extended Temperature Range (-40°C to 70°C)
Operates reliably in extreme ambient conditions from Arctic installations to desert climates. Reduces need for climate-controlled enclosures, lowering installation costs by $2,000-$5,000 per cabinet in remote locations.

→ Integrated Channel Diagnostics
Continuous monitoring detects wire breaks, short circuits, and out-of-range conditions before they impact process safety. Diagnostic data streams to TriStation workstations, enabling condition-based maintenance that extends mean time between failures (MTBF) beyond 150,000 hours.

✓ SIL 3 Certification Compliance
Meets IEC 61508 Safety Integrity Level 3 requirements with documented proof test intervals and failure rate data. Simplifies regulatory compliance for facilities subject to API, OSHA PSM, and international safety standards.

Industry-Specific Applications

Offshore Oil & Gas Platforms
Emergency shutdown (ESD) valve control in subsea production systems and topside process units. The 2481 baseplate maintains control authority during single-channel failures, preventing false trips that cost $500,000+ per day in deferred production. Salt-fog resistance and extended temperature rating ensure reliability in corrosive marine environments.

Refinery Fluid Catalytic Cracking Units
Reactor temperature cascade control and regenerator air flow modulation. TMR architecture prevents runaway reactions by maintaining precise analog control even during instrumentation failures. Hot-swap capability allows sensor calibration and module upgrades during normal operation between turnaround cycles.

Chemical Batch Processing
Dosing pump speed control and reactor jacket temperature regulation in pharmaceutical API manufacturing. Optical isolation eliminates cross-contamination between batch recipes, while diagnostic logging provides FDA 21 CFR Part 11 audit trail compliance for validation documentation.

Combined Cycle Power Plants
Gas turbine fuel valve positioning and steam turbine governor control. The baseplate's 12-bit resolution enables smooth load ramping without hunting oscillations, improving grid frequency stability. Redundant architecture meets NERC reliability standards for critical generation assets.

Pulp & Paper Digesters
Chemical additive flow control and pressure relief valve modulation in continuous kraft pulping processes. Corrosion-resistant terminal blocks withstand caustic environments, while TMR voting prevents batch quality deviations caused by sensor drift or wiring faults.

Selection Guide & Technical Parameters

Sizing Recommendations: Calculate total analog output requirements across all safety functions, then add 20% spare capacity for future expansion. For systems requiring more than 64 channels, deploy multiple chassis with synchronized controllers. Ensure field wiring gauge supports loop resistance budgets—typically 14 AWG for runs exceeding 500 feet.

Advanced Integration Features

Modbus TCP/IP Connectivity: Optional communication modules enable remote setpoint adjustment and diagnostic data retrieval via industrial Ethernet networks. Integration with SCADA systems provides centralized monitoring of all output channels across distributed control nodes.

Redundant Power Input: Dual 24 VDC supply connections with automatic failover ensure continuous operation during power distribution faults. Diode-OR configuration prevents backfeed between supplies, meeting marine classification society requirements.

Custom Terminal Labeling: Factory-applied wire markers and terminal identification tags reduce commissioning time by 30%. Custom labeling services available for projects with specific P&ID tag numbering conventions.

Delivery Timeline & Service Guarantees

Standard Lead Time: 3-5 business days for stock items shipped from our Shanghai distribution center. Express air freight available for emergency replacements, with 24-hour delivery to major Asian cities.

Custom Configuration: 10-15 business days for factory-programmed modules with pre-loaded application logic or specialized firmware versions. Expedited processing available for critical path projects.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, with optional extended service contracts providing 3-year coverage including preventive maintenance and priority technical support.

Technical Documentation: Complete installation manual, wiring diagrams, and TriStation configuration files provided with every shipment. Application engineering support available for loop tuning and safety function validation.

Frequently Asked Questions

What is the maximum cable distance for 4-20 mA output loops?
The 2481 baseplate supports loop resistances up to 600 ohms, enabling cable runs of approximately 1,500 feet with 16 AWG wire or 3,000 feet with 14 AWG. For longer distances, consider loop-powered isolators or smart positioners with digital communication.

Can I mix different analog output module types on the same baseplate?
No. Each baseplate is designed for a specific module family (3481, 3482, etc.). Mixing module types creates backplane communication conflicts and voids safety certification. Use separate baseplates for different module variants within the same chassis.

How does the system respond when one of three redundant channels fails?
The TMR voting logic automatically identifies the faulty channel through mid-value selection algorithms. The system continues operating on the two remaining channels while generating a diagnostic alarm. Output accuracy remains within specification until a second channel fails, triggering a safe shutdown.

What maintenance procedures are required during operation?
Quarterly inspection of terminal block tightness and annual proof testing of output channels per IEC 61511 requirements. Hot-swap module replacement takes under 60 seconds and requires no special tools—simply release the module latch, extract the card, and insert the replacement.

Is the baseplate compatible with HART-enabled field devices?
Yes. The 4-20 mA output signal supports HART digital communication superimposed on the analog current loop. HART multiplexers can be connected to terminal blocks for remote device configuration and diagnostics without interrupting the control signal.

What certifications are included for hazardous area installations?
ATEX Zone 2 (gas), IECEx, UL Class I Division 2, and CSA certifications are standard. For Zone 1/Division 1 applications, install the baseplate in a purged enclosure or use intrinsically safe barriers on field wiring.

Start Your Safety System Upgrade

Contact our application engineering team for system architecture review, bill of materials development, and integration planning. We provide complimentary loop drawings and configuration file templates for qualified projects exceeding $50,000.
