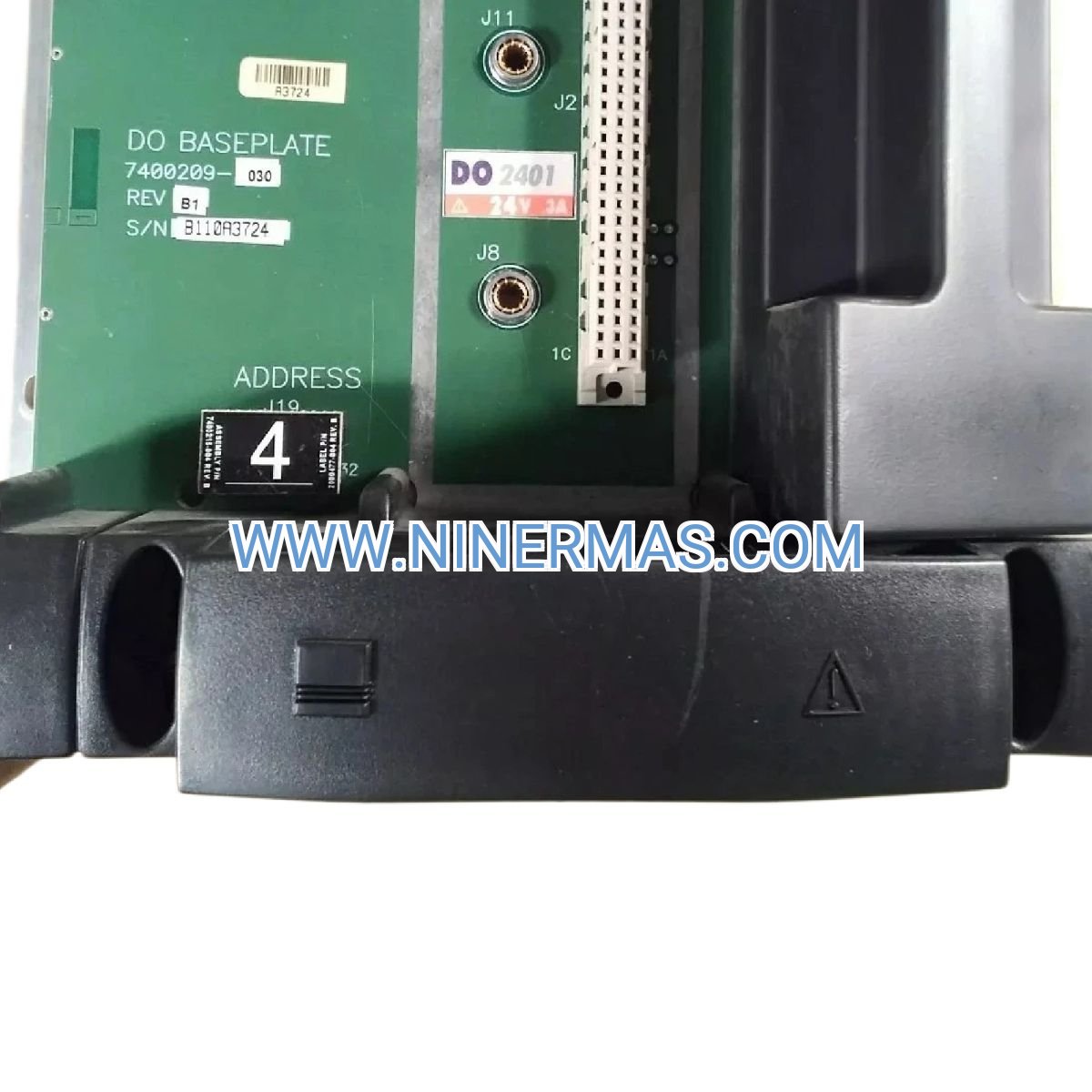

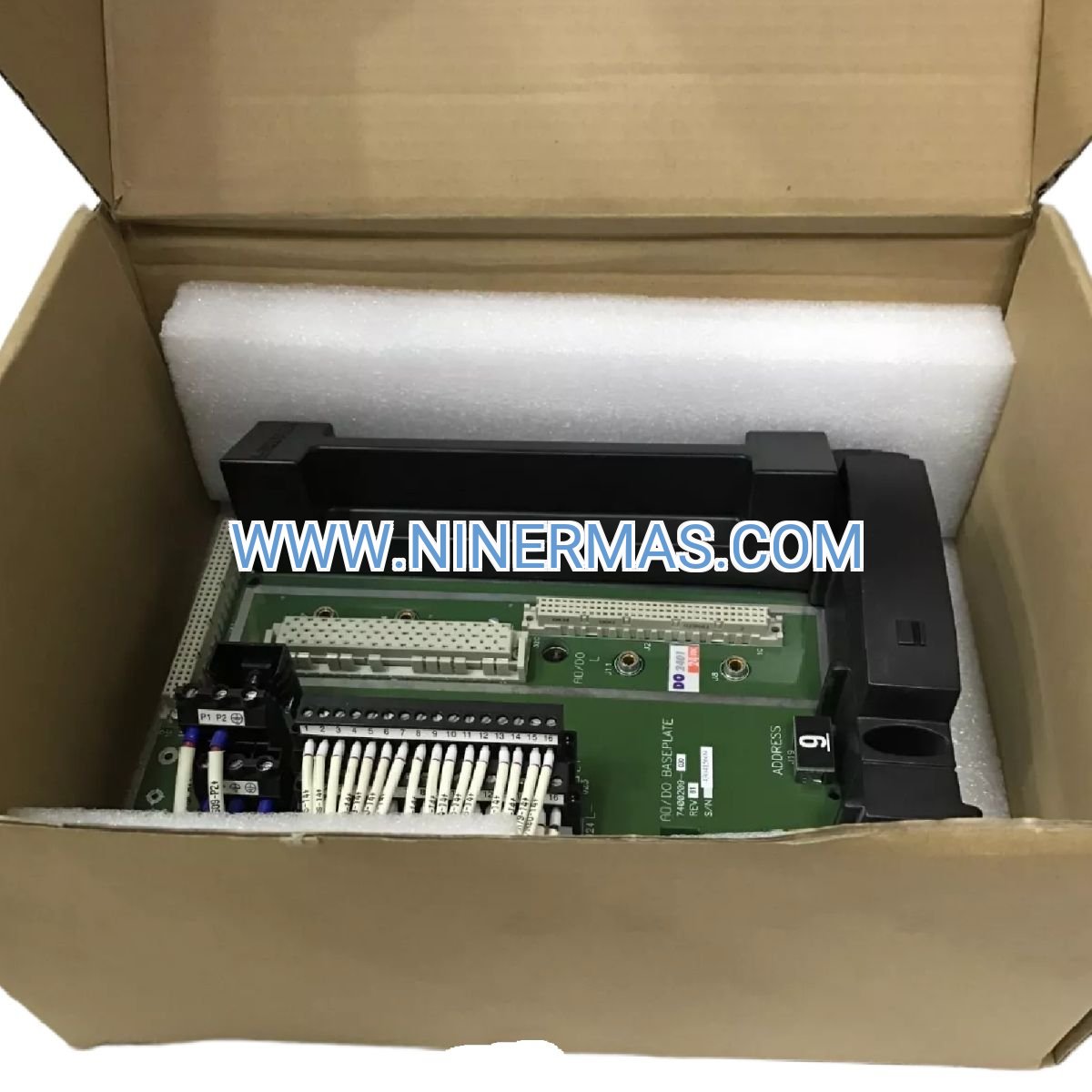

Triconex 2401H Digital Output Baseplate (Industrial-Grade Infrastructure Component)

The Triconex 2401H represents a critical foundation element within safety instrumented systems, specifically engineered to accommodate high-current digital output modules in Tri-GP control architectures. Manufactured by Schneider Electric, this baseplate kit delivers the mechanical stability and electrical connectivity essential for fault-tolerant industrial automation deployments where safety integrity level (SIL) 3 compliance is mandatory.

Designed for process industries requiring uncompromising reliability, the 2401H addresses the challenge of integrating high-power field devices into triple-modular redundant (TMR) safety logic solver platforms. Target users include instrumentation engineers, safety system integrators, and plant maintenance teams managing emergency shutdown (ESD) systems, burner management systems (BMS), and fire & gas detection networks across oil & gas, chemical processing, and power generation facilities.

Key advantages include hot-swappable module support for zero-downtime maintenance, robust DIN-rail mounting with secure retention mechanisms, wide operating temperature range (-40°C to +70°C) for harsh environments, and comprehensive global safety certifications (IEC 61508, ATEX, FM, CSA) ensuring regulatory compliance across multiple jurisdictions.

Core Features & Benefits

✓ High-Current Output Capability: Supports digital output modules rated up to 2A per channel, enabling direct control of solenoid valves, motor contactors, and high-power actuators without external relay interfaces—reducing system complexity and potential failure points.

✓ SIL 3 Safety Certification: Meets IEC 61508 requirements for safety integrity level 3 applications, providing quantified risk reduction for critical process shutdown functions with proven failure rates and diagnostic coverage metrics.

✓ Triple-Modular Redundant Architecture: Seamlessly integrates with Triconex TMR voting logic, ensuring continuous operation even during single-point hardware failures through automatic fault detection and module isolation.

✓ Hot-Swap Maintenance: Allows online module replacement without system shutdown or process interruption, minimizing planned downtime and enabling predictive maintenance strategies that reduce total cost of ownership by 30-40%.

✓ Extended Environmental Ratings: Operates reliably across -40°C to +70°C ambient temperatures with conformal coating protection against moisture, dust, and corrosive atmospheres typical in offshore platforms and chemical plants.

✓ Universal Mounting System: DIN-rail compatible design with tool-free installation and positive locking mechanism ensures vibration resistance in mobile equipment and seismic-rated installations.

Application Scenarios

→ Oil & Gas Production Facilities: Emergency shutdown systems controlling wellhead isolation valves, pipeline block valves, and blowdown systems. The 2401H's high-current capability eliminates the need for intermediate relay panels, reducing cabinet space requirements by 25% while improving response times to <100ms for critical shutdown sequences.

→ Chemical Process Safety: Reactor protection systems managing exothermic reaction control, pressure relief valve actuation, and feed isolation during abnormal operating conditions. SIL 3 certification ensures compliance with IEC 61511 process safety management standards, addressing hazardous material containment requirements.

→ Power Generation Control: Turbine overspeed protection, boiler flame monitoring, and generator excitation control in combined-cycle plants. The baseplate's wide temperature range supports installation in non-climate-controlled equipment rooms adjacent to turbine halls.

→ Offshore Platform Automation: Fire & gas detection system integration with deluge valve control, HVAC shutdown, and mustering alarm activation. ATEX Zone 2 certification enables installation in classified electrical areas with appropriate enclosure ratings.

→ Pharmaceutical Manufacturing: Clean-in-place (CIP) system interlocks, sterile barrier isolation, and environmental monitoring shutdown functions where FDA 21 CFR Part 11 compliance requires validated safety system architectures with full audit trail capabilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 2401H when your application requires direct control of high-power field devices (>500mA per channel) within a SIL 3-rated safety system. For standard current applications (<500mA), consider the 2401 standard variant. Verify compatibility with your specific Tri-GP chassis model and confirm that your output module specifications match the baseplate's electrical interface. When deploying in hazardous areas, ensure appropriate enclosure ratings (NEMA 4X, IP66) are specified for the complete assembly.

Extended Functions

IoT Integration Capabilities: When paired with Triconex communication modules, the 2401H baseplate supports integration with modern SCADA systems via Modbus TCP/IP, OPC UA, and proprietary TriStation protocols. This enables remote diagnostics, predictive maintenance analytics, and cybersecurity-compliant data exchange with enterprise asset management platforms.

Advanced Diagnostic Features: Built-in module health monitoring provides real-time status indication for power supply integrity, backplane communication errors, and output channel fault detection. Diagnostic data streams to the main processor for alarm generation and maintenance scheduling optimization.

Customization Options: Factory-configured variants available with pre-installed terminal blocks, custom labeling, and application-specific wiring harnesses. Consult with our engineering team for high-volume projects requiring tailored configurations or extended environmental testing documentation.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days via express courier with full tracking. Custom configurations require 4-6 weeks for factory preparation and quality verification testing.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering material defects and workmanship failures under normal operating conditions. Extended warranty programs available for critical infrastructure applications requiring 3-5 year coverage periods.

Technical Support: Access to certified Triconex application engineers for pre-sales consultation, system design review, commissioning assistance, and post-installation troubleshooting. Support available via email, phone, and remote desktop sessions during business hours (GMT+8).

Documentation Package: Each unit includes installation manual, dimensional drawings, electrical schematics, safety certification documents, and configuration software compatibility matrix. Digital documentation library accessible via customer portal for revision updates.

Frequently Asked Questions

Q: What is the maximum output current capacity for the 2401H baseplate when used with high-current modules?
A: The 2401H supports output modules rated up to 2A per individual channel. Total baseplate current capacity depends on the specific module configuration and power supply specifications, typically ranging from 8-16A aggregate across all channels.

Q: Can the 2401H baseplate be retrofitted into existing legacy Tricon systems for upgrade projects?
A: The 2401H is designed specifically for Tri-GP platform architectures and is not backward-compatible with legacy Tricon systems. Migration from Tricon to Tri-GP requires chassis replacement and system re-engineering. Contact our migration specialists for upgrade path consultation.

Q: How does the hot-swap capability work without compromising safety system integrity during module replacement?
A: The TMR architecture maintains 2-out-of-3 voting logic during single module removal. The system continues safe operation on the remaining two channels while the third is serviced. Automatic re-synchronization occurs upon module reinsertion, with full diagnostic verification before returning to normal operation.

Q: What environmental protection measures are included for offshore or corrosive atmosphere installations?
A: The baseplate features conformal coating on all PCB assemblies providing moisture and chemical vapor resistance. For severe environments, specify NEMA 4X or IP66-rated enclosures with purge systems. Consult environmental specification sheets for specific chemical compatibility data.

Q: Are there any special installation requirements for seismic-rated applications in earthquake-prone regions?
A: Yes, seismic installations require additional DIN-rail retention hardware and cabinet anchoring per IEEE 693 or IBC seismic design standards. We provide seismic qualification test reports and installation guidelines for Zone 4 applications upon request.

Q: What cybersecurity features protect the baseplate communication interface from unauthorized access?
A: The 2401H operates within the Triconex security architecture supporting role-based access control, encrypted communication protocols, and audit logging. Compliance with IEC 62443 industrial cybersecurity standards is achieved through system-level configuration rather than baseplate-specific features.

Take the Next Step

Ready to enhance your safety instrumented system with proven Triconex reliability? Contact our technical sales team today for application-specific recommendations, competitive quotations, and delivery scheduling. Our engineers are standing by to assist with system design validation, compatibility verification, and integration planning.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance.
