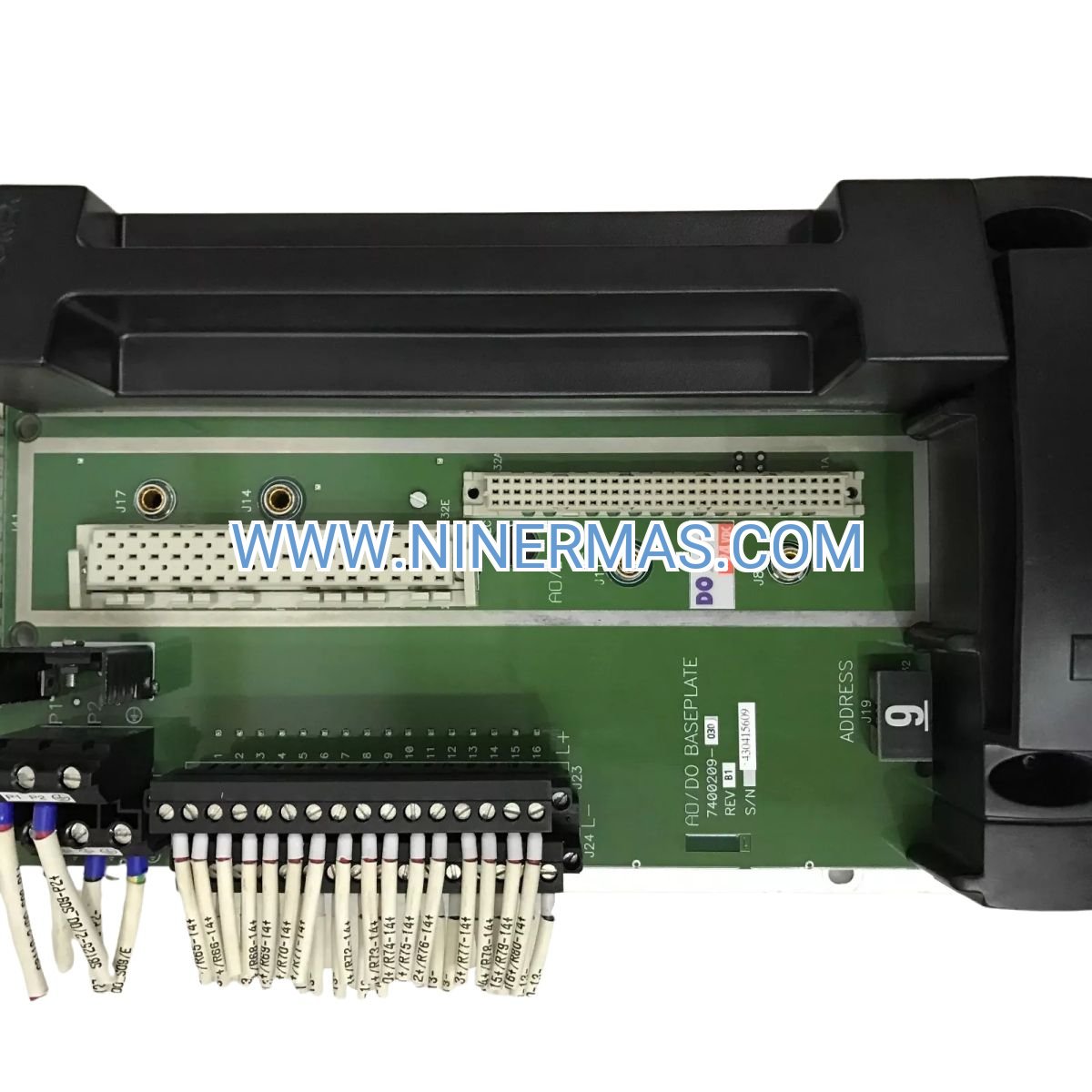

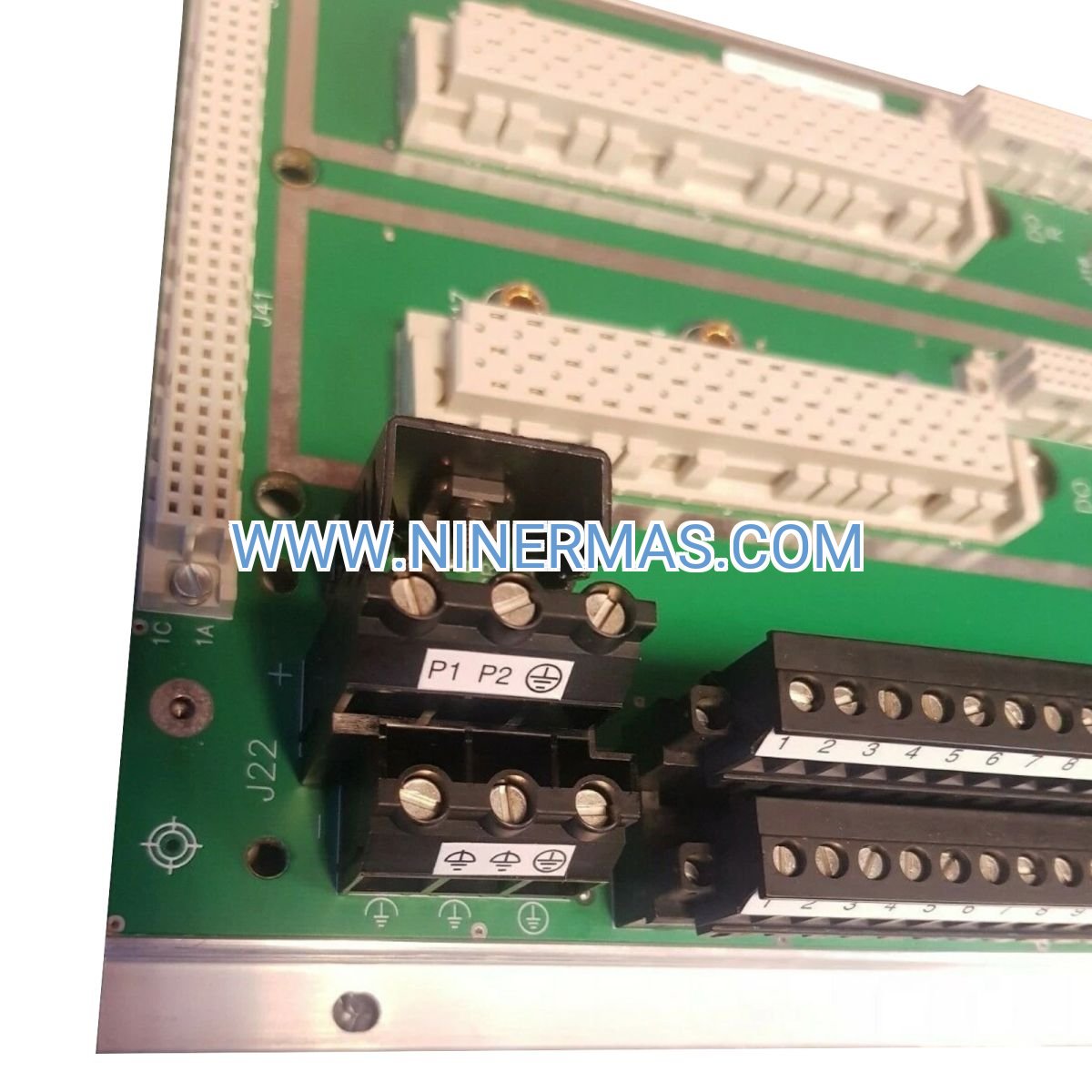

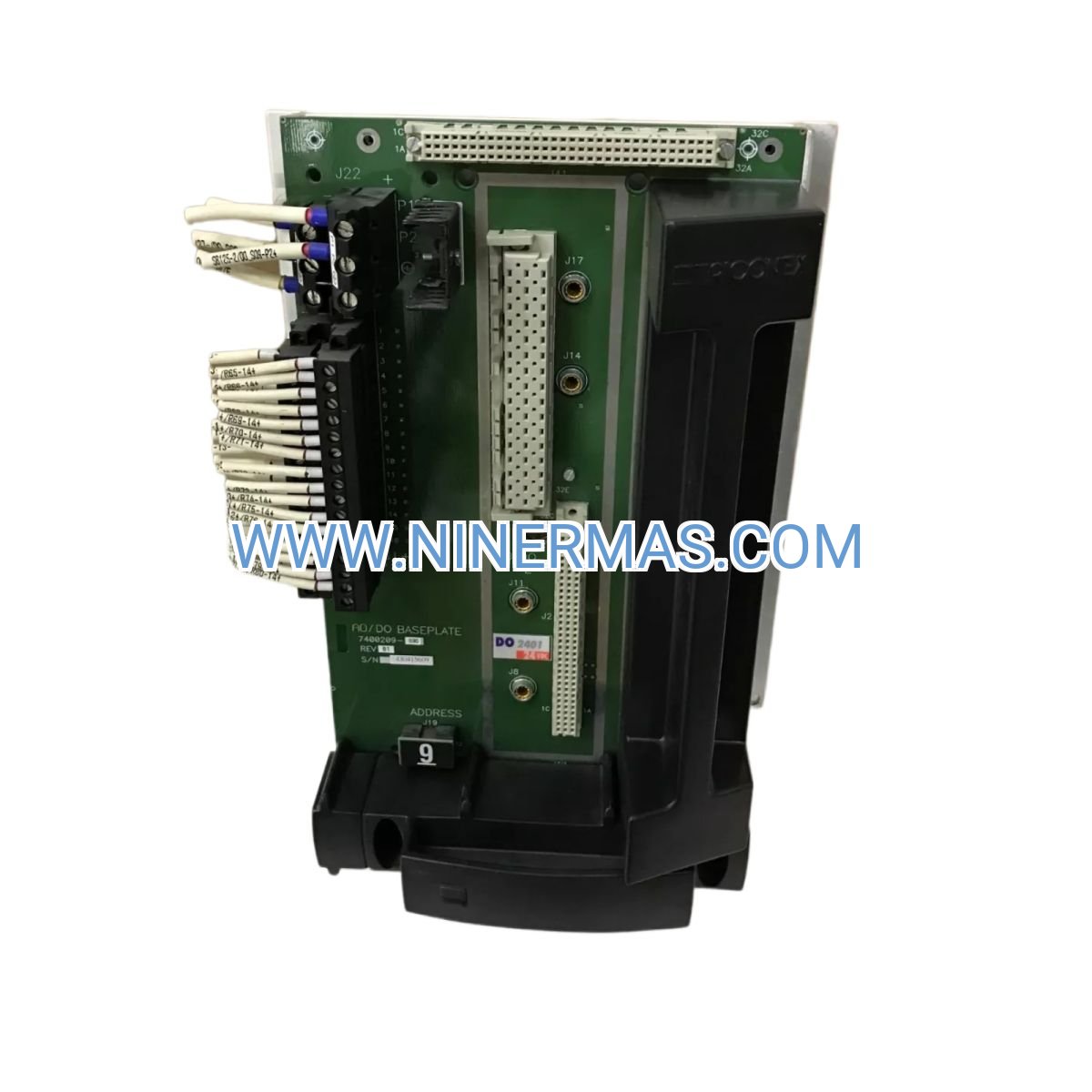

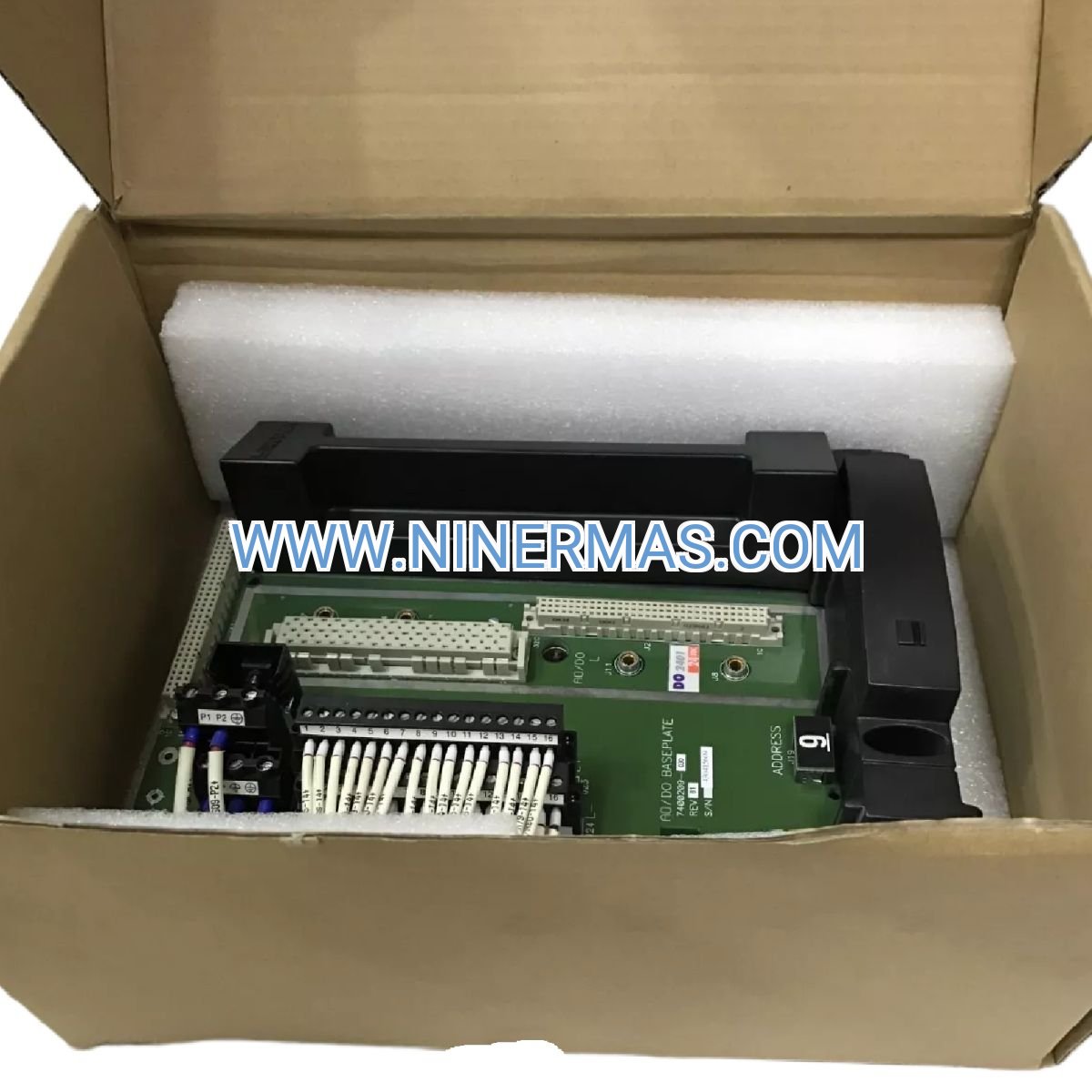

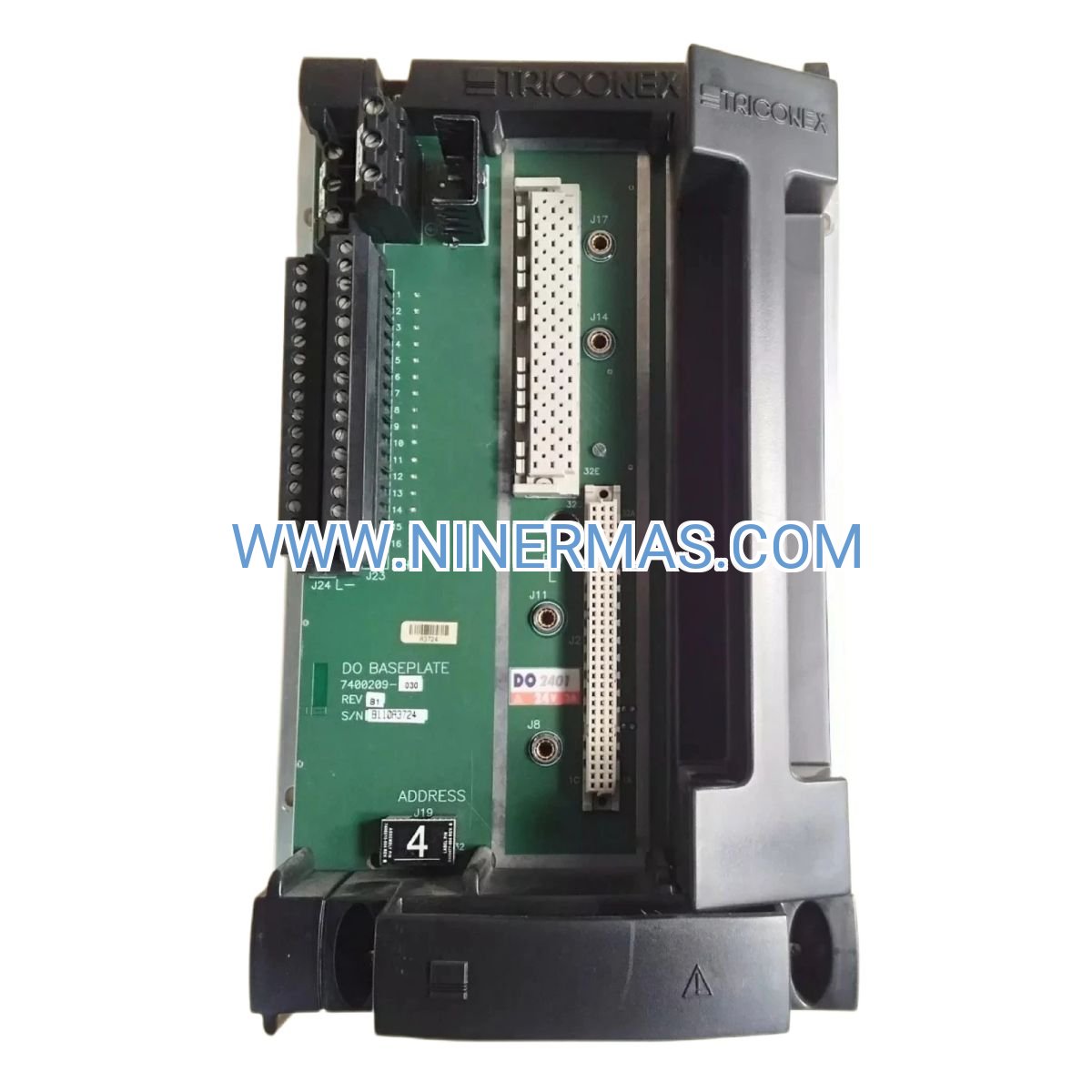

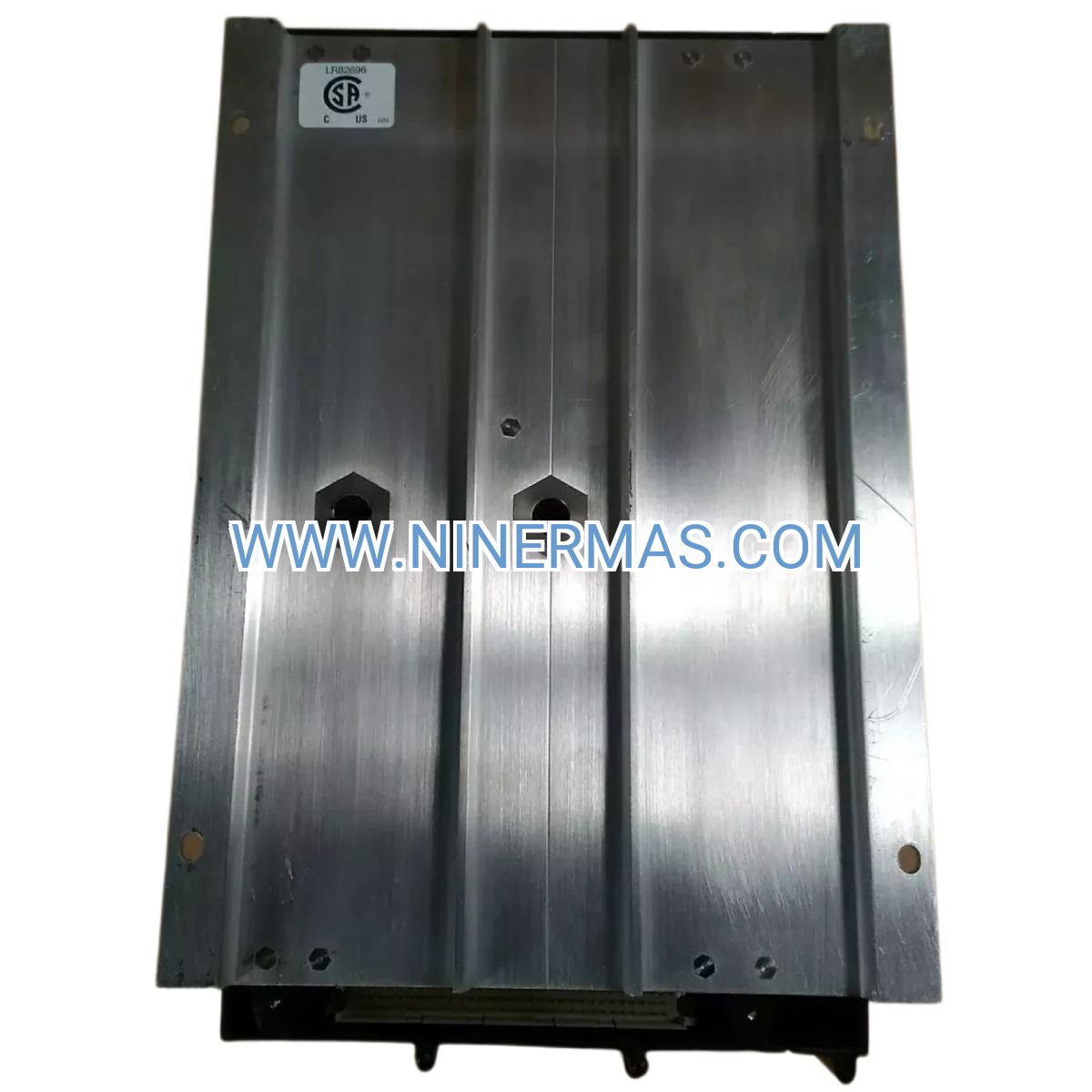

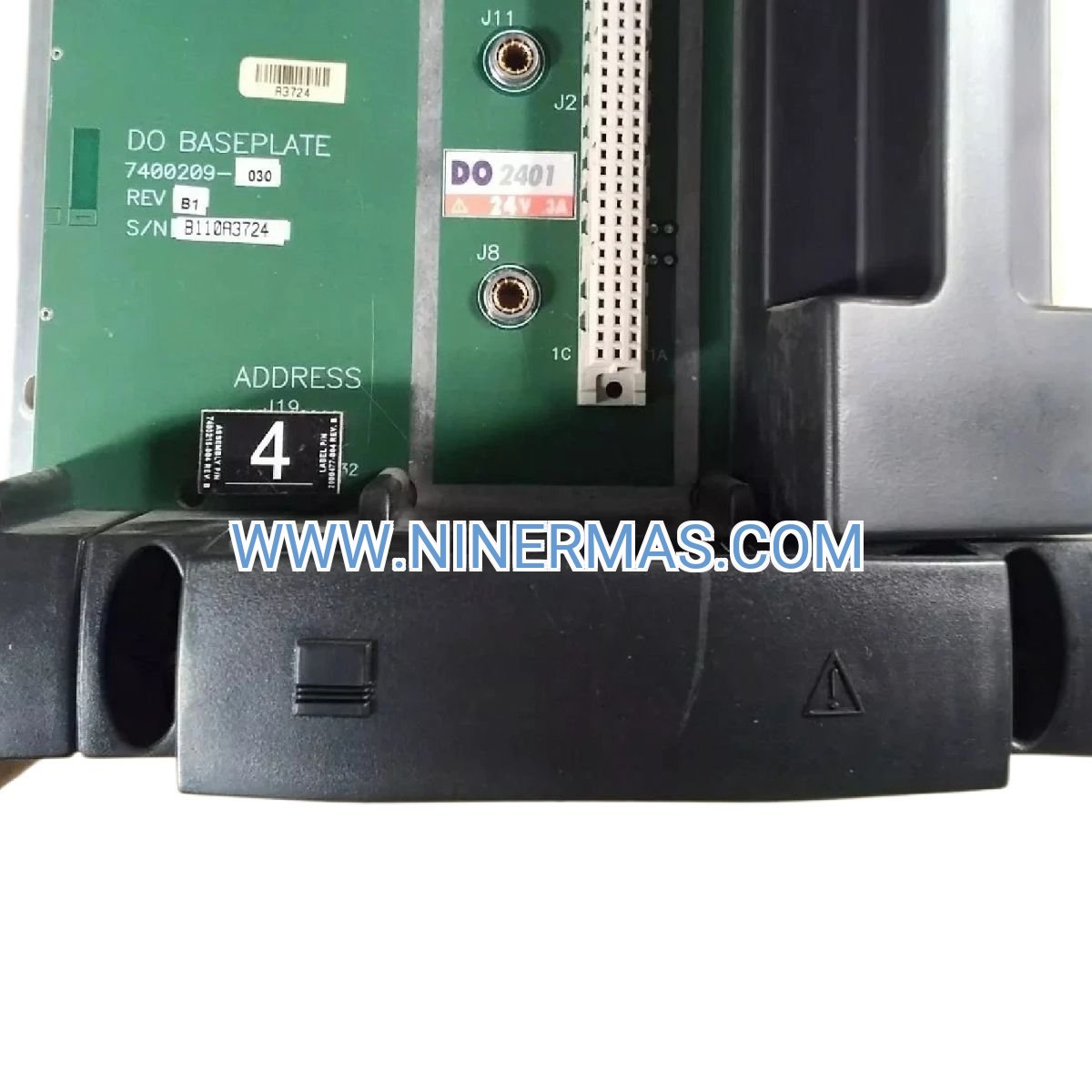

Triconex 2401 Digital Output Baseplate – Industrial-Grade TMR Foundation

The Triconex 2401 baseplate delivers a mission-critical mounting infrastructure for 16-channel digital output modules within Schneider Electric's Triple Modular Redundancy (TMR) safety architecture. Designed for continuous operation in hazardous environments, this platform ensures fault-tolerant performance across petrochemical refineries, offshore platforms, power generation facilities, and pharmaceutical manufacturing lines.

Built to withstand extreme temperatures (-40°C to +70°C) and electromagnetic interference, the 2401 baseplate provides the backbone for safety instrumented systems (SIS) requiring SIL 3 certification under IEC 61508 standards. Its hot-swappable architecture enables module replacement during live operations, eliminating costly process shutdowns while maintaining triple-redundant signal integrity.

Whether you're upgrading legacy Tricon systems or deploying new emergency shutdown (ESD) networks, the 2401 baseplate integrates seamlessly with Trident controllers, communication modules, and redundant power supplies—delivering the reliability demanded by safety-critical applications where failure is not an option.

Core Features & Benefits

→ Triple Modular Redundancy (TMR) Architecture
Patented three-channel voting logic ensures continuous operation even when individual components fail. Real-time fault detection and automatic failover protect against single-point failures, achieving 99.99% uptime in safety-critical applications.

→ Hot-Swappable Module Support
Replace or upgrade digital output modules without de-energizing the system. This capability reduces maintenance windows by 75% and prevents production losses averaging $50,000–$200,000 per unplanned shutdown in process industries.

→ Enhanced EMI/RFI Shielding
Integrated grounding architecture and gold-plated backplane connectors maintain signal accuracy in electrically noisy environments. Tested to withstand 10V/m field strength per IEC 61000-4-3, ensuring reliable operation near VFDs, welding equipment, and high-voltage switchgear.

→ Diagnostic LED Array
Front-panel indicators provide instant visibility into power status, module communication health, and fault conditions. Color-coded LEDs (green/amber/red) accelerate troubleshooting, reducing mean time to repair (MTTR) by up to 40% compared to systems without visual diagnostics.

→ DIN Rail Mounting Flexibility
Universal mounting system supports both vertical and horizontal orientations within standard 19-inch racks or custom enclosures. Tool-free installation reduces commissioning time while maintaining vibration resistance per IEC 60068-2-6 standards.

→ Wide Environmental Operating Range
Operates reliably from -40°C to +70°C with 5%–95% non-condensing humidity tolerance. Conformal coating protects against corrosive atmospheres, salt spray, and chemical exposure common in offshore and heavy industrial settings.

Typical Application Scenarios

✓ Emergency Shutdown Systems (ESD)
Scenario: Refinery crude distillation unit requires fail-safe valve control during overpressure events.
Pain Point: Single-channel systems create unacceptable risk of spurious trips or dangerous failures.
Value Delivered: TMR architecture provides 2oo3 voting logic, eliminating 98% of nuisance shutdowns while maintaining SIL 3 safety integrity. Operators gain confidence in system reliability, reducing insurance premiums and regulatory scrutiny.

✓ Fire & Gas Detection Networks
Scenario: Offshore platform monitors 200+ combustible gas detectors and activates deluge systems.
Pain Point: Environmental conditions (salt fog, vibration) cause frequent I/O failures and false alarms.
Value Delivered: Hot-swappable modules enable repairs during production without platform evacuation. Enhanced shielding reduces false trips by 60%, saving $2M+ annually in lost production and emergency response costs.

✓ Burner Management Systems (BMS)
Scenario: Power plant boiler controls fuel valves, ignition sequences, and flame monitoring per NFPA 85.
Pain Point: Aging relay-based systems lack diagnostic capabilities and require annual shutdowns for testing.
Value Delivered: Continuous self-diagnostics and online testing reduce proof test intervals from 12 months to 24 months. Diagnostic LEDs identify failing components before they impact operations, preventing unplanned outages.

✓ Turbomachinery Protection
Scenario: Compressor train protection system monitors vibration, temperature, and surge conditions.
Pain Point: Catastrophic failures cost $5M–$15M in equipment damage plus 3–6 months downtime.
Value Delivered: Sub-10ms response time enables protective shutdowns before damage occurs. TMR redundancy ensures protection remains active even during maintenance or component failures.

✓ Pharmaceutical Batch Processing
Scenario: Sterile manufacturing controls CIP/SIP valves, agitator motors, and transfer pumps.
Pain Point: FDA 21 CFR Part 11 compliance requires audit trails and validated system changes.
Value Delivered: TriStation software provides complete configuration management and change tracking. Hot-swappable modules enable repairs without breaking sterile barriers or invalidating batch records.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose the 2401 baseplate when deploying 16-channel digital output modules (3625A, 3636R series)
• For 32-channel configurations, consider dual baseplate installations with load balancing
• Verify compatibility with existing Tricon main processors (MP3008, MP3009) and firmware versions
• Ensure adequate chassis space: each baseplate occupies one slot in standard Triconex enclosures
• Plan for 20% spare capacity to accommodate future I/O expansion without system redesign

Extended Functions

IoT Integration & Remote Monitoring
When paired with Triconex TCM communication modules (4351A, 4352, 4354), the 2401 baseplate enables real-time data streaming to SCADA systems, historians, and cloud analytics platforms. OPC UA and Modbus TCP protocols support integration with Schneider Electric EcoStruxure, Rockwell FactoryTalk, and Siemens WinCC environments.

Advanced Diagnostics
TriStation 1131 software provides deep visibility into baseplate health metrics including backplane voltage levels, module insertion status, and thermal conditions. Predictive maintenance algorithms analyze trend data to forecast component end-of-life 6–12 months in advance.

Customization Options
Factory-configured baseplates are available with pre-installed terminal blocks, custom labeling, and application-specific wiring harnesses. Consult our engineering team for high-vibration environments requiring additional mechanical reinforcement or conformal coating upgrades.

Delivery & Service Assurance

Lead Time:
→ Standard units: 3–5 business days (in-stock items)
→ Custom configurations: 2–3 weeks (factory lead time)
→ Express shipping: Next-day delivery available for critical outages

Warranty Coverage:
→ 12-month manufacturer warranty against defects in materials and workmanship
→ Extended warranty plans available (24/36 months) with priority RMA processing
→ Advance replacement program minimizes downtime to <24 hours

Technical Support:
→ Pre-sales application engineering: System sizing, I/O mapping, safety calculations
→ Installation guidance: Wiring diagrams, grounding best practices, commissioning checklists
→ Post-sales troubleshooting: Remote diagnostics, firmware updates, configuration backup/restore
→ Training services: TriStation software, TMR theory, IEC 61511 compliance

Documentation Package:
→ Installation manual with dimensional drawings and torque specifications
→ Wiring diagrams for common output module configurations
→ Safety manual detailing SIL 3 certification and proof test procedures
→ Spare parts catalog with recommended inventory levels

Frequently Asked Questions

Q: What is the maximum number of 2401 baseplates supported in a single Triconex chassis?
A: Standard Tricon chassis accommodate up to 14 I/O baseplates. Actual capacity depends on power budget (each baseplate draws 5W) and main processor model. Consult system configuration tools in TriStation software for precise limits.

Q: Can I mix 24V DC and 120V AC output modules on the same baseplate?
A: No. Each baseplate supports a single voltage class to maintain electrical isolation and safety integrity. Use separate baseplates for different output voltage requirements, clearly labeled to prevent wiring errors.

Q: How do I perform online module replacement without causing spurious trips?
A: Use TriStation software to place the target module in "bypass" mode, which removes it from voting logic. Extract the module, install the replacement, and restore to "active" mode. The TMR architecture maintains output control throughout the process.

Q: Is the 2401 compatible with legacy Tricon systems installed before 2010?
A: Yes, the 2401 maintains backward compatibility with Tricon generations dating to the late 1990s. However, verify main processor firmware is v10.0 or later for full diagnostic support. Contact Schneider Electric for migration planning assistance.

Q: What cable types are recommended for field wiring connections?
A: Use shielded twisted-pair (STP) cable with 18 AWG conductors for 24V DC outputs. For 120V AC outputs, use 16 AWG minimum per NEC Article 725. Maximum recommended cable length is 300 meters; consult voltage drop calculators for longer runs.

Q: How often should I perform proof testing on the 2401 baseplate?
A: IEC 61511 requires proof testing at intervals determined by safety integrity level (SIL) calculations. For SIL 3 applications, typical intervals are 12–24 months. The baseplate itself has a low failure rate; focus testing on connected output modules and field devices.

Order Your Triconex 2401 Baseplate Today

Ensure your safety instrumented systems deliver the reliability your operations demand. Our global inventory and expedited shipping guarantee rapid deployment, while our technical team provides the expertise to maximize system performance.

Ready to upgrade your TMR infrastructure? Contact our application engineers for system sizing, compatibility verification, and volume pricing. We support projects from single-baseplate replacements to complete greenfield installations.
